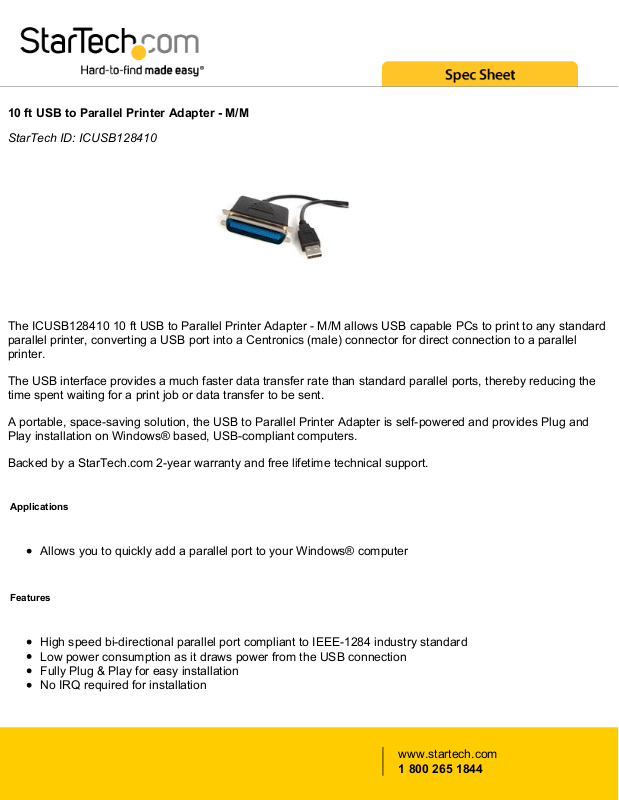

Startech ICUSB128410 User Manual

10 ft USB to Parallel Printer Adapter - M/M

StarTech ID: ICUSB128410

The ICUSB128410 10 ft USB to Parallel Printer Adapter - M/M allows USB capable PCs to print to any standard
parallel printer, converting a USB port into a Centronics (male) connector for direct connection to a parallel
printer.

The USB interface provides a much faster data transfer rate than standard parallel ports, thereby reducing the
time spent waiting for a print job or data transfer to be sent.

A portable, space-saving solution, the USB to Parallel Printer Adapter is self-powered and provides Plug and
Play installation on Windows® based, USB-compliant computers.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Applications

Allows you to quickly add a parallel port to your Windows® computer

Features

High speed bi-directional parallel port compliant to IEEE-1284 industry standard
Low power consumption as it draws power from the USB connection
Fully Plug & Play for easy installation
No IRQ required for installation

www.startech.com

1 800 265 1844

Technical Specifications

Warranty 2 Years
Bus Type USB 2.0
Chipset ID Prolific - PL-2305
Interface Parallel
Ports 1
Connector Type(s) 1 - Centronics (36 pin) Male
Connector Type(s) 1 - USB A (4 pin) Male
OS Compatibility Windows® 8 / 8.1 (32/64bit), 7 (32/64), Vista (32/64), XP (32/64), 2000, ME, 98SE

Windows Server® 2012, 2008 R2, 2003, 2000
Mac OS® 10.x (Tested up to 10.10)

Linux 2.6.x – 3.9.x
Color Black
Product Length 10 ft [3 m]
Product Weight 7.1 oz [200 g]
Power Consumption .90mA
Power Source USB-Powered
Humidity 0~80% RH Non-condensing
Operating Temperature 5°C to 40°C (41°F to 104°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
Shipping (Package) Weight 0.8 lb [0.3 kg]
Included in Package 1 - USB to Parallel Converter Cable

Certifications, Reports and Compatibility

www.startech.com

1 800 265 1844
