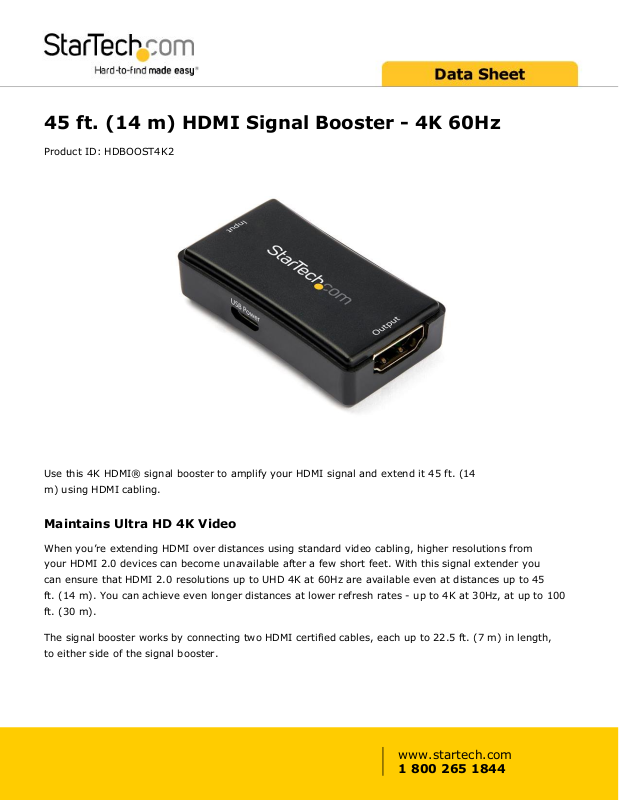

45 ft. (14 m) HDMI Signal Booster - 4K 60Hz
Product ID: HDBOOST4K2
Use this 4K HDMI® signal booster to amplify your HDMI signal and extend it 45 ft. (14
m) using HDMI cabling.
Maintains Ultra HD 4K Video
When you’re extending HDMI over distances using standard video cabling, higher resolutions from
your HDMI 2.0 devices can become unavailable after a few short feet. With this signal extender you
can ensure that HDMI 2.0 resolutions up to UHD 4K at 60Hz are available even at distances up to 45
ft. (14 m). You can achieve even longer distances at lower refresh rates - up to 4K at 30Hz, at up to 100
ft. (30 m).
The signal booster works by connecting two HDMI certified cables, each up to 22.5 ft. (7 m) in length,
to either side of the signal booster.
www.startech.com
1 800 265 1844
Hassle-Free Installation
With its compact design, the HDMI signal amplifier is easy to hide, for a discreet installation. By extending
your video signal using HDMI certified cables, the inline booster is a cost-effective alternative to more
expensive extension systems that require the installation of a CAT5 or CAT6 cabling infrastructure.
Supports Several Distances
Support for a variety of extension distances makes the 4K repeater perfect for multi-device deployment
across large institutions, such as boardrooms in corporate offices, classrooms in schools, or waiting rooms
in hospitals, as these applications may require varied distances in different rooms.
HDBOOST4K2 is backed by a 2-year StarTech.com warranty with free lifetime technical support.
Note: To achieve resolutions up to 4K 60Hz, your video source, display and cabling must
support HDMI 2.0.
www.startech.com
1 800 265 1844
Certifications, Reports
and Compatibility
Applications
• Amplify your 4K video signals up to 45 ft. (14 m)
• Boost the signal strength of your HDMI video signals in classrooms,
offices and boardrooms
• Avoid network cabling to extend video signals, using this extender
with standard HDMI cables
Features
• Astonishing picture quality with support for resolutions up to 4K 60Hz
at up to 45 ft. (14 m) away from your video source
• Extender is backward compatible with 1080p (or lower) resolutions
• Works with two HDMI certified cables
• Supports HDCP 2.2
• Supports 7.1 surround sound audio
www.startech.com
1 800 265 1844
Warranty 2 Years
Hardware Audio Yes
AV Input HDMI
AV Output HDMI
Cabling HDMI
Daisy-Chain No
Rack-Mountable No
Performance Audio Specifications DTS
Dolby Digital
Bandwidth 18Gbps
Max Distance 14 m / 45 ft
Video Revision HDMI 2.0
Wide Screen Supported Yes
Connector(s) Connector A 1 - HDMI (19 pin) Female Input
Connector B 1 - HDMI (19 pin) Female Output
Power Plug Type USB Micro-B
Power Consumption (In Watts) <2.5
Power Source Not Included (not required for standard applications)
Environmental Humidity 5% to 90% RH
Operating Temperature 0°C to 70°C (32°F to 158°F)
Storage Temperature -10°C to 80°C (14°F to 176°F)
Physical
Characteristics
Color Black
Enclosure Type Plastic
Product Height 13.700
Product Length 28.500
Product Width 52.000
Weight of Product 15.000
Packaging
Information
Package Height 28.000
Package Length 61.000
Package Width 81.000
Shipping (Package) Weight 30.000
www.startech.com
1 800 265 1844
What's in the Box Included in Package 1 - HDMI Signal Booster
1 - 1 ft [30 cm] Micro USB Power Cable
1 - Quick-Start Guide
Product appearance and specifications are subject to change without notice.
