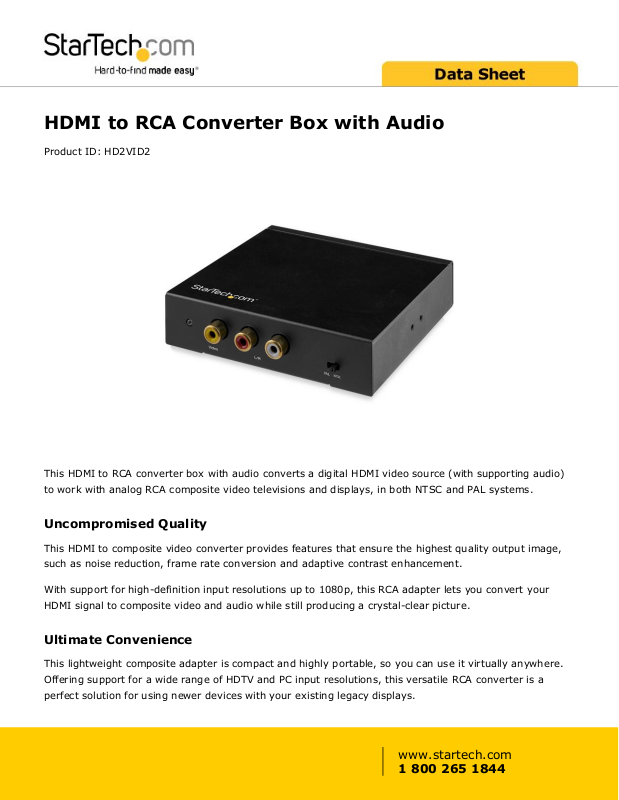

HDMI to RCA Converter Box with Audio
Product ID: HD2VID2
This HDMI to RCA converter box with audio converts a digital HDMI video source (with supporting audio)
to work with analog RCA composite video televisions and displays, in both NTSC and PAL systems.
Uncompromised Quality
This HDMI to composite video converter provides features that ensure the highest quality output image,
such as noise reduction, frame rate conversion and adaptive contrast enhancement.
With support for high-definition input resolutions up to 1080p, this RCA adapter lets you convert your
HDMI signal to composite video and audio while still producing a crystal-clear picture.
Ultimate Convenience
This lightweight composite adapter is compact and highly portable, so you can use it virtually anywhere.
Offering support for a wide range of HDTV and PC input resolutions, this versatile RCA converter is a
perfect solution for using newer devices with your existing legacy displays.
www.startech.com
1 800 265 1844
The ability to convert and use your new HDMI equipped device with your older televisions or displays not
only offers flexibility but also saves you the cost of upgrading hardware, making it extremely convenient
for home or office applications.
Hassle-Free Setup
To ensure easy operation and installation, this unique RCA composite video converter allows for plug-and-
play installation without any additional software or drivers.
HD2VID2 is backed by a 2-year StarTech.com warranty and free lifetime technical support.
www.startech.com
1 800 265 1844
Certifications, Reports
and Compatibility
Applications
• Convert your HDMI signal to RCA composite video
• Continue to use standard definition displays with HDMI source
devices
• Ideal for presentations that use dated projection systems
• Stream your new home videos onto your older TVs/displays
Features
• Convert your current HDMI® source to composite video and audio
(yellow, white and red outputs)
• Achieve HDTV resolutions with support for up to 1080p
• Support for multiple HDTV and PC input resolutions, compatible with
almost any HDMI source device
• Hassle-free setup with simple plug-and-play installation
• Equipped with Overscan/Underscan functionality
www.startech.com
1 800 265 1844
Warranty 2 Years
Hardware Active or Passive Adapter Active
Audio Yes
AV Input HDMI
AV Output Audio RCA
Composite
Industry Standards Standard HDMI, DVI 1.0
Performance Audio Specifications Input - LPCM 2Ch, 48kHz
Output - Stereo L/R
Supported Resolutions Input
TV - 1080p, 720p, 576p, 480p @ 60Hz
PC - 1920x1080, 1280x800, 1280x768, 1224x768,
800x600, 640x480 @ 60Hz
Output
480i, 576p
Connector(s) Connector A 1 - HDMI (19 pin) Female Input
Connector B 1 - Composite Video (1 x RCA) Female Output
Input Connector(s) 1 - Stereo Audio (2 x RCA) Female Output
Indicators LED Indicators 1 - Input LED
1 - Power LED
Power Input Current 0.4 A
Input Voltage 100 ~ 240 AC
Output Current 2000 mA
Output Voltage 5 DC
Plug Type M
Power Source AC Adapter Included
Environmental Humidity 20~90% RH
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Physical
Characteristics
Color Black
Product Height 1 in [2.5 cm]
Product Length 4.1 in [10.4 cm]
Product Width 4.1 in [10.3 cm]
www.startech.com
1 800 265 1844
Weight of Product 7.9 oz [225 g]
Packaging
Information
Package Height 2.2 in [55 mm]
Package Length 8.7 in [22 cm]
Package Width 7.5 in [19 cm]
Shipping (Package) Weight 0.7 lb [0.3 kg]
What's in the Box Included in Package 1 - HDMI to Composite Converter
1 - Universal Power Adapter (NA/JP, EU, UK, ANZ)
2 - Mounting Brackets
4 - Screws
1 - User Manual
Product appearance and specifications are subject to change without notice.
