7-Port Industrial USB Hub - USB 2.0 - 15kV ESD
Protection
Product ID: HB20A7AME
This TAA compliant 7-port industrial USB hub provides seven USB 2.0 ports to connect your devices. The
USB 2.0 hub can be surface or DIN rail mounted, providing convenient USB connectivity in a work area,
server room, or industrial environment.
Built for tough environments
The USB hub, with its rugged metal housing and IP30 protection rating, is built to meet the harsh
demands of industrial environments. To keep connections secure and protect against accidental
disconnections, the hub supports screw-locking cables. The 15kV ESD Protection (Level 4) reduces the
risk of disruption caused by high static industrial environments, which can lead to costly service calls and
downtime. To ensure maximum performance in areas with extreme temperature variances, the industrial
USB hub provides an extended temperature range (-40°C - 85°C).
www.startech.com
1 800 265 1844
Flexible power options
The hub's wide-range 7-48V DC terminal block input gives you the flexibility to power the hub as required,
based on your own power input capabilities.
Easy setup and use
For easy port access, the 7-port industrial USB hub can be surface or wall-mounted, and includes an
optional DIN rail mount kit. The ports are plug-and-play making it easy to connect printers, cameras,
sensors and other devices. Each port in the USB hub also features its own Transaction Translator (TT), to
assist with load balancing and ensure each port can operate at peak performance.
The HB20A7AME is backed by a StarTech.com 2-year warranty and free lifetime technical support.
www.startech.com
1 800 265 1844

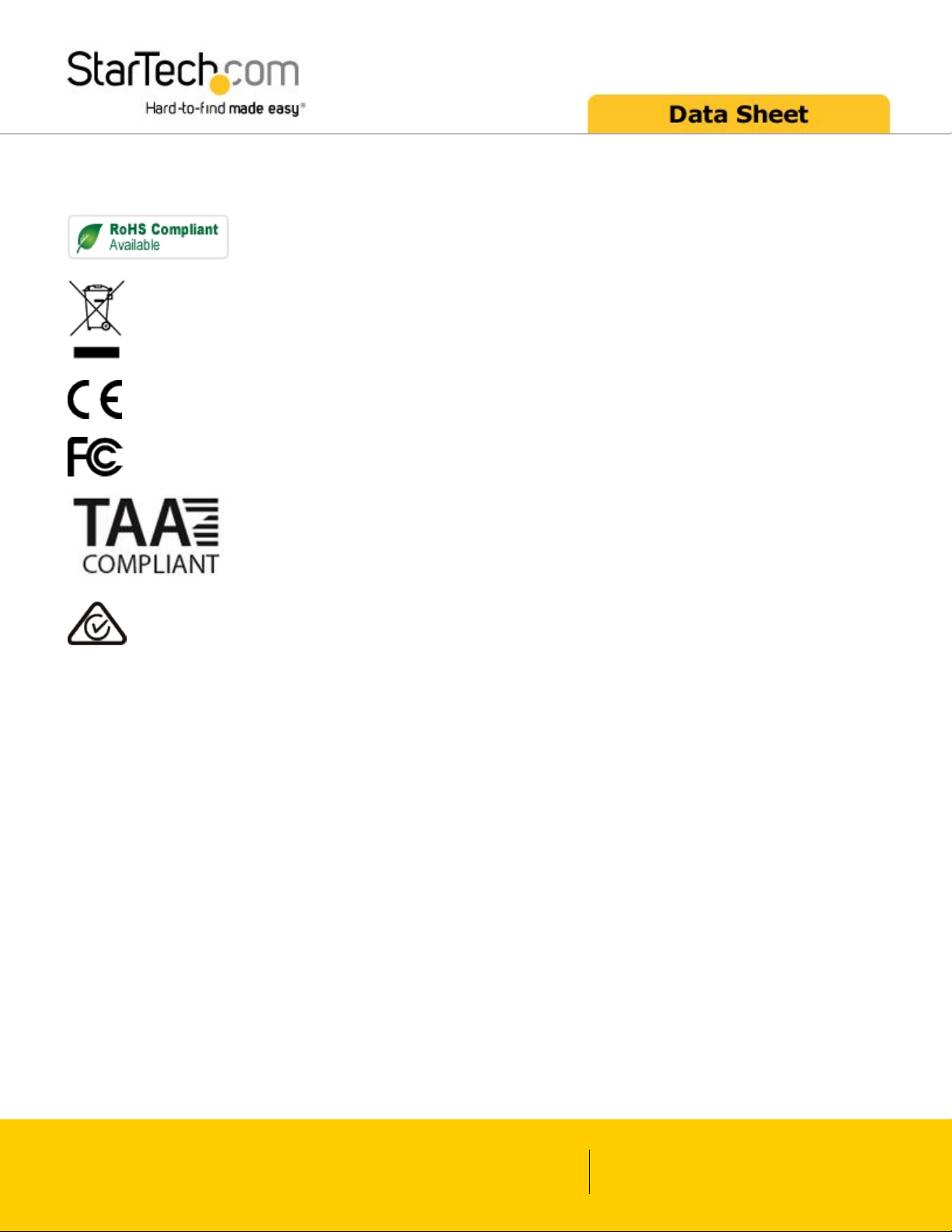

Certifications, Reports
and Compatibility
Applications
• Install the USB hub in harsh environments subject to temperature
extremes, ideal for factories, utilities, engineering or other
environments
• Deploy on assembly lines where only terminal block power is
available
• Connect industrial printers, scanners, cameras, sensor and
monitoring equipment, keyboard, mouse, and many other USB
devices
Features
• TAA Compliant
• Expand your USB connectivity with seven USB 2.0 ports
• Protect your installation with 15kV ESD Protection Level 4
• Wide-range 7-48V DC terminal block powered: 7 ~ 48VDC
• Extended temperature range: -40 to 85°C
• Rugged metal hub provides a secure connection with USB (host)
screw-lock cable mechanism
www.startech.com
1 800 265 1844
Warranty 2 Years
Hardware Bus Type USB 2.0
Chipset ID Genesys Logic - GL852GT
Industry Standards USB 2.0
Interface USB 2.0
Ports 7
USB-C Host Connection No
Performance ESD Protection +/-15kV (Air)
+/-8kV (Contact)
Maximum Data Transfer Rate 480 Mbps
Type and Rate USB 2.0 - 480 Mbit/s
Connector(s) External Ports 1 - Terminal Block (3 Wire)
1 - USB B (4 pin) Female
7 - USB Type-A (4 pin) USB 2.0 Female
Software OS Compatibility OS independent; No software or drivers required
Special Notes /
Requirements
System and Cable Requirements Any computer with a USB 2.0 port
Indicators LED Indicators 1 - Power
Power Input Current 4A
Input Voltage 7 ~ 48 DC
Power Consumption (In Watts) 28 W
Power Source Terminal Block
Environmental Humidity 5 ~ 95% RH
Operating Temperature -40°C to 85°C (-40°F to 185°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Physical
Characteristics
Enclosure Type Metal
Form Factor Industrial
Product Height 2.5 in [63 mm]
Product Length 4.4 in [112 mm]
Product Weight 17.6 oz [500 g]
Product Width 1.7 in [43 mm]
www.startech.com
1 800 265 1844
Packaging
Information
Shipping (Package) Weight 24.7 oz [700 g]
What's in the Box Included in Package 1 - USB 2.0 hub
1 - 1.8 m [6 ft] USB-A to USB-B cable
1 - DIN rail kit
1 - instruction manual
Product appearance and specifications are subject to change without notice.
