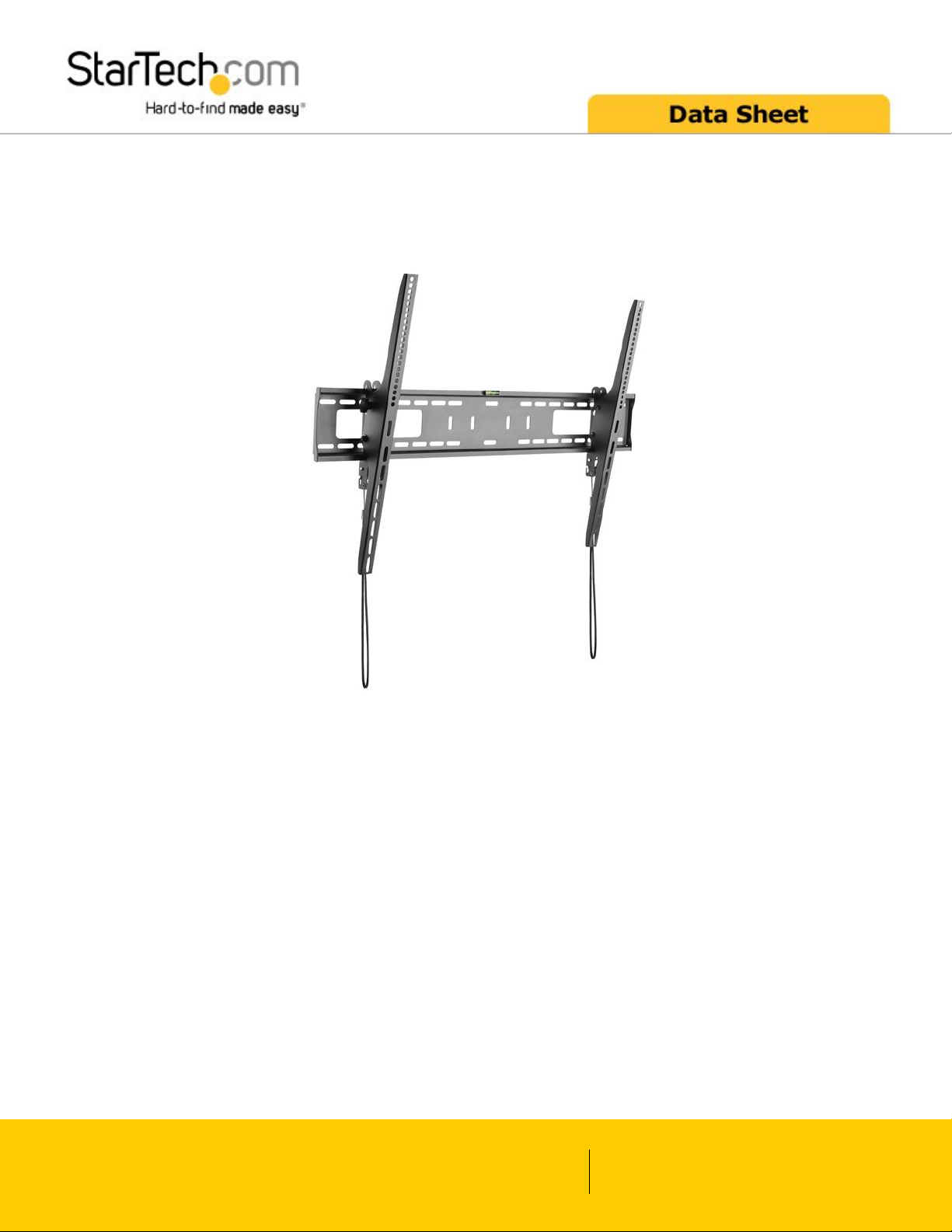

Flat-Screen TV Wall Mount - Tilting
Product ID: FPWTLTB1
Save space and create an impressive display by wall-mounting a large TV in a boardroom or customer-
facing area. This tilting flat-screen TV wall mount securely supports a TV up to 100" and features an
attractive low-profile design.
Create an Engaging Display for Digital Signage
Mount your large flat-screen TV in a location that's convenient for visitors, clients and employees. Create
an engaging display to keep guests informed or entertained, ideal in lobbies, lecture halls, restaurants,
health care centers and other meeting spaces.
The television wall mount supports most 60" to 100" (812.8 to 1778 mm) LED or LCD flat panel TVs
weighing up to 165 lb. (75 kg). It also supports curved TVs, with a compatible VESA mount up to
900x600.
www.startech.com
1 800 265 1844
Tilting Design for Optimal Viewing
Find the ideal viewing angle. The tilting TV wall mount lets you tilt your display up (maximum 5 degrees)
or down (maximum 10 degrees) with ease.
Low-Profile Design
Save space with this slim TV wall mount. With its low-profile design, your TV sits just 3.3" (85 mm) from
the wall.
Robust Steel Construction and Easy Installation
The heavy-duty TV mounting bracket securely supports your large flat-screen TV and is easy to install.
The spring locks allow quick attachment and release. The open architecture provides ventilation and easy
access to wires.
FPWTLTB1 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
www.startech.com
1 800 265 1844
Certifications, Reports
and Compatibility
Applications
• Securely wall-mount your TV in boardrooms, classrooms and meeting
spaces
• Keep visitors informed in hotels, restaurants, commercial facilities
and other venues
• Wall-mount your TV in your home theater or living room
Features
• Heavy-duty TV wall mount fits most 60” - 100” TVs up to 165 lb. (75
kg)
• Smooth +5° / -10° tilt for the ideal viewing angle
• Fits curved TVs, with compatible VESA mount
• Space-saving low profile design sits just 3.3” (85 mm) from the wall
• Spring locks for quick attachment and release
www.startech.com
1 800 265 1844
Warranty 2 Years
Hardware # of Displays Supported 1
Cable Management No
VESA Hole Pattern(s) 200x200 mm
300x200 mm
300x300 mm
400x200 mm
400x300 mm
600x400 mm
600x600 mm
800x600 mm
900x600 mm
Wallmountable Yes
Performance Anti-theft No
Fits Curved TV Yes
Maximum Display Size 100"
Minimum Display Size 60"
Tilt + 5° / - 10°
Video Wall No
Weight Capacity (Per Display) 165.8 lb [75 kg]
Physical
Characteristics
Color Black
Enclosure Type Steel and Plastic
Product Height 3.3 in [85 mm]
Product Length 37.6 in [954 mm]
Product Weight 7.7 lb [3.5 kg]
Product Width 24.6 in [625 mm]
Packaging
Information
Shipping (Package) Weight 8.2 lb [3.7 kg]
What's in the Box Included in Package 1 - Wall Bracket
2 - Vertical Brackets
2 - Tilt-Adjustment Knobs
www.startech.com
1 800 265 1844
1 - Bubble Level
4 - M5 x 14 Screws
4 - M6 x 14 Screws
4 - M6 x 30 Screws
4 - M8 x 30 Screws
4 - M8 x 50 Screws
4 - Rectangular Washers
8 - Small Spacers
8 - Large Spacers
6 - Wall Screws
6 - Concrete Anchors
6 - Round Washers
1 - Instruction Manual
Product appearance and specifications are subject to change without notice.
