Startech FPCEILBTB User Manual

Download
Ceiling TV Mount | Back-to-Back | Dual Display
Actual product may vary from image shown
User Manual
SKU#: FPCEILBTB
For the latest information and specications visit
www.startech.com/FPCEILBTB
Manual Revision: 01/08/2019

Compliance Statements

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols
This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.
1

Safety Statements

Safety Measures
• Product installation and/or mounting should be completed by a certied professional as per the local safety and building code guidelines.
• Cables (including power and charging cables) should be placed and routed to avoid creating electric, tripping or safety hazards.
Mesures de sécurité
• L’installation et/ou le montage du produit doit être réalisé par un professionnel certié et dans le respect des normes locales et du code de construction local.
• Les câbles (y compris les câbles d’alimentation et de chargement) doivent être placés et acheminés de façon à éviter tout risque électrique, de chute ou de sécurité
安全対策
• 製品の設置やマウントは、使用地域の安全ガイドラインおよび建築基準に 従い、有資格の専門業者が行うようにしてください。
• ケーブル（電源ケーブルと充電ケーブルを含む）は、適切な配置と引き回し を行い、電気障害やつまづきの危険性など、安全上のリスクを回避するよう にしてください 。
Misure di sicurezza
• L’installazione e/o il montaggio dei prodotti devono essere eseguiti da un tecnico professionale certicato che conosca le linee guida locali sulle norme edilizie e sulla sicurezza.
• I cavi (inclusi i cavi di alimentazione e di ricarica) devono essere posizionati e stesi in modo da evitare pericoli di inciampo, rischi di scosse elettriche o pericoli per la sicurezza.
2
Säkerhetsåtgärder
• Installation och/eller montering får endast göras av behöriga yrkespersoner och enligt gällande lokala förordningar för säkerhet och byggnormer.
• Kablar (inklusive elkablar och laddningskablar) ska dras och placeras på så sätt att risk för snubblingsolyckor och andra olyckor kan undvikas.

Warning Statements

• Make sure to assemble this product according to the instructions. Failure to do so might result in personal injury or property damage.
• Never operate this product if parts are missing or damaged.
• Ceiling structures vary, and it’s important to make sure that the type of ceiling structure and mounting hardware that you’re using will properly support the mounted equipment. Failure to do so may result in personal injury and/or equipment damage. The ceiling structure should be capable of supporting at least four times the weight of the mounted equipment.
• The mounting hardware included with this product might not be adequate for some ceiling structures. If you lack the necessary expertise to attach this product to the ceiling structure that you’re using, contact a construction professional to install the ceiling mount or to provide specic mounting instructions for your ceiling structure.
Varningsmeddelanden
• Se till att du monterar produkten i enlighet med instruktionerna. Om du inte gör det kan skada på person eller egendom uppstå.
• Använd aldrig produkten om delar saknas eller är skadade.
• Eftersom innertakstrukturer varierar är det viktigt att kontrollera att innertakstrukturer och monteringsutrustningen som du använder klarar av den monterade utrustningen. Om du inte gör det kan skada på person och/ eller utrustning uppstå. Innertakstrukturer ska kunna klara av minst fyra gånger vikten av den monterade utrustningen.
• Monteringsutrustningen som medföljer produkten kanske inte är lämplig för vissa innertakstrukturer. Om du saknar nödvändiga kunskaper för att fästa denna produkt på innertakstrukturen som du använder, kontakta en professionell konstruktör för att installera utrustning eller för att ge specika monteringsinstruktioner för din innertakstruktur.
3
Avertissements
• Assemblez ce produit conformément aux instructions. Si vous ne respectez pas ces instructions, vous risquez de vous blesser ou d’endommager l’équipement.
• N’utilisez pas ce produit si des pièces sont endommagées ou manquantes.
• Les types de plafonds varient. Vous devez impérativement vérier que le type de plafond et le matériel de xation que vous utilisez permettent de soutenir correctement l’équipement. Dans le cas contraire, vous risquez des blessures corporelles ou des dommages matériels. La structure du plafond doit pouvoir supporter au moins quatre fois le poids de l’équipement monté.
• Le matériel de xation inclus avec ce produit n’est pas forcément approprié pour tous les types de plafond. Si vous ne disposez pas des compétences nécessaires pour installer ce produit au plafond, contactez un professionnel an qu’il installe l’équipment ou qu’il vous fournisse les instructions de montage spéciques à votre type de plafond..
Warnhinweise
• Zorg dat dit product volgens de instructies in elkaar wordt gezet. Indien dit niet goed gebeurt kan lichamelijk letsel of materiële schade ontstaan.
• Gebruik dit product nooit als er onderdelen ontbreken of beschadigd zijn.
• Omdat plafonds verschillen, is het belangrijk dat u ervoor zorgt dat de plafondstructuur en de montagemiddelen die u gebruikt de te monteren apparatuur goed ondersteunen. Indien u dit niet doet kan lichamelijk letsel en/of schade aan de apparatuur ontstaan. De plafondstructuur moet voldoende zijn om ten minste vier keer het gewicht van de gemonteerde apparatuur te ondersteunen.
• Het kan zijn dat de bij dit product geleverde montagemiddelen niet geschikt zijn voor sommige plafondstructuren. Als u onvoldoende kennis hebt om dit product aan de door u gebruikte plafondstructuur te bevestigen, neem dan contact op met een bouwkundige om de steun aan de muur te installeren of specieke montage-instructies voor uw plafondstructuur te geven.
4
Dichiarazioni di avvertenza
• Assemblare il prodotto rispettando le istruzioni. Il mancato rispetto delle istruzioni potrebbe causare danni a persone o proprietà.
• Non utilizzare il prodotto in presenza di parti mancanti o danneggiate.
• Le caratteristiche il sotto sono variabili ed è importante vericare che il sotto e l’hardware di montaggio in uso siano in grado di supportare adeguatamente le apparecchiature montate. Il mancato rispetto delle istruzioni potrebbe causare danni a persone o proprietà. Il sotto deve essere in grado di supportare un peso almeno quattro volte superiore a quello dell’apparecchiatura montata.
• L’hardware di montaggio incluso con il prodotto potrebbe non essere adeguato ad alcun sotto. Se l’utente non dispone delle competenze necessarie per agganciare il prodotto al sotto in uso, dovrà contattare un professionista edile per installare il supporto a parete o ottenere istruzioni di montaggio per il sotto in uso.
Mensagens de aviso
• Certique-se de que monta este produto de acordo com as instruções. O incumprimento pode resultar em ferimentos pessoais ou danos de propriedade.
• Nunca opere este produto se faltarem peças ou estas estiverem danicadas.
• As estruturas do teto variam e é importante certicar-se de que o tipo de estrutura do teto e hardware de montagem que está a usar irá suportar devidamente o equipamento montado. O incumprimento pode resultar em ferimentos pessoais e/ou danos no equipamento. A estrutura do teto deve ser capaz de suportar pelo menos quatro vezes o peso do equipamento montado.
• O hardware de montagem incluído com este produto pode não ser adequado para algumas estruturas do teto. Se não tiver o conhecimento necessário para xar este produto à estrutura do teto que está a usar, contacte um prossional de construção para fazer a instalação no teto ou para fornecer instruções de montagem especícas para a sua estrutura do teto.
Advertencias de uso
• Asegúrese de ensamblar este producto según las instrucciones. De lo contrario, pueden producirse lesiones personales o daños de propiedad.
• Nunca opere o ponga en funcionamiento este producto si faltan piezas o hay daños en las mismas.
• Las estructuras de los falsos techos pueden variar y, por tanto, es importante
5
determinar con certeza que el tipo de estructura del falso techo y el hardware de montaje que se va a utilizar para soportar debidamente el equipo. De lo contrario, se pueden producir lesiones personales o daños en el mismo. La estructura del falso techo debe ser capaz de soportar al menos cuatro veces el peso del componente instalado.
• El hardware de montaje incluido con este producto puede no ser adecuado para algunas estructuras de falso techo. Si no tiene la experiencia suciente para jar este producto a la estructura del falso techo correspondiente, póngase en contacto con un profesional de la construcción para instalar el soporte de falso techo o para que le proporcione las instrucciones especícas de montaje para su estructura de falso techo..
Waarschuwingen
• Zorg dat dit product volgens de instructies in elkaar wordt gezet. Indien dit niet goed gebeurt kan lichamelijk letsel of materiële schade ontstaan.
• Gebruik dit product nooit als er onderdelen ontbreken of beschadigd zijn.
• Omdat plafonds verschillen, is het belangrijk dat u ervoor zorgt dat de plafondstructuur en de montagemiddelen die u gebruikt de te monteren apparatuur goed ondersteunen. Indien u dit niet doet kan lichamelijk letsel en/of schade aan de apparatuur ontstaan. De plafondstructuur moet voldoende zijn om ten minste vier keer het gewicht van de gemonteerde apparatuur te ondersteunen.
• Het kan zijn dat de bij dit product geleverde montagemiddelen niet geschikt zijn voor sommige plafondstructuren. Als u onvoldoende kennis hebt om dit product aan de door u gebruikte plafondstructuur te bevestigen, neem dan contact op met een bouwkundige om de steun aan de muur te installeren of specieke montage-instructies voor uw plafondstructuur te geven.
6
注意
• 必ず取扱説明書に従って本製品の組み立てを行って下さい。
• 本製品は、室内での使用を想定しています。戸外では使用しないで下さい。
• 本製品は、非常に重いエンクロージャです。絶対に一人で持ち上げたり動かしたりしないで下さ い。
• 転倒注意！本製品から複数のコンポーネントが突き出した状態にしておくとエンクロージャが転 倒する恐れがあります。転倒リスクを回避するために、エンクロージャからはコンポーネントが突 き出 な いようにして 下さ い。
• 本製品の上に何も載せないで下さい。複数のエンクロージャを重ねて設置しないで下さい。
• 液体物をエンクロージャに近づけないようにして下さい。
• エンクロージャ自身と中に積載する装置の総重量に耐えられるエリアに設置して下さい。
• この製品にはアースが必要です。アース接続をしていない状態で本製品を使用しないでくださ い。
7
Table of Contents
Compliance Statements ........................................................................1
Safety Statements ..................................................................................2
Warning Statements ..............................................................................3
Product Diagram ....................................................................................9
Product Information ..............................................................................10
Package Contents ..................................................................................................................................... 10
Specications.............................................................................................................................................. 14
Requirements ............................................................................................................................................. 15
Installation ..............................................................................................16
Mounting the Ceiling Mount and Upper Pole Assembly ............................................................ 16
Assembly .................................................................................................16
Attaching the Extension Pole to the Upper Pole ...........................................................................16
Attaching the Horizontal Bracket ........................................................................................................ 18
Selecting the Appropriate Mounting Hardware ............................................................................ 19
Attaching the Vertical Brackets to a TV ............................................................................................. 22
Attaching the Vertical Brackets to a TV Using Spacers ................................................................ 23
Attaching the TVs to the Horizontal Bracket ...................................................................................24
Adjusting the TVs ................................................................................... 26
Adjusting the tilt ........................................................................................................................................ 26
Adjusting the Swivel ................................................................................................................................ 27
Adjusting the Vertical Position of the Ceiling T V Mount .............................................................27
8

Product Diagram

Extension
Pole
Ceiling Mount
Upper
Pole
Vertical
Brackets
(4)
Horizontal
Brackets
(2)
9

Product Information

Package Contents

1 2
Ceiling Mount and Upper Pole
Qty: 1
Extension Pole
Qty: 1
3 4
Vertical Bracket
Qty: 4
10
Horizontal Bracket
Qty: 2
5 6
Bolts
Qty: 2
7
Wrench
Qty: 1
8
Nuts
Qty: 2
Hex Key
Qty: 1
9 10
Mounting Template
Qty: 1
11
M5x14 mm Screws
Qty: 8
11
12
M6x14 mm Screws
Qty: 8
13
M8x30 mm Screws
Qty: 8
15
Rectangular Washers
Qty: 8
14
16
12
M6x30 mm Screws
Qty: 8
M8x50 mm Screws
Qty: 8
Short Spacers
Qty: 16
17
18
19
Long Spacers
Qty: 16
20
Concrete Anchors
Qty: 4
6.3x55 mm Screws
Qty: 4
Flat Washers
Qty: 4
21
Mounting Bracket
Qty: 1
13
Specications
Type of Measurement Measurement
VESA mounting hole pattern
Weight capacity Up to 99 lb. per mount
Tilt +5 to -20
200x200
300x300
400x200
400x400
600x400
(45 kg per mount)
Extension
+180 to -180
pole swivel
Extension 42” to 61” (1060 to 1560
mm)
Level adjustment +3 to -3
14
Screen size 32” to 75” (813 to 1905
mm)
Ceiling plate
-60 to +60
swivel

Requirements

Requirements are subject to change. For the latest requirements, please visit www.StarTech.com/FPCEILBTB
• Flat-panel TV (max. 75”, VESA mount compatible) x 2
• Phillips Head Screwdriver x 1
15

Installation

Mounting the Ceiling Mount and Upper Pole Assembly

Notes: Product mounting should be completed by a certi­ed professional as per the local safety and building code guidelines.
Ceiling structures vary, and it’s important to make sure that the type of structure and mounting hardware that you’re using will properly support the mounted equipment. Failure to do so may result in personal injury and/or equipment damage.
1. Before installing the Ceiling TV Mount onto the mounting
surface, contact a professional.
2. After consulting a professional, the Ceiling Mount and
Upper Pole Assembly can be mounted using the Mounting Hardware included.
Note: The mounting hardware provided may not be suitable for all ceiling structures.

Assembly

Attaching the Extension Pole to the Upper Pole

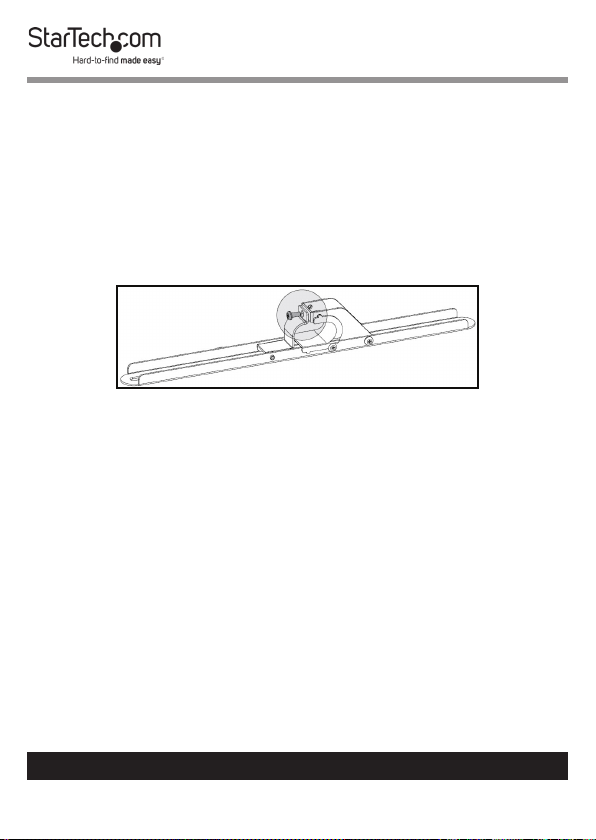

1. Align the hole in the Mounting Bracket with the Extension
Pole and slide the Mounting Bracket down to the bottom
of the Extension Pole.
2. Feed the TV Cables through the Cable Hole in the Upper
Pole and into the Extension Pole.
16
Note: At this step in the installation process, the Upper Pole is not attached to the Extension Pole.
3. Feed the TV Cables through the Extension Pole, and out
the Cable Hole in the bottom of the Extension Pole.
Feeding the TV Cables through the Poles
4. Slide the Extension Pole into the Upper Pole, until the
Extension Pole is at the desired height.
5. Align the Adjustment Holes on the Extension Pole with the
Adjustment Holes on the Upper Pole.
17

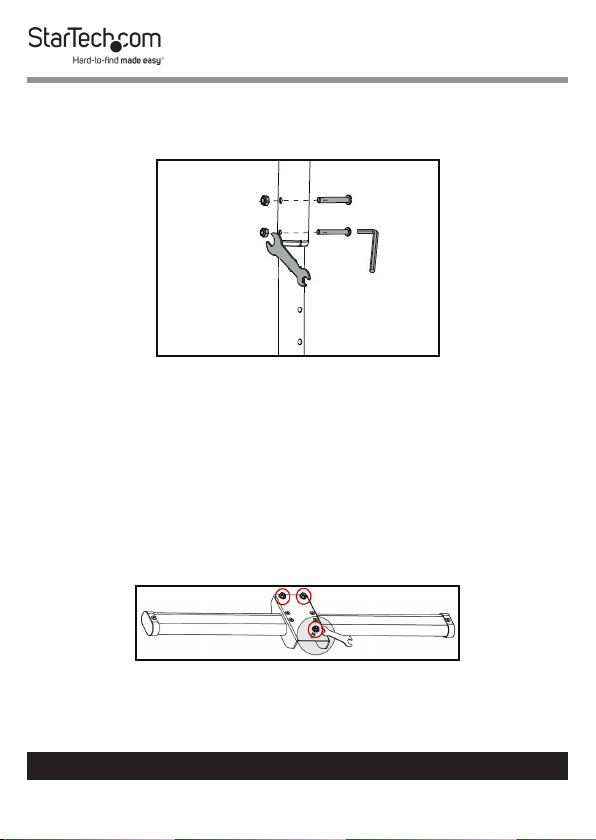

6. Insert two Bolts through the Adjustment Holes on
the Upper Pole and into the Adjustment Holes on the Extension Pole.
Installing the Nuts/Bolts through the Adjustment Holes
7. Screw one Nut onto the end of each of the Bolts and use the
Wrench to hold the Nuts in place while using the Hex Key to tighten the Bolts.

Attaching the Horizontal Bracket

1. Using a Wrench, remove the Retainer Nut and loosen the
other two Nuts on the Horizontal Bracket.
Removing the Retainer Nut and Loosen the two other Nuts
18
2. Align the three Threaded Studs on the Horizontal Bracket
with the Mounting Hole and Mounting Slots on the Mounting Bracket.

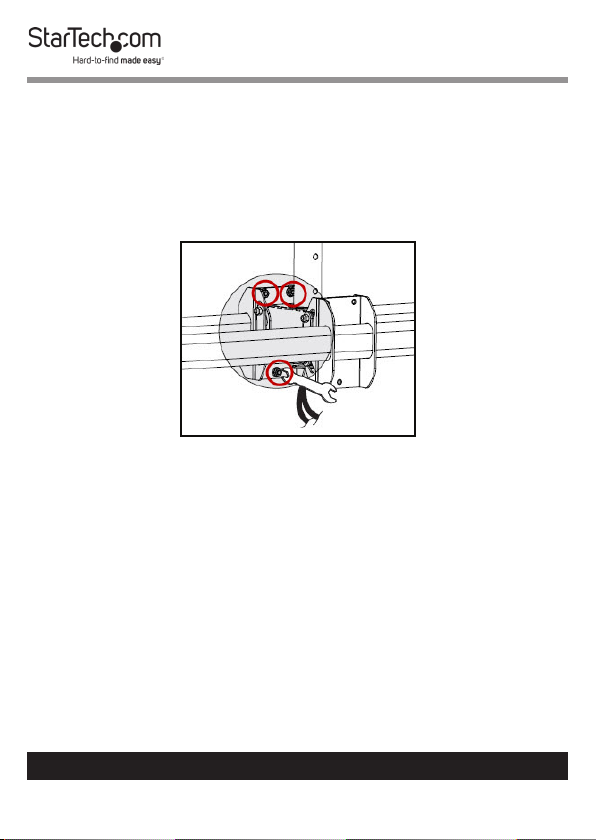

3. Reattach the Retainer Nut removed in Step 1 and use a
Wrench to tighten the Retainer Nut and the other two Nuts that were loosened in Step 1.
Attaching the Mounting Bracket to the Horizontal Bracket
4. Repeat Steps 1 - 3 to install the other Horizontal Bracket.

Selecting the Appropriate Mounting Hardware

• Determine if the back of the TV is ush or inset.
• Determine the depth of the mounting holes on the TV.
• Determine the diameter of the mounting holes on the TV.
Note: If you’re using a TV with a ush mounting surface, you don’t need to use any of the provided spacers.
19

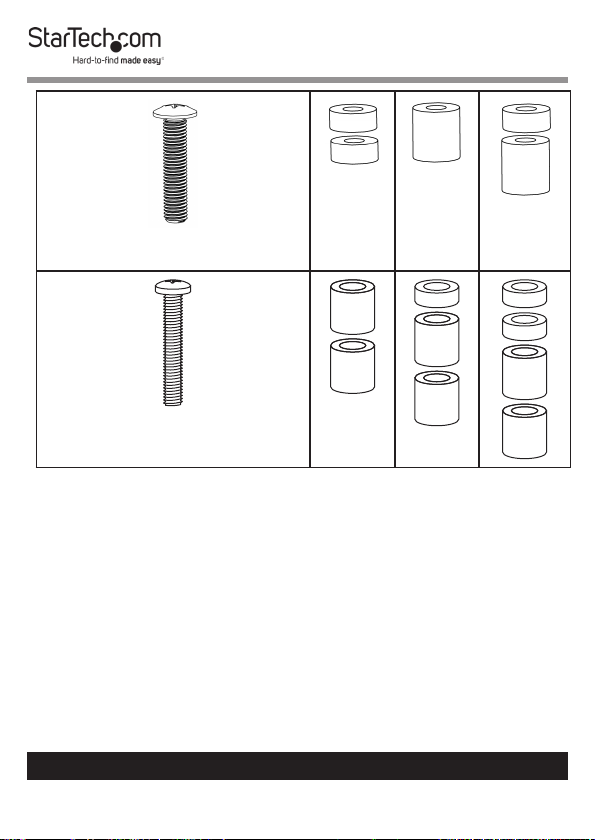

Screw Spacer Combination
Flush Mounting Surface
N/A
M5x14 mm
N/A
M6x14 mm
Inset Mounting Surface
M6x30 mm
20
M8x30 mm
M8x50 mm
21

Attaching the Vertical Brackets to a TV

Warning! Do not over-tighten the screws. If you encounter resistance while you are installing the screws, stop tighten­ing. Failure to do so could result in damage to the TV.

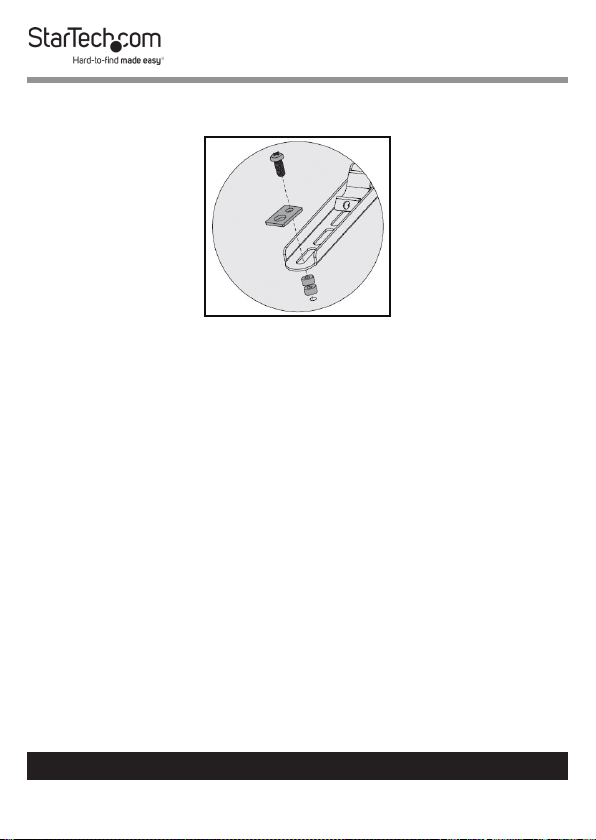

1. Using a Phillips Head Screwdriver, remove the Bracket
Screw from the Hinge on each of the Vertical Brackets and open the Hinge.
Removing Bracket Screw
2. Place the TV on a secure at surface with the screen facing
down. Align the Mounting Holes on the Vertical Brackets with the Mounting Holes on the back of the TV. Make sure that the Hinges on the Vertical Brackets open downward.
3. Align one Washer (use the appropriate Washer hole size)
over each of the Mounting Holes on the Vertical Brackets.
22

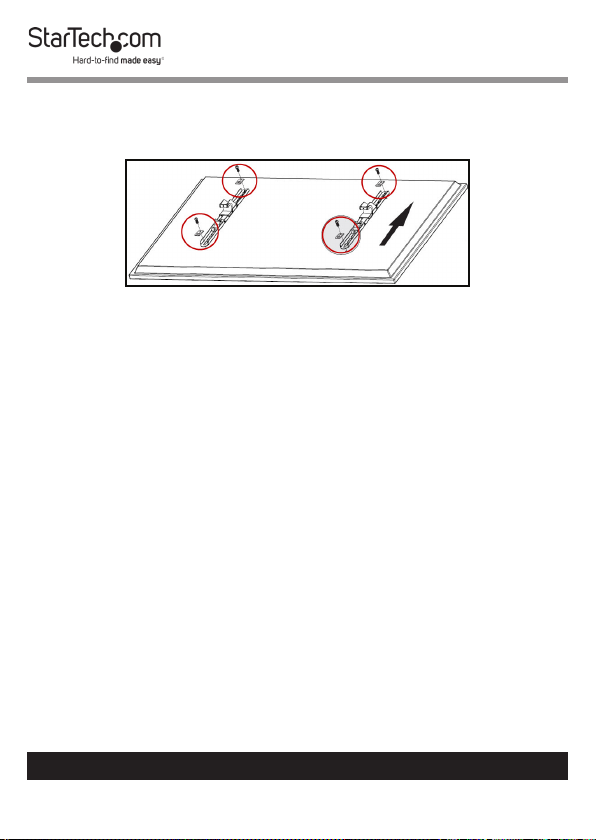

4. Insert the Screws through the Washers and Vertical
Brackets, and into the back of the TV.
Attaching the Vertical Brackets
5. Use a Phillips Head Screwdriver to tighten the Screws. Be
careful not to over-tighten the Screws.

Attaching the Vertical Brackets to a TV Using Spacers

If you’re attaching a TV with an inset mounting surface:
1. Place the TV on a secure at surface with the screen facing
down. Align the Mounting Holes on the Vertical Brackets with the Mounting Holes on the back of the TV.
2. Align four Washers (use the appropriate Washer hole size)
with the Mounting Holes on the Vertical Brackets. Make sure that the Hinge on each of the Vertical Brackets opens downward.
23
3. Insert the Screws through the Washers, Vertical Brackets,
and Spacers and into the back of the TV.
Using Spacers
4. Use a Phillips Head Screwdriver to tighten the Screws. Be
careful not to over-tighten the Screws.

Attaching the TVs to the Horizontal Bracket

Warning! Attaching the TVs is a two-person job. Do not at- tempt to hang the TVs by yourself.
1. Carefully lift up the TV and hook the Vertical Brackets onto
the Horizontal Bracket, making sure the Hinge on the Vertical Bracket is at the bottom of the Horizontal Bracket.
24
2. Close both Hinges on the Vertical Brackets, and use a
Phillips Head Screwdriver to fasten the Bracket Screws removed from the Hinges.
TVs Mounted
3. Repeat Steps 1 - 2 to hang the second TV.
25

Adjusting the TVs

Adjusting the tilt

1. Using a Wrench, loosen the two Nuts on the side of the
Horizontal Bracket.
Using a Wrench to loosen the Nuts
2. Adjust the TV to the position that you want it in, then
tighten the two Nuts.
26

Adjusting the Swivel

1. Using a Hex Key loosen the Retainer Bolt on the back of the
Horizontal Bracket.
Using a Hex Key to Loosen the Retainer Bolt
2. Adjust the TV to the position that you want it in, and then
tighten the Retainer Bolt.

Adjusting the Vertical Position of the Ceiling TV Mount

This adjustment is recommended for sloped ceiling types only and adjusts the angle of the Ceiling Mount relative to the Pole Assembly.
1. Attach the Wrench to the Nut and insert the Allen Key into
the Bolt opposite the Nut on the Ceiling Mount.
2. Loosen the Bolt and slide the Upper Pole to the desired
position.
27
3. Re-tighten the Nut and Bolt.
Adjusting the vertical position
28
Warranty Information
This product is backed by a ve-year warranty.
For further information on product warranty terms and conditions, please refer to www.startech.com/warranty.
Limitation of Liability
In no event shall it be the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of prots, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.
Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.
29
29
Hard-to-nd made easy. At StarTech.com, that isn’t a slogan. It’s a promise.
StarTech.com is your one-stop source for every connectivity part you need. From the latest technology to legacy products — and all the parts that bridge the old and new — we can help you nd the parts that connect your solutions.
We make it easy to locate the parts, and we quickly deliver them wherever they need to go. Just talk to one of our tech advisors or visit our website. You’ll be connected to the products you need in no time.
Visit www.startech.com for complete information on all StarTech.com products and to access exclusive resources and time-saving tools.
StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
Reviews
Share your experiences using StarTech.com products, including product applications and setup, what you love about the products, and areas for improvement.
StarTech.com Ltd.
45 Artisans Cres.
London, Ontario
N5V 5E9
Canada
FR: fr.startech.com
DE: de.startech.com
StarTech.com LLP
2500 Creekside Pkwy.
Lockbourne, Ohio
43137
U.S.A.
ES: es.startech.com
NL: nl.startech.com
StarTech.com Ltd.
Unit B, Pinnacle
15 Gowerton Rd., Brackmills
Northampton
NN4 7BW
United Kingdom
IT: it.startech.com
JP: jp.startech.com
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
