20-Slot 2U Rack Mount Media Converter
Chassis for ET Series 2 Media Converters
ETCHS2U
*actual product may vary from photos
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 05/11/2012
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by
turning the equipment o and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols
This manual may make reference to trademarks, registered trademarks, and other
protected names and/or symbols of third-party companies not related in any way to
StarTech.com. Where they occur these references are for illustrative purposes only and do not
represent an endorsement of a product or service by StarTech.com, or an endorsement of the
product(s) to which this manual applies by the third-party company in question. Regardless
of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby
acknowledges that all trademarks, registered trademarks, service marks, and other protected
names and/or symbols contained in this manual and related documents are the property of
their respective holders.
Instruction Manual
Table of Contents
Introduction ............................................................................................1
Packaging Contents ................................................................................................................................. 1
System Requirements .............................................................................................................................. 1
Tools Required ............................................................................................................................................1
Installation ............................................................................................. 2
Media Converter Card Installation ...................................................................................................... 2
Fan Unit Removal/Replacement .......................................................................................................... 3
Power Module Addition/Removal.......................................................................................................4
Specications ..........................................................................................5
Technical Support ..................................................................................6
Warranty Information ............................................................................6
Instruction Manual
i
Introduction
The ETCHS2U 20-Slot 2U Rack Mount Media Converter Chassis for ET Series 2 Media
Converters lets you add an un-managed, 20-slot media converter chassis to your rack
or cabinet to provide central power and cooling.
The media converter rack includes a single 200W power supply to centrally power all
20 slots, with an additional slot to add a redundant power supply (ETCHS2UPSU) for
maximum up-time. It also includes two cooling fans (one per side) to help extend the
life of your media converters.
A perfect accessory to the StarTech.com ET series 2 converters, the 2U chassis is
designed so that all critical components (Power, Fans and Media Converter Cards) are
hot swappable to avoid network disruption.
Packaging Contents
• 1 x 2U Media Converter Chassis
• 3 x Power Cords (NA/EU/UK)
• 1 x User Manual
System Requirements
• Standard 19in wide rack
• 2U of rack space
• 4 x Each, rack screws and cage nuts for mounting (sold separately)
• Available AC outlet
Tools Required
• Phillips screwdriver
Instruction Manual
1
Installation
1. Locate a suitable location in the rack/cabinet within reach of an easily accessible
grounded AC outlet (100~240 VAC) to mount the chassis. The chassis itself requires
2U of space within the rack.
NOTE: Allow at least 10cm (4in) clearance at the front of the ETCHS2U for the ber
and other copper cables
2. If the rack uses square mounting holes, install cage nuts (sold separately) into the
square mounting holes on the front posts of the rack.
3. Place the chassis into the rack and align the mounting points on the front brackets
of the chassis with the mounting points on the rack (e.g. the cage nuts, if used).
4. Use the appropriate cabinet screws (sold separately) to secure the chassis to the
rack.
5. Make sure the screws are properly tightened and the chassis has no movement
before attempting to place any media converter cards into the chassis.
6. Connect the appropriate power cord for your region to the grounded AC outlet.
Media Converter Card Installation
The ETCHS2U chassis supports the full line of StarTech.com ET series 2 media
converters, which can be installed in a mixed fashion to suit your environment. The
cards are designed to be hot-swappable, meaning the chassis need not be powered o
in order to remove or insert a card.
1. If the chassis slot was previously unused, loosen the screw at the top of the slot to
remove the cover plate
2. Loosen the captive screw located at the top of the ET series 2 media converter to
remove it from its casing
Instruction Manual
2

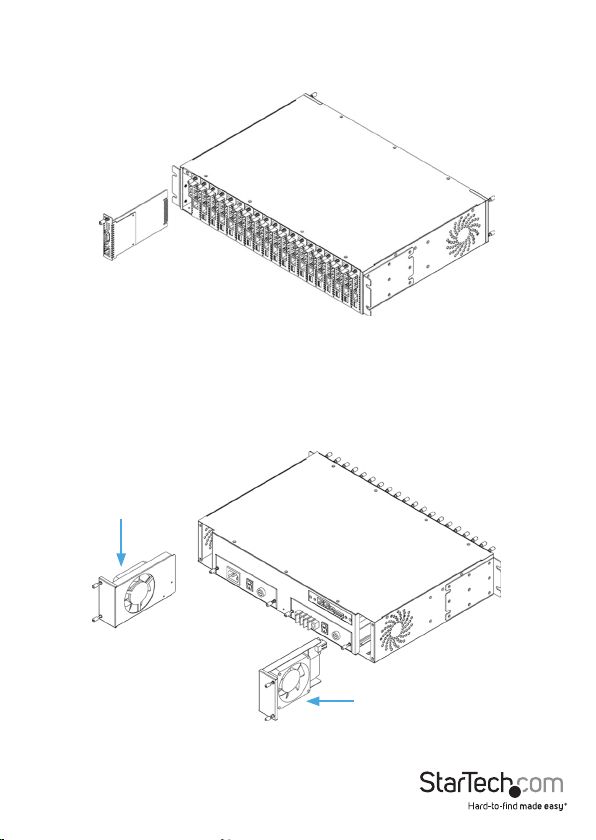

3. Align the card with the desired slot of the chassis and gently slide the card into the
groove to seat the power connection
4. Re-tighten the captive screw to hold the card in place
Fan Unit Removal/Replacement
The left and right-side fan units (ETCHS2UFANL, ETCHS2UFANR) in the chassis are
hot-swappable and can be replaced quickly and easily in the event of a failure. Simply
loosen the two thumbscrews from the top and bottom of the fan module and gently
slide out.
Left Fan
ETCHS2UFANL
Instruction Manual
Right Fan
ETCHS2UFANR
3

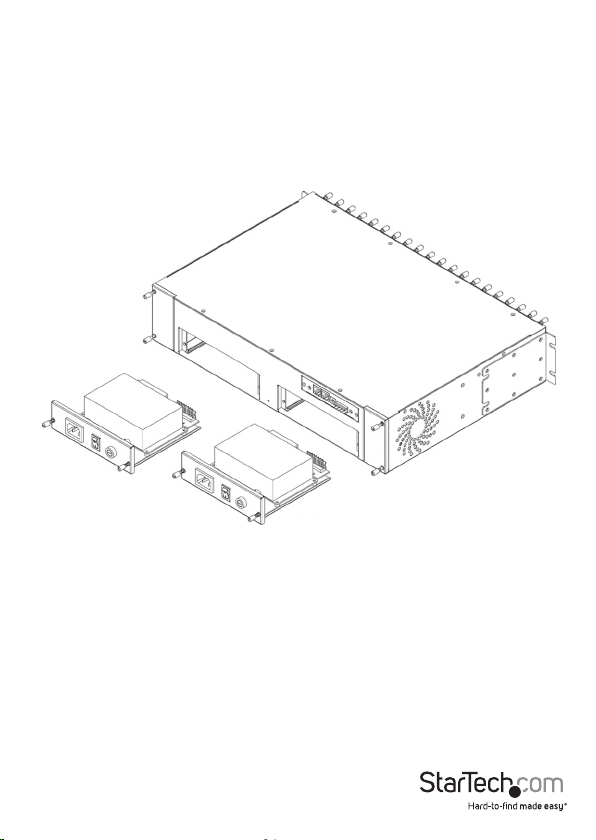

Power Module Addition/Removal
The AC Power Supply Module in the ETCHS2U supports input voltages of 100 to 240
(±10% @ ambient temperature) volts at frequencies of 47 to 63 Hertz. Only one power
supply module is required to power a completely full rack; however an additional
ETCHS2PSU unit can be added for redundancy. When two Power Supply Modules are
installed, the supplies are hot swappable, meaning any one supply may be removed
and replaced without impacting the operation of the chassis. Simply disconnect power
from the unit to be removed, and loosen the thumbscrews from each side of the
module to gently slide out.
Instruction Manual
4
Specications
Description
Material SPCC (1.0 mm thick)
Color Black
Mounting Height 2U
Fans Included 2 x 80mm
Fan Bearing Type Ball Bearing
Air Flow Rate 59.37 CFM
Output Power 200W
Power Factor Correction Active
Eciency Rating 90% (Typical Load)
Power Consumption 60W (fully loaded, with mixed card types)
MTBF 65,000 Hours (25°C)
External Dimensions
(LxWxH)
Net Weight 5000g
Certications UL, CE, FCC, RoHS
20-Slot 2U Rack Mount Media Converter Chassis for ET
Series 2 Media Converters
303 x 438 x 88mm
Instruction Manual
5
Technical Support
StarTech.com’s lifetime technical support is an integral part of our commitment to
provide industry-leading solutions. If you ever need help with your product, visit
www.startech.com/support and access our comprehensive selection of online tools,
documentation, and downloads.
For the latest drivers/software, please visit www.startech.com/downloads
Warranty Information
This product is backed by a two year warranty.
In addition, StarTech.com warrants its products against defects in materials
and workmanship for the periods noted, following the initial date of purchase.
During this period, the products may be returned for repair, or replacement with
equivalent products at our discretion. The warranty covers parts and labor costs only.
StarTech.com does not warrant its products from defects or damages arising from
misuse, abuse, alteration, or normal wear and tear.
Limitation of Liability
In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their
ocers, directors, employees or agents) for any damages (whether direct or indirect,
special, punitive, incidental, consequential, or otherwise), loss of prots, loss of business,
or any pecuniary loss, arising out of or related to the use of the product exceed the
actual price paid for the product. Some states do not allow the exclusion or limitation
of incidental or consequential damages. If such laws apply, the limitations or exclusions
contained in this statement may not apply to you.
Instruction Manual
6
