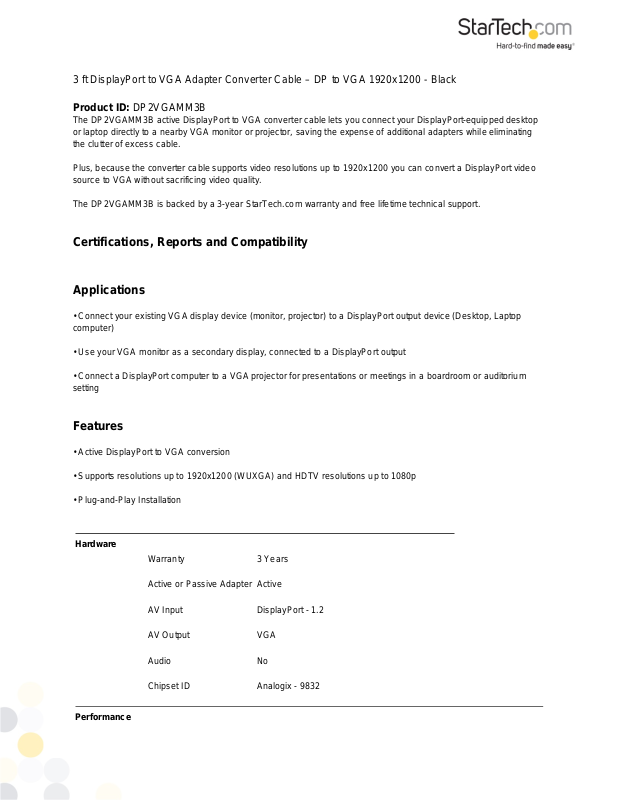

Startech DP2VGAMM3B Product Data Sheet

3 ft DisplayPort to VGA Adapter Converter Cable – DP to VGA 1920x1200 - Black

Hardware

Warranty

3 Years

Active or Passive Adapter

Active

AV Input

DisplayPort - 1.2

AV Output

VGA

Audio

No

Chipset ID

Analogix - 9832

Performance

Product ID: DP2VGAMM3B

The DP2VGAMM3B active DisplayPort to VGA converter cable lets you connect your DisplayPort-equipped desktop
or laptop directly to a nearby VGA monitor or projector, saving the expense of additional adapters while eliminating
the clutter of excess cable.

Plus, because the converter cable supports video resolutions up to 1920x1200 you can convert a DisplayPort video
source to VGA without sacrificing video quality.

The DP2VGAMM3B is backed by a 3-year StarTech.com warranty and free lifetime technical support.

Certifications, Reports and Compatibility

Applications

• Connect your existing VGA display device (monitor, projector) to a DisplayPort output device (Desktop, Laptop
computer)

• Use your VGA monitor as a secondary display, connected to a DisplayPort output

• Connect a DisplayPort computer to a VGA projector for presentations or meetings in a boardroom or auditorium
setting

Features

• Active DisplayPort to VGA conversion

• Supports resolutions up to 1920x1200 (WUXGA) and HDTV resolutions up to 1080p

• Plug-and-Play Installation

Maximum Cable Length

36.0 in [91.5 cm]

Maximum Analog
Resolutions

1920x1200 / 1080p (Output)

Maximum Digital
Resolutions

1920x1200 / 1080p (Input)
Audio Specifications

VGA - No Audio Support

MTBF

1,449,804 hours

Connector(s)

Connector A

DisplayPort (20 pin)

Connector B

VGA (15 pin, High Density D-Sub)

Environmental

Operating Temperature

0C to 60C (32F to 140F)

Storage Temperature

-10C to 70C (14F to 158F)

Humidity

40%-85%RH

Physical
Characteristics

Color

Black

Cable Length

36.0 in [91.5 cm]

Product Length

36.0 in [91.5 cm]

Product Width

1.6 in [40 mm]

Product Height

0.6 in [15 mm]

Weight of Product

2.8 oz [79.0 g]

Packaging
Information

Package Length

9.4 in [24 cm]

Package Width

6.3 in [16 cm]

Package Height

0.8 in [20 mm]

Shipping (Package)
Weight

3.2 oz [90 g]
