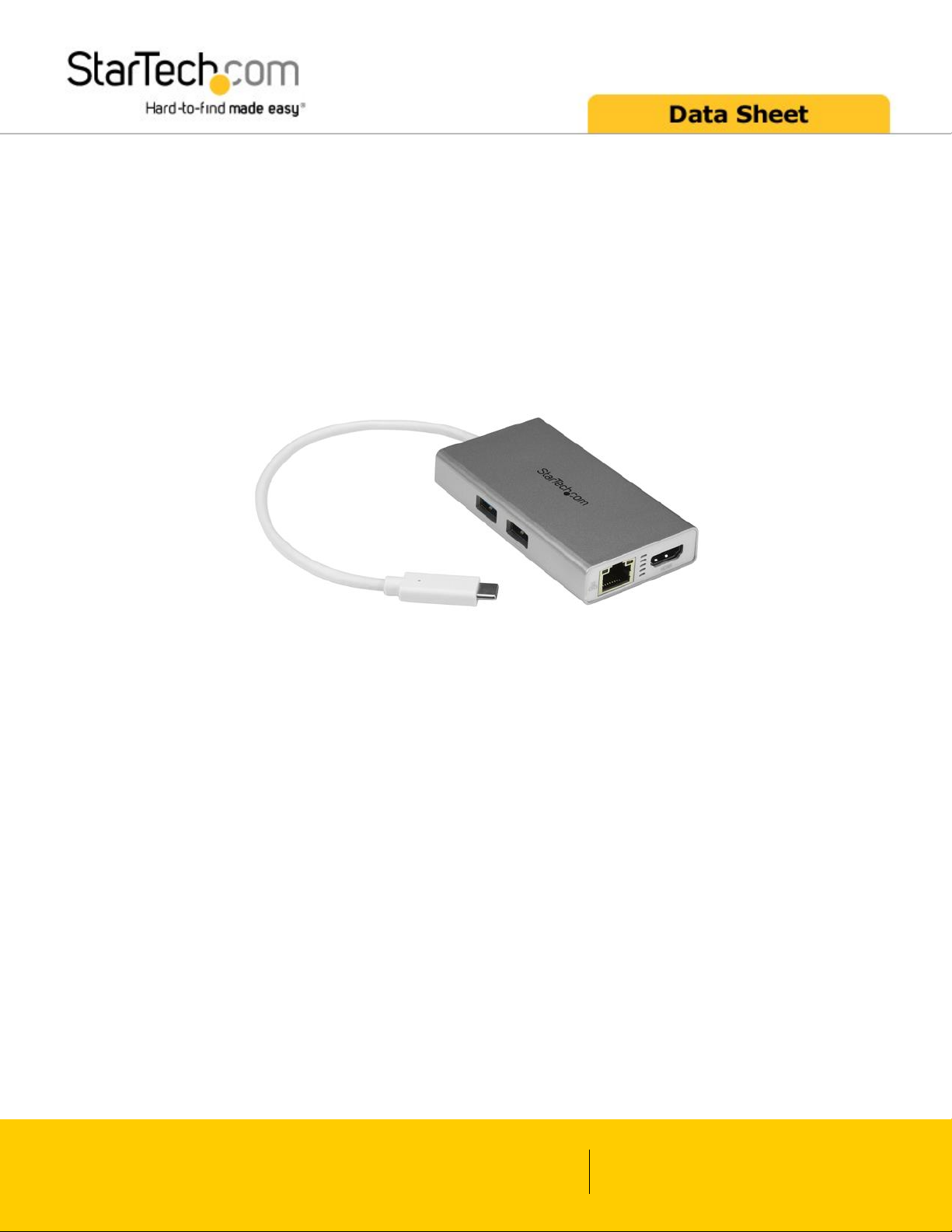

USB-C Multiport Adapter for Laptops - Power
Delivery - 4K HDMI - GbE - USB 3.0 - Silver & White
Product ID: DKT30CHPDW
Expand the connectivity of your USB-C™ enabled laptop. This sleek and compact USB-C multiport
adapter, in attractive silver and white, is the perfect accessory for your MacBook Pro, MacBook,
Chromebook™ or other USB Type C™ equipped laptop. The adapter is also Thunderbolt™ 3 port
compatible, so you can connect it to your Thunderbolt 3 equipped laptop.
The USB-C adapter lets you create a powerful workstation virtually anywhere, providing 4K Ultra HD
(3840 x 2160p) HDMI video output, two USB 3.0 ports, and a Gigabit Ethernet port. You can also power
both the multiport adapter and your laptop simultaneously, with support for USB Power Delivery 2.0.
Create a powerful workstation
When coupled with your laptop display, this versatile USB-C multiport adapter makes it easy to create a
dual-monitor workstation when you need it. It offers a 4K HDMI® port (with audio), so you can easily
connect a high-resolution monitor and gain access to more screen space. With higher resolutions, you can
view more windows at once and increase your productivity.
www.startech.com
1 800 265 1844
The Gigabit Ethernet port ensures reliable wired network access, which is ideal for areas with limited Wi-Fi
access. Plus, with two additional USB 3.0 ports (USB Type-A) you can connect your existing peripheral
devices, like your mouse or flash drive.
Designed for easy portability
This multiport adapter means you don’t have to carry multiple power adapters with you. Ideal for mobile
use, it features a USB-C port that supports USB Power Delivery 2.0 (USB PD 2.0), so you can use your
laptop’s USB-C power adapter to power both your laptop and the multiport adapter.
The versatile multiport adapter is compact and lightweight, so it's easy to tuck into your laptop bag. It
consolidates multiple ports into a single adapter, which means you don’t need to bring along
multiple single-function adapters.
The adapter also features an integrated USB-C cable, which means one less cable to carry with you. The
cable’s extended length at 348 mm (13.7"), provides you with more placement options, so you can
position the adapter exactly where you need it, to work in comfort.
The DKT30CHPDW is backed by a StarTech.com 3-year warranty and free lifetime technical support.
Note: To ensure full adapter functionality, your laptop’s USB-C port must support USB Power Delivery and DP alt mode.
www.startech.com
1 800 265 1844
Certifications, Reports
and Compatibility
Applications
• The portable adapter, in silver and white, is the perfect accessory for
your MacBook Pro, MacBook, Chromebook or other USB-C laptop,
adding 4K video, GbE and two USB 3.0 ports
• Power the adapter and your laptop through USB-C, using your
laptop’s power adapter
• Integrate the compact adapter into small workspaces in offices and
home offices
• Connect your laptop to a projector and enjoy multimedia content at
home, or display engaging presentations in boardrooms and
classrooms
• Use an HDMI port-equipped television in a hotel room as an external
display when traveling
Features
• Expand the connectivity of your MacBook Pro, MacBook, Chromebook
or other USB-C enabled laptop
• Power both the multiport adapter and your laptop simultaneously,
using your laptop’s USB-C based power adapter (supports USB Power
Delivery 2.0)
• Provides 4K Ultra HD (3840 x 2160p) HDMI video output with 30Hz
refresh rate, two USB 3.0 ports, and a Gigabit Ethernet port
• Compact, rugged housing for portability and reliability, with attractive
white and silver finish
• Two additional USB Type-A ports let you connect your existing USB
devices (backward compatible with USB 2.0 and 1.x devices)
• Extra length 348 mm (13.7") attached USB-C cable provides greater
flexibility
• Thunderbolt 3 port compatible
• Supports DP Alt Mode
• Gigabit Ethernet RJ45 port supports Wake-on-LAN (WOL), jumbo
frames, VLAN tagging, and Energy-Efficient Ethernet
• Easy setup with native support in most Windows® and Mac operating
systems (also works with Google Chrome OS™)
www.startech.com
1 800 265 1844
Warranty 3 Years
Hardware 4K Support Yes
Bus Type USB-C
Chipset ID VLI - VL813 (USB 3.0 Hub)
VLI - VL100 (USB Power Delivery)
Chrontel - CH7525A (HDMI)
ASIX - AX88179 (LAN)
Displays Supported 1
Fast-Charge Port(s) No
Industry Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
USB 3.0 - Backward compatible with USB 2.0 and 1.1
Performance Auto MDIX Yes
Compatible Networks 10/100/1000 Mbps
Full Duplex Support Yes
Maximum Data Transfer Rate 5 Gbps (USB 3.0)
2 Gbps (Ethernet; Full-Duplex)
Maximum Digital Resolutions 4096 x 2160p @ 24Hz or 3840 x 2160p (HDMI) @ 30Hz
Maximum Power Delivery Support 60 W
Type and Rate USB 3.0 - 5 Gbit/s
UASP Support Yes
Connector(s) Connector Type(s) 1 - USB Type-C (24 pin) USB 3.0 Male
1 - HDMI (19 pin) Female
1 - RJ-45 Female
2 - USB Type-A (9 pin) USB 3.0 Female
1 - USB Type-C (24 pin) USB 3.0 Female
Software OS Compatibility Windows® 7, 8, 8.1, 10
Mac OS® 10.9 to 10.12
Chrome OS™
Special Notes /
Requirements
Note Not all USB-C ports support the full functionality of the USB
Type-C standard. Ensure that your host USB-C port supports
USB Power Delivery 2.0 and DP alt mode.
The adapter can connect to a host laptop’s USB-C port that
doesn’t support USB Power Delivery 2.0. However, in this
configuration if a power adapter is connected to the
multifunction adapter, it will not pass power through to your
host laptop.
www.startech.com
1 800 265 1844
A 4K-capable display is required to achieve 3840 x 2160p
resolution (4K is also known as 4K x 2K)
USB 3.0 is also known as USB 3.1 Gen 1; this connectivity
standard offers speeds up to 5Gbps.
System and Cable Requirements A host laptop with an available USB-C port (to ensure full
adapter functionality, the host USB-C port must support
USB Power Delivery 2.0 and DP alt mode)
Optional: USB-C power adapter (for example, your laptop’s
USB-C based power adapter)
Power Power Source USB-Powered
Environmental Humidity 0~85% RH (Non-condensing)
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -10°C to 65°C (14°F to 149°F)
Physical
Characteristics
Cable Length 13.7 in [348 mm]
Color Silver & White
Enclosure Type Plastic
Product Height 0.7 in [18 mm]
Product Length 3.8 in [96 mm]
Product Weight 2.3 oz [66 g]
Product Width 2 in [51 mm]
Packaging
Information
Shipping (Package) Weight 6.9 oz [195 g]
What's in the Box Included in Package 1 - USB-C multiport adapter
1 - quick-start guide
Product appearance and specifications are subject to change without notice.
