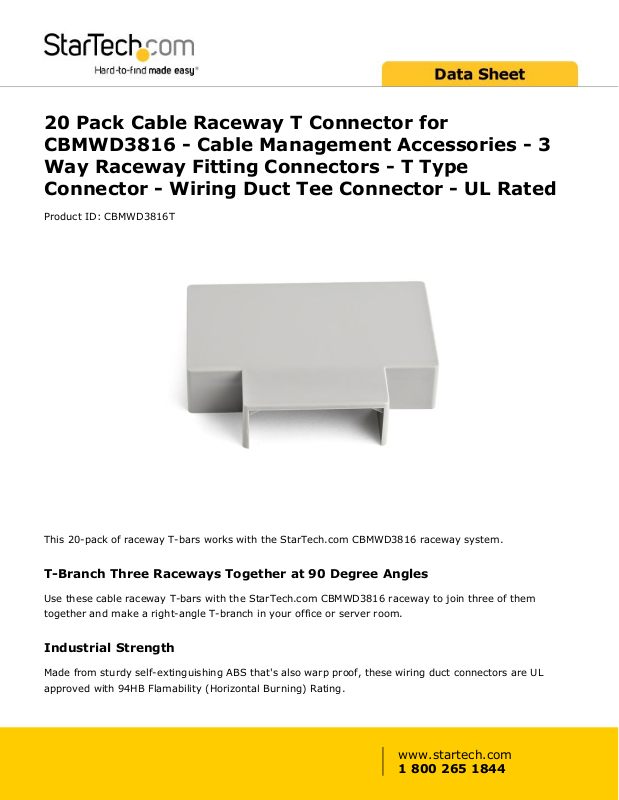

Page 1
20 Pack Cable Raceway T Connector for
CBMWD3816 - Cable Management Accessories - 3
Way Raceway Fitting Connectors - T Type
Connector - Wiring Duct Tee Connector - UL Rated
Product ID: CBMWD3816T
This 20-pack of raceway T-bars works with the StarTech.com CBMWD3816 raceway system.
T-Branch Three Raceways Together at 90 Degree Angles
Use these cable raceway T-bars with the StarTech.com CBMWD3816 raceway to join three of them
together and make a right-angle T-branch in your office or server room.
Industrial Strength
Made from sturdy self-extinguishing ABS that's also warp proof, these wiring duct connectors are UL
approved with 94HB Flamability (Horizontal Burning) Rating.
www.startech.com
1 800 265 1844
Page 2
Use in Combination with Other Raceway Accessories
Combine this coupler with other StarTech.com CBMWD3816 raceway system accessories to give your
cable management solution a finished look.
The Coupler (CBMWD3816C) (20-Pack), joins two raceways together and extends the length of your
raceway.
The End Piece (CBMWD3816E) (20-Pack), cleanly caps off the end of your raceway.
The Inside Elbow (CBMWD3816I), joins two raceways together inside of corners at 90 degree angle.
The Lateral Elbow (CBMWD3816L), joins two raceways together and runs them up the wall at a 90 degree
angle.
The Outside Elbow (CBMWD3816O) (20-Pack), joins two raceways together around corners at a 90 degree
angle
These cable management raceway outside elbows are TAA compliant and backed by a StarTech.com
Lifetime warranty and free 24/5 technical support. StarTech.com has been the IT professionals choice for
over 30 years.
www.startech.com
1 800 265 1844
Page 3
Certifications, Reports
and Compatibility
Applications
• Protects cables from damage while neatly routing them in your office
or server room
Features
• GIVE YOUR CABLE MANAGEMENT RACEWAY A FINISHED LOOK: Use
Cable Raceway T-Connectors (20 pack) to join three StarTech.com
CBMWD3816 raceways together and make a right-angle T-branch in
your workspace
• INDUSTRIAL STRENGTH: Made from sturdy warp-proof ABS, these TConnectors are UL approved with UL 94HB Flamability (Horizontal
Burning) Rating, self-extinguishing
• OTHER RACEWAY ACCESSORIES: Coupler (CBMWD3816C), End Piece
(CBMWD3816E), Inside Elbow (CBMWD3816I), Lateral Elbow
(CBMWD3816L), Outside Elbow (CBMWD3816O); sold separately
• TECHNICAL SPECIFICATIONS: 90° Angle | Connector Width: 1.49"
(38mm) | Connector Height: 0.63" (16mm) | White | UL approved |
UL 94HB rated| RoHS
• STARTECH.COM ADVANTAGE: IT professionals choice for over 30
years; These wiring duct fitting tee type connectors are backed for
life by StarTech.com, including free 24/5 multi lingual tech support
www.startech.com
1 800 265 1844
Page 4
Warranty 2 Years
Physical
Characteristics
Color White
Material ABS
Product Height 16.100
Product Length 57.280
Product Width 73.250
Weight of Product 10.000
Packaging
Information
Package Height 35.000
Package Length 214.000
Package Width 240.000
Shipping (Package) Weight 283.330
Product appearance and specifications are subject to change without notice.
