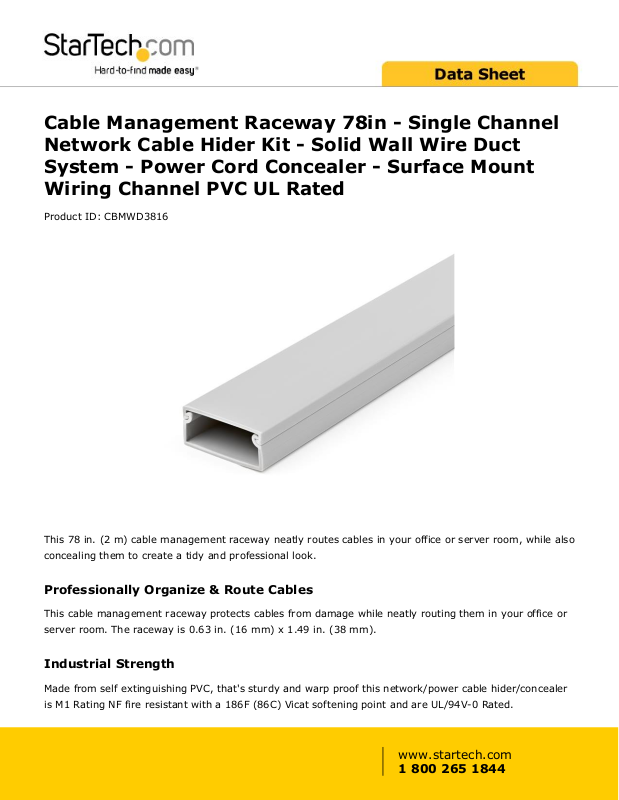

Cable Management Raceway 78in - Single Channel
Network Cable Hider Kit - Solid Wall Wire Duct
System - Power Cord Concealer - Surface Mount
Wiring Channel PVC UL Rated
Product ID: CBMWD3816
This 78 in. (2 m) cable management raceway neatly routes cables in your office or server room, while also
concealing them to create a tidy and professional look.
Professionally Organize & Route Cables
This cable management raceway protects cables from damage while neatly routing them in your office or
server room. The raceway is 0.63 in. (16 mm) x 1.49 in. (38 mm).
Industrial Strength
Made from self extinguishing PVC, that's sturdy and warp proof this network/power cable hider/concealer
is M1 Rating NF fire resistant with a 186F (86C) Vicat softening point and are UL/94V-0 Rated.
www.startech.com
1 800 265 1844
Hassle-Free Installation
The cable raceway can be mounting by simply drilling holes through housing and into any surface, or
double sided tape can used to secure the raceway (screws and tape not included).
Give Your Raceway a Finished Look with these Accessories
To combine and route this cable management raceway and cap off the ends, StarTech.com offers a wide
selection raceway accessories.
The Coupler (CBMWD3816C) (20-Pack), joins two raceways together and extends the length of your
raceway.
The End Piece (CBMWD3816E) (20-Pack), cleanly caps off the end of your raceway.
The Inside Elbow (CBMWD3816I) (20-Pack), joins two raceways together inside of corners at a 90 degree
angle.
The Lateral Elbow (CBMWD3816L) (20-Pack), joins two raceways together and runs them up the wall at a
90 degree angle.
The Outside Elbow (CBMWD3816O) (20-Pack), joins two raceways together around corners at a 90 degree
angle.
The T Connector (CBMWD3816T) (20 Pack), joins three raceways together in a T-bar.
This cable management raceway is TAA compliant and backed by a StarTech.com Lifetime warranty and
free 24/5 technical support. StarTech.com has been the IT professionals choice for over 30 years.
www.startech.com
1 800 265 1844
Certifications, Reports
and Compatibility
Applications
• Protects cables from damage while neatly routing them in your office
or server room
Features
• PROFESSIONALLY ORGANIZE & ROUTE CABLES: Cable management
raceway protects 12-30 cables from damage/debris w/closed design
& route them in office/server room install by drilling holes/double
sided tape
• INDUSTRIAL STRENGTH: Sturdy warp-proof, self extinguishing PVC,
solid network/power cable hider/concealer is M1 Rating NF fire
resistant w/186F Vicat softening point; UL/94V-0 Rated; UL/CSA
approved
• RACEWAY ACCESSORIES: Coupler (CBMCWD3816C), End Piece
(CBMCWD3816E), Inside Elbow (CBMCWD3816I), Lateral Elbow
(CBMCWD3816L), Outside Elbow (CBMCWD3816O), T Connector
(CBMCWD3816T); sold separately
• TECHNICAL SPECIFICATIONS: Length: 78" (2m) | Height: 0.63"
(16mm) | Width: 1.49" (38mm) | Max Cable Capacity: 12-30
(subject to thickness) | Single Channel | Vicat Softening Point:
186F/86C | White | RoHS
• STARTECH.COM ADVANTAGE: IT professionals choice for over 30
years; This surface mount cord kit/ single channel wiring duct system
is backed for life by StarTech.com, including free 24/5 tech support
www.startech.com
1 800 265 1844
Warranty 2 Years
Physical
Characteristics
Color White
Material PVC
Product Height 16.000
Product Length 38.000
Product Width 200.000
Weight of Product 424.000
Packaging
Information
Package Height 16.000
Package Length 38.000
Package Width 2000.000
Shipping (Package) Weight 424.000
Product appearance and specifications are subject to change without notice.
