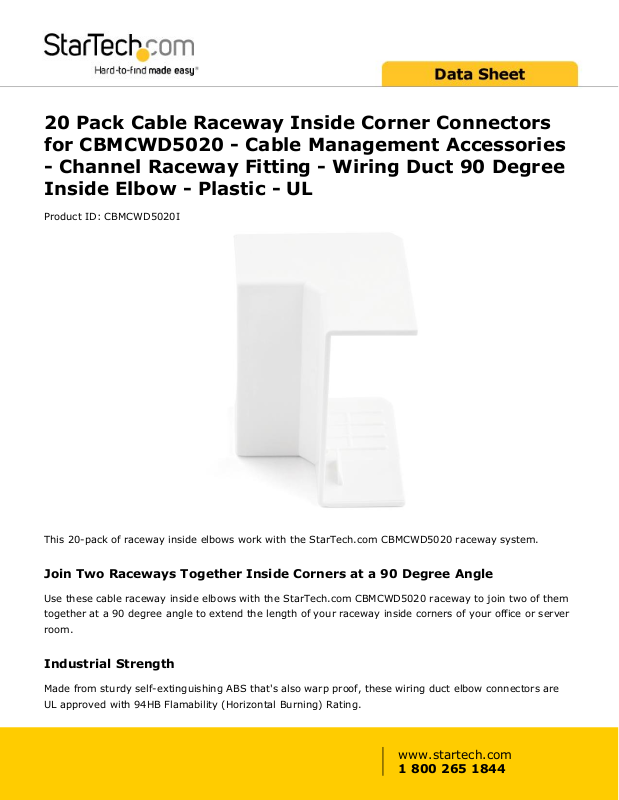

20 Pack Cable Raceway Inside Corner Connectors
for CBMCWD5020 - Cable Management Accessories
- Channel Raceway Fitting - Wiring Duct 90 Degree
Inside Elbow - Plastic - UL
Product ID: CBMCWD5020I
This 20-pack of raceway inside elbows work with the StarTech.com CBMCWD5020 raceway system.
Join Two Raceways Together Inside Corners at a 90 Degree Angle
Use these cable raceway inside elbows with the StarTech.com CBMCWD5020 raceway to join two of them
together at a 90 degree angle to extend the length of your raceway inside corners of your office or server
room.
Industrial Strength
Made from sturdy self-extinguishing ABS that's also warp proof, these wiring duct elbow connectors are
UL approved with 94HB Flamability (Horizontal Burning) Rating.
www.startech.com
1 800 265 1844
Page 2
Use in Combination with Other Raceway Accessories
Combine this inside elbow with other StarTech.com CBMCWD5020 raceway system accessories to give
your cable management solution a finished look.
The Coupler (CBMCWD5020C) (20-Pack), joins two raceways together and extends the length of your
raceway.
The End Piece (CBMCWD5020E) (20-Pack), cleanly caps off the end of your raceway.
The Lateral Elbow (CBMCWD5020L) (20-Pack), joins two raceways together and runs them up the wall at
a 90 degree angle.
The Outside Elbow (CBMCWD5020O) (20-Pack), joins two raceways together around corners at a 90
degree angle.
The T Connector (CBMCWD5020T) (20-Pack), joins three raceways together in T-bar.
These cable management raceway inside elbows are TAA compliant and backed by a StarTech.com
Lifetime warranty and free 24/5 technical support. StarTech.com has been the IT professionals choice for
over 30 years.
www.startech.com
1 800 265 1844
Page 3
Certifications, Reports
and Compatibility
Applications
• Protects cables from damage while neatly routing them in your office
or server room
Features
• GIVE YOUR CABLE MANAGEMENT RACEWAY A FINISHED LOOK: Use
cable raceway inside corner connectors (20 pack) w/StarTech.com
CBMCWD5020 raceways to join them together inside corners in your
workspace
• INDUSTRIAL STRENGTH: Made from sturdy warp-proof ABS, these
inside elbow cable/wiring duct connectors are UL approved with 94HB
Flamability (Horizontal Burning) Rating, self-extinguishing
• OTHER RACEWAY ACCESSORIES: Coupler (CBMCWD5020C), End
Piece (CBMCWD5020E), Lateral Elbow (CBMCWD5020L), Outside
Elbow (CBMCWD5020O), T Connector (CBMCWD5020T); sold
separately
• TECHNICAL SPECIFICATIONS: 90° Angle | Connector Width: 2.1"
(54.3mm) | Connector Height: 0.9" (22mm) | White | RoHS
• STARTECH.COM ADVANTAGE: IT professionals choice for over 30
years; These raceway inside elbows are backed for life by
StarTech.com, including free 24/5 North America based multi-lingual
tech support
www.startech.com
1 800 265 1844
Page 4
Warranty 2 Years
Physical
Characteristics
Color White
Material ABS
Product Height 42.000
Product Length 41.700
Product Width 54.100
Weight of Product 8.000
Packaging
Information
Package Height 66.000
Package Length 200.000
Package Width 303.000
Shipping (Package) Weight 183.330
Product appearance and specifications are subject to change without notice.
