Startech ARMWALLDS2 User Manual

Monitor Wall Mount | Dual Swivel | Premium
Actual product may vary from photos
User Manual
SKU#: ARMWALLDS2
For the latest information and specications visit
www.startech.com/ARMWALLDS2
Manual Revision: 09/13/2019

Compliance Statements

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols
This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Warning Statements

• Make sure that you assemble this product according to the instructions.
• Do not exceed the weight capacity of this product. Overloading this product might result in injury or property damage. This product can support the following weight: 30.8 lb. (14 kg).
• This product is intended for indoor use only and should not be used outdoors.
• The mounting hardware included with this product might not be adequate for some wall structures. If you lack the necessary expertise to attach this product to the wall structure that you’re using, contact a construction professional to install the wall mount or to provide specic mounting instructions for your wall structure.
Varningsmeddelanden
• Se till att du monterar produkten i enlighet med instruktionerna.
• Överskrid inte produktens viktkapacitet. Överbelastning av produkten kan orsaka skada på person eller egendom. Denna produkt har stöd för följande vikter: 14 kg.
• Produkten är endast avsedd för användning inomhus och ska inte användas utomhus.
• Monteringsutrustningen som medföljer produkten kanske inte är lämplig för vissa väggstrukturer. Om du saknar nödvändiga kunskaper för att fästa denna produkt på väggstrukturen som du använder, kontakta en professionell konstruktör för att installera väggmonteringen eller för att ge specika monteringsinstruktioner för din väggstruktur.
Avertissements
• Assemblez ce produit conformément aux instructions.
• Ne dépassez pas la capacité pondérale du produit. Une surcharge du produit peut entraîner des blessures ou des dommages matériels. Ce produit peut supporter 14 kg.
• Ce produit est uniquement destiné à une utilisation en intérieur et ne doit pas être utilisé à l’extérieur.
• Le matériel de xation inclus avec ce produit n’est pas forcément approprié pour toutes les structures de murs. Si vous ne disposez pas des compétences nécessaires pour installer ce produit au mur, contactez un professionnel an qu’il installe le support mural ou qu’il vous fournisse les instructions de montage spéciques à votre structure de mur.
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support
Warnhinweise
• Beachten Sie bei der Montage dieses Produkts die Montageanweisungen.
• Überschreiten Sie nicht die Tragkraft dieses Produkts. Ein Überladen dieses Produkts kann zu Verletzungen oder zur Beschädigung des Produkts führen. Dieses Produkt ist für folgendes Gewicht geeignet: 14 kg.
• Dieses Produkt ist nur zum Gebrauch in Innenräumen vorgesehen und sollte nicht im Freien verwendet werden.
• Das mitgelieferte Montagematerial ist möglicherweise nicht für jede Wand geeignet. Wenn Ihnen die nötigen Fachkenntnisse zum Anbringen dieses Produkts an einer Wand fehlen, lassen Sie einen Fachmann den Wandhalter anbringen, oder lassen Sie sich von einem Fachmann Montageanweisungen für Ihre Wand erteilen.
Dichiarazioni di avvertenza
• Assicurarsi di Assemblare il prodotto secondo le istruzioni.
• Non superare la capacità di carico del prodotto. Il sovraccarico del prodotto potrebbe causare danni o lesioni. Il prodotto è in grado di supportare i seguenti pesi: 14 kg.
• Il prodotto è destinato all’uso in ambienti interni. Se ne sconsiglia l’impiego in ambienti esterni.
• L’hardware di montaggio incluso con il prodotto potrebbe non essere adeguato ad alcune strutture murarie. Se l’utente non dispone delle competenze necessarie per agganciare il prodotto alla struttura muraria in uso, dovrà contattare un professionista edile per installare il supporto a parete o ottenere istruzioni di montaggio per la struttura muraria in uso.
Mensagens de aviso
• Certique-se de que monta este produto de acordo com as instruções.
• Não exceda a capacidade de peso deste produto. Sobrecarregar este produto pode resultar em ferimentos ou danos de propriedade. Este produto pode suportar o seguinte peso: 14 kg.
• Este produto destina-se apenas a uma utilização no interior e não deve ser utilizado no exterior.
• Este produto requer uma ligação à terra. Não utilize este produto sem uma ligação à terra.
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support
• O hardware de montagem incluído com este produto pode não ser adequado para algumas estruturas de parede. Se não tiver o conhecimento necessário para xar este produto à estrutura de parede que está a usar, contacte um prossional de construção para fazer a instalação em parede ou para fornecer instruções de montagem especícas para a sua estrutura de parede.
Advertencias de uso
• Asegúrese de ensamblar este producto según las instrucciones.
• Asegúrese de no exceder la capacidad de peso de este producto. La sobrecarga de este producto puede causar lesiones personales o daños en la propiedad. Este producto tiene capicidad para el siguiente peso: 14 kg.
• El uso de este producto es solo para interiores y no debe utilizarse en exteriores.
• El hardware de montaje incluido con este producto puede no ser adecuado para algunas estructuras de pared. Si no tiene la experiencia suciente para jar este producto a la estructura de la pared correspondiente, póngase en contacto con un profesional de la construcción para instalar el soporte de pared o para que le proporcione las instrucciones especícas de montaje para su estructura de pared.
Waarschuwingen
• Zorg dat u dit product volgens de instructies in elkaar zet.
• Overschrijd de maximale capaciteit van dit product niet. Overbelasting van dit product kan letsel of materiële schade veroorzaken. Dit product ondersteunt het volgende gewicht: 14 kg.
• Dit product is alleen bedoeld voor binnengebruik en mag niet buiten worden gebruikt.
• De bij dit product geleverde montagemiddelen kunnen niet geschikt zijn voor sommige wandstructuren. Als u onvoldoende kennis hebt om dit product aan de door u gebruikte wandstructuur te bevestigen, neem dan contact op met een bouwkundige om de steun aan de muur te installeren of specieke montage-instructies voor uw wandstructuur te geven.
注意
• 必ず取扱説明書に従って本製品の組み立てを行って下さい。
• 本製品で定められた最大積載重量を超えないようにして下さい。最大積載重量をオーバーした 場合、怪我をする恐れや器物破損の恐れがあります。 持で きます。
本製品は、モニター1台あたり14kgまで支
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support
• 本製品は、室内での使用を想定しています。戸外では使用しないで下さい。
• 本製品に同梱されている取付け金具は、ご使用になる壁の構造に対して十分ではない場合があ ります。本製品を壁面に取り付ける時、十分な専門知識が不足していると判断された場合、専門業 者に連絡を取って、本製品の取り付けを行ってもらうか、お客様の壁の構造に適した取り付け方 法を 教えてもらってから取り付 けを 行って下さ い。

Safety Statements

Safety Measures
• Cables (including power and charging cables) should be placed and routed to avoid creating electric, tripping or safety hazards.
Mesures de sécurité
• Les câbles (y compris les câbles d’alimentation et de chargement) doivent être placés et acheminés de façon à éviter tout risque électrique, de chute ou de sécurité
安全対策
• ケーブル(電源ケーブルと充電ケーブルを含む)は、適切な配置と引き回し を行い、電気障害やつまづきの危険性など、安全上のリスクを回避するよう にしてください 。
Misure di sicurezza
• I cavi (inclusi i cavi di alimentazione e di ricarica) devono essere posizionati e stesi in modo da evitare pericoli di inciampo, rischi di scosse elettriche o pericoli per la sicurezza.
Säkerhetsåtgärder
• Kablar (inklusive elkablar och laddningskablar) ska dras och placeras på så sätt att risk för snubblingsolyckor och andra olyckor kan undvikas.
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support
Table of Contents
Compliance Statements ........................................................................1
Warning Statements ..............................................................................2
Safety Statements ..................................................................................5
Product Diagram ....................................................................................7
Product Dimensions/Rotation .............................................................8
Product Information .............................................................................9
Specications.............................................................................................................................................. 9
Package Contents ..................................................................................................................................... 10
Requirements ............................................................................................................................................. 12
Installation ..............................................................................................12
Mounting the Wall Mount ......................................................................................................................12
Attaching the Swivel Arm ...................................................................................................................... 14
Removing the Swivel Arm .....................................................................15
Attaching a Monitor ................................................................................................................................. 16
Attaching the Monitor Mount .............................................................................................................. 16
Removing the Monitor Mount .............................................................18
Adjusting the Monitor Tilt ....................................................................18
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

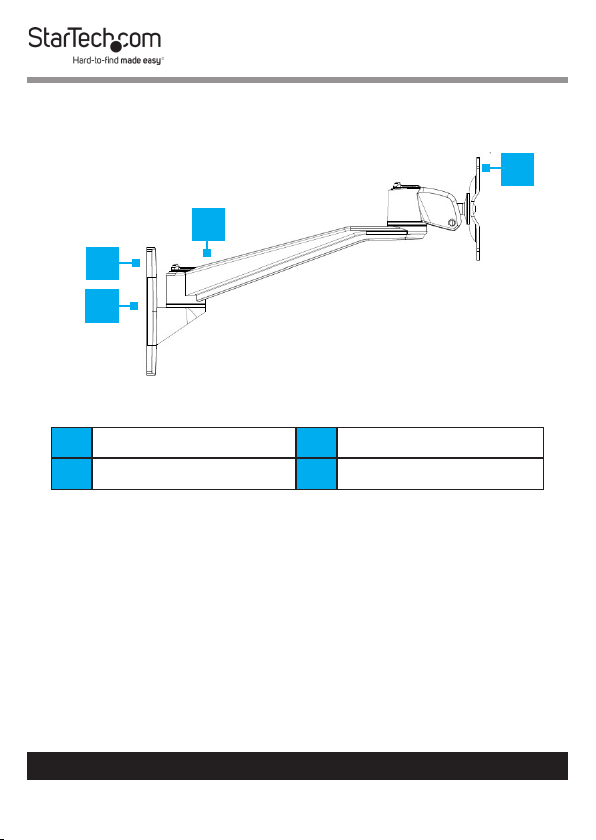

Product Diagram

3
1
2
1 Decorative Cap 3 Swivel Arm
2 Wall-Mount Bracket 4 Monitor Mount
4
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Product Dimensions/Rotation

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Product Information

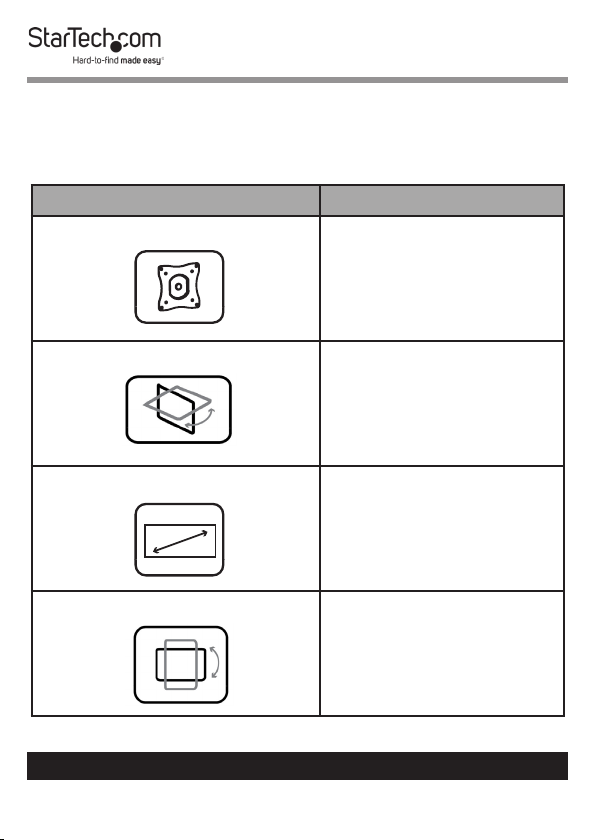

Specications
Type of Measurement Measurement
VESA Mounting Hole Pattern
Tilt
Screen Size
Maximum 30 in. (762
Rotate
75x75
100x100
+90 to -15
mm)
360
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support
Swivel
Weight/Load Capacity
+180 to -180
kg
30.8 lb. (14 kg)

Package Contents

Wall-Mount Bracket
Qty: One
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support
10
Swivel Arm
Qty: One
Monitor Mount
Qty: One
Hex Key
Qty: One
Hand Screw
Qty: Four
Mounting Screws
Qty: Two
Wall Plugs
Qty: Two
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support
11

Requirements

Phillips Head Screwdriver x 1
Writing Utensil x 1
Level x 1

Installation

Mounting the Wall Mount

Notes: Product mounting should be completed by a certi­ed professional as per the local safety and building code guidelines.
Wall structures vary, and it’s important to make sure that the type of structure and mounting hardware that you’re using will properly support the mounted equipment. Failure to do so may result in personal injury and/or equipment damage.
1. Before installing the Wall Mount onto the mounting surface,
contact a professional contractor.
2. After consulting a professional, the Wall Mount can be
mounted using the Mounting Hardware included.
Note: The provided Mounting Hardware may not be suit- able for use with all wall structures.
3. (Optional) While mounting, use Wall Screw Anchors if
required.
4. Remove the Decorative Caps on the Wall-Mount Bracket
by sliding them o of the ends, before mounting the Wall Mount.
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support
12
5. When the Wall-Mount Bracket has been mounted, slide
the Decorative Caps over the top and bottom of the Wall- Mount Bracket. The Decorative Caps hide the screws used to secure the Wall-Mount Bracket to the mounting surface.
Installing the Decorative Caps
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support
13

Attaching the Swivel Arm

1. Align the Mounting Hole on the Swivel Arm with the
Mounting Peg on the Wall-Mount Bracket.
2. Slide the Mounting Hole on the Swivel Arm over the
Mounting Peg until it clicks in place.
Attaching the Swivel Arm to the Mounting Peg
3. Using the Hex Key (included), tighten the Hex Screw on the
side of the Swivel Arm, to increase the swivel eort or x the arm in place.
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support
14

Removing the Swivel Arm

1. Slide the Thumb Clip away from the Swivel Arm,
disengaging the locking mechanism.
Thumb Clip
2. While holding the Thumb Clip and the weight of the Swivel
Arm, lift the Swivel Arm up, sliding the Mounting Peg out of the Mount Hole.
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support
15

Attaching a Monitor

1. Align the Mounting Holes (x 4) on the Monitor Mount with
the mounting holes on the back of the Monitor.
2. Insert the Hand Screws through the Monitor Mount and
into the back of the Monitor.
3. Using your ngers, tighten the Hand Screws.
Warning! Do not over-tighten the screws. If you encounter resistance while you’re tightening the screws, stop tightening. Failure to do so could result in damage to the monitor.
Attaching a Monitor

Attaching the Monitor Mount

Notes: Attaching the Monitor Mount may require two people.
The Wall Mount supports up to a maximum of 30.8 lb. (14 kg).
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support
16
1. While supporting the weight of the Monitor, carefully
align the Mounting Hole on the Monitor Mount with the Mounting Peg on the top Spring Arm.
2. Slide the Mounting Hole on the Monitor Mount over the
Mounting Peg until it clicks into place.
Attaching the Monitor Mount
3. Using the Hex Keys, adjust the swivel tension of the
Monitor Mount by loosening or tightening the Hex Screws located on the Monitor Mount next to the Mounting Hole.
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support
17

Removing the Monitor Mount

1. Slide the Thumb Clip towards the Swivel Arm, disengaging
the locking mechanism.
Thumb Clip
2. While holding the Thumb Clip and the weight of the
Monitor Mount, lift the Monitor Mount up sliding the Mounting Peg out of the Mounting Hole.

Adjusting the Monitor Tilt

While supporting the weight of the Monitor, use the Hex
Key (included) to loosen or tighten the Hex Screw on the
side of the Monitor Mount, until the tension can hold the weight of the Monitor but it is still adjustable.
Note: The screw cap located on the opposite side of the Hex Screw is not used for tilt adjustments.
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support
18
Warranty Information
This product is backed by a ten-year warranty. For further information on product warranty terms and conditions, please refer
to www.startech.com/warranty.
Limitation of Liability
In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of prots, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.
Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.
