Startech ARMQUADSS User Manual

Download
Quad Monitor Stand - Silver
User Manual
SKU#: ARMQUADSS
*actual product may vary from photos
Manual Revision: 05/31/2019
For the latest information and specications visit
www.startech.com/ARMQUADSS
Compliance Statements
Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols
This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.
PHILLIPS® is a registered trademark of Phillips Screw Company in the United States or other countries.
i
Safety Statements
• Product installation and/or mounting should be completed by a certied professional as per the local safety and building code guidelines.
• Cables (including power and charging cables) should be placed and routed to avoid creating electric, tripping or safety hazards.
Mesures de Sécurité
• L’installation et/ou le montage du produit doit être réalisé par un professionnel certié et dans le respect des normes locales et du code de construction local.
• Les câbles (y compris les câbles d’alimentation et de chargement) doivent être placés et acheminés de façon à éviter tout risque électrique, de chute ou de sécurité
安全対策
• 製品の設置やマウントは、使用地域の安全ガイドラインおよび建築基準に 従い、有資格の専門業者が行うようにしてください。
• ケーブル（電源ケーブルと充電ケーブルを含む）は、適切な配置と引き回し を行い、電気障害やつまづきの危険性など、安全上のリスクを回避するよう にしてください 。
Misure di Sicurezza
• L’installazione e/o il montaggio dei prodotti devono essere eseguiti da un tecnico professionale certicato che conosca le linee guida locali sulle norme edilizie e sulla sicurezza.
• I cavi (inclusi i cavi di alimentazione e di ricarica) devono essere posizionati e stesi in modo da evitare pericoli di inciampo, rischi di scosse elettriche o pericoli per la sicurezza.
Säkerhetsåtgärder
• Installation och/eller montering får endast göras av behöriga yrkespersoner och enligt gällande lokala förordningar för säkerhet och byggnormer.
• Kablar (inklusive elkablar och laddningskablar) ska dras och placeras på så sätt att risk för snubblingsolyckor och andra olyckor kan undvikas.
ii
Warning Statements
• Make sure to assemble this product according to the instructions. Failure to do so might result in personal injury or property damage.
• Make sure that the weight of the monitors doesn’t exceed the weight capacity of this product. If you exceed the weight capacity, you might experience personal injury or damage to the equipment. This product can support the following weight: 17.6 lb. (8 kg) per monitor mount.
• Never operate this product if parts are missing or damaged.
Varningsmeddelanden
• Se till att du monterar produkten i enlighet med instruktionerna. Om du inte gör det kan skada på person eller egendom uppstå.
• Se till att skärmens vikt inte överstiger produktens viktkapacitet. Om viktkapaciteten överstigs kan skada på person eller utrustning uppstå. Denna produkt har stöd för följande vikter: 8 kg per skårm.
• Använd aldrig produkten om delar saknas eller är skadade.
Avertissements
• Assemblez ce produit conformément aux instructions. Si vous ne respectez pas ces instructions, vous risquez de vous blesser ou d’endommager l’équipement.
• Vériez que le poids du moniteur ne dépasse pas la capacité pondérale du produit. Si vous dépassez la capacité pondérale, vous risquez des blessures corporelles ou des dommages matériels. Ce produit peut supporter 8 kg par ’ecran.
• N’utilisez pas ce produit si des pièces sont endommagées ou manquantes.
Warnhinweise
• Montieren Sie dieses Produkt gemäß den Anweisungen. Anderenfalls kann dies zu Verletzungen von Personen oder Schäden an Eigentum führen.
• Das Gewicht des Monitors darf die zulässige Traglast des Produkts nicht übersteigen. Wenn die Traglast überschritten wird, kann dies zu Verletzungen von Personen oder Schäden an Geräten führen. Dieses Produkt ist für folgendes Gewicht geeignet: 8 kg per monitor.
• Das Produkt darf nicht bedient werden, wenn Teile fehlen oder beschädigt sind.
iii
Dichiarazioni di Avvertenza
• Assemblare il prodotto rispettando le istruzioni. Il mancato rispetto delle istruzioni potrebbe causare danni a persone o proprietà.
• Vericare che il peso del monitor non superi la capacità di supporto del prodotto. In caso di superamento della capacità di supporto potrebbero vericarsi danni a persone o apparecchiature. Il prodotto è in grado di supportare i seguenti pesi: 8 kg per monitor.
• Non utilizzare il prodotto in presenza di parti mancanti o danneggiate.
Mensagens de Aviso
• Certique-se de que monta este produto de acordo com as instruções. O incumprimento pode resultar em ferimentos pessoais ou danos de propriedade.
• Certique-se de que o peso do monitor não excede a capacidade de peso deste produto. Se exceder a capacidade de peso, pode sofrer ferimentos pessoais ou danos no equipamento. Este produto pode suportar o seguinte peso: 8 kg por monitor.
• Nunca opere este produto se faltarem peças ou estas estiverem danicadas.
Advertencias de Uso
• Asegúrese de ensamblar este producto según las instrucciones. De lo contrario, pueden producirse lesiones personales o daños de propiedad.
• Asegúrese de que el peso del monitor no exceda la capacidad de carga de este producto. Si se excede dicha capacidad se podrían producirse lesiones personales o daños al equipo. Este producto tiene capicidad para el siguiente peso: 8 kg por monitor.
• Nunca opere o ponga en funcionamiento este producto si faltan piezas o hay daños en las mismas.
Waarschuwingen
• Zorg dat dit product volgens de instructies in elkaar wordt gezet. Indien dit niet goed gebeurt kan lichamelijk letsel of materiële schade ontstaan.
• Zorg dat het gewicht van het scherm de maximale capaciteit van dit product niet overschrijdt. Als u de gewichtscapaciteit overschrijdt, kan persoonlijk letsel of schade aan de apparatuur ontstaan. Dit product ondersteunt het volgende gewicht: 8 kg per monitor.
• Gebruik dit product nooit als er onderdelen ontbreken of beschadigd zijn.
iv
注意
• 必ず取扱説明書に従って本製品の組み立てを行って下さい。取り扱いを誤
った場合に、傷害を負う恐れや物的損害が発生する恐れがあります。
• 取り付けるモニターの重量が、本製品で定められた最大積載重量を超えな いようにして下さい。最大積載重量をオーバーした場合、傷害を負う恐れや モニターや本製品に損害が発生する恐れがあります。本製品は、モニター1 台あたり8kgまで支持できます。
• 本製品で使用している部品の一部が紛失していたり損傷している状態で使 用するのは絶対に止めて下さい。
v
Table of Contents
Compliance Statements ................................................................................... i
Safety Statements .............................................................................................. ii
Warning Statements .......................................................................................... iii
Product Information .......................................................................................... 1
Package Contents ..................................................................................................................................... 1
Product Diagram ................................................................................................ 3
Dimensions .................................................................................................................................................. 3
Front View ....................................................................................................................................................4
Rear View ...................................................................................................................................................... 5
Side View ......................................................................................................................................................6
Technical Specications ................................................................................... 7
Requirements ...................................................................................................... 8
Assembly ............................................................................................................... 9
Assemble the Base .................................................................................................................................... 9
Adjust the Collar on the Lower Pole ...................................................................................................10
Attach the Shoulder to the Lower Pole .............................................................................................11
Attach the Swivel Arms to the Lower Pole .......................................................................................12
Attach the Upper Pole ............................................................................................................................. 14
Adjust the Collar on the Upper Pole ...................................................................................................15
Attach the Shoulder to the Upper Pole .............................................................................................16
Attach the Swivel Arms to the Upper Pole .......................................................................................17
Attach the VESA Mounts to the Monitors .........................................................................................18
Attach the VESA Mounts to the Swivel Arms ..................................................................................20
Adjusting the Monitors .................................................................................... 22
Tilt Adjustment .......................................................................................................................................... 22
Swivel Adjustment .................................................................................................................................... 23
Rotation Adjustment ............................................................................................................................... 23
Micro Height Adjustment.......................................................................................................................24
Cable Management ........................................................................................... 25
Product Information
Package Contents
Swivel Arms
Qty: 4
Lower Pole
Qty: 1
Screws:
M4x12 mm
M4x16 mm
M4x20 mm
Qty: 16 (of each)
VESA Mounts
Qty: 4
Pole Connector
Qty: 1
Screws:
M5x12 mm
M5x16 mm
M5x20 mm
Qty: 16 (of each)
1
Shoulders
Qty: 2
Base
Qty: 1
Spacers
Qty: 32
Upper Pole
Qty: 1
Cable-
Management
Clips
Qty: 2
Washers
Qty: 16
3 mm Hex
Key with
Screwdriver Tip
6 mm Hex Key
Qty: 1
User Manual
Qty: 1
Qty: 1
2
Product Diagram
Dimensions
3
Front View
1
2
3
4
1
2
3
4
VESA Mounts
Swivel Arms
Pole Connector
Base
4
Rear View
5
6
5
6
Shoulder
Cable-Management Clip
5
Side View
7
8
7
8
Upper Pole
Lower Pole
6

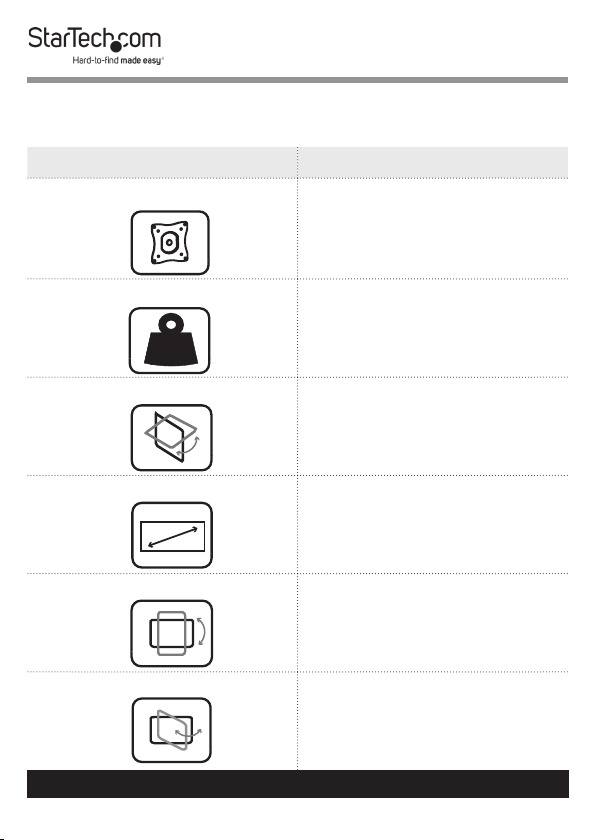

Technical Specications
Type of Measurement Measurement
VESA Mounting Hole Pattern
Weight Capacity
kg
Tilt
Maximum Screen Size
Rotate
75x75
100x100
Up to 17.6 lb. (8 kg)
Per Monitor
+90 to -40
32” (813 mm)
360
Swivel
360
7
Requirements
For the latest requirements, please visit
www.startech.com/ARMQUADSS.
• Four Monitors
Note: All four Monitors must conform to the size, weight, and VESA pattern requirements (see Technical Specications).
• Phillips Head Screwdriver
• Two People for Installation
• (Optional) Two People for Adjustments
8
Assembly
Warning! Make sure that all of the hardware is assembled
properly and checked for stability before you load the Monitors.
Warning! Make sure that the weight of the Monitors does not
exceed the weight capacity of this product. If you exceed the weight capacity, you might experience personal injury or damage to the product.

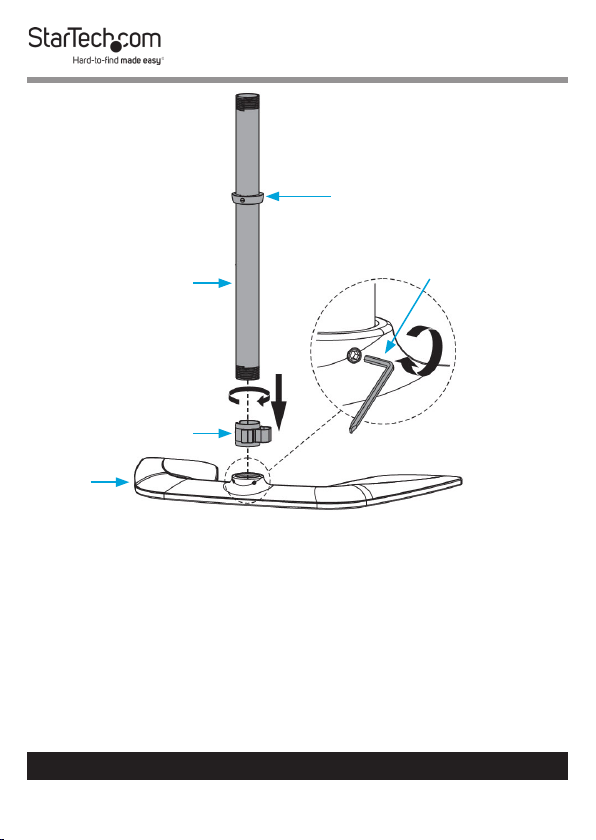

Assemble the Base
1. Loosen the Hex Screws that are located on the Base using
the 3 mm Hex Key with Screwdriver Tip.
2. Slide the Cable-Management Clip onto the Lower Pole.
3. Screw the Lower Pole into the Base.
4. Tighten the Hex Screws that are located on the Base using
the 3 mm Hex Key with Screwdriver Tip. (Figure 1)
9
9
Figure 1
Collar
3 mm Hex Key with
Lower Pole
Cable-Management Clip
Base
Screwdriver Tip
Adjust the Collar on the Lower Pole
1. Loosen the Flat-Head Screws on the Collar, using the 3 mm
Hex Key with Screwdriver Tip.
2. Slide the Collar up or down the Lower Pole so that it sits at
the desired height for your Monitors.
3. Tighten the two Flat-Head Screws that are located on the
Collar, using the 3 mm Hex Key with Screwdriver Tip.
(Figure 2)
10
Figure 2
Collar
3 mm Hex Key with
Screwdriver Tip
Attach the Shoulder to the Lower Pole
1. Rotate the Lever on the Shoulder down/counterclockwise
to loosen the Shoulder. Freely rotate the Lever by pulling it away from the Shoulder and rotating it to the top position, then rotate the Lever down/counterclockwise to loosen the Shoulder.
Note: The Lever has a ratchet feature. Freely rotate the Lever, without engaging the tightening mechanism, by
pulling it away from the Shoulder and rotating it to the desired position. Release the Lever and rotate it to engage the tightening mechanism.
2. Slide the Shoulder over and down the Pole, until it makes
contact with the Collar.
3. Freely rotate the Lever to the bottom position and rotate the
Lever up/clockwise to tighten the Shoulder.
(Figure 3)
11
Figure 3
Shoulder
Shoulder
Lever
Attach the Swivel Arms to the Lower Pole
1. Insert the Swivel Arms into the Sockets of the Shoulder
until each Swivel Arm clicks into place. (Figure 4)
To remove the Swivel Arms: Locate the Clip on the bottom of the Swivel Arms. Toggle this Clip sideways and pull upwards.
12
Figure 4
Swivel Arms
Swivel Arm
Clip
13
Attach the Upper Pole
1. Loosen the Hex Screws that are located on the Pole
Connector using the 3 mm Hex Key with Screwdriver Tip.
2. Screw the Pole Connector onto the Lower Pole.
3. Slide the Cable-Management Clip onto the Upper Pole.
4. Screw the Upper Pole into the Pole Connector.
5. Tighten the Hex Screws that are located on the Pole
Connector using the 3 mm Hex Key with Screwdriver Tip.
(Figure 5)
Figure 5
Collar Upper Pole
Cable-
Pole
Connector
Management
Clip
Lower Pole
3 mm Hex Key with
Screwdriver Tip
14
Adjust the Collar on the Upper Pole
1. Loosen the Flat-Head Screws on the Collar located on the
Upper Pole, using the 3 mm Hex Key with Screwdriver Tip.
2. Slide the Collar up or down the Upper Pole so that it sits at
the desired height for the two upper Monitors.
3. Tighten the two Flat-Head Screws that are located on the
Collar, using the 3 mm Hex Key with Screwdriver Tip.
(Figure 6)
Figure 6
Collar
3 mm Hex Key with
Screwdriver Tip
15
Attach the Shoulder to the Upper Pole
1. Rotate the Lever on the Shoulder down/counterclockwise
to loosen the Shoulder. Freely rotate the Lever by pulling it away from the Shoulder and rotating it to the top position, then rotate the Lever down/counterclockwise to loosen the Shoulder.
Note: The Lever has a ratchet feature. Freely rotate the Lever, without engaging the tightening mechanism, by
pulling it away from the Shoulder and rotating it to the desired position. Release the Lever and rotate it to engage the tightening mechanism.
2. Slide the Shoulder over and down the Pole, until it makes
contact with the Collar.
3. Freely rotate the Lever to the bottom position and rotate the
Lever up/clockwise to tighten the Shoulder.
(Figure 7)
Figure 7
Shoulder
Upper Pole
Lever
16
Attach the Swivel Arms to the Upper Pole
1. Insert the Swivel Arms into the Sockets of the Shoulder,
located on the Upper Pole, until each Swivel Arm clicks into place. (Figure 8)
To remove the Swivel Arms: Release the Clip that is located on the bottom of the Swivel Arms, where the Swivel Arms connect to the Shoulder, and pull upwards.
Figure 8
Swivel Arms
Upper Pole
Clip
Lower Pole
17
Attach the VESA Mounts to the Monitors
ARMQUADSS is designed to be used with Monitors that are the same size and weight. If you attach Monitors that are dierent sizes and weights to ARMQUADSS, you do so at your own risk.
To accommodate dierent Monitor designs, ARMQUADSS comes with six sets of Screws that are dierent lengths and diameters.
To select the appropriate Screws for the type of Monitors that you are using, complete the following:
• Determine whether the Monitor’s VESA Mounting Hole
Patterns are ush or inset. Inset mounts may require the use of the Spacers.
• Determine the depth of the Mounting Holes on the
Monitors.
• Determine the diameter of the Mounting Holes on the
Monitors.
1. Position one of the VESA Mounts over the Mounting Holes
on the back of one of the Monitors.
Note: Make sure that you position the VESA Adapter so that the Height-Adjustment Lever on the VESA Mount is facing towards the top of the Monitor.
2. Position four of the Washers over the holes on the VESA
Mount.
3. Insert four of the appropriately sized Screws through the
Washers, the VESA Mount, and into the Monitor. (Figure 9)
4. (Optional) Place one or more Spacers between the Holes
in the Monitor and the VESA Mount, to ensure it sits at against the Monitor. (Figure 10)
18
Figure 9
Screw
VESA Mount
5. Use a Phillips Head Screwdriver to tighten the Screws.
Washer
Warning! Do not over-tighten the Screws. If you encounter resistance while you’re tightening the Screws, stop tightening. Failure to do so could result in damage to the Monitor.
Figure 10
Screw
Washer
19
Spacers
6. Complete steps 1 to 4 to add a VESA Mount to the three
remaining Monitors.
Attach the VESA Mounts to the Swivel Arms
Warning! Attaching the Monitors is a two-person job. Do not attempt to complete this task by yourself.
Tipping hazard! ARMQUADSS is free-standing and when you attach Monitors to it, you increase the tipping hazard. A second person is required to keep ARMQUADSS upright as you attach the Monitors.
1. Lift the Monitor that will be positioned on the lower left-
hand side and position it over the Swivel Arm Receptacle.
2. Insert the cylindrical portion of the VESA Mount into the
Swivel Arm Receptacle on the lower left-hand side until you hear the VESA Mount click into place.
To remove the VESA Mounts: Locate the Clip on the bottom of the VESA Mounts. Toggle this Clip sideways and pull upwards.
3. Repeat steps 1-2 for the Monitor on the lower right-hand
side.
4. Lift the Monitor that will be positioned on the upper left-
hand side and position it over the Swivel Arm Receptacle.
5. Insert the cylindrical portion of the VESA Mount into the
Swivel Arm Receptacle on the upper left-hand side until you hear the VESA Mount click into place. (Figure 11)
6. Repeat steps 1-2 for the Monitor on the upper right-hand
side.
20
Figure 11
VESA Mount
21
Adjusting the Monitors
Warning! The most stable conguration of ARMQUADSS is the “at” position, with all four of the Swivel Arms positioned in a straight line. ARMQUADSS can become unstable depending on how you position the Monitors. If you adjust the position of the Monitors, you should exercise caution and test the stability of ARMQUADSS before you use it in the adjusted conguration.
Tilt Adjustment
Each Monitor can be tilted to accommodate dierent viewing angles (40 degrees downward or 90 degrees upward).
1. Loosen the Hex Screw on the side of the VESA Mount by
inserting the 6 mm Hex Key and turning it counterclockwise until the Monitor can easily be reoriented.
Note: It is not necessary to fully loosen the Hex Screws to adjust the tilt of the Monitors.
2. Place one hand on the top edge of the Monitor and the
other hand on the bottom edge of the Monitor. Apply light pressure to tilt the Monitors either upwards or downwards.
3. When the Monitor is in the desired position, tighten the Hex
Screw on each VESA Mount by inserting the 6 mm Hex Key and turning it clockwise until the Hex Screw is hand tight.
(Figure 12)
Note: A second person may be required to hold the Monitors as you tighten the Hex Screws.
22
Figure 12
6 mm Hex Key
Hex Screw
Swivel Adjustment
The Monitors can be adjusted on a 360-degree swivel.
• Place one hand on the left side of the Monitor and the other
hand on the right side of the Monitor. Apply light pressure to swivel the Monitors either left or right.
Rotation Adjustment
The Monitors can be adjusted to be congured in a portrait or landscape view.
Note: Ensure that there is ample clearance to t all four Moni tors. Some adjustments to the height of the Shoulders will be necessary in order to rotate your Monitors.
23
• Place one hand on the left side of the Monitor and the other
hand on the right side of the Monitor. Apply light pressure to rotate the Monitors into a portrait or landscape view.
Micro Height Adjustment
1. Insert the 6 mm Hex Key into the Height-Adjustment Knob
that is located on the top of the VESA Mounts.
2. Turn the 6 mm Hex Key, or the Height-Adjustment Knob,
clockwise to lower the Monitors or counterclockwise to raise the Monitors. (Figure 13)
3. (Optional) Turn the Height-Adjustment Knob with a hand
to raise or lower the Monitors.
Figure 13
6 mm Hex Key
24
Cable Management
The Power and Video Cables from your Monitors can be organized and contained within the Swivel Arms and alongside the Upper and Lower Poles. To manage the Cables running to your Monitors, complete the following steps:
1. Connect the Power and Video Cables to each Monitor.
2. Route the Cables for the Monitors along the bottom of the
Swivel Arms.
3. Locate the integrated Cable-Management Channels within
the Swivel Arms and gently press the Cables into the Channels.
Note: If the Cables do not readily snap into the Cable- Management Channels, gently pull back one side of
the Cable-Management Channel and feed the Cables into the Channel.
4. Route the Cables along the Upper and Lower Poles,
through the Cable-Management Clips, and towards the Video Source(s) and Power Source(s). (Figure 14)
25
Figure 14
Cable-Management
Channel
26
Warranty Information
This product is backed by a ve-year warranty.
For further information on product warranty terms and conditions, please refer to www.startech.com/warranty.
Limitation of Liability
In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of prots, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.
Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.
27
27
Hard-to-nd made easy. At StarTech.com, that isn’t a slogan. It’s a promise.
StarTech.com is your one-stop source for every connectivity part you need. From the latest technology to legacy products — and all the parts that bridge the old and new — we can help you nd the parts that connect your solutions.
We make it easy to locate the parts, and we quickly deliver them wherever they need to go. Just talk to one of our tech advisors or visit our website. You’ll be connected to the products you need in no time.
Visit www.startech.com for complete information on all StarTech.com products and to access exclusive resources and time-saving tools.
StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
Reviews
Share your experiences using StarTech.com products, including product applications and setup, what you love about the products, and areas for improvement.
StarTech.com Ltd.
45 Artisans Cres.
London, Ontario
N5V 5E9
Canada
FR: fr.startech.com
DE: de.startech.com
StarTech.com LLP
2500 Creekside Pkwy.
Lockbourne, Ohio
43137
U.S.A.
ES: es.startech.com
NL: nl.startech.com
StarTech.com Ltd.
Unit B, Pinnacle
15 Gowerton Rd., Brackmills
Northampton
NN4 7BW
United Kingdom
IT: it.startech.com
JP: jp.startech.com
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
