Quad-Monitor Arm
ARMQUAD
FR: Guide de l’utilisateur - fr.startech.com
DE: Bedienungsanleitung - de.startech.com
ES: Guía del usuario - es.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
IT: Guida per l’uso - it.startech.com
For the latest information, technical specications, and support for
this product, please visit www.StarTech.com/ARMQUAD.
Manual Revision: 11/28/2016
*actual product may vary from photos
Warning statements
Make sure to assemble this product according to the instructions. Failure to do so might result in
personal injury or property damage.
Make sure that the weight of the monitor doesn’t exceed the weight capacity of this product. If you
exceed the weight capacity, you might experience personal injury or damage to the equipment. This
product can support the following weight: 17.6 lb. (8 kg) per monitor mount.
Never operate this product if parts are missing or damaged.
Allowing any part of your component cables to get caught between moveable parts might result in
personal injury or damage to your equipment.
Varningsmeddelanden
Se till att du monterar produkten i enlighet med instruktionerna. Om du inte gör det kan skada på
person eller egendom uppstå.
Se till att skärmens vikt inte överstiger produktens viktkapacitet. Om viktkapaciteten överstigs kan
skada på person eller utrustning uppstå. Denna produkt har stöd för följande vikter: 8 kg per skårm.
Använd aldrig produkten om delar saknas eller är skadade.
Om någon del av dina komponentkablar fastnar mellan rörliga delar kan skada på person eller
utrustning uppstå.
Avertissements
Assemblez ce produit conformément aux instructions. Si vous ne respectez pas ces instructions, vous
risquez de vous blesser ou d’endommager l’équipement.
Vériez que le poids du moniteur ne dépasse pas la capacité pondérale du produit. Si vous dépassez
la capacité pondérale, vous risquez des blessures corporelles ou des dommages matériels. Ce produit
peut supporter 8 kg par ’ecran.
N’utilisez pas ce produit si des pièces sont endommagées ou manquantes.
Si les câbles des composants se coincent entre des parties mobiles, vous risquez des blessures
corporelles ou des dommages matériels.
Warnhinweise
Montieren Sie dieses Produkt gemäß den Anweisungen. Anderenfalls kann dies zu Verletzungen von
Personen oder Schäden an Eigentum führen.
Das Gewicht des Monitors darf die zulässige Traglast des Produkts nicht übersteigen. Wenn die Traglast
überschritten wird, kann dies zu Verletzungen von Personen oder Schäden an Geräten führen. Dieses
Produkt ist für folgendes Gewicht geeignet: 8 kg per monitor.
Das Produkt darf nicht bedient werden, wenn Teile fehlen oder beschädigt sind.
Wenn sich Komponentenkabel in beweglichen Teilen verfangen, kann dies zu Verletzungen von
Personen oder Schäden an Geräten führen.
Dichiarazioni di avvertenza
Assemblare il prodotto rispettando le istruzioni. Il mancato rispetto delle istruzioni potrebbe causare
danni a persone o proprietà.
Vericare che il peso del monitor non superi la capacità di supporto del prodotto. In caso di
superamento della capacità di supporto potrebbero vericarsi danni a persone o apparecchiature. Il
prodotto è in grado di supportare i seguenti pesi: 8 kg per monitor.
Non utilizzare il prodotto in presenza di parti mancanti o danneggiate.
L’eventuale intrappolamento dei cavi del componente fra elementi in movimento potrebbe causare
danni a persone o apparecchiature.
Mensagens de aviso
Certique-se de que monta este produto de acordo com as instruções. O incumprimento pode resultar
em ferimentos pessoais ou danos de propriedade.
Certique-se de que o peso do monitor não excede a capacidade de peso deste produto. Se exceder
a capacidade de peso, pode sofrer ferimentos pessoais ou danos no equipamento. Este produto pode
suportar o seguinte peso: 8 kg por monitor.
Nunca opere este produto se faltarem peças ou estas estiverem danicadas.
Ao permitir que qualquer parte dos cabos do seu componente que preso entre partes móveis, pode
resultar em ferimentos pessoais ou danos no seu equipamento.
Advertencias de uso
Asegúrese de ensamblar este producto según las instrucciones. De lo contrario, pueden producirse
lesiones personales o daños de propiedad.
Asegúrese de que el peso del monitor no exceda la capacidad de carga de este producto. Si se excede
dicha capacidad se podrían producirse lesiones personales o daños al equipo. Este producto tiene
capicidad para el siguiente peso: 8 kg por monitor.
Nunca opere o ponga en funcionamiento este producto si faltan piezas o hay daños en las mismas.
En caso de que los cables de su componente queden atascados en piezas en movimiento se pueden
producir lesiones personales o daños en el equipo.
Waarschuwingen
Zorg dat dit product volgens de instructies in elkaar wordt gezet. Indien dit niet goed gebeurt kan
lichamelijk letsel of materiële schade ontstaan.
Zorg dat het gewicht van het scherm de maximale capaciteit van dit product niet overschrijdt. Als u de
gewichtscapaciteit overschrijdt, kan persoonlijk letsel of schade aan de apparatuur ontstaan. Dit product
ondersteunt het volgende gewicht: 8 kg per monitor.
Gebruik dit product nooit als er onderdelen ontbreken of beschadigd zijn.
Als uw componentkabels tussen bewegende delen vast komen te zitten, kan dit lichamelijk letsel of
schade aan de apparatuur veroorzaken.
注意
必ず取扱説明書に従って本製品の組み立てを行って下さい。取り扱いを誤った場合に、傷害を負う恐れ
や物的損害が発生する恐れがあります。
取り付けるモニターの重量が、本製品で定められた最大積載重量を超えないようにして下さい。最大積
載重量をオーバーした場合、傷害を負う恐れやモニターや本製品に損害が発生する恐れがあります。
本製品は、モニター1台あたり8kgまで支持できます。
本製品で使用している部品の一部が紛失していたり損傷している状態で使用するのは絶対に止
めて下さい。
ケーブルの一部が本製品の可動部に引っ掛かってしまった場合、傷害を負う恐れやモニターや本製品
に損害が発生する恐れがあります。
Instruction manual
i
Table of Contents
Warnings ...................................................................................................................................................... i
Introduction ............................................................................................1
Product diagram ........................................................................................................................................ 1
Product dimensions ................................................................................................................................. 2
Technical specications ..........................................................................................................................3
Package contents ...................................................................................................................................... 4
Requirements ............................................................................................................................................. 6
Assembly .................................................................................................7
Attach the ARMQUAD to your mounting surface ......................................................................... 7
Attach monitor arms to the lower pole ............................................................................................. 12
Attach monitors to the monitor arms on the lower pole ...........................................................14
Attach monitor arms to the upper pole ............................................................................................ 16
Attach monitors to the monitor arms on the upper pole .......................................................... 19
Adjust the position of the monitors ................................................................................................... 22
Attach the cable-management clips .................................................................................................. 25
Technical support ...................................................................................26
Warranty information ............................................................................26
Instruction manual
ii
Introduction
Use the ARMQUAD to mount four monitors, and use the cable-management clips to
keep your cables organized. Adjust the position of the monitors to set up your work
station in the way that works best for you.
Product diagram
Monitor armMonitor arm
Upper pole
VESA monitor mount VESA monitor mount
Monitor armMonitor arm
VESA monitor mount
Instruction manual
Lower pole
Desk clamp
Pole connector
VESA monitor mount
1
Product dimensions
Instruction manual
2
Technical specications
Type of measurement Measurement
VESA mounting hole pattern
75x75
100x100
Instruction manual
Weight capacity
kg
Tilt
Screen size
Rotate
Swivel
Up to 17.6 lb. (8 kg)
per monitor mount
+30 to -30
330 to 686 mm
(13 to 27 in.)
360
+30 to -30
3
Package contents
1
Monitor arms
Qty: Four
3
Lower pole
Qty: One
Pole connector
Qty: One
7
2
VESA monitor mounts
Qty: Four
4
Upper pole
Qty: One
65
Cable-management clips
Qty: Four
8
Instruction manual
End caps
Qty: Four
Thumbscrews
Qty: Four
4
9 10
Desk clamp
Qty: One
11
12
5 mm hex key
Qty: One
13 14
M5x14 mm screws
Qty: Sixteen
15
16
Grommet collar
Qty: One
3 mm hex key
Qty: One
M4x14 mm screws
Qty: Sixteen
Washers
Qty: Sixteen
Grommet plate
Qty: One
Instruction manual
5
17 18
Rubber pads
Qty: Five
Instruction manual
Qty: One
Requirements
• Four monitors or displays that are compatible with a VESA mount
• A Phillips screwdriver
Requirements are subject to change. For the latest requirements, please visit
www.StarTech.com/ARMQUAD.
Instruction manual
6
Assembly
Attach the ARMQUAD to your mounting surface
There are two ways that you can attach the ARMQUAD to your mounting surface: a
desk clamp or a grommet mount. The desk clamp ships preassembled.
Use the desk clamp to attach the ARMQUAD
Warning! Make sure that the weight of the monitors doesn’t exceed the weight
capacity of this product. If you exceed the weight capacity, you might experience
personal injury or damage to the product. This product can support the following
weight: Up to 8 kg (17.6 lb.) per monitor mount, for a total of 32 kg (70.4 lb.).
1. Remove the cap from the top of the desk clamp (9). (gure 1)
gure 1
Desk clamp
2. Thread the lower pole (3) through the cap that you removed from the desk clamp.
(gure 2)
gure 2
Cap
Lower pole
Instruction manual
Cap
7
3. Screw the lower pole and cap into the top of the desk clamp. (gure 3)
4. Use the 3 mm hex key (10) to tighten the screws in the desk clamp. (gure 4)
gure 3 gure 4
Lower pole
Desk clamp
3 mm hex key
5. Push down the cap so that it sits ush against the top of the desk clamp. (gure 5)
gure 5
Lower pole
Instruction manual
Cap
Desk clamp
8
6. Remove the backing from the ve rubber pads (17) and attach them underneath
the top of the desk clamp.
7. Turn the knob on the desk clamp counterclockwise until you reach the thickness of
the desk or table that you’re attaching the ARMQUAD to.
Note: The desk mount can accommodate a desk or table that’s between 10 and 80 mm
(0.4 and 3.1 in.) thick.
8. Slide the desk clamp over the edge of the desk or table (gure 6).
9. Turn the knob clockwise to tighten the desk clamp.
gure 6
Desk clamp
Knob
Use the grommet mount to attach the ARMQUAD
Warning! Make sure that the weight of the monitors doesn’t exceed the weight
capacity of this product. If you exceed the weight capacity, you might experience
personal injury or damage to the product. This product can support the following
weight: Up to 8 kg (17.6 lb.) per monitor mount, for a total of 32 kg (70.4 lb.).
1. Remove the cap from the top of the desk clamp (9). (gure 7)
gure 7
Desk clamp
Cap
Instruction manual
9
2. Thread a Phillips screwdriver through the top of the desk clamp and unscrew the
screw and remove the washer and plate. (gure 8)
Tip! Keep the screw, washer, and plate in a safe place so that you can use them again if
you want to switch back to the desk clamp.
3. Remove the rod from the bottom of the desk clamp. (gure 8)
gure 8
Screwdriver
Desk clamp
Screw
Plate
Rod
4. Thread the lower pole (3) through the cap that you removed from the desk clamp.
(gure 9)
gure 9
Lower pole
Cap
Instruction manual
10

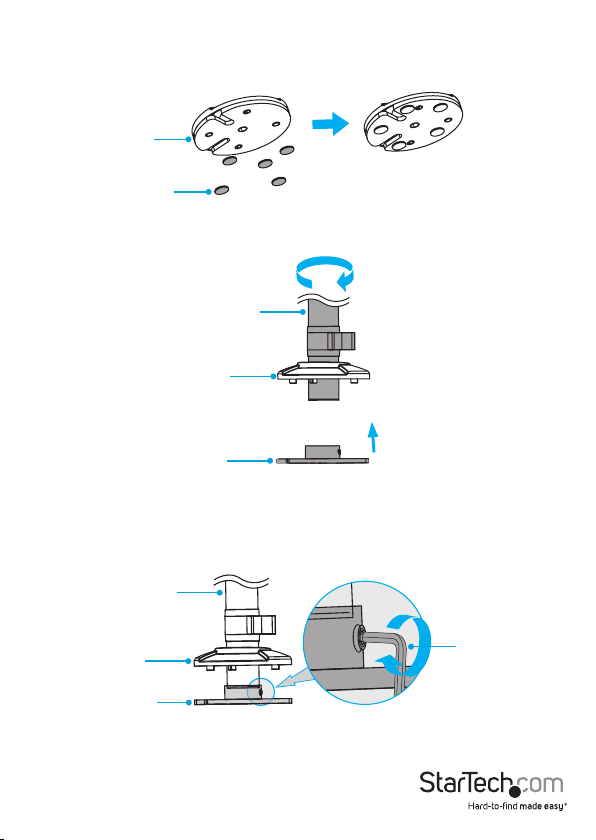

5. Remove the backing from the ve rubber pads (17) and ax them to the bottom of
the grommet collar (15). (gure 10)
gure 10
Grommet
collar
Rubber pads
6. Screw the lower pole and cap into the top of the grommet collar. (gure 11)
gure 11
Pole
Cap
Grommet collar
7. Use the 3 mm hex key (10) to tighten the screw in the grommet collar, and push
down the cap so that it sits ush again the grommet collar. (gure 12)
gure 12
Lower pole
Grommet collar
Instruction manual
Cap
3 mm hex key
11
8. Thread the grommet plate (16) onto the rod.
9. Place the assembled lower pole and grommet collar over the grommet hole in
your mounting surface. On the underside of the mounting surface, thread the rod
up through the grommet hole and into the lower pole.
10. Turn the knob clockwise to tighten the grommet mount. (gure 13)
gure 13
Lower pole
Grommet plate
Rod
Attach monitor arms to the lower pole
1. Use the 3 mm hex key (10) to loosen the screw in the collar on the lower pole (3).
2. Slide the collar to the height that you want the two lower monitors to sit at, and use
the 3 mm hex key to tighten the screw in the collar. (gure 14)
gure 14
Lower pole
Collar
3 mm hex key
Instruction manual
12
3. Slide one of the monitor arms (1) down the lower pole so that it sits against the
collar.
4. Slide a second monitor arm down the lower pole so that it sits against the rst
monitor arm and extends in the opposite direction of the rst monitor arm.
(gure 15)
gure 15
Monitor arm
Monitor arm
Collar
Lower pole
Note: When you assemble the ARMQUAD for the rst time, you need to use the 5 mm
hex key (11) to tighten the screws in each of the monitor arm joints. (gure 16)
gure 16
Instruction manual
5 mm hex key
13
Attach monitors to the monitor arms on the lower pole
Warning! Attaching the monitors is a two-person job. Do not attempt to complete this
task by yourself.
To accommodate dierent monitor designs, the ARMQUAD comes with two sets of
screws that are dierent lengths and diameters.
To select the appropriate screws for the type of monitors that you’re using, complete
the following:
• Determine whether the back of the monitors are ush or inset.
• Determine the depth of the mounting holes on the monitors.
• Determine the diameter of the mounting holes on the monitors.
1. Position one of the VESA monitor mounts (2) over the mounting holes on the back
of one of your monitors.
Note: Make sure that you position the VESA monitor mount so that the adjustment
screw on the monitor mount is facing towards the top of the monitor.
2. Position four of the washers (14) over the holes on the VESA monitor mount.
3. Insert four of the M4x14 mm screws (12) or the M5x14 mm screws (13) through the
washers, the VESA monitor mount, and into the monitor. (gure 17)
4. Use a Phillips screwdriver to tighten the screws.
Warning! Do not over-tighten the screws. If you encounter resistance while you’re
tightening the screws, stop tightening. Failure to do so could result in damage to the
monitor.
gure 17
Top of monitor
Instruction manual
M4x14 mm screw
OR
M5x14 mm screw
Washer
VESA monitor mount
14
5. Complete steps 1 to 4 to add a VESA monitor mount to a second monitor.
6. Slide one of the VESA monitor mounts with the monitor attached over the end of
one of the monitor arms (1) attached to the lower pole (3).
7. Slide the second VESA monitor mount and monitor over the end of the other
monitor arm attached to the lower pole. (gure 18)
gure 18
Top of monitor
Monitor arm
Monitor arm
Top of monitor
VESA monitor mount
Lower pole
VESA monitor mount
8. Place an end cap (7) on the end of each of the monitor arms attached to the lower
pole. (gure 19)
Note: Make sure that you line up the hole on the end cap with the corresponding hole
on the end of the monitor arms.
gure 19
Monitor arm
End cap
9. Insert a thumbscrew (8) through the hole in each of the end caps and into the
monitor arms, and tighten the thumbscrews in place. (gure 20)
Instruction manual
15
gure 20
End cap
Thumbscrew
Attach monitor arms to the upper pole
1. Screw the pole connector (5) onto the end of the lower pole (3). (gure 21)
gure 21
Pole connector
Instruction manual
Lower pole
16
2. Screw the upper pole (4) into the pole connector. (gure 22)
gure 22
Upper pole
Pole connector
Lower pole
3. Use the 3 mm hex key (10) to tighten the two screws in the side of the pole
connector. (gure 23)
gure 23
3 mm hex key
Pole connector
Instruction manual
17
4. Use the 3 mm hex key to loosen the screw in the collar on the upper pole.
5. Slide the collar to the height that you want the two monitors to sit at, and use the
3 mm hex key to tighten the screw in the collar. (gure 24)
gure 24
Upper pole
Collar
3 mm hex key
6. Slide one of the monitor arms (1) down the upper pole so that it sits against the
collar.
7. Slide the fourth monitor arm down the upper pole so that it sits against the other
monitor arm and extends in the opposite direction. (gure 25)
gure 25
Monitor arm
Monitor arm
Upper pole
Instruction manual
18
Attach monitors to the monitor arms on the upper pole
Warning! Attaching the monitors is a two-person job. Do not attempt to complete this
task by yourself.
To accommodate dierent monitor designs, the ARMQUAD comes with two sets of
screws that are dierent lengths and diameters.
To select the appropriate screws for the type of monitors that you’re using, complete
the following:
• Determine whether the back of the monitors are ush or inset.
• Determine the depth of the mounting holes on the monitors.
• Determine the diameter of the mounting holes on the monitors.
1. Position one of the VESA monitor mounts (2) over the mounting holes on the back
of one of your monitors.
Note: Make sure that you position the VESA monitor mount so that the adjustment
screw on the monitor mount is facing towards the top of the monitor.
2. Position four of the washers (14) over the holes on the VESA monitor mount.
3. Insert four of the M4x14 mm screws (12) or the M5x14 mm screws (13) through the
washers, the VESA monitor mount, and into the monitor. (gure 26)
4. Use a Phillips screwdriver to tighten the screws.
Warning! Do not over-tighten the screws. If you encounter resistance while you’re
tightening the screws, stop tightening. Failure to do so could result in damage to the
monitor.
gure 26
Top of monitor
Instruction manual
M4x14 mm screw
OR
M5x14 mm screw
Washer
VESA monitor mount
19
5. Complete steps 1 to 4 to add a VESA monitor mount to a second monitor.
6. Slide one of the VESA monitor mounts with the monitor attached over the end of
one of the monitor arms (1) attached to the upper pole (4).
7. Slide the second VESA monitor mount and monitor over the end of the other
monitor arm attached to the upper pole. (gure 27)
gure 27
Top of monitor
Monitor arm
Top of monitor
Monitor arm
VESA monitor mount
Upper pole
VESA monitor mount
8. Place an end cap (7) on the end of each of the monitor arms attached to the upper
pole. (gure 28)
Note: Make sure that you line up the hole on the end cap with the corresponding hole
on the end of the monitor arms.
gure 28
Monitor arm
End cap
Instruction manual
20
9. Insert a thumbscrew (8) through the hole in each of the end caps and into the
monitor arms, and tighten the thumbscrews in place. (gure 29)
gure 29
End cap
Thumbscrew
Instruction manual
21
Adjust the position of the monitors
You can adjust the position and angle of your monitors in the following ways:
Instruction manual
+30
-30
+30
-30
0 to 30
+30 to -30
+30 to -30
360
360
22
0 to 30
+30 to -30
+30 to -30
360
360
+30
-30
+30
-30
1. To position the monitors in the way that works best for your setup, do any of the
following:
• To adjust the angle of the monitor arms (1), use the 5 mm hex key (11) to
loosen the two screws at each of the monitor arm joints. Position the monitors
at the angles that you want them in, and use the 5 mm hex key to tighten the
screws and lock the monitors into position. (gure 30)
gure 30
5 mm hex key
• To adjust the tilt angle of the monitors, use the 5 mm hex key (11) to loosen
the screw in the sides of the VESA monitor mounts (2). Position the monitors
at the angles that you want them in, and use the 5 mm hex key to tighten the
screws and lock the monitors into position. (gure 31)
gure 31
Instruction manual
5 mm hex key
23
• To raise or lower the monitors minutely, use the adjustment screws located on
the top of the VESA monitor mounts (2). (gure 32)
gure 32
Adjustment
screw
• To move the monitors along the monitor arms (1), use a Phillips screwdriver
to loosen the screw located on the underside of each of the VESA monitor
mounts (2). Move the monitors left or right on the monitor arms, and tighten
each of the screws when the monitors are in the locations that you want them
in. (gure 33)
Warning! Make sure that you loosen the screw on the underside of the VESA monitor
mounts before you move them along the monitor arms. If you move the VESA
monitor mounts without loosening the screws, you might damage the surface of the
monitor arms.
gure 33
Instruction manual
24
Attach the cable-management clips
1. Snap one of the cable-management clips (6) over each of the four monitor arms
(1). (gure 34)
gure 34
Cable-management
clip
2. Route the monitor cables through the cable-management clips on the monitor
arms and through the cable-management clips on the poles. (gure 35)
gure 35
Instruction manual
Monitor arm
25
Technical support
StarTech.com’s lifetime technical support is an integral part of our commitment to
provide industry-leading solutions. If you ever need help with your product, visit
www.startech.com/support and access our comprehensive selection of online tools,
documentation, and downloads.
For the latest drivers/software, please visit www.startech.com/downloads
Warranty information
This product is backed by a two-year warranty.
StarTech.com warrants its products against defects in materials and workmanship
for the periods noted, following the initial date of purchase. During this period,
the products may be returned for repair, or replacement with equivalent
products at our discretion. The warranty covers parts and labor costs only.
StarTech.com does not warrant its products from defects or damages arising from
misuse, abuse, alteration, or normal wear and tear.
Limitation of Liability
In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their
ocers, directors, employees or agents) for any damages (whether direct or indirect,
special, punitive, incidental, consequential, or otherwise), loss of prots, loss of business,
or any pecuniary loss, arising out of or related to the use of the product exceed the
actual price paid for the product. Some states do not allow the exclusion or limitation
of incidental or consequential damages. If such laws apply, the limitations or exclusions
contained in this statement may not apply to you.
Instruction manual
26
Hard-to-nd made easy. At StarTech.com, that isn’t a slogan. It’s a promise.
StarTech.com is your one-stop source for every connectivity part you need. From
the latest technology to legacy products — and all the parts that bridge the old and
new — we can help you nd the parts that connect your solutions.
We make it easy to locate the parts, and we quickly deliver them wherever they need
to go. Just talk to one of our tech advisors or visit our website. You’ll be connected to
the products you need in no time.
Visit www.startech.com for complete information on all StarTech.com products and
to access exclusive resources and time-saving tools.
StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology
parts. StarTech.com was founded in 1985 and has operations in the United States,
Canada, the United Kingdom and Taiwan servicing a worldwide market.
Loading...
