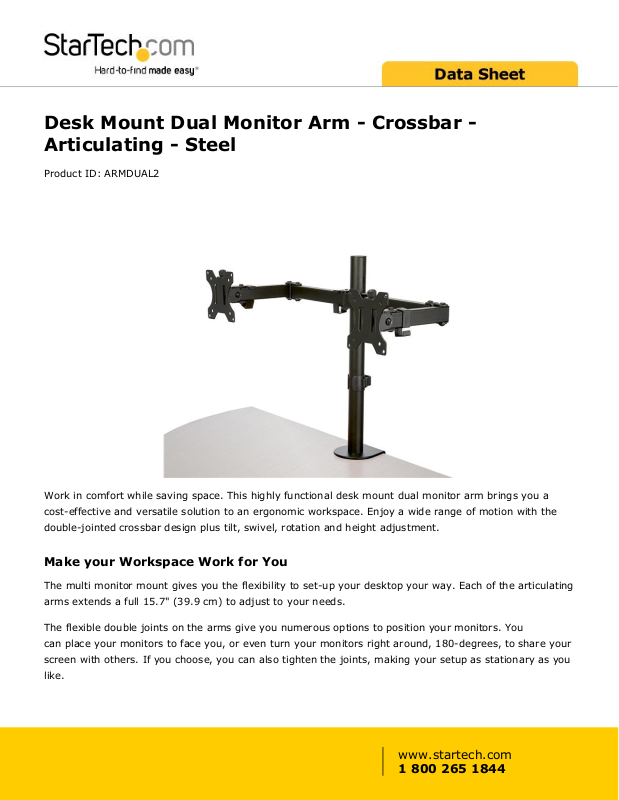

Desk Mount Dual Monitor Arm - Crossbar Articulating - Steel
Product ID: ARMDUAL2
Work in comfort while saving space. This highly functional desk mount dual monitor arm brings you a
cost-effective and versatile solution to an ergonomic workspace. Enjoy a wide range of motion with the
double-jointed crossbar design plus tilt, swivel, rotation and height adjustment.
Make your Workspace Work for You
The multi monitor mount gives you the flexibility to set-up your desktop your way. Each of the articulating
arms extends a full 15.7" (39.9 cm) to adjust to your needs.
The flexible double joints on the arms give you numerous options to position your monitors. You
can place your monitors to face you, or even turn your monitors right around, 180-degrees, to share your
screen with others. If you choose, you can also tighten the joints, making your setup as stationary as you
like.
www.startech.com
1 800 265 1844
Crossbar Design Made of Steel
The cross-bar design provides a clean and simple look, while keeping monitors aligned. Use the micro-
adjustment knob to align your monitors perfectly.
Made of steel, the rugged two display arm securely supports two VESA mount (75x75, 100x100) monitors
up to 32", with a weight capacity of 17.6 lb. (8 kg) per monitor.
Find the Ideal Viewing Angle
The double monitor arm lets you smoothly and effortlessly adjust the position of your screens for
optimum viewing. Tilt your monitors +45/-45 degrees. Swivel +90/-90 degrees to the left or right. Rotate
your monitors to portrait or landscape position with the 360-degree rotary VESA plate.
Height Adjustable
Adjust your monitors to the desired height. The dual screen mount is height adjustable along the 17.4"
(44.3 cm) pole.
Easy to Install
The multiple monitor mount is easy to install, using the C-clamp to attach the mount to the edge of your
desk, table, or counter or mounting it through a grommet hole. The detachable VESA plate makes it
easy to attach or remove your monitor. The built-in cable management keeps your cables neatly
tucked away.
ARMDUAL2 is backed by a StarTech.com 5-year warranty and free, lifetime technical support.
www.startech.com
1 800 265 1844
Certifications, Reports
and Compatibility
Applications
• Mount two displays to your desk, table or counter using the desk
clamp or grommet hole mount
• Create a dual-monitor set-up for shared office workstations, or for
industrial and warehouse environments
• Rotate displays to portrait orientation for web design and coding
Features
• Save space by mounting two displays up to 32", with max weight of
17.6 lb. (8 kg) per monitor
• Customize your setup with the double-jointed articulating arms, plus
height adjustment along the 17.4" (44.3 cm) pole
• Enjoy ideal viewing with a wide range of motion: +45/-45 degree tilt,
+90/-90 degree swivel and 360-degree rotation
• Easy to install (with a desk C-clamp or grommet) with a detachable
VESA plate
• Each arm extends a full 15.7" (39.9 cm)
www.startech.com
1 800 265 1844
Warranty 5 Years
Hardware # of Displays Supported 2
Articulating Yes
Mounting Options Desk & Grommet Clamp
Mounting Surface Thickness Desk Clamp: Table Thickness 0.39 - 3.46 in. (10 - 88 mm)
Grommet Clamp: Table Thickness 0.39 - 2.95 in. (10 - 75
mm)
Grommet Mount Hole Size: 0.39 - 2.95 in. (10 - 75 mm)
VESA Hole Pattern(s) 75x75 mm
100x100 mm
Wallmountable No
Performance Display Rotation 360°
Display Swivel +90° / - 90°
Display Tilt + 45° / - 45°
Height Adjustment Yes
Maximum Arm Span 15.7 in [399 mm]
Maximum Display Size 32in
Swivel / Pivot +/- 90° around the support post
+/- 180° at the shoulder
+/- 90° at the elbow
Weight Capacity (Per Display) 17.7 lb [8 kg]
Physical
Characteristics
Color Black
Construction Material Steel
Product Height 5.8 in [148 mm]
Product Length 35.9 in [913 mm]
Product Width 21.6 in [548 mm]
Weight of Product 162.4 oz [4600 g]
Packaging
Information
Package Height 5.3 in [135 mm]
Package Length 8.9 in [225 mm]
Package Width 17.6 in [448 mm]
Shipping (Package) Weight 169.4 oz [4800 g]
What's in the Box Included in Package 2 - VESA Mounts
www.startech.com
1 800 265 1844
1 - Swivel Arm Assembly
1 - Desk Clamp Assembly
1 - Pole
1 - Pole Cap
2 - Cable Management Clips
1 - Grommet Base Plate
2 - Micro Adjustment Knobs
2 - Micro Adjustment Knob Screws
5 - Rubber Pads
3 - Pole Assembly Screws
1 - Grommet Plate
1 - 3mm Hex Key
1 - 4mm Hex Key
1 - 6mm Hex Key
8 - M4 x 12 mm Screws
8 - M4 x 16 mm Screws
8 - M5 x 12 mm Screws
8 - M5 x 16 mm Screws
8 - Washers
16 - Spacers
4 - Swivel Arm Cable Clips
1 - User Manual
Product appearance and specifications are subject to change without notice.
