Startech 25SATSAS35 User Manual

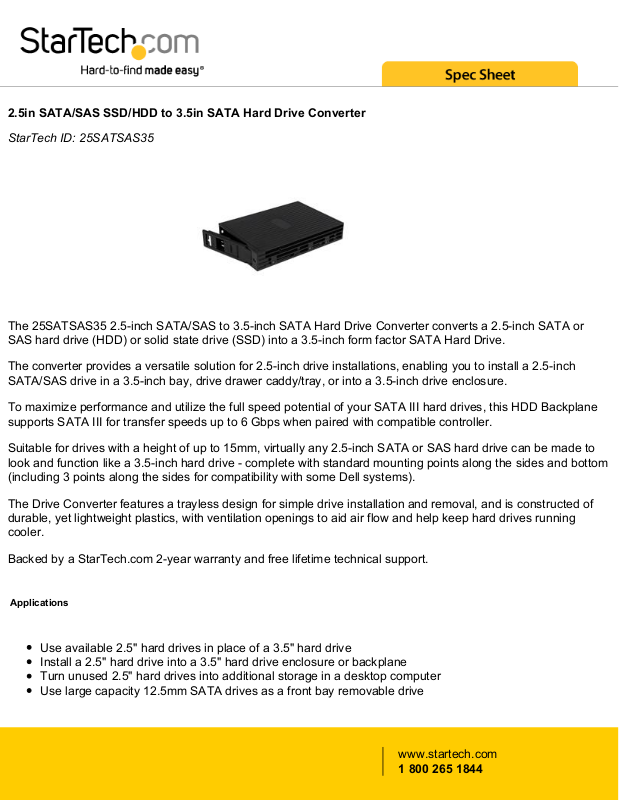

2.5in SATA/SAS SSD/HDD to 3.5in SATA Hard Drive Converter
StarTech ID: 25SATSAS35
The 25SATSAS35 2.5-inch SATA/SAS to 3.5-inch SATA Hard Drive Converter converts a 2.5-inch SATA or SAS hard drive (HDD) or solid state drive (SSD) into a 3.5-inch form factor SATA Hard Drive.
The converter provides a versatile solution for 2.5-inch drive installations, enabling you to install a 2.5-inch SATA/SAS drive in a 3.5-inch bay, drive drawer caddy/tray, or into a 3.5-inch drive enclosure.
To maximize performance and utilize the full speed potential of your SATA III hard drives, this HDD Backplane supports SATA III for transfer speeds up to 6 Gbps when paired with compatible controller.
The Drive Converter features a trayless design for simple drive installation and removal, and is constructed of durable, yet lightweight plastics, with ventilation openings to aid air flow and help keep hard drives running cooler.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Applications
Use available 2.5" hard drives in place of a 3.5" hard drive Install a 2.5" hard drive into a 3.5" hard drive enclosure or backplane Turn unused 2.5" hard drives into additional storage in a desktop computer Use large capacity 12.5mm SATA drives as a front bay removable drive
www.startech.com
1 800 265 1844
Features
Trayless design: hard drives are not mounted into separate trays/enclosures Supports 2.5" form factor hard drives (HDD) and solid state drives (SSD) up to 15mm in height Standard 3.5" hard drive mounting points along sides and bottom Power indicator LED Lightweight plastic construction with air vents Plug and Play and hot swap compatible Support for SATA revision I/II/III (1.5/3.0/6.0 Gbps) Support for SAS revision I/II (3.0/6.0 Gbps)
Technical Specifications
Warranty 2 Years Compatible Drive Types (Type and Rate) SAS & SATA Drive Installation Removable Drive Size 2.5in Fan(s) No Key Lock No Number of 2.5 inch bays 1 Number of Drives 1 RAID No Temperature Alarm No Drive Connectors 1 - SFF-8482 (29 pin; Data & Power; Internal SAS) Receptacle Host Connectors 1 - SATA Data & Power Combo (7+15 pin) Plug Color Black Enclosure Type Plastic Max Drive Height 0.6 in [15 mm] Product Height 1 in [25 mm] Product Length 5.7 in [145 mm] Product Weight 4.9 oz [140 g] Product Width 3.9 in [100 mm] Package Quantity 1 Shipping (Package) Weight 7 oz [199 g] Included in Package 1 - 2.5" to 3.5" HDD Converter
www.startech.com
1 800 265 1844
