Star Micronics SP347 User's Manual

DOT MATRIX PRINTER

SP317/347F

INSTALLATION MANUAL

GUIDE D’INSTALLATION

AUFSTELLANLEITUNG

MANUALE DI INSTALLAZIONE

TABLE OF CONTENTS

1. UNPACKING AND INSTALLATION................................................ 2

1-1. Unpacking .................................................................................... 2

1-2. Handling Notes ............................................................................ 2

2. PARTS IDENTIFICATION AND NOMENCLATURE ...................... 3

3. FERRITE CORE INSTALLATION ..................................................... 4

4. CONNECTING THE INTERFACE CABLE .......................................6

4-1. Serial Interface Cable...................................................................6

4-2. Parallel Interface Cable................................................................ 6

APPENDIX .............................................................................................25

ENGLISH

1-1. Unpacking

After unpacking the unit, check that all the necessary accessories are included in
the package.

1. UNPACKING AND INSTALLATION

Ø28mm

Fastener

(E.U. only)

Fig. 1-1 Unpacking (SP317)

Ø28mm

Ferrite core

(E.U. only)

1-2. Handling Notes

1. Install the unit on a stand or table which has a flat, even surface.

2. Do not connect the AC power plug to the same outlet used for other electrical
noise generating devices (such as an electrical motor, etc.)

IMPORTANT!

Install the printer near an easily accessible socket-outlet.

3. Be careful not to drop paper clips, pins or other foreign objects into the unit
as these could cause the printer to malfunction.

4. When cleaning the outer surface of the unit, wipe away dirt, foreign matter,
etc., with a soft cloth, soaked in a neutral detergent.

5. Do not attempt to print when the paper or ribbon cartridge are not loaded in
the printer as this could damage the print head.

6. Use only roll paper that is not glued to the core.

7. Do not open the front cover while printing (this is interpreted as a mechanical
error and the printer will stop).

– 2 –

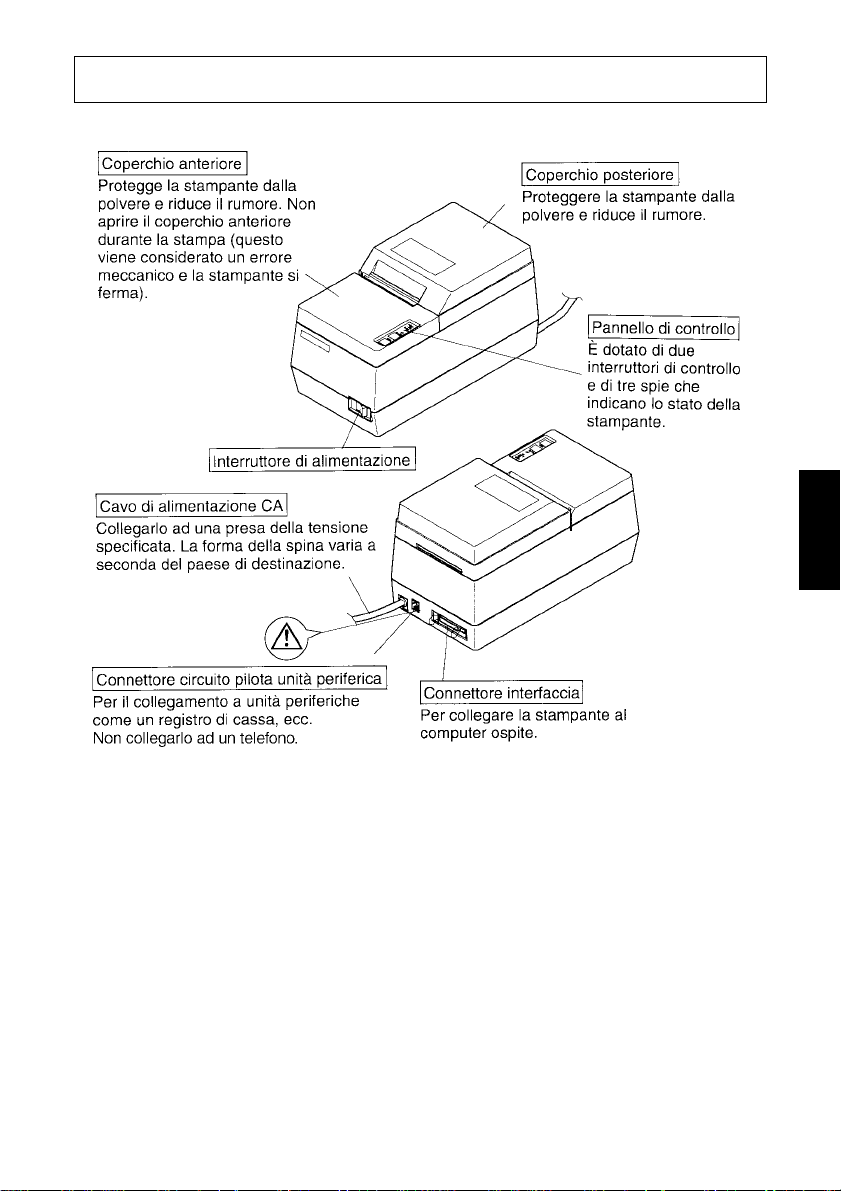

2. PARTS IDENTIFICATION AND NOMENCLATURE

ENGLISH

Fig. 2-1 External view of the printer (SP317)

– 3 –

ENGLISH

NOTE: Take special care when following the procedures listed below.

■ Two ferrite core noise filters come packed with the printer. One is for the

■ The ferrite core is normally packed so

3. FERRITE CORE INSTALLATION

interface cable, while the other one is for the cash drawer drive cable.

it is open, as shown in Fig 3-2. If you
find that a ferrite core is not open, use a
pointed object to pry the plastic lock of
the ferrite core apart (Fig 3-1). When
you do, take care not to damage the
ferrite core or the plastic lock.

Fig. 3-1

Interface

Ferrite Core(28mm diameter)

Cable

Fig. 3-2

10cm
maximum

Fastener

Pass fastener through ferrite core.

Fig. 3-3

Pull and cut

Pass fastener around cable and lock it.
Cut off excess with scissors.

Fig. 3-4

– 4 –

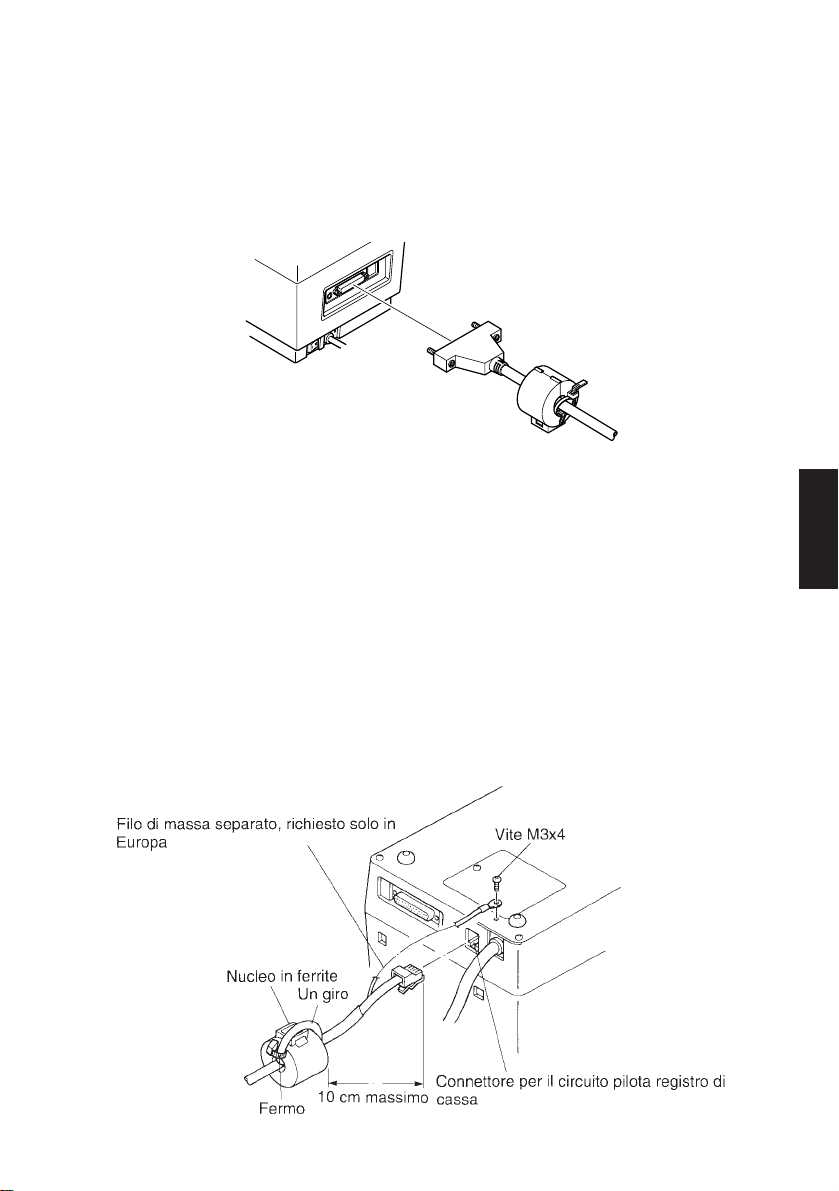

To install the interface cable ferrite core

■ Clamp the ferrite core onto the interface cable as shown in Fig 3-2.

Take care to avoid damaging the interface cable when installing the ferrite
core. The ferrite core should be anchored firmly in place with the fastener that
comes with it, as shown in Fig 3-3 and 3-4.

Fig. 3-5

To install the cash drawer drive cable ferrite core

■ Clamp the ferrite core onto the cash drawer drive cable, looping the cable as

shown in Fig. 3-2.

• When installing the ferrite core be careful not to damage the cable.

• The ferrite core should be anchored firmly in place with the fastener that

comes with it, as shown in Fig. 3-3 and Fig. 3-4.

• Do not forget to loop the cable.

ENGLISH

Fig. 3-6

– 5 –

ENGLISH

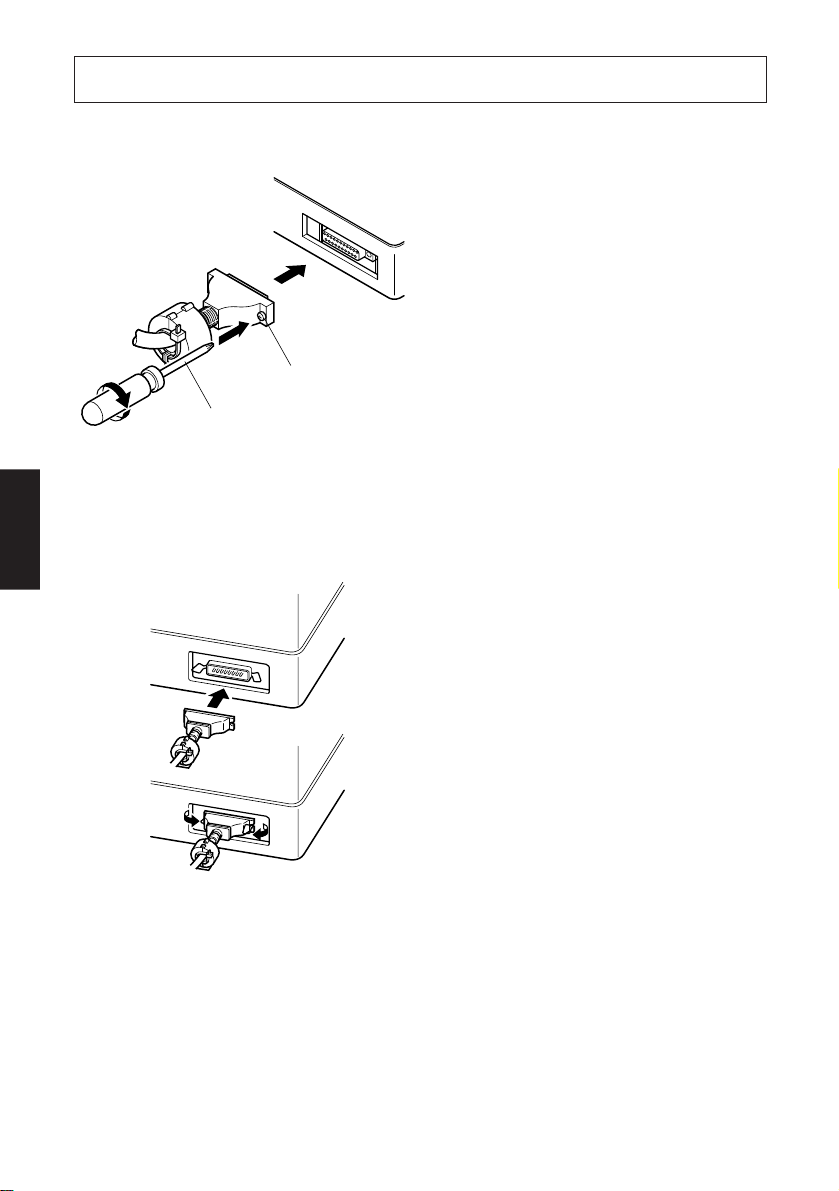

4-1. Serial Interface Cable

4-2. Parallel Interface Cable

4. CONNECTING THE INTERFACE CABLE

Screws

Screwdriver

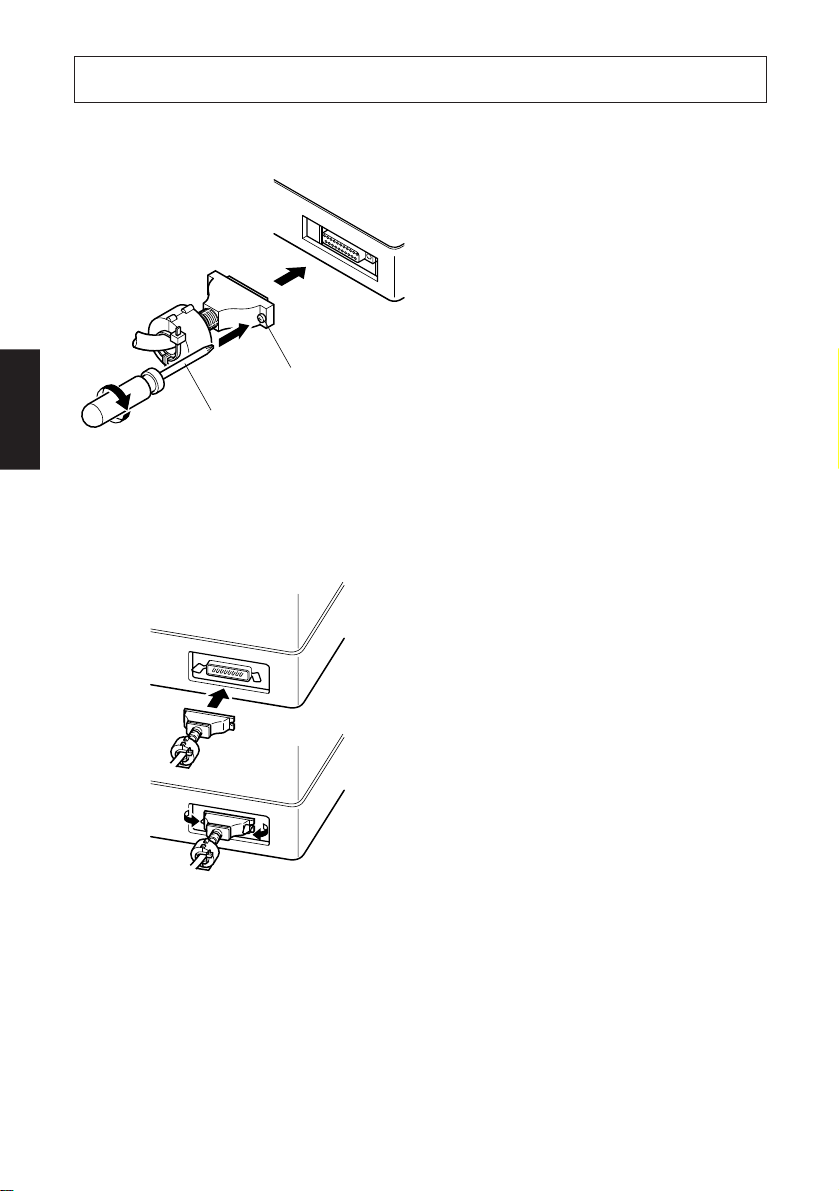

Fig. 4-1 Connecting the serial interface

cable

1 Turn off power for both the host

computer and the printer.

2 Insert the connector of the interface

cable into the connector on the
printer and the other end of the in­terface cable into the connector for
the host computer.

3 Next, tighten the screws on the con-

nectors.

1 Turn off the power for both the host

computer and the printer.

2 Insert one connector of the interface

cable into the printer’s connector
and fasten it with the clasp, as shown
in Fig. 4-2.

3 Insert the other terminal of the inter-

face cable into the host computer’s
connector, and fasten it with the
clasp.

Fig. 4-2 Connecting the parallel interface

cable

– 6 –

TABLE DES MATIÈRES

1. DÉBALLAGE ET INSTALLATION ................................................... 8

1-1. Déballage ..................................................................................... 8

1-2. Remarques concernant la manipulation ....................................... 8

2. IDENTIFICATION DES PIÈCES ET NOMENCLATURE ................ 9

3. INSTALLATION DU NOYAU EN FERRITE .................................. 10

4. CONNEXION DU CÂBLE D’INTERFACE .....................................12

4-1. Câble d’interface sériel .............................................................. 12

4-2. Câble d’interface parallèle ......................................................... 12

APPENDICE ........................................................................................... 25

L’appendice n’est pas traduit.

1. DÉBALLAGE ET INSTALLATION

1-1. Déballage

Après avoir déballé l’appareil, vérifiez si vous disposez bien de tous les accessoi­res illustrés ci-après.

FRANÇAIS

1-2. Remarques concernant la manipulation

1. Installez l’appareil sur un support ou sur une table dont la surface est plate et

2. Ne branchez pas l’appareil à la même prise secteur que d’autres appareils

3. Veillez à ne pas laisser tomber des trombones, punaises ou autres objets dans

4. Nettoyez la surface de l’imprimante à l’aide d’un chiffon doux humidifié et

5. Ne lancez pas l’impression si le papier ou la cartouche de ruban ne sont pas

6. N’utilisez jamais un rouleau de papier dont l’extrémité est collée au rouleau

7. N’ouvrez pas le cache avant de l’appareil pendant l’impression ; en effet cela

Imprimante

Attaches pour rouleau de papier (2)

Axe pour rouleau de
papier

Anneaux d’arrêt (2)

Cartouche de ruban

Guide d’utilisation
Guide d’installation

Ø28mm

Noyau en ferrite
(U.E. uniquement)

Fastener

Attache

(E.U. only)

(U.E. uniquement)

Ø28mm

Ferrite core

(E.U. only)

Fig. 1-1 Déballage (SP317)

uniforme.
produisant des bruits électriques (appareils ayant un moteur électrique, etc.).

IMPORTANT !

Installez l’imprimante le plus près possible d’une prise secteur facilement
accessible.

l’appareil, cela risque de causer un mauvais fonctionnement.
d’un détergent neutre.
installés, sous peine d’endommager la tête d’impression.
central.
serait interprété comme étant une erreur mécanique et l’impression s’inter-

romprait automatiquement.

– 8 –

2. IDENTIFICATION DES PIÈCES ET NOMENCLATURE

FRANÇAIS

Fig. 2-1 Vue externe de l’imprimante (SP317)

– 9 –

N.B.: Prendre des précautions spéciales en suivant les procédures indiquées ci-

■ Deux filtres antibruit à tore de ferrite sont emballés avec l’imprimante. L’un

est prévu pour le câble d’interface et l’autre doit être utilisé pour le câble de

FRANÇAIS

commande de la caisse enregistreuse.

■ Le tore de ferrite est généralement livré

ouvert comme indiqué à la Fig. 3-2. Si
un tore de ferrite n’est pas ouvert, utili­ser un objet pointu pour forcer le
verrouillage en plastique du tore de
ferrite (Fig. 3-1). Lorsque c’est le cas,
prendre soin de ne pas endommager le
tore de ferrite ni le verrouillage en plas­tique.

3. INSTALLATION DU NOYAU EN FERRITE

dessous:

Fig. 3-1

10 cm

10cm

maximum

maximum

Tore de ferrite (diamètre 28 mm)

Ferrite Core(28mm diameter)

Attache

Fastener

Interface

Interface

Cable

Câble

Fig. 3-2

Faire passer l’attache par le tore de
ferrite.

Fig. 3-3

Tirer et couper

Pull and cut

Couper toute partie qui dépasse avec
des ciseaux. des ciseaux.

Fig. 3-4

– 10 –

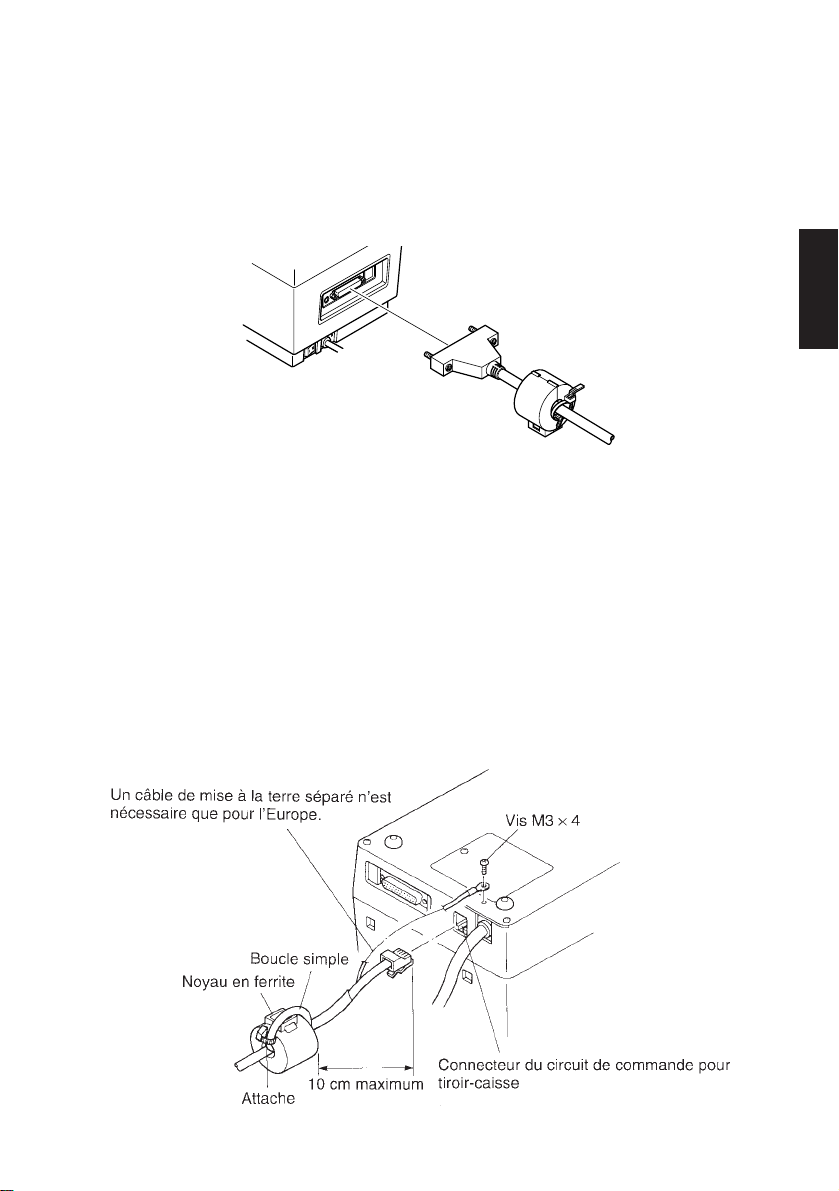

Installation du tore de ferrite de câble d’interface

■ Serrer le tore de ferrite au câble d’interface de la manière indiquée à la Fig. 3-2.

Prendre les précautions d’usage pour éviter d’endommager le câble d’interface
lors de l’installation du tore de ferrite. Il faut bien immobiliser le tore de ferrite
au moyen de l’attache fournie, comme indiqué à la Fig. 3-3 et à la Fig. 3-4.

Fig. 3-5

Installation du tore de ferrite de câble de commande de la
caisse enregistreuse.

■ Brider le noyau en ferrite au câble de commande du tiroir-caisse après avoir fait

une boucle avec le câble, comme illustré à la figure 3-2.

•En montant le noyau en ferrite, veillez à ne pas endommager le câble.

•Le noyau en ferrite doit être maintenu fermement en place à l’aide de

l’attache livrée, comme illustré aux figures 3-3 et 3-4.

•Ne pas oublier de former une boucle avec le câble.

FRANÇAIS

Fig. 3-6

– 11 –

4-1. Câble d’interface sériel

FRANÇAIS

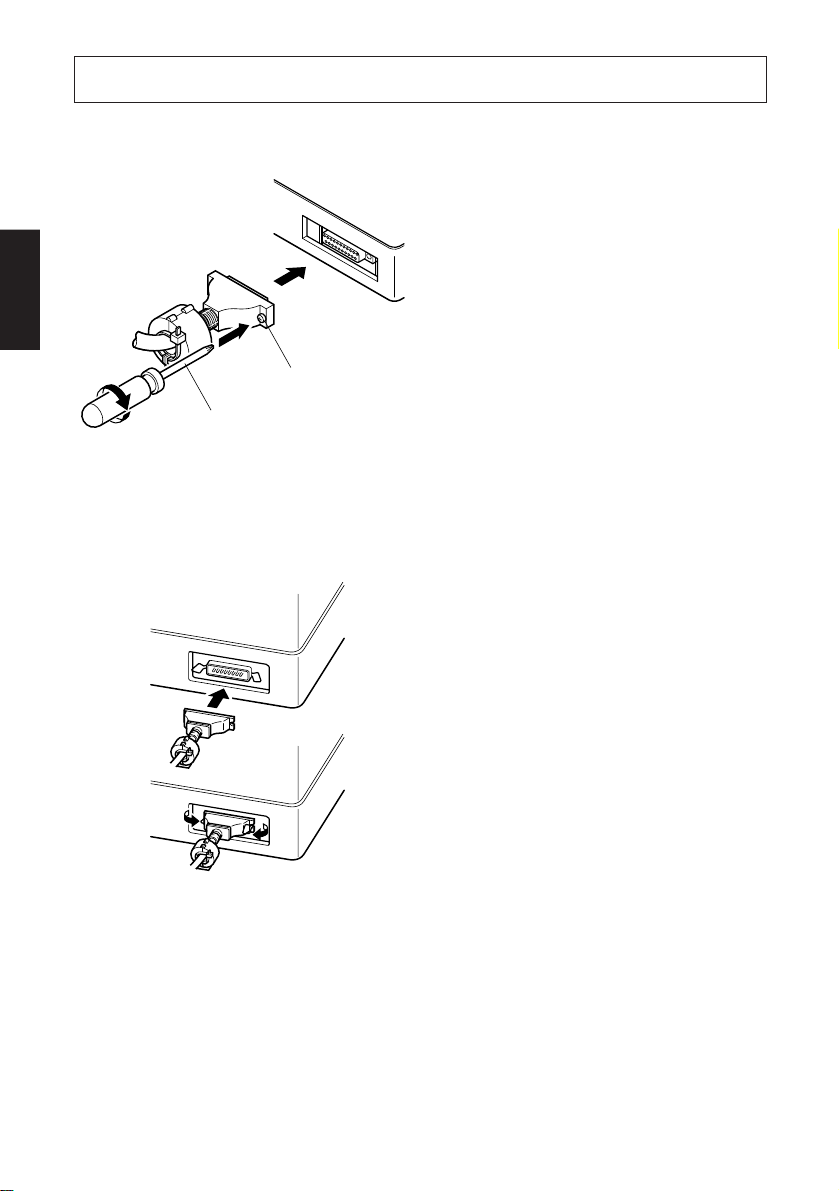

Fig. 4-1 Connexion du câble d’interface

4-2. Câble d’interface parallèle

4. CONNEXION DU CÂBLE D’INTERFACE

1 Mettez l’ordinateur hôte et

l’imprimante hors tension.

2 Insérez un des connecteurs du câble

d’interface dans la prise de
l’imprimante et l’autre dans la prise
de l’ordinateur hôte.

3 Serrez ensuite les vis des

connecteurs.

Vis

Tournevis

en série

1 Mettez l’ordinateur hôte et

l’imprimante hors tension.

2 Insérez un des connecteurs du câble

d’interface dans la prise de
l’imprimante et fixez-le grâce aux
fermoirs, comme illustré à la fig. 4-

2.

3 Insérez l’autre connecteur du câble

d’interface dans la prise de l’ordina­teur hôte, puis fixez-le également à
l’aide des fermoirs.

Fig. 4-2 Connexion du câble d’interface

en parallèle

– 12 –

INHALTSVERZEICHNIS

1. AUSPACKEN UND AUFSTELLUNG..............................................14

1-1. Auspacken.................................................................................. 14

1-2. Hinweise zum Umgang.............................................................. 14

2. BESCHREIBUNG UND BEZEICHNUNG DER GERÄTETEILE .. 15

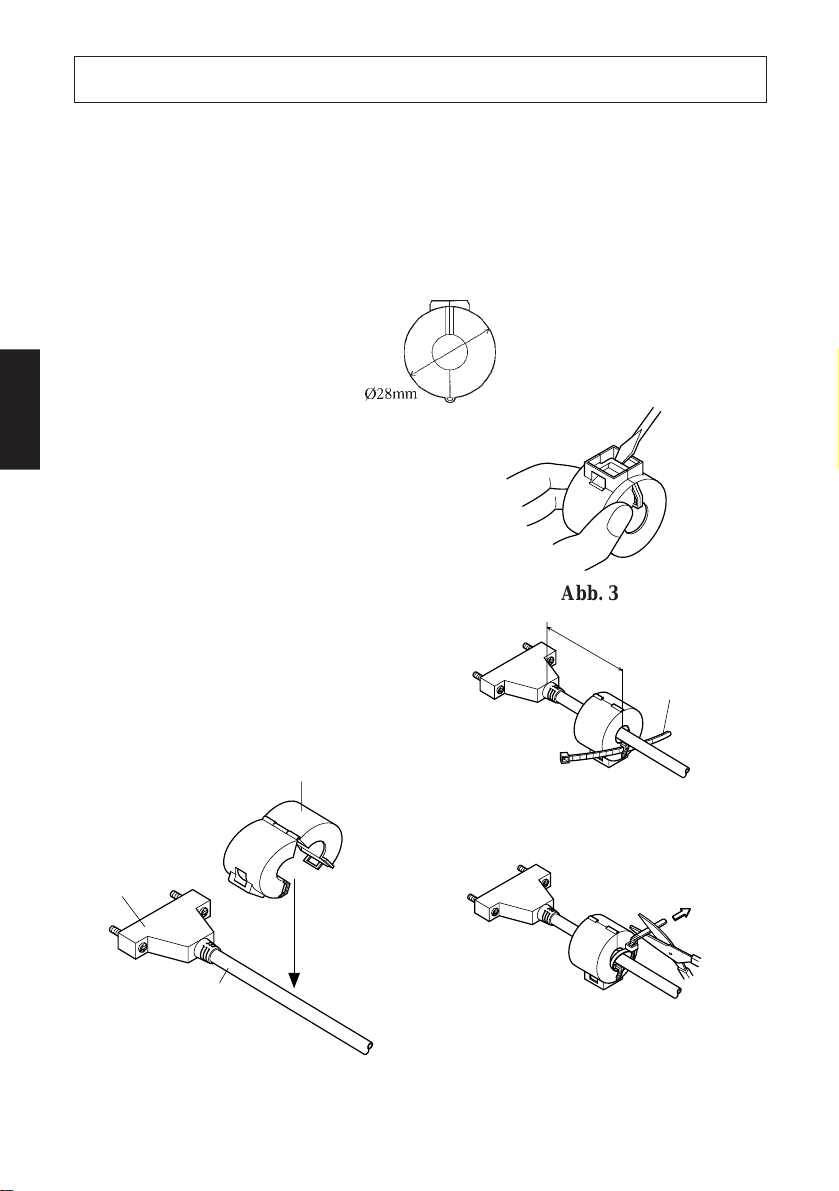

3. INSTALLATION DES FERRITKERNS............................................16

4. ANSCHLUSS DES SCHNITTSTELLENKABELS .......................... 18

4-1. Serielles Schnittstellenkabel ......................................................18

4-2. Paralleles Schnittstellenkabel.....................................................18

ANHANG................................................................................................25

Der Anhang erscheint nur im englischen Teil dieser Bedienungsanleitung

1. AUSPACKEN UND AUFSTELLUNG

1-1. Auspacken

Überprüfen Sie den Kartoninhalt, und vergewissern Sie sich, daß alle unten
abgebildeten Teile vorhanden sind.

DEUTSCH

1-2. Hinweise zum Umgang

1. Stellen Sie den Drucker auf einem flachen, aber festen Untergrund auf.

2. Schließen Sie keine anderen elektrischen Geräte, die elektrische Störungen

3. Achten Sie darauf, keine Papierclips oder anderen Fremdkörper in den

4. Bei der Reinigung des Geräteäußeren wischen Sie Flecken oder Schmutz mit

5. Versuchen Sie nicht zu drucken, wenn kein Papier oder keine Farbband-

6. Verwenden Sie nur Rollenpapier, das nicht am Rollenkern festgeklebt ist.

7. Öffnen Sie nicht die Frontabdeckung während des Druckens (dies wird als

Rollenpapierhalter (2)

Drucker

Rollenpapierwelle

Sicherungsringe (2)

Farbbandkassette

Bedienungsanleitung

Aufstellanleitung

Ø28mm

Fastener

Halter

(E.U. only)

(nur E.U.)

Ø28mm

Ferritkern

Ferrite core

(nur E.U.)

(E.U. only)

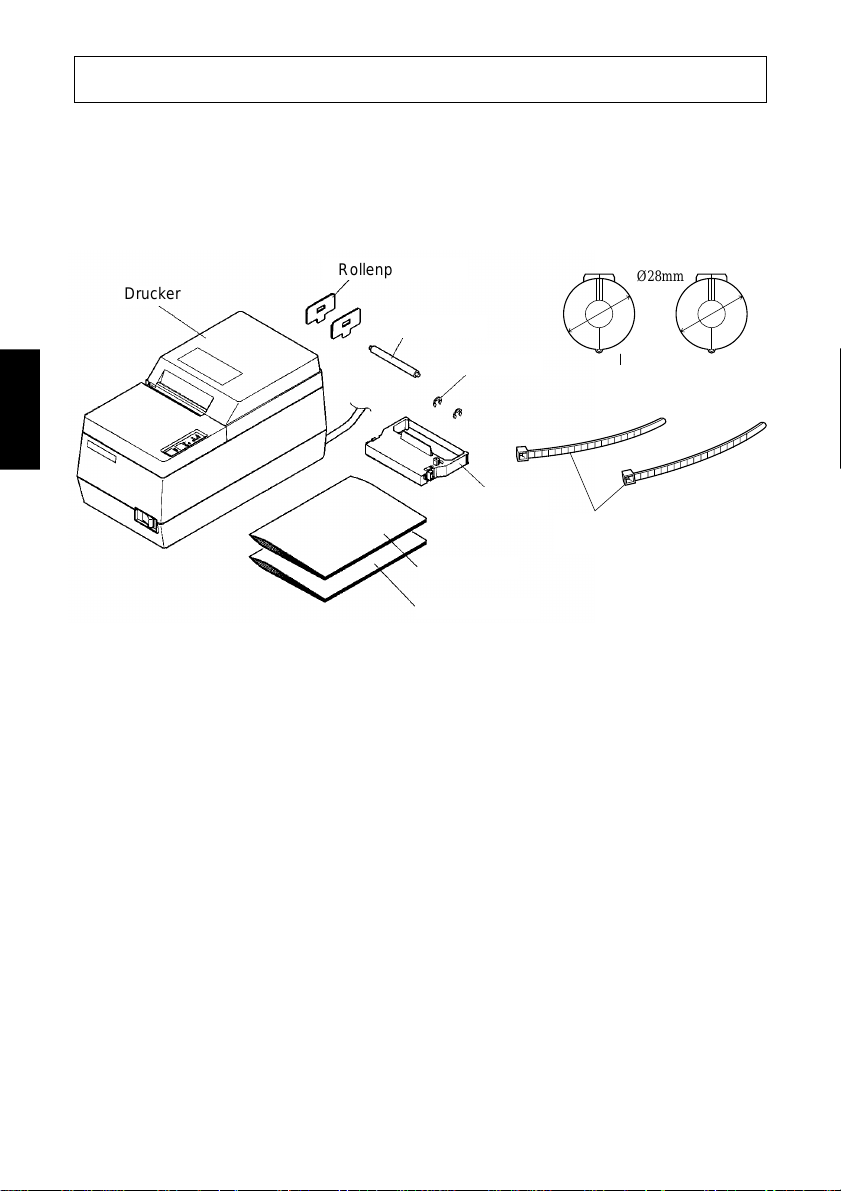

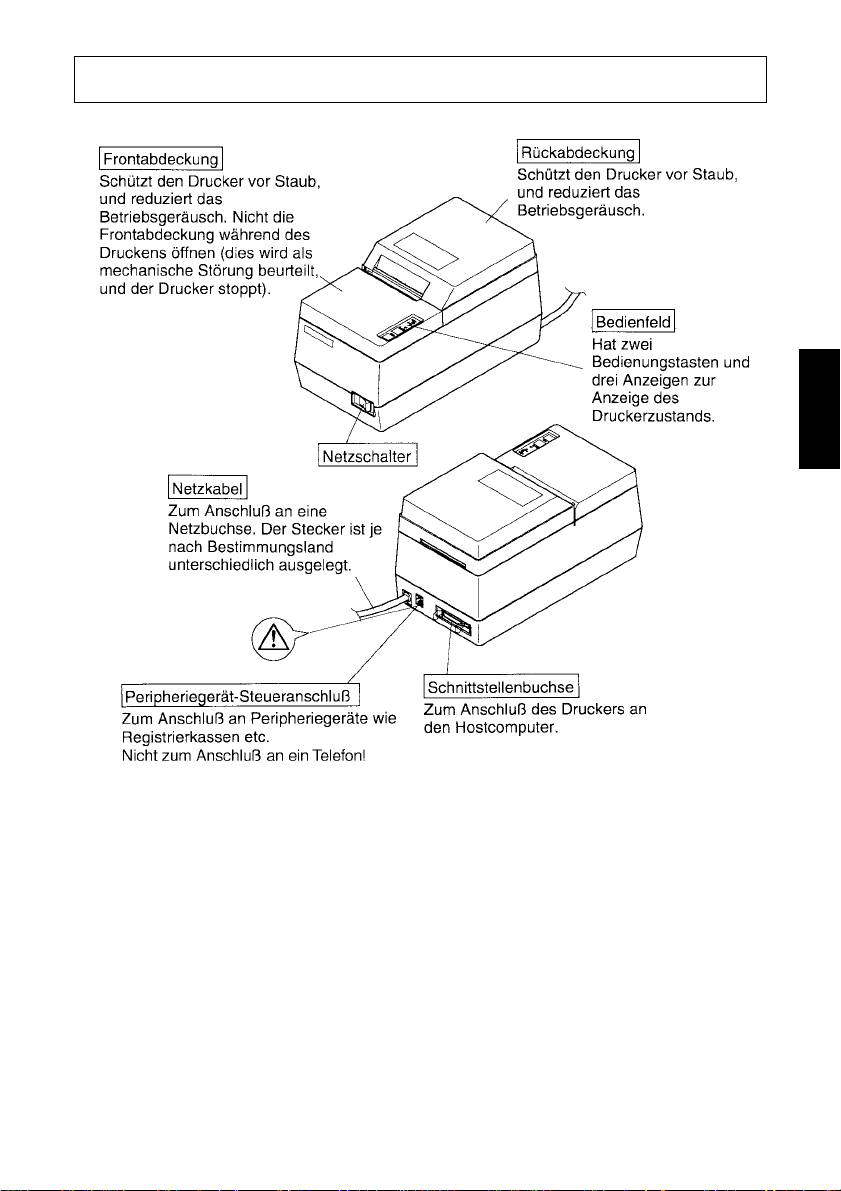

Abb. 1-1 Auspacken (SP317)

erzeugen (wie z.B. Elektromotoren) an die gleiche Steckdose an.

WICHTIG!

Die verwendete Steckdose soll in der Nähe und frei zugänglich sein.
Drucker fallen zu lassen. Diese können Betriebsstörungen oder Schäden am

Gerät hervorrufen.
einem weichen, mit neutralem Reinigungsmittel angefeuchteten Lappen ab.
kassette eingelegt ist, da sonst der Druckkopf beschädigt werden kann.

mechanische Störung beurteilt, und der Drucker stoppt).

– 14 –

2. BESCHREIBUNG UND BEZEICHNUNG DER GERÄTETEILE

DEUTSCH

Abb. 2-1 Außenansicht des Druckers (SP317)

– 15 –

HINWEIS: Wenden Sie bei der folgenden Montage besondere Vorsicht an.

■ Mit dem Drucker werden zwei Ferrit Störfilter mitgeliefert. Das eine Filter ist

DEUTSCH

■ Der Ferritkern ist normalerweise so

3. INSTALLATION DES FERRITKERNS

für die Montage an dem Interfacekabel vorgesehen, während das andere für
das Treiberkabel der Kasse vorgesehen ist.

verpackt, daß das Gehäuse geöffnet ist,
wie das in der Abbildung 3-2 darge­stellt ist. Sollte der Ferritkern geschlos­sen sein, öffnen Sie ihn, indem Sie die
Plastiklasche mit einem Schraubenzie­her oder ähnlichem Werkzeug vom
Ferritkern abheben (siehe Abbildung
3-1). Wenden Sie dabei besondere
Vorsicht an, um weder den Ferritkern,
noch die Plastiklasche zu beschädigen.

Abb. 3-1

10cm

Maximal
10 cm

maximum

Plastikbefestiger

Fastener

Interfacestecker

Interface

Ferritkern (28 mm Durchmesser)

Ferrite Core(28mm diameter)

Cable

Kabel

Abb. 3-2

Ziehen Sie den Plasikbefestiger durch
das Gehäuse des Ferritkerns.

Abb. 3-3

Ziehen und
abschneiden

Pull and cut

Legen Sie den Plastikbefestiger um das
Kabel und ziehen Sie ihn fest. Schnei­den Sie das überschüssige Ende mit
einer Schere ab.

– 16 –

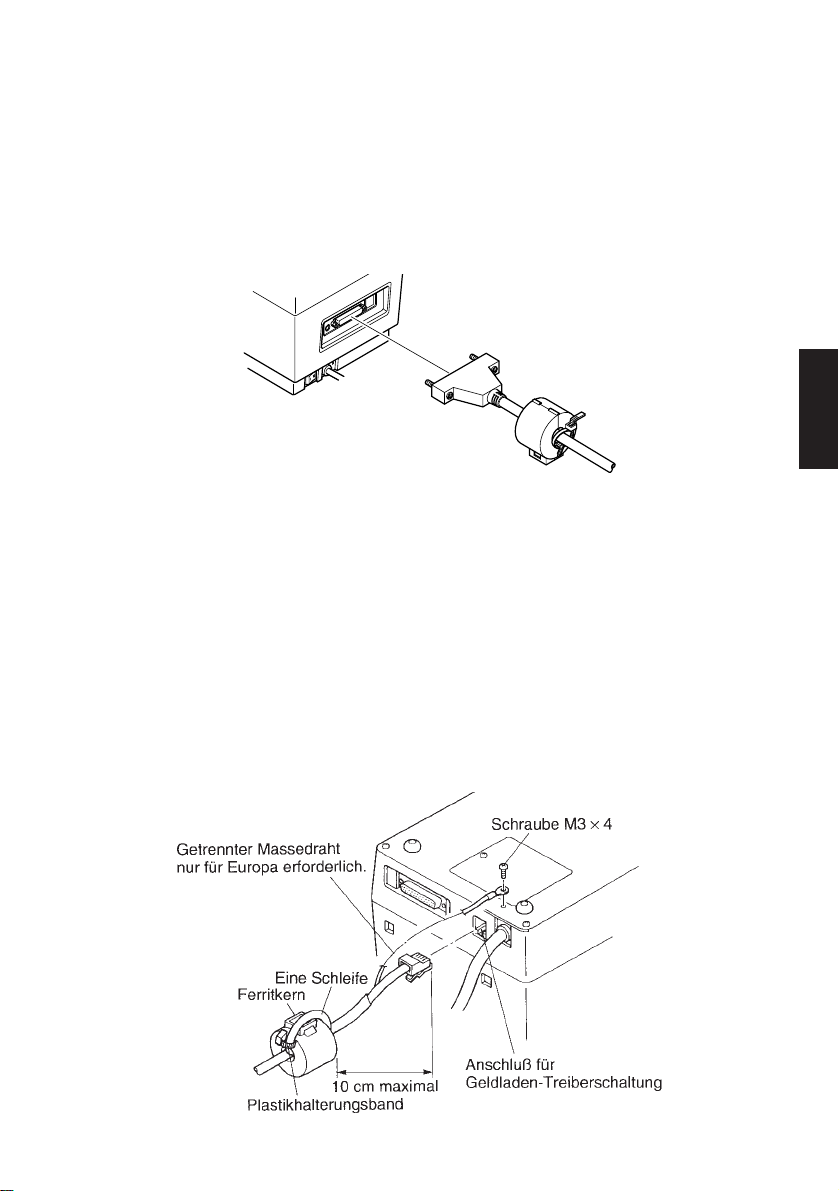

Abb. 3-4

Montage des Ferritkerns auf dem Interfacekabel

■ Legen Sie den Ferritkern, wie in der Abbildung 3-2 gezeigt, um das Interface-

kabel. Seien Sie bei der Montage besonders vorsichtig, damit weder das
Gehäuse des Ferritkerns noch das Interfacekabel beschädigt werden. Der
Ferritkern sollte mit dem Plastikbefestiger an seinem Platz sicher befestigt
sein, wie in den Abbildungen 2-2 und 3-4 dargestellt.

Abb. 3-5

Montage des Ferritkerns auf dem Treiberkabel der Kasse

■ Den Ferritkern auf das Kassentreiberkabel klemmen, und das Kabel so mit

einer Schleife befestigen, wie in der Abbildung 3-2 gezeigt.

DEUTSCH

•Beim Installieren des Ferritkerns darauf achten, das Kabel nicht zu beschä-

digen.

•Der Ferritkern soll fest mit dem mitgelieferten Plastikhalterungsband befe-

stigt werden, wie in der Abbildung gezeigt 3-3 und 3-4 gezeigt.

•Nicht vergessen, das Kabel mit Schleife zu verlegen.

Abb. 3-6

– 17 –

4-1. Serielles Schnittstellenkabel

DEUTSCH

4-2. Paralleles Schnittstellenkabel

4. ANSCHLUSS DES SCHNITTSTELLENKABELS

1 Schalten Sie sowohl den

Hostcomputer als auch den Drucker
aus.

2 Stecken Sie den Stecker des

Schnittstellenkabels in die entspre­chenden Buchsen am Drucker und
am Hostcomputer ein.

3 Ziehen Sie die Schrauben an den

Schrauben

Schraubenzieher

Abb. 4-1 Anschließen des seriellen

Schnittstellenkabels

Abb. 4-2 Anschließen des parallelen

Schnittstellenkabels

Steckern fest.

1 Schalten Sie sowohl den

Hostcomputer als auch den Drucker
aus.

2 Stecken Sie einen Stecker des

Schnittstellenkabels in die parallele
Schnittstellenbuchse am Drucker,
und klemmen Sie ihn mit den Halte­bügeln fest, wie in der Abbildung 4­2 gezeigt.

3 Stecken Sie den anderen Stecker

des Schnittstellenkabels in die pa­rallele Schnittstellenbuchse am
Hostcomputer, und klemmen Sie
ihn mit den Haltebügeln fest.

– 18 –

INDICE

1. DISIMBALLAGGIO E INSTALLAZIONE ...................................... 20

1-1. Disimballaggio ........................................................................... 20

1-2. Note sul maneggio ..................................................................... 20

2. IDENTIFICAZIONE DELLE PARTI E NOMENCLATURA .......... 21

3. INSTALLAZIONE DEL NUCLEO IN FERRITE ............................. 22

4. COLLEGAMENTO DEL CAVO INTERFACCIA............................24

4-1. Cavo interfaccia seriale.............................................................. 24

4-2. Cavo interfaccia parallelo .......................................................... 24

APPENDICE ........................................................................................... 25

L’Appendice appare solo nella sezione in inglese di questo manuale.

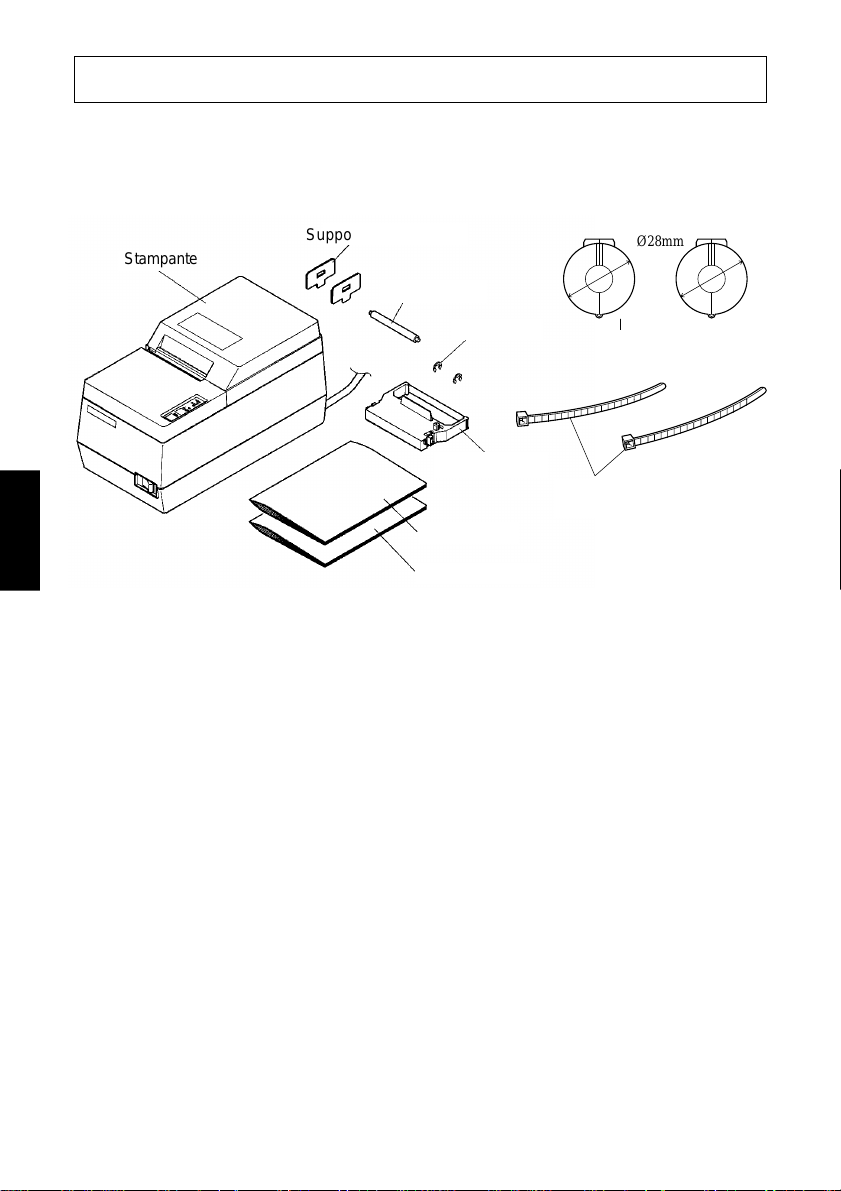

1-1. Disimballaggio

Dopo aver disimballato l’unità, controllare che tutti gli accessori siano inclusi
nella confezione.

ITALIANO

1. DISIMBALLAGGIO E INSTALLAZIONE

Supporti carta in rotolo (2)

Stampante

Asta carta in rotolo

Anelli di fermo (2)

Cartuccia del nastro

Manuale di istruzioni

Manuale di installazione

Fig. 1-1 Disimballaggio (SP317)

Ø28mm

Fastener

Chiusura

(E.U. only)

(Solo per Europa)

Ø28mm

Ferrite core

Nucleo in ferrite

(E.U. only)

(Solo per Europa)

1-2. Note sul maneggio

1. Installare l’unità su un appoggio o un tavolo dalla superficie piana e regolare.

2. Non collegare la spina del cavo di alimentazione CA ad una presa cui sono
collegati altri dispositivi che generano disturbi elettrici (come motori elettirici,
ecc.).

IMPORTANTE!

Installare la stampante vicino ad una presa di corrente facilmente accessibile.

3. Fare attenzione a non lasciar cadere graffette, spilli o altri oggetti estranei
nell’unità perché possono causare malfunzionamenti della stampante.

4. Quando si pulisce la superficie esterna dell’unità, togliere lo sporco, materiali
estranei, ecc. con un panno morbido inumidito con detergente neutro.

5. Non tentare di stampare quando la carta o la cartuccia del nastro non sono
inserite nella stampante perchè tale azione può danneggiare la testina di
stampa.

6. Usare solo carta in rotolo che non è incollata al supporto centrale.

7. Non aprire il coperchio anteriore durante la stampa (questo viene considerato
un errore meccanico e la stampante si ferma).

– 20 –

2. IDENTIFICAZIONE DELLE PARTIE NOMENCLATURA

ITALIANO

Fig. 2-1 Vista esterna della stampante (SP317)

– 21 –

NOTA: Prestare particolare attenzione durante l’esecuzione delle procedure

■ Insieme alla stampante vengono forniti in dotazione due anelli di ferrite

■ L’anello di ferrite è normalmente con-

ITALIANO

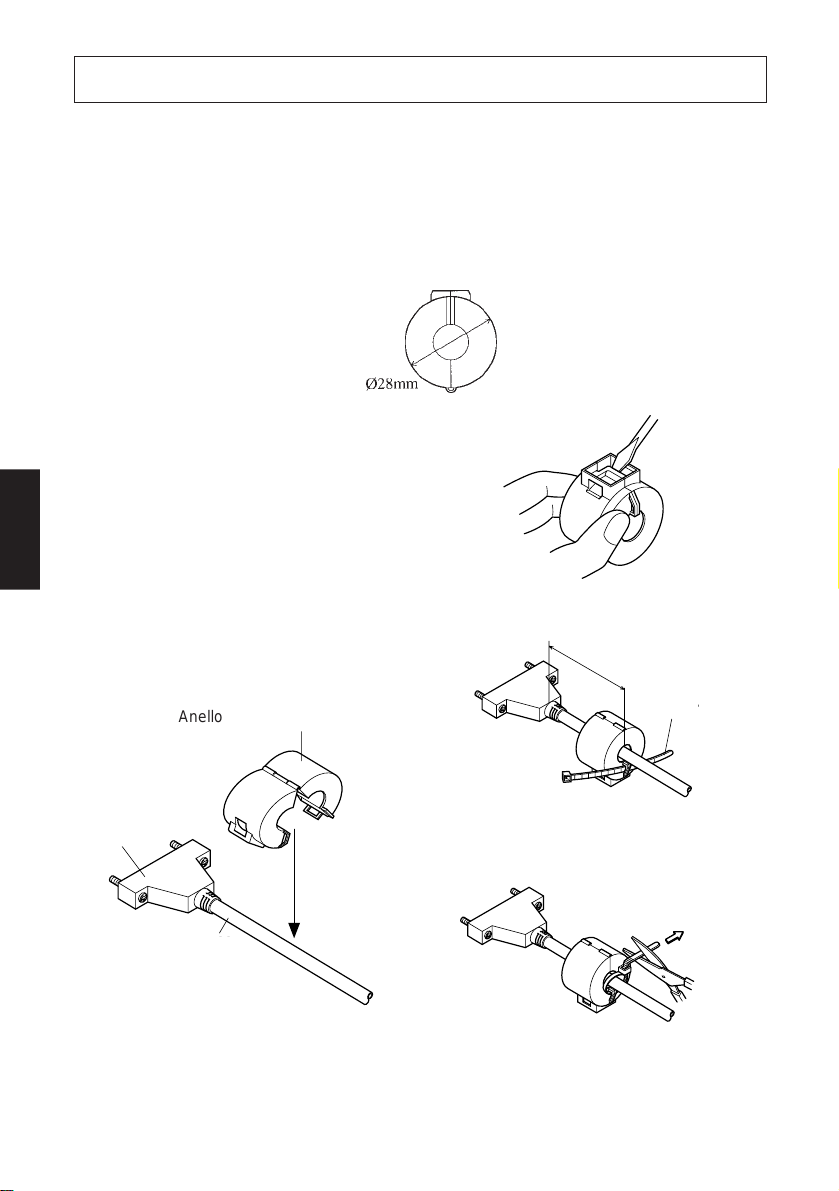

3. INSTALLAZIONE DEL NUCLEO IN FERRITE

indicate di seguito.

antidisturbi. Uno va fissato sul cavo d’interfaccia seriale, mentre l’altro serve
per il cavo di collegamento del registratore di cassa.

fezionato aperto, come mostrato in Fig.
3-2. Se si trova uno degli anelli di
ferrite chiuso, aprirlo utilizzando un
oggetto appuntito per far leva sul
dispositivo di chiusura di plastica del­l’anello di ferrite (Fig. 3-1). Fare atten­zione a non danneggiare il nucleo di
ferrite o il dispositivo di chiusura di
plastica.

Anello di ferrite (diametro 28 mm)

Ferrite Core(28mm diameter)

Fig. 3-1

Distanza

10cm

massima 10 cm

maximum

Fascetta di
fissaggio

Fastener

Interfaccia

Interface

Cable

Cavo

Fig. 3-2

Far passare la fascetta di fissaggio at­traverso l’anello di ferrite.

Fig. 3-3

Tirare e tagliare

Pull and cut

Far passare la fascetta di fissaggio in­torno al cavo e bloccarla. Tagliare la
parte in eccesso con delle forbici.

– 22 –

Fig. 3-4

Come installare l’anello di ferrite del cavo d’interfaccia

■ Fissare l’anello di ferrite sul cavo d’interfaccia come mostrato in Fig. 3-2.

Fare attenzione a non danneggiare il cavo d’interfaccia quando si installa
l’anello di ferrite. L’anello di ferrite va saldamente bloccato in posizione con la
fascetta di fissaggio fornita in dotazione, come mostrato nelle Fig. 3-3 e 3-4.

Fig. 3-5

Come installare l’anello di ferrite del cavo di collegamento del
registratore di cassa

■ Fissare il nucleo in ferrite al cavo pilota registro di cassa, avvolgendo il cavo

come mostrato nella Fig. 3-2.

•Quando si installa il nucleo in ferrite, fare attenzione a non danneggiare il

cavo.

•Il nucleo in ferrite deve essere ancorato saldamente in posizione con il fermo

in dotazione, come mostrato nella Fig. 3-3 e Fig. 3-4.

•Non dimenticare di avvolgere il cavo.

ITALIANO

Fig. 3-6

– 23 –

4. COLLEGAMENTO DEL CAVO INTERFACCIA

4-1. Cavo interfaccia seriale

Viti

Cacciavite

1 Spegnere sia il computer ospite che

la stampante.

2 Inserire il connettore del cavo

interfaccia nel connettore sulla stam­pante e l’altro capo del cavo
interfaccia nel connettore sul com­puter.

3 Serrare le viti dei connettori.

ITALIANO

4-2. Cavo interfaccia parallelo

Fig. 4-1 Collegamento del cavo

interfaccia seriale

1 Spegnere sia il computer ospite che

la stampante.

2 Inserire un connettore del cavo

interfaccia nel connettore sulla stam­pante e fissarlo con la morsa, come
mostrato nella Fig. 4-2.

3 Inserire l’altro terminale del cavo

interfaccia nel connettore sul com­puter e fissarlo con la morsa.

Fig. 4-2 Collegamento del cavo

interfaccia parallelo

– 24 –

APPENDIX

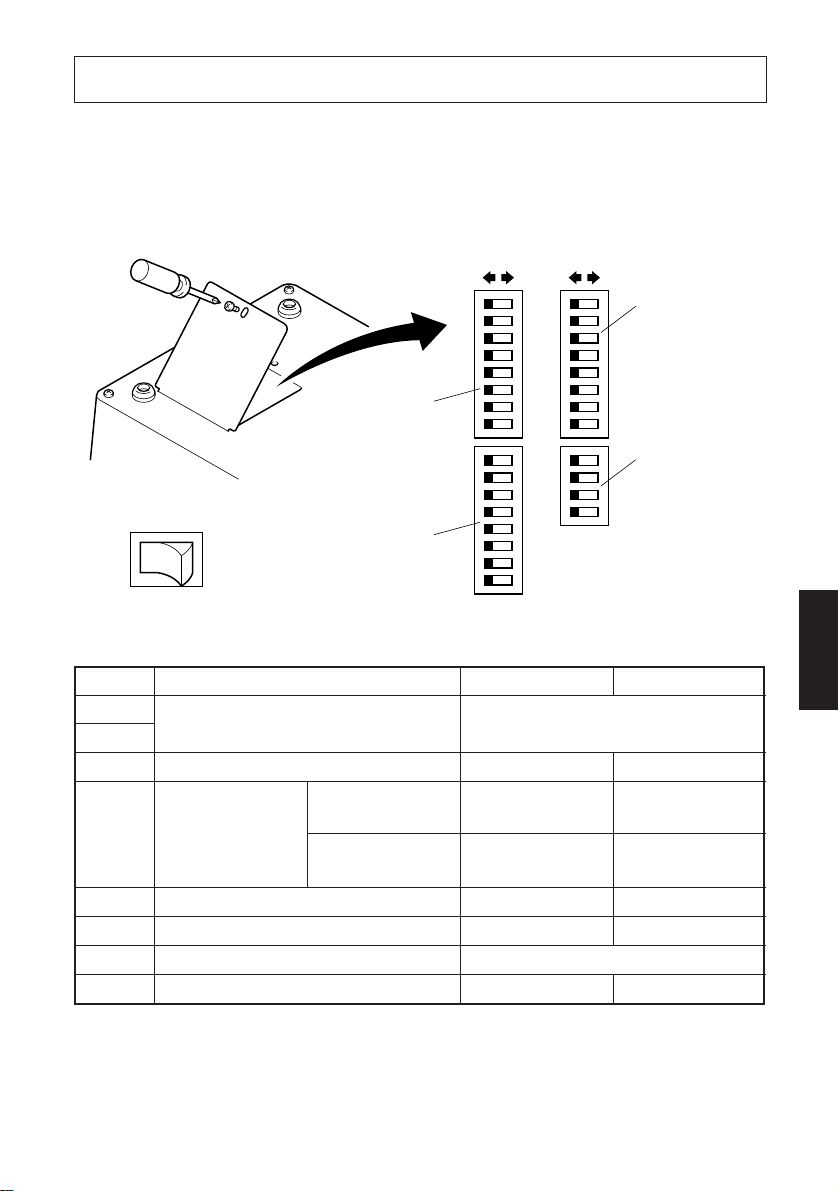

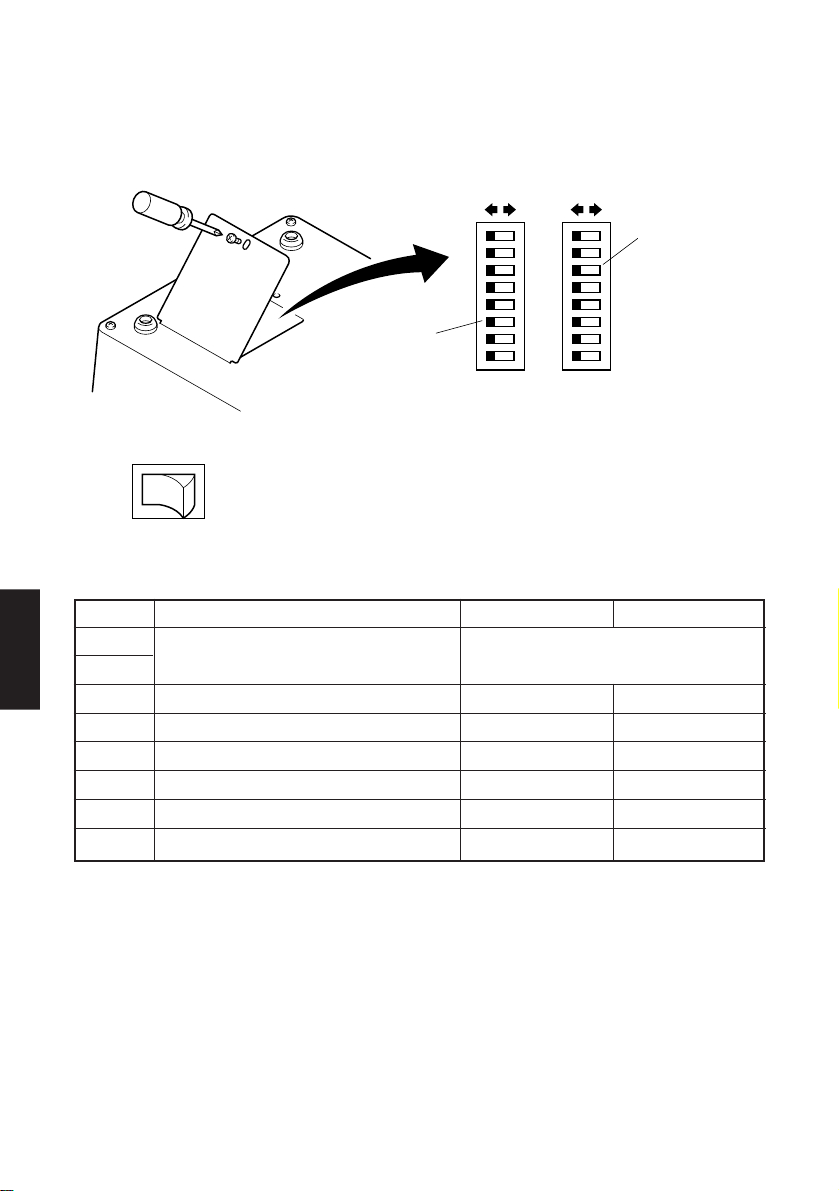

DIP Switch Setting (Serial Interface)

Each of the switches in the DIP switch array is factory preset to the “ON” position.
Be sure to turn the power for both the printer and host computer off before
changing the setting of the DIP switches.

ON OFF

ON OFF

DIP switch 3

DIP switch 4

Power off

DIP switch 2

DIP switch 1

DIP switch array

8

1
8

1

8

1
8

1

■ DIP-SW 1

Switch Function ON OFF

1-1

(Not used)

1-2
1-3 Control code CR Invalid Valid

When turning DC1, DC 3 Select Deselect
the power on. mode

1-4

1-5 Setting the paper feed length 1/6-inch 1/8-inch
1-6 Setting the buffer size 1 K-bytes 256 bytes
1-7 (Not used)
1-8 Paper out detection function Valid Invalid

Addressable Deselect Select
mode *1

*1 The addressable mode is valid only when the optional RS-422A serial

interface is mounted.

APPENDIX

– 25 –

■ DIP-SW 2

Switch Function ON OFF

■■ Character code table (switches 2-1, 2-2)

Switch U.S.A. & Europe IBM #1 IBM #2 Japan

■■ Paper width setting (switches 2-3, 2-4)

Switch 3.0 or 3.25 inches 2.25 inches

APPENDIX

2-1

Character code table See table below.

2-2
2-3

Setting the paper width See table below.

2-4
2-5 (Not used)
2-6

2-7 International character set See table below.
2-8

2-1 ON OFF ON OFF
2-2 ON ON OFF OFF

2-3 ON OFF ON OFF
2-4 ON ON OFF OFF

■■ International character set (Switches 2-6, 2-7 and 2-8)

Switch U.S.A. France

2-6 ON OFF ON OFF ON OFF ON OFF
2-7 ON ON OFF OFF ON ON OFF OFF
2-8 ON ON ON ON OFF OFF OFF OFF

Germany England Denmark

– 26 –

Sweden Italy Spain

■ DIP-SW 3

Switch Function ON OFF

3-1
3-2 Data transmission rate See table below.
3-3

Auto cutting

3-4

control mode (SP347)
3-5 Handshake DTR mode X-ON/X-OFF mode
3-6 Data word length 8-data bit 7-data bit
3-7 Vertical parity check No parity check Parity check
3-8 Parity Odd parity Even parity

Valid Invalid

■■ Data transmission rate (baud rate)

Baud rate 3-1 3-2 3-3

150 bps OFF OFF OFF
300 bps OFF OFF ON

600 bps OFF ON OFF
1200 bps OFF ON ON
2400 bps ON OFF OFF
4800 bps ON OFF ON

19200 bps *2 ON ON OFF

9600 bps ON ON ON

*2 This setting cannot be used with a 20 mA current loop.

APPENDIX

■ DIP SW 4

Function

Switch

4-1
4-2
4-3
4-4

DC1, DC3

invalid mode

#1 #2 #3 #4 #5 #6 #7 #8 #9 #10 #11 #12 #13 #14
ON OFF ON OFF ON OFF ON OFF ON OFF ON OFF ON OFF ON OFF
ON ON OFF OFF ON ON OFF OFF ON ON OFF OFF ON ON OFF OFF
ON ON ON ON OFF OFF OFF OFF ON ON ON ON OFF OFF OFF OFF
ON ON ON ON ON ON ON ON OFF OFF OFF OFF OFF OFF OFF OFF

Addressable mode *3

DC1, DC3
valid mode

*3 The addressable mode is valid only when an optional RS-422A serial interface

is mounted.

– 27 –

DIP Switch Setting (Parallel Interface)

Each of the switches in the DIP switch array is factory preset to the “ON” position.
Be sure to turn the power for both the printer and host computer off before
changing the setting of the DIP switches.

ON OFF

ON OFF

APPENDIX

■ DIP-SW 1

Switch Function ON OFF

8

DIP switch 2

Power off

DIP switch array

1-1

(Not used)

1-2
1-3 Control code CR Invalid Valid
1-4 Auto cutter (only SP347) Valid Invalid
1-5 Setting the paper feed length 1/6-inch 1/8-inch
1-6 Setting the buffer size 1 K-bytes 2-lines
1-7 (Not used)
1-8 Paper out detection function Valid Invalid

1

8

1

DIP switch 1

– 28 –

■ DIP-SW 2

Switch Function ON OFF

2-1 Character code table
2-2 (See table below)
2-3 (Not used)
2-4 Setting the paper width 3.25 or 3.0-inch 2.25-inch

2-5 (Not used)
2-6

International character set

2-7

(See table below)

2-8

■■ Character code table (switches 2-1, 2-2)

Switch U.S.A. & Europe IBM #1 IBM #2 Japan

2-1 ON OFF ON OFF
2-2 ON ON OFF OFF

■■ International character set (Switches 2-6, 2-7 and 2-8)

Switch U.S.A. France

2-6 ON OFF ON OFF ON OFF ON OFF
2-7 ON ON OFF OFF ON ON OFF OFF
2-8 ON ON ON ON OFF OFF OFF OFF

Germany England Denmark

Sweden Italy Spain

APPENDIX

– 29 –

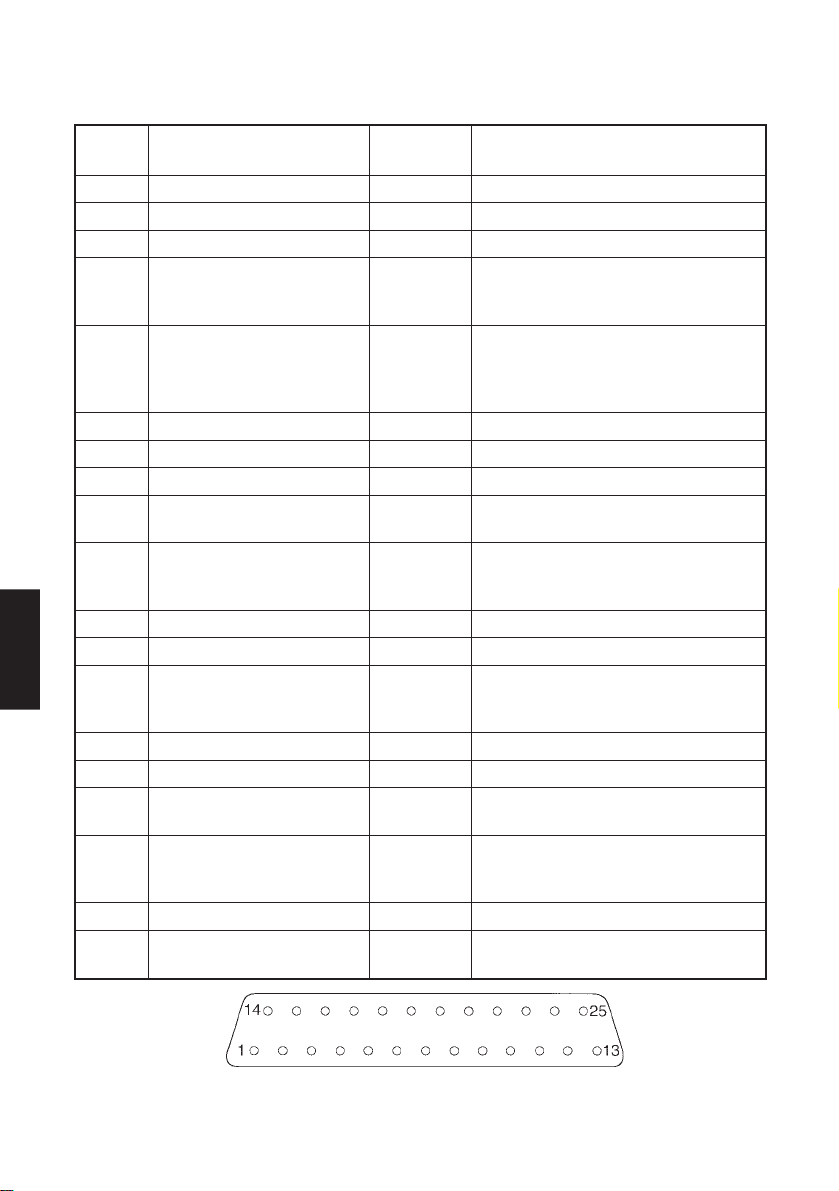

Connectors and Signals (Serial Interface)

RS-232C

Pin no. Signal name

9-10 N/C This pin is used when using the op-

APPENDIX

17 to 19 N/C This pin is used when using the op-

21-22 N/C Not connected

23 to 25 N/C This pin is used when using the op-

I/O

direction
1 F-GND — Frame ground
2 TXD OUT Transmitted data
3 RXD IN Received data
4 RTS OUT Data transmission request signal. This

is always “SPACE” when the printer is
turned on.

5 CTS IN This signal changes to “SPACE” when

host computer is ready to transmit data.
(In this instance, the printer does not

check this signal.)
6 N/C Not connected
7 S-GND — Signal ground
8 N/C Not connected

tional interface board.

11 RCH OUT This signal changes to “SPACE” when

the printer is ready to receive data. (The

signal line is same as pin 20.)

12 N/C Not connected.
13 S-GND — Signal ground
14 FAULT OUT When a printer error occurs (such as

paper out, mechanical error, etc.), this

signal is set to “MARK”.

15 Multi-printer TXD OUT Diode coupled TXD
16 Multi-printer DTR OUT Diode coupled DTR

tional interface board.

20 DTR OUT Data terminal ready signal. When the

printer is ready to receive data, this

signal changes to “SPACE”.

tional interface board.

Function

Serial interface connector

– 30 –

20 mA current loop (option)

Pin no. Signal name

9 TTY TXDR — Indicates the ground side of the data

10 TTY TXD OUT Transmitted data of 20 mA current

17 TTY TXDR — Indicates the ground side of the data

18 TTY RXDR — Indicates the ground side of the data

19 TTY RXD IN Received data of 20 mA current loop.
23 TTY RXDR — Indicates the ground side of the data

24 TTY TXD OUT Transmission data of 20 mA current

25 TTY RXD IN Reception data of 20 mA current loop.

I/O

direction

Function

signal of 20 mA loop current.

loop.

signal of 20 mA loop current.

signal of 20 mA loop current.

signal at 20mA loop current.

loop.

RS-422A (option)

Pin no. Signal name

9 SD (+) OUT Transmitted data

10 SD (–) OUT Transmitted data
17 RD (+) IN Received data
18 RD (–) IN Received data
19 CS (+) IN When the host computer is set to standby

23 CS (–) IN When the host computer is set to standby

24 RS (+) OUT Data transmission request signal. When

25 RS (–) OUT Data transmission request signal. When

I/O

direction

Function

for data transmission, this signal

changes to “SPACE”.

(In this instance, the printer does not

check the signal.)

for data transmission, this signal

changes to “SPACE”.

(In this instance, the printer does not

check the signal.)

the printer is ready to receive data, this

signal changes to “SPACE”.

the printer is ready to receive data, this

signal changes to “SPACE”.

APPENDIX

– 31 –

Interface Connections (Serial Intefface)

The following is a basic example of interface connections. (For interface
connections, refer to the specifications for the respective interface.) An IBM PC
type serial port is shown in below.

APPENDIX

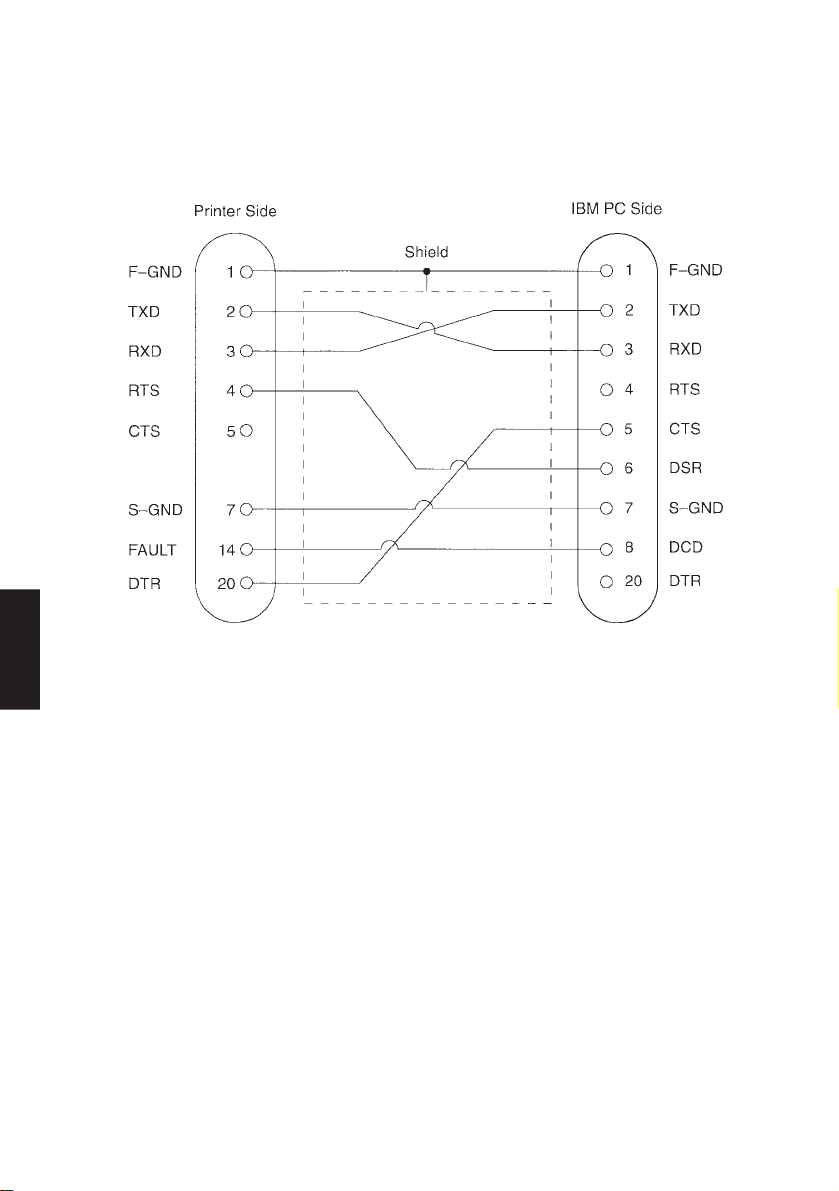

Example of interface connections for an IBM PC

– 32 –

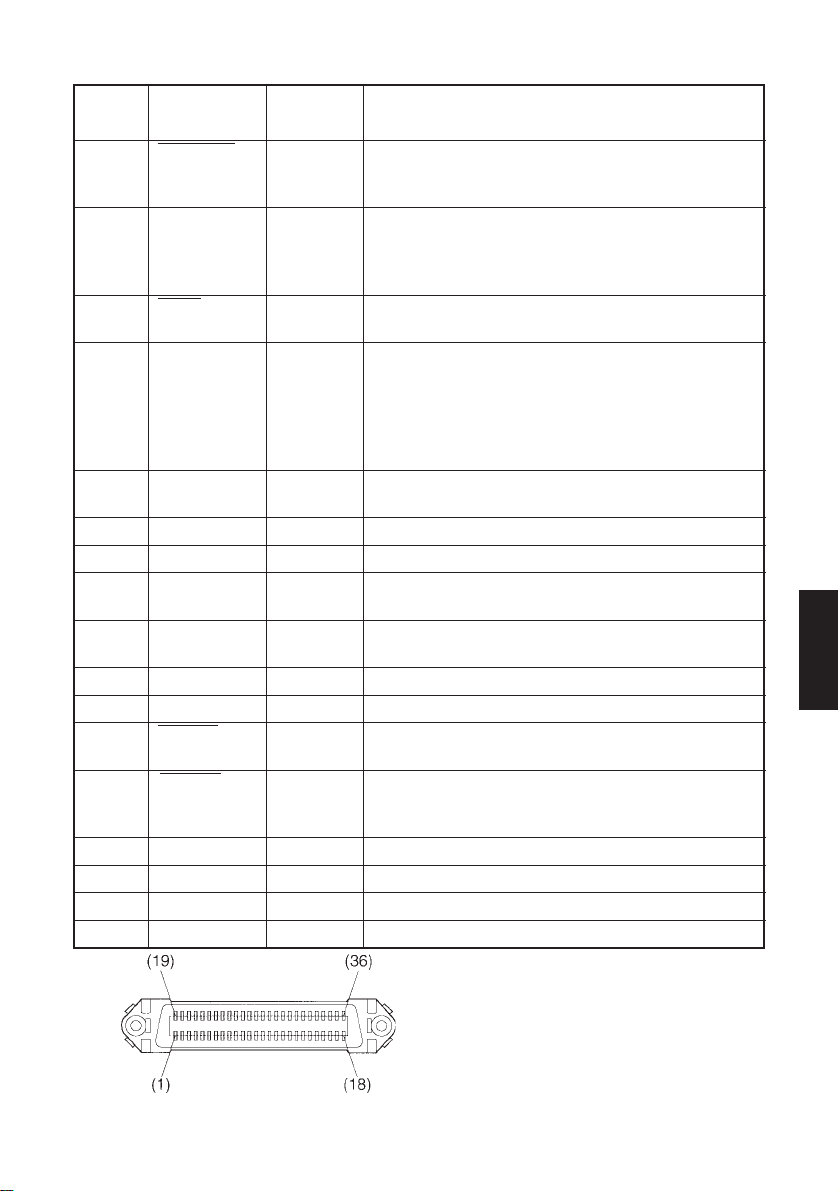

Connectors and Signals (Parallel Interface)

Pin No.

1 STROBE IN Signals when data is ready to be read. Signal goes

2-9 DATA1-8 IN These signals provide the information of the first

10 ACK OUT A 9 microsecond LOW pulse acknowledges re-

11 BUSY OUT When this signal goes to LOW, the printer is

12 PAPER OUT This signal is normally LOW. It will go to HIGH

13 SELECTED OUT This signal is HIGH when the printer is online.
14-15 N/C Unused
16 SIGNAL Signal ground.

17 CHASSIS Chassis ground, isolated from logic ground.

18 +5VDC +5VDC (Max 50 mA)
19-30 GND Twisted pair return the signal to ground level.
31 RESET IN When this signal goes to LOW, the printer is reset

32 ERROR OUT This signal is normally HIGH. This signal goes to

33 EXT GND External ground.
34
35 N/C – Unused.
36 – – This signal is normally set to HIGH on the printer side.

Signal
Name

OUT if the printer runs out of paper.

GND

GND

COMPULSION

IN/OUT Function

from HIGH to LOW (for at least 0.5 microsec.)
when the data is available.

to eighth bits of parallel data. Each signal is at
HIGH level for a logical 1 and at a LOW level for
a logical 0.

ceipt of the data.

ready to accept data. When the printer is in one of
the conditions below, “HIGH” is set.

1. Data is being entered.

2. Off line.

3. Error condition.

to its power-on condition.

LOW to signal that the printer cannot print due to
an error condition.

OUT Compulsion signal

APPENDIX

This connector mates with an Amphenol
57-30360 connector

Parallel interface connector (printer side)

– 33 –

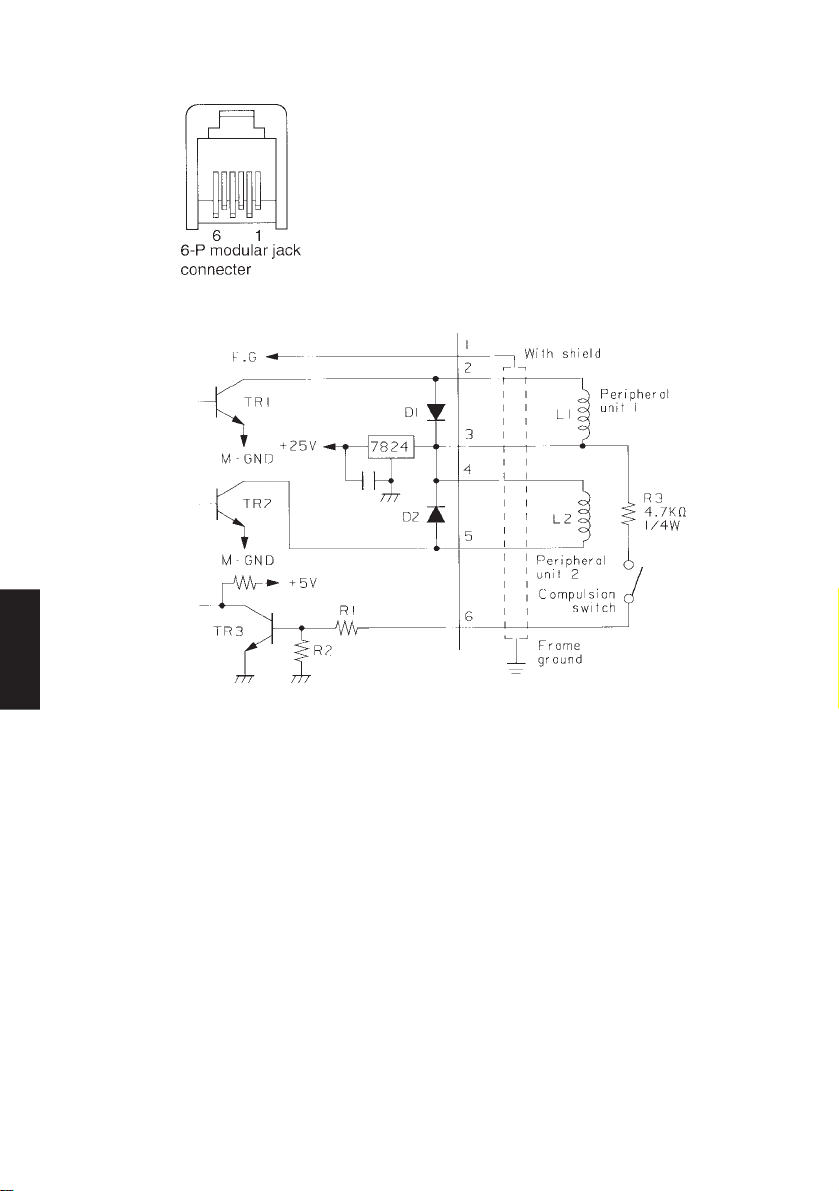

Peripheral Unit Drive Circuit

APPENDIX

[Drive output 24V, max. 1.0 A]

Drive circuit

AC power cable: Approx. 155 cm long

– 34 –

MEMO

ELECTRONIC PRODUCTS DIVISION
STAR MICRONICS CO., LTD.

536 Nanatsushinnya, Shimizu, Shizuoka,
424-0066 Japan
Tel: [phone], Fax: [phone]

OVERSEAS SUBSIDIARY COMPANIES
STAR MICRONICS AMERICA, INC.

1150 King Georges Post Road, Edison,
NJ 08837-3729 U.S.A.
Tel: [phone], Fax: [phone]

Please access the following URL
http://www.star-micronics.co.jp/service/sp_sup_e.htm
for the lastest revision of the manual.

STAR MICRONICS U.K. LTD.

Star House, Peregrine Business Park, Gomm Road,
High Wycombe, Bucks, HP13 7DL, U.K.
Tel: [phone], Fax: [phone]

Printed in Japan, 80871007
