DEEP FAT
FRYER
MODEL
404D
615FD
630FD
Installation and
Operation
Instructions
2M-Z6601 Rev. F 6/07/2011
615FD
630FD
1
2
These symbols are intended to alert the user to the presence of
important operating and maintenance instructions in the manual
accompanying the appliance.
RETAIN THIS MANUAL FOR FUTURE REFERENCE
NOTICE
Using any part other than genuine Star factory supplied parts relieves the
manufacturer of all liability.
Star reserves the right to change specications and product design without
notice. Such revisions do not entitle the buyer to corresponding changes,
improvements, additions or replacements for previously purchased
equipment.
Due to periodic changes in designs, methods, procedures, policies and
regulations, the specications contained in this sheet are subject to change
without notice. While Star International Holdings Inc., Company exercises
good faith efforts to provide information that is accurate, we are not
responsible for errors or omissions in information provided or conclusions
reached as a result of using the specications. By using the information
provided, the user assumes all risks in connection with such use.
MAINTENANCE AND REPAIRS
Contact your local authorized service agent for service or required maintenance.
Please record the model number, serial number, voltage and purchase date in the area below and have it ready when
you call to ensure a faster service.
SAFETY SYMBOL
Model No.
Serial No.
Voltage
Purchase Date
Business
8:00 am to 4:30 p.m. Central Standard Time
Hours:
Telephone: (800) 264-7827 Local (314) 781-2777
Fax: (800) 396-2677 Local (314) 781-2714
E-mail Parts@star-mfg.com
Service@star-mfg.com
Warranty@star-mfg.com
Website: www.star-mfg.com
Service Help Desk
Authorized Service Agent Listing
Reference the listing provided with the unit
or
for an updated listing go to:
Website: www.star-mfg.com
E-mail Service@star-mfg.com
Telephone: (800) 807-9054 Local (314) 781-2777
Mailing Address: Star International Holdings Inc., Company
10 Sunnen Drive
St. Louis, MO 63143
U.S.A
2
SPECIFICATIONS:
404D
Type: Gas Fryer
BTU Rating, 24,000/HR - Natural & Propane,
Gas Connection, 3/8" (1 cm) N.P.T.
Approximate weight: installed - 64 Lb s (29 kg), shipping - 73 Lbs (33.1 kg)
Dimensions: 12" - Width, 24" - Depth, 25 5/8" - Height
(30.5 cm - Width, 61 cm - Depth, 62.6 cm - Height)
615FD
Type: Gas Fryer
BTU Rating, 30,000/HR - Natural & Propane,
Gas Connection, 3/8" (1 cm) N.P.T. Female
Approximate weight: installed -64 Lb s (29 kg), shipping - 75 Lbs (34.1 kg)
Dimensions: 12" - Width, 25 1/8" - Depth, 23 3/8" - Height
(30.5 cm - Width, 64 cm - Depth, 59 cm - Height)
630FD
Type: Gas Fryer
BTU Rating, 70,000/HR - Natural, 65,000/HR- Propane,
Gas Connection, 1/2" (2 cm) N.P.T. Female
Approximate weight: installed -110 Lb s (50 kg), shipping - 118 Lbs (54 kg)
Dimensions: 24" - Width, 25 1/8" - Depth, 23 3/8" - Height
(61 cm - Width, 64 cm - Depth, 59 cm - Height)
3
CAUTION
GENERAL INSTALLATION DATA
PLACE THE LAMINATED WARNING SIGN SUPPLIED WITH THE FRYER IN AN
AREA VISIBLE TO THE FRYER OPERATOR.
This equipment is designed and sold for commercial use only by personnel trained and experienced
in its operation and is not sold for consumer use in and around the home nor for use directly by the
general public in food service locations.
Before using your new equipment, read and understand all the instructions & labels associated with
the unit prior to putting it into operation. Make sure all people associated with its use understand the
units operation & safety before they use the unit.
All shipping containers should be checked for freight damage both visible and concealed. This
unit has been tested and carefully packaged to insure delivery of your unit in perfect condition. If
equipment is received in damaged condition, either apparent or concealed, a claim must be made
with the delivering carrier.
Concealed damage or loss - if damage or loss is not apparent until after equipment is unpacked, a
request for inspection of concealed damage must be made with carrier within 15 days. Be certain to
retain all contents plus external and internal packaging materials for inspection. The carrier will make
an inspection and will supply necessary claim forms.
The installation of the Appliance should conform to the NATIONAL FUEL GAS CODE
"ANSI Z223.1 - LATEST EDITION" AND ALL LOCAL GAS COMPANY RULES AND
REGULATIONS.
CAUTION
IN CANADA INSTALLATION SHALL BE IN ACCORDANCE WITH THE CURRENT
CAN/ CGA-B149.1 NATURAL GAS INSTALLATION CODE OR CAN/CGA-B149.2
PROPANE INSTALLATION CODE AND LOCAL CODES WHERE APPLICABLE.
WARNING: Improper installation, adjustment, alteration, service or maintenance can
cause property damage, injury or death. Read the installation, operating and maintenance
instructions thoroughly before installing or servicing the equipment.
This appliance and control valve must be disconnected from the gas supply piping system during any
pressure testing of that system at test pressures in excess of 1/2 PSIG (1.034 ATM). This appliance
must be isolated from the gas supply piping system by closing its individual manual shutoff valve
during any pressure testing of the gas supply piping system at test pressures equal to or less than
1/2 PSIG (1.034 ATM). For your protection, we recommend a qualied installing agency install this
appliance. They should be familiar with gas installations and your local gas requirements. In any
case, your gas company should be called to approve the nal installation. In addition, there should be
posted, in a prominent location, detailed instructions to be followed in the event the operator smells
gas. Obtain the instructions from the local gas supplier.
FRYER SHOULD BE RESTRAINED TO PREVENT TIPPING WHEN INSTALLED TO
AVOID SPLASHING OF HOT LIQUID. USE ADEQUATE TIES WHEN INSTALLING
THE FRYER.
INAPPROPRIATE USE DUE TO A LACK OF COMMON SENSE MAY RESULT IN
CAUTION
PRODUCT DAMAGE OR PERSONAL INJURY.
4
CAUTION
CAUTION
FOR YOUR SAFETY
DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND
LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE. KEEP THE
APPLIANCE AREA CLEAR AND FREE FROM COMBUSTIBLES.
AIR SUPPLY
Provisions for adequate air supply must be provided.
AIR INTAKES IN BOTTOM
Make certain that the air intake opening in the bottom of the appliance is not obstructed.
It is essential for proper combustion and operation of the appliance.
DO NOT USE SPACE UNDER FRYER FOR STORAGE
LEVELING UNIT
Level unit by adjusting the (4) feet.
DO NOT INSTALL WITHOUT FEET PROVIDED.
CLEARANCE
Clearances from combustible and non-combustible material must be a minimum of 48" from the top
of the appliance and 6" from the sides and back. Adequate clearance should also be provided for
proper operation and servicing.
EXHAUST CANOPY
It is essential that facilities be provided over the fryer to carry off fumes and gases.
This unit is not to be connected to a ue or stack for exhaust purposes.
GAS PIPING
Gas piping shall be new, clean and of such size and so installed as to provide a supply of gas
sufcient to meet the full gas input of the appliance. If the appliance is to be connected to existing
piping, it shall be checked to determine if it has adequate capacity. Joint compound (pipe dope)
shall be used sparingly and only on the male threads of the pipe joints. Such compounds shall be
resistant to the action of L.P. gases.
WARNING: Any loose dirt or metal particles which are allowed to enter the gas lines
on the appliance will damage the automatic valve and affect its operation. When
installing this appliance, all pipe and ttings must be free from all internal loose dirt.
Do not remove the seal until actual connection is made to the gas supply line.
CONNECTING GAS SUPPLY LINE
The gas inlet on this appliance is sealed at the factory to prevent entry of dirt. Do not remove
this seal until actual connection is made to the gas supply line. Each unit is supplied with a
gas pressure regulator adjusted for use with the gas specied on the nameplate. To connect
gas supply, attach pipe nipple provided with unit. For pressure requirements and adjustment of
regulator, see GAS PRESSURE REGULATOR.
MANUAL SHUT OFF VALVE
A manual shut off valve should be installed upstream from the union and within six feet of the
appliance.
CHECKING FOR GAS LEAKS
Soap and water solution or other material acceptable for the purpose of locating gas leaks shall
be used. MATCHES, CANDLES, FLAME OR OTHER SOURCES OF IGNITION SHALL NOT BE
USED FOR THIS PURPOSE.
5
GAS PRESSURE REGULATOR
Adjust Pilot
IL2268
The regulator is factory set as specied on the rating plate. If it should be necessary to check the manifold
pressure, remove the 1/8" pipe plug from the top part of the burner manifold and attach a pressure
gauge. To adjust gas pressure, unscrew cap from pressure regulator on control valve and turn screw to
the right to increase and left to decrease the gas pressure to its proper setting. Replace cap. Manifold
Pressure should be no more than 9" water column for LP gas or 3 1/2" for natural gas.
LIGHTING INSTRUCTIONS
1. Wait 5 minutes before relighting pilot.
2. Open front door.
3. Turn thermostat to "OFF" position.
4. Turn valve knob to "PILOT." Push knob in completely. Light pilot through opening on front of
unit. Hold button in for sixty seconds or until pilot remains lit.
5. Check if drain valve is in closed position.
6. Add liquid fat as required.
7. Turn valve knob to "ON." Set thermostat to desired temperature.
8. To turn all gas off to valve control and to pilot, turn valve knob to "OFF" position
(complete shutdown).
TO ADJUST PILOT
1. Open the front door panel.
2. Turn the adjustment screw to the right or left to
decrease or increase pilot ame. (Flame must surround
thermocouple tips by approximately 1/2" (1.2cm).)
THERMOSTAT RECALIBRATION
1. To determine whether or not the thermostat should
be recalibrated, use an accurate thermometer located
approximately in the center of the kettle with the bulb 1" (2.4cm) below the top of the fat.
2. Set thermostat to 350°F (177° C) and check the thermometer reading when burner ame goes
off. Temperature should be approximately 5°F (3°C) less than the thermostat dial setting.
3. If not:
a. Without disturbing thermostat, pull knob forward and remove from shaft.
b. Turn screw in center of shaft clockwise to decrease temperature or counterclockwise
to increase temperature. NOTE: 1/4 turn of this screw will result in a change of
approximately 30°F (17°C).
c. Replace knob.
4. Repeat steps 1, 2 and 3 until correct.
HIGH LIMIT THERMOSTAT
These units are equipped with a manual reset high temperature limit type thermostat. This
thermostat will shut off the electric current to the magnetic gas valve, which shuts off the gas if the fat
temperature reaches 450° F (232° C). The fryer will not operate until the red reset button is pushed in.
Should the high temperature limit thermostat operate, the temperature regulating thermostat should
be checked for malfunctions. The high limit thermostat is located inside the fryer to your right and can
be reached when the door is open.
DO NOT REMOVE FEET!
DO NOT HEAT AN EMPTY KETTLE.
CAUTION
HOT FAT IS POTENTIALLY DANGEROUS. DO NOT COME IN DIRECT CONTACT
WITH HOT FAT.
6
OPERATING INSTRUCTIONS
1. CLEAN KETTLE thoroughly before using. Remove baskets and crumb tray. Clean protective
oil from interior of kettle with warm water & mild detergent. Drain through valve in bottom and
rinse thoroughly with clear water and dry completely before lling with oil.
2. DRAIN VALVE - Make certain it is closed before adding fat.
3. ADD FAT -
Model 615FD/630FD - A fat level line on the rear of the kettle will guide you in determining the
minimum fat level (12" fryers have a 15 lb. (6.8kg) fat capacity, 24" fryers have a 30 lb. (13.6kg)
fat capacity). If solid fat is used, pack the solid fat carefully to the sides and bottom of the kettle
before turning the temperature control knob to the "ON" position.
Model 404D - Keep level of fat 2" (5cm) above tubes. Kettle holds approximately 18 lbs. (8.2kg)
of fat. If solid fat is used, melt the solid fat before lling the fryer. Never attempt to use solid
shortening to ll kettle.
A higher fat level can be used when frying bulky foods, such as chicken or sh cakes. The level
should be chosen carefully so that the foaming action does not spill out of the kettle.
4. Turn the valve knob to "ON" position.
5. TEMPERATURE CONTROL - The thermostat is a combination switch and heat control. The
"OFF" position will turn off the electric current which closes the gas valve. With the fat in the
kettle (Note: On models 615FD/630FD, solid fat must be carefully packed to the sides and
bottom of the kettle) turn the thermostat knob to 200° F (93°C).
6. CRUMB TRAY Model 615FD/630FD - Place the crumb tray in the kettle when the fat has
melted.
BASKET RACK Model 404D - Place the rack before adding fat.
7. Turn the thermostat knob to the desired frying temperature. DO NOT FRY MORE FOOD PER
BATCH THAN YOU CAN FRY EFFICIENTLY - Too much food per batch causes excessive
temperature drop, wastes fat, and nothing is gained in capacity.
8. LOWERING BASKET - When the fat has reached the proper temperature, lower the basket
and food slowly into the fat. When moist food is lowered too quickly into hot fat, the fat will foam
and spatter excessively.
9. DRAIN - After the food has nished frying, raise the baskets and hang them on the handles of
the kettle. Allow excess fat to drain back into the kettle.
10. IDLING - During idle periods, lower the temperature setting of the thermostat to approximately
200° F (93°C). It is not necessary to maintain full cooking temperature during idle periods, for
the fat can be reheated quickly to the desired temperature. This procedure will result in longer
fat life and less gas consumption.
NOTE: See the Handy Frying Chart for recommended temperature and time required to properly
fry various foods as well as procedures and coating suggestions.
11. TO TURN THE FRYER OFF - Turn the thermostat dial knob counterclockwise to the "OFF"
position. The pilot will remain lit.
12. STRAINING FAT - Wait until fat is warm before straining fat. Slip lter bag over end of drain
valve
nipple and tie in place with a bow knot so it will not slide off. Place a receptacle under bag
and slowly open drain valve. When the kettle is empty, use a small pot to pour hot oil vigorously
around sides, tubes and bottom of kettle to wash out crumbs, etc. Continue to pour until all
crumbs, etc. are washed into lter bag. Remove lter bag and wash for next use. Close drain
valve, and pour fat back into kettle.
13. TO DRAIN KETTLE - Turn thermostat dial to the "OFF" position. Remove baskets. Drain fat
from kettle only when fat is warm and liquid. A cold fryer heated up will not drain properly. Use
a stick, if necessary, to stir up cold fat in bottom of kettle. Remove crumb tray.
14. CLEANING THE EXTERIOR - The exterior surfaces can be kept clean and attractive by regularly
wiping with a clean soft cloth. Any discoloration can be removed with a non-abrasive cleaner.
15. REASSEMBLING - After the kettle has been cleaned and the fryer body wiped off, replace
crumb tray.
16. OVERNIGHT SHUTDOWN - Turn knob on combination control to the "PILOT" position. This will
maintain the safety pilot and also prevent any gas from reaching the main burner. To activate
unit, turn the combination control knob to the "ON" position.
17. COMPLETE SHUTDOWN - Turn valve knob to "OFF" position.
7
CAUTION
CAUTION
DO NOT ATTEMPT TO FORCE THE RESET BUTTON OR KNOB ON THE VALVE
CONTROL UNDER ANY CIRCUMSTANCES.
GENERAL MAINTENANCE TIPS
1. DO NOT re empty kettle or with fat or oil beneath the minimum level indicator.
2. DO NOT fry foods in excess of 385°F (196°C).
3. DO NOT overll your fry kettle.
4. DO NOT allow burned crumbs to accumulate.
5. DO melt solid fat or shortening before lling fryer.
6. DO keep kettle lled to capacity at all time.
7. DO use correct fry fats and shortening, and follow temperature recommendations.
8. DO lter fat and clean fry kettle daily.
PROPER CLEANING OF KETTLE
DO NOT ALLOW WATER TO GET IN HOT FAT. IT CAN EXPLODE.
1. Drain fat from fryer while the fat is warm, not hot.
2. Rinse to remove all loose residue and crumbs.
3. Fill with water. Bring to a boil and add a fryer cleaner. Boiling time will depend on condition
of the fryer (30 minutes to 2 hours or until clean).
4. Turn heat off, drain and rinse with water until clean.
5. Use a vinegar rinse (2 to 3 cups) to stir, drain and rinse thoroughly with clear water.
6. Wipe kettle with a soft cloth and allow to thoroughly dry.
7. Add fat. Melt solid fat or shortening before lling fryer. Never attempt to use solid shortening
to ll kettle. The shortening Must Be Liquid.
CAUTION
REPAIRS AND SERVICE
This appliance should only be repaired or serviced by the factory or factory authorized
personnel.
Moving this fryer with hot liquid is extremely hazardous and can cause serious
burns. Before moving fryer, drain oil.
8
CAUTIONS FOR ALL DEEP FAT FRYERS
NEVER LEAVE AN OPERATING FRYER UNATTENDED
REMEMBER HOT OIL IS DANGEROUS –
RESPECT IT!
WARNING – INSTALLATION
• Locate your fryer in a protected place so
that it cannot be tipped over or knocked
off its support. A mechanical restraint
should be installed to prohibit the fryer
from tipping or moving. Consult your local
codes for allowable methods of restraint.
• Install an automatic re extinguisher over
the fryer and in the exhaust duct.
• Be sure your power supply is installed
properly and in accordance with the local
and national codes.
• Install a shut-off switch or gas valve close
to the fryer. It must turn off the fryer
immediately.
• Failure to add a mechanical restraint can
result in oil splashing out and contacting
the skin, leading to serious injury or death!
WARNING – HOT OIL
• Hot oil is dangerous – Severe burns can
result when hot oil contacts the skin.
• Hot oil is ammable – Keep open ames
away from hot oil and its vapors.
• Never allow water or ice to get in hot oil.
IT CAN EXPLODE!
WARNING - ENVIRONMENT
• Keep your oors clean and free of grease
and all other substances so no one slips
accidentally and contacts the hot fryer.
• Keep areas and lters clean above your
fryers – Oil soiled lint or dust can ignite
easily and ames will spread rapidly.
WARNING – MAINTENANCE
• Have your equipment checked regularly to
insure its safe and properly functioning.
• If your fryer starts to smoke or boil
abnormally, cut off the power supply
immediately and determine the reason for
the smoking or boiling before attempting
to use it again.
WARNING – TRAINING
• Train all personnel to understand the
hazards of hot oil. Instruct them on the
proper action to take if something does
not seem to be acting properly.
• Instruct your personnel on what to do if
there is an oil re. Do not use water on
an oil re! Use only re extinguishers of
the approved type and never direct such
extinguishers so as to blow the oil out of
the oil container.
• Inappropriate use due to a lack of
common sense may result in product
damage or personal injury.
9
CARE OF FAT
In three to six months you may spend as much for fat
as you paid for your kettle. So fat is an item you want
to know all about; how to select it; how to manage it.
The more production you can get from each pound of
fat, the more protable your frying operation will be.
o get a high rate of production per pound of fat you
T
have to avoid two things. One is early breakdown
and spoilage of the compound so that you have to
throw it away before it does enough work to "earn its
keep." The other is excessive sponging up of fat by
the food being fried.
The main cause of fat breakdown is excessive heat.
On the other hand abnormal absorption is caused by
frying too long at too low temperatures. One answer
to both problems is exact control of heat — so that
fat neither smokes up nor soaks up.
Of course, no fat "keeps" forever. Not only heat, but
air and moisture, salt particles and crumbs of food
work to break it down. But you can slow up fat deterioration by maintaining proper temperatures and
by draining your kettle, ltering or straining the fat
once or twice a day and by keeping the kettle itself
absolutely clean.
A number of commercial devices and materials are
available to aid in eliminating fat impurities. There are
several excellent models of pressure lters as well
as strainer-type lters, which, if used regularly, will
prolong life of fat.
However, no purication device will renew broken
down or rancid fat or put new life into it. Once you
have allowed fat to break down it becomes unsuitable
for frying — in fact browning is impossible.
In addition to ltration, you can prolong the usefulness
of fat by sweetening it with fresh compound every day
- replacing about 15% of the bulk you started with. If
you do enough frying so that normal absorption of fat
in food amounts to 15% to 20% of the capacity of your
kettle every day - then you can call that your turn-over
food. It means you can add the recommended 15%
of fresh fat without discarding any of the old.
10 POINT PROGRAM
TO PRESERVE FAT AND PRODUCE THE FINEST FRIED FOODS
1. Choose a fat that does not break down quickly.
Hydrogenated shortening, corn, and peanut oils
are less likely to break down under high temperatures.
2. Do not fry foods at temperatures above those
recommended. The higher the fat temperature,
the more rapid the rate of fat deterioration. Above
400°F fats quickly deteriorate.
3. During short intervals between frying, turn the
heat down. Do not keep heat on for long
periods between batches.
4. Keep fat clean. Strain or lter daily or at end of
each shift. Add at least 15% fresh fat to your
kettle daily.
5. At least once a day, cool a small amount of fat and
taste it to see if it has picked up foreign avors.
6. Discard fat that tends to bubble excessively before food is added.
7. Do not overload baskets-pieces should not touch
when frying. Shake baskets to prevent food from
sticking together. Fry similar sizes together.
8. Never salt foods directly over fat, salt in fat reduces its life.
9. Raw, wet foods, such as potatoes and oysters,
should be drained or wiped dry before frying to
extend the life of the frying fat. Have foods to be
fried at room temperature.
10. Keep fat temperatures below smoking point to
minimize frying odors.
10
HANDY FRYING CHART
TIME IN
FOOD COATING PROCEDURE TEMP MINUTES
POTATOES
Standard French Fries Cut in uniform pieces 1/2” 350° 5-7
Blanch Only square the long way 350° 3-1/2
Brown Only 350° 3-1/2
Long Branch Cut in uniform pieces 3/4”
square the long way 350° 7-10
Julienne (shoe string) Cut in uniform pieces 1/8”
to 1/4” square the long way 350° 3-6
Chips Soak in cold running water
until water does not run milky 350° 2-3
CHICKEN
Large Pieces Batter or Some prefer rolling in 325° 9-1l
Small Pieces Breading seasoned our, dipping in egg 340° 7-10
Pre-cooked wash, and frying 350° 3-4
FISH
Fillets (Large) Breading Select llets of uniform 350° 4
Fillets (Small) or Batter size, skin out and dry. 350° 3
Oysters Breading Use Oyster liquor in batter
or Batter or breading 350° 5
Clams Batter 350° 1
Scallops Breading 350° 4
Shrimp Batter Some prefer soaking 1/2 hour
in cold seasoned milk 350° 3
Smelts Breading Cut spinal cord several 350° 4
places to prevent curling
MEATS
Chicken Fried Steak Breading Sever all connecting membranes
at one inch intervals to prevent
curling 360° 3-4
Cutlets Breading 350° 3-4
Chops Breading 340° 3-4
Meat Balls Breading or
rolled in our 340° 4-6
Brains Breading 340° 3-5
VEGETABLES
Asparagus Batter or crumbs Pre-cook in salted water 350° 3
Cauliower Batter or crumbs Pre-cook and separate owers 350° 3
Egg Plant Crumb Breading Peel, cut cross-wise into 1/4”
slices 350° 3
Onions Light batter Slice thin, soak in milk for
two hours 350° 3
FRITTERS
Fruit (bananas, pineapples, apricots, berries) Serve with fruit juice 350° 3-5
Corn Batter Serve with syrup or jelly 350° 3-5
Vegetable (peas, green beans) Serve with tomato cheese sauce 350° 5-8
MISCELLANEOUS
Croquettes Breading 360° 3
Chinese Noodles 375° 1-2
French Toast 375° 1
DOUGHNUTS
Cake 375° 1-1/2 - 2
Yeast, raised 375° 1
11
2M-4497-2 10/2010
The foregoing warranty is in lieu of any and all other warranties expressed or implied and constitutes the entire warranty.
FOR ASSISTANCE
Should you need any assistance regarding the Operation or Maintenance of any Star equipment; write, phone, fax or email our Service Department.
In all correspondence mention the Model number and the Serial number of your unit, and the voltage or type of gas you are using.
ALL:
* Pop-Up Toasters
* Butter Dispensers
* Pretzel Merchandisers
(Model 16PD-A Only)
* Pastry Display Cabinets
* Nacho Chip Merchandisers
* Accessories of any kind
* Sneeze Guards
* Pizza Ovens
(Model PO12 Only)
* Heat Lamps
* Pumps-Manual
Visit our Website at: www.star-mfg.com Email: service@star-mfg.com
THOROUGHLY INSPECT YOUR UNIT ON ARRIVAL
This unit has been tested for proper operation before leaving our plant to insure delivery of your unit in perfect condition. However, there are instances in
which the unit may be damaged in transit. In the event you discover any type of damage to your product upon receipt, you must immediately contact the
transportation company who delivered the item to you and initiate your claim with same. If this procedure is not followed, it may affect the warranty status of
the unit.
LIMITED
EQUIPMENT WARRANTY
All workmanship and material in Star products have a one (1) year limited warranty on parts & labor in the United States and Canada. Such warranty is limited
to the original purchaser only and shall be effective from the date the equipment is placed in service. Star's obligation under this warranty is limited to the repair
of defects without charge, by the factory authorized service agency or one of its sub-agencies. Models that are considered portable (see below) should be taken
to the closest Star service agency, transportation prepaid.
> Star will not assume any responsibility for loss of revenue.
> On all shipments outside the United States and Canada, see International Warranty.
* The warranty period for the JetStar six (6) ounce & Super JetStar eight (8) ounce series popcorn machines is two (2) years.
* The warranty period for the Chrome-Max Griddles is ve (5) years on the griddle surface. See detailed warranty provided with unit.
* The warranty period for Teon/Dura-Tec coatings is one year under normal use and reasonable care. This warranty does not apply if damage occurs to
Teon/Dura-Tec coatings from improper cleaning, maintenance, use of metallic utensils, or abrasive cleaners, abrasive pads, product identiers and
point-of-sale attachments, or any other non-food object tha comes in continuous contact with the roller coating. This warranty does not apply to the
“non-stick” properties of such materials.
> This warranty does not apply to "Special Products" but to regular catalog items only. Star's warranty on "Special Products" is six (6) months on parts
and ninety (90) days on labor.
> This warranty does not apply to any item that is disassembled or tampered with for any purpose other than repair by a Star Authorized Service Center or
the Service Center's sub-agency.
> This warranty does not apply if damage occurs from improper installation, misuse, wrong voltage, wrong gas or operated contrary to the Installation and
Operating instructions.
> This warranty is not valid on Conveyor Ovens unless a "start-up/check-out" has been performed by a Factory Authorized Technician.
PARTS WARRANTY
Parts that are sold to repair out of warranty equipment are warranted for ninety (90) days. The part only is warranted. Labor to replace the part is chargeable to
the customer.
SER
VICES NOT COVERED BY WARRANTY
PORTABLE EQUIPMENT
Star will not honor service bills that include travel time and mileage charges for servicing any products considered "Portable" including items listed below.
These products should be taken to the Service Agency for repair:
1. Travel time and mileage rendered beyond the 50 mile radius limit
2. Mileage and travel time on portable equipment (see below)
3. Labor to replace such items that can be replaced easily during a daily cleaning
routine, ie; removable kettles on fryers, knobs, grease drawers on griddles, etc.
4. Installation of equipment
5. Damages due to improper installation
6. Damages from abuse or misuse
7. Operated contrary to the Operating and Installation Instructions
8. Cleaning of equipment
9. Seasoning of griddle plates
10. Voltage conversions
11. Gas conversions
12. Pilot light adjustment
13. Miscellaneous adjustments
14. Thermostat calibration and by-pass adjustment
15. Resetting of circuit breakers or safety controls or reset buttons
16. Replacement of bulbs
17. Replacement of fuses
18. Repair of damage created during transit, delivery, &
installation OR created by acts of God
* The Model 510FD Fryer.
* The Model 526TOA Toaster Oven.
* The Model J4R, 4 oz. Popcorn Machine.
* The Model 518CMA & 526CMA Cheese Melter.
* The Model 12MC & 15MC & 18MCP Hot Food Merchandisers.
* The Model 12NCPW & 15NCPW Nacho Chip/Popcorn Warmer.
* All Hot Dog Equipment except Roller Grills & Drawer Bun Warmers.
* All Nacho Cheese Warmers except Model 11WLA Series Nacho Cheese Warmer.
* All Condiment Dispensers except the Model HPD & SPD Series Dispenser.
* All Specialty Food Warmers except Model 130R, 11RW Series, and 11WSA Series.
* All QCS/RCS Series Toasters except Model QCS3 & RCS3 Series.
* All Fast Steamer Models except Direct Connect Series.
12
MATERIAL
DR.
DATE
FINISH
MODEL NO.
TITLE
PART NO.
TOLERANCES UNLESS OTHERWISE NOTED
FRACTIONS ± 1/64 DECIMALS ± .005
REVISIONS
~
~
SK1758
WIRING DIAGRAM
M.P.
03-02-2000
CK.
LTR DATE DESCRIPTION OF CHANGE DR
THIS DRAWING CONTAINS INFORMATION CONFIDENTIAL TO STAR MFG. INT'L. INC.
NO REPRODUCTION OR DISCLOSURE OF ITS CONTENTS IS PERMITTED.
STAR MANUFACTURING INTERNATIONAL INC.
#10 SUNNEN DRIVE, ST. LOUIS, MO. 63143, USA
A
3/25/03
ADDED WIRE ASSY. NO
FOR 404D,D-NAT ONLY
PMR
THERMOSTAT
HIGH LIMIT
VALVE - GAS CONTROL
THERMOPILE
WIRE "C"
(E6-615013, EXCEPT AS FOLLOWS.
E4-404049, USED ON 404A-NAT
AND 404D-NAT ONLY)
WIRE "A"
(E6-615011)
WIRE "B"
(E6-615012)
A
404A
615F, 630F
R
13
MODEL 404D
FRYER NAT/PROP
STAR MANUFACTURING INTERNATIONAL, INC.
SK1396 07-20-05REV. E
ILLUSTRATIVE PURPOSES ONLY AND IN
SOME ITEMS ARE INCLUDED FOR
CERTAIN INSTANCES MAY NOT BE AVAILABLE
23
24
22
16
27
26
28
17
15
14
13
12
10
41
9
25
1
8
7
6
5
4
3
2
39
38
37
36
35
34
3332
31
30
11
29
40
20 181921
4243
44
14
PARTS LIST May 5, 2011, Rev F
Fig NO Part NO Qty Description Application
1
2 2T-Z6007 1 THERMOSTAT
3 2R-Z6003 1 KNOB
4 E4-404033 1 DRAIN FITTING
5 2V-Z0112 1 TUBE, PILOT
6 2T-Y9266 1 SAFETY THERMOSTAT
7 2J-Y9270 1 THERMOPILE
8
9 E4-404036 2 BURNER
10
11 E4-404040 1 MANIFOLD ASSY
12 E4-404034 1 RETAINER HINGE
13 E4-404048 1 KETTLE ASSY
14 E4-Z0086 1 PANEL RIGHT
15 E4-404032 1 TRIM-FRONT ASSY
16 2B-404022 2 BASKET ASSY
17 E4-401043 1 BASKET RACK ASSY
18 2C-2555 5 ACORN NUT #8-32
19 2C-H8670 5 WASHER #8 INT. TOOTH
20 E4-Z0446 1 HANGER-BASKET
21 E4-404043 1 COVER FLUE ASSY
22 E4-Z0562 1 BAFFLE-FLUE
23 E4-Z0048 1 FLUE-BACK
24 E4-Z0049 1 PANEL-BACK
25 F2-9173 4 SPACER-THERMOSTAT-BULB
26 E4-9074 4 CLAMP-THERMOSTAT BULB
27 E4-404042 2 RADIANT ASSY
28 2K-Y9975 1 PIPE 3/8 NPT 21" LONG
29 2V-Z0312 1 VALVE-DRAIN 3/4 NPT
30 2A-Z5942 4 LEG-4"
31 E4-Z0085 1 PANEL-LEFT
32 2C-9788 1 CATCH-MAGNETIC
33 E4-404046 1 BOTTOM FRONT ASSY
34 E4-Z0037 1 LINER-DOOR
35 2C-Z0096 1 CLIP-TUBE
36 E4-Z0041 1 PANEL-DOOR
37 E6-Z1441 1 HANDLE
38 2G-5886 1 BAG-FILTER
39 2J-7961 1 E-Z LIGHTER ROD
40 2J-Y9977 1 LPT PRESSURE REGULATOR (OPTIONAL FOR PROPANE)
41 E4-Z0554 1 BRACKET-PILOT
42 2C-2559 2 NUT ACORN 10-24
43 2A-Y9925 2 SCREW - DOOR
44 2M-Z6224 1 FACEPLATE
NI PS-401058 1 BULB CLAMP KIT
NI 2M-Z8942 1 LABEL-FRYER BURN WARNING
NI 2M-Z8943 1 SIGN-FRYER WARNINGS
2J-Z6452
2J-Y9268 VALVE-7000, PROP 404D PROP
2A-Y5470 2 ORIFICE #51 404D NAT
2A-Z0296 2 ORIFICE #60 404D PROP
2J-Z0555
E4-Z0556 PILOT, PROP (.026 ORIFICE) 404D PROP
Model: 404D Star-Max Counter Gas Fryer
1
1
VALVE, 71-502, NAT 404D NAT
PILOT, NAT (.016 ORIFICE) 404D NAT
Star Manufacturing International, Inc.
15

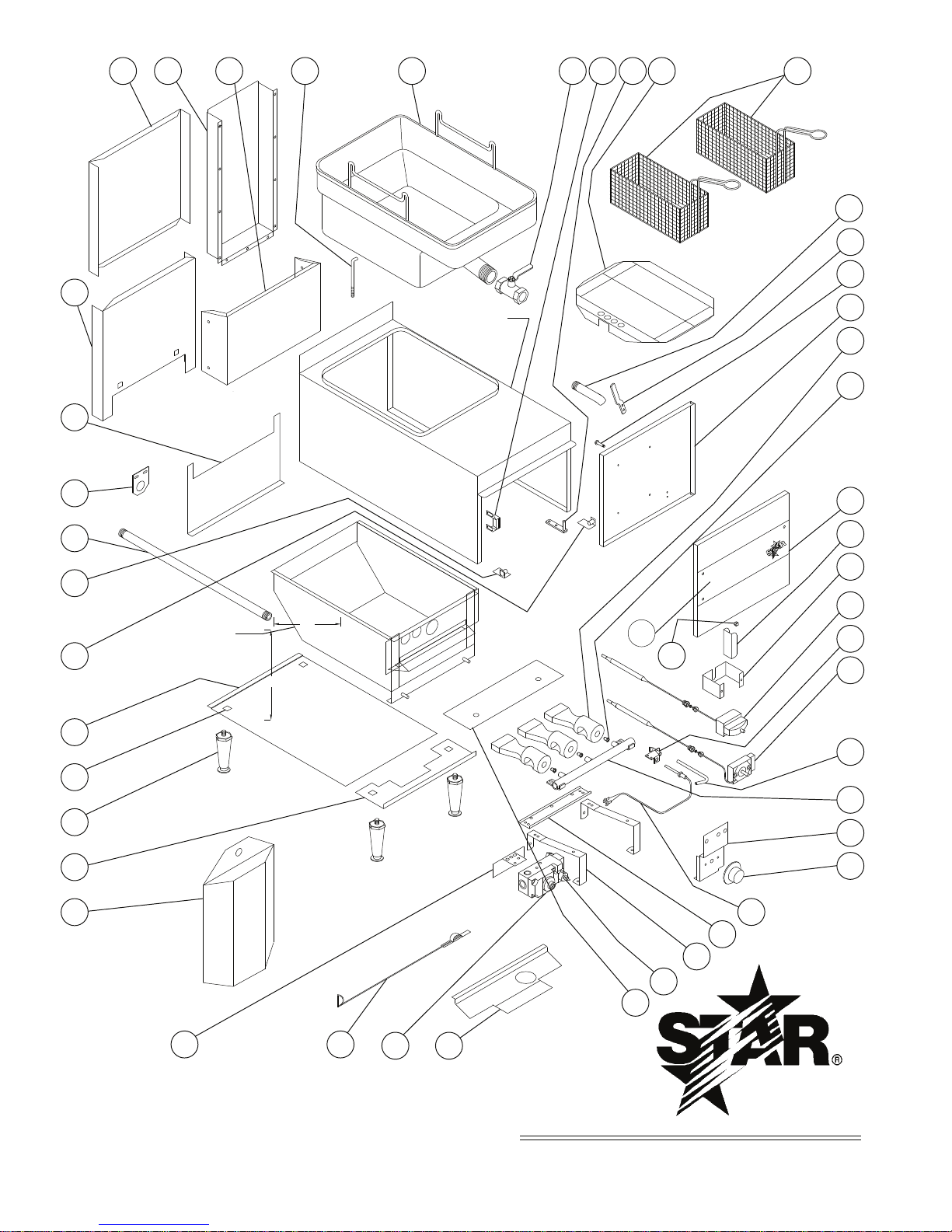

SK1540
STAR MANUFACTURING INTERNATIONAL, INC.
07-20-05REV. B
ILLUSTRATIVE PURPOSES ONLY AND IN
SOME ITEMS ARE INCLUDED FOR
CERTAIN INSTANCES MAY NOT BE AVAILABLE
MODELS: 615FD/630FD
7.5”
10”
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44 45
BODY
ASSY
COMBUSTION
CHAMBER
46
47
48
16
PARTS LIST March 30, 2011, Rev F
MODEL
615FD/630FD Counter Gas Fryer
Number
Key
Number
1 2J-Z6452 1 VALVE, 71-502, NAT 615FD/630FD NATURAL GAS
E6-Z0602 1 VALVE-7000, PROP 615FD/630FD PROPANE
2 E6-Y9752 2 SUPPORT MANIFOLD
3 E6-Y9802 1 SUPPORT BURNER 615FD
E6-Y9803 1 SUPPORT BURNER 630FD
4 2J-Y9270 1 THERMOPILE
5 2R-Z6003 1 KNOB
6 E6-Y9727 1 BRACKET-THERMOSTAT 615FD
E6-Y9953 1 BRACKET-THERMOSTAT 630FD
7 E6-615010 1 MANIFOLD ASSEMBLY 615FD
E6-630010 1 MANIFOLD ASSEMBLY 630FD
8 E6-Y9954 1 PIPE-PILOT 615FD
E6-Y9726 1 PIPE-PILOT 630FD
9 2T-Z6007 1 THERMOSTAT
10 2J-Y9690 1 PILOT, NATURAL GAS
E6-Y9691 1 PILOT, PROPANE
11 2T-Y9266 1 SAFETY THERMOSTAT
12 E6-Y9952 1 SHIELD - HIGH LIMIT 615FD
13 E6-Z1441 1/2 HANDLE 615FD/630FD
14 E6-Y9649 1 DOOR PANEL 615FD
E6-Y9879 1 DOOR PANEL 630FD
15 2A-Y1255 3 ORIFICE, NAT (#52) 615FD
2A-7756 3 ORIFICE, LP (#63) 615FD
E6-Y9943 6 ORIFICE, NAT (#50) 630FD
2A-9368 6 ORIFICE, LP (#61) 630FD
16 E2-215024 3/6 BURNER 615FD/630FD
17 E6-Y9650 1 DOOR LINER 615FD
E6-Y9880 1 DOOR LINER 630FD
18 2A-Y9925 2/4 SCREW 615FD/630FD
19 2C-Z3658 1 CLIP-TUBE
20 E4-404033 1 DRAIN FITTING
21 2B-115775 1 BASKET RIGHT 615FD
2B-115774 1 BASKET LEFT 615FD
2B-Y8846 1 BASKET RIGHT 630FD
2B-Y8847 1 BASKET LEFT 630FD
22 E6-615017 1 CRUMB TRAY ASSY w/Handle 615FD
E6-630014 1 CRUMB TRAY ASSY 630FD
23 E4-404015 1 HINGE PIN RETAINER ASSY 615FD
24 2C-9788 1/2 CATCH-MAGNET 615FD/630FD
25 2V-Z0312 1 VALVE DRAIN
26 E6-615015 1 KETTLE ASSY 615FD
E6-630015 1 KETTLE ASSY 630FD
27 2A-Y9751 2 HOOK-KETTLE
28 E6-Y9731 1 FLUE-COVER FRONT 615FD
E6-Y9874 1 FLUE-COVER FRONT 630FD
29 E6-Y9730 1 FLUE-REAR 615FD
E6-Y9873 1 FLUE-REAR 630FD
30 E6-Y9732 1 FLUE-COVER REAR 615FD
E6-Y9875 1 FLUE-COVER REAR 630FD
31 E6-Y9729 1 FLUE-FRONT 615FD
E6-Y9872 1 FLUE-FRONT 630FD
Part
Number
Per
Unit
Description and Model Designation
1
IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE
INCLUDE MODEL AND SERIAL NUMBER OF
2
Some items are included for illustrative purposes only and in certain instances may not be available.
Star Manufacturing International, Inc.
17
PARTS LIST March 30, 2011, Rev F
MODEL
615FD/630FD Counter Gas Fryer
Number
Key
Number
32 E6-Y9618 1 BACK COMBUSTION 615FD
E6-Y9820 1 BACK COMBUSTION 630FD
33 E6-Y9924 1 INLET PIPE SUPPORT
34 2K-Y9975 1 PIPE 3/8 NPT 21" 615FD
2K-Y9976 1 PIPE 1/2 NPT 21" 630FD
35 E6-630011 1 BRACKET LEFT 630FD
36 E6-630012 1 BRACKET RIGHT 630FD
37 E6-615022 1 BOTTOM ASSY 615FD
E6-630020 1 BOTTOM ASSY 630FD
38 2C-Y7565 4 NUT 3/8-16
39 2A-Z5942 4 LEG-4"
40 E1-615021 1 BOTTOM FRONT ASSY 615FD
E6-630019 1 BOTTOM FRONT ASSY 630FD
41 2G-5886 1 BAG-FILTER
42 E6-Y9951 1 SHIELD-VALVE
43 2J-7961 1 E-Z LIGHTER ROD
44 2J-Y9977 1 LPT PRESSURE REGULATOR (OPTIONAL FOR PROPANE)
45 E6-Y9620 1 BAFFLE-BOTTOM 615FD
E6-Y9878 1 BAFFLE-BOTTOM 630FD
46 E6-Y9043 1 DEFLECTOR-FLAME 630FD
47 2C-2559 2/4 NUT ACORN 10-24 615FD/630FD
48 2M-Z6224 1 FACEPLATE 615FD
2M-Z6229 1 FACEPLATE 630FD
NI 2M-Z8942 1 LABEL-FRYER BURN WARNING
NI 2M-Z8943 1 SIGN-FRYER WARNINGS
NI E3-Y3646 4 SPACER-THERMOSTAT BULB
Part
Number
Per
Unit
Description and Model Designation
2J-Y9977 LPT REGULATOR-USED TO CONVERT NAT TO LP
2
IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE
INCLUDE MODEL AND SERIAL NUMBER OF
2
Some items are included for illustrative purposes only and in certain instances may not be available.
Star Manufacturing International, Inc.
18
MISE EN GARDE
NE TENTER EN AUCUN CAS DE FORCER LE BOUTON DE RÉENCLENCHEMENT NI
LE BOUTON DE LA COMMANDE DE SOUPAPE.
CONSEILS GÉNÉRAUX D’ENTRETIEN
1. NE PAS allumer la marmite vide ou si la quantité de matière grasse ou d’huile n’atteint pas
la marque du niveau minimum.
2. NE PAS faire frire les aliments à une température de plus de 196oC.
3. NE PAS remplir excessivement la marmite à frire.
4. NE PAS laisser les miettes brûlées s’accumuler.
5. Faire fondre la matière grasse ou le shortening solide avant de remplir la friteuse.
6. Garder constamment la marmite remplie à capacité.
7. Utiliser du shortening et des matières grasses appropriés pour la friture, et suivre les
recommandations de température.
8. Filtrer la matière grasse et nettoyer la marmite tous les jours.
NETTOYAGE APPROPRIÉ DE LA MARMITE
MISE EN GARDE
NE PAS LAISSER D’EAU VENIR EN CONTACT AVEC LA MATIÈRE GRASSE CHAUDE,
CE QUI PEUT PROVOQUER UNE EXPLOSION.
1. Vider la matière grasse de la friteuse pendant que la matière grasse est tiède, et non
chaude.
2. Rincer pour faire disparaître les miettes et tous les résidus qui n’adhérent pas.
3. Remplir d’eau. Porter à ébullition et ajouter un nettoyant de friteuse. Le temps d’ébullition
dépendra de l’état de la friteuse (de 30 minutes à
2 heures ou jusqu’à ce que la friteuse soit propre).
4. Fermer le chauffage, vider et rincer à l’eau jusqu’à ce que la marmite soit propre.
5. Utiliser une solution de rinçage à base de vinaigre (2 à 3 tasses) pour remuer, vider et
rincer soigneusement à l’eau claire.
6. Essuyer la marmite avec un chiffon doux et laisser sécher complètement.
7. Ajouter la matière grasse. Faire fondre la matière grasse ou le shortening solide avant de
remplir la friteuse. Ne jamais tenter d’utiliser un shortening solide pour remplir la marmite.
Le shortening doit être liquide.
RÉPARATIONS ET SERVICE
Cet appareil ne doit être réparé que par l’usine ou le personnel autorisé par l’usine.
MISE EN GARDE
Il est extrêmement dangereux de déplacer cette friteuse lorsqu'elle contient du liquide
chaud, car cela peut causer des brûlures graves. Vider l’huile avant de déplacer la
friteuse.
8
19
7. Tourner le bouton du thermostat pour l’amener à la température de friture désirée. NE PAS FAIRE
FRIRE PLUS D’ALIMENTS PAR LOT QU’ON NE PEUT FAIRE FRIRE EFFICACEMENT - Une
trop grande quantité d’aliments par lot cause une baisse excessive de température et un gaspillage de matière grasse, sans le moindre gain de capacité.
8. ABBAISSEMENT DU PANIER - Lorsque la matière grasse a atteint la température qui convient, abaisser
le panier et les aliments lentement dans la matière grasse. Lorsque des aliments humides sont abaissés
trop rapidement dans la matière grasse chaude, celle-ci écume et éclabousse excessivement.
9. ÉGOUTTAGE - Lorsque les aliments ont ni de frire, lever les paniers et les accrocher aux poignées
de la marmite. Laisser l’excédent de graisse revenir dans la marmite.
10. REPOS - Durant les périodes de repos, baisser le réglage de température du thermostat à environ
93oC. Il n’est pas nécessaire de maintenir la pleine température de cuisson durant les périodes de
repos, car la matière grasse peut être réchauffée rapidement jusqu’à la température désirée. Cette
méthode prolonge la durée d’utilisation de la matière grasse tout en réduisant la consommation de
gaz.
REMARQUE : Se reporter au tableau commode de friture pour connaître la température recommandée
et le temps requis pour faire frire adéquatement différents aliments, ainsi que les méthodes et les sug-
gestions de panure.
11. POUR METTRE LA FRITEUSE À L’ARRÊT - Tourner le bouton du cadran du thermostat en sens
anti-horaire pour l’amener à la position d’arrêt. La veilleuse demeure allumée.
12. FILTRAGE DE LA MATIÈRE GRASSE - Attendre que la matière grasse soit tiède avant de la ltrer.
Faire glisser le sac-ltre par-dessus l’extrémité du raccord de la soupape d’évacuation et l’attacher
en place en faisant un noeud de manière à ce qu’il ne glisse pas. Placer un réceptacle sous le sac
et ouvrir lentement la soupape d’évacuation. Lorsque la marmite est vide, utiliser un petit pot pour
verser l’huile chaude énergiquement sur des côtés, les tubes et le fond de la marmite pour éliminer
les miettes, etc. Continuer à verser jusqu’à ce que toutes les miettes, etc. soient entraînés dans le
sac-ltre. Retirer le sac-ltre et le laver pour le prochain usage. Fermer la soupape d’évacuation et
reverser la matière grasse dans la marmite.
13. POUR VIDER LA MARMITE - Tourner le cadran du thermostat pour l’amener à la position d’arrêt.
Retirer les paniers. Vider la matière grasse de la marmite uniquement lorsque la matière grasse
est tiède et liquide. Une friteuse froide chauffée ne se vide pas adéquatement. Au besoin, utiliser
un bâton pour remuer la matière grasse froide au fond de la marmite. Retirer le plateau à miettes.
14. NETTOYAGE DE L’EXTÉRIEUR - Les surfaces extérieures peuvent être
mainten ues p ropres et attraya nt es en es suyan t régulièrem en t à l’ ai de
d’un chiffon doux propre. On peut enlever toute décoloration à l’aide d’un nettoyant non abrasif.
15. RÉASSEMBLAGE - Une fois la marmite nettoyée et le corps de la friteuse essuyé, remettre le
plateau à miettes en place.
16. ARRÊT POUR LA NUIT - Tourner le bouton de
la commande combinée à la position veilleuse (« PILOT »). Ceci maintiendra la veilleuse de
sécurité et empêchera également le gaz d’atteindre le brûleur principal. Pour actionner l’appareil,
tourner le bouton de la commande combinée pour l’amener à la position de marche.
17. ARRÊT COMPLET - Tourner le bouton de la soupape pour l’amener à la position d’arrêt.
7
20
MISE EN GARDE
NE PAS RETIRER LES PIEDS.
NE PAS FAIRE CHAUFFER UNE MARMITE VIDE.
MISE EN GARDE
LA MATIÈRE GRASSE CHAUDE EST EVENTUELLEMENT DANGEREUSE. ÉVITER
TOUT CONTACT DIRECT AVEC LA MATIÈRE GRASSE CHAUDE.
CONSIGNES DE FONCTIONNEMENT
1. NETTOYER LA MARMITE soigneusement avant usage. Retirer les paniers et le
plateau à miettes. Enlever l’huile protectrice appliquée à l’intérieur de la bouilloire
à l’aide d’une solution de soude ménagère ou d’un produit équivalent. Vider par
le robinet au fond et rincer soigneusement à l’eau claire, puis sécher complètement avant de
remplir d’huile.
2. ROBINET D’ÉVACUATION - S’assurer qu’il est fermé avant d’ajouter la matière grasse.
3. AJOUTER LA MATIÈRE GRASSE Modèle 615FD/630FD - Une marque de niveau de matière grasse à l’arrière de la marmite vous
aidera à déterminer le niveau minimum de matière grasse (les friteuses de 30 cm ont une capacité
de matière grasse de 6,8 kg, les friteuses de 60 cm ont une capacité de matière grasse de
13,6 kg). Si un corps gras solide est utilisé, compacter le corps gras solide soigneusement sur
les côtés et le fond de la marmite avant de mettre le bouton de contrôle de la température à la
position de marche.
Modèle 404D - Tenir le niveau de matière grasse 5 cm en haut de tubes. Marmite cales
approximativement 8.2 kg de matière grasse. Si un corps gras solide est utilisé; fondre le corps
gras solide avant farce la marmite: Jamais employer le corps gras solide en raison de farce la
marmite.
On peut utiliser un niveau plus élevé de matière grasse pour faire frire des aliments volumineux
tels que des croquettes de poisson ou de poulet. Le niveau doit être choisi soigneusement de
manière à ce que l’action moussante ne déborde pas de la marmite.
4. Mettre le bouton de la soupape à la position de marche.
5. CONTRÔLE DE LA TEMPÉRATURE - Le thermostat consiste en un interrupteur combiné
à une commande de chaleur. La position d’arrêt coupera le courant électrique qui ferme le
robinet de gaz. La matière grasse étant dans la marmite (remarque : Modèle 615FD/630FD
- la matière grasse solide doit être compactée soigneusement sur les côtés et le fond de la marmite), tourner le bouton du thermostat à 93°C.
6. PLATEAU À MIETTES - Modèle 615FD/630FD -Placer le plateau à miettes dans la marmite
lorsque la matière grasse est fondue.
Panier crèmaillère Modèle 404D - Placer le panier crèmaillèr avant farce la marmite.
6
21
CONSIGNES D’ALLUMAGE
1. Attendre cinq minutes avant de réallumer la veilleuse.
2. Ouvrir la porte avant.
3. Amener le thermostat à la position d’arrêt
(« OFF »).
4. Amener le bouton de la soupape à la position
le bouton. Allumer la veilleuse à travers l’ouverture pratiquée à l’avant de l’appareil. Tenir le
bouton enfoncé pendant 60 secondes
5. S’assurer que la soupape d’évacuation est en position fermée.
6. Ajouter, au besoin, du gras liquide.
7. Amener le bouton de la soupape à la position de marche (« ON »). Mettre le thermostat à la
température désirée.
8. Pour couper toute amenée de gaz à la commande de la soupape et à la veilleuse, mettre le
bouton de la soupape à la position d’arrêt (fermeture complète).
ou jusqu’à ce que la veilleuse demeure allumée.
veilleuse (« PILOT »). Enfoncer complètement
RÉGLAGE DE LA VEILLEUSE
1. Ouvrir le panneau de la porte avant.
2. Retirer le bouchon à vis fendue à côté de la sortie de gaz de la veilleuse de la soupape de
commande.
3. Tourner la vis intérieure vers la droite ou la gauche pour diminuer ou augmenter la amme de
la veilleuse. (La amme doit entourer les extrémités du thermocouple d’environ 1,2 cm.)
4. Remettre le bouchon à vis fendue fermement en place pour prévenir les fuites de gaz.
RÉÉTALONNAGE DU THERMOSTAT
1. Pour déterminer si le thermostat doit ou non
être réétalonné, utiliser un thermomètre exact situé environ au centre de la marmite avec le
bulbe placé à 2,4 cm sous le dessus du gras.
2. Mettre le thermostat à 177
s’éteint. La température doit être d’environ 3oC de moins que le réglage au cadran du thermostat.
3. Si ce n’est pas le cas:
a. Sans déranger le thermostat, tirer le bouton vers l’avant et le retirer de l’arbre.
b. Tourner la vis au centre de l’arbre en sens horaire pour diminuer la température ou
en sens anti-horaire pour augmenter la température. REMARQUE: un quart de
tour de cette vis provoquera un changement d’environ 17oC.
c. Remettre le bouton en place.
4. Répéter les étapes 1, 2 et 3 jusqu’à ce que le thermostat soit juste.
o
C et vérier le relevé du thermomètre lorsque la amme du brûleur
THERMOSTAT DE LIMITE SUPÉRIEURE
Ces appareils sont pourvus d’un thermostat de type limite de haute température à réenclenchement manuel. Ce thermostat coupe le courant électrique au robinet de gaz magnétique qui coupe
le gaz si la température de la matière grasse atteint 232oC. La friteuse ne fonctionnera pas tant
que le bouton rouge de réenclenchement n’aura pas été enfoncé.
Si le thermostat de limite de haute température se déclenche, il faut vérier le thermostat de régulation de température pour y relever tout défaut de fonctionnement. Le thermostat haute limite
est situé à l’intérieur de la friteuse à votre droite, on peut l’atteindre lorsque la porte est ouverte.
5
22
MISE EN GARDE
NE RIEN STOCKER DANS L’ESPACE SOUS LA FRITEUSE.
MISE À NIVEAU DE L’APPAREIL
Mettre l’appareil à niveau en ajustant les quatre (4) pieds.
MISE EN GARDE
NE PAS INSTALLER SANS LES PIEDS.
DÉGAGEMENT
Il faut laisser un espacement d’au moins 122 cm entre tout matériau combustible ou non combustible et le dessus de l’appareil et de 15 cm autour des cotés et à l’arrière. Un dégagement adé-
quat est également nécessaire pour assurer un fonctionnement et un entretien satisfaisants.
HOTTE D’ÉCHAPPEMENT
Il est essentiel de prévoir l’évacuation des fumées et des gaz au-dessus de l’appareil. Cet appar-
eil ne doit pas être raccordé à un conduit ou à une cheminée aux ns d’échappement.
CONDUITES DE GAZ
Les conduites de gaz devront être neuves, propres leur taille et leur installation doivent permettre
un approvisionnement en gaz sufsant pour satisfaire pleinement les besoins en gaz de l’appareil. Si
l’appareil doit être raccordé à des conduites existantes, vérier celles-ci pour s’assurer qu’elles sont
de capacité adéquate. La pâte à joints doit être utilisée modérément et seulement sur les lets mâles
des joints de conduite. Ces pâtes doivent résister à l’action des gaz de pétrole liquéé.
AVERTISSEMENT : Toute saleté non adhérente ou particule métallique qui pénètre dans
les conduites de gaz de l’appareil abîme la soupape
fonctionnement.
les raccords sont exempts
En installant cet appareil, s’assurer que toutes les conduites et tous
de saleté interne non adhérente. Ne pas enlever
automatique et affecteront à son
le scelle-
ment avant le raccordement effectif aux conduites d’approvisionnement en gaz.
RACCORDEMENT À LA CONDUITE D’APPROVISIONNEMENT EN GAZ
L’admission de gaz de cet appareil est scellée en usine pour prévenir l’entrée de saleté. Ne pas
enlever ce scellement avant le raccordement effectif à la conduite d’approvisionnement en gaz.
Chaque appareil est pourvu d’un régulateur de pression de gaz réglé pour usage avec le gaz précisé
sur la plaque signalétique. Pour raccordement à l’approvisionnement en gaz, poser le raccord de
tuyau fourni avec l’appareil. Se reporter à la section RÉGULATEUR DE PRESSION DE GAZ pour
les exigences de pression et le réglage du régulateur.
SOUPAPE DE FERMETURE MANUELLE
Une soupape de fermeture manuelle doit être posée en amont du raccord et à moins de 1,8 mètre
de l’appareil.
RECHERCHE DE FUITES DE GAZ
Utiliser une solution d’eau savonneuse ou autre matière acceptable aux ns de repérer les
fuites de gaz. ON NE DOIT UTILISER À CETTE FIN AUCUNE ALLUMETTE, CHANDELLE,
FLAMME OU AUTRE SOURCE D’INFLAMMATION.
RÉGULATEUR DE PRESSION DE GAZ
Le régulateur est réglé en usine, comme spécié sur la plaque signalétique. S’il devient nécessaire de vérier
la pression au niveau du collecteur, retirer le bouchon de tuyau de 3 mm depuis la partie supérieure du collecteur du brûleur et poser un manomètre. Pour régler la pression du gaz, dévisser le bouchon du régulateur
de pression sur la soupape de commande et tourner la vis vers la droite pour augmenter et vers la gauche pour
diminuer la pression du gaz et l’amener à son réglage approprié. Remettre le bouchon en place.
4
23
DONNÉES GÉNÉRALES D’INSTALLATION
PLACER LE SIGNE ANNONCIATEUR LAMINE A FOURNI AVEC LA FRITEUSE DANS UN
SECTEUR VISIBLE A L’OPERATEUR DE FRITEUSE.
Cet appareil est conçu et vendu pour usage commercial seulement par des employés formés et en connaissant bien le fonctionnement. Il n’est pas vendu pour une utilisation par des particuliers dans une
maison ou dans ses alentours, ni pour usage directement par le grand public dans des établissements
de service alimentaire. Prière de contacter l’usine quant aux appareils destinés à être utilisés par le
grand public.
MISE EN GARDE
L’installation de l’appareil doit être conforme au CODE NATIONAL DE GAZ COMBUSTIBLE
« ANSI Z223.1 - DERNIÈRE ÉDITION » AINSI QU’À TOUTES LES RÈGLES ET RÉGLEMEN-TATIONS DE LA COMPAGNIE DE GAZ LOCALE.
AU CANADA, L’INSTALLATION DOIT SE FAIRE CONFORMÉMENT AU CODE COU-
ANT CAN/CGA-B149.1 POUR INSTALLATION DE GAZ NATUREL OU AU CODE
R
CAN/CGA-B149.2 POUR INSTALLATION DE PROPANE ET AUX CODES LOCAUX, LE
CAS ÉCHÉANT.
AVERTISSEMENT: L'installation, le réglage, la modication, la réparation ou l'entretien
incorrect
de cet appareil peut causer des dommages matérials, des blessures ou la mort.
Lire attentivement les instructions d'installation, de fonctionnement et d'entretien avant
de procéder à son installation ou entretien.
Cet appareil et cette soupape de commande doivent être détachés du système d’approvisionnement
en gaz durant tout essai de pression de ce système à des pressions d’essai de plus de 1/2 PSIG
(1,034 ATM). Cet appareil doit être isolé du système d’approvisionnement en gaz en fermant sa soupape
individuelle de fermeture manuelle durant tout essai de pression du système d’approvisionnement
en gaz à des pressions d’essai égales ou inférieures à 1/2 PSIG (1,034 ATM). Pour la protection de
l’utilisateur, nous recommandons de coner l’installation de cet appareil à une agence d’installation
qualiée. Cette agence doit bien connaître les installations de gaz et les exigences locales relatives
au gaz. Il faut, dans tous les cas, appeler la compagnie de gaz locale pour approuver l’installation
dénitive. En outre, des instructions détaillées à suivre dans l’hypothèse où l’opérateur sentirait une
odeur de gaz doivent être afchées bien en évidence. On peut se procurer ces instructions auprès de
son fournisseur de gaz local.
MISE EN GARDE
IL FAUT ASSUJETTIR LA FRITEUSE LORS DE L’INSTALLATION POUR L’EMPÊCHER DE
BASCULER ET AINSI ÉVITER LES ÉCLABOUSSURES DE LIQUIDE CHAUD. UTILISER
DES ATTACHES ADÉQUATES EN INSTALLANT LA FRITEUSE.
NE PAS ENTREPOSER NI UTILISER DE’ESSENCE NI AUTRES VAPEURS OU
LIQUIDES INFLAMMABLES À PROXIMTÉ DE CET APPAREIL OU DE TOUT AUTRE
APPAREIL.
TENIR TOUT COMBUSTIBLE
APPROVISIONNEMENT EN AIR
Un approvisionnement en air adéquat doit être assuré.
PRISES D’AIR AU FOND
S’assurer que les prises d’air au fond de l’appareil ne sont pas obstruées. Ceci est essentiel à une bonne
combustion et au bon fonctionnement de l’appareil.
ESURE DE SÉCURITÉ
HORS DU VOISINAGE DE L’APPAREIL.
24
3
SYMBOLE DE SÛRETÉ
Ce symbole est prévu pour alerter l’utilisateur à la présence
des instructions importantes de fonctionnement et
d’entretien du manuel accompagnant l’appareil.
Employer n’importe quelle partie autre que les pièces
fournies par usine véritable de Star soulage le fabricant
de toute la responsabilité.
MAINTENEZ CE MANUEL POUR LA FUTURE
RÉFÉRENCE
NOTIFICATION
NOTIFICA
TION
Star se réserve le droit de changer des caractéristiques
et la conception de produits sans communication
préalable. De telles révisions ne ont pas droit l’acheteur
aux changements, aux améliorations, aux additions ou
aux remplacements correspondants pour l’équipement
précédemment acheté.
ENTRETIEN ET RÉPARATIONS
Entrez en contact avec votre agent autorisé local de service pour le service ou l'entretien requis.
Référez-vous à la liste autorisée de centre commercial équipée d'unité. Le service SVP de service de Star (1-800-807-9054) disponible pendant des heures de travail normales pour répondre
à toutes les questions qui peuvent se poser. Veuillez avoir votre numéro et numéro de série de
type pour un service plus rapide.
2
25
®
®
®
®
®
FRITEUSES A GAZ
DE COMPTOIR
MODÈLES
404D
615FD
630FD
Instruction
d'installation et
d'opération
2M-Z6601 Rev. F 6/07/2011
615FD
630FD
26
Loading...
