Starline S66, S66 BT GSM, S96, S96 BT GSM GPS User Manual/instructions

User manual instruction

S66, S66

bt gsm

S96, S96

bt gsm gps

security systems

StarLine S96, S66

2

Contents

General description ................................................................................ 8

Main advantages ................................................................................................................. 8

The plastic card ..................................................................................................................10

The tag ..................................................................................................................................11

Specications ........................................................................................ 13

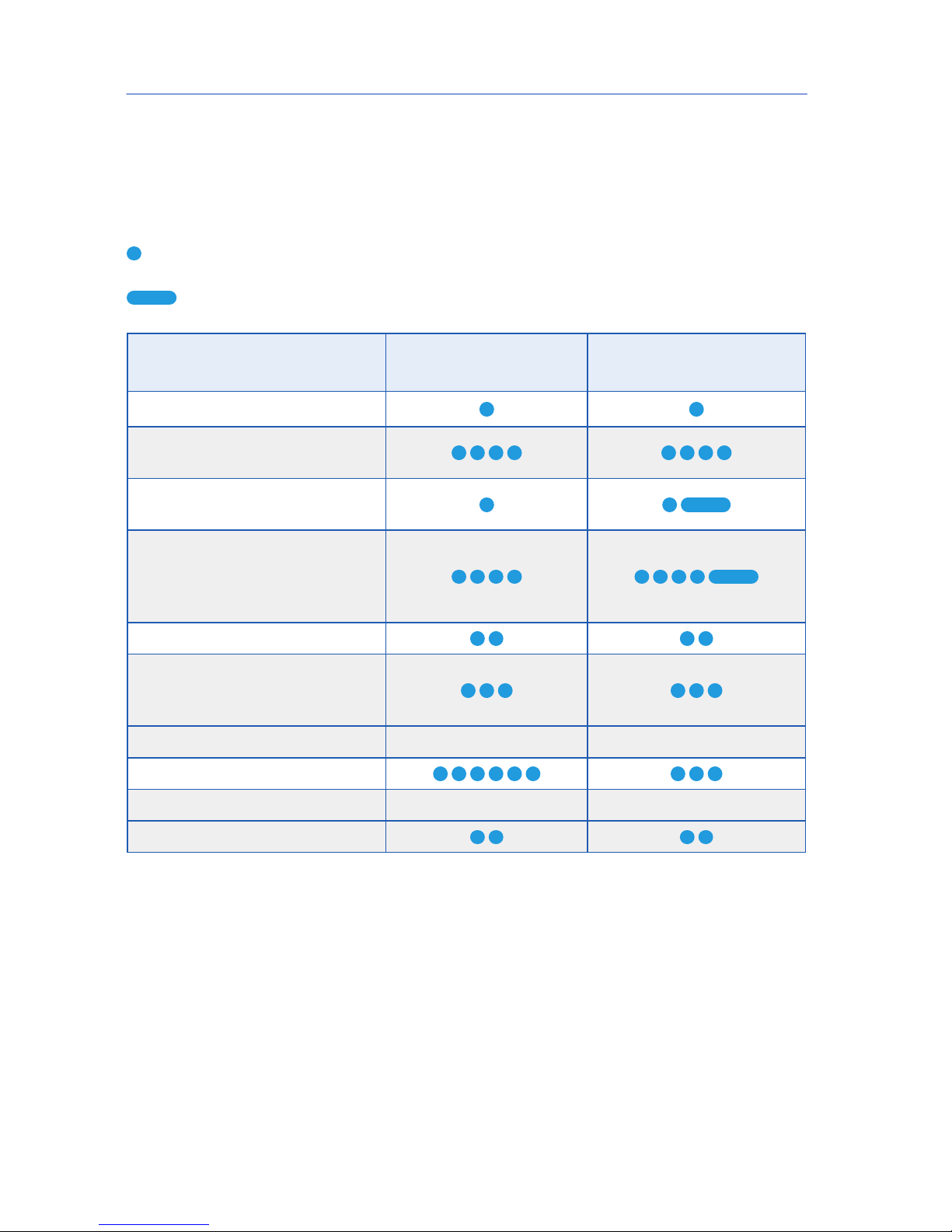

Light and sound indication .................................................................. 14

Operation modes ................................................................................... 15

«Security on» mode ..........................................................................................................15

«Security o» mode ..........................................................................................................16

«Alarm» mode .....................................................................................................................17

«Panic» mode ......................................................................................................................17

«Anti hijack» mode ...........................................................................................................17

«Slave» mode ......................................................................................................................18

«Hands free» mode ...........................................................................................................19

Service (Valet) mode ........................................................................................................19

«Drive prohibition» function ........................................................................................ 20

«Engine starting» function ........................................................................................... 20

«Engine starting preheater» function ........................................................................24

«Turbotimer» function .................................................................................................... 25

GSM control commands ........................................................................ 26

Change settings ..................................................................................... 28

Registration of tags and smartphones ................................................ 29

Emergency security deactivation ........................................................ 33

Change of owner authorization code .................................................. 35

Owner authorization code .................................................................... 37

user manual instruction

3

Attention!

Prior to operation of the security system carefully read this manual

paying special attention to the sections marked

and determine
whether this security system is suitable for your car, for which
following the car manufacturer’s requirements and the car operation
manual.

If you could not determine whether this security system can be
installed on the car, return it to the seller within 14 days after purchase.

The security system is a complicated technical device implying
connection to the car circuits related to engine operation.

The security system should be installed only by specially trained
qualied specialists.

Mounting, programming, maintenance, repair and disassembly­assembly of the security system shall not be carried out by persons
who are not qualied specialists and have not passed training and
knowledge test in safety rules.

During security system parameter programming, the set parameters
should not contradict the requirements of the car operation manual.

The user bears full responsibility for damage incurred to people,
animals and assets as a result of inappropriate use of the security
system or use with violations of the safety requirements specied in
this manual.

The manufacturer shall should not be responsible for losses and
injuries caused by failure to observe the safety rules and requirements
outlined in this manual.

To avoid possible misunderstandings, keep the documents enclosed
to the security system at sale. Check lling-in of the warranty slip,
include the date of sale and seller’s stamp. If there is no sale (purchase)
date, the warranty period is counted from the date of security system
manufacture.

StarLine S96, S66

4

If your security system has a remote key or a wireless tag:

• Do not carry the remote key or tag on the same bundle with
the car keys

• Always switch over the system to the service mode when
handing the car over for maintenance or washing. Do not
hand tags and remote keys over to third parties to prevent
unauthorized access to security functions

• Do not leave remote key or tags in areas accessible to children
and animals

• Do not let liquids ingress the remote key

• If the remote key display shows an icon warning about remote
key battery discharge, take timely measures to replace the
battery.

• Store the spare battery in the car in the factory packing

user manual instruction

5

Mandatory safety measures during use
of the engine starting function

It should be borne in mind that the car is a source of extra hazard.

Before security system operation, carefully study the measures for safe
use of the function of remote or automatic engine starting outlined
below:

1. Always park the car on an open, well ventilated area;

2. Always apply the car’s parking brake, which shall be operable and
prevent car movement;

3. Leaving the car, be sure to set the automatic transmission control
lever to the «PARK» position, and the manual gearbox changeover
lever – to the neutral position;

4. If your car has a manual gearbox, prior to activating the function of
remote or automatic engine starting, be sure to perform the procedure
of preparation for engine starting – «program neutral»;

5. Never hand over the security system control remote key to children and
other persons without their preliminary study of the operation manual;

6. Before activating the function of remote or automatic engine
starting:

• make sure the car is operable;

• make sure there is a sucient amount of fuel, oil, cooling uid
etc;

• set the operation parameters of the passenger compartment
heater (air conditioner), window heating and other accessories
to the required levels;

• set the passenger control ventilation regulator to air circulation,
which will allow more ecient warming or cooling of air in the
car.

StarLine S96, S66

6

Safety precautions during charging of your car’s
storage battery

Remember that any battery charging process implies supply of voltage
exceeding the rated 12 V to the storage battery and accordingly to
the car circuit, which may damage the car electronic equipment and
additional installed equipment in your car.

Do not use charging and starting/charging devices for storage battery
charging directly on the car without disconnecting the storage
battery terminals from the car circuit in the following modes:

• rapid charging by increased current («boost» or similar
modes)

• various START modes intended for engine starting

• in the storage battery 24 V charging mode

Never use starting and charging devices for engine starting without
a connected storage battery and with connected inoperable storage
batteries (short circuits in banks, breakage of plates etc.)

Never use inoperable charging devices, 24 V charging devices and
devices not intended for storage battery charging, e.g., welding
invertors.

All the aforesaid devices and modes may cause uncontrolled supply
of increased voltage over 25 V and up to 60 V to the car circuit and
cause failure of the electronic components of the security system and
car equipment.

The light-up method should not be used for storage battery charging.
Even the described «safe» light-up methods are safe only for the
«donor» car. Connection and disconnection of a fully discharged or
inoperable storage battery on your car with the engine operating may
cause failure of the electronic devices of your car and the car alarm
due to a short circuit or surges of increased voltage occurring during
storage battery connection and disconnection.

user manual instruction

7

If the aforesaid devices and modes are used, the car owner shall be
responsible for damage of the electronic equipment.

Observe the technology for safe storage battery charging!

Before charging, the storage battery terminals shall be disconnected
from the car circuit. After that the storage battery charging process
can be started. After charging, connect the storage battery to the car
circuit.

This is necessary because without measuring devices you cannot
determine storage battery operability or status and the reason of its
discharge (internal short circuits or breaks). Any connection of the
charging device to an inoperable storage battery causes the risk of
damage of the car electronic equipment and the security system by
increased voltage.

StarLine S96, S66

8

General description

Security telematics systems StarLineS96 and StarLine S66 (hereinafter
the system) are intended for vehicle protection from theft and armed
assault.Authorization of the owner occurs as a result of wireless exchange
between the tag (or smartphone) and the main unit using the Bluetooth
Smart (BLE) protocol using an algorithm that is protected from interception
at the time of device registration. Use the tag or a smartphone supporting
the BLE protocol and registered in thesystemusing theStarLine mobile
application for authorization.

The system is controlled by SMS commands, voice menu, wireless tag,
from the StarLine mobile application or from the personal account on the
website starline.online.To enter the personal account use the login and
password given on the owner’s plastic card included in the delivery set.

The functions of automatic and remote engine starting are available for
theStarLine S96system.

Main advantages:

• operation in the «Slave» mode (security mode activation or
deactivation using the factory car remote key);

• driver identication by means of the wireless tag or smartphone via
the Bluetooth Smart protocol;

• connection of wireless underhood unit StarLine R6 for control of
the hood locks, horn and engine blocking;

• additional owner authorization by means of a wireless tag,
smartphone or entry of the secret code by means of the factory
buttons;

• a dialogue code of StarLine control with individual 128 bit
encryption keys, guaranteeing reliable protection from all known
code grabbers;

• the possibility to install the 2CAN+2LIN module for reception of
statuses and control via the CAN bus;

user manual instruction

9

• remote and automatic engine starting (for StarLine S96);

• temporary deactivation of the standard immobilizer using the
iKEY technology (via the digital CAN and LIN buses) or Fortin and
iDataLink module control;

• determination of transport vehicle coordinates, speed and
movement direction;

• determination of driving parameters, driving style;

• monitoring of car parameters (mileage, error codes, mains voltage
etc);

• automatic data transmission to the monitoring server;

• data recording and storage in the non-volatile memory («black
box»). The event log contains information on tracks for the last 1000
kilometers at driving in the city and 5000 — on the highway and on
13000 events;

• control of functions and display of parameters on the monitoring
server and in the StarLine mobile application;

• high-sensitivity GLONASS+GPS module;

• the service button combined with the LED indicator of system
status;

• universal recongurable outputs/inputs;

• the special StarLine Master program, used for individual setting of
the system depending on owner’s wishes and car’s peculiarities.

StarLine S96, S66

10

The plastic card

The delivery set includes a plastic card containing the following data:

• Login and password — the user’s personal account on the website

starline.online where security system control and parameter

changing are available.

• Code of emergency security deactivation — the code is given
on the owner’s plastic card. It is used for emergency security
deactivation.

• Service code — the code is given on the owner’s plastic card. It is
used for entry in the StarLine Master application.

ATTENTION! Do not tell the code of emergency security

deactivation to anybody! Remember that a malefactor,
knowing the code, may deactivate the protective functions.

user manual instruction

11

The tag

The presence of a tag depends on the set of
the system

ATTENTION! The tags, which are included in

set, are initially in transport mode, in which
they are disabled! Pressing the tag button in
this mode will be indicated by the green and
red ashes of the built-in LED.

Before operating, it is necessary to press the
tag button several times before changing the
color of the ashes to green.

As the tag, you can use a smartphone that supports the
Bluetooth Smart protocol.

A smartphone and the tag equivalent to the functionality
when used for additional authorization of the owner in the
«Free Hands» mode and «Slave» mode.

System control

Duration of pressing the tag button:

• short— press and release the button, then a ash corresponding to
the current mode of operation will follow;

• long — hold the button until the LED ashes. The duration of
depression can be of two levels:

• 1 level — hold the button until a long ash of the LED
corresponding to the current mode of operation appears;

• 2 level — press and hold the tag button, followed by two
short ashes and one long one, and again a series of short
ashes— release the button.

StarLine S96, S66

12

Command Duration of pressing

Arm / Disarm 1 short

Enable / Disable «Anti-hijack by the tag» long (1 level)

Enable / Disable Service mode long (2 level)

Replacing the tag’s battery

If the tag’s battery is discharg, then when the ignition ON 3 sounds of
the buzzer will sound and an SMS will be sent to the owner number. We
recommend that you replace the battery as soon as possible.

To replace the battery with a neatly at metal or plastic object (metal
ruler, thin plastic) open the tag body and, observing the polarity (as
pictured in the photo), install the battery in the compartment. Before
closing the tag body, install a waterproof seal between its parts. After
installing the battery in the tag, the system is ready for operation.
