Starline M66 User Manual/instructions
User manual instruction
M66
GSM GPS tracker
StarLine M66
2
Contents
General description ................................................................................ 8
The plastic card .................................................................................................................... 9
The tag ..................................................................................................................................10
Technical description ............................................................................ 12
Operation modes ................................................................................... 13
Normal mode ......................................................................................................................13
Anti hijack mode ................................................................................................................14
Service (Valet) mode ........................................................................................................14

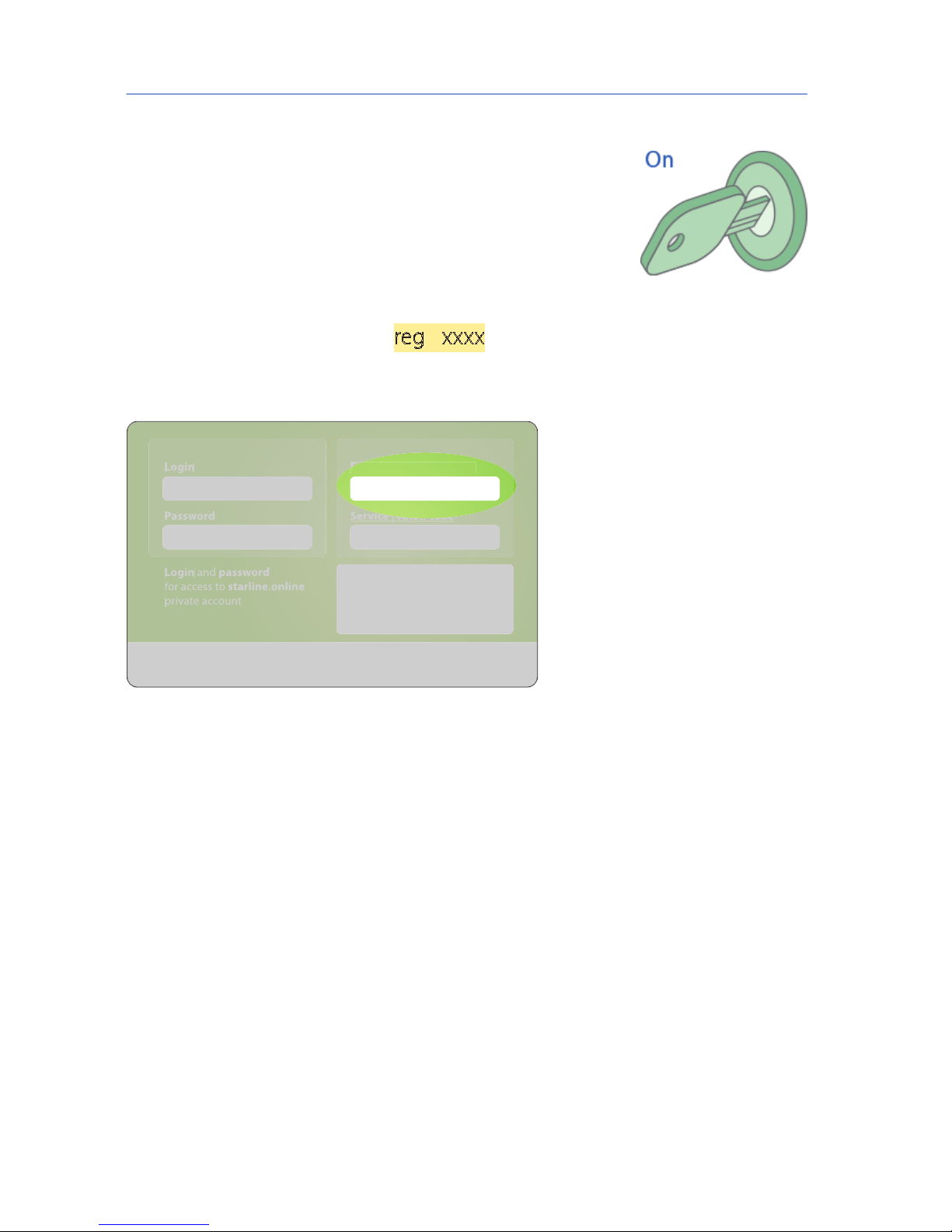

Devices registration mode ................................................................... 15
GPS GLONASS monitoring .................................................................... 18

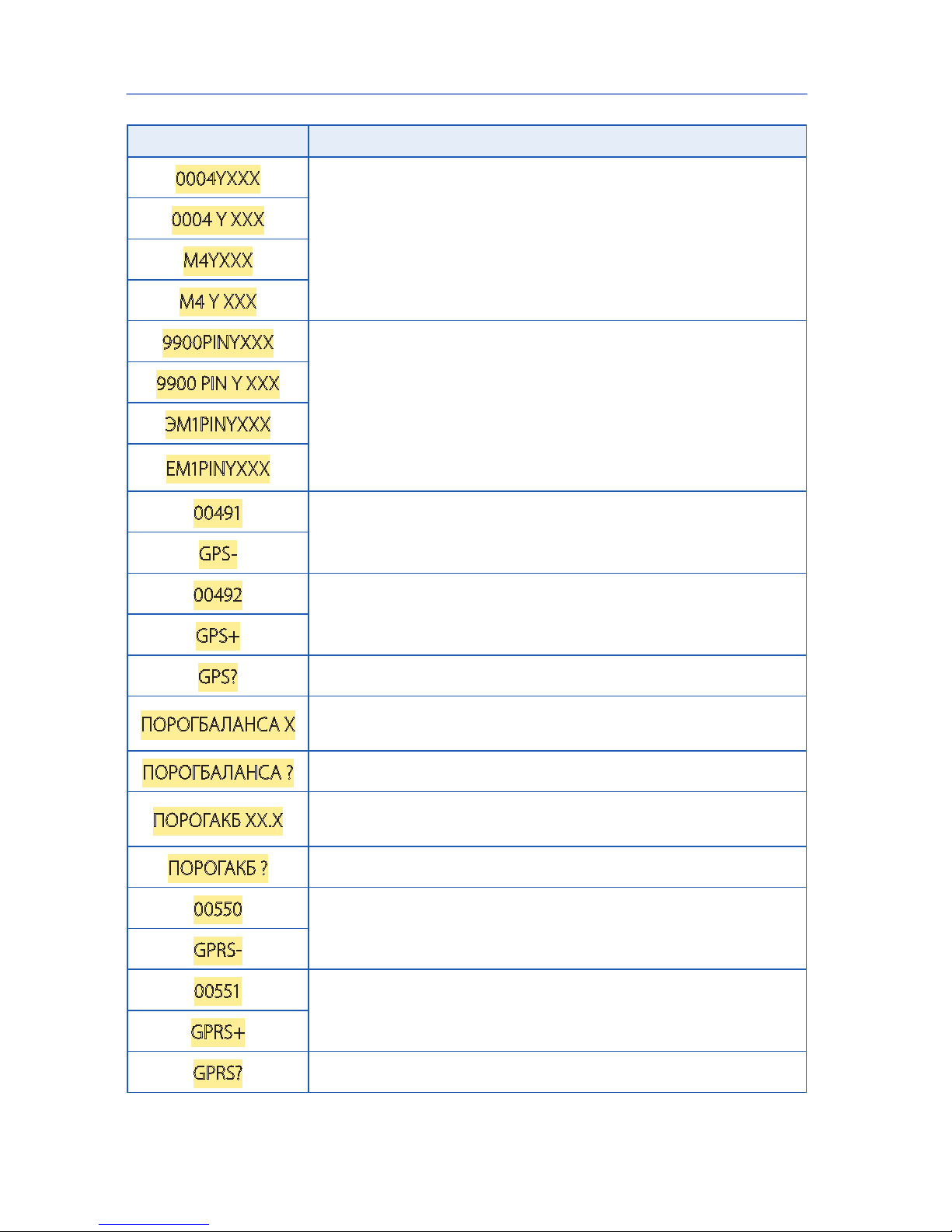

GSM control commands ........................................................................ 18

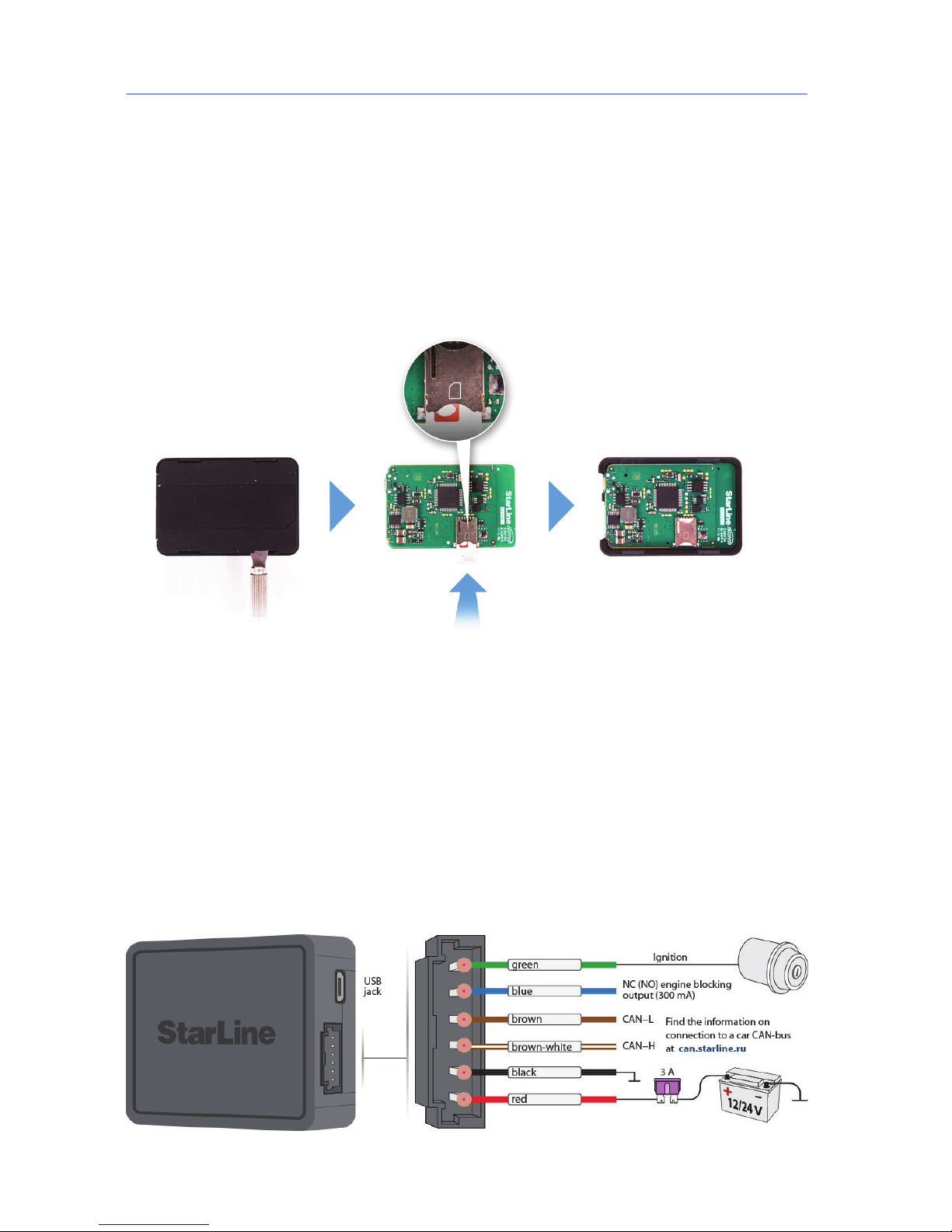

Tracker installation and connection .................................................... 24

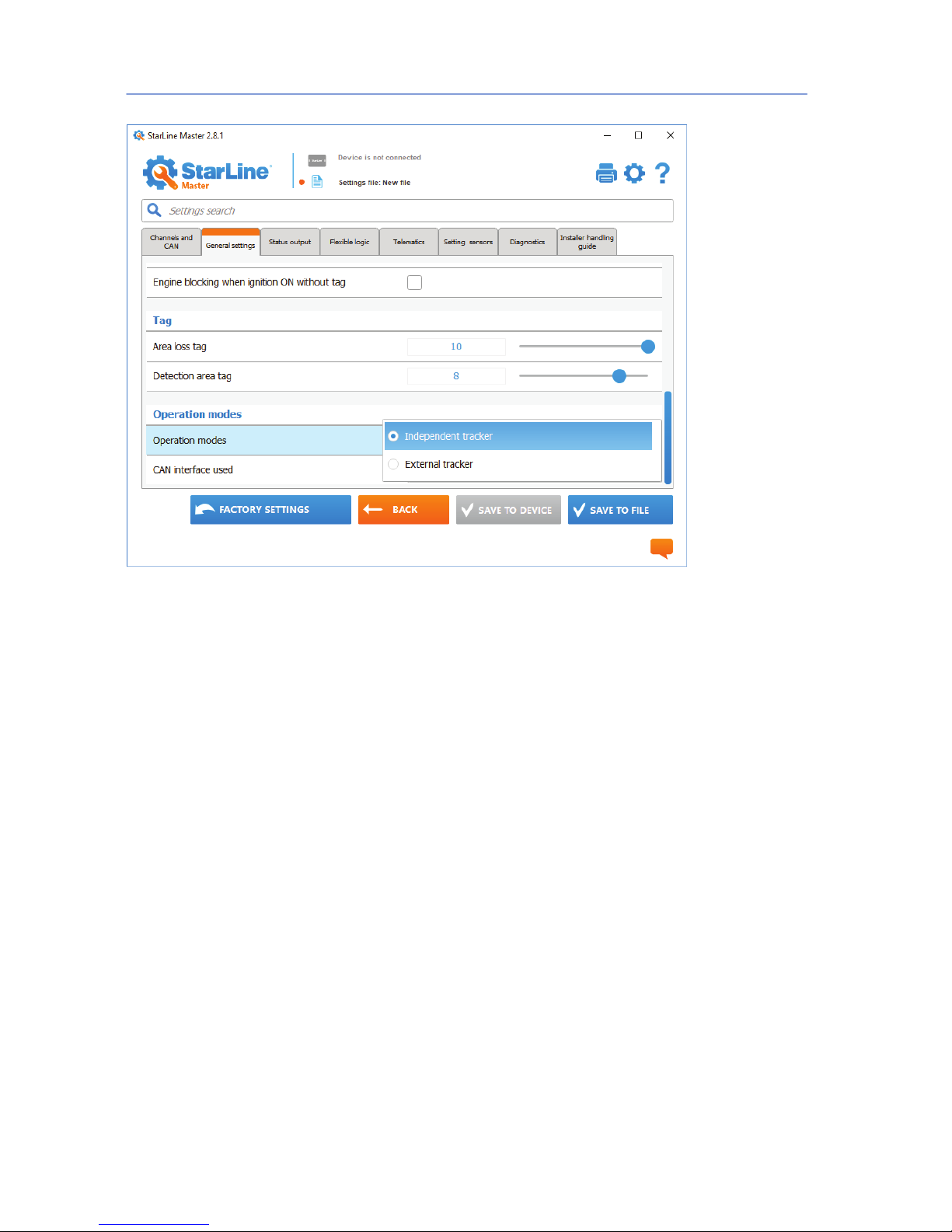

Telematic setup ..................................................................................... 27
Using of StarLine M66 TRACKER
with StarLine E66 BT and E96 BT security systems ............................. 27
user manual instruction
3
Attention!
Prior to operation of the security system carefully read this manual
paying special attention to the sections marked
and determine
whether this security system is suitable for your car, for which
following the car manufacturer’s requirements and the car operation
manual.
If you could not determine whether this security system can be
installed on the car, return it to the seller within 14 days after purchase.
The security system is a complicated technical device implying
connection to the car circuits related to engine operation.
The security system should be installed only by specially trained
qualied specialists.
Mounting, programming, maintenance, repair and disassemblyassembly of the security system shall not be carried out by persons
who are not qualied specialists and have not passed training and
knowledge test in safety rules.
During security system parameter programming, the set parameters
should not contradict the requirements of the car operation manual.
The user bears full responsibility for damage incurred to people,
animals and assets as a result of inappropriate use of the security
system or use with violations of the safety requirements specied in
this manual.
The manufacturer shall should not be responsible for losses and
injuries caused by failure to observe the safety rules and requirements
outlined in this manual.
To avoid possible misunderstandings, keep the documents enclosed
to the security system at sale. Check lling-in of the warranty slip,
include the date of sale and seller’s stamp. If there is no sale (purchase)
date, the warranty period is counted from the date of security system
manufacture.
StarLine M66
4
If your security system has a remote key or a wireless tag:
• Do not carry the remote key or tag on the same bundle with
the car keys
• Always switch over the system to the service mode when
handing the car over for maintenance or washing. Do not
hand tags and remote keys over to third parties to prevent
unauthorized access to security functions
• Do not leave remote key or tags in areas accessible to children
and animals
• Do not let liquids ingress the remote key
• If the remote key display shows an icon warning about remote
key battery discharge, take timely measures to replace the
battery.
• Store the spare battery in the car in the factory packing
user manual instruction
5
Mandatory safety measures during use
of the engine starting function
It should be borne in mind that the car is a source of extra hazard.
Before security system operation, carefully study the measures for safe
use of the function of remote or automatic engine starting outlined
below:
1. Always park the car on an open, well ventilated area;
2. Always apply the car’s parking brake, which shall be operable and
prevent car movement;
3. Leaving the car, be sure to set the automatic transmission control
lever to the «PARK» position, and the manual gearbox changeover
lever – to the neutral position;
4. If your car has a manual gearbox, prior to activating the function of
remote or automatic engine starting, be sure to perform the procedure
of preparation for engine starting – «program neutral»;
5. Never hand over the security system control remote key to children and
other persons without their preliminary study of the operation manual;
6. Before activating the function of remote or automatic engine
starting:
• make sure the car is operable;
• make sure there is a sucient amount of fuel, oil, cooling uid
etc;
• set the operation parameters of the passenger compartment
heater (air conditioner), window heating and other accessories
to the required levels;
• set the passenger control ventilation regulator to air circulation,
which will allow more ecient warming or cooling of air in the
car.
StarLine M66
6
Safety precautions during charging of your car’s
storage battery
Remember that any battery charging process implies supply of voltage
exceeding the rated 12 V to the storage battery and accordingly to
the car circuit, which may damage the car electronic equipment and
additional installed equipment in your car.
Do not use charging and starting/charging devices for storage battery
charging directly on the car without disconnecting the storage
battery terminals from the car circuit in the following modes:
• rapid charging by increased current («boost» or similar
modes)
• various START modes intended for engine starting
• in the storage battery 24 V charging mode
Never use starting and charging devices for engine starting without
a connected storage battery and with connected inoperable storage
batteries (short circuits in banks, breakage of plates etc.)
Never use inoperable charging devices, 24 V charging devices and
devices not intended for storage battery charging, e.g., welding
invertors.
All the aforesaid devices and modes may cause uncontrolled supply
of increased voltage over 25 V and up to 60 V to the car circuit and
cause failure of the electronic components of the security system and
car equipment.
The light-up method should not be used for storage battery charging.
Even the described «safe» light-up methods are safe only for the
«donor» car. Connection and disconnection of a fully discharged or
inoperable storage battery on your car with the engine operating may
cause failure of the electronic devices of your car and the car alarm
due to a short circuit or surges of increased voltage occurring during
storage battery connection and disconnection.
user manual instruction
7
If the aforesaid devices and modes are used, the car owner shall be
responsible for damage of the electronic equipment.
Observe the technology for safe storage battery charging!
Before charging, the storage battery terminals shall be disconnected
from the car circuit. After that the storage battery charging process
can be started. After charging, connect the storage battery to the car
circuit.
This is necessary because without measuring devices you cannot
determine storage battery operability or status and the reason of its
discharge (internal short circuits or breaks). Any connection of the
charging device to an inoperable storage battery causes the risk of
damage of the car electronic equipment and the security system by
increased voltage.
StarLine M66
8
General description
The StarLine M66 GSM GPS telemetry tracker (hereinafter referred to as
the tracker) is designed to monitor vehicle trac with a 12/24 V on-board
voltage with the immobilizer function. Authorization of the owner takes
place via the encrypted protocol Bluetooth Smart (BLE), protected from
electronic hacking.
For authorization, you can use a tag or smartphone that supports the BLE
protocol and registered in the tracker.
The system is controlled by SMS commands, voice menu, wireless tag,
from the StarLine mobile application or from the personal account on the
website starline.online.To enter the personal account use the login and
password given on the owner’s plastic card included in the delivery set.
user manual instruction
9
The plastic card
Emergency disarm code
Service (Valet) code
Login
Password
Login and password
for access to starline.online
private account
The package includes a plastic card, which indicates:
• Login and password — is designed to enter your personal account
at starline.online.
• Code of emergency security deactivation — s designed for
emergency removal of the engine lock.
• Service code — is designed to congure and program the
parameters of the system using the StarLine Master application.
ATTENTION! Do not tell anyone the emergency shutdown
code! Remember that if you know the emergency shutdown
code, an attacker can turn o protective functions.
StarLine M66
10

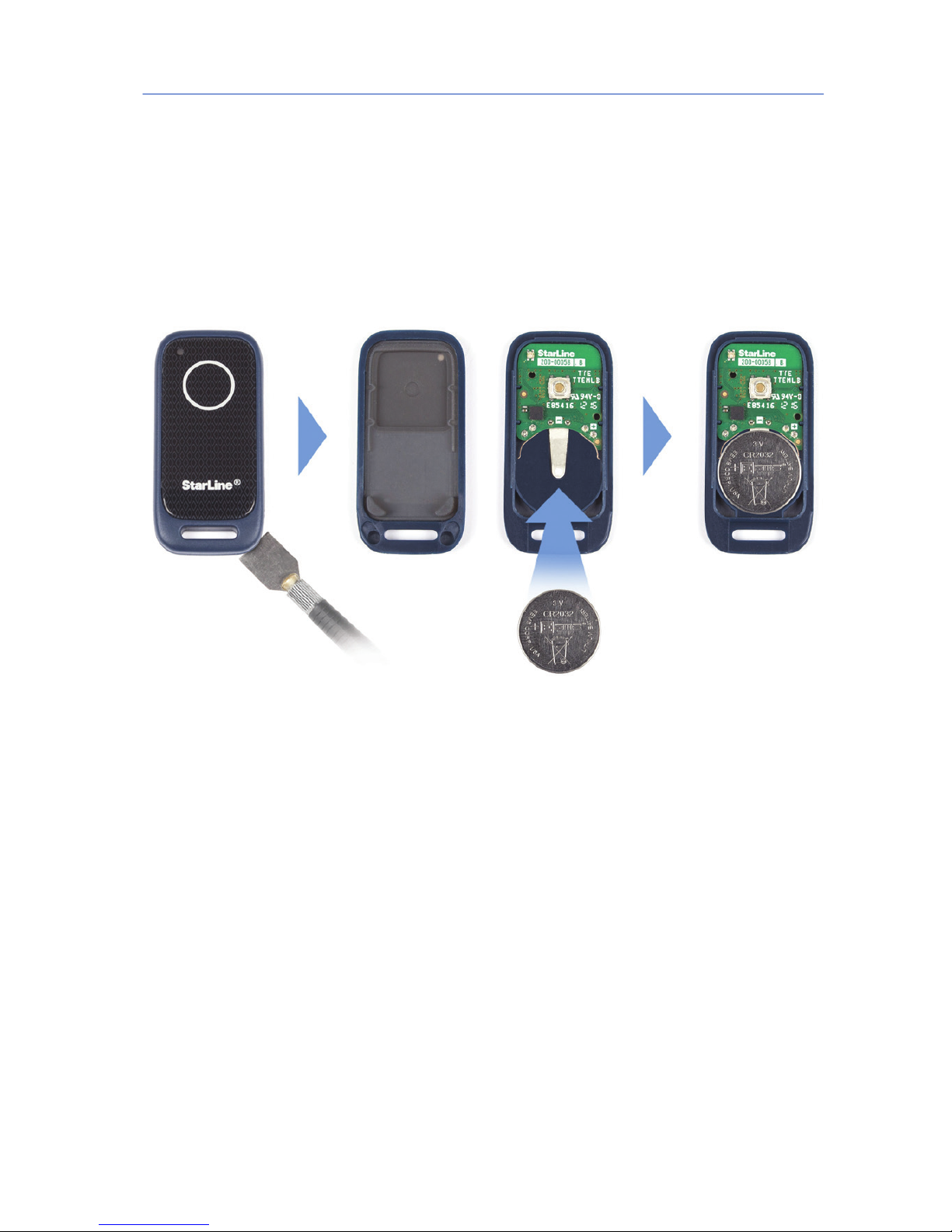

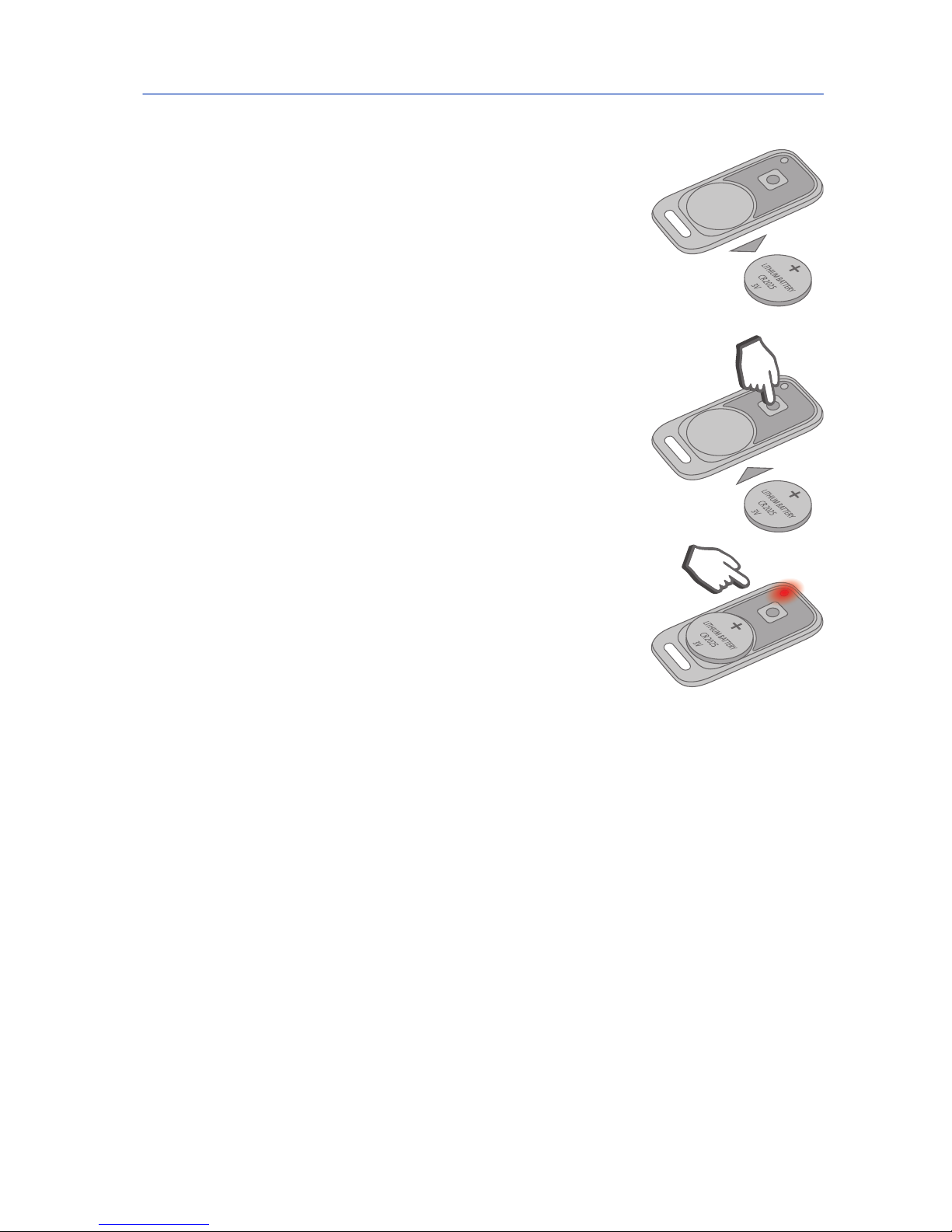

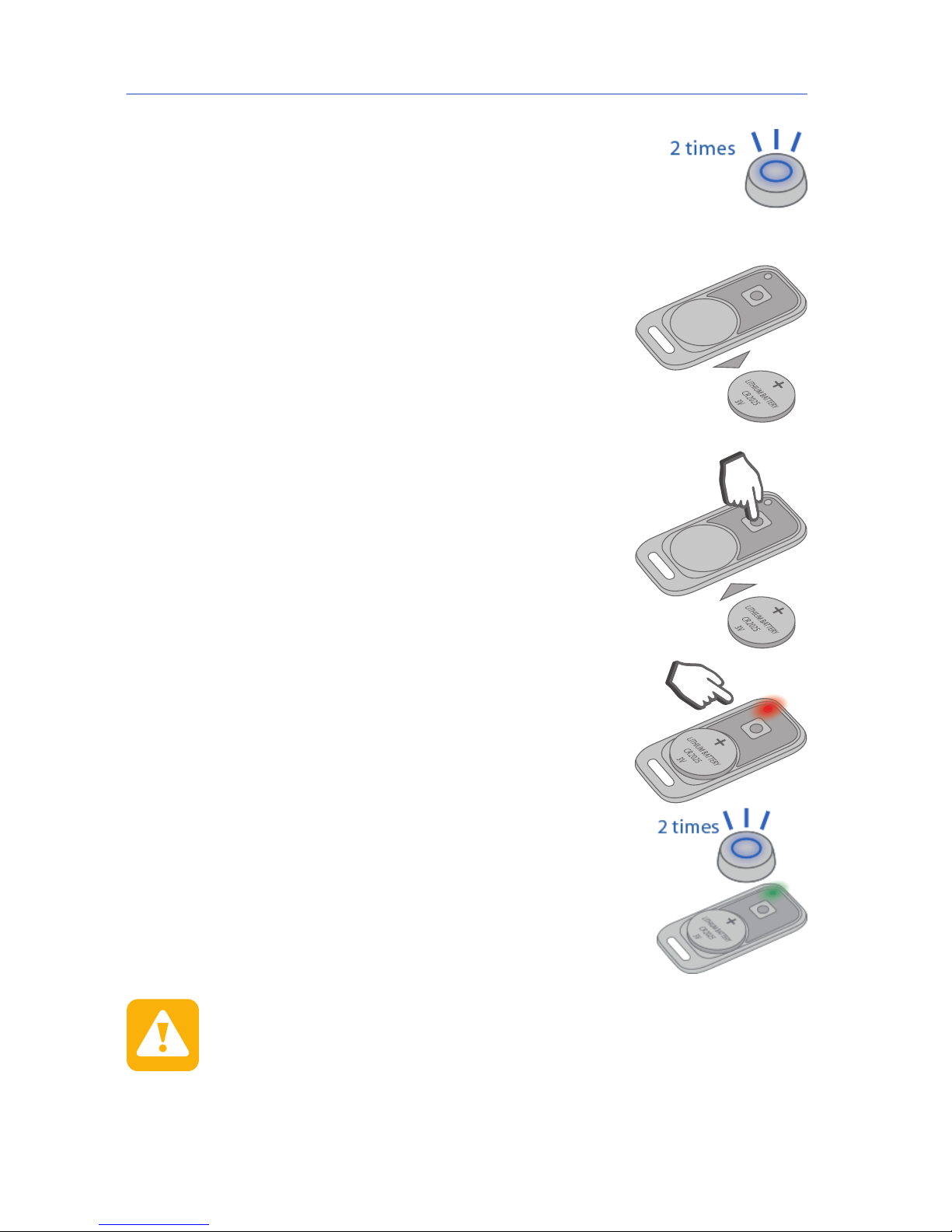

The tag
ATTENTION! The tags included in the delivery
package are initially in the transport mode, in
which they are disabled! Pressing the tag
button in this mode will be indicated by the
yellow and red ashes of the built-in LED.
Before you start, you need to press the tag
button several times until ashes of the same
color appear.
Checking for a connection
To check if the tag is connected to the main unit, push the tag button
briey. If there is a connection, 2 LED ashes on the tag of any color, in
the absence of 1 ash.
Indication of the LED on the housing
Within an hour after connecting the power to the tracker, the LED
lights up constantly, then ashes at a frequency of 1 time in 10 seconds.
LED colour Meaning
red Power is on, no connection with server
blue
Server connection is engaged, GPS-GLONASS coordinates are not
received
green
Server connection is engaged, GPS-GLONASS coordinates are
obtained
violet Tracker is connected to computer with StarLine Master started
