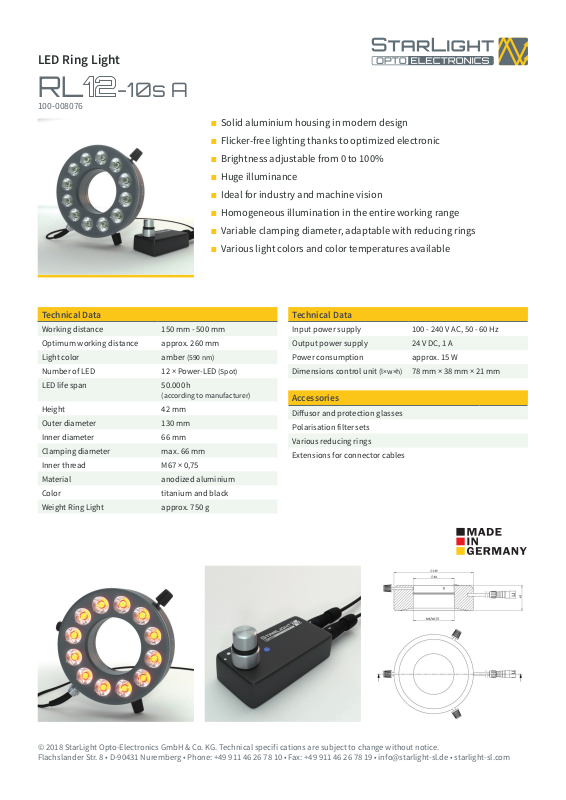

StarLight RL12-10s A Data sheet [EN]

LED Ring Light

RL -10s A

100-008076

Solid aluminium housing in modern design

■

Flicker-free lighting thanks to optimized electronic

■

Brightness adjustable from 0 to 100%

■

Huge illuminance

■

Ideal for industry and machine vision

■

Homogeneous illumination in the entire working range

■

Variable clamping diameter, adaptable with reducing rings

■

Various light colors and color temperatures available

■

Technical Data

Working distance 150 mm - 500 mm

Optimum working distance approx. 260 mm

Light color amber

Number of LED 12 × Power-LED (Spot)

LED life span 50.000 h

Height 42 mm

Outer diameter 130 mm

Inner diameter 66 mm

Clamping diameter max. 66 mm

Inner thread M67 × 0,75

Material anodized aluminium

Color titanium and black

Weight Ring Light approx. 750 g

(590 nm)

(according to manufacturer)

Technical Data

Input power supply 100 - 240 V AC, 50 - 60 Hz

Output power supply 24 V DC, 1 A

Power consumption approx. 15 W

Dimensions control unit

Accessories

Diusor and protection glasses

Polarisation filter sets

Various reducing rings

Extensions for connector cables

(l×w×h) 78 mm × 38 mm × 21 mm

© 2018 StarLight Opto-Electronics GmbH & Co. KG. Technical specifi cations are subject to change without notice.
Flachslander Str. 8 • D-90431 Nuremberg • Phone: [phone] • Fax: [phone] • [e-mail] • starlight-sl.com
