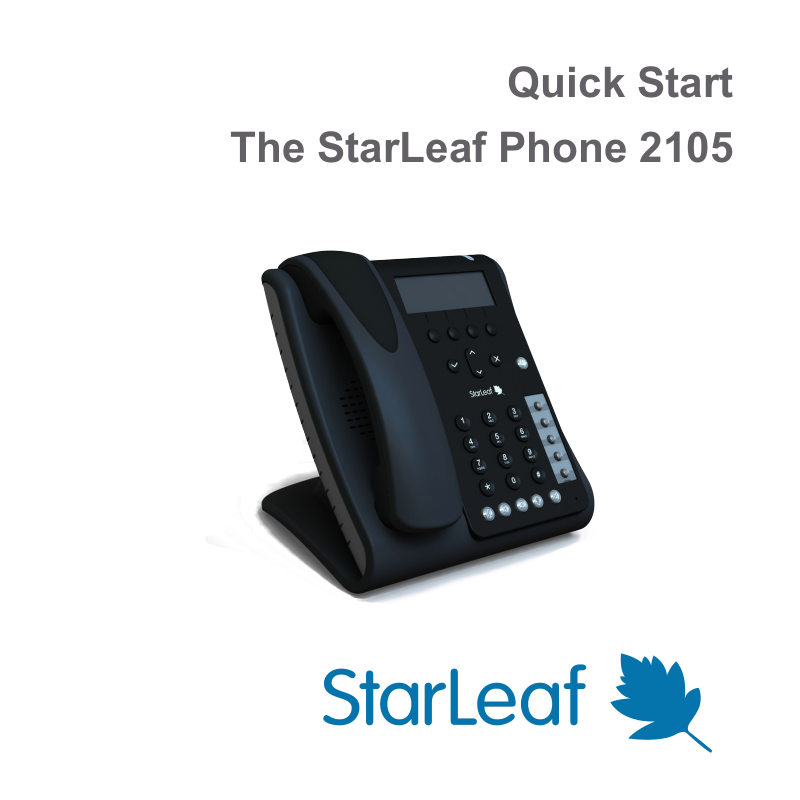

Page 1
Quick Start
The StarLeaf Phone 2105
Page 2
Installing your phone
Step 1: Connect the phone base
Connect the base to the body of the phone.
1
Page 3
Step 2: Connect the handset
Using the supplied handset cable, connect the handset of the phone to
the handset port on the rear of the phone. The handset port is marked
with this symbol:
Handset port
2
Page 4
Step 3: Connect to the network
1. Connect one end of the supplied Ethernet cable to the network
port on the rear of the phone. The network port is marked with this
symbol:
2. Connect the other end of the cable to a Power over Ethernet
switch port in your network.
Network port
3
Page 5
Tip: Use the cable guides
Using the cable guides to channel your cables through the base of the
phone will allow your phone to sit rmly on your desk.
4
Page 6
StarLeaf Quick Connect
When you power the phone for the rst time, if it displays the StarLeaf
quick-connect screen, enter your quick-connect code. If you do not
have one, contact your reseller or StarLeaf technical support.
When you have entered the quick-connect code, the StarLeaf Phone
will check if there is an upgrade available. If there is, it will upgrade
itself and restart.
5
Page 7
Features of the phone
A
A
r
The diagram below shows the physical features of the StarLeaf Phone.
Message waiting indicato
Soft keys
Selection buttons
Join conference
Speed dials
udio mute
udio volume down
Audio volume up
Headset
Speaker
Microphone location
6
Page 8
Where to nd more information
or get help
All StarLeaf documentation is available from the StarLeaf web site at
http://support.starleaf.com/documentation.
You or your reseller can get help from our support team by raising a
case at http://support.starleaf.com. Make sure you have the following
information ready:
The serial number of the phone which is on the label on the
•
underside of the phone
Your contact email address or telephone number
•
Details of the problem
•
7
Page 9
Legal information
Third party software acknowledgements
Acknowledgements of third-party software are available at:
www.starleaf.com/support/legal
Disclaimers and notices
Copyright © StarLeaf 2016. All rights reserved.
This guide may not be copied, photocopied, translated, reproduced, or
converted into any electronic or machine-readable form in whole or in part
without prior written approval of StarLeaf Limited.
StarLeaf Limited reserves the right to revise this documentation and to make
changes in content from time to time without obligation on the part of StarLeaf
Limited to provide notication of such revision or change.
StarLeaf Limited provides this documentation without warranty, term, or
condition of any kind, either implied or expressed, including, but not limited
to, the implied warranties, terms or conditions of merchantability, satisfactory
quality, and tness for a particular purpose. StarLeaf Limited may make
improvements or changes to the product(s) and/or the program(s) described in
this documentation at any time. All other product and company names herein
may be trademarks of their respective owners.
Australian compliance information:
WARNING: The earpiece of this device may retain small metallic objects that may cause personal injury.
6 June 2016
