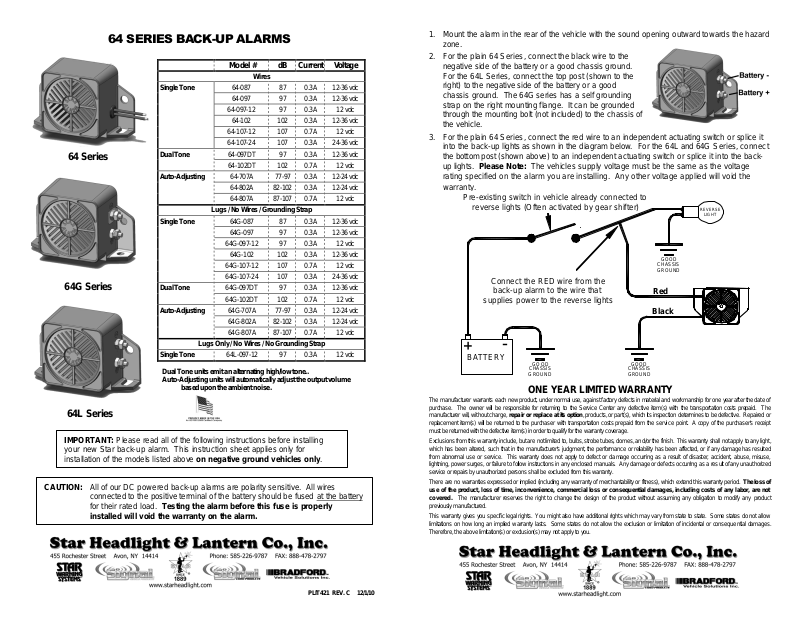

Star Headlight & Lantern 64 User Manual

64 SERIES BACK-UP ALARMS

64 Series

64G Series

Single Tone 64-087 87 0.3A 12-36 vdc
64-097 97 0.3A 12-36 vdc
64-097-12 97 0.3A 12 vdc
64-102 102 0.3A 12-36 vdc
64-107-12 107 0.7A 12 vdc
64-107-24 107 0.3A 24-36 vdc
Dual Tone 64-097DT 97 0.3A 12-36 vdc
64-102DT 102 0.7A 12 vdc
Auto-Adjusting 64-707A 77-97 0.3A 12-24 vdc
64-802A 82-102 0.3A 12-24 vdc
64-807A 87-107 0.7A 12 vdc

Single Tone 64G-087 87 0.3A 12-36 vdc
64G-097 97 0.3A 12-36 vdc
64G-097-12 97 0.3A 12 vdc
64G-102 102 0.3A 12-36 vdc
64G-107-12 107 0.7A 12 vdc
64G-107-24 107 0.3A 24-36 vdc
Dual Tone 64G-097DT 97 0.3A 12-36 vdc
64G-102DT 102 0.7A 12 vdc
Auto-Adjusting 64G-707A 77-97 0.3A 12-24 vdc
64G-802A 82-102 0.3A 12-24 vdc
64G-807A 87-107 0.7A 12 vdc

Lugs Only / No Wires / No Grounding Strap

Single Tone 64L-097-12 97 0.3A 12 vdc

Dual Tone units emit an alternating high/low tone..
Auto-Adjusting units will automatically adjust the output volume

based upon the ambient noise.

64L Series

IMPORTANT: Please read all of the following instructions before installing

your new Star back-up alarm. This instruction sheet applies only for
installation of the models listed above on negative ground vehicles only.

CAUTION: All of our DC powered back-up alarms are polarity sensitive. All wires

connected to the positive terminal of the battery should be fused at the battery
for their rated load. Testing the alarm before this fuse is properly
installed will void the warranty on the alarm.

Model # dB Current Voltage

Wires

Lugs / No Wires / Grounding Strap

1. Mount the alarm in the rear of the vehicle with the sound opening outward towards the hazard
zone.

2. For the plain 64 Series, connect the black wire to the
negative side of the battery or a good chassis ground.
For the 64L Series, connect the top post (shown to the
right) to the negative side of the battery or a good
chassis ground. The 64G series has a self grounding
strap on the right mounting flange. It can be grounded
through the mounting bolt (not included) to the chassis of
the vehicle.

3. For the plain 64 Series, connect the red wire to an independent actuating switch or splice it
into the back-up lights as shown in the diagram below. For the 64L and 64G Series, connect
the bottom post (shown above) to an independent actuating switch or splice it into the back­up lights. Please Note: The vehicles supply voltage must be the same as the voltage

rating specified on the alarm you are installing. Any other voltage applied will void the
warranty.

Pre-existing switch in vehicle already connected to

reverse lights (Often activated by gear shifter)

Connect the RED wire from the

back-up alarm to the wire that

supplies power to the reverse lights

BATTERY

GOOD

CHASSIS

GROUND

GOOD
CHASSIS
GROUND

GOOD
CHASSIS
GROUND

Red

Black

REVERSE

LIGHT

ONE YEAR LIMITED WARRANTY

The manufacturer warrants each new product, under normal use, against factory defects in material and workmanship for one year after the date of
purchase. The owner will be responsible for returning to the Service Center any defective item(s) with the transportation costs prepaid. The
manufacturer will, without charge, repair or replace at its option, products, or part(s), which its inspection determines to be defective. Repaired or
replacement item(s) will be returned to the purchaser with transportation costs prepaid from the servi ce point. A copy of the purchaser's receipt
must be returned with the defective item(s) in order to qualify for the warranty coverage.

Exclusions from this warranty include, but are not limited to, bulbs, strobe tubes, domes, and/or the finish. This warranty shall not apply to any light,
which has been altered, such that in the manufacturer's judgment, the performance or reliability has been affected, or if any damage has resulted
from abnormal use or service. This warranty does not apply to defect or damage occurring as a result of disaster, accident, abuse, misuse,
lightning, power surges, or failure to follow instructions in any enclosed manuals. Any damage or defects occurring as a result of any unauthorized
service or repairs by unauthorized persons shall be excluded from this warranty.

There are no warranties expressed or implied (including any warranty of merchantability or fitness), which extend this warranty period. The loss of

use of the product, loss of time, inconvenience, commercial loss or consequential damages, including costs of any labor, are not
covered. The manufacturer reserves the right to change the design of the product without assuming any obligation to modify any product

previously manufactured.
This warranty gives you specific legal rights. You might also have additional rights which may vary from state to state. Some states do not allow

limitations on how long an implied warranty lasts. Some states do not allow the exclusion or limitation of incidental or consequential damages.
Therefore, the above limitation(s) or exclusion(s) may not apply to you.

PLIT421 REV. C 12/1/10
