Page 1
WAFFLE
BAKERS
MODEL
SWCBE
SWB7R1E
SWB7R2E
SWB7RBE
SWB8SQE
SWB8RBLE
SWB8RBDE
Installation and
SWB7R2E
Operation
Instructions
2M-Z7728 Rev. F 6/29/06
1
Page 2
SAFETY SYMBOL
Using any part other than genuine Star factory supplied parts relieves the
manufacturer of all liability.
Star reserves the right to change specifi cations and product design without
notice. Such revisions do not entitle the buyer to corresponding changes,
improvements, additions or replacements for previously purchased
equipment.
Due to periodic changes in designs, methods, procedures, policies and
regulations, the specifi cations contained in this sheet are subject to change
without notice. While Star Manufacturing exercises good faith efforts to provide
information that is accurate, we are not responsible for errors or omissions
in information provided or conclusions reached as a result of using the
specifi cations. By using the information provided, the user assumes all risks in
connection with such use.
These symbols are intended to alert the user to the presence of
important operating and maintenance instructions in the manual
accompanying the appliance.
RETAIN THIS MANUAL FOR FUTURE REFERENCE
NOTICE
MAINTENANCE AND REPAIRS
Contact your local authorized service agent for service or required maintenance. Please record the model
number, serial number, voltage and purchase date in the area below and have it ready when you call to
ensure a faster service.
Model No.
Serial No.
Voltage
Purchase Date
Authorized Service Agent
Reference the listing provided with the unit
or
for an updated listing go to:
The Star Service Help Desk
Business 8:00 am to 4:30 p.m. Central Standard Time
Hours:
Telephone: (800) 807-9054 Local (314) 781-2777
Fax: (800) 396-2677 Local (314) 781-2714
E-mail [email protected]
Website: www.star-mfg.com
Mailing Address: Star Manufacturing International Inc.
10 Sunnen Drive
St. Louis, MO 63143
U.S.A
2
2
Page 3
SPECIFICATIONS:
SWCBE
Type: Waffl e Cone Baker
120V, 1,320 watts, 11 amp, NEMA 5-15P 208V, 990 watts, 4.8 amp, NEMA 6-15P
240V, 1,320 watts, 5.5 amp, NEMA 6-15P 230V 1,210 watts, 5.25 amp, CEE7-7
Approximate weight: installed - 29 Lb s (13 kg), shipping - 32 Lbs (14.5 kg)
Dimensions: 10" - Width, 18 1/4" - Depth, 25 1/2" (Open) 12 1/2" (Closed) - Height
(25.4 cm - Width, 46.3 cm - Depth, 64.7 cm (Open) 31.7cm (Closed) - Height)
SWB7R1E
Type: Standard Waffl e Baker
120V, 900 watts, 7.5 amp, NEMA 5-15P 208V, 676 watts, 3.25 amp, NEMA 6-15P
240V, 900 watts, 3.75 amp, NEMA 6-15P 230V 825 watts, 3.5 amp, CEE7-7
Approximate weight: installed - 20 Lb s (9 kg), shipping - 23 Lbs (10.5 kg)
Dimensions: 10" - Width, 15 3/4" - Depth, 22" (Open) 9 1/2" (Closed) - Height
(25.4 cm - Width, 40 cm - Depth, 55.9 cm (Open) 24.1 cm (Closed) - Height)
SWB7R2E
Type: Standard Waffl e Baker
120V, 1,800 watts, 15 amp, NEMA 5-15P 208V, 1,352 watts, 6.5 amp, NEMA 6-15P
240V, 1,800 watts, 7.5 amp, NEMA 6-15P 230V 1,650 watts, 7.2 amp, CEE7-7
Approximate weight: installed - 37 Lb s (17 kg), shipping - 41 Lbs (18.7 kg)
Dimensions: 20" - Width, 15 3/4" - Depth, 22" (Open) 9 1/2" (Closed) - Height
(50.8 cm - Width, 40 cm - Depth, 55.9 cm (Open) 24.1 cm (Closed) - Height)
SWB8SQE
Type: Standard Waffl e Baker
120V, 1,645 watts, 13.7 amp, NEMA 5-15P 208V, 1,235 watts, 6.0 amp, NEMA 6-15P
240V, 1,645 watts, 6.8 amp, NEMA 6-15P 230V 1,510 watts, 6.6 amp, CEE7-7
Approximate weight: installed - 33 Lb s (15 kg), shipping - 36 Lbs (16.5 kg)
Dimensions: 10" - Width, 18 1/4" - Depth, 27" (Open) 12 1/2" (Closed) - Height
(25.4 cm - Width, 46.3 cm - Depth, 68.6 cm (Open) 31.7 cm (Closed) - Height)
SWB7RBE
Type: Belgian Waffl e Baker
120V, 1,000 watts, 8.3 amp, NEMA 5-15P 208V, 751 watts, 3.6 amp, NEMA 6-15P
240V, 1,000 watts, 4.2 amp, NEMA 6-15P 230V 920 watts, 4.0 amp, CEE7-7
Approximate weight: installed - 25 Lb s (11 kg), shipping - 28 Lbs (13 kg)
Dimensions: 10" - Width, 18 1/4" - Depth, 25 1/2" (Open) 14" (Closed) - Height
(25.4 cm - Width, 46.3 cm - Depth, 64.7 cm (Open) 35.5 cm (Closed) - Height)
SWB8RBE
Type: Belgian Waffl e Baker
120V, 1,320 watts, 11 amp, NEMA 5-15P 208V, 990 watts, 4.8 amp, NEMA 6-15P
240V, 1,320 watts, 4.8 amp, NEMA 6-15P 230V 1,210 watts, 5.3 amp, CEE7-7
Approximate weight: installed - 28 Lb s (12.7 kg), shipping - 31 Lbs (14 kg)
Dimensions: 10" - Width, 18 1/4" - Depth, 26 1/2" (Open) 14" (Closed) - Height
(25.4 cm - Width, 46.3 cm - Depth, 67.3 cm (Open) 35.5 cm (Closed) - Height)
SWB8RDE
Type: Belgian Waffl e Baker
120V, 1,320 watts, 11 amp, NEMA 5-15P 208V, 990 watts, 4.8 amp, NEMA 6-15P
240V, 1,320 watts, 4.8 amp, NEMA 6-15P 230V 1,210 watts, 5.3 amp, CEE7-7
Approximate weight: installed - 28 Lb s (12.7 kg), shipping - 31 Lbs (14 kg)
Dimensions: 10" - Width, 18 1/4" - Depth, 26 1/2" (Open) 14" (Closed) - Height
(25.4 cm - Width, 46.3 cm - Depth, 67.3 cm (Open) 35.5 cm (Closed) - Height)
3
Page 4
This equipment is designed and sold for commercial use only by personnel trained and experienced
in its operation and is not sold for consumer use in and around the home nor for use directly by
the general public in food service locations.
CAUTION
INSTALLATION
For your protection, we recommend that a qualifi ed electrician install this appliance. The
electrician should be familiar with electrical installations and your local electrical requirements.
Proper connections and power supply are essential for effi cient performance. The supply circuit
should be properly fused as required by electrical code. Plug the unit into a proper A.C. voltage
wall outlet only. A three-prong plug is provided with the unit. If an adapter is used be sure a
good ground is provided.
LOAD
The rated load is on the nameplate. The line in the wall outlet must be heavy enough to carry
this load, or the waffl e baker will be slow in performance.
CAUTION
DO NOT CONNECT TO DIRECT CURRENT (DC).
TEFLON® COATED WAFFLE BAKERS
CAUTION
DO NOT USE METAL UTENSILS TO REMOVE WAFFLE FROM THE TEFLON® COATED
WAFFLE BAKER. THIS WILL VOID THE WARRANTY.
CAUTION
DO NOT CLEAN TEFLON® GRIDS WITH ABRASIVES. THIS WILL VOID THE
WARRANTY.
CORD, PLUG AND GROUND INSTRUCTIONS
For your protection, this appliance is equipped with a 3-conductor load cord, having a grounding
type plug. It should only be used with a properly grounded 3-prong receptacle. Do not modify.
If you use an adapter be sure your system is grounded. Connect the green wire to a mounting
screw of the receptacle. For ungrounded electrical systems, connect the green wire of the adapter
to a known permanent ground.
RELEASE AGENT CAUTION
If you fi nd it necessary to use a release agent to keep waffl es from sticking, you should brush it
on. Spraying may oversaturate the grids and the excess has the possibility of building up inside
the baker and causing damage. If you only have a spray type release agent, try spraying it into
a container and using the contents with a pastry brush.
SEASONING WAFFLE GRIDS
(Not applicable to Tefl on ® coated grids)
With a pastry brush, apply vegetable oil, butter, or grid release agent on both grids. Turn power
on and allow to preheat for twenty minutes. Lift the lid and re-apply vegetable oil, or grid release
agent. Allow the unit to heat for fi ve more minutes. The baker is now ready for use.
CAUTION
GRIDS AND CUPS HAVE VERY HIGH TEMPERATURES. DO NOT COME IN DIRECT
CONTACT WITH THESE PARTS WHEN THE WAFFLE BAKER IS IN OPERATION.
DO NOT ALLOW THE CORD TO COME INTO CONTACT WITH HOT GRIDS.
4
Page 5
MAKING WAFFLES
Turn the unit on and allow to pre-heat for 15 minutes with the grids closed. Once the baker has
reached proper temperature you can proceed as follows:
1. Brush on releasing agent, if needed
2. Lift the lid, pour in mix and close. (Belgian units wait 10 seconds)
3. Start timer by pressing the start/stop pad.
4. Rotate grids 180
o
. (Belgian units only)
5. When timer beeps, depress the start/ stop pad.
6. Rotate grids 180
o
(Belgian units only)
7. Remove waffl e. (Do not use metal utensils on tefl on coated waffl e bakers.)
8. For next waffl e repeat steps 1 through 7.
Setting the Time:
If necessary, the factory pre-set timer can be adjusted to satisfy individual preferences.
To increase time, depress and hold the "up" button.
The start/ stop button can now be used to increase baking time.
To decrease time, depress and hold the “down” button.
The “start/stop” button can now be used to decrease baking time.
SETTING THE TEMPERATURE
If necessary, the factory pre-set temperature can be changed: To view the temperature, depress
and hold “TEMP” button and press “START/STOP” button. Hold both buttons for 3 seconds for
the pre-set temperature to be displayed.
To increase the temperature press “+” button; to decrease press “-“ button.
To lock the temperature press the “START/STOP” button.
Changing the displayed temperature from “F” (Fahrenheit) to “C” (Celsius) -
Hold “TEMP” button and turn “OFF” and then “ON” the lighted switch on the front panel. To
change back from “C” to “F”, repeat the same procedure. Setting the temperature is available
in both modes “F” and “C”.
HELPFUL HINTS
1. During long slack periods of the day, turn off the baker. During short slack periods, leave
unit on with the grids closed. This will help minimize carbon buildup.
2. Do not store batter in the refrigerator and expect the same speed in baking. Cold batter
will take longer to bake.
3. For proper release of waffl es it is important that the batter contain the proper amount of
shortening.
5
Page 6
CLEANING
For non-coated grids: Clean outside of baker every day that it is in use. Do not clean grids unless
a buildup of carbon forms. In order to remove carbon from grids, unplug the unit, place ammonia
soaked cloth over bottom grid, close and leave overnight. A nylon brush may then be used to
remove the carbon buildup. If you use a commercial carbon remover, make sure that it is safe
for aluminum.
Note: If carbon buildup on the grids is removed, they will need to be reseasoned. See
"Seasoning Waffl e Grids"
CAUTION
DO NOT CLEAN USING A WATER JET OR SIMILAR DEVICE FOR CLEANING. DO NOT
IMMERSE IN WATER AT ANY TIME.
CAUTION
DO NOT CLEAN TEFLON® GRIDS WITH ABRASIVES. THIS WILL VOID THE WARRANTY.
For cleaning the baker outside use only a soft cloth and mild soap to keep the exterior surfaces
bright and shining. Do not use detergents, strong abrasives or metal scouring pads on the exterior
surfaces of the waffl e baker.
6
Page 7
Visit our Website at:
This unit has been tested for proper operation before leaving our plant to insure delivery of your unit in perfect condition. However, there are instances in
which the unit may be damaged in transit. In the event you discover any type of damage to your product upon receipt, you must immediately contact the
transportation company who delivered the item to you and initiate your claim with same. If this procedure is not followed, it may affect the warranty
status of the unit.
All workmanship and material in Star products have a one (1) year limited warranty on parts & labor in the United States and Canada. Such warranty is
limited to the original purchaser only and shall be effective from the date the equipment is placed in service. Star's obligation under this warranty is limited
to the repair of defects without charge, by the factory authorized service agency or one of its sub-agencies. Models that are considered portable (see below)
should be taken to the closest Star service agency, transportation prepaid.
www.star-mfg.com Email: [email protected]
THOROUGHLY INSPECT YOUR UNIT ON ARRIVAL
LIMITED EQUIPMENT WARRANTY
> Star will not assume any responsibility for loss of revenue.
> On all shipments outside the United States and Canada, see International Warranty.
* The warranty period for the JetStar six (6) ounce & Super JetStar eight (8) ounce series popcorn machines is two (2) years.
* The warranty period for the Chrome-Max Griddles is five (5) years on the griddle surface. See detailed warranty provided with unit.
* The warranty period for Teflon/Dura-Tec coatings is one year under normal use and reasonable care. This warranty does not apply if damage occurs to
Teflon/Dura-Tec coatings from improper cleaning, maintenance, use of metallic utensils, or abrasive cleaners. This warranty does not apply to the
“non-stick” properties of such materials.
> This warranty does not apply to "Special Products" but to regular catalog items only. Star's warranty on "Special Products" is six (6) months on parts
and ninety (90) days on labor.
> This warranty does not apply to any item that is disassembled or tampered with for any purpose other than repair by a Star Authorized Service Center or
the Service Center's sub-agency.
> This warranty does not apply if damage occurs from improper installation, misuse, wrong voltage, wrong gas or operated contrary to the Installation and
Operating instructions.
> This warranty is not valid on Conveyor Ovens unless a "start-up/check-out" has been performed by a Factory Authorized Technician.
PARTS WARRANTY
Parts that are sold to repair out of warranty equipment are warranted for ninety (90) days. The part only is warranted. Labor to replace the part is
chargeable to the customer.
SERVICES NOT COVERED BY WARRANTY
1. Travel time and mileage rendered beyond the 50 mile radius limit
2. Mileage and travel time on portable equipment (see below)
3. Labor to replace such items that can be replaced easily during a daily cleaning
routine, ie; removable kettles on fryers, knobs, grease drawers on griddles, etc.
4. Installation of equipment
5. Damages due to improper installation
6. Damages from abuse or misuse
7. Operated contrary to the Operating and Installation Instructions
8. Cleaning of equipment
9. Seasoning of griddle plates
PORTABLE EQUIPMENT
Star will not honor service bills that include travel time and mileage charges for servicing any products considered "Portable" including items listed below.
These products should be taken to the Service Agency for repair:
* The Model 510FD Fryer.
* The Model J4R, 4 oz. Popcorn Machine.
* The Model 518CMA & 526CMA Cheese Melter.
* The Model 12MC & 15MC & 18MCP Hot Food Merchandisers.
* The Model 12NCPW & 15NCPW Nacho Chip/Popcorn Warmer.
* All Hot Dog Equipment except Roller Grills & Drawer Bun Warmers.
* All Nacho Cheese Warmers except Model 11WLA Series Nacho Cheese Warmer.
* All Condiment Dispensers except the Model HPDE, & SPDE Series Dispenser.
* All Specialty Food Warmers except Model 130R, 11RW Series, and 11WSA Series.
* All QCS/RCS Series Toasters except Model QCS3 & RCS3 Series.
The foregoing warranty is in lieu of any and all other warranties expressed or implied and constitutes the entire warranty.
FOR ASSISTANCE
Should you need any assistance regarding the Operation or Maintenance of any Star equipment; write, phone, fax or email our Service Department.
In all correspondence mention the Model number and the Serial number of your unit, and the voltage or type of gas you are using.
10 . Voltage conversions
11 . Gas conversions
12 . Pilot light adjustment
13 . Miscellaneous adjustments
14 . Thermostat calibration and by-pass adjustment
15 . Resetting of circuit breakers or safety controls or reset buttons
16 . Replacement of bulbs
17 . Replacement of fuses
18 . Repair of damage created during transit, delivery, &
installation OR created by acts of God
ALL:
* Pop-Up Toasters
* Butter Dispensers
* Pretzel Merchandisers
* Pastry Display Cabinets
* Nacho Chip Merchandisers
* Accessories of any kind
* Sneeze Guards
* Pizza Ovens
* Heat Lamps
* Pumps
Part# 2M-4497-2 05/06 RB
7
Page 8
A
C
I
N
S
E
N
S
O
R
SK1611
ELEMENT
TERMINAL BLOCK
GROUND
REV. F 3/29/2005
WIRE ASSEMBLY
WIRE ASSEMBLY
WIRE ASSEMBLY
WIRE ASSEMBLY
WIRE ASSEMBLY
WIRE ASSEMBLY
WIRE ASSEMBLY
F
E
C
D
B
A
G
WIRE ASSEMBLY
WIRE ASSEMBLY
I
J

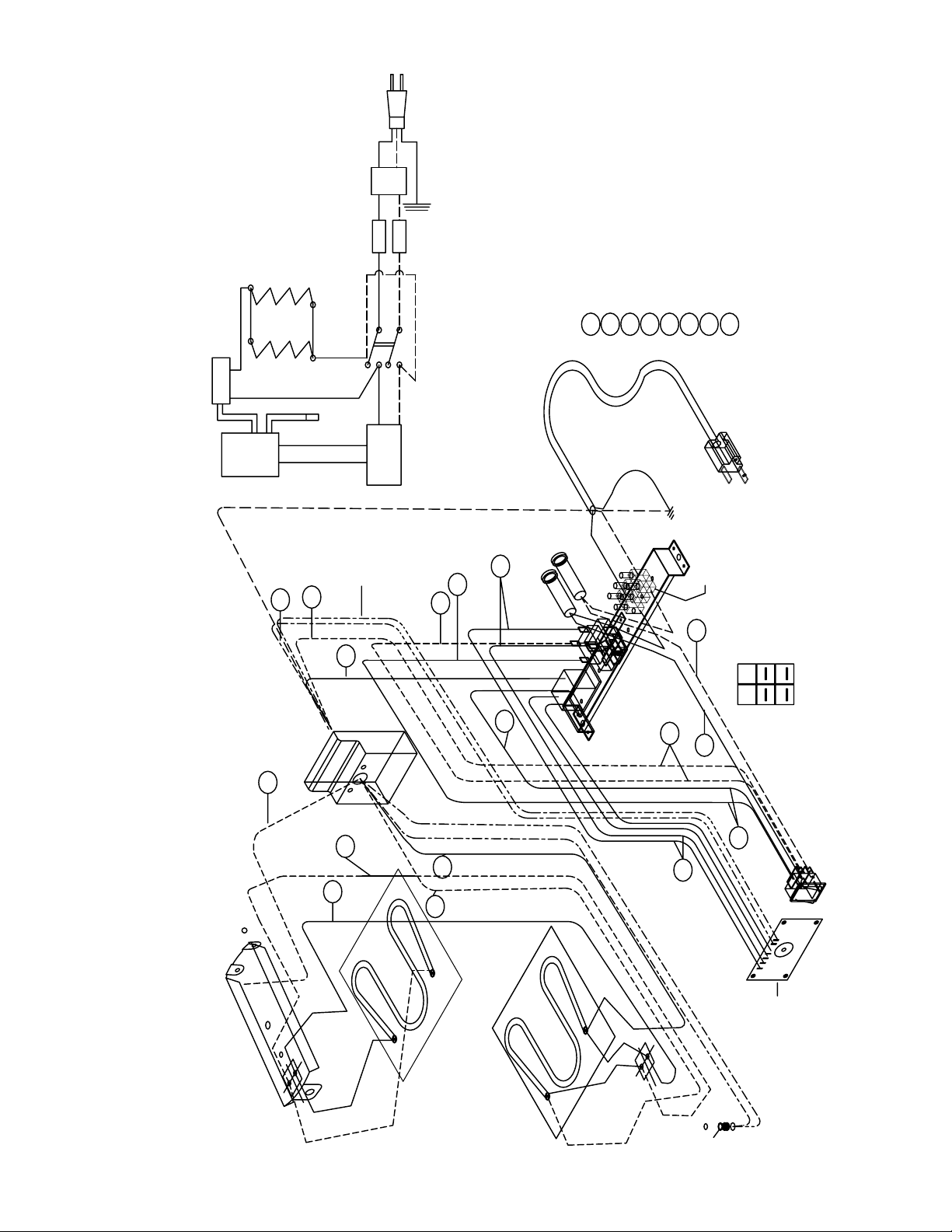

ELECTRICAL SCHEMATIC
F
RELAY
TIME/TEMP CONTROLLER
ELEMENT
SWITCH
TRANSFORMER
MODELS ONLY.
2. RELAY MAY BE ON THE CONTROL
NOTES:
1. USE FUSES ON 230V CE
FUSE (2)
E
D
C
RTD PROBE
C
J
IF RELAY IS ON THE CONTROL
BOARD IN SOME CASES.
SEE NOTE 1
3. 2 H WIRES ARE NOT NECESSARY
BOARD.
WHITE
BLACK
(BROWN)
L
GREEN
(BLUE)
N
GROUND
TERMINAL BLOCK
230CE
240V 7.5A
120V 15A
CORD ASSY
A
D
C
B
SWITCH
(BACK VIEW)
B
D
RELAY
C
TRANSFORMER
A
F
G
C
G
RTD PROBE
TOP ELEMENT
BOTTOM
WIRING DIAGRAM SWB7RBE/SWB8RBLE
8
I
J
*
*
ELEMENT
D
E
SENSOR
-
+
AC
IN
SWITCH
TIME/TEMP COTROLLER
Page 9
A
C
I
N
S
E
N
S
O
R
SK1607
GREEN
120V 15A
240V 7.5A
CORD ASSY
230V CE
REV. F 3/29/2005
G
F
NOTES:
ONLY.
2. RELAY MAY BE ON THE CONTROL
BOARD IN SOME CASES.
3. 2 H WIRES ARE NOT NECESSARY
IF RELAY IS ON THE CONTROL
1. USE FUSES ON 230V CE MODELS
BOARD.
G
RTD PROBE
*
FUSE (2)
C
GROUND
SEE NOTE 1
BLACK
(BROWN)
WHITE
(BLUE)
L
GROUND
N
A
TERMINAL
BLOCK
D
B
B
SWITCH
C
(BACK VIEW)
D
J
C
D
*
E
A
TRANSFORMER
SWITCH
RELAY
TOP ELEMENT
WIRE ASSEMBLY
WIRE ASSEMBLY
WIRE ASSEMBLY
WIRE ASSEMBLY
WIRE ASSEMBLY
WIRE ASSEMBLY
F
A
B
C
D
E
WIRING DIAGRAM SWB7R1E
WIRE ASSEMBLY
G
WIRE ASSEMBLY
J
BOTTOM ELEMENT
9
E
SENSOR
-
+
ELECTRICAL SCHEMATIC
AC IN
TIME/TEMP
CONTROLLER
CONTROL
TIME/TEMP
TERMINAL BLOCK
ELEMENT
ELEMENT
RELAY
GROUND
SWITCH
TRANSFORMER
Page 10
A
C
I
N
S
E
N
S
O
R
A
C
I
N
S
E
N
S
O
R
SK1608
GREEN
GROUND
SEE NOTE 1
FUSE (2)
F
C
GROUND
BLACK
(BROWN)
WHITE
(BLUE)
N
L
TERMINAL
BLOCK
A
B
240V 7.5A
230CE
120V 15A
CORD ASSY
A
D
C
B
REV. F 03/29/2005
SWITCH
(BACK VIEW)
NOTES:
1. USE FUSES ON 230V CE MODELS ONLY.
2. RELAY MAY BE ON THE CONTROL
F
G
G
G
3. 2 H WIRES ARE NOT NECESSARY
IF RELAY IS ON THE CONTROL
BOARD IN SOME CASES.
BOARD.
RTD PROBE
*
*
TOP ELEMENT
G
GROUND
J
BOTTOM ELEMENT
TOP ELEMENT
C
AC I
N
CONTROLLER
TIME/TEMP
RTD PROBE
*
*
J
C
D
D
TRANSFORMER
SWITCH
RELAY
E
E
SENSOR
-
+
AC I
C
BOTTOM ELEMENT
D
SWITCH
N
TIME/TEMP
CONTROLLER
B
TERMINAL BLOCK
GROUND
A
D
ELEMENT
TRANSFORMER
E
RELAY
ELEMENT
SWITCH
RELAY
E
SENSOR
-
+
TIME/TEMP
ELEMENT
TRANSFORMER
WIRE ASSEMBLY
E
CDB
WIRING DIAGRAM SWB7R2E
A
WIRE ASSEMBLY
J
F
G
WIRE ASSEMBLY
WIRE ASSEMBLY
WIRE ASSEMBLY
WIRE ASSEMBLY
WIRE ASSEMBLY
WIRE ASSEMBLY
10
ELECTRICAL SCHEMATIC
CONTROLLER CONTROLLER
TIME/TEMP
ELEMENT
RELAY
SWITCH
TRANSFORMER
Page 11
A
C
I
N
S
E
N
S
O
R
SK1609
TERMINAL BLOCK
GROUND
ELECTRICAL SCHEMATIC
RELAY
TIME/TEMP
CONTROLLER
ELEMENT
F
F
ELEMENT
C
RTD
PROBE
J
RTD PROBE
SWITCH
TRANSFORMER
C
NOTES:
1. USE FUSES ON 230V CE
MODELS ONLY.
2. RELAY MAY BE ON THE CONTROL
IF RELAY IS ON THE CONTROL
3. 2 H WIRES ARE NOT NECESSARY
BOARD IN SOME CASES.
BOARD.
SEE NOTE 1
FUSE (2)
E
D
D
WIRE ASSEMBLY
A
BLACK
(BROWN)
WIRE ASSEMBLY
WIRE ASSEMBLY
WIRE ASSEMBLY
CDB
WHITE
(BLUE)
N
L
TRANSFORMER
WIRE ASSEMBLY
E
GREEN
C
WIRE ASSEMBLY
WIRE ASSEMBLY
F
G
GROUND
TERMINAL BLOCK
B
A
WIRE ASSEMBLY
J
230CE
240V 7.5A
120V 15A
CORD ASSY
A
D
SWITCH
C
B
REV. F 3/29/2005
(BACK VIEW)
G
G

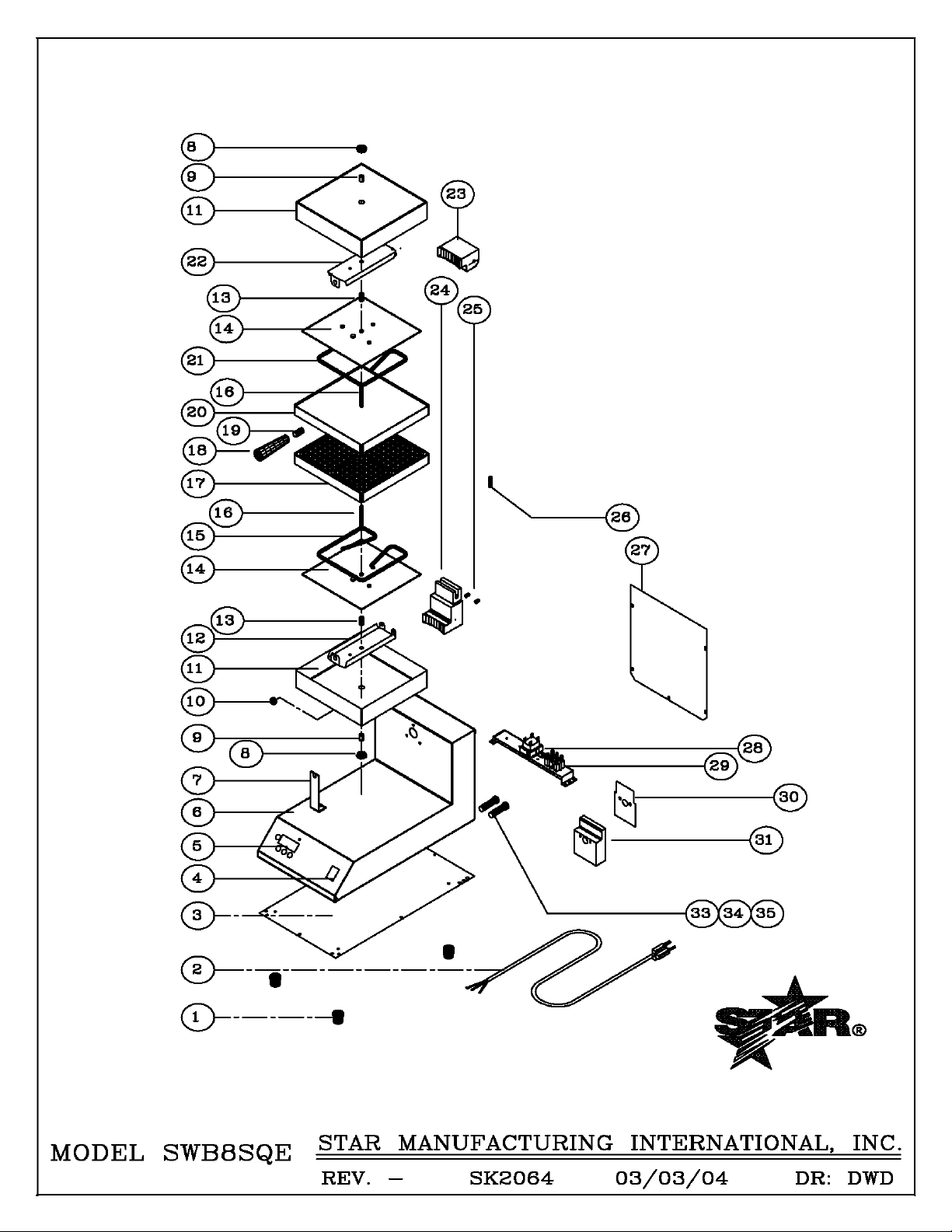

WIRING DIAGRAM SWB8SQE
J
C
TOP ELEMENT
11
BOTTOM
ELEMENT
D
SWITCH
E
SENSOR
-
+
AC
I
N
TIME/TEMP
CONTROLLER
RTD
PROBE
Page 12
12
Page 13
A
C
I
N
+
-
S
E
N
S
O
R
TERMINAL BLOCK
J
*
*
GROUND
SK1788
ELECTRICAL SCHEMATIC
F
RELAY
TIME/TEMP CONTROLLER
ELEMENT
WIRE ASSEMBLY
A
ELEMENT
C
RTD PROBE
SWITCH
TRANSFORMER
D
C
NOTES:
1. USE FUSES ON 230V CE
MODELS ONLY.
SEE NOTE 1
FUSE (2)
E
BLACK
(BROWN)
WIRE ASSEMBLY
WIRE ASSEMBLY
WIRE ASSEMBLY
B
GREEN
WHITE
(BLUE)
N
L
WIRE ASSEMBLY
GROUND
WIRE ASSEMBLY
FGECD
WIRE ASSEMBLY
TERMINAL BLOCK
WIRE ASSEMBLY
J
120V 15A
CORD ASSY
D
C
J
REV. 03-29-2005
230CE
240V 7.5A
A
SWITCH
B
(BACK VIEW)
B
F
G
G
TOP ELEMENT

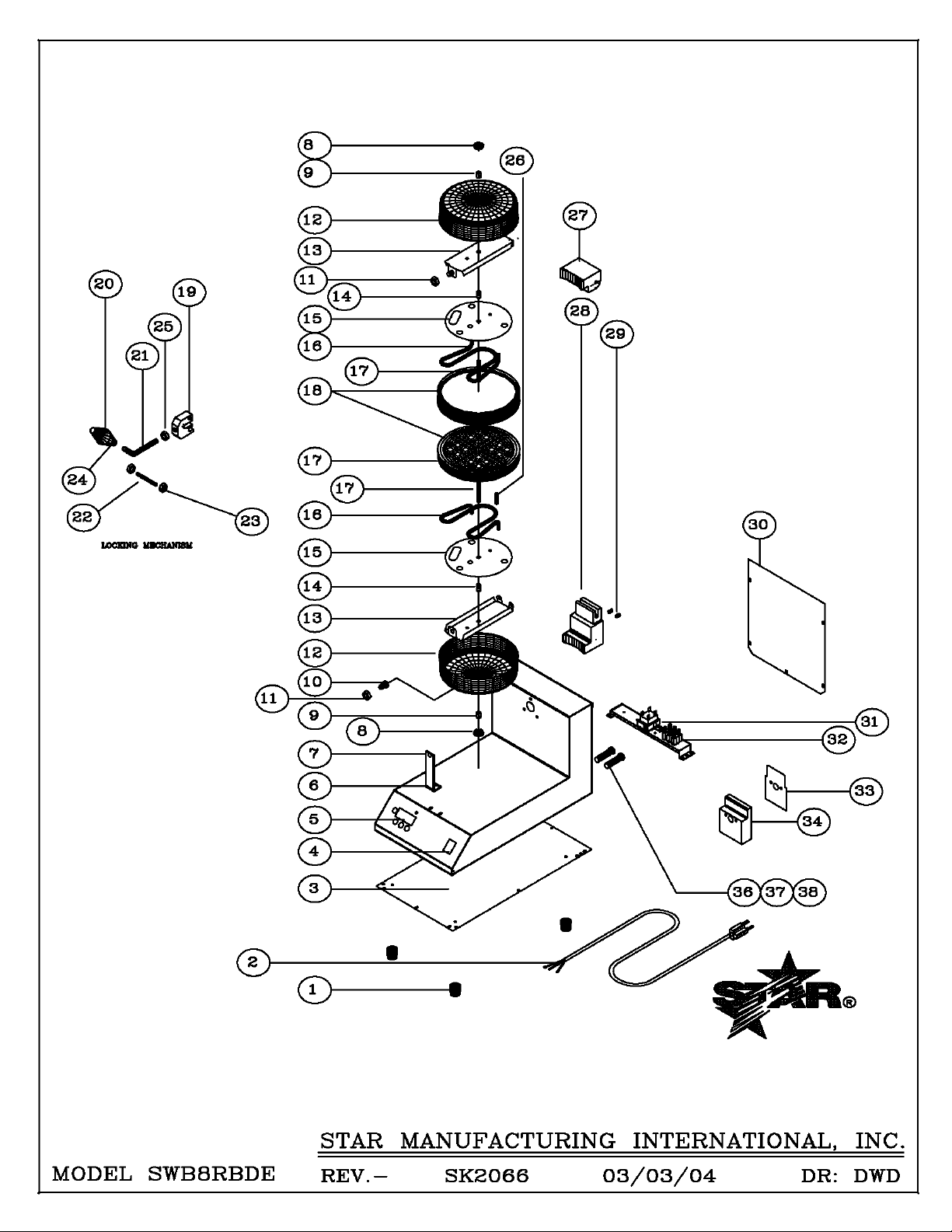

WIRING DIAGRAM SWB8RBDE
D
RELAY
C
TRANSFORMER
A
C
D
E
RTD PROBE
BOTTOM ELEMENT
SWITCH
TIME/TEMP COTROLLER
13
Page 14
14
Page 15

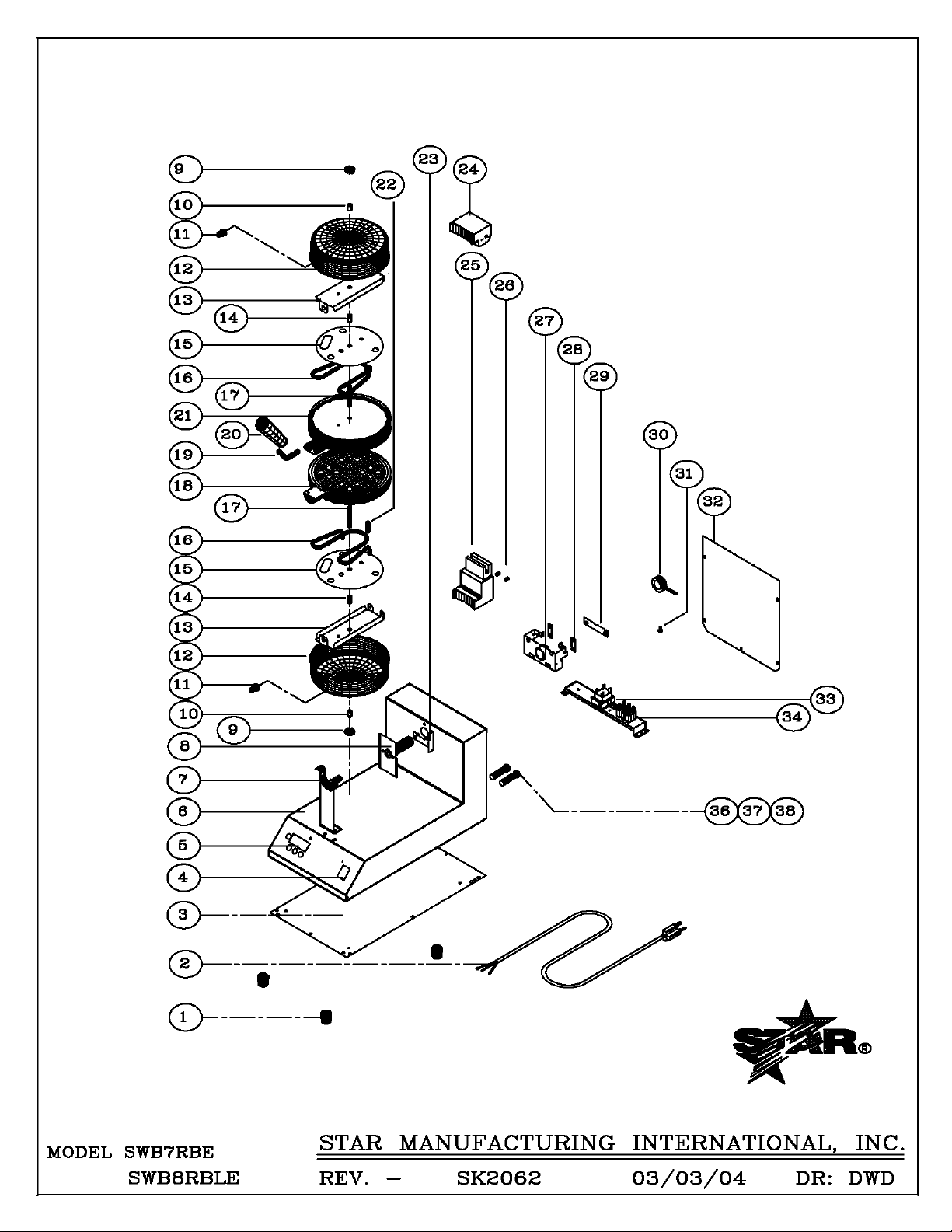

PARTS LIST June 29, 2006, Rev F
SWB7RBE/SWB8RBLE Waffl e Bakers
MODEL
Number
Key
Number
1 2I-Z0057 4 FOOT RUBBER
2 2E-Z3385 1 LEAD IN CORD 120V 15A
B9-73028 1 LEAD IN CORD 240V
B9-73029 1 LEAD IN CORD 230V CE
3 B9-Z1723 1 COVER-BOTTOM
4 2E-Z1858 1 SWITCH 20A/120V MOLVENO
5 2J-Z7497 1 TIMER-TEMPERATURE CONTROL
6 B9-73004 1 BODY ASSEMBLY
7 B9-73003 1 YOKE ASSEMBLY
8 B9-73002 1 HINGE TUBE ASSEMBLY
9 2P-Z1735 2 PLUG CAP 3/4
10 2C-Z2670 2 NUT 1/4-20 W/LOCKWASHER
11 2C-08-07-0064 2 ACORN NUT
12 B9-Z1733 2 CUP 7" SWB7RBE
B9-Z1790 2 CUP 8" SWB8RBLE
13 2V-Z1799 2 7" CUP SUPPORT SWB7RBE
B9-Z1800 2 8" CUP SUPPORT SWB8RBLE
14 2A-Z2644 2 SPACER 3/8X0.035
15 B9-Z8773 2 PLATE SWB7RBE
B9-Z8772 2 PLATE SWB8RBLE
16 2N-Z1457 2 ELEMENT 500W 120V SWB7RBE
2N-Z2720 2 ELEMENT 500W 240V SWB7RBE
2N-Z2010 2 ELEMENT 660W 120V SWB8RBLE
2N-Z2011 2 ELEMENT 660W 240V SWB8RBLE
17 2C-Z1674 2 STUD 1/4-20 X 2 1/4
18 2F-Z1666 1 GRID 7" BELGIAN BOTTOM SWB7RBE
B9-Z1768 1 GRID BOTTOM 8" BELGIANLITE SWB8RBLE
B9-Z4846 1 GRID 7" BELGIAN COATED SWB7RBSE
19 2A-Z6635 1 SHORT HANDLE ROD PLATED
20 2R-09-WB-0027 1 HANDLE BLACK 3/8-16
21 2F-Z1746 1 GRID 7" BELGIAN SWB7RBE
B9-Z1767 1 GRID 8" BELGIANLITE SWB8RBLE
22 2E-Z1837 1 RTD PROBE 2000 OM
23 B9-Z1805 1 BRACKET STOPPER
24 B9-73010 1 TOP HINGE ASSEMBLY
- 2A-Z2664 1 PIN-HINGE
25 B9-Z1765 1 LOWER HINGE MACHINED
26 B9-Z2643 2 SPACER 1/4X0.028
27 B9-73011 1 BRACKET REAR ASSEMBLY
28 B9-Z1772 2 TENSION SPRING
29 B9-Z1776 1 PLATE CLAMP
30 B9-73033 1 COLLAR ASSEMBLY
31 2C-Z2613 1 SET-SCREW 10-32X3/8
32 B9-Z1724 1 COVER-BACK
33 2E-05-07-0351 1 TRANSFORMER 115/10V 6VA 120V
2E-05-07-0350 1 TRANSFORMER 230V/10V 6VA 240V
2E-Z2974 1 TRANSFORMER 230V/10V CE 230V CE
34 2E-Y9050 1 TERMINAL BLOCK
36 2E-Z2145 2 FUSEHOLDER 230V CE
37 2E-Z2146 2 FUSE CARRIER 230V CE
38 2E-Z2148 2 FUSE 5A 250V 230V CE SWB7RBE
2E-Z2147 2 FUSE 8A 250V 230V CE SWB8RBLE
NI 2K-Y1139 1 BUSHING, HINGE TUBE
NI B9-Z1760 1 DRIP TRAY (not shown)
NI 2M-Z1753 1 CONTROL PANEL OVERLAY
Part
Number
IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE 1
INCLUDE MODEL AND SERIAL NUMBER OF 1
Per
Unit
Description and Model Designation
Some items are included for illustrative purposes only and in certain instances may not be available.
Star Manufacturing International, Inc.
15
NI = NOT ILLUSTRATED
Page 16
16
Page 17

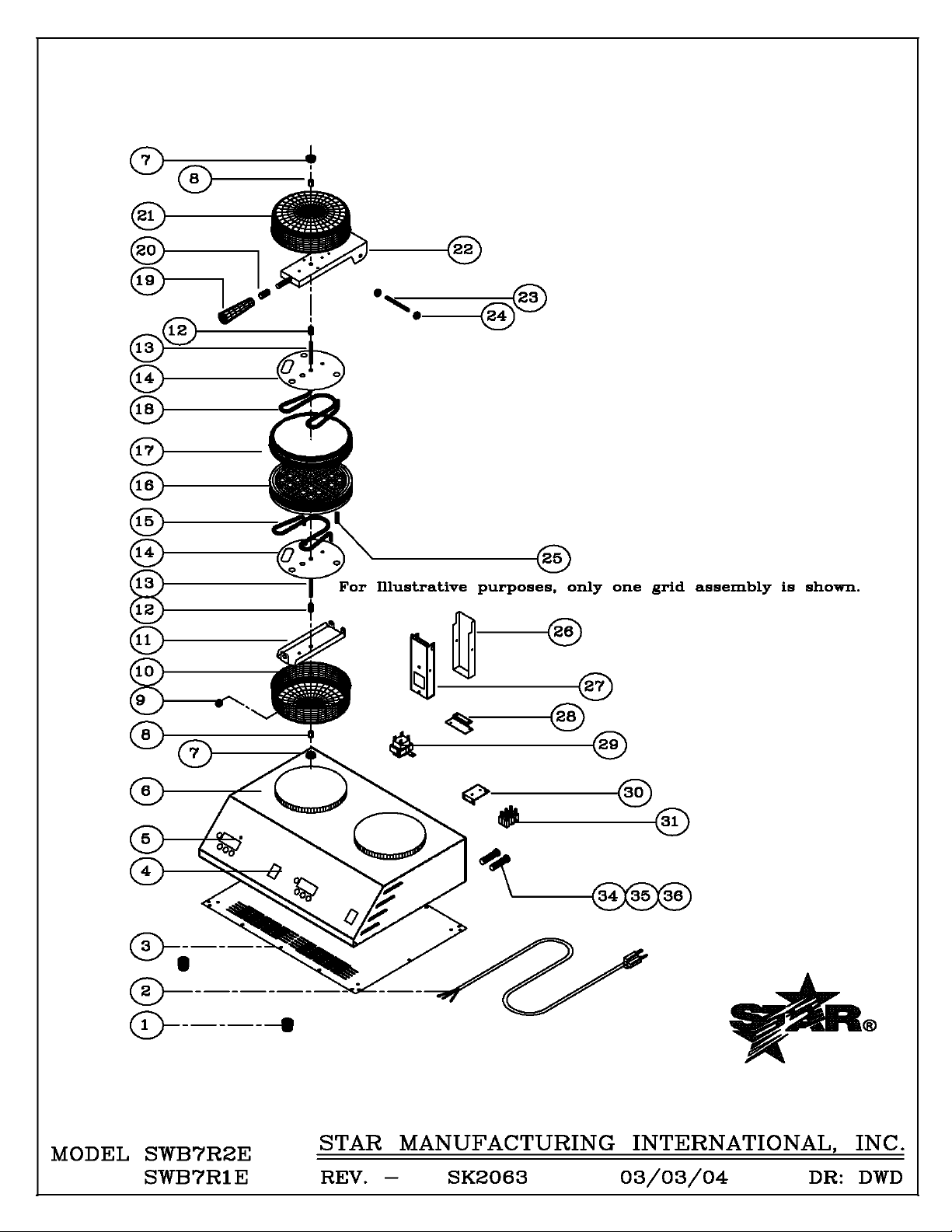

PARTS LIST June 29, 2006, Rev F
SWB7R1E/SWB7R2E Waffl e Bakers
MODEL
Number
Key
Number
1 2I-Z0057 4 FOOT RUBBER
2 2E-Z3385 1 LEAD IN CORD 120V 15A
B9-73028 1 LEAD IN CORD 240V
B9-73029 1 LEAD IN CORD 230V CE
3 B9-Z1926 1 COVER-BOTTOM SINGLE SWB7R1E
B9-Z1927 1 COVER-BOTTOM DOUBLE SWB7R2E
4 2E-Z1858 1/2 SWITCH 20A/120V MOLVENO SWB7R1E/SWB7R2E
5 2J-Z7497 1/2 TIMER-TEMPERATURE CONTROL SWB7R1E/SWB7R2E
6 B9-73074 1 BODY ASSEMBLY SINGLE SWB7R1E
B9-73073 1 BODY ASSEMBLY DOUBLE SWB7R2E
7 2P-Z1735 2/4 PLUG CAP 3/4 SWB7R1E/SWB7R2E
8 2C-Z2670 2/4 NUT 1/4-20 W/LOCKWASHER SWB7R1E/SWB7R2E
9 2C-08-07-0041 1/2 ACORN NUT SWB7R1E/SWB7R2E
10 2D-Z7611 1/2 CUP 7" SWB7R1E/SWB7R2E
11 2V-Z1799 1/2 7" CUP SUPPORT SWB7R1E/SWB7R2E
12 2A-Z2644 2/4 SPACER 3/8X0.035 SWB7R1E/SWB7R2E
13 2C-Z1674 2/4 STUD 1/4-20 X 2 1/4 SWB7R1E/SWB7R2E
14 B9-Z8773 2/4 PLATE SWB7R1E/SWB7R2E
15 2N-Z2843 1/2 ELEMENT ROD 475W 120V SWB7R1E/SWB7R2E
2N-Z2264 1/2 ELEMENT ROD 475W 240V SWB7R1E/SWB7R2E
16 2F-Z1770 1/2 GRID 7" STANDARD BOTTOM SWB7R1E/SWB7R2E
17 2F-Z1769 1/2 GRID 7" STANDARD SWB7R1E/SWB7R2E
Part
Number
Per
Unit
Description and Model Designation
18 2N-Z2040 1/2 ELEMENT ROD 425W 120V SWB7R1E/SWB7R2E
2N-Z2135 1/2 ELEMENT ROD 425W 240V SWB7R1E/SWB7R2E
19 2R-09-WB-0027 1/2 HANDLE BLACK 3/8-16 SWB7R1E/SWB7R2E
20 2A-Z2606 1/2 SPACER SWB7R1E/SWB7R2E
21 B9-Z2016 1/2 CUP 7" SWB7R1E/SWB7R2E
22 B9-73044 1/2 CUP SUPPORT HINGE ASSEMBLY SWB7R1E/SWB7R2E
23 B9-04-WB-0198 1/2 PIN HINGE SWB7R1E/SWB7R2E
24 2C-08-07-0040 2/4 ACORN NUT SWB7R1E/SWB7R2E
25 2E-Z1837 1/2 RTD PROBE 2000 OHM SWB7R1E/SWB7R2E
26 B9-04-WB-0231 1/2 WIRE CHANNEL COVER SWB7R1E/SWB7R2E
27 B9-Z2008 1/2 WIRE CHANNEL SWB7R1E/SWB7R2E
28 B9-Z2612 1/2 BRACKET-TRANSFORMER SWB7R1E/SWB7R2E
29 2E-05-07-0351 1/2 TRANSFORMER 115/10V 6VA 120V SWB7R1E/SWB7R2E
2E-05-07-0350 1/2 TRANSFORMER 230V/10V 6VA 240V SWB7R1E/SWB7R2E
2E-Z2974 1/2 TRANSFORMER 230V/10V 230V CE SWB7R1E/SWB7R2E
30 B9-Z1925 1 BRACKET-TERMINAL
31 2E-Y9050 1 TERMINAL BLOCK
34 2E-Z2145 2 FUSEHOLDER 230V CE SWB7R2E
35 2E-Z2146 2 FUSEHOLDER 230V CE SWB7R2E
36 2E-Z2147 2 FUSE 8A 250V 230V CE SWB7R2E
NOT ILLUSTRATED
-- B9-Z1853 1 DRIP TRAY, SINGLE SWB7R1E
-- B9-Z1751 1 DRIP TRAY, DOUBLE SWB7R2E
-- 2M-Z1753 1 CONTROL PANEL OVERLAY
1
IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE
1
INCLUDE MODEL AND SERIAL NUMBER OF
Some items are included for illustrative purposes only and in certain instances may not be available.
Star Manufacturing International, Inc.
17
Page 18
18
Page 19
PARTS LIST June 29, 2006, Rev F
SWB8SQE Waffl e Baker
MODEL
Number
Key
Number
1 2I-Z0057 4 FOOT RUBBER
2 2E-Z3385 1 LEAD IN CORD 120V 15A
B9-73028 1 LEAD IN CORD 240V
B9-73029 1 LEAD IN CORD 230V CE
3 B9-Z1723 1 COVER-BOTTOM
4 2E-Z1858 1 SWITCH 20A/120V MOLVENO
5 2J-Z7497 1 TIMER-TEMPERATURE CONTROL
6 B9-73004 1 BODY ASSEMBLY
7 B9-Z1845 1 FRONT SUPPORT
8 2P-Z1735 2 PLUG CAP 3/4
9 2C-Z2670 2 NUT 1/4-20 W/LOCKWASHER
10 2C-08-07-0064 1 ACORN NUT
11 B9-Z1830 2 CUP
12 B9-Z1831 2 CUP SUPPORT
13 2A-Z2644 2 SPACER 3/8X0.035
14 B9-Z8774 2 PLATE
15 2N-Z2841 1 ELEMENT 855W 120V
2N-Z2249 1 ELEMENT 855W 240V
16 2C-Z1674 2 STUD 1/4-20 X 2 1/4
17 B9-Z1780 1 GRID 8" SQUARE BOTTOM
18 2R-09-WB-0027 1 HANDLE BLACK 3/8-16
19 2A-Z2607 1 SPACER
20 B9-Z1779 1 GRID 8" SQUARE
21 2N-Z2842 1 ELEMENT 790W 120V
2N-Z2248 1 ELEMENT 790W 240V
22 B9-85016 1 CUP SUPPORT SQUARE ASSEMBLY
23 B9-85015 1 TOP HINGE ASSEMBLY
24 B9-Z1764 1 LOWER HINGE MACHINED
25 B9-Z2643 2 SPACER 1/4X0.028
26 2T-Z2043 2 THERMOSTAT
2E-Z1837 1 RTD PROBE 2000 OM
27 B9-Z1724 1 COVER-BACK
28 2E-05-07-0351 1 TRANSFORMER 115/10V 6VA 120V
2E-05-07-0350 1 TRANSFORMER 230V/10V 6VA 240V
2E-Z2974 1 TRANSFORMER 230V/10V 230V CE
29 2E-Y9050 1 TERMINAL BLOCK
30 B9-Z1859 1 PLATE-COVER-HINGE
31 B9-Z1835 1 SPACER
33 2E-Z2145 2 FUSEHOLDER 230V CE
34 2E-Z2146 2 FUSE CARRIER 230V CE
35 2E-Z2147 2 FUSE 8A 250V 230V CE
NOT ILLUSTRATED
-- B9-Z1760 1 DRIP TRAY
-- 2M-Z1753 1 CONTROL PANEL OVERLAY
Part
Number
Per
Unit
Description
1
IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE
1
INCLUDE MODEL AND SERIAL NUMBER OF
Some items are included for illustrative purposes only and in certain instances may not be available.
Star Manufacturing International, Inc.
19
Page 20
20
Page 21
PARTS LIST June 29, 2006, Rev F

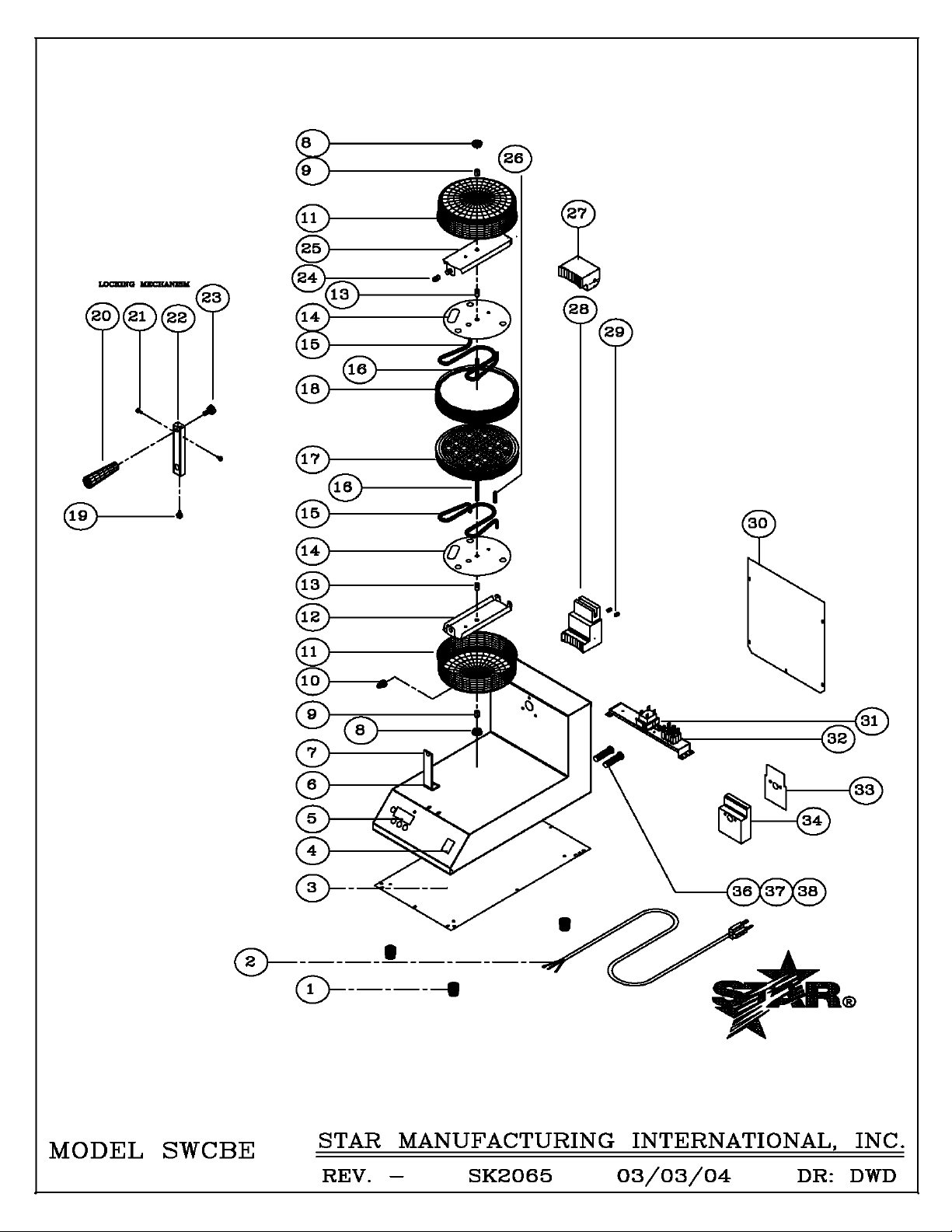

SWCBE Waffl e Baker
MODEL
Number
Key
Number
1 2I-Z0057 4 FOOT RUBBER
2 2E-Z3385 1 LEAD IN CORD 120V 15A
B9-73028 1 LEAD IN CORD 240V
B9-73029 1 LEAD IN CORD 230V CE
3 B9-Z1723 1 COVER-BOTTOM
4 2E-Z1858 1 SWITCH 20A/120V MOLVENO
5 2J-Z7497 1 TIMER-TEMPERATURE CONTROL
6 B9-73004 1 BODY ASSEMBLY
7 B9-Z1810 1 FRONT SUPPORT
8 2P-Z1735 2 PLUG CAP 3/4
9 2C-Z2670 2 NIT 1/4-20 W/LOCKWASHER
10 2A-09-WB-0094 1 LOCK BULLET
11 B9-Z1790 2 CUP
12 B9-Z1800 1 CUP SUPPORT
13 2A-Z2644 2 SPACER 3/8X0.035
14 B9-Z8772 2 PLATE
15 2N-Z2010 2 ELEMENT 660W 120V
2N-Z2011 2 ELEMENT 660W 240V
16 2C-Z1674 2 STUD 1/4-20 X 2 1/4
17 B9-Z1775 1 GRID 8" CONE BOTTOM
18 B9-Z1774 1 GRID 8" CONEBAKER
19 2C-08-07-0112 2 SET SCREW 1/4-20 X 1/4
20 2R-09-WB-0027 1 HANDLE BLACK 3/8-16
21 2C-08-07-0230 2 SCREW 8-32 X 3/8 ACHD
22 2R-Z5658 1 LOCKING ARM 5.25"
23 2C-08-07-0088 1 SCREW 3/8-16X1 1/4 SHCS
24 2A-Z2608 1 SPACER
25 B9-73043 1 CUP SUPPORT ASSEMBLY CONE
26 2E-Z1837 1 RTD PROBE 2000 OM
27 B9-73010 1 TOP HINGE ASSEMBLY
28 B9-Z1764 1 LOWER HINGE MACHINED
29 B9-Z2643 2 SPACER 1/4X0.028
30 B9-Z1724 1 COVER-BACK
31 2E-05-07-0351 1 TRANSFORMER 115/10V 6VA 120V
2E-05-07-0350 1 TRANSFORMER 230V/10V 6VA 240V
2E-Z2974 1 TRANSFORMER 230V/10V 230V CE
32 2E-Y9050 1 TERMINAL BLOCK
33 B9-Z1859 1 PLATE-COVER-HINGE
34 B9-Z1835 1 SPACER
36 2E-Z2145 2 FUSEHOLDER 230V CE
37 2E-Z2146 2 FUSE CARRIER 230V CE
38 2E-Z2147 2 FUSE 8A 250V 230V CE
NOT ILLUSTRATED
-- B9-Z1760 1 DRIP TRAY
-- 2M-Z1753 1 CONTROL PANEL OVERLAY
Part
Number
Per
Unit
Description
1
IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE
1
INCLUDE MODEL AND SERIAL NUMBER OF
Some items are included for illustrative purposes only and in certain instances may not be available.
Star Manufacturing International, Inc.
21
Page 22
22
Page 23
PARTS LIST June 29, 2006, Rev F
SWB8RBDE Waffl e Baker
MODEL
Number
Key
Number
1 2I-Z0057 4 FOOT RUBBER
2 2E-Z3385 1 LEAD IN CORD 120V 15A
B9-73028 1 LEAD IN CORD 240V
B9-73029 1 LEAD IN CORD 230V CE
3 B9-Z1723 1 COVER-BOTTOM
4 2E-Z1858 1 SWITCH 20A/120V MOLVENO
5 2J-Z7497 1 TIMER-TEMPERATURE CONTROL
6 B9-73004 1 BODY ASSEMBLY
7 B9-Z1810 1 FRONT SUPPORT
8 2P-Z1735 2 PLUG CAP 3/4
9 2C-Z2670 2 NUT 1/4-20 W/LOCKWASHER
10 2C-08-07-0041 2 BOLT 3/8-24 x 1/2 HEX
11 2C-08-07-0064 2 HEX ACORN NUT 3/8-24
12 B9-Z1790 2 CUP
13 B9-Z3731 1 CUP SUPPORT
14 2A-Z2644 2 SPACER 3/8X0.035
15 B9-Z8771 2 PLATE
16 2N-Z2010 2 ELEMENT 660W 120V
2N-Z2011 2 ELEMENT 660W 240V
17 2C-Z1674 2 STUD 1/4-20 X 2 1/4
18 B9-Z3734 2 GRID 8" DIAMETER MACHINED
19 2F-Z9333 1 LOCK HANDLE
20 2R-09-WB-0027 1 HANDLE-BLACK 3/8-16
21 2A-Z6635 1 SHORT HANDLE RED PLATED
22 2A-70-WB-0132 2 LOCK PIN
23 2C-08-07-0040 2 ACORN NUT 1/4-20
24 2C-08-07-0037 1 SCREW 6-32 x 3/8
25 2C-08-07-0054 1 NUT 3/8-16 HEX
26 2E-Z1837 1 RTD PROBE 2000 OM
27 B9-73010 1 TOP HINGE ASSEMBLY
28 B9-Z1764 1 LOWER HINGE MACHINED
29 B9-Z2643 2 SPACER 1/4X0.028
30 B9-Z1724 1 COVER-BACK
B9-Z2985 1 COVER-BACK 230CE
31 2E-05-07-0351 1 TRANSFORMER 115/10V 6VA 120V
2E-05-07-0350 1 TRANSFORMER 230V/10V 6VA 240V
2E-Z2974 1 TRANSFORMER 230V/10V 230V CE
32 2E-Y9050 1 TERMINAL BLOCK
33 B9-Z1859 1 PLATE-COVER-HINGE
34 B9-Z1835 1 SPACER
36 2E-Z2145 2 FUSEHOLDER 230V CE
37 2E-Z2146 2 FUSE CARRIER 230V CE
38 2E-Z2147 2 FUSE 8A 250V 230V CE
NOT ILLUSTRATED
-- B9-Z1760 1 DRIP TRAY
-- 2M-Z1753 1 CONTROL PANEL OVERLAY
Part
Number
Per
Unit
Description
1
IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE
1
INCLUDE MODEL AND SERIAL NUMBER OF
Some items are included for illustrative purposes only and in certain instances may not be available.
Star Manufacturing International, Inc.
23

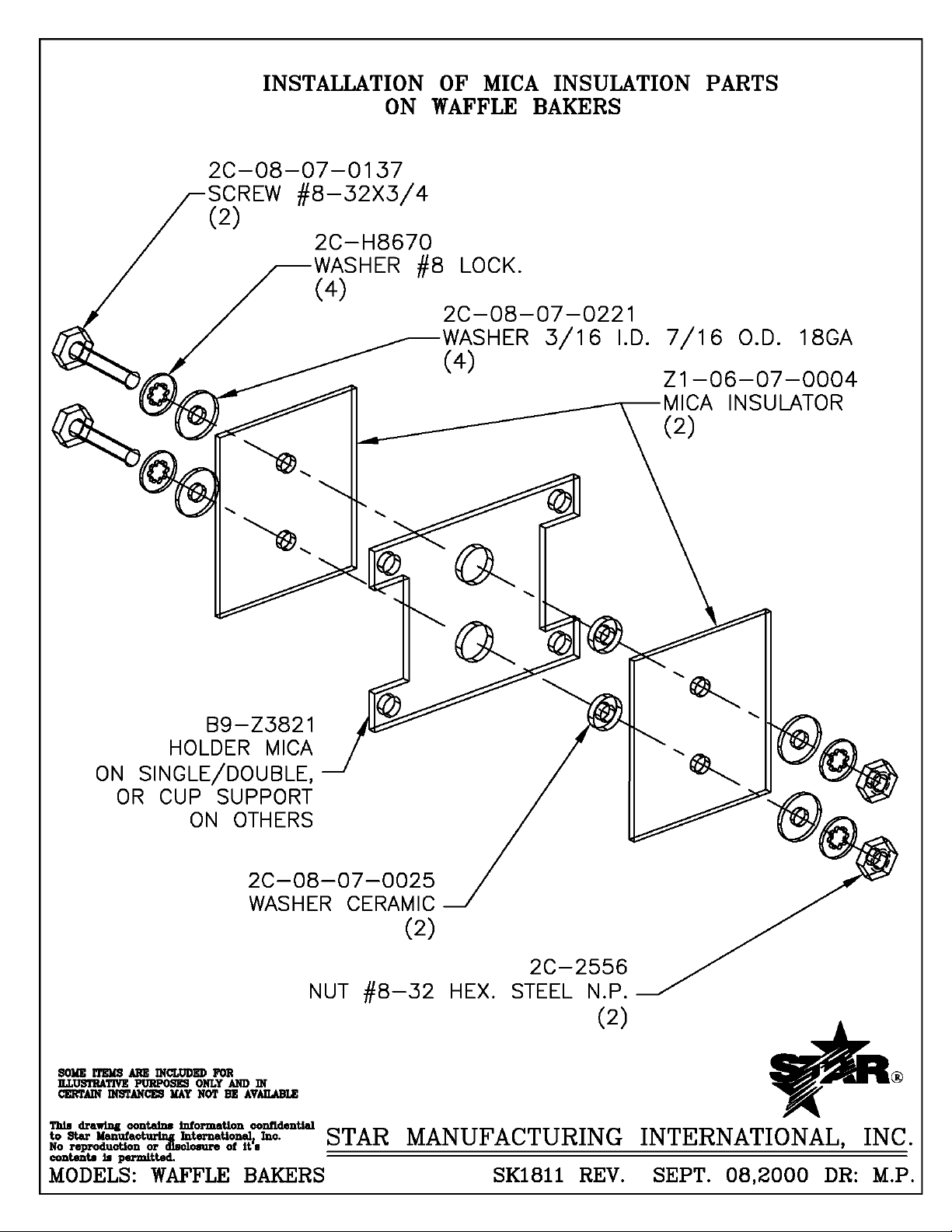

Page 24
24
Loading...
