Page 1
DRAWER ROLL/
IL1889
BUN WARMER
MODEL
SST-20
SST-30
SST-50
SST-75
Installation and
Operation
Instructions
2M-Z3235 Rev. G 8/2/2010
1
SST-75
Page 2
2
These symbols are intended to alert the user to the presence of
important operating and maintenance instructions in the manual accompanying the appliance.
RETAIN THIS MANUAL FOR FUTURE REFERENCE
NOTICE
Using any part other than genuine Star factory supplied parts relieves the
manufacturer of all liability.
Star reserves the right to change specications and product design without
notice. Such revisions do not entitle the buyer to corresponding changes,
improvements, additions or replacements for previously purchased
equipment.
Due to periodic changes in designs, methods, procedures, policies and
regulations, the specications contained in this sheet are subject to change
without notice. While Star Manufacturing exercises good faith efforts to provide
information that is accurate, we are not responsible for errors or omissions
in information provided or conclusions reached as a result of using the
specications. By using the information provided, the user assumes all risks in
connection with such use.
MAINTENANCE AND REPAIRS
Contact your local authorized service agent for service or required maintenance. Please record
the model number, serial number, voltage and purchase date in the area below and have it ready when you call to ensure
a faster service.
SAFETY SYMBOL
Model No.
Serial No.
Voltage
Purchase Date
Business 8:00 am to 4:30 p.m. Central Standard Time
Hours:
Telephone: (800) 264-7827 Local (314) 781-2777
Fax: (800) 396-2677 Local (314) 781-2714
E-mail [email protected]
Website: www.star-mfg.com
Service Help Desk
Authorized Service Agent Listing
Reference the listing provided with the unit
or
for an updated listing go to:
Mailing Address: Star International Holdings Inc., Company
10 Sunnen Drive
St. Louis, MO 63143
U.S.A
2
Page 3
CAUTION
WARNING
GENERAL INSTALLATION DATA
This equipment is designed and sold for commercial use only by personnel trained and experienced
in its operation and is not sold for consumer use in and around the home nor for use directly by the
general public in food service locations.
Before using your new equipment, read and understand all the instructions & labels associated with
the unit prior to putting it into operation. Make sure all people associated with its use understand the
units operation & safety before they use the unit.
All shipping containers should be checked for freight damage both visible and concealed. This
unit has been tested and carefully packaged to insure delivery of your unit in perfect condition. If
equipment is received in damaged condition, either apparent or concealed, a claim must be made
with the delivering carrier.
Concealed damage or loss - if damage or loss is not apparent until after equipment is unpacked, a
request for inspection of concealed damage must be made with carrier within 15 days. Be certain to
retain all contents plus external and internal packaging materials for inspection. The carrier will make
an inspection and will supply necessary claim forms.
INSTALLATION
This bun warmer is equipped for the voltage shown on the nameplate. It will operate on
alternating current only; however, the correct voltage must be applied. The unit should be
installed by a qualied installer.
DO NOT CONNECT TO DIRECT CURRENT (DC).
GENERAL OPERATING PROCEDURES
Using the power switch, turn the unit on. The pilot light on the front of the unit will indicate when the
power is on. Select a setting on the thermostat for warming or holding rolls.
To keep the rolls soft and fresh, turn the control knob to a low position. Higher settings should be
used only for short periods or preheating the warmer. Keep the drawers as full as possible. When
adding new rolls to the drawer, pull the rolls and buns that are left in the drawer toward the front and
use them rst, giving time for the new rolls to become heated. Do not heat the rolls more than once,
as they will not be palatable if reheated. If the rolls dry out, reduce temperature.
WARNING
WARNING
NOTE: This unit may smoke and have a slight odor when rst used. We suggest you
turn the thermostat to a high heat position and let unit heat for approximately two (2) hours
before using.
ELECTRICAL CONNECTIONS
For your protection, this appliance is equipped with a 3-conductor cord with a grounding type plug.
Connect only to a grounding receptacle.
Before making any electrical connection to this unit, check that the power supply is adequate for the
voltage, amperage and requirements stated on the rating plate.

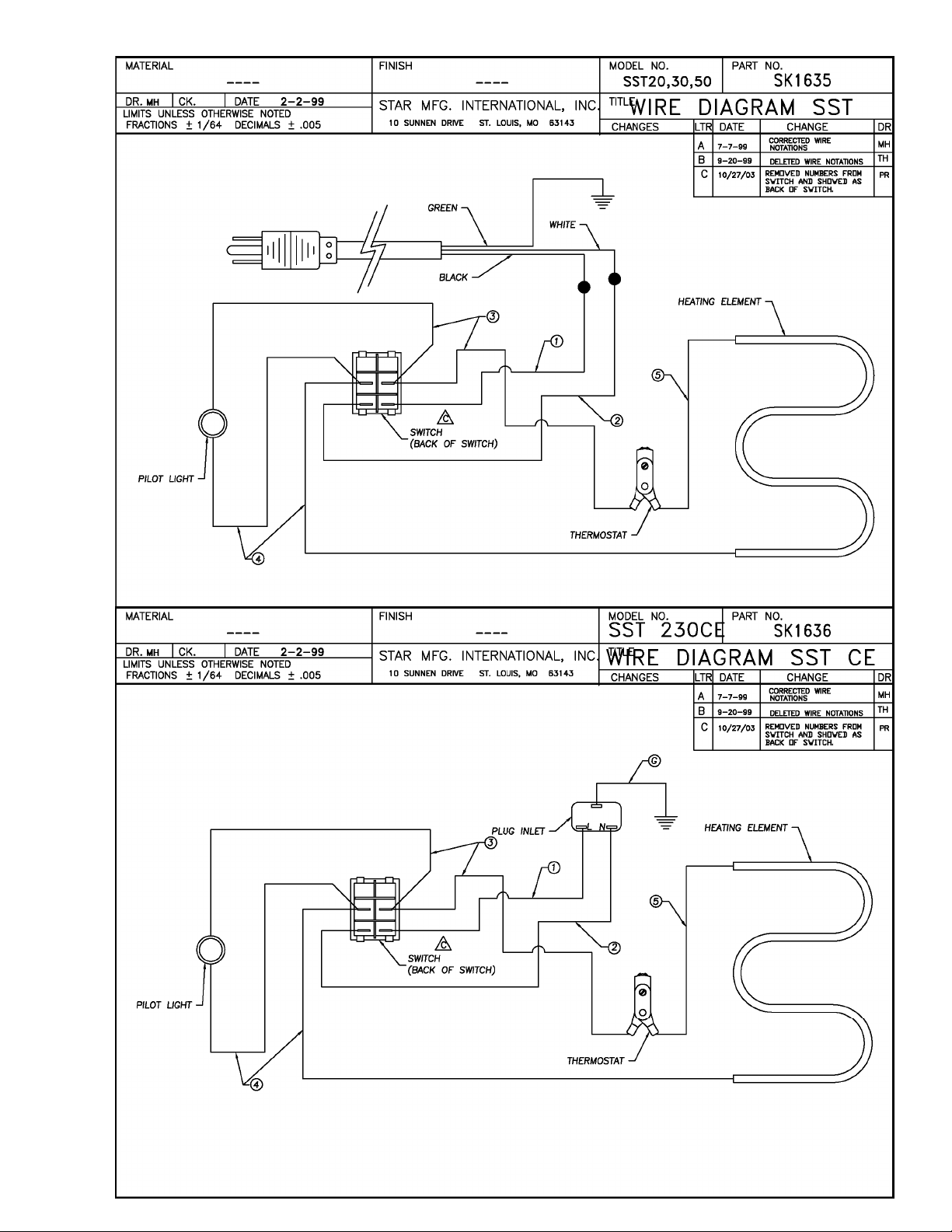

A wiring diagram is included herewith.
Disconnect the unit from the power source before installing or removing any parts.
Be absolutely sure that the ground connection for the receptacle is properly wired. Do not connect
equipment to power without proper ground connections. Improper grounding may result in personal
injury or fatality.
DO NOT CUT OR REMOVE THIS PLUG OR GROUNDING PRONG FROM THE PLUG.
CONNECT/PLUG UNIT INTO DEDICATED A.C. LINE ONLY SPECIFIED ON THE DATA
PLATE OF THE UNIT.
3
Page 4
CLEANING
To remove the drawer for cleaning:
1. Pull the drawer out until it stops.
2. Remove the interior pan.
3. Grasp the drawer assembly with both hands.
4. Lift the drawer in an upward direction while slowly pulling out.
This will disengage the drawer from the drawer stops. To re-install the drawer, reverse the
procedure. The unit should be cleaned with a damp cloth using a mild detergent or non
abrasive cleaner. Clean the entire unit daily to ensure long life and satisfactory performance
as well as to maintain an attractive appearance. Do not clean with water jet equipment.
MAINTENANCE AND REPAIRS
Contact the factory, a service representative, or a local service company for service or required
maintenance.
4
Page 5
5
Page 6
Part# 2M-4497-2 12/06 RMS
The foregoing warranty is in lieu of any and all other warranties expressed or implied and constitutes the entire warranty.
FOR ASSISTANCE
Should you need any assistance regarding the Operation or Maintenance of any Star equipment; write, phone, fax or email our Service Department.
In all correspondence mention the Model number and the Serial number of your unit, and the voltage or type of gas you are using.
ALL:
* Pop-Up Toasters
* Butter Dispensers
* Pretzel Merchandisers
(Model 16PD-A Only)
* Pastry Display Cabinets
* Nacho Chip Merchandisers
* Accessories of any kind
* Sneeze Guards
* Pizza Ovens
(Model PO12 Only)
* Heat Lamps
* Pumps-Manual
Visit our Website at: www.star-mfg.com Email: [email protected]
THOROUGHLY INSPECT YOUR UNIT ON ARRIVAL
This unit has been tested for proper operation before leaving our plant to insure delivery of your unit in perfect condition. However, there are instances in
which the unit may be damaged in transit. In the event you discover any type of damage to your product upon receipt, you must immediately contact the
transportation company who delivered the item to you and initiate your claim with same. If this procedure is not followed, it may affect the warranty status of
the unit.
LIMITED EQUIPMENT WARRANTY
All workmanship and material in Star products have a one (1) year limited warranty on parts & labor in the United States and Canada. Such warranty is limited
to the original purchaser only and shall be effective from the date the equipment is placed in service. Star's obligation under this warranty is limited to the repair
of defects without charge, by the factory authorized service agency or one of its sub-agencies. Models that are considered portable (see below) should be taken
to the closest Star service agency, transportation prepaid.
> Star will not assume any responsibility for loss of revenue.
> On all shipments outside the United States and Canada, see International Warranty.
* The warranty period for the JetStar six (6) ounce & Super JetStar eight (8) ounce series popcorn machines is two (2) years.
* The warranty period for the Chrome-Max Griddles is ve (5) years on the griddle surface. See detailed warranty provided with unit.
* The warranty period for Te on/Dura-Tec coatings is one year under normal use and reasonable care. This warranty does not apply if damage occurs to
Te on/Dura-Tec coatings from improper cleaning, maintenance, use of metallic utensils, or abrasive cleaners, abrasive pads, product identi ers and
point-of-sale attachments, or any other non-food object tha comes in continuous contact with the roller coating. This warranty does not apply to the
“non-stick” properties of such materials.
> This warranty does not apply to "Special Products" but to regular catalog items only. Star's warranty on "Special Products" is six (6) months on parts
and ninety (90) days on labor.
> This warranty does not apply to any item that is disassembled or tampered with for any purpose other than repair by a Star Authorized Service Center or
the Service Center's sub-agency.
> This warranty does not apply if damage occurs from improper installation, misuse, wrong voltage, wrong gas or operated contrary to the Installation and
Operating instructions.
> This warranty is not valid on Conveyor Ovens unless a "start-up/check-out" has been performed by a Factory Authorized Technician.
PARTS WARRANTY
Parts that are sold to repair out of warranty equipment are warranted for ninety (90) days. The part only is warranted. Labor to replace the part is chargeable to
the customer.
SERVICES NOT COVERED BY WARRANTY
PORTABLE EQUIPMENT
Star will not honor service bills that include travel time and mileage charges for servicing any products considered "Portable" including items listed below.
These products should be taken to the Service Agency for repair:
1. Travel time and mileage rendered beyond the 50 mile radius limit
2. Mileage and travel time on portable equipment (see below)
3. Labor to replace such items that can be replaced easily during a daily cleaning
routine, ie; removable kettles on fryers, knobs, grease drawers on griddles, etc.
4. Installation of equipment
5. Damages due to improper installation
6. Damages from abuse or misuse
7. Operated contrary to the Operating and Installation Instructions
8. Cleaning of equipment
9. Seasoning of griddle plates
10. Voltage conversions
11. Gas conversions
12. Pilot light adjustment
13. Miscellaneous adjustments
14. Thermostat calibration and by-pass adjustment
15. Resetting of circuit breakers or safety controls or reset buttons
16. Replacement of bulbs
17. Replacement of fuses
18. Repair of damage created during transit, delivery, &
installation OR created by acts of God
* The Model 510FD Fryer.
* The Model 526TOA Toaster Oven.
* The Model J4R, 4 oz. Popcorn Machine.
* The Model 518CMA & 526CMA Cheese Melter.
* The Model 12MC & 15MC & 18MCP Hot Food Merchandisers.
* The Model 12NCPW & 15NCPW Nacho Chip/Popcorn Warmer.
* All Hot Dog Equipment except Roller Grills & Drawer Bun Warmers.
* All Nacho Cheese Warmers except Model 11WLA Series Nacho Cheese Warmer.
* All Condiment Dispensers except the Model HPD & SPD Series Dispenser.
* All Specialty Food Warmers except Model 130R, 11RW Series, and 11WSA Series.
* All QCS/RCS Series Toasters except Model QCS3 & RCS3 Series.
6
Page 7
32
16
8
31
40
21
18
20
19
41
35
2
24
36
25
4
3
1
41
40
37
33
41
42
28
27
46
5
29
40
26
15
38
37
12
17
30
OFF
ON
13
14
11
47
7
38
39
36
6
10
9
Open Here
For Buns
34

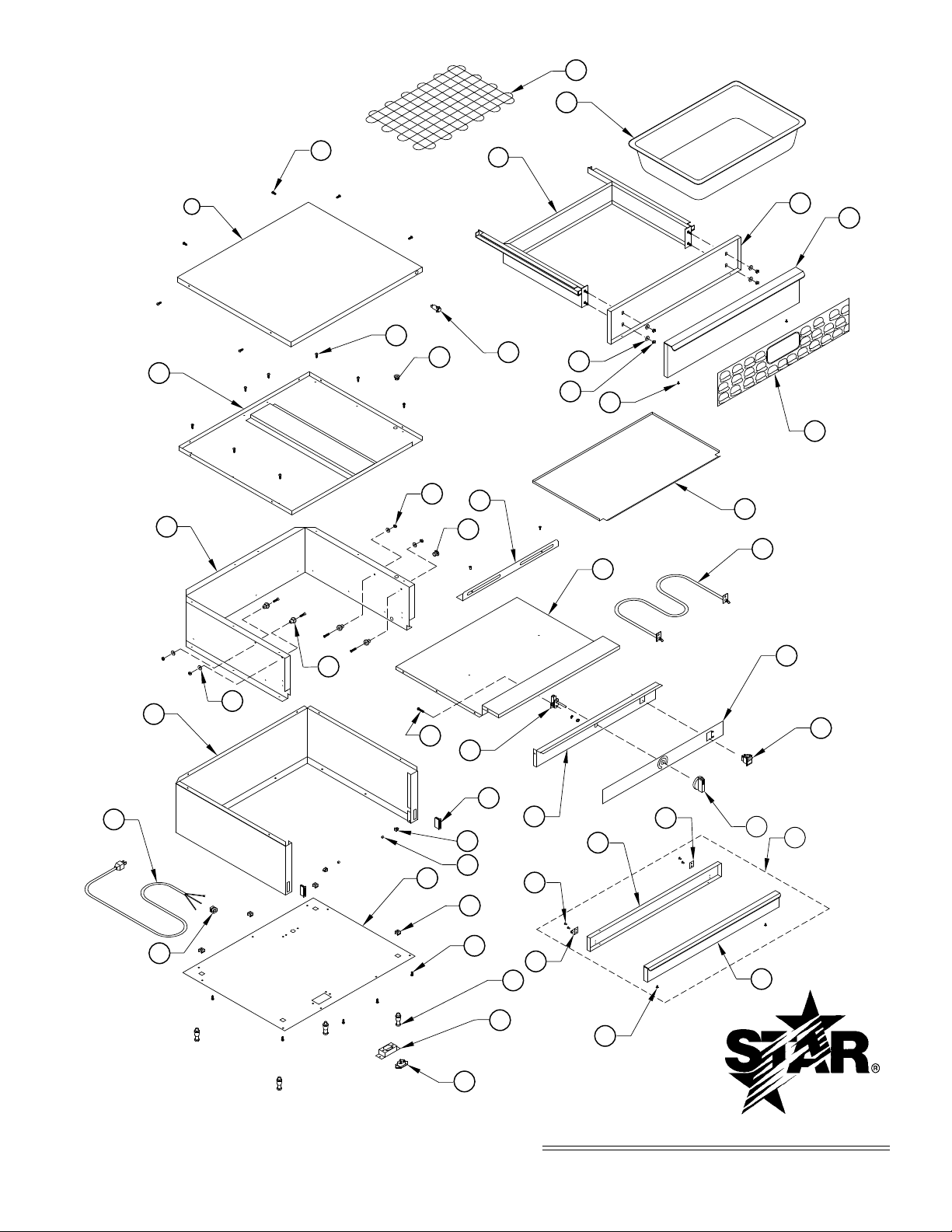

MODELS SST-20, SST-30, SST-50
STAR MANUFACTURING INTERNATIONAL, INC.
SK1632
REV B 12/9/99
7
Page 8
PARTS LIST October 2, 2009, Rev. G
SST-20 120V/230CE Drawer Roll / Bun Warmer
Fig No Part No Qty Description Application
1 A4-Z2212 1 TOP
2 A4-BW2003 1 LINER-TOP
3 A4-BW2014 1 LINER-BODY
4 A4-Z2210 1 BODY
5 A4-Z3221 1 BOTTOM
6 2D-Z5898 1 BUN PAN
7 A4-BW2013 1
8 A4-Z3328 1 DRAWER LINER
9 A4-BW2001 1 DRAWER FRONT
10 2M-Z2231 1 GRAPHIC-DRAWER
11 A4-Z5892 1 PAN COVER
12 A4-Z2214 1 ELEMENT SUPPORT
13 A4-Z2216 1 BOTTOM LINER
2N-Z2235
14
2N-Z2530 ELEMENT 300 WATTS SST-20 230CE
15 A4-Z2222 1 CONTROL PANEL
16 2M-Z2232 1
17 A4-Z2218 1 DOOR LINER
18 A4-BW2012 1 DOOR ASSY
19 2E-Z3034 1 PLUG INLET SST-20 230CE
20 A4-Z2287 1 PLUG INLET HOUSING SST-20 230CE
21 2R-Z5846 4
E4-403009
24
2E-Z0512 SST-20 230CE
25 2K-7889 1 CORDSET BUSHING SST-20 120V
26 2R-Y7330 2 MAGNETIC CATCH
27 21-Z1894 2 HINGE INSERT
28 2A-Z2233 2 HINGE SLEEVE
29 A4-Z2228 1 HINGE BRACKET LEFT
30 A4-Z2229 1
31 2R-Z1854
32 2E-Z1858 1 SWITCH ON/OFF
32 2E-Z3156 1 SWITCH ON/OFF 230 CE
33 2T-Z2236 1 THERMOSTAT
34 A4-BW2005 1
35 2P-Z0315 4 ROLLER
36 2C-1810 12 BURR RIVETING
37 2C-Z0498 8 NUT 10/24 NYLOK
38 2K-z2895 2 BUSHING SPLIT
DRAWER FRAME
ASSEMBLY
ELEMENT 300 WATTS SST-20 120V
1
GRAPHIC-CNTRL
PANEL
FOOT 3/8” STUD, 1”
HIGH
1 CORDSET
HINGE BRACKET
RIGHT
1 CONTROL KNOB
DOOR ASSEMBLY
COMPLETE
SST-20 120V
SST-20 120V/230CE Drawer Roll / Bun Warmer
Fig No Part No Qty Description Application
39 2J-Z2329 1 PILOT LIGHT
39 2J-Z3157 1 PILOT LIGHT 230 CE
40 2C-Y1451 12 RIVET .125 X .25
41 2C-6349 34
42 2C-Z2642 4 THREADED INSERT SST-20-120V
43 2C-1494 1
44 2C-1825 2
45 2C-2556 2 NUT #8-32
46 2C-H1578 1 SCREW 8-32 X 1”
47 2B-Z5847 1 BUN RACK
SCREW #8 X .375 TH
NP
SCREW 8-32 X 1/2 STL
RH
WASHER #8 EXT.
SHAKEPROOF
1
IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE
1
INCLUDE MODEL AND SERIAL NUMBER OF
Some items are included for illustrative purposes only and in certain instances may not be available.
Star Manufacturing International, Inc.
8
Page 9
PARTS LIST October 2, 2009, Rev. G
SST-30 120V/230CE Drawer Roll / Bun Warmer
SST-30 120V/230CE Drawer Roll / Bun Warmer
Fig No Part No Qty Description Application
1 A4-Z2270 1 TOP
2 A4-BW3003 1 LINER-TOP
3 A4-BW3013 1 LINER-BODY
4 A4-Z2268 1 BODY
5 A4-Z3222 1 BOTTOM
6 2D-Z5899 1 BUN PAN
7 A4-BW3012 1
8 Z4-Z3322 1 DRAWER LINER
9 A4-BW3001 1 DRAWER FRONT
10 2M-Z2286 1 GRAPHIC-DRAWER
11 A4-Z5893 1 PAN COVER
12 A4-Z2272 1 ELEMENT SUPPORT
13 A4-Z2274 1 BOTTOM LINER
2N-Z2283
14
2N-Z2389 ELEMENT 400 WATTS
15 A4-Z2280 1 CONTROL PANEL
16 2M-Z2284 1
17 A4-Z2276 1 DOOR LINER
18 A4-BW3011 1 DOOR ASSY
19 2E-Z3034 1 PLUG INLET
20 A4-Z2287 1 PLUG INLET HOUSING
21 2R-Z5846 4
E4-403009
24
2E-Z0512 CORDSET
25 2K-7889 1 CORDSET BUSHING
26 2R-Y7330 2 MAGNETIC CATCH
27 21-Z1894 2 HINGE INSERT
28 2A-Z2233 2 HINGE SLEEVE
29 A4-Z2228 1 HINGE BRACKET LEFT
30 A4-Z2229 1 HINGE BRACKET RIGHT
31 2R-Z1854
DRAWER FRAME
ASSEMBLY
ELEMENT 400 WATTS
1
GRAPHIC-CONTROL
PANEL
FOOT 3/8” STUD, 1”
HIGH
CORDSET
1
1 CONTROL KNOB
MODEL
SST-30 120V
SST-30 230CE
SST-30 230CE
SST-30 230CE
SST-30 120V
SST-30 230CE
SST-30 120V
SST-30 120V/230CE Drawer Roll / Bun Warmer
Fig No Part No Qty Description Application
32 2E-Z1858 1 SWITCH ON/OFF
33 2T-Z2236 1 THERMOSTAT
34 A4-BW3005 1
35 2P-Z0315 4 ROLLER
36 2C-1810 12 BURR RIVETING
37 2C-Z0498 8 NUT 10-24 NYLOK
38 2K-Z2895 2 BUSHING SPLIT
39 2J-Z2329 1 PILOT LIGHT
40 2C-Y1451 12 RIVET .125 X .25
41 2C-6349 34 SCREW #8 X .375 TH NP
42 2C-Z2642 4 THREADED INSERT
43 2C-1494 1
44 2C-1825 2
45 2C-2556 2 NUT #8-32
46 2C-H1578 1 SCREW 8-32 X 1”
47 2B-Z5847 1 BUN RACK
DOOR ASSEMBLY
COMPLETE
SCREW 8-32 X 1/2 STL
RH
WASHER #8 EXT.
SHAKEPROOF
SST-30-120V
1
IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE
1
INCLUDE MODEL AND SERIAL NUMBER OF
Some items are included for illustrative purposes only and in certain instances may not be available.
Star Manufacturing International, Inc.
9
Page 10
PARTS LIST August 2, 2010, Rev. G
MODEL: SST-50 120V/230CE Drawer Roll / Bun Warmer
SST-50 120V/230CE Drawer Roll / Bun Warmer
Fig
Part No Qty Description Application
No
1 A4-Z2310 1 TOP
2 A4-BW5003 1 LINER-TOP
3 A4-BW5011 1 LINER-BODY
4 A4-Z2308 1 BODY
5 A4-Z3223 1 BOTTOM
6 2D-Z5898 2 BUN PAN
7 A4-BW5010 1
8 A4-Z3316 1 DRAWER LINER
9 A4-BW5032 1 DRAWER FRONT ASY
10 2M-Z2326 1 GRAPHIC-DRAWER
11 A4-Z5894 1 PAN COVER
12 A4-Z2272 1 ELEMENT SUPPORT
13 A4-Z2314 1 BOTTOM LINER
2N-Z2324
14
2N-Z2312 ELEMENT 600 WATTS SST-50 230CE
15 A4-Z2320 1 CONTROL PANEL
16 2M-Z2327 1
17 A4-Z2316 1 DOOR LINER
18 A5-BW5009 1 DOOR ASSY
19 2E-Z3034 1 PLUG INLET SST-50 230CE
20 A4-Z2287 1 PLUG INLET HOUSING SST-50 230CE
21 2R-Z5846 4 FOOT 3/8” STUD, 1” HIGH
E4-403009
24
2E-Z0512 CORDSET SST-50 230CE
25 2K-7889 1 CORDSET BUSHING SST-50 120V
26 2R-Y7330 2 MAGNETIC CATCH
27 21-Z1894 2 HINGE INSERT
28 2A-Z2233 2 HINGE SLEEVE
29 A4-Z2228 1 HINGE BRACKET LEFT
30 A4-Z2229 1 HINGE BRACKET RIGHT
31 2R-Z1854
32 2E-Z1858 1 SWITCH ON/OFF
33 2T-Z2236 1 THERMOSTAT
DRAWER FRAME
ASSEMBLY
ELEMENT 600 WATTS SST-50 120V
1
GRAPHIC-CONTROL
PANEL
CORDSET SST-50 120V
1
1 CONTROL KNOB
SST-50 120V/230CE Drawer Roll / Bun Warmer
Fig
Part No Qty Description Application
No
34 A4-BW5005 1
35 2P-Z0315 4 ROLLER
36 2C-1810 12 BURR RIVETING
37 2C-Z0498 8 NUT 10-24 NYLOK
38 2K-Z2895 2 BUSHING SPLIT
39 2J-Z2329 1 PILOT LIGHT
40 2C-Y1451 12 RIVET .125 X .25
41 2C-6349 34 SCREW #8 X .375 TH NP
42 2C-Z2642 4 THREADED INSERT SST-50-120V
43 2C-1494 1 SCREW 8-32 X 1/2 STL RH
44 2C-1825 2
45 2C-2556 2 NUT #8-32
46 2C-H1578 1 SCREW 8-32 X 1”
47 2B-Z5847 1 BUN RACK
DOOR ASSEMBLY
COMPLETE
WASHER #8 EXT.
SHAKEPROOF
1
IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE
1
INCLUDE MODEL AND SERIAL NUMBER OF
Some items are included for illustrative purposes only and in certain instances may not be available.
Star Manufacturing International, Inc.
10
Page 11
STAR MANUFACTURING INTERNATIONAL, INC.
Rev. - 10/02/09SK2441

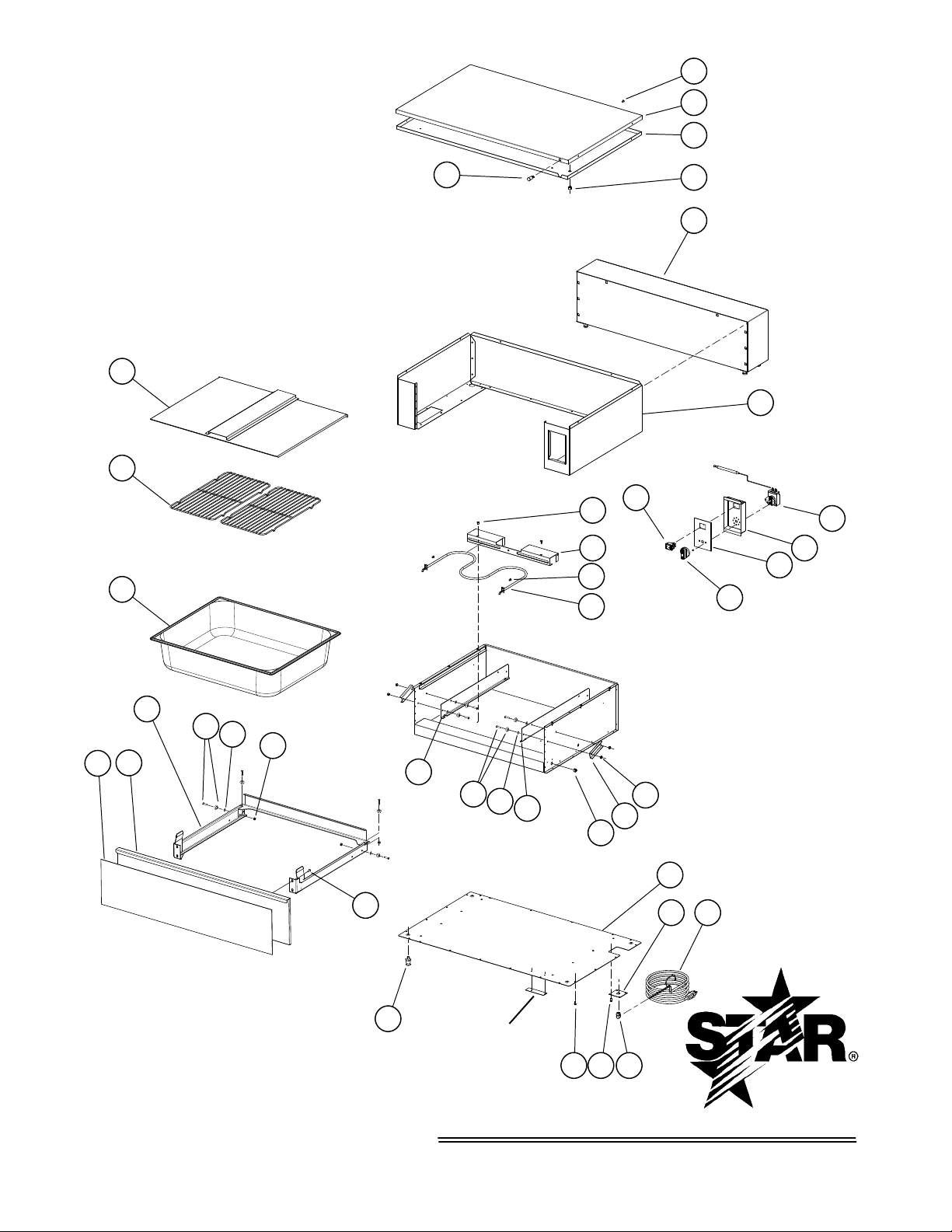

MODEL: SST-75
1
34
33
32
29
19
18
15
30
31
6
5
2
8
1
13
1
14
21
22 23
242526
Nameplate
27
12
9
10
11
15
16
4
17
18
19
17
28
3
4
7
11
Page 12
PARTS LIST October 2, 2009, Rev. G
MODEL
SST-75 120V/230CE Drawer Roll / Bun Warmer
SST-75 120V/230CE Drawer Roll / Bun Warmer
Fig No Part No. Description Qty Application
1 2C-6349 SCREW #8X3/8 B THP STL NP 10
2 A4-Z11900 TOP 1
3 A4-BW5020 TOP LINER ASSEMBLY 1
4 2K-Z2895 BUSHING HEYCO OCB-500 2
2J-Z2329 PILOT LIGHT
5
2J-Z3157 PILOT LIGHT 250V AMBER 230CE
6 8A-75BWST BUN WARMER SHELF TALL, ACCESSORY
7 A4-BW5018 BODY WRAP ASSEMBLY 1
8 2T-Y9113 THERMOSTAT 1
9 A4-Z11909 CONTROL HOUSING 1
10 2M-Z11956 OVERLAY - SST 1
11 2R-Z4621 KNOB, 1-3/4 - .250”D”HOLE 1
12 2E-Z1858 SWITCH-LIGHTED 1
13 A4-Z11947 ELEMENT BRACKET 1
2N-Z2312 ELEMENT 230V/600W
14
2N-Z2324 ELEMENT
16 2C-Z4248 NUT 10-24 NYLK SS 11
16 E9-Z3987 ROLLER SUPPORT DW/N 2
17 A4-Z11895 SLIDE RAIL 2
18 2C-1810 WASHER 3/16 BURR STL NP 4
19 2P-Z0315 BEARING-TRACK 4
21 A4-Z11897 BOTTOM 1
A4-Z11970-1 POWER INLET POCKET
22
A4-Z11970-2 POWER INLET PLATE
2E-Z0512 CORD SET, CONT. EUR 10A
23
2E-Z11975 CORDSET 18-3 5-15 PO
24 2K-7889 BUSHING HEYCO SR-11-2 1
25 2C-1513 SCREW 10-24X1/2 RHP SS 4
26 2C-Z6925 SCREW #8X1/2 HEXW B SS 37
27 2R-Z5846 FOOT-ROLLER GRILLS 4
28 2C-Z4063 SCREW 10-24X1/2 SS THP 4
29 A4-BW5017 DRAWER FRAME ASSEMBLY 1
30 A4-BW5021 DRAWER FACE ASSEMBLY 1
31 2M-Z12029 GRAPHIC, DRAWER FRONT 1
32 2D-Z11949 STEAM PAN - DOUBLE 6” 1
33 2B-Z5848 BUN RACK (LARGE) 2
34 A4-Z11899 PAN COVER 1
NI 2E-Z3034 IEC CORD INLET HOT 1 230CE
1
1
1
1
230CE
230CE
230CE
1
IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE
1
INCLUDE MODEL AND SERIAL NUMBER OF
Some items are included for illustrative purposes only and in certain instances may not be available.
Star Manufacturing International, Inc.
12
Loading...
