Star Sea Data Installation And User Manual

Installation and User Manual

Sea Data

English

Sea Data English

1

English Sea Data

2

This manual is written for Silva Star Sea Data

Edition: May 2004

Sea Data English

3

1 Introduction............................................................................................................................. 4

1.1 Specifications ................................................................................................................... 4

1.1 Part specifications ............................................................................................................ 4

2 Installation............................................................................................................................... 4

2.1 Installing the instrument ................................................................................................... 5

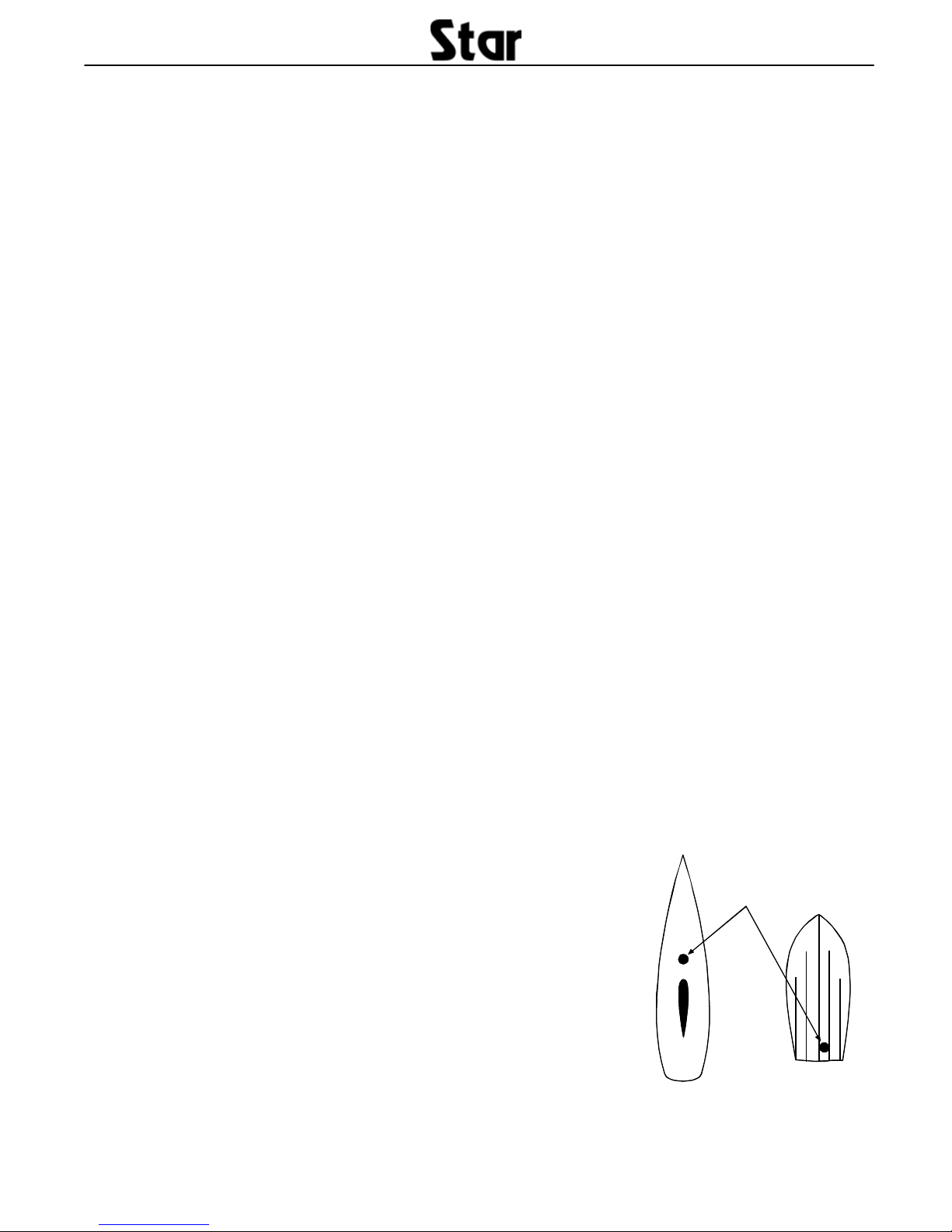

2.2 Installing transducer ......................................................................................................... 5

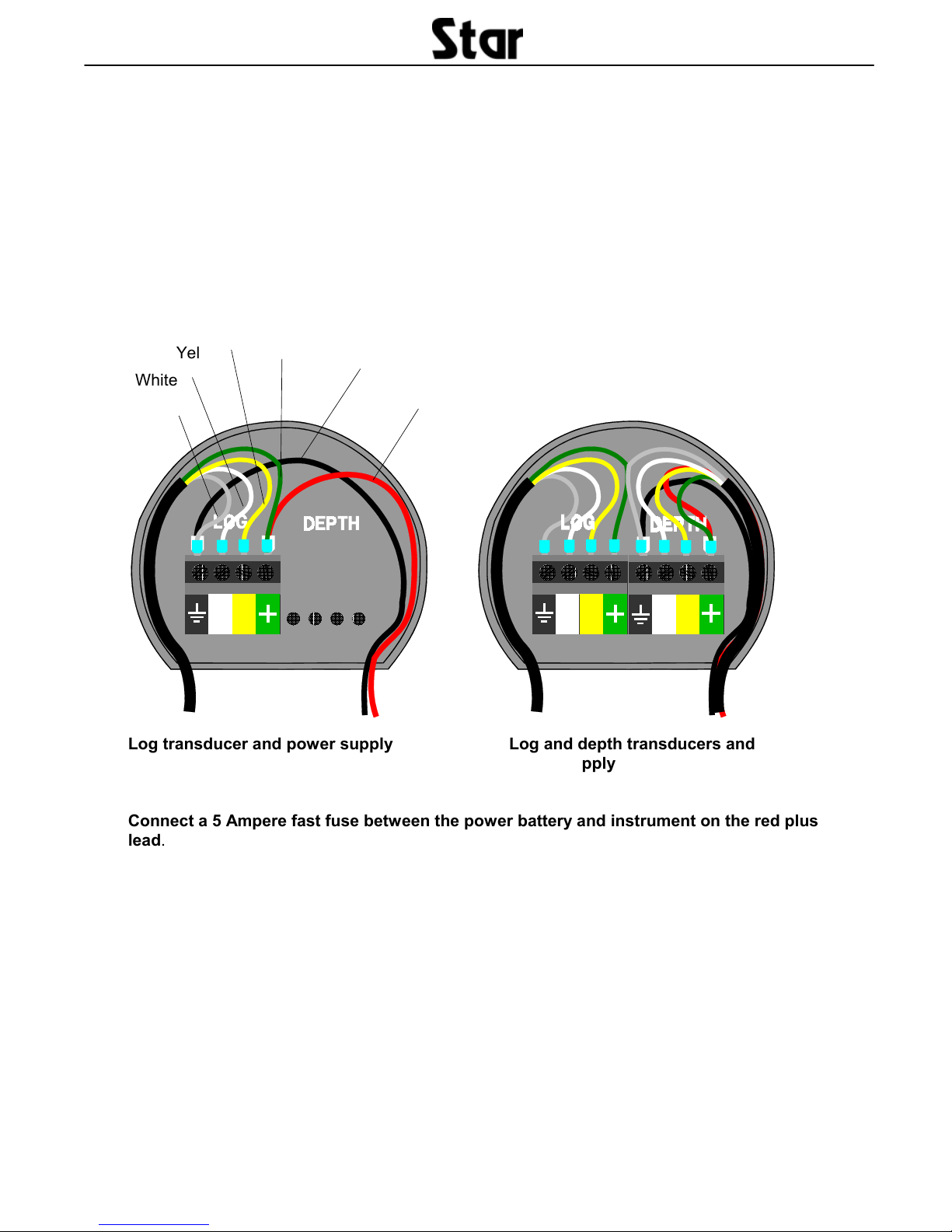

2.3 Electrical installation.........................................................................................................6

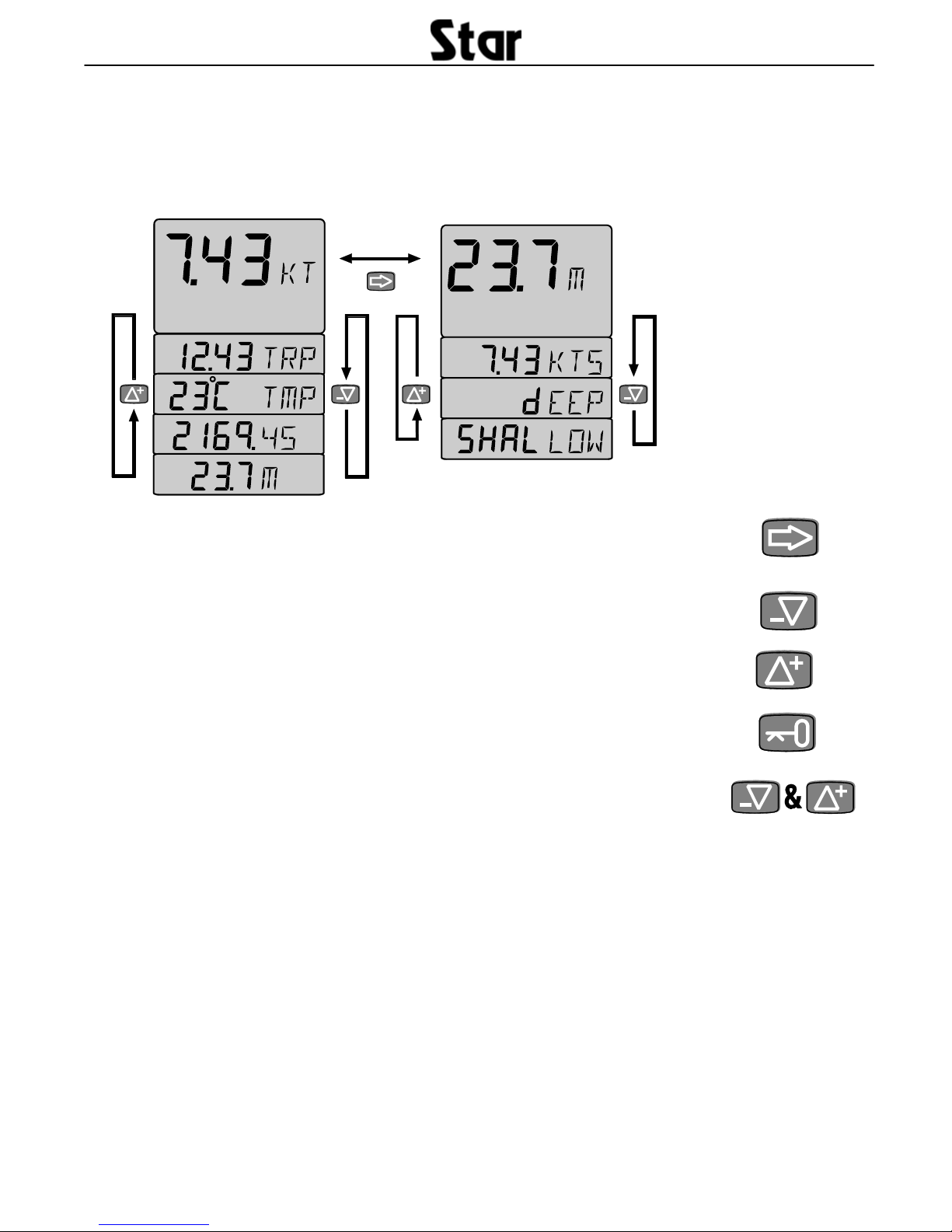

3 Function overview .................................................................................................................. 7

3.1 How to use the push buttons .................................................................................................7

3.1.1. Mode / Light button................................................................................................ 7

3.1.2. Down button........................................................................................................... 7

3.1.3. Up button ............................................................................................................... 7

3.1.4. KEY button............................................................................................................. 7

3.1.5. Clear ...................................................................................................................... 7

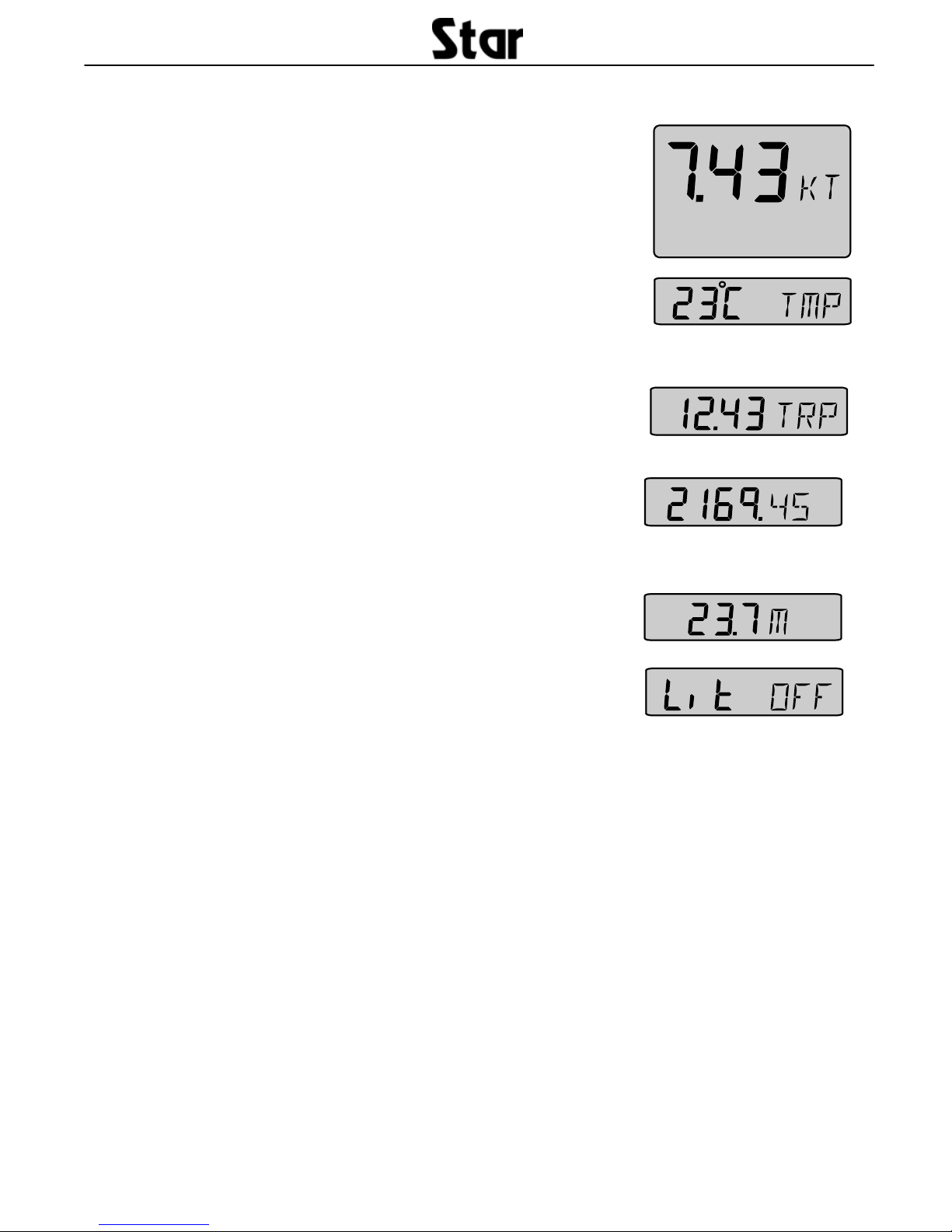

3.2. Log functions............................................................................................................... 8

3.2.1. Boat speed ............................................................................................................ 8

3.2.2. Water temperature................................................................................................. 8

3.2.3. Trip distance .......................................................................................................... 8

3.2.4. Total distance ........................................................................................................ 8

3.2.5. Depth ..................................................................................................................... 8

3.3. Illumination.................................................................................................................. 8

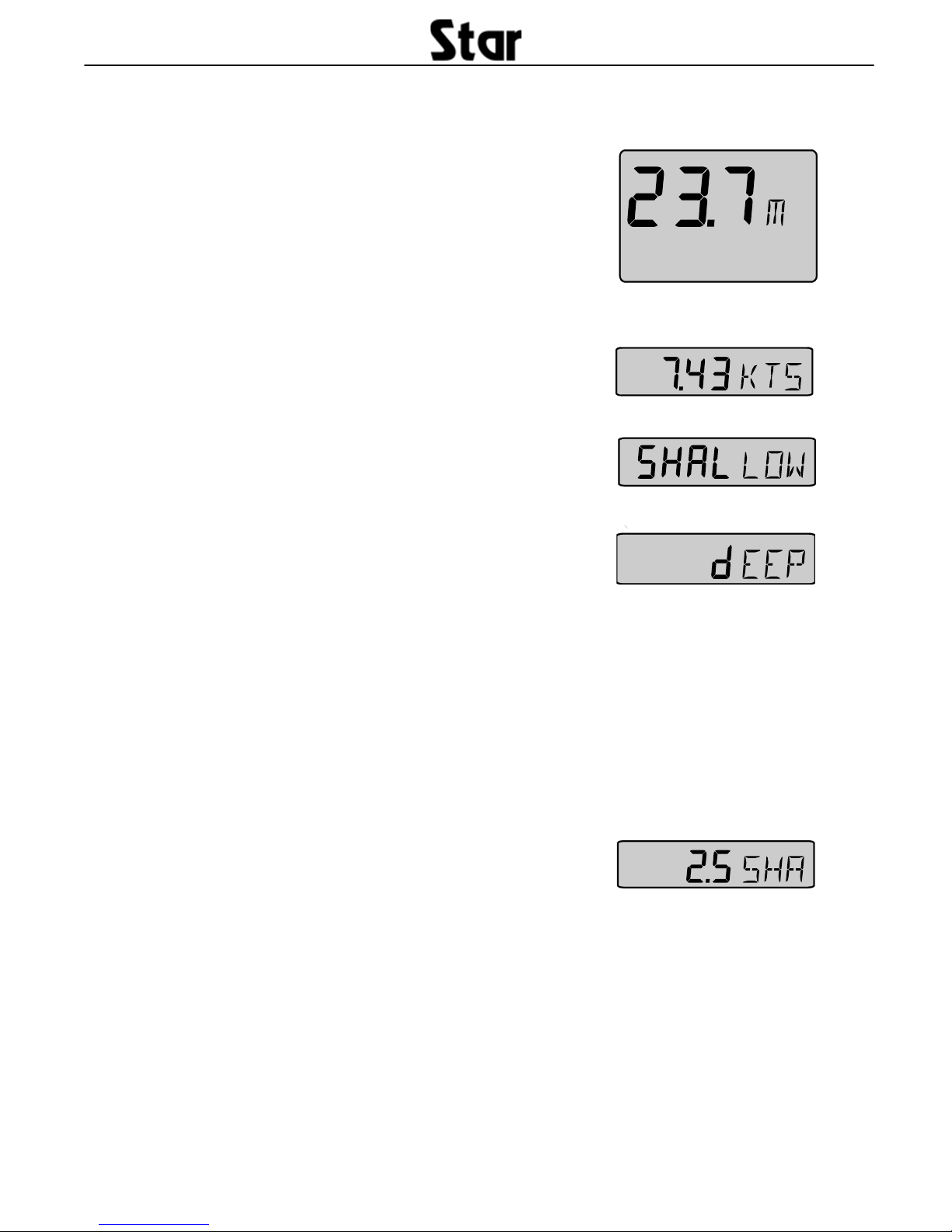

3.4. Depth functions (optional) ........................................................................................... 9

3.4.1. Boat speed ............................................................................................................ 9

3.4.2. Shallow alarm ........................................................................................................ 9

3.4.3. Deep alarm ............................................................................................................ 9

3.4.4. Silencing an alarm ................................................................................................. 9

3.4.5. Activate / Deactivate an alarm............................................................................... 9

4. Calibration ....................................................................................................................... 10

4.1. Enter and exit calibration .......................................................................................... 10

4.2. Calibration groups..................................................................................................... 10

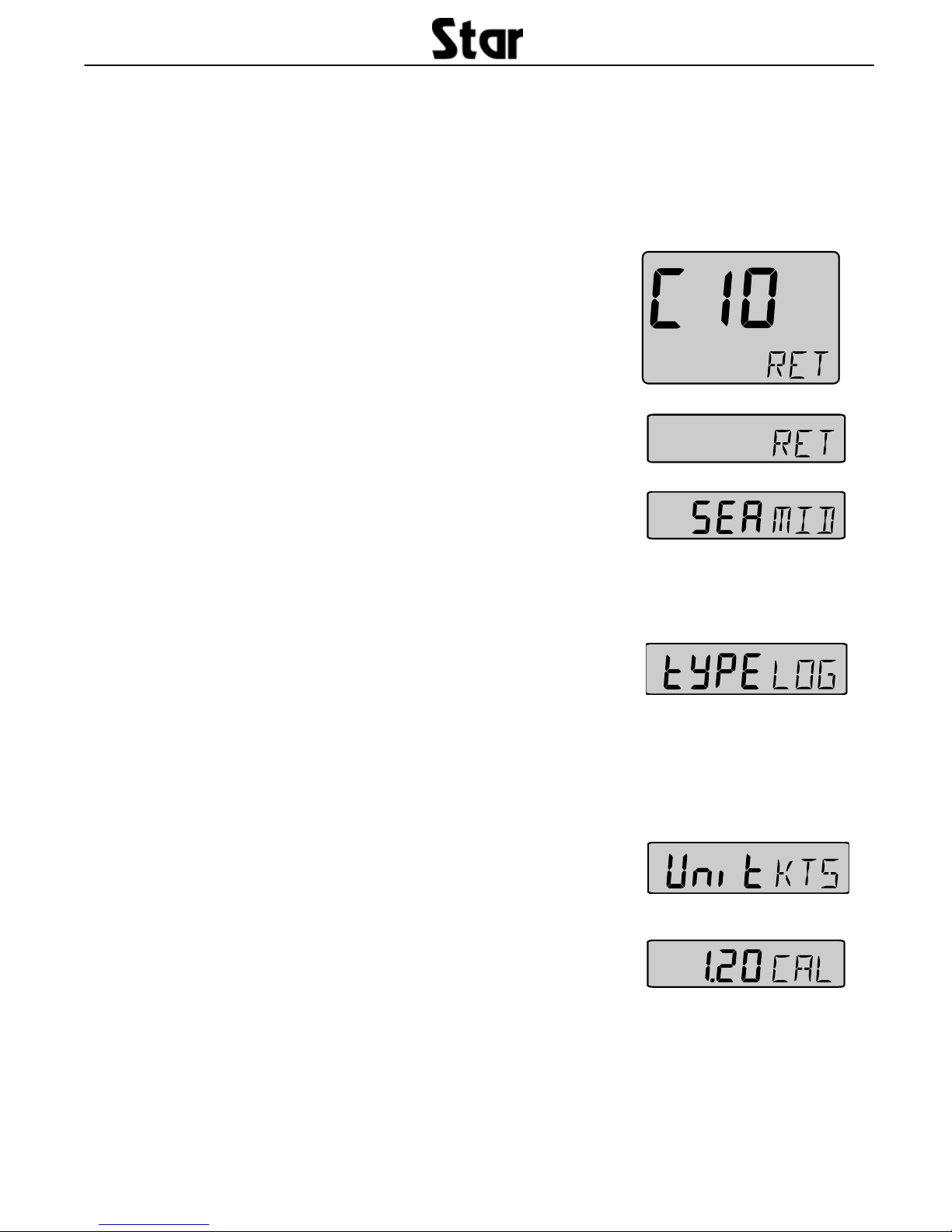

4.2.1. C10 Return (RET)................................................................................................ 10

4.2.2. C11 Damping (SEA MID)..................................................................................... 10

4.2.3. C12 Instrument type (Type LOG) ........................................................................ 10

4.2.4. C13 Unit for speed (Unit KTS)............................................................................. 10

4.2.5. C14 Speed calibration (1.20 CAL)....................................................................... 10

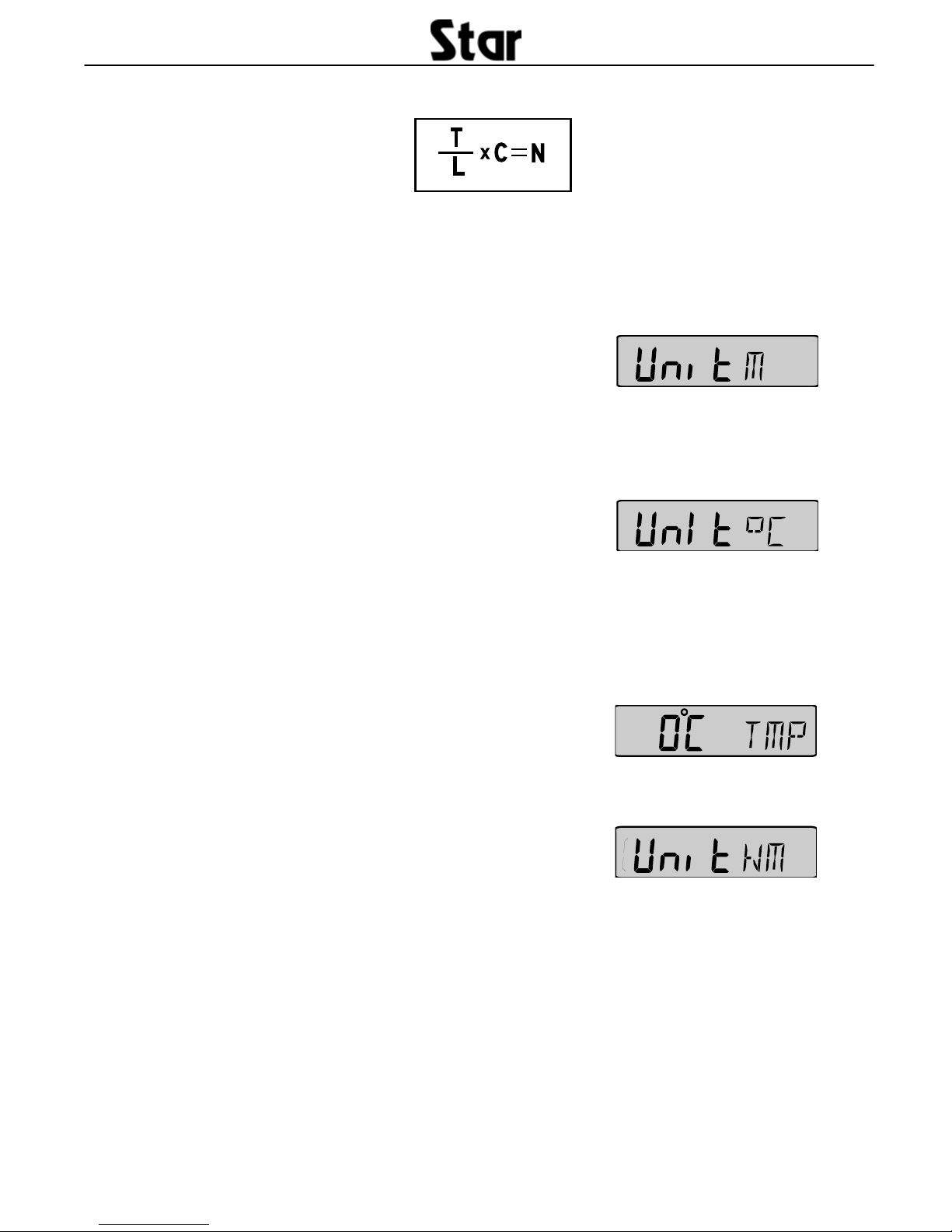

4.2.6. C15 Unit for depth (Unit M).................................................................................. 11

4.2.7. C16 Adjusting depth (0.00 ADJ) .......................................................................... 11

4.2.8. C17 Unit for temperature (Unit °C) ...................................................................... 11

4.2.9. C18 Temperature adjustment (0°C TMP)............................................................ 11

4.2.10. C19 Unit for trip and total distance (Unit NM)...................................................... 11

4.3. Customise your display............................................................................................. 12

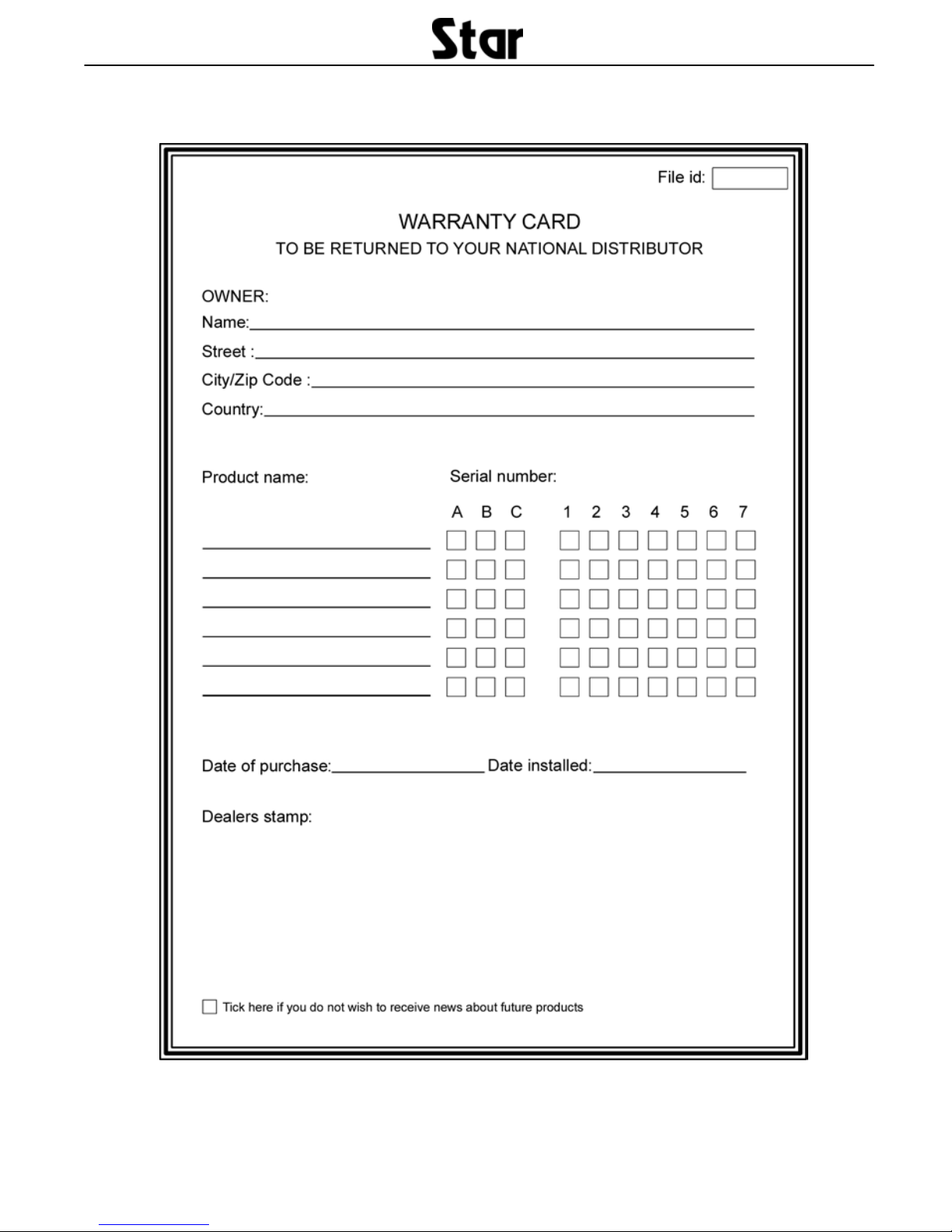

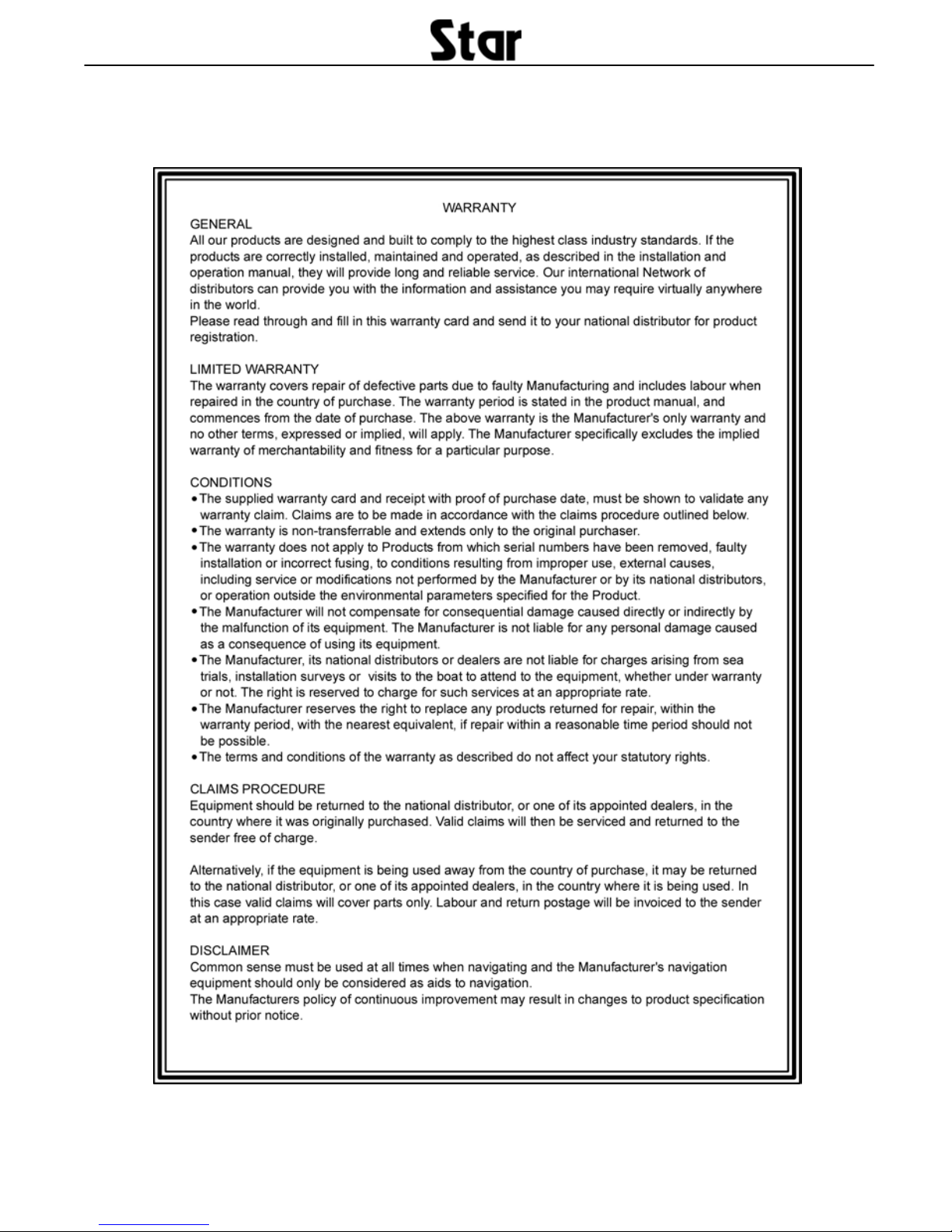

5. Warranty........................................................................................................................... 13

English Sea Data

4

1 Introduction

Thank you for choosing Star SEA Data.

SEA Data is a digital instrument which will display all necessary data from the SEA. SEA Data is
as standard, a log instrument, providing you information about speed, trip distance, total distance
and water temperature. As an option a depth transducer can be connected, giving you depth, shal­low and deep alarm.

The two transducers are connected to the back of the instrument. They are easy to install due to
the colour coded 4-pole jack plugs.

The display is divided into two lines, main function and sub function. The main function displays ei­ther speed or depth. The sub functions are divided into two lists, one under each main function.

1.1

Specifications

Speed: 0-30 knots (0-45 knots with optional high speed paddle wheel)
Trip distance: 0-199.99 Nm resetable. Stored in permanent memory.
Total distance: 0-19999.99 Nm non resetable. Stored in permanent memory.

Depth: 0.5-150 m
Deep alarm: Adjustable
Shallow alarm: Adjustable

1.1

Part specifications

Star SEA Data is delivered with all mounting material. Make sure all these parts are in the pack­age.

QTY ITEM QTY ITEM

1 Instruction for use 1 Drill template
1 Warranty card 4 Mounting screws
1 Instrument SEA Data 4 Rubber plugs
1 Instrument cover 1 Red and black power supply cable ( 3m)
1 Back cover 1 Bag with wire protectors and silicon paste
1 Screw connector

2

Installation

• The installation includes 6 major steps:

1. Read the installation and operation manual.

2. Plan where to install the transducer and instrument.

3. Install the transducer, then the instrument.

4. Run the cables.

5. Take a brake and admire your installation.

6. Learn the functions and calibrate your instrument.

• Before you begin drilling... think about how you can make the installation as neat and sim-
ple as your boat will allow. Plan where to position the transducers and instruments. Think
about leaving space for additional instruments in the future.
