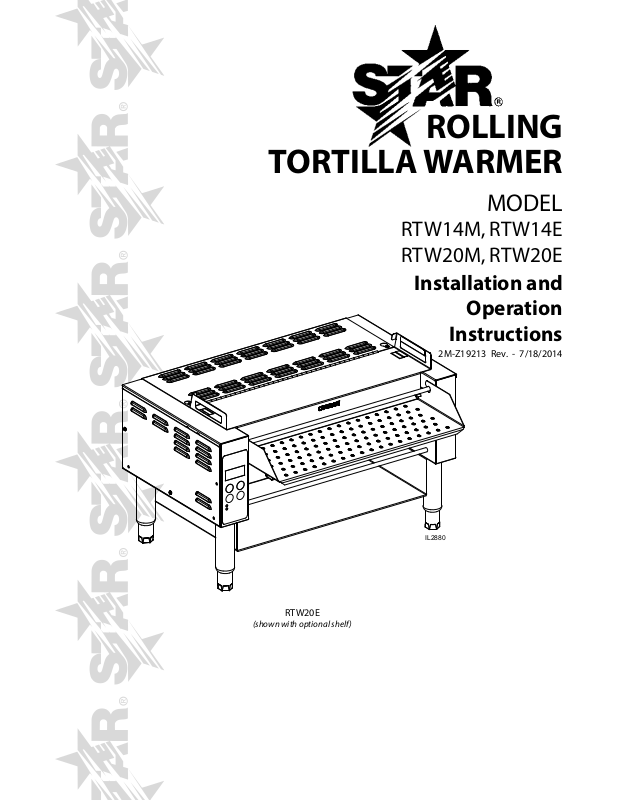

Star RTW20M Operators Manual

ROLLING

TORTILLA WARMER

MODEL

RTW14M, RTW14E
RTW20M, RTW20E

Installation and

Operation

Instructions

2M-Z19213 Rev. - 7/18/2014

IL2880

RTW20E

(shown with optional shelf)

SAFETY SYMBOL

These symbols are intended to alert the user to the presence of
important operating and maintenance instructions in the manual ac­companying the appliance.

RETAIN THIS MANUAL FOR FUTURE REFERENCE

NOTICE

Using any part other than genuine Star factory supplied parts relieves the
manufacturer of all liability.

Star reserves the right to change specications and product design without

notice. Such revisions do not entitle the buyer to corresponding changes,
improvements, additions or replacements for previously purchased
equipment.

Due to periodic changes in designs, methods, procedures, policies and

regulations, the specications contained in this sheet are subject to change
without notice. While Star Manufacturing exercises good faith efforts to provide
information that is accurate, we are not responsible for errors or omissions

in information provided or conclusions reached as a result of using the

specications. By using the information provided, the user assumes all risks in
connection with such use.

MAINTENANCE AND REPAIRS

Contact your local authorized service agent for service or required maintenance. Please record

the model number, serial number, voltage and purchase date in the area below and have it ready when you call to ensure

a faster service.

Authorized Service Agent

Model No.

Serial No.

Voltage

Purchase Date

Reference the listing provided with the unit

or

for an updated listing go to:

Website: www.star-mfg.com
E-mail [e-mail]
Telephone: [phone] Local [phone]

Service Help Desk

Business 8:00 am to 4:30 p.m. Central Standard Time
Hours:

Telephone: [phone] Local [phone]

Fax: [phone] Local [phone]

E-mail [e-mail]

[e-mail]

[e-mail]

Website: www.star-mfg.com

Mailing Address: Star International Holdings Inc., Company

10 Sunnen Drive
St. Louis, MO 63143
U.S.A

2

TABLE OF CONTENTS

Specications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Features & Benits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Uncrating & Inspecting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Electrical Connetion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Assembly & Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Warmer Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Daily Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-9

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Ecploded View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-14

2M-Z19213; Rolling Tortilla Warmer Manual

SPECIFICATIONS

Depth

Mobel Voltage Hz Ph Amps Watts Powercord

RTW14E

RTW14M 120V 60 1 10.4 1246 5-15P

RTW20E

RTW20M

120V 60 1 10.8 1300 5-15P

208V 60 1 8.6 1780 6-15P

240V 60 1 9.4 2247 6-15P

208V 60 1 8.2 1705 6-15P

240V 60 1 8.8 2122 6-15P

Width

Dimensions

Hieght Width Depth

19.6875”

16.5”

25.1875” 19.83” (49.8 cm)

19.5”

Height

IL2883

Warming Surface Width

14.13” (35.9 cm)240V 60 1 5.9 1426 6-15P

1

1

FEATURES & BENIFITS

E

A

B

C

D

Manually Controlled

Electronically Controlled

E

A

B

C

IL2881

F

A TOP COVER ASSY Covers the rollers

B INFEED SHELF ASSY Allows easy and safe feeding of tortillas

C LEG Keeps unit rmly in place

D SLIDE ACCESSORY: Removable chute returns product for easy access

E CONTROL PANEL Turns unit on/off, Temperture settins

F SHELF ACCESSORY: Shelf to catch tortilla once warmed

2

2M-Z19213; Rolling Tortilla Warmer Manual

CAUTION

GENERAL INFORMATION

This equipment is designed and sold for commercial use only by personnel
trained and experienced in its operation and is not sold for consumer use in and around the
home nor for use directly by the general public in food service locations.

Before using your new equipment, read and understand all the instructions & labels associated
with the unit prior to putting it into operation. Make sure all people associated with its use
understand the units operation & safety before they use the unit.

INSPECTION

UN-CRATING AND INSPECTING

Unpack the unit and components from the shipping container. Remove all visible packing

material and those from inside the cooking chamber. If damage is discovered, le a claim

immediately with the carrier that handled the shipment. Do not operate the unit if it was
damaged during shipping. All shipping containers should be checked for freight damage both
visible and concealed. This unit has been tested and carefully packaged to insure delivery of
your unit in perfect condition. If equipment is received in damaged condition, either apparent or
concealed, a claim must be made with the delivering carrier.

Concealed damage or loss - if damage or loss is not apparent until after equipment is unpacked,
a request for inspection of concealed damage must be made with carrier within 15 days. Be
certain to retain all contents plus external and internal packaging materials for inspection. The
carrier will make an inspection and will supply necessary claim forms.

ELECTRICAL CONNECTION

Disconnect the unit from the power source before installing or removing any parts.

Be absolutely sure that the ground connection for the receptacle is properly wired.
Do not connect equipment to power without proper ground connections. Improper grounding
may result in personal injury or death.

2M-Z19213; Rolling Tortilla Warmer Manual

CAUTION

Allow enough space around the toaster for adequate ventilation. Do not operate the unit

without the crumb tray properly positioned. Overheating and poor toasting may occur.
Read all labels on the unit and follow their instructions.

WARNING

Before making any electrical connection to this unit, check that the power

supply is adequate for the voltage, amperage and requirements stated on
the rating plate. A wiring diagram is included.

WARNING

DO NOT CUT OR REMOVE THIS PLUG OR THE GROUNDING PRONG FROM

THE PLUG. FAILURE TO COMPLY MAY RESULT IN DEATH OR SERIOUS
INJURY.

WARNING

CONNECT/PLUG UNIT INTO DEDICATED A. C. LINE ONLY SPECIFIED ON

THE DATA PLATE OF THE UNIT.

CAUTION

SOME SURFACES ARE EXTREMELY HOT DURING OPERATION AND CARE

SHOULD BE TAKEN WHILE USING THIS UNIT.

3

ASSEMBLY AND INSTALLATION

The unit was shipped fully assembled and ready to plug into a standard outlet specied for its voltage and amp

draw. If improper electrical supply is determined, contact a qualied electrician prior to using the unit. Removal

and replacement of the power cord and plug voids the warranty. For assistance, contact your local authorized
service agent for service or required maintenance.

1. Place the unit in its operating location.

2. Wipe down the exterior with a damp
cloth.

3. Install the legs

4. Place the Infeed Shelf into position.

5. Place the Top Cover Inner Assy in
position, followed by the Top Cover
Assy.

ACCESSORIES

Tortilla Slide: Hang the slide using the studs

on the bottom of the unit.

Drop Shelf: Install the shelf by using the legs

to hold the shelf in place.

Top Cover Assembly

Top Cover Inner Assembly

Infeed Shelf

Torilla Slide

Drop Shelf

(Optional Accessory)

Optional

Accessory

IL2885

IL2886

2M-Z19213; Rolling Tortilla Warmer Manual

4

DAILY OPERATION ELECTRONIC

RTW

ROLLING TORTILLA WARMER

RUN

SET

ON

OFF

TEMP

CLEAN

DRUM TEMP

HR POWER

CHANGING TEMPERATURE

1. Push and hold the "SET TEMP" button for three seconds.

2. The display will ash the current top temperature setting.

3. Using the ↑ and ↓ adjust the drum heat to desired temperature

(increments of 10°)

4. Press the "SET TEMP" button again to change the IR heat setting.

5. Using the ↑ and ↓ adjust the IR heating setting (0 – 10).

6. Press the "SET TEMP" button again to save the settings and exit
program mode.

CHANGING DRUM SPEEED

1. Push and hold the ↑ and ↓ for three seconds

2. Using the ↑ and ↓ adjust the motor speed to the desired

setting (1 through 99)

3. Press the "SET TEMP" button to exit the program

CHECK TEMPERATURE SETTING

1. Press the "SET TEMP" button to check the platen temperature.

CLEAN MODE

1. Press the "CLEAN" button to enter the clean mode

a. Elements will be turned OFF and the drum will continue to turn

b. The screen will ash CLEAN and WAIT.
c. When the drum has lowered to a safe temperature the screen will ash CLEAN and READY.

2. Press the "ON/OFF" button to exit the clean mode.

WARMING PROCEDURES

1. For best results, allow the unit to pre-heat for 30
minutes before using.

2. Place your tortilla onto the Infeed Shelf and slide it
into drum.

3. Your warm tortilla will exit the bottom of the unit.

CAUTION

This unit is designed to warm dry exable

products only. DO NOT attempt to run wet

2M-Z19213; Rolling Tortilla Warmer Manual

loose material through the unit.

IL2887

Above: Shown with Optional Drop Shelf

5

DAILY OPERATION - MANUAL

WARMING PROCEDURES

1. Turn the unit "ON" by turning the Drum "ON"

2. Turn the Top Heat "ON"

3. Set Heat to: 500°F

4. For best results, allow the unit to pre-heat for 30 minutes before using.

5. Place your tortilla onto the Infeed Shelf and slide around the drum.

6. Your warm tortilla will exit the bottom of the unit.

CAUTION

This unit is designed to warm dry exable products only.

DO NOT attempt to run wet loose material through the unit.

RTW

ROLLING TORTILLA WARMER

OFF

150

500

450

400

350

H

T

E

O

A

P

T

200

250

300

CHANGING DRUM SPEEED

1. Remove the plug on the bottom on the control side.

2. Using a at screwdriver, adjust the poteniometer to increase or

decrease the drum speed.

3. Reinstall the plug.

IL2890

D
R
U
M

IL2888

IL2887

Above: Shown with Optional Drop Shelf

2M-Z19213; Rolling Tortilla Warmer Manual

6

CLEANING

Preventive maintenance for your unit consists of the following recommended cleaning procedures. To

keep your tortilla roller in top operating condition, these steps should be performed daily or weekly as
indicated.

Daily Cleaning

1. Press and hold the CLEAN button to enter cleaning mode.

a. The screen will ash “CLEAN” “WAIT” while the unit cools down to a safe temperature.
b. The screen will ash “CLEAN” “READY” when the unit has cooled to a safe temperature.

2. Remove the Top Cover Inner assembly and wipe it down with a damp cloth.

3. Remove the Infeed Shelf & (optional) Slide and wash using warm water and mild detergent.

4. Wipe the drum using a damp cloth.

5. Reassemble the parts previously removed.

DO NOT IMMERSE OR LET THE UNIT STAND IN WATER.
DO NOT HOSE DOWN THE UNIT OR THE TABLE/COUNTER IF THE

WARNING

UNIT IS ON THE TABLE/COUNTER.

KEEP AWAY FROM RUNNING WATER.

CAUTION

DO NOT use caustic cleaners on any surface of the unit, or Teon Sheet

Wipe with damp Cloth

Clean using warm water

and mild detergent

IL2889

2M-Z19213; Rolling Tortilla Warmer Manual

7

MAINTENANCE PROCEDURES

A. Replacing the Fan Motor

1. DISCONNECT UNIT FROM POWER SOURCE

2. Remove the screws holding the rear panel and lower the panel.

3. Remove the (4) screws holding the fan motor and fan guard.

4. Unplug the power supply cord from the fan motor.

5. Put replacement motor and existing fan guard in place and secure with previously removed
hardware.

6. Reconnect power supply cord to fan motor.

7. Secure the rear panel using hardware previously removed.

B. Replacing the Belt Drive Motor

1. DISCONNECT UNIT FROM POWER SOURCE

2. Remove the right side panel

3. Remove sprocket & chain from drive motor.

4. Remove the rear panel

5. Disconnect the tachometer connection on the top of the drive motor.

5. Disconnect drive motor wire connection from speed control.

6 Remove the (4) screws securing drive motor to gear motor mount

7. Remove the drive motor out of the rear of the unit.

8. Install the new Drive Motor to the existing Gear Motor Mount using existing hardware

9. Connect the new drive motor to speed control.

10. Reconnect the tachometer to the top of the drive motor.

11. Connect Drive Motor Sprocket & Chain make sure it’s lined up with the Driven Sprocket

12. Install Side & Rear Panels

NOTE The two sprockets should line up parallel with each other, so the chain does not twist
any during operation. Also the hub gets installed closets to the motor.

C. Clean the Air Intake (Once A Week)

1. DISCONNECT UNIT FROM POWER SOURCE.

2. Use a vacuum cleaner and or a damp cloth to clean the air intake.

D. Lubricate the Chain & Sprockets (Every 6 Months)

1. DISCONNECT UNIT FROM POWER SOURCE.

2. Remove right side panel exposing chain drive.

3. While wearing rubber gloves and using an extreme pressure,
synthetic chain lubricant with a temperature range up to
400°F (204°C) lubricate chain and sprockets. Apply liberally.
This grease is available as part no. 1L-Z12397 .

4. Replace side panel, Reconnect power source and test unit.

2M-Z19213; Rolling Tortilla Warmer Manual

8

Visit our Website at:

www.star-mfg.com Email: [e-mail]

THOROUGHLY INSPECT YOUR UNIT ON ARRIVAL

This unit has been tested for proper operation before leaving our plant to insure delivery of your unit in perfect condition. However, there are instances in
which the unit may be damaged in transit. In the event you discover any type of damage to your product upon receipt, you must immediately contact the
transportation company who delivered the item to you and initiate your claim with same. If this procedure is not followed, it may affect the warranty
status of the unit.

All workmanship and material in Star products have a one (1) year limited warranty on parts & labor in the United States and Canada. Such warranty is
limited to the original purchaser only and shall be effective from the date the equipment is placed in service. Star's obligation under this warranty is limited
to the repair of defects without charge, by the factory authorized service agency or one of its sub-agencies. Models that are considered portable (see below)
should be taken to the closest Star service agency, transportation prepaid.

LIMITED EQUIPMENT WARRANTY

> Star will not assume any responsibility for loss of revenue.

> On all shipments outside the United States and Canada, see International Warranty.

* The warranty period for the JetStar six (6) ounce & Super JetStar eight (8) ounce series popcorn machines is two (2) years.

* The warranty period for the Chrome-Max Griddles is five (5) years on the griddle surface. See detailed warranty provided with unit.

* The warranty period for Teflon/Dura-Tec coatings is one year under normal use and reasonable care. This warranty does not apply if damage occurs to

Teflon/Dura-Tec coatings from improper cleaning, maintenance, use of metallic utensils, or abrasive cleaners. This warranty does not apply to the
“non-stick” properties of such materials.

> This warranty does not apply to "Special Products" but to regular catalog items only. Star's warranty on "Special Products" is six (6) months on parts

and ninety (90) days on labor.

> This warranty does not apply to any item that is disassembled or tampered with for any purpose other than repair by a Star Authorized Service Center or

the Service Center's sub-agency.

> This warranty does not apply if damage occurs from improper installation, misuse, wrong voltage, wrong gas or operated contrary to the Installation and

Operating instructions.

> This warranty is not valid on Conveyor Ovens unless a "start-up/check-out" has been performed by a Factory Authorized Technician.

PARTS WARRANTY

Parts that are sold to repair out of warranty equipment are warranted for ninety (90) days. The part only is warranted. Labor to replace the part is
chargeable to the customer.

SERVICES NOT COVERED BY WARRANTY

1. Travel time and mileage rendered beyond the 50 mile radius limit

2. Mileage and travel time on portable equipment (see below)

3. Labor to replace such items that can be replaced easily during a daily cleaning
routine, ie; removable kettles on fryers, knobs, grease drawers on griddles, etc.

4. Installation of equipment

5. Damages due to improper installation

6. Damages from abuse or misuse

7. Operated contrary to the Operating and Installation Instructions

8. Cleaning of equipment

9. Seasoning of griddle plates

PORTABLE EQUIPMENT

Star will not honor service bills that include travel time and mileage charges for servicing any products considered "Portable" including items listed below.
These products should be taken to the Service Agency for repair:

* The Model 510FD Fryer.
* The Model J4R, 4 oz. Popcorn Machine.
* The Model 518CMA & 526CMA Cheese Melter.
* The Model 12MC & 15MC & 18MCP Hot Food Merchandisers.
* The Model 12NCPW & 15NCPW Nacho Chip/Popcorn Warmer.
* All Hot Dog Equipment except Roller Grills & Drawer Bun Warmers.
* All Nacho Cheese Warmers except Model 11WLA Series Nacho Cheese Warmer.
* All Condiment Dispensers except the Model HPDE, & SPDE Series Dispenser.
* All Specialty Food Warmers except Model 130R, 11RW Series, and 11WSA Series.
* All QCS/RCS Series Toasters except Model QCS3 & RCS3 Series.

The foregoing warranty is in lieu of any and all other warranties expressed or implied and constitutes the entire warranty.

2M-Z19213; Rolling Tortilla Warmer Manual

Should you need any assistance regarding the Operation or Maintenance of any Star equipment; write, phone, fax or email our Service Department.

In all correspondence mention the Model number and the Serial number of your unit, and the voltage or type of gas you are using.

FOR ASSISTANCE

10 . Voltage conversions
11 . Gas conversions
12 . Pilot light adjustment
13 . Miscellaneous adjustments
14 . Thermostat calibration and by-pass adjustment
15 . Resetting of circuit breakers or safety controls or reset buttons
16 . Replacement of bulbs
17 . Replacement of fuses
18 . Repair of damage created during transit, delivery, &

installation OR created by acts of God

ALL:
* Pop-Up Toasters
* Butter Dispensers
* Pretzel Merchandisers
* Pastry Display Cabinets
* Nacho Chip Merchandisers
* Accessories of any kind
* Sneeze Guards
* Pizza Ovens
* Heat Lamps
* Pumps

Part# 2M-4497-2 05/06 RB

9

WIRING DIAGRAM RTW-E

DRUM ELEMENT:
TEMP CONTROL

IR ELEMENT:
ON/OFF

CF

R

PL

IRS

T/S

R

MPS

GM

SC

TACH
SPEED

MOTOR

MOTOR

AC LINE NUE

AC LINE

NOTES:

1. HOLD BACK-UP NUT WHEN TIGHTENING ELEMENT TERMINALS TO PREVENT TWISTING THE COLD PIN

2. MAKE CERTAIN THAT BULB IS CLAMPED TO ELEMENT BRACKET

3. MAKE CERTAIN THAT CAPILLARY TUBE FIBERGLASS SLEEVE IS IN PLACE
CF: COOLING FAN
GM: GEARMOTOR
IRS: INFRARED SWITCH
MPS: MAIN POWER SWITCH
PL: PILOT LIGHT
T/S: THERMOSTAT
FC: FAN CORD (WIRES NOT MARKED)

GND

1 3

2

10

11

FC

13
12

6

7

4

8

15

16

WIRING DIAGRAM RTW-MANUAL

2M-Z18734

WIRING DIAGRAMS

INFRARED ELEMENT:
POWER CONTROL

I/O BOARD

MOTOR

TACH

CONTROL

BOARD

BACKSIDE

COMM

YEL(+) RED(-)

T/C

CF

FC

DRUM ELEMENT:
TEMP CONTROL

10

HT2

OT2 L2 M2 F2 OT1 HB2

14

11

3

4

120V
240V
240V
120V

L1 F1 M1

GND

WHT BLK

1

2

HB1 HT1

2M-Z18733

2M-Z19213; Rolling Tortilla Warmer Manual

10

ACCESSORIES

RTW14 RTW20

WALL MOUNT

D6-Z19176

SHELF SHELF

D6-Z19189 (used with legs) shown D6-Z19105 (used with wall mount) shown

D6-Z19190 (used with wall mount) D6-Z19188 (used with legs)

WALL MOUNT

D6-Z19175

2M-Z19213; Rolling Tortilla Warmer Manual

SLIDE SLIDE

D6-Z18679 D6-Z18886

IL2892

11

1

2

3

36

35

21

45

6

7

54

30

8

29

11

10

9

7

33

51

32

54 55

52

46

42

31

56

45

44

55

43

53

50

35

49

48

47

7

34

28

17

15

27

12

13

14

16

17

7

18

19

7

17

26

25

24

23

22

7

20

21

41

Model: RTW Tortilla Warmer
Manual Controls

37

38

39

40

SK2811, Rev. - 9/05/14

2M-Z19213; Rolling Tortilla Warmer Manual

12

2M-Z19213; Rolling Tortilla Warmer Manual

PARTS LIST September 19, 2014, Rev. -

Model: RTW Mechanically Controlled Tortilla Warmer

Fig No Part Number Qty Description Application

D6-RTW010

1

D6-RTW011 TOP COVER ASSY RTW20 RTW20

D6-RTW007

2

D6-RTW017 TOP COVER INNER ASSY 20 RTW20

3 D6-RTW003 1 IR ELEMENT SHIELD ASSY

4 2C-1513 1 SCREW 10-24X1/2 RHP SS

2N-Z18560

5

2N-Z18564 RTW ELEMNT 20IR 208M/240E RTW20M-208

2N-Z18566 RTW ELEMENT 20 IR 240M RTW20M-240

6 D6-Z18662 1 IR ELEMENT SUPPORT-LOOP

7 2C-Z6929 25 10-24 KEPS NUT S.S.

8 2J-Z19099 1 ENCODER CABLE MAN CONTRL

2J-Z19096

9

2J-Z19097 SPEED CONTROL 230V RTW20M

10 D6-Z20000 1 CONTROL BRACKET RTW

D6-Z18686

11

D6-Z19061 REAR CONTROL COVER RTW20 RTW20

2U-Z18557

12

2U-Z18558 FAN,AXIAL-80mm 230V RTW20M

13 2R-Z18593 1 FAN GUARD-80MM

14 2C-Z9632 4 10-32 X 1/2 SCREW FZA

2U-Z18652

15

2U-Z18653 GEARMOTOR, TW-240V RTW20M-208/240V

16 D6-Z18669 1 GEARMOTOR MOUNT

17 2C-1810 15 WASHER 3/16 BURR STL NP

18 2C-1505 4 SCREW 10-32X3/8 ST RH NP

19 2P-Z18598 1 SPROCKET 35B10X1/2

20 D6-Z18437 1 SIDE PANEL, RIGHT

21 2C-200004 36 SCREW 6-32X5/16 THP SS

22 2P-Z18602 1 CHAIN #35 18” 48 LINKS

23 2C-Z18671 1 SCREW, SHOULDER 1/2x2

24 2P-Z18416 1 DOUBLE SPROCKET ASSY

25 2P-Z18419 1 CHAIN #25 18.5” 74 LINKS

26 2P-Z8779 1 SPROCKET 25P-11T .313 ID

27 D6-RTW004 1 IDLER ASSY - RTW

28 2P-Z18422 1 THRUST WASHER HI-TEMP

29 2P-Z18417 1 FLANGE BEARING,1/2”

30 2P-Z18423 1 THRUST WASHER HI-TEMP

2D-Z19101

31

2D-Z19102 DRUM RTW20 COATED RTW20

1

1

1

1

1

1

1

1

TOP COVER ASSY RTW14 RTW14

TOP COVER INNER ASSY 14 RTW14

RTW ELEMENT 14 IR 120M RTW14M

SPEED CONTROL 115V RTW14M

REAR CONTROL COVER RTW14 RTW14M

FAN,AXIAL-80mm 120V RTW14M

GEARMOTOR, TW-120V RTW14M

DRUM RTW14 COATED RTW14

13

PARTS LIST September 19, 2014, Rev. -

Model: RTW Mechanically Controlled Tortilla Warmer

Fig No Part Number Qty Description Application

2N-Z18561

32

2N-Z18567 RTW ELEMENT 20 DRUM 240 RTW20

33 D6-Z18670 1 DRUM BEARING-MAN.

34 D6-Z18661 1 DRUM ELEMENT SUPPORT

35 2T-Z15211 1 T-STAT 550F K-TYPE

36 2C-Z13630 1 HALF CLAMP, .250 DIA.

37 2C-Z6925 4 SCREW #8X1/2 HEXW B SS

D6-Z18666

38

D6-Z18889 REAT TORTILLA SLIDE 20 RTW20

39 2A-307628 4 LEG 6 ADJ 1/2-13 SS

D6-Z18679

40

D6-Z18886 TORTILLA SLIDE RTW20 RTW20

D6-Z19189

D6-Z19190 RTW14 SHELF, w/WALL MOUNT

41

D6-Z19188 RTW20 SHELF, w/LEGS

D6-Z19105 RTW20 SHELF, w/WALL MOUNT

D6-RTW020

42

D6-RTW021 INFEED SHELF ASSY RTW20 RTW20

43 2C-Z4063 4 SCREW 10-24X1/2 SS THP

44 2C-1827 4 WASHER #10 EXT STL NP

2A-Z18673

45

2A-Z18701 INFEED SUPPORT ROD RTW20 RTW20

46 2J-Y6690 1 PILOT LIGHT 240V

47 D6-RTW005 1 KNOB ASSY - RTW

48 2E-Z1858 2 SWITCH-LIGHTED

49 2M-Z18520 1 LABEL,CONTROL TW MANUAL

50 2P-Z1735 1 PLUG CAP 3/4

51 2K-Y8571 1 BUSHING SNAP 2 1/8

52 2J-Z19098 1 SPEED CONTROL POT 10kOHM

53 D6-Z18436 1 SIDE PANEL, LEFT

54 2C-1488 8 SCREW 6-32X3/8 RHP STL NP

55 2P-Z18569 2 INFEED ROLLER BEARING

2D-Z18600

56

2D-Z18601 INFEED ROLLER RTW20 RTW20

NI 2E-200375 1 CORD SET, 14/3 120V EZ10 RTW14

NI 2E-Z19137 1 CORDSET, 14/3 6-15 TERMS RTW20

NI WD-Z18734 -- WIRING DIAGRAM RTW-MAN

1

1

Accessory

Accessory

1

2

1

RTW ELEMENT 14 DRUM 120 RTW14

REAR TORTILLA SLIDE 14 RTW14

TORTILLA SLIDE RTW14 RTW14

RTW14 SHELF, w/LEGS

INFEED SHELF ASSY RTW14 RTW14

INFEED SUPPORT ROD RTW14 RTW14

INFEED ROLLER RTW14 RTW14

RWT14

RWT20

14

2M-Z19213; Rolling Tortilla Warmer Manual

1

2

3

4

5

6

9

10

11

7 8

12

56

14

54

47

55

28

46

29

34

36

35

30

31

8

23

13

32

33

37

8

27

53

505152

8

49

48

10

21

38

15

22

39

23

16

41

23

8

40

20

24

17

18

19

8

26

25

27

2M-Z19213; Rolling Tortilla Warmer Manual

Model: RTW Tortilla Warmer
Electronic Controls

42

43

44

SK2812, Rev. - 9/05/14

15

PARTS LIST September 19, 2014, Rev. -

Model: RTW Electronically Controlled Tortilla Warmer

Fig No Part Number Qty Description Application

1 2C-Z10075 2 SCREW-1/4-20X3/8 SS THS

D6-RTW010

2

D6-RTW011 TOP COVER ASSY RTW20 RTW20

D6-RTW007

3

D6-RTW017 TOP COVER INNER ASSY 20 RTW20

D6-RTW003

4

D6-RTW015 IR ELEMENT SHIELD ASSY 20 RTW20

5 2C-1513 1 SCREW 10-24X1/2 RHP SS

2N-Z18559

2N-Z18562 RTW ELEMENT 14 IR 240E RTW14E-240

6

2N-Z18564 RTW ELEMENT 20IR 208M/240E RTW20E-240

2N-Z18565 RTW ELEMENT 20 IR 208E RTW20E-208

7 D6-Z18662 1 IR ELEMENT SUPPORT-LOOP

8 2C-Z6929 25 10-24 KEPS NUT S.S.

9 2C-1488 8 SCREW 6-32X3/8 RHP STL NP

10 2P-Z18569 2 INFEED ROLLER BEARING

2D-Z18600

11

2D-Z18601 INFEED ROLLER RTW20 RTW20

12 2P-Z8779 1 SPROCKET 25P-11T .313 ID

13 2J-Z18765 1 ENCODER CABLE E-CONTROLS

14 2E-Z17513 1 POWER BOARD

D6-Z18686

15

D6-Z19061 REAR CONTROL COVER RTW20 RTW20

2U-Z18557

16

2U-Z18558 FAN,AXIAL-80mm 230V RTW14E-240, RTW20E208/240

17 2R-Z18593 1 FAN GUARD-80MM

18 2C-Z9632 4 10-32 X 1/2 SCREW FZA

19 2C-Z18418 13 WASHER 3/16 X 3/8 SS

20 2C-Z7165 9 NUT 8-32 HEX SS W/EXT WSH

2U-Z18562

21

2U-Z18653 GEARMOTOR, TW-240V RTW14E-240, RTW20E208/240

22 D6-Z18669 1 GEARMOTOR MOUNT

23 2C-1810 8 WASHER 3/16 BURR STL NP

24 2C-1505 4 SCREW 10-32X3/8 ST RH NP

25 2P-Z18414 1 SPROCKET 35B13x1/2

26 D6-Z18437 1 SIDE PANEL, RIGHT

27 2C-200004 32 SCREW 6-32X5/16 THP SS

28 2K-Y2968 1 BUSHING - HEYCO 7W-2

2A-Z18673

29

2A-Z18701 INFEED SUPPORT ROD RTW20 RTW20

30 2C-1827 4 WASHER #10 EXT STL NP

1

1

1

1

1

1

1

1

2

TOP COVER ASSY RTW14 RTW14

TOP COVER INNER ASSY 14 RTW14

IR ELEMENT SHIELD ASSY 14 RTW14

RTW ELEMENT 14 IR 120E RTW14E-120

INFEED ROLLER RTW14 RTW14

REAR CONTROL COVER RTW14 RTW14

FAN,AXIAL-80mm 120V RTW14E-120

GEARMOTOR, TW-120V RTW14E-120

INFEED SUPPORT ROD RTW14 RTW14

2M-Z19213; Rolling Tortilla Warmer Manual

16

2M-Z19213; Rolling Tortilla Warmer Manual

PARTS LIST September 19, 2014, Rev. -

Model: RTW Electronically Controlled Tortilla Warmer

Fig No Part Number Qty Description Application

31 2C-Z4063 4 SCREW 10-24X1/2 SS THP

32

33 2C-Z6925 4 SCREW #8X1/2 HEXW B SS

34 2P-Z18423 1 THRUST WASHER HI-TEMP

35 2P-Z18417 1 FLANGE BEARING,1/2”

36 2P-Z18422 1 THRUST WASHER HI-TEMP

37 D6-RTW004 1 IDLER ASSY - RTW

38 2P-Z18419 1 CHAIN #25 18.5” 74 LINKS

39 2P-Z18416 1 DOUBLE SPROCKET ASSY

40 2P-Z18415 1 CHAIN #35 18.75” 50 LINKS

41 2C-Z18671 1 SCREW, SHOULDER 1/2x2

42

43 2A-307628 4 LEG 6 ADJ 1/2-13 SS

44

45

46

47

48 2P-Z18568 1 RTW BEARING TERMINAL END

49 D6-Z18661 1 DRUM ELEMENT SUPPORT

50 2J-Z18632 1 THERMOCOUPLE TYPE K

51 2C-Z13630 1 HALF CLAMP, .250 DIA.

52 2C-Z2594

53 2M-Z18246 1 LABEL, CONTROL TW ELEC

54 2J-Z17717 1 ELECTRONIC CONTROL SPEC

55 2K-Y8571 1 BUSHING SNAP 2 1/8

56 D6-Z18436 1 SIDE PANEL, LEFT

NI 2E-200237 1 CORD SET, 14/3 120V EZ10 RTW14E-120

NI 2E-Z19137 1 CORDSET, 14/3 6-15 TERMS RTW14E-240, RTW20E-208

NI WD-Z18733 = WIRING DIAGRAM RTW-ELEC RTW20E-208

D6-Z18666

D6-Z18889 REAR TORTILLA SLIDE 20 RTW20

D6-Z19189

D6-Z19190 RTW14 SHELF, w/WALL MOUNT

D6-Z19188 RTW20 SHELF, w/LEGS

D6-Z19105 RTW20 SHELF, w/WALL MOUNT

D9-Z18679

D9-Z18886 TORTILLA SLIDE RTW20 RWT20

D6-RTW020

D6-RTW021 INFEED SHELF ASSY RTW20 RTW20

2D-Z19101

2D-Z19102 DRUM RTW20 COATED RTW20

2N-Z18561

2N-Z18563 RTW ELEMENT 14 DRUM 240 RTW14E-240

2N-Z18567 RTW ELEMENT 20 DRUM 240 RTW20E

1

Accessory

Accessory

1

1

1

8 NUT 6-32 HEX W STL NP RTW20E

6 NUT 6-32 HEX W STL NP RTW14E

REAR TORTILLA SLIDE 14 RTW14

RTW14 SHELF, w/LEGS

TORTILLA SLIDE RTW14 RWT14

INFEED SHELF ASSY RTW14 RTW14

DRUM RTW14 COATED RTW14

RTW ELEMENT 14 DRUM 120 RTW14E-120

RWT14

RWT20

17

STAR INTERNATIONAL HOLDINGS INC. COMPANY

Star - Holman - Lang - Wells - Bloomeld - Toastmaster

10 Sunnen Drive, St. Louis, MO 63143 U.S.A.

[phone]

www.star-mfg.com
