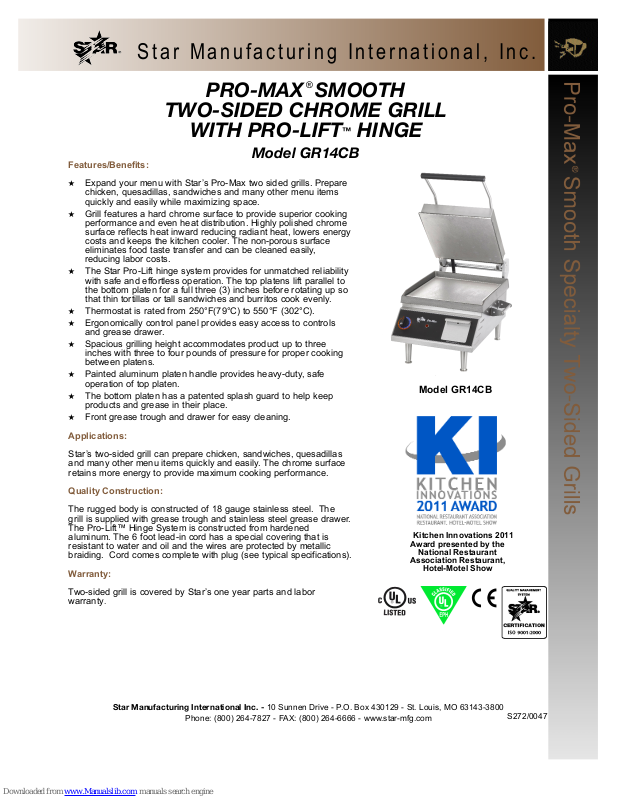

Star PRO-MAX GR14CB Specification Sheet

Phone: [phone] - FAX: [phone] - www.star-mfg.com

Star Manufacturing International Inc. - 10 Sunnen Drive - P.O. Box 430129 - St. Louis, MO 63143-3800

Model GR14CB

S272/0047

Features/Benefits:

★

Expand your menu with Star’s Pro-Max two sided grills. Prepare
chicken, quesadillas, sandwiches and many other menu items
quickly and easily while maximizing space.

★

Grill features a hard chrome surface to provide superior cooking
performance and even heat distribution. Highly polished chrome
surface reflects heat inward reducing radiant heat, lowers energy
costs and keeps the kitchen cooler. The non-porous surface
eliminates food taste transfer and can be cleaned easily,
reducing labor costs.

★

The Star Pro-Lift hinge system provides for unmatched reliability
with safe and effortless operation. The top platens lift parallel to
the bottom platen for a full three (3) inches before rotating up so
that thin tortillas or tall sandwiches and burritos cook evenly.

★

Thermostat is rated from 250°F(79°C) to 550°F (302°C).

★

Ergonomically control panel provides easy access to controls
and grease drawer.

★

Spacious grilling height accommodates product up to three
inches with three to four pounds of pressure for proper cooking
between platens.

★

Painted aluminum platen handle provides heavy-duty, safe
operation of top platen.

★

The bottom platen has a patented splash guard to help keep
products and grease in their place.

★

Front grease trough and drawer for easy cleaning.

Applications:

Star’s two-sided grill can prepare chicken, sandwiches, quesadillas
and many other menu items quickly and easily. The chrome surface
retains more energy to provide maximum cooking performance.

Quality Construction:

The rugged body is constructed of 18 gauge stainless steel. The
grill is supplied with grease trough and stainless steel grease drawer.
The Pro-Lift™ Hinge System is constructed from hardened
aluminum. The 6 foot lead-in cord has a special covering that is
resistant to water and oil and the wires are protected by metallic
braiding. Cord comes complete with plug (see typical specifications).

Warranty:

Two-sided grill is covered by Star’s one year parts and labor
warranty

.

PRO-MAX SMOOTH

TWO-SIDED CHROME GRILL

WITH PRO-LIFT™HINGE

Model GR14CB

®

S t a r M a n u f a c t u r i n g I n t e r n a t i o n a l , I n c .

Kitchen Innovations 2011

Award presented by the

National Restaurant

Association Restaurant,

Hotel-Motel Show

Phone: [phone] - FAX: [phone] - www.star-mfg.com

Star Manufacturing International Inc. - 10 Sunnen Drive - P.O. Box 430129 - St. Louis, MO 63143-3800

Two-sided grill is constructed with a stainless steel body and smooth chrome plated plates. Precise temperature control . The Pro­Lift™ Hinge System provides easy operation of both top platens. Grilling height between platens is up to 3" with The Pro-Lift™
Hinge System providing 3-4 pounds of pressure to the cooking product placed on bottom platen. Metal sheathed tubular elements
and adjustable non-skid feet are standard. Unit has six foot power cord with NEMA plug. Units approved with UL, UL Sanitation
or UL Canada Standards. Printed in the U.S.A.

(A) (B) (C) (D) Approximate Weight

Model Grid Width Depth Closed Open Voltage Wattage Amps NEMA Shipping Installed
No. Surface Inches Inches Inches Inches Plug Ibs. Ibs.

(cm) (cm) (cm) (cm) (kg) (kg)

GR14CB Chrome 16 23-1/8 17-1/4 34-5/8 208/240V 2700/3600 13/15 6-20P 101 90

(40.6) (58.7) (43.8) (88.0) (45.9) (40.9)

Typical Specifications

PRO-MAX SMOOTH

TWO-SIDED CHROME GRILL

WITH PRO-LIFT™HINGE

Model GR14CB

®

Due to periodic changes in designs, methods, procedures, policies and regulations, the specifications contained in this sheet are subject to change without notice. While Star

Manufacturing exercises good faith efforts to provide information that is accurate, we are not responsible for errors or omissions in information provided or conclusions reached as

a result of using the specifications. By using the information provided, the user assumes all risks in connection with such use.

Model and Specifications

S t a r M a n u f a c t u r i n g I n t e r n a t i o n a l , I n c .

B

A

D

C
