Page 1
9
0
8
0
7
0
6
0
5
0
200
180
160
140
120
°
C
°
F
4
0
100
TE
MP
E
R
A
TURE
2
0
0
°
MA
XIMU
M
U
SE
1
2
3
5
4
36
35
41
31
51
6
47
8
9
11
20
7
56
15
12
57
55
19
14
13
10
49
61
18
17
23
29
30
MAXIMU
M
U
TEMPER
SE
A
°F
T
U
RE
2
100
00°
120
°C
140
40
160
50
180
60
200
70
80
32
90
34
28
33
24
25
21
16
48
58
59
37
50
39
38
27
26
22
63
42
46
60

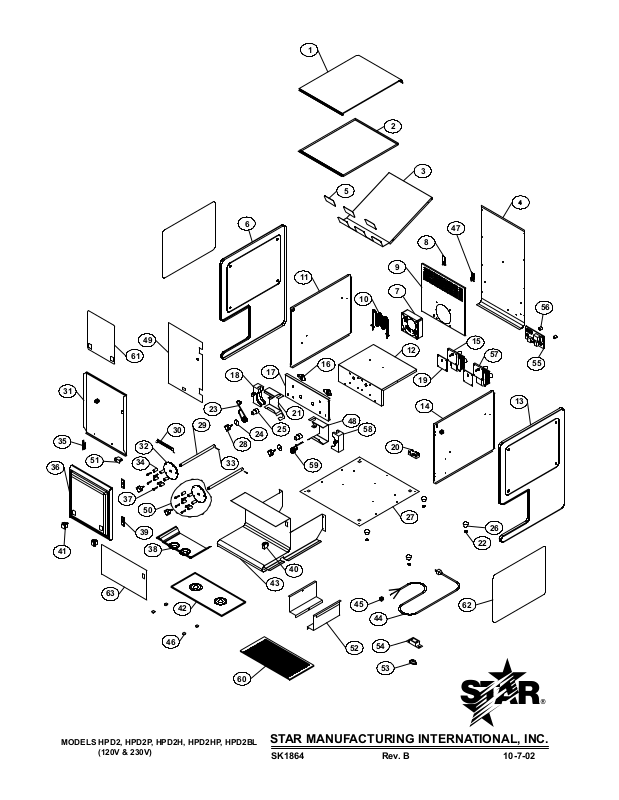

MODELS HPD2, HPD2P, HPD2H, HPD2HP, HPD2BL
(120V & 230V)
40
43
45
62
44
54
52
53
STAR MANUFACTURING INTERNATIONAL, INC.
SK1864 Rev. B
10-7-02
15
Page 2
PARTS LIST 4/24/2007 Rev. G
HPD2 Series Heated Peristaltic Dispenser
MODEL
Key
Number
1 M2-Z4640 1 TOP
M2-Z5794 1 TOP HPD2BL
2 M2-Z4667 1 TOP LINER
3 M2-Z4635 1 BAG TRAY
4 M2-Z4626 1 BACK HPD2P
M2-Z4627 1 BACK HPD2
M2-Z5795 1 BACK HPD2BL
5 2I-Z4662 3 VINYL CAP 1 9/16 x 2 3/4
6 2L-Z4591 1 LEFT SIDE PANEL
7 2U-Z4600 1 FAN A/C 110CFM
2U-Z5041 1 FAN A/C 110CFM 230V
8 2T-Z4666 1 HI-LIMIT THERMOSTAT 165°F
9 M2-PD2002 1 FAN WALL ASSEMBLY
10 2N-Z4603 1 ELEMENT 120V/650W
2N-Z5044 1 ELEMENT 230V/650W
11 M2-Z4636 2 LINER LEFT
12 M2-Z4632 1 WALL-MOTOR
13 2L-Z4592 1 RIGHT SIDE PANEL
14 M2-Z4637 1 LINER RIGHT
15 2U-Z4760 1 MOTOR 180 RPM COUNTER-CLOCKWISE HPD2H
2U-Z5042 1 MOTOR CCW 180 RPM 230V
2U-Z3279 1 MOTOR 75 RPM CCW
2U-Z4008 1 MOTOR 75 RPM CCW 230V
16 2P-9615 2 BEARING SELF ALIGN .51 ID
17 M2-PD2004 1 PUMP WALL ASSEMBLY
18 M2-22049 1 ASSEMBLY BLOCK RIGHT
19 2I-Y6709 2 CUSHION-MOTOR
20 2E-Z4597 1 TERMINAL BLOCK 1/4 P.O.
21 M2-PD2006 1 TRACK LEFT ASSEMBLY
22 2P-9564 4 PLUG-RUBBER
23 2P-Z4598 1 SPRING LEFT
24 2C-Z1689 2 WASHER 1.25 O.D. x 9/32 ID
25 2A-Z1616 2 BUSHING
26 2I-Z0057 4 FOOT
27 M2-Z4673 1 BOTTOM
M2-Z5051 1 BOTTOM 230V
28 2R-Z6774 4 KNOB-DAVIES 4200 10-24 x 1/4
29 2A-Z4595 2 DRIVE SHAFT
30 2T-Z0613 1 SPIRIT THERMOMETER / BRACKETS
31 M2-PD2001 1 DOOR ASSEMBLY
32 2V-Z1619 2 PUMP HEAD
33 2A-Z1690 2 COTTER PIN
34 2A-Z1621 10 ROLLER #10 x 1-1/2 x 1 NYLON
35 2C-9788 1 MAGNETIC CATCH 9LB
36 2L-Z4857 1 DOOR
37 2C-Z1620 10 SHOULDER SCREW #8-32 x 1/4
38 2L-Z4658 1 TUBE COVER
Part
Number
Number
Per
Unit
Description and Model Designation
1
IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE
2
INCLUDE MODEL AND SERIAL NUMBER OF
Some items are included for illustrative purposes only and in certain instances may not be available.
Star Manufacturing International, Inc.
16
Page 3
PARTS LIST 4/24/2007 Rev. G
HPD2 Series Heated Peristaltic Dispenser
MODEL
Number
Key
Number
39 2R-Z4893 2 HINGE SET
40 2E-Y9627 1 SWITCH ON/OFF
41 2E-Z1622 1 SWITCH MOMENTARY
42 M2-Z4630 1 DRIP TRAY
M2-Z5030 1 DRIP TRAY HPD2S
2L-Z5796 1 DRIP TRAY HPD2BL
43 M2-PD2003 1 BODY FRONT ASSEMBLY
M2-PD2023 1 BODY FRONT ASSEMBLY HPD2BL
44 A3-ST3006 1 CORDSET ASSEMBLY
2E-Z0512 1 CORDSET 230V
45 2K-7889 3 BUSHING HEYCO SR-11-2
46 2A-H7804 4 BUMP-ON RUBBER SQ
47 2T-Z6504 1 THERMOSTAT 150°F
48 M2-PD2005 1 TRACK RIGHT ASSEMBLY
49 2M-Z5061 1 LABEL-DOOR INTERIOR
50 2A-Z5564 2 PUMP HEAD ASSEMBLY
51 2E-Z1684 1 SWITCH-SPDT
52 M2-Z5031 2 LINER - LOWER
53 2E-Z3034 1 I.E.C. INLET 230V
54 A3-Z4357 1 INLET HOUSING 230V
55 2E-Z3376 1 TIMER 0-15 SEC 120V
M2-Z5791 1 TIMER 0-15 SEC 230V
56 2A-Z3429 2 SPACER-NYLON .175 x .375 x .5
57 2U-Z4759 1 MOTOR 180 RPM CLOCKWISE HPD2H
2U-Z5043 1 MOTOR CW 180 RPM 230V
2U-Z3280 1 MOTOR 75 RPM CW
2U-Z4007 1 MOTOR 75 RPM CW 230V
58 M2-22048 1 BLOCK LEFT ASSEMBLY
59 2P-Z4599 1 SPRING RIGHT
60 2B-Z5029 1 GRATE - CLASSIC FOODS, 7-ELEVEN
61 2M-Z4605 1 LABEL - FRONT STAR
2M-Z5012 1 LABEL - FRONT PANEL NESTLE
2M-Z5018 1 LABEL - FRONT RICOS CHEESE
2M-Z5019 1 LABEL - FRONT RICOS CHEESE/CHILI
2M-Z5022 1 LABEL - FRONT CLASSIC FOODS
2M-Z5024 1 LABEL - FRONT PANEL 7-ELEVEN
62 2M-Z5013 2 LABEL - SIDE PANEL
2M-Z5609 2 LABEL - SIDE RICOS CHEESE
2M-Z5620 1 LABEL - LEFT RICOS CHEESE/CHILI
2M-Z5621 1 LABEL - RIGHT RICOS CHEESE/CHILI
2M-Z5612 2 LABEL - SIDE CLASSIC FOODS
63 2M-Z5792 1 LABEL - BODY FRONT
Part
Number
Per
Unit
Description and Model Designation
2
IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE
2
INCLUDE MODEL AND SERIAL NUMBER OF
Some items are included for illustrative purposes only and in certain instances may not be available.
Star Manufacturing International, Inc.
17
