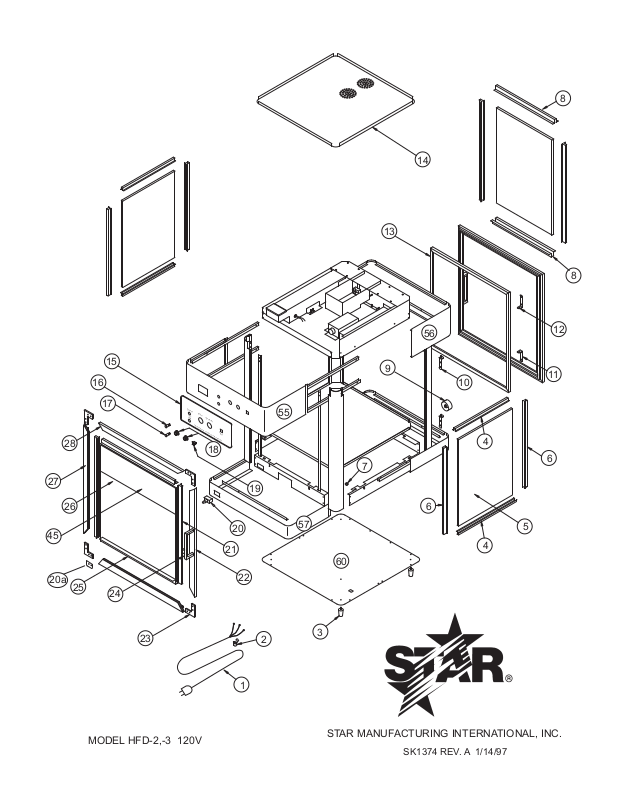

STAR MANUFACTURING INTERNATIONAL, INC.
4
6
5
1
3
2
7
HUMIDITY
HUMIDIFIER
POWER
TEMPERATURE
LOW
WATER
17
16
15
18
19
12
11
10
9
56
55
57
60
24
23
25
20a
21
14
22
26
27
28
4
6
13
20
CAUTION: HOT RACK . DO
NOT ROTATE RACK MANUALL
Y
45
8
8
MODEL HFD-2,-3 120V
SK1374 REV. A 1/14/97
Page 2
STAR MANUFACTURING INTERNATIONAL, INC.
MODEL HFD-2,-3 120V REV. A
SK1375 12-9-96
HUMIDITY
HUMIDIFIER
LOW
WATER
TEMPERATURE
POWER
38
37
36
35
34
52
51
50
49
46
54
43
42
41
47
40
D5-Y9577
HFD-2
D5-220036
HFD-2
44
48
29
30
30a
53
31
32
33
39
2M-Y9758, Humidiîżed Cabinet HFD2, HFD3
Page 3
PARTS LIST EFFECTIVE 09/09/13
Model: HFD-3 HUMIDIFIED CABINET
Fig No Part No Qty Description Application
1 C3-G8021 1 CORD ASSEMBLY
2 2K-Y2968 1 BUSHING - STRAIN RELIEF
3 2A-6904 4 FOOT
4 2I-Y7838 6,4 GLASS CHANNEL HFD-3-P, HFD-3-CR/HFD-3PTP, HFD-3PTCR
5 2Q-Y9110 2,3 GLASS - SIDE HFD-3-P, HFD-3-CR/HFD-3PTP, HFD-3PTCR
6 2I-Y7840 6,4 GLASS CHANNEL HFD-3-P, HFD-3-CR/HFD-3PTP, HFD-3PTCR
7 2K-Y1139 1 BUSHING - HEYCO
8 2I-Y7839 2 GLASS CHANNEL-TOP & BOTTOM HFD-3-P, HFD-3-CR
9 2J-Y9112 1 THERMOMETER/PROBE/TRANSFORMER
10 D5-220084 2/4 DOOR HINGE ASSY. HFD-3-P, HFD-3-CR/HFD-3PTP, HFD-3PTCR
11 D5-Z0449 1,2 BRACKET - DOOR HINGE HFD-3-P, HFD-3-CR/HFD-3PTP, HFD-3PTCR
12 D5-Z0500 1,2 BRACKET - DOOR HINGE HFD-3-P, HFD-3-CR/HFD-3PTP, HFD-3PTCR
13 2M-Y9122 1,2 MAGNETIC GASKET HFD-3-P, HFD-3-CR/HFD-3PTP, HFD-3PTCR
14 D5-Y9152 1 TOP COVER
15 2M-Z0274 1 DECAL - OPERATOR
16 2S-Y9114 1 INDICATOR - GREEN
17 2J-Y6689 1 INDICATOR - RED
18 2R-Y9116 2 KNOB - CONTROL
19 PS-PD2046 1 SWITCH
20 2E-Y9700 1,2 SWITCH - DOOR INTERRUPT HFD-3-P, HFD-3-CR/HFD-3PTP, HFD-3PTCR
20a D5-Z2095 1 DOOR TAB
21 D5-Y9621 2 (PER DOOR) GLASS CHANNEL
22 2I-Y9119 1 (PER DOOR) DOOR LEG RIGHT VERTICAL
23 2I-Y9125 4 (PER DOOR) DOOR INSERT
24 2R-Y9124 1 (PER DOOR) HANDLE
25 D5-Y9622 2 (PER DOOR) GLASS CHANNEL
26 2Q-Y9121 1 (PER DOOR) DOOR GLASS
27 2I-Y9199 1 (PER DOOR) DOOR LEG LEFT VERTICAL
28 2I-Y9120 2 (PER DOOR) DOOR LEG HORIZONTAL
29 2B-Z4280 4 PIZZA SHELF HFD-3-CR, HFD-3PTCR
30 D5-220056 1 PRETZEL RACK ASSEMBLY HFD-3-P, HFD-3PTP
31 2T-Y9113 2 THERMOSTAT
32 D5-Y9866 1 FLOAT
33 2E-Y9151 1 MICROSWITCH
34 D5-Y9861 3 INSULATION
35 2N-Y9145 1 AIR HEATER
36 2U-Y9144 1 FAN
37 2U-Y6953 1 MOTOR - ROTISSERIE
38 2J-Y9112 1 THERMOMETER/PROBE/TRANSFORMER
39 2E-Y9148 1 RELAY
40 D5-Y9132 1 LID RESERVOIR
Star Manufacturing International, Inc.
Page 4
PARTS LIST EFFECTIVE 09/09/13
Model: HFD-3 HUMIDIFIED CABINET
Fig No Part No Qty Description Application
41 2N-Y9181 1 WATER HEATER
42 2S-Y9118 1 BULB - 100W
43 2E-Y9184 1 SOCKET
44 2E-Y9502 1 WIRE HARNESS
45 2M-Y9858 1 DECAL-GLASS
46 2B-Z0290 4 SHELF (HFD-3,-3PT)
47 2M-Z0291 1 LABEL WATER FILL
48 D5-220091 1 PIZZA SHAFT
49 2C-Z0812 1 HAIRPIN
50 2B-Z7206 4 HOLDER ASSEMBLY
51 D5-Z0286 1,2 RACK ANGLE RIGHT HFD-3, HFD-3PT
52 D5-Z0309 1 RACK ANGLE LEFT HFD-3
53 D5-Z0310 1 RACK ANGLE RIGHT HFD-3
54 D5-Z0285 1,2 RACK ANGLE LEFT HFD3, HFD-3PT
