Star CSD-1N2 Operator’s Manual

Star
Manufacturing
International Inc.

10 Sunnen Drive
St. Louis, MO 63143

Installation

and
Operating
Instructions

Phone: [phone]
Fax: [phone]

SINGLE PERISTALTIC

CHEESE DISPENSER

MODEL CSD-1N2

2M-Z2952 Rev. C 1/7/03

1

SPECIFICATIONS

Single Peristaltic Cheese Dispenser, Model CSD-1N2

Capacity: Two 6 pound bags
Electrical: 120V; 650 Watts; 60 Cycle; single phase
Dimensions: 9 9/16" W x 19 9/16" D x 27" H
Net Weight: 42 lbs.

2

SAFETY SYMBOL

This symbol is intended to alert the user to the presence of important
operating and maintenance instructions in the manual accompanying
the appliance.

RETAIN THIS MANUAL FOR FUTURE REFERENCE

NOTICE

Using any part other than genuine Star factory supplied parts relieves
the manufacturer of all liability.

NOTICE

Star reserves the right to change specifications and product design
without notice. Such revisions do not entitle the buyer to corre­sponding changes, improvements, additions or replacements for
previously purchased equipment.

MAINTENANCE AND REPAIRS

Contact your local authorized service agent for service or required maintenance. Refer to the authorized service
center listing provided with the unit. The Star Service Help Desk (1-800-807-9054) is available during normal
business hours to answer any questions that may arise. Please have your model number and serial number for faster
service.

3

CAUTION

This equipment is designed and sold for commercial
use only by personnel trained and experienced in its
operation and is not sold for consumer use in and
around the home nor for use directly by the general
public in food service locations.

NOTE

Read this manual completely before attempting
installation.

INSTALLATION

This cheese dispenser is equipped for the voltage and
wattage indicated on the nameplate mounted on the
back of the unit, and is designed for use on alternating
current (AC) only.

CAUTION

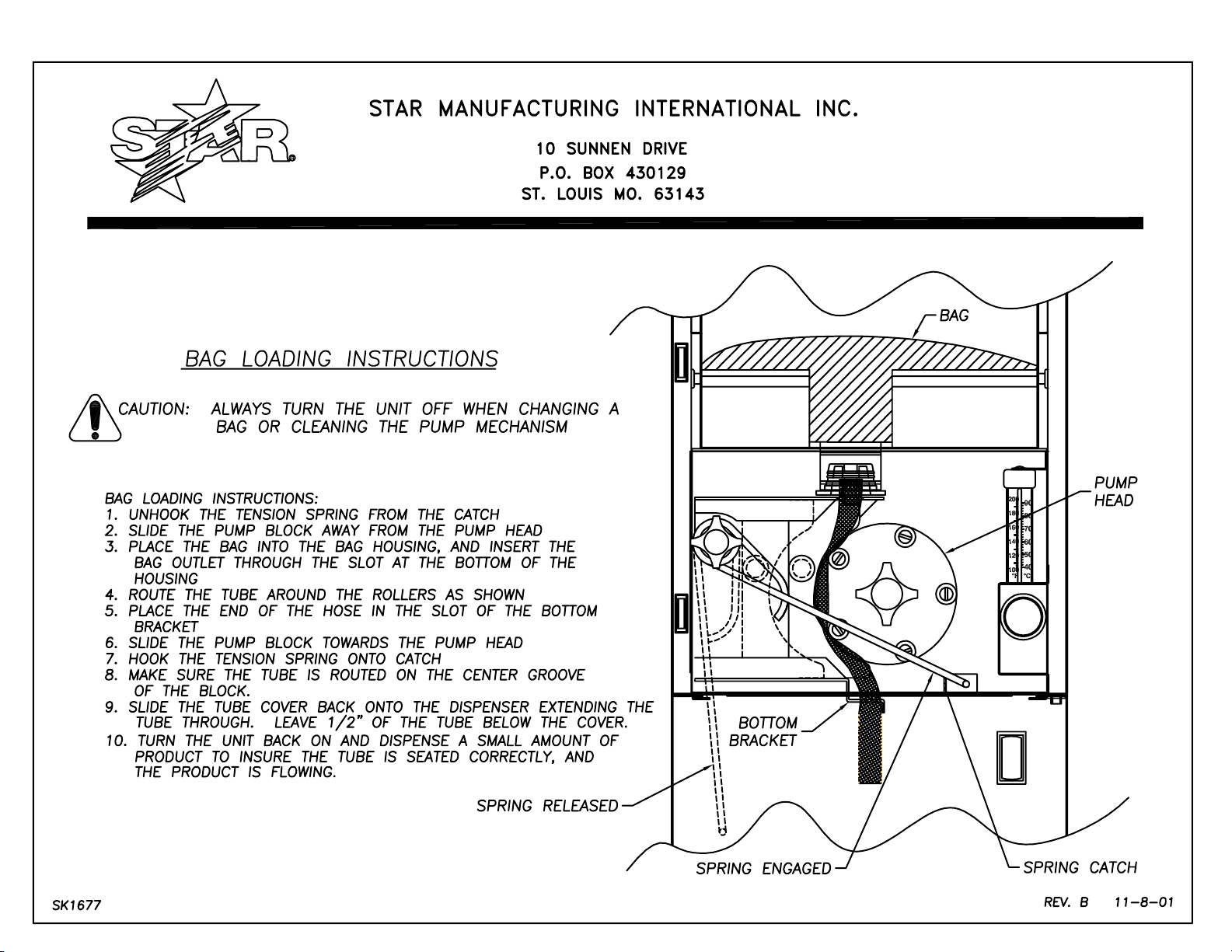

Loading Product:

1. Turn dispenser OFF.

2. Unhook the tension spring from the catch.

3. Slide the pump block away from the pump head.

4. Insert the new bag into tray and route the tube
around the rollers.

(Note: Make sure hose is not twisted)

5. Place the end of the hose in the slot of the bottom
bracket.

6. Slide the pump block towards the pump head.

7. Hook the tension spring onto the catch.

8. Install the tube cover back onto the dispenser,
extending the tube through the cover. Leave 1/2"
of the tube below the cover.

9. Dispense a small amount of product to insure the
tube is seated correctly and the product is flowing.

Operation Notes:

The product should be preheated according to the
manufacturer’s instructions. The product should be
heated to 140°F before dispensing.

DO NOT CONNECT TO DIRECT CURRENT
(DC).

GENERAL OPERATING INSTRUCTIONS

This cheese dispenser is designed to be used with a 9”
x 14” poly bag with a 1 inch outlet fitment. The
peristaltic pump is designed to be used with 1/4 inch id.
to 1/2 inch id. tubing with 1/16 inch wall thickness.

The dispenser is designed with a preset non-adjustable
thermostat. It is designed to maintain a product
temperature of 155°F +/- 7°F.

The pump will not function correctly if the product is
not at the correct temperature.

The dispenser is designed to operate 24 hours a day.
Once the product is placed in the dispenser it should
not be removed until the pouch is empty or the
holding period of the product has expired.

Note: To increase the evacuation of thicker products,
open the dispenser and pull the product towards the
outlet fitment once or twice during operation.

If the pump drips or does not dispense product, check
to make sure the hose is routed correctly and that the
spring is latched onto the catch.

4

CLEANING INSTRUCTIONS

To clean the stainless steel body:

Stainless steel is corrosion resistant, but may corrode
if not cleaned properly. The dispenser should be
cleaned with a soft cloth with mild soap and water. Do
not use detergents, strong abrasives, or metal scouring
pads on the stainless steel.

The pump mechanism should not need cleaning during
normal use. If product should spill onto the pump
head, it can be removed for easy cleaning.

To remove and clean the pump head:

1. Remove the bag according to the instructions.

2. Unscrew the knob from the pump head.

3. Remove the pump head.

4. Slide the pump block out of the track.

5. Clean the parts in a solution of mild soap and water
using a soft cloth.

6. If needed the rollers can also be disassembled for
cleaning.

7. Dry parts before reassembling.

MAINTENANCE AND REPAIRS

Contact the factory, a service representative or a local
service company for service or required maintenance.

The spring can also be removed for cleaning by
removing the knob and retaining washer.

Note: When installing the pump head onto the drive
shaft, make sure the pump head is fully seated onto the
square end of the drive shaft before installing the knob.

WARNING: The drive shaft and pump head
could be damaged if the pump head is installed
incorrectly.

RETAIN THIS MANUAL FOR FUTURE REFERENCE
PART NO. 2M-Z2952 REV. C 1/7/03

5
