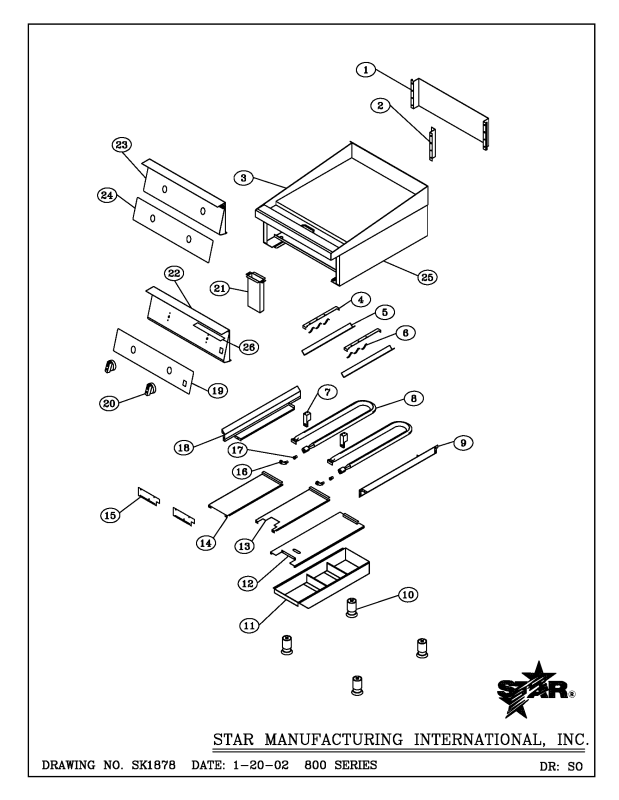

PARTS LIST March 15, 2006, Rev. A
872-LP Series Gas Griddles
MODEL
Number
Key
Number
1 G5-Z4816 1 FLUE 872M/T/TS/TSCHS
2 G5-Z4817 2 FLUE DIVIDER 872M/T/TS/TSCHS
3 G5-824006 1 GRIDDLE PLATE ASSY COMPLETE 872TSCHS
3 G5-872004 1 GRIDDLE PLATE ASSY COMPLETE 872M
3 G5-872005 1 GRIDDLE PLATE ASSY COMPLETE 872T/TS
4 G5-Z4793 6 BULB CLAMP 872T/TS/TSCHS
5 G5-Z4794 6 BULB COVER 872T/TS/TSCHS
6 G5-Z4795 18 BULB SPRING 872T/TS/TSCHS
7 G5-Z4930 6 ORIFICE BRACKET 872M/T/TS/TSCHS
8 2F-Z4613 6 BURNER 872M/T/TS/TSCHS
9 G5-Z4800 1 SIDE BAFFLE RIGHT ALL 824/36/48/60/72
10 2A-Z4614 4 FOOT ALL 824/36/48/60/72
11 G5-824014 2 WASTE DRAWER ASSY ALL 860/872
12 G5-Z4897 2 DRAWER GUIDE ALL 860/872
13 G5-Z4799 3 PILOT BAFFLE 872TS/TSCHS
14 G5-Z4798 5 BURNER BAFFLE 872M/T
14 G5-Z4798 2 BURNER BAFFLE 872TS/TSCHS
15 G5-Z4900 6 BURNER COVER 872M/T/TS/TSCHS
16 2A-9369 6 ORIFICE FITTING 872M/T/TS/TSCHS
17 2A-Z4930 6 ORIFICE NATURAL 872M/T
17 2A-Z4931 6 ORIFICE PROPANE 872M/T/TS/TSCHS
17 2A-Z5542 6 ORIFICE NATURAL 872TS/TSCHS
18 G5-Z4801 1 SIDE BAFFLE LEFT ALL 824/36/48/60/72
19 2M-Z4876 1 CONTROL GRAPHICS PANEL 872TS/TSCHS
20 2R-Z4997 6 KNOB 872M/T
2R-Z8891 6 KNOB 872TS/TSCHS manuf. after 8/2005
PS-Z9312 6 KNOB SERVICE KIT 872TS/TSCHS manuf. before 8/2005
21 G5-824012 2 CHUTE ASSEMBLY ALL 860/872
22 G5-872008 1 FRONT PANEL ASSEMBLY 872M/T
23 G5-872013 1 FRONT PANEL ASSEMBLY 872TS/TSCHS
24 2M-Z4874 1 CONTROL GRAPHICS PANEL 872M
24 2M-Z4875 1 CONTROL GRAPHICS PANEL 872T
25 G5-872007 1 BODY ASSEMBLY 872M/T/TS/TSCHS
26 VARIOUS 1 NAMEPLATE ALL
N/A 2J-Z4686 1 REGULATOR (5” AND 10”) ALL M/T
N/A 2J-Z5541 1 REGULATOR (4” AND 10”) ALL TS/TSCHS
Part
Number
Per
Unit
Description and Model Designation
1
IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE
1
INCLUDE MODEL AND SERIAL NUMBER OF
Some items are included for illustrative purposes only and in certain instances may not be available.
Star Manufacturing International, Inc.
18
Page 3
19
Page 4
20
Page 5
PARTS LIST March 15, 2006, Rev. A
800M and 800T Series Gas Griddles
MODEL
Key
Number
1 2K-Z4901 1 MANIFOLD 824M/T
2K-Z4902 1 MANIFOLD 836M/T
2K-Z4903 1 MANIFOLD 848M/T
2K-Z4904 1 MANIFOLD 860M/T
2K-Z4905 1 MANIFOLD 872M/T
2 2K-Z4921 2 BURNER FLEX TUBE 824M/T
3 BURNER FLEX TUBE 836M/T
4 BURNER FLEX TUBE 848M/T
5 BURNER FLEX TUBE 860M/T
6 BURNER FLEX TUBE 872M/T
3 2P-1453 1 PIPE PLUG ALL M/T
4 2V-Z4821 2 PILOT BURNER 824T
3 PILOT BURNER 836T
4 PILOT BURNER 848T
5 PILOT BURNER 860T
6 PILOT BURNER 872T
2V-Z4906 2 PILOT BURNER 824M
3 PILOT BURNER 836M
4 PILOT BURNER 848M
5 PILOT BURNER 860M
6 PILOT BURNER 872M
5 2V-6671 2 PILOT VALVE 824M/T
3 PILOT VALVE 836M/T
4 PILOT VALVE 848M/T
5 PILOT VALVE 860M/T
6 PILOT VALVE 872M/T
6 2T-Z4823 2 THROTTLING CONTROL 824T
3 THROTTLING CONTROL 836T
4 THROTTLING CONTROL 848T
5 THROTTLING CONTROL 860T
6 THROTTLING CONTROL 872T
2V-Y8832 2 MANUAL VALVE 824M
3 MANUAL VALVE 836M
4 MANUAL VALVE 848M
5 MANUAL VALVE 860M
6 MANUAL VALVE 872M
7 2A-Z0790 2 FITTING 3/8 CC X 3/8-27 824M
3 FITTING 3/8 CC X 3/8-27 836M
4 FITTING 3/8 CC X 3/8-27 848M
5 FITTING 3/8 CC X 3/8-27 860M
6 FITTING 3/8 CC X 3/8-27 872M
2K-Y7111 2 FITTING 3/8 CC X 1/4 MPT 824T
3 FITTING 3/8 CC X 1/4 MPT 836T
4 FITTING 3/8 CC X 1/4 MPT 848T
5 FITTING 3/8 CC X 1/4 MPT 860T
6 FITTING 3/8 CC X 1/4 MPT 872T
Part
Number
Per
Unit
Description and Model Designation
Number
1
IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE
1
INCLUDE MODEL AND SERIAL NUMBER OF
Some items are included for illustrative purposes only and in certain instances may not be available.
Star Manufacturing International, Inc.
21
Page 6
22
Page 7
PARTS LIST March 15, 2006, Rev A
872TS-LP and 872TSCHS-LP Series
MODEL
Number
Key
Number
1 2K-Z4921 6 BURNER FLEX TUBE 872TS/TSCHS
2 2K-2675 6 FITTING 3/8 CC X 3/8 MPT 872TS/TSCHS
3 2P-1453 3 PIPE PLUG 872TS/TSCHS
4 2K-Y5550 6 NIPPLE 3/8 NPT X 1 1/2 872TS/TSCHS
5 2K-2665 3 ELBOW 3/8 NPT 872TS/TSCHS
6 2J-Z4610 6 SOLENOID VALVE 872TS/TSCHS
7 G5-Z4907 4 MOUNTING BRACKET 872TS/TSCHS
8 G5-824019 3 PILOT BRACKET ASSY 872TS/TSCHS
9 G5-824018 3 FLASH TUBE BRACKET ASSY 872TS/TSCHS
10 2J-Z4608 3 PILOT BURNER 872TS/TSCHS
11 2A-Y2017 3 PILOT ORIFICE 872TS/TSCHS
12 2K-Z4920 3 PILOT TUBE FLEX 872TS/TSCHS
13 2J-Z4609 3 THERMOCOUPLE 872TS/TSCHS
14 2K-Z4617 3 REDUCER BUSHING 872TS/TSCHS
15 2K-Z5032 1 INLET PIPE 872TS/TSCHS
16 2K-Z5033 2 UNION 872TS/TSCHS
17 2K-Z4618 4 NIPPLE 3/4 NPT X 2 1/4 872TS/TSCHS
18 2K-Z5034 2 3/4 NPT TEE 872TS/TSCHS
19 2J-Z4607 3 SAFETY VALVE 872TS/TSCHS
20 2V-6671 3 PILOT VALVE 872TS/TSCHS
21 2K-Y4403 6 CLOSE NIPPLE 3/8 NPT 872TS/TSCHS
22 2K-9688 3 TEE 3/8 NPT 872TS/TSCHS
23 2K-Z4612 3 NIPPLE WITH PRESSURE TAP 872TS/TSCHS
24 2T-Z7440 6 ELEC. THERMOSTAT manufactured after 8/2005 872TS/TSCHS
PS-Z9318 6 THERMOSTAT SERVICE KIT manufactured before 8/2005 872TS/TSCHS
25 G5-824015 6 WIRE ASSEMBLY #1 872TS/TSCHS
26 G5-872017 1 WIRE ASSEMBLY 872TS “C” 872TS/TSCHS
27 G5-872016 1 WIRE ASSEMBLY 872TS “L” 872TS/TSCHS
28 2E-Z1858 1 SWITCH 872TS/TSCHS
29 2K-Y2967 1 CORD BUSHING 872TS/TSCHS
30 N2-30409 1 CORD SET 872TS/TSCHS
31 2K-Z4611 2 ELBOW 3/4 NPT 872TS/TSCHS
32 2K-Z5035 1 NIPPLE 3/4 NPT X 22 1/2 872TS/TSCHS
Part
Number
Per
Unit
Description and Model Designation
1
IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE
1
INCLUDE MODEL AND SERIAL NUMBER OF
Some items are included for illustrative purposes only and in certain instances may not be available.
Star Manufacturing International, Inc.
