Star 804HA Operators Manual

Star Manufacturing
International Inc.

265 Hobson Street

Smithville, Tennessee 37166

Phone: [phone]
Fax: [phone]

Installation and

Operating Instructions

Instructions d’installation

et d’opération

2M-Z16166 Rev. B 03/18

ULTRA-MAX™ GAS HOTPLATE MODELS

HOTPLATE DE GAZ ULTRA-MAX™ MODÈLES

802HA, 804HA,

806HA, and 808HA

WARNING: Improper installation, adjustment,
alteration, service or maintenance can cause
property damage, injury or death. Read
the installation, operating and maintenance
instructions thoroughly before installing or
servicing this equipment.

AVERTISSEMENT: L’installation inexacte, le réglage,

le changement, le service ou l’entretien peuvent causer
des dégats matériels, des dommages ou la mort. Lisez
les instructions d’installation, d’opération et d’entretien
complètement avant d’installer ou entretenir ce matériel.

FOR YOUR SAFETY: Do not store or use

gasoline or other ammable vapors or liquids

in the vicinity of this or any other appliance.

POUR VOTRE SÛRETÉ: N’enregistrez pas ou

n’utilisez pas l’essence ou d’autres vapeurs ou liquides

inammables à proximité de ceci ou d’aucun autre

appareil.

WARNING: This appliance shall be installed

in accordance with current regulations and
used only in well-ventilated space. Refer to
instructions before installing and using this

appliance.

AVERTISSEMENT: Cet appareil sera installé selon des

règlements actuels et utilisé seulement dans l’espace
bien-aéré. Référez-vous aux instructions avant d’installer
et utiliser cet appareil.

In addition, there should be posted, in a
prominent location, detailed instructions to
be followed in the event the operator smells
gas. Obtain the instructions from the local gas

supplier.

En outre, là devrait être signalé, dans un emplacement
en avant, des instructions détaillées d’être suivi en cas

que l’opérateur sent le gaz. Obtenez les instructions du
fournisseur local de gaz.

SAFETY SYMBOL

Using any part other than genuine Star factory supplied parts relieves the
manufacturer of all liability.

Star reserves the right to change specications and product design without

notice. Such revisions do not entitle the buyer to corresponding changes,
improvements, additions or replacements for previously purchased
equipment.

Due to periodic changes in designs, methods, procedures, policies and

regulations, the specications contained in this sheet are subject to change
without notice. While Star International Holdings Inc., Company exercises
good faith efforts to provide information that is accurate, we are not

responsible for errors or omissions in information provided or conclusions

reached as a result of using the specications. By using the information
provided, the user assumes all risks in connection with such use.

These symbols are intended to alert the user to the presence of
important operating and maintenance instructions in the manual
accompanying the appliance.

RETAIN THIS MANUAL FOR FUTURE REFERENCE

NOTICE

MAINTENANCE AND REPAIRS

Contact your local authorized service agent for service or required maintenance.

Please record the model number, serial number, voltage and purchase date in the area below and have it ready when

you call to ensure a faster service.

Authorized Service Agent Listing

Model No.

Serial No.

Voltage

Purchase Date

Reference the listing provided with the unit

or

for an updated listing go to:

Website: www.star-mfg.com
E-mail [e-mail]

Service Help Desk

Business
Hours:

Telephone: [phone]
Fax: [phone]

E-mail [e-mail]

Website: www.star-mfg.com

8:00 a.m. to 4:30 p.m. Central Standard Time

[e-mail]

[e-mail]

Mailing Address: Star International Holdings Inc.

265 Hobson Street
Smithville, Tennessee 37166 U.S.A

2

WIDTH

DEPTH

2”

4”

GAS INLET

19.78”

22.26”

24.72”

Specications

Model

Manual

Controls

BTU/HR

802HA 2 60,000

804HA 4 120,000 140 lbs (63.5 kg) 216 lbs (97.9 kg) 24” (61 cm)

806HA 6 180,000 210 lbs (95.2 kg) 294 lbs (133.3 kg) 36” (91.4 cm)

BTU/HR

per burner

70 lbs (31.7 kg) 120 lbs ( 54.4 kg) 12” (30.5 cm)

30,000 Nat /

26,000 LP

808HA 8 240,000 280 lbs (127 kg) 380 lbs (172.3 kg) 48” (122 cm)

Approx Weight Dimensions

Installed Shipped Width Depth Height

30 5/8”

(77.8 cm)

3/4” NPT

13 31/32”

5 7/16”

14 7/8”

(37.8 cm)

14 7/8”

IL2504

Height

Depth

Width

IL2508

Specications

Model

Manual

Controls

BTU/HR

802HA-SU 2 60,000

804HA-SU 4 120,000 145 lbs (65.7 kg) 221 lbs (100 kg) 24” (61 cm)

806HA-SU 6 180,000 215 lbs (97.5 kg) 299 lbs (135.6 kg) 36” (91.4 cm)

BTU/HR

per burner

74 lbs (33.5 kg) 124 lbs ( 56.2 kg) 12” (30.5 cm)

30,000 Nat /

26,000 LP

808HA-SU 8 240,000 286 lbs (129.7 kg) 386 lbs (175.0 kg) 48” (122 cm)

Approx Weight Dimensions

Installed Shipped Width Depth

30 5/8”

(77.8 cm)

Height
(Front)

13.8”

(35.1 cm)

Height
(Rear)

17.8”

(45.2 cm)

3

CAUTION

GENERAL INSTALLATION DATA

This equipment is designed and sold for commercial use only by personnel trained and experienced
in its operation and is not sold for consumer use in and around the home nor for use directly by the
general public in food service locations.

The Ultra-Max™ series gas hotplate is equipped for the type of gas indicated on the nameplate
mounted on the front panel. All units are shipped from the factory for use with natural gas. The unit can
easily be converted for use with propane gas: see propane gas.

-IMPORTANT-

Be sure to remove all paper protection and packing material from unit prior to lighting.

Install on non-combustible countertop with 4" legs or combustible oor using a maximum

27" high stand. Clearance from combustible construction must be 9" minimum from
back wall and 7" from side walls. Clearance from non-combustible surfaces on back
and sides may be 0". For servicing, 6" is recommended from back of unit on non-

combustible walls.

The installation of the Appliance must conform to the NATIONAL FUEL GAS
CODE "ANSI Z223.1 - LATEST EDITION" AND ALL LOCAL GAS COMPANY
RULES AND REGULATIONS.

IN CANADA INSTALLATION SHALL BE IN ACCORDANCE WITH THE CURRENT
CAN/CGA-B149.1 NATURAL GAS INSTALLATION CODE OR CAN/CGA-B149.2
PROPANE INSTALLATION CODE AND LOCAL CODES WHERE APPLICABLE

CAUTION

NOTICE

When this appliance is installed with casters, it must be installed with the casters supplied, a connector
complying with either ANSI Z21.69 or CAN/CGA-6.16 and a quick-disconnect device complying with
either ANSI Z21.41 or CAN1-6.9. It must also be installed with restraining means to guard against

transmission of strain to the connector, as specied in the appliance manufacturer's instructions.

For your protection, we recommend a qualied installing agency install this

appliance. They should be familiar with gas installations and your local gas
requirements. In any case, your gas company should be called to approve the

nal installation.

This appliance, its pressure regulator and its individual shutoff valve must be disconnected from the
gas supply piping system during any pressure testing of that system at test pressures in excess of 1/2
PSIG. This appliance and its pressure regulator must be isolated from the gas supply piping system by
closing its individual manual shutoff valve during any pressure testing of the gas supply piping system
at test pressures equal to or less than 1/2 PSIG.

EXHAUST CANOPY

Open hotplates create fumes, moisture, heat, and should be installed under an efcient exhaust hood
with ame proof lters. A vertical distance of not less than 48" shall be provided between the top of
the appliance and lters or any other combustible material. Exhaust installation must conform to local

codes.

AIR SUPPLY

Provisions for adequate air supply must be provided.

2M-Z16116, Ultra-Max Gas Hotplates

AIR INTAKES IN BOTTOM

Air for combustion enters from the front and bottom of the unit. Do not obstruct this area.

4

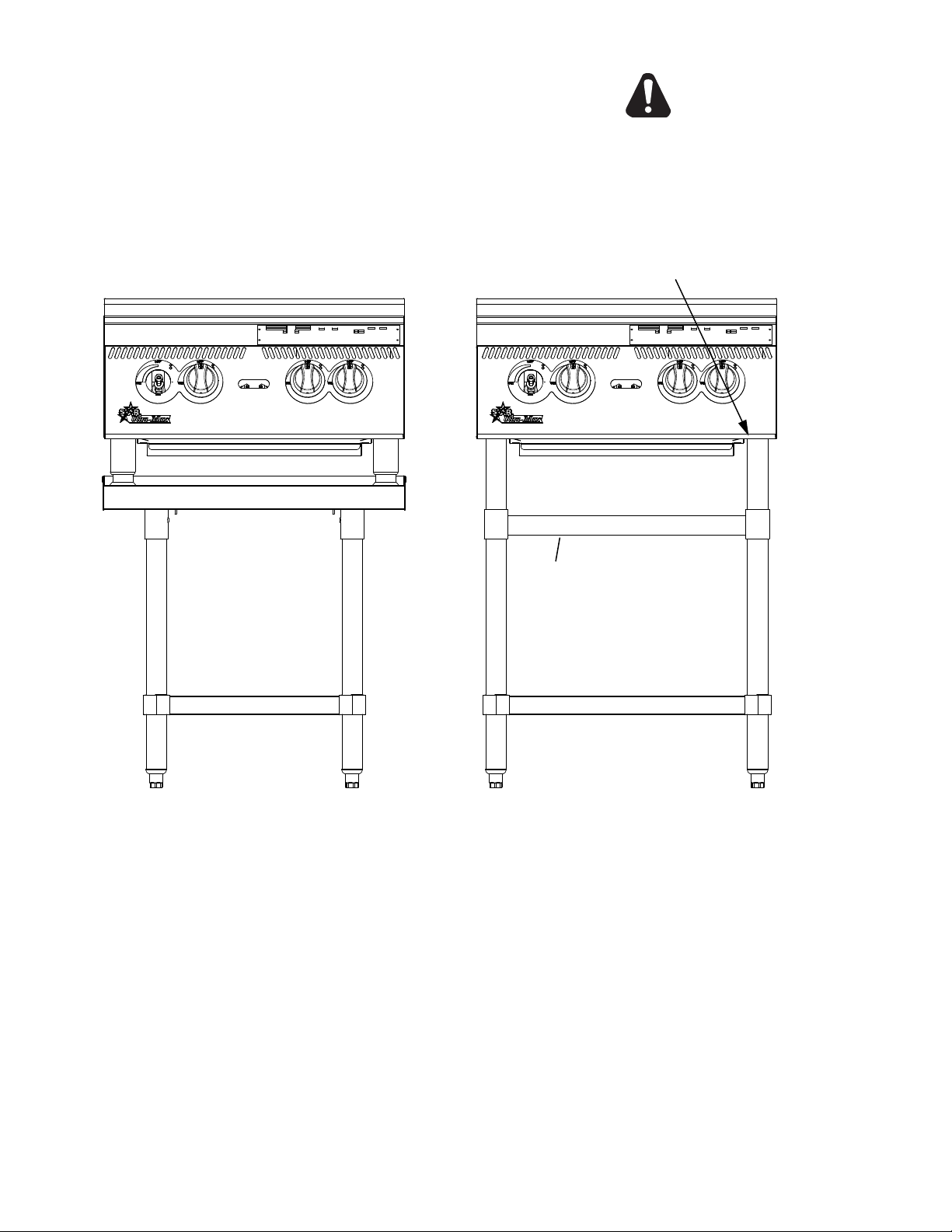

LEVELING UNIT

SCREW LEGS INTO

This hotplate is supplied with 4 feet or oor stand legs

which must be screwed into the body. Unit must be
level. Level unit by adjusting the (4) feet which have an

adjustment of 1-3/4" for accurate and perfect line-up with

other units.

CAUTION

DO NOT INSTALL WITHOUT ATTACHING
FEET OR SUPPLIED STAND LEGS AND
SHELF - DO NOT REMOVE FEET.

MOUNTING NUTS ON BOTTOM

STIFFENING SUPPORTS FOR

808 MODELS ONLY

FLOOR STAND SHELF

COUNTER TOP MODEL

ON OPTIONAL EQUIPMENT STAND

Caster Kits: Casters can be used with oor stand models or optional equipment stand. For installation, carefully mark

and cut off from the bottom of each leg using a straight cutting saw and de-burr the inside tube wall prior to installing the

caster. Cut leg should measure 19" tube length, not overall length. On SFC models only, use kit number ES-UM36SFC.
Casters add about 6-1/4" of height to the unit. Be sure to use approved strain relief means for protecting gas line

connection. If an appliance is equipped with casters and is gas connected with a quick connect coupling, all personnel
must be aware that there is a restraint on the appliance and if disconnected for service or cleaning it must be reconnected
as originally installed prior to use.

FLOOR STAND MODEL

(Floor stand not available for 802 models)

IL2506

5

GAS PIPING

Gas piping shall be of such size and so installed as to provide a supply of gas sufcient to meet the

full gas input of the appliance. If the appliance is to be connected to existing piping, it shall be checked
to determine if it has adequate capacity. Joint compound shall be used sparingly and only on the male
threads of the pipe joints. Such compounds shall be resistant to the action of L.P. gases. WARNING:
Any loose dirt or metal particles which are allowed to enter the gas lines on this appliance will damage

the valve and affect its operation. When installing this appliance, all pipe and ttings must be free from

all internal loose dirt.

GAS PRESSURE REGULATOR

A convertible pressure regulator is provided with each hotplate. It should be connected to the inlet pipe
at the rear of the unit. The gas supply is then connected to it. The supply pressure to the regulator is not

to exceed 1/2 PSIG. It is shipped set for 5" water column manifold pressure for use with natural gas.

MANUAL SHUT OFF VALVE

A manual shut off valve should be installed upstream from the manifold and within six feet of the
hotplate.

CONNECTING GAS SUPPLY LINE

The gas inlet of the hotplate is sealed at the factory to prevent entry of dirt. Do not remove this seal until
the actual connection is made to the gas supply line.

PROPANE GAS - CONVERSION

This hotplate is equipped with xed orice hoods and is shipped from the factory for use with natural
gas. To convert to propane gas, install the burner orice hoods, located on the manifold, as follows:

1. Remove grates and burners.

2. Remove the burner orice hoods and install the orice hoods supplied.

3. Replace the burners and grates. Be sure venturi opening is positioned on valve orice.

4. Set manifold pressure to (10) inch water column. A 1/8" pipe plug on the burner manifold

can be removed for attaching a pressure gauge. Remove the slotted, or hex-threaded plug from

the pressure regulator. Invert the plug and re-install. The letters "LP" should now be visible on
the plug. The regulator is now set for 10" (25.4 cm) water column. Attach the conversion label,
supplied with the unit, close to the nameplate on the top side of the front panel. Pilot ame may

need to be adjusted for LP gas.

CAUTION

CHECKING FOR GAS LEAKS

Check entire piping system for leaks. Soap and water solution or other material acceptable for the
purpose, shall be used in locating gas leakage.

Matches, candle ame or other sources of ignition shall not be used for locating gas

leaks.

PILOT LIGHTING INSTRUCTIONS

The hotplate is equipped with factory pre-set standing pilots and should be lit immediately after the gas
is turned on. Pilot lights may need an adjustment based on local gas supplies. See below for pilot light
adjustments.

If the operator smells gas or the pilot lights need to be relit:

1. Turn off main valve to unit.

2. Turn off all knobs and pilot valves and wait 5 minutes to clear gas.

3. The pilot lights on this hotplate can be adjusted by turning the adjustable screw
counterclockwise to open and clockwise to close.

4. Turn on main valve and light all pilots.

5. Adjust pilot light ames as small as possible around pilot head, usually about 1/4" high,

but high enough to light burner immediately when burner valve is turned on high.

6. Turn burner knobs to desired setting.

7. To turn burners off, turn knobs clockwise to "OFF."

If interuption of the gas supply occurs, reliting of the pilot light will be needed.

2M-Z16116, Ultra-Max Gas Hotplates
