Installation
and
Operating
Instructions
Phone: (314) 781-2777
FAX: (314) 781-3636
3 1/2 QUART BARREL WARMERS
7 QUART WARMERS
11 QUART WARMERS
2M-Y5817 Rev. G 2/10/00
1
Page 2
PRODUCT IDENTIFICATION
Star Mfg. International Warmers, Models:
3BW, 7W, 11W
SPECIFICATIONS:
MODEL 3BW 120V
Capacity: 3-1/2 quarts
Electrical: 120V; 60 cycle; single phase; 350wt; 2.9a.
Dimensions: 11-1/2" D x 12-1/2" H
Net Weight: 11 lbs.
MODEL 3BW-P 120V WITH PUMP
Capacity: 3-1/2 quarts
Electrical: 120V; 60 cycle; single phase; 350; 2.9a
Dimensions: 11-1/2" D x 12-1/2" H
Net Weight: 13 lbs.
MODEL 3BW 240V
Capacity: 3-1/2 quarts
Electrical: 240V; 60 cycle; single phase; 350wt; 1.5a.
Dimensions: 11-1/2" D x 12-1/2" H
Net Weight: 11 lbs.
MODEL 3BW-P 240V WITH PUMP
Capacity: 3-1/2 quarts
Electrical: 240V; 60 cycle; single phase; 350; 1.5a
Dimensions: 11-1/2" D x 12-1/2" H
Net Weight: 13 lbs.
2
Page 3
MODEL 7WS 120V STAINLESS STEEL
Capacity: 7 quarts
Electrical: 120V; 60 cycle; single phase; 450 wt; 3.75a.
Dimensions: 11" D x 12-1/2" W x 11-1/2" H
Net Weight: 12 lbs.
MODEL 7WL 120V - LIGHTED
Capacity: 7 quarts
Electrical: 120V; 60 cycle; single phase; 500wt; 4.2a.
Dimensions: 11" D x 12-1/2" W x 11-1/2" H
Net Weight: 13 lbs.
MODEL 7WS 240V STAINLESS STEEL
Capacity: 7 quarts
Electrical: 240V; 60 cycle; single phase; 450 wt; 1.88a.
Dimensions: 11" D x 12-1/2" W x 11-1/2" H
Net Weight: 12 lbs.
MODEL 7WL 240V - LIGHTED
Capacity: 7 quarts
Electrical: 240V; 60 cycle; single phase; 500wt; 2.1a.
Dimensions: 11" D x 12-1/2" W x 11-1/2" H
Net Weight: 12 lbs.
3
Page 4
MODEL 11WS 120V - STAINLESS STEEL
Capacity: 11 quarts
Electrical: 120V; 60 cycle; single phase; 1500wt; 12.5a.
Dimensions: 14-3/8" D x 14-1/2" W x 11-1/2" H
Net Weight: 17 lbs.
MODEL 11WS-P 120V - STAINLESS STEEL WITH PUMP
Capacity: 11 quarts
Electrical: 120V; 60 cycle; single phase; 1500wt; 12.5a.
Dimensions: 14-3/8" D x 14-1/2" W x 18-3/4" H
Net Weight: 22 lbs.
MODEL 11WS-HS 120V - STAINLESS STEEL WITH PUMP AND HEATED SPOUT
Capacity: 11 quarts
Electrical: 120V; 60 cycle; single phase; 1525wt; 12.7a.
Dimensions: 14-3/8" D x 14-1/2" W x 18-3/4" H
Net Weight: 23 lbs.
MODEL 11WS 240V - STAINLESS STEEL
Capacity: 11 quarts
Electrical: 240V; 60 cycle; single phase; 1500wt; 6.25a.
Dimensions: 14-3/8" D x 14-1/2" W x 11-1/2" H
Net Weight: 17 lbs.
MODEL 11WS-P 240V - STAINLESS STEEL WITH PUMP
Capacity: 11 quarts
Electrical: 240V; 60 cycle; single phase; 1500wt; 6.25a.
Dimensions: 14-3/8" D x 14-1/2" W x 18-3/4" H
Net Weight: 22 lbs.
4
Page 5
MODEL 11WSA 120V - STAINLESS STEEL
Capacity: 11 quarts
Electrical: 120V; 60 cycle; single phase; 1600wt; 13.3a.
Dimensions: 15-1/8" D x 13-1/4" W x 11-1/2" H
Net Weight: 17 lbs.
MODEL 11WSA-P 120V - STAINLESS STEEL WITH PUMP
Capacity: 11 quarts
Electrical: 120V; 60 cycle; single phase; 1600wt; 13.3a.
Dimensions: 15-1/8" D x 13-1/4" W x 18-3/4" H
Net Weight: 22 lbs.
MODEL 11WSA-HS 120V - STAINLESS STEEL WITH PUMP AND HEATED SPOUT
Capacity: 11 quarts
Electrical: 120V; 60 cycle; single phase; 1625wt; 13.5a.
Dimensions: 15-1/8" D x 13-1/4" W x 18-3/4" H
Net Weight: 23 lbs.
5
Page 6
THE UNITS ON THIS PAGE ARE NOT LISTED WITH NSF, CSA, UL.
MODEL 11WLA 240V - LIGHTED WARMER
Capacity: 11 quarts
Electrical: 240V; 60 cycle; single phase; 1630wt; 6.79a.
Dimensions: 15-1/8" D x 13-1/4" W x 11-1/2" H
Net Weight: 17 lbs.
MODEL 11WLA-P 240V - LIGHTED WARMER WITH PUMP
Capacity: 11 quarts
Electrical: 240V; 60 cycle; single phase; 1630wt; 6.79a.
Dimensions: 15-1/8" D x 13-1/4" W x 18-3/4" H
Net Weight: 22 lbs.
MODEL 11WLA-HS 240V - LIGHTED WARMER WITH PUMP AND HEATED SPOUT
Capacity: 11 quarts
Electrical: 240V; 60 cycle; single phase; 1645wt; 6.85a.
Dimensions: 15-1/8" D x 13-1/4" W x 18-3/4" H
Net Weight: 23 lbs.
MODEL 11WSA 240V - STAINLESS STEEL
Capacity: 11 quarts
Electrical: 240V; 60 cycle; single phase; 1600wt; 6.66a.
Dimensions: 15-1/8" D x 13-1/4" W x 18-3/4" H
Net Weight: 23 lbs.
MODEL 11WSA-P 240V - STAINLESS STEEL WITH PUMP AND HEATED SPOUT
Capacity: 11 quarts
Electrical: 240V; 60 cycle; single phase; 1600wt; 6.66a.
Dimensions: 15-1/8" D x 13-1/4" W x 18-3/4" H
Net Weight: 23 lbs.
MODEL 11WSA-HS 240V - STAINLESS STEEL WITH PUMP AND HEATED SPOUT
Capacity: 11 quarts
Electrical: 240V; 60 cycle; single phase; 1615wt; 6.73a.
Dimensions: 15-1/8" D x 13-1/4" W x 18-3/4" H
Net Weight: 23 lbs.
6
Page 7
THE UNITS ON THIS PAGE ARE LISTED WITH C/UL.
MODEL 11WLA 120V C/UL - LIGHTED WARMER
Capacity: 11 quarts
Electrical: 120V; 60 cycle; single phase; 1630wt; 13.58a.
Dimensions: 15-1/8" D x 13-1/4" W x 11-1/2" H
Net Weight: 17 lbs.
MODEL 11WLA-P 120V C/UL - LIGHTED WARMER WITH PUMP
Capacity: 11 quarts
Electrical: 120V; 60 cycle; single phase; 1630wt; 13.58a.
Dimensions: 15-1/8" D x 13-1/4" W x 18-3/4" H
Net Weight: 22 lbs.
MODEL 11WLA-HS 120V C/UL- LIGHTED WARMER WITH PUMP AND HEATED
SPOUT
Capacity: 11 quarts
Electrical: 120V; 60 cycle; single phase; 1655wt; 13.79a.
Dimensions: 15-1/8" D x 13-1/4" W x 18-3/4" H
Net Weight: 23 lbs.
MODEL 11WSA 120V C/UL - STAINLESS STEEL
Capacity: 11 quarts
Electrical: 120V; 60 cycle; single phase; 1600wt; 13.3a.
Dimensions: 15-1/8" D x 13-1/4" W x 18-3/4" H
Net Weight: 23 lbs.
MODEL 11WSA-P 120V C/UL - STAINLESS STEEL WITH PUMP AND HEATED SPOUT
Capacity: 11 quarts
Electrical: 120V; 60 cycle; single phase; 1600wt; 13.3a.
Dimensions: 15-1/8" D x 13-1/4" W x 18-3/4" H
Net Weight: 23 lbs.
MODEL 11WSA-HS 120V C/UL - STAINLESS STEEL WITH PUMP AND HEATED
SPOUT
Capacity: 11 quarts
Electrical: 120V; 60 cycle; single phase; 1625wt; 13.5a.
Dimensions: 15-1/8" D x 13-1/4" W x 18-3/4" H
Net Weight: 23 lbs.
7
Page 8
MODEL 11WL 120V - LIGHTED
Capacity: 11 quarts
Electrical: 120V; 60 cycle; single phase; 1530wt; 12.75a.
Dimensions: 14-3/8" D x 14-1/2" W x 11-1/2" H
Net Weight: 17 lbs.
MODEL 11WL-P 120V - LIGHTED WITH PUMP
Capacity: 11 quarts
Electrical: 120V; 60 cycle; single phase; 1530wt; 12.75a.
Dimensions: 14-3/8" D x 14-1/2" W x 18-3/4" H
Net Weight: 22 lbs.
MODEL 11WL-HS 120V - LIGHTED WITH PUMP AND HEATED SPOUT
Capacity: 11 quarts
Electrical: 120V; 60 cycle; single phase; 1555wt; 12.95a.
Dimensions: 14-3/8" D x 14-1/2" W x 18-3/4" H
Net Weight: 23 lbs.
MODEL 11WL 240V - LIGHTED
Capacity: 11 quarts
Electrical: 240V; 60 cycle; single phase; 1530wt; 6.45a.
Dimensions: 14-3/8" D x 14-1/2" W x 11-1/2" H
Net Weight: 17 lbs.
MODEL 11WL-P 240V - LIGHTED WITH PUMP
Capacity: 11 quarts
Electrical: 240V; 60 cycle; single phase; 1530wt; 6.45a.
Dimensions: 14-3/8" D x 14-1/2" W x 18-3/4" H
Net Weight: 22 lbs.
8
Page 9
MODEL 11WLA 120V - LIGHTED
Capacity: 11 quarts
Electrical: 120V; 60 cycle; single phase; 1630wt; 13.58a.
Dimensions: 15-1/8" D x 13-1/4" W x 11-1/2" H
Net Weight: 17 lbs.
MODEL 11WLA-P 120V - LIGHTED WITH PUMP
Capacity: 11 quarts
Electrical: 120V; 60 cycle; single phase; 1630wt; 13.58a.
Dimensions: 15-1/8" D x 13-1/4" W x 18-3/4" H
Net Weight: 22 lbs.
MODEL 11WLA-HS 120V - LIGHTED WITH PUMP AND HEATED SPOUT
Capacity: 11 quarts
Electrical: 120V; 60 cycle; single phase; 1655wt; 13.79a.
Dimensions: 15-1/8" D x 13-1/4" W x 18-3/4" H
Net Weight: 23 lbs.
FOOD WARMERS WITH HEATED SPOUTS ARE ACCEPTABLE FOR POTENTIALLY
HAZARDOUS FOODS.
* N - Nacho Sign, F - Fudge Sign, CD - Chili Dog Sign, BQ - BBQ Sign, C - Chili Sign, S - Soup Sign
FOOD WARMERS WITHOUT HEATED SPOUTS ARE NOT ACCEPTABLE FOR
POTENTIALLY HAZARDOUS FOODS.
NOTES:
Bowl 3QT, SSB - OPTIONAL FOR 3BW'S, SSB-7OPTIONAL FOR 7W'S AND SSB-11 OPTIONAL
FOR 11W'S
9
Page 10
CAUTION
This equipment is designed and sold for
commercial use only by personnel trained and
experienced in its operation and is not sold for
consumer use in and around the home nor for use
directly by the general public in food service
locations.
INSTALLATION
These food warmers are equipped for the voltage
and wattage indicated on the nameplate mounted
to the bottom panel and are designed for use on
alternating current (AC) only.
CAUTION
lifter spring is placed inside water bowl
before inserting container.
7. Because the consistency of different foods
varies, and because liquids and solids absorb
heat at different rates, it is impractical to
specify an exact dial setting. However, the
letter "V" is in the center of the serving range.
At this point the temperature is
o
approximately 145
temperature for fudge. When the dial is
set at the letter "N" the temperature is
approximately 170
temperature for cheese sauce. After preheating, set the thermostat to the desired
temperature.
8. Turn the control knob to the extreme left
position "OFF" when not in use.
9. Do not keep unit on high heat for more than
45 minutes, as the food product may become
overheated.
F, the proper holding
o
F, a good holding
DO NOT CONNECT TO DIRECT
CURRENT (DC).
GENERAL OPERATING
INSTRUCTIONS
3BW MODELS
These warmers are designed to use stainless steel
serving bowls purchased as an option.
Follow these simple steps for setting up the
warmer:
1. Place bowl lifter spring in black water
bowl.
2. Fill the warmer bowl with one and a
third quarts of hot water.
3. Turn warmer on.
4. On pump models with a heated spouts, preheat fudge or cheese before inserting pump.
Pump will not function if fudge or cheese is
too thick.
5. Place bowl with food product into the water
bowl. If using No. 10 tin, open tin and pour
contents into stainless steel bowl. Bowl lifter
spring should be centered under container.
6. Place lock ring over container, or pump into
fudge or cheese, press down turning right or
left until top locks into unit. Be sure bowl
CAUTION
DO NOT TOUCH THE HEATED SPOUT
WITHOUT HEAT INSULATING
MITTENS OR OTHER MEANS OF
BURN PREVENTION.
DO NOT OPERATE UNIT WITHOUT
WATER. CHECK WATER LEVEL
FREQUENTLY.
10
Page 11
PUMP INSTALLATION
Follow these simple instructions to install the
pump into the heated spout casting.
1. Remove pump from warmer.
2. Swing retainer fastened to the pump heater
casting down.
3. Press down on pump plate and turn pump
counterclockwise until notches line up with
bumps on black bowl.
4. Lift pump from bowl.
5. Open tin and remove paper label.
6. Place bowl lifter spring in black water bowl
with one quart of hot water.
7. Turn on warmer switch "on".
8. Pre-Heat cheese before inserting pump.
Pump will not function if cheese is too thick.
9. Be sure bowl lifter spring is placed inside
water bowl before inserting container.
10. Place tin or bowl into unit. Bowl lifter
spring should be centered under container.
11. Place pump in tin or bowl and line up notches
in pump plate with bumps on black bowl.
12. Press down on pump plate until notches are
below bumps on black bowl. Turn pump
clockwise until pump spout engages groove
in spout casting.
13. Swing lever up to prevent pump spout from
disengaging.
4. Turn the control knob to "Serving
Temperature" position. Because the
consistency of different foods varies, and
because liquids and solids absorb heat at
different rates, it is impractical to specify an
exact dial setting. However, the letter "V" is
in the center of the serving range. At this
point the temperature is approximately 145
F, the proper holding temperature for fudge.
When the dial is set at the letter "N" the
o
temperature is approximately 170
F, a good
holding temperature for cheese sauce. After
preheating, set the thermostat to the desired
temperature.
5. Turn the control knob to the extreme left
position "OFF" when not in use. Turn
warmer switch "OFF" to turn power off to
unit.
6. Do not keep unit on high heat for more than
45 minutes, as the food product may become
overheated.
GENERAL OPERATING
INSTRUCTIONS
11W MODELS
o
GENERAL OPERATING INSTRUCTIONS
7W MODELS
These warmers are designed to use stainless steel
serving bowls purchased as an option.
Follow these simple steps for setting up the
warmer:
1. Fill the warmer bowl with one and a
third quarts of hot water.
2. Turn warmer switch "ON".
3. Place bowl with food product into the water
bowl. If using No. 10 tin, open tin and pour
contents into stainless steel bowl.
These warmers are designed to use stainless steel
serving bowls purchased as an option.
Follow these simple steps for setting up the
warmer:
1. Before using warmer clean the water food
bowl and any accessories furnished with
warmer.
2. Fill the warmer bowl with 24 to 36 ounces of
water. Add water as required to maintain
water level.
3. Place precooked food into a standard 11
quart inset and insert into water bowl.
4. Turn warmer on. The temperature control
on these warmers is a combination ON/OFF
switch and thermostatic heat control. The
OFF position will turn off the electric
current to the heating element.
11
Page 12
5. If preheating is desired set the control to
the "HI" position for approximately 10
minutes. Prolonged "HI" setting may result
in overcooking or scorching of certain foods.
6. On pump models with a heated spout, pre-heat
fudge or cheese before inserting pump. Pump
will not function if fudge or cheese is too thick.
7. Set the dial setting to the number required to
maintain the desired temperature.
8. Because the consistency of different foods
varies, and because liquids and solids absorb
heat at different rates, it is impractical to
specify an exact dial setting. However, at the
point between figures "3" and "4" the
o
temperature is approximately 145
proper holding temperature for fudge. When
the dial is set at the figure "5" the temperature
is approximately 170o F, a good holding
temperature for cheese sauce. After preheating, set the thermostat to the desired
temperature.
9. Turn the control knob to the "OFF" position
when the unit is not in use.
10. Do not keep unit on high heat for more than
45 minutes, as the food product may become
overheated.
F, the
CAUTION
DO NOT OPERATE THE UNIT ON
HIGH HEAT FOR MORE THAN 45
MINUTES. FOODS MAY BECOME
OVERHEATED.
PUMP SPOUT HEATER
The pump spout heater casting keeps cheese
left in the pump spout at or above 140o F when
warmer is allowed to heat for 40 minutes prior
to vending through pump. This prevents
dispensing cold, dried cheese.
HELPFUL HINTS FOR BETTER
SERVICE
The food product you serve in this warmer, as
packed by the manufacturer, represents a high
standard of quality and this quality should be
protected by following the recommendations of
the packer in serving of the product.
CLEANING INSTRUCTIONS
IMPORTANT
Stainless steel may corrode if not cleaned
properly.
Clean and dry the heated bowl inside the warmer
every night. Use a soft cloth and mild soap to keep
exterior surfaces bright and shining. To keep the
inside surface of the bowl clean, use S.O.S. or
Brillo pads as often as necessary. Do not use
detergents, strong abrasives or metal scouring
pads on exterior surface of warmer.
CAUTION
DO NOT TOUCH THE HEATED SPOUT
WITHOUT HEAT INSULATING
MITTENS OR OTHER MEANS OF
BURN PREVENTION.
DO NOT OPERATE UNIT WITHOUT
WATER. CHECK WATER LEVEL
FREQUENTLY.
DO NOT IMMERSE IN WATER AT ANY
TIME.
12
Page 13

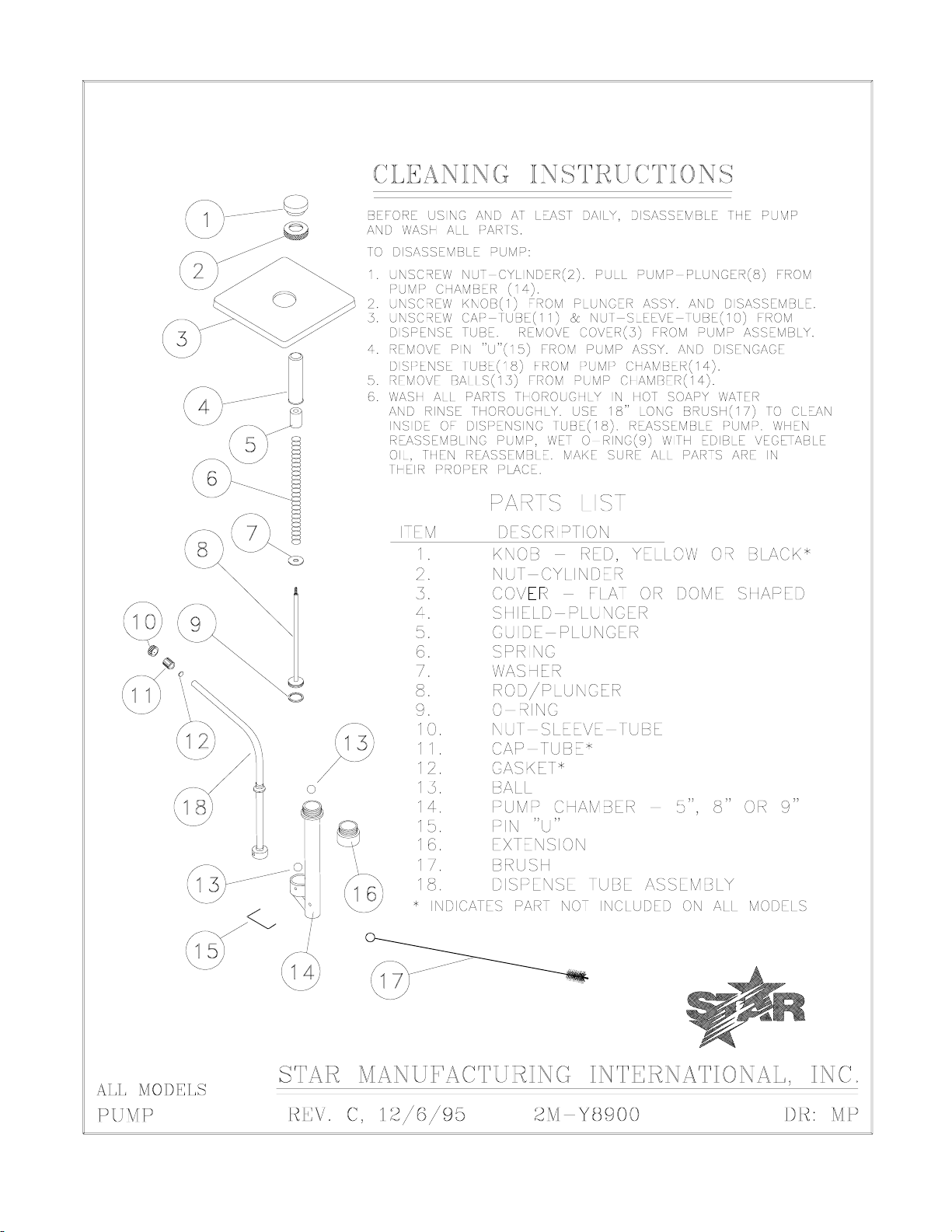

PUMP CLEANING
Before using and at least daily, disassemble the
pump and wash all parts.
To disassemble pump:
1. Unscrew nut-cylinder. Pull pump-plunger
from pump chamber.
2. Unscrew knob from plunger assembly and
disassemble.
3. Unscrew cap-tube and nut-sleeve-tube from
dispense tube. Remove cover from pump
assembly.
4. Remove pin "U" from pump assembly and
disengage dispense tube from pump chamber.
5. Remove balls from pump chamber.
6. Wash all parts thoroughly in hot soapy water
and rinse thoroughly. Use 18" long brush to
clean inside of dispensing tube. Reassemble
pump. When reassembling pump, wet o-ring
with edible vegetable oil, then reassemble.
Make sure all parts are in their proper place.
CAUTION
FAILURE TO DO THIS CAN CAUSE A
BROKEN "O" RING TO BE PUMPED
OUT WITH THE FOOD BEING
VENDED.
SIGN REPLACEMENT 7WL AND 11WL
MODELS
1. Unplug cord from the receptacle.
2. Remove two screws in the sign retainer
fastened to the bottom.
3. Pull forward on the bottom edge of the
plastic panel and remove it.
4. Replace the sign.
5. Place the front plastic panel back into its
original position.
LIGHT BULB REPLACEMENT 7WL &
11WL MODELS
SANITIZING PUMP ASSEMBLIES
It is recommended that the pump assembly be
sanitizied after routine disassembly and cleaning.
Prepare a 200 ppm quaternary solution (similar to
Pro-Quat 103). Immerse all pump parts in this
solution for at least 60 seconds, remove and let air
dry. Reassemble the pump.
PRIMING PUMP
Three (3) strokes of the pump plunger are
necessary to initially prime and vend thick food
products.
If pump does not dispense product properly,
remove plunger assembly from pump and make
sure the plunger "o" ring is in place on the pump
plunger. If the "o" ring is missing disassemble the
pump parts and make certain the "o" ring is not in
the pump plunger tube, pump chambers or vend
tube before replacing "o" ring.
1. Unplug cord from the receptacle.
2. Remove both front panels as stated above.
3. Replace bulbs with a 15 watt appliance type,
medium base for 120V or a 10 watt medium
base for 240V.
MAINTENANCE AND REPAIRS
Contact the factory, a service representative or a
local service company for service or required
maintenance.
RETAIN THIS MANUAL FOR FUTURE REFERENCE
PART NO. 2M-Y5817 REV. G 2/10/00
13
Page 14
Visi t our Website at :
This unit has been tested for proper operation before leaving our plant to insure delivery of your unit in perfect condition. However, there are instances in
which the unit may be damaged in transit. In the event you discover any type of damage to your product upon receipt, you must immediately contact the
transportation company who delivered the item to you and initiate your claim with same. If this procedure is not followed, it may affect the warranty
status of the unit.
All workmanship and material in Star products have a one (1) year limited warranty on parts & labor in the United States and Canada. Such warranty is
limited to the original purchaser only and shall be effective from the date the equipment is placed in service. Star's obligation under this warranty is limited
to the repair of defects without charge, by the factory authorized service agency or one of its sub-agencies. Models that are considered portable (see below)
should be taken to the closest Star service agency, transportation prepaid.
www.sta r-mfg.com Email: serv [email protected] For Fax-On-Demand Lite rature: (800 ) 807-9814
THOROUGHLY INSPECT YOUR UNIT ON ARRIVAL
LIMITED EQUIPMENT WARRANTY
> Star will not assume any responsibility for loss of revenue.
> On all shipments outside the United States and Canada, see International Warranty.
* The warranty period for the JetStar series six (6) ounce popcorn machines is two (2) years.
* The warranty period for the Chrome-Max Griddles is five (5) years on the griddle surface. See detailed warranty provided with unit.
* The warranty period for Teflon/Dura-Tec coatings is one year under normal use and reasonable care. This warranty does not apply if damage occurs to
Teflon/Dura-Tec coatings from improper cleaning, maintenance, use of metallic utensils, or abrasive cleaners. This warranty does not apply to the
“non-stick” properties of such materials.
> This warranty does not apply to "Special Products" but to regular catalog items only. Star's warranty on "Special Products" is six (6) months on parts
and ninety (90) days on labor.
> This warranty does not apply to any item that is disassembled or tampered with for any purpose other than repair by a Star Authorized Service Center or
the Service Center's sub-agency.
> This warranty does not apply if damage occurs from improper installation, misuse, wrong voltage, wrong gas or operated contrary to the Installation and
Operating instructions.
> This warranty is not valid on Conveyor Ovens unless a "start-up/check-out" has been performed by a Factory Authorized Technician.
PARTS WARRANTY
Parts that are sold to repair out of warranty equipment are warranted for ninety (90) days. The part only is warranted. Labor to replace the part is
chargeable to the customer.
SERVICES NOT COVERED BY WARRANTY
1. Travel time and mileage rendered beyond the 50 mile radius limit
2. Mileage and travel time on portable equipment (see below)
3. Labor to replace such items that can be replaced easily during a daily cleaning
routine, ie; removable kettles on fryers, knobs, grease drawers on griddles, etc.
4. Installation of equipment
5. Damages due to improper installation
6. Damages from abuse or misuse
7. Operated contrary to the Operating and Installation Instructions
8. Cleaning of equipment
9. Seasoning of griddle plates
10 . Voltage conversions
11 . Gas conversions
12 . Pilot light adjustment
13 . Miscellaneous adjustments
14 . Thermostat calibration and by-pass adjustment
15 . Resetting of circuit breakers or safety controls
16 . Replacement of bulbs
17 . Replacement of fuses
18 . Repair of damage created during transit, delivery, &
installation OR created by acts of God
PORTABLE EQUIPMENT
Star will not honor service bills that include travel time and mileage charges for servicing any products considered "Portable" including items listed below.
These products should be taken to the Service Agency for repair:
* The Model 510F Fryer.
* The Model 526TO Toaster Oven.
* The Model J4R, 4 oz. Popcorn Machine.
* The Model CFS Series Food Steamer.
* The Model 526WO Warming Oven.
* The Model 518CM & 526CM Cheese Melter.
* The Model 12MC & 15MC & 18MCP Hot Food Merchandisers.
* The Model 12NCPW & 15NCPW Nacho Chip/Popcorn Warmer.
* All Hot Dog Equipment except Roller Grills & Drawer Bun Warmers.
* All Nacho Cheese Warmers except Model 11WLA Series Nacho Cheese Warmer.
* All Condiment Dispensers except the Model CSD & HPD Series Dispenser.
* All Specialty Food Warmers except Model 130R, 500, 11RW Series, and 11WSA Series.
The foregoing warranty is in lieu of any and all other warranties expressed or implied and constitutes the entire warranty.
FOR ASSISTANCE
Should you need any assistance regarding the Operation or Maintenance of any Star equipment; write, phone, fax or email our Service Department.
In all correspondence mention the Model number and the Serial number of your unit, and the voltage or type of gas you are using.
ALL:
* Pop-Up Toasters
* Butter Dispensers
* Pretzel Merchandisers
* Pastry Display Cabinets
* Nacho Chip Merchandisers
* Accessories of any kind
* Sneeze Guards
* Pizza Ovens
* Heat Lamps
* Hot Cups
* Pumps
Part# 2M-4497-2 02/03 RB

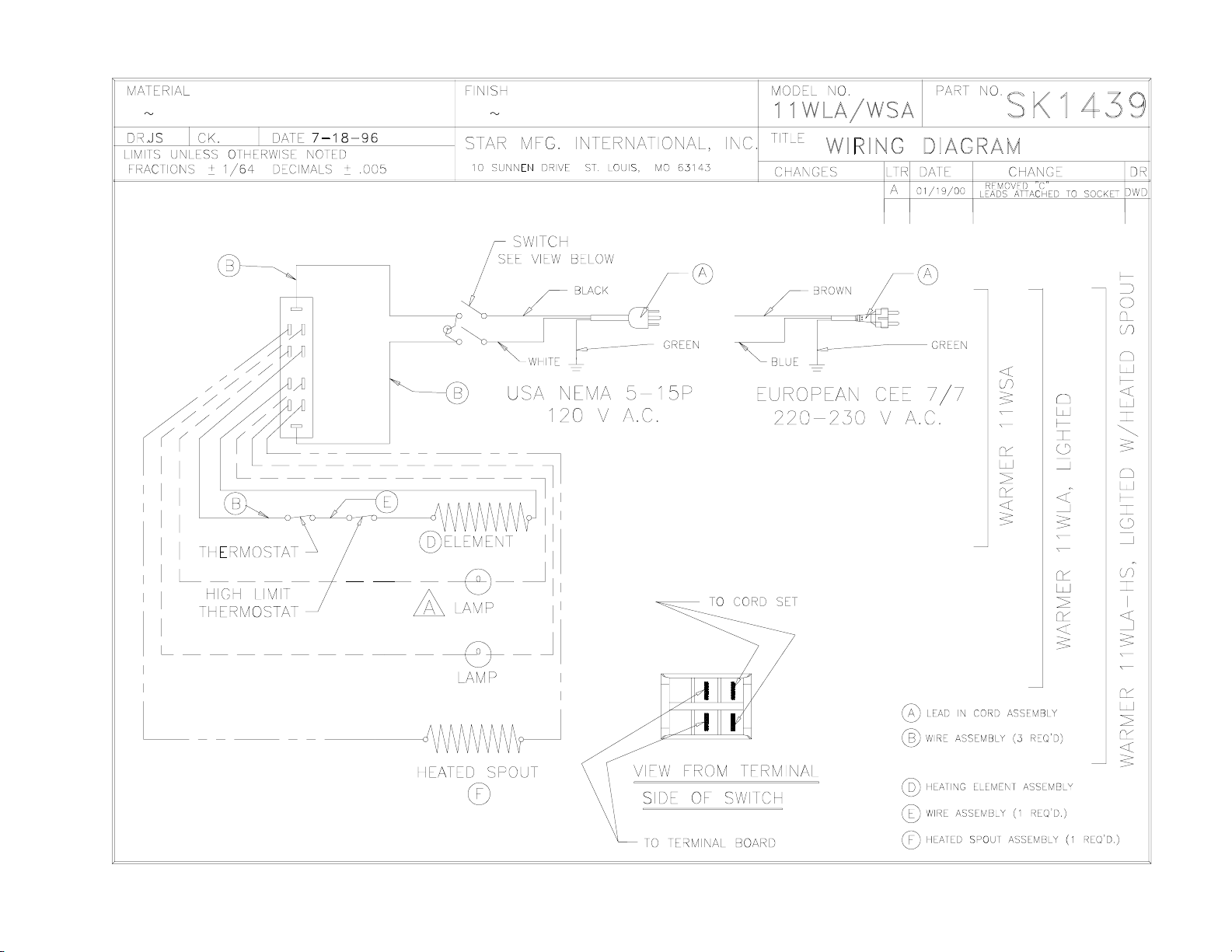

Page 15
Page 16
Page 17

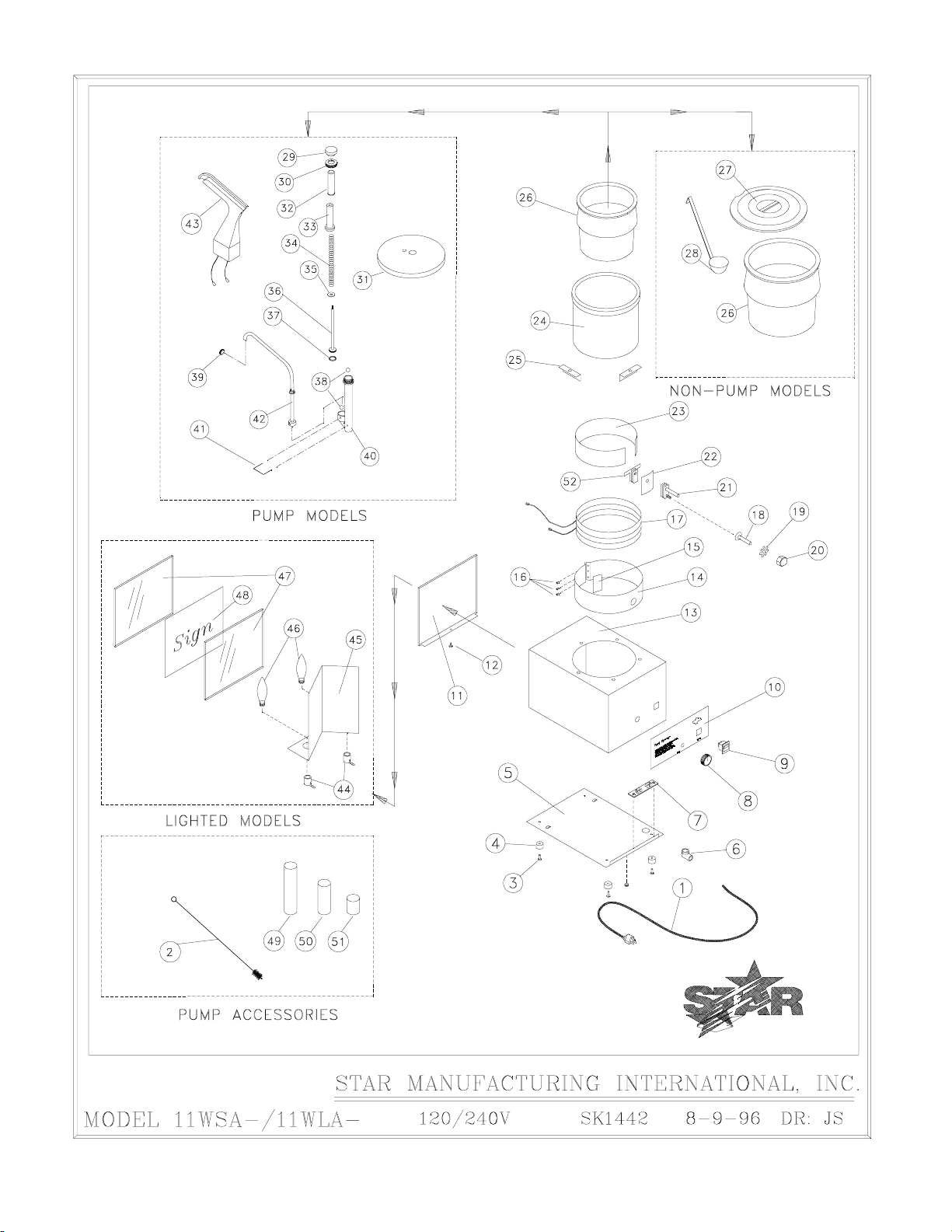

PARTS LIST EFFECTIVE
2-20-97 Rev. A
MODEL
11WLA-11WSA 120V/240V
Number
Key
Number
1 N1-119030 1 CORD ASSY. 120V
1 N1-119034 1 CORD ASSY. 240V
2 2P-Y6211 1 BRUSH
3 2C-Y5059 4 POP RIVET
4 2I-Z0057 4 FOOT
5 N1-Z0697 1 BOTTOM
6 2K-Y2968 1 BUSHING STRAIN RELEIF
7 2E-Y8233 1 TERMIINAL BOARD
8 2R-Y8261 1 KNOB-THERMOSTAT
9 2E-Y8785 1 SWITCH
10 2M-Z0691 1 REAR PANEL (SIGN)
11 N1-Z0696 1 FRONT PANEL S.S.
12 2C-Y1486 1 SCREW #6 x 1/4
13 N1-119040 1 BODY ASSY. (HEATED SPOUT)
13 N1-119039 1 BODY ASSY. (WARMER)
14 O1-Y9787 1 BAND-ELEMENT
15 N2-Y8310 1 PLATE
16 2C-H5569 3 POP RIVET 1/8 x .6
17 2N-Z0205 1 ELEMENT 120V
17 2N-Z0665 1 ELEMENT 240V
18 2C-1496 2 SCREW 8-32 x 3/4 STL. PH
19 2C-H8670 1 WASHER-LOCK #8
20 2C-2556 3 NUT #8-32
21 2T-Z0245 1 THERMOSTAT
22 N1-Z0700 1 BRACKET
23 O1-Y9786 1 BAND-HEATER
24 N1-119038 1 HEAT-WELL
25 N1-Y3654 5 ANGLE-STIFFENER
26 2D-Y3464 1 STAINLESS INSET (OPTIONAL)
27 2L-Y6596 1 COVER
28 2L-Z0577 1 LADLE 1 OZ.
28 2L-Z0579 1 LADLE 4 OZ.
29 2R-Y9854 1 KNOB-BLK.
30 2A-Y9637 1 NUT
31 N2-Y9848 1 PLATE-PLASTIC PUMP
32 2V-Y7661 1 PLUNGER-SHIELD
Part
Number
Per
Unit
Description
IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE
INCLUDE MODEL AND SERIAL NUMBER OF
Some items are included for illustrative purposes only and in certain instances may not be available.
Star Manufacturing International, Inc.
10 Sunnen Drive, P.O. Box 430129, St. Louis, MO 63143
SK1441
Phone: (314) 781-2777 FAX: (314) 781-3636
1
2
Page 18
PARTS LIST EFFECTIVE
2-20-97 Rev. A
MODEL
11WLA-11WSA 120V/240V
Number
Key
Number
33 2A-Z0718 1 GUIDE
34 2P-Z0830 1 SPRING
35 N2-Y4146 1 WASHER
36 2I-Y9636 1 ROD/PLUNGER
37 2I-Y4143 1 O-RING
38 2P-Y6196 2 BALL-VALVE
39 2A-Y7657 1 NUT
40 2I-Z0730 1 PUMP CHAMBER
41 N2-Y9685 1 PIN-"U"
42 N2-62006 1 DISPENSE TUBE ASSEMBLY STANDARD
43 N1-119041 1 SPOUT ASSY. 120V
43 N1-119044 1 SPOUT ASSY. 240V
44 N1-119045 2 LAMP SOCKET 120V/240V
45 N1-119029 1 LAMP SHIELD 120V/240V
46 2S-1279 2 LAMP 15W 120V
46 2S-Y8321 2 LAMP 15W 220V
47 2Q-Z0729 2 LEXAN PANEL
48 2M-Z0904 1 SIGN "HOT NACHOS"
48 2M-Y5802 1 SIGN "BBQ"
48 2M-Y5804 1 SIGN "CHILI"
48 2M-Y5806 1 SIGN "CHILI DOG"
48 2M-Y3332 1 SIGN "SOUP"
49 N2-Y8763 1 TUBE SPACER 1/4 OZ.
50 N2-Y6123 1 TUBE SPACER 1/2 OZ.
51 N2-Y8764 1 TUBE SPACER 3/4 OZ.
52 2T-Z0622 1 THERMOSTAT (HIGH LIMIT)
Part
Number
Per
Unit
Description
IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE
INCLUDE MODEL AND SERIAL NUMBER OF
Some items are included for illustrative purposes only and in certain instances may not be available.
Star Manufacturing International, Inc.
10 Sunnen Drive, P.O. Box 430129, St. Louis, MO 63143
SK1441
Phone: (314) 781-2777 FAX: (314) 781-3636
2
2
Page 19
Loading...
