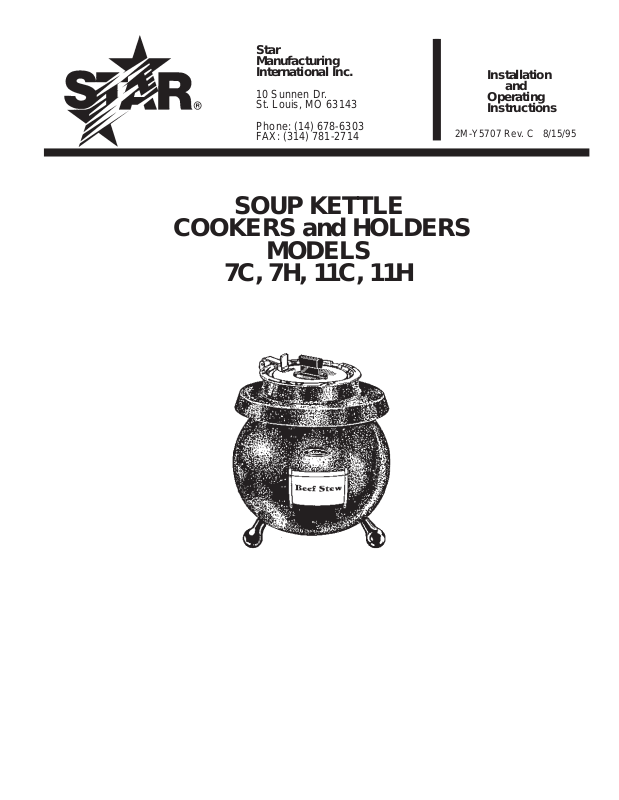

Star
Manufacturing
International Inc.
10 Sunnen Dr.
St. Louis, MO 63143
Installation
and
Operating
Instructions
2M-Y5707 Rev. C 8/15/95
Phone: (14) 678-6303
FAX: (314) 781-2714
SOUP KETTLE
COOKERS and HOLDERS
MODELS
7C, 7H, 11C, 11H
CAUTION
This equipment is designed and sold for commercial use only by personnel trained
and experienced in its operation and is not sold for consumer use in and around the
home nor for use directly by the general public in food service locations.
INSTALLATION
These food warmers are equipped for the voltage and wattage indicated on the
nameplate mounted to the back panel and are designed for use on alternating current
(AC) only. Serious damage may result if appliance is used with incorrect voltage.
CAUTION
DO NOT CONNECT TO DIRECT CURRENT (DC).
GENERAL OPERATING INSTRUCTIONS
1. Before using the soup kettle, clean the water and soup bowls and its cover if furnished
with the kettle.
2. Do not operate the kettle dry. Place water in the water bowl (14 ounces of water for
11 qt. Model, 26 ounces for the 7 qt. Model).
3. ThetemperaturecontrolonthesekettlesisacombinationOn/Offswitchwithaninnite control. The "OFF" position will turn off the electric current to the heating element.
4. If PRE-HEATING IS DESIRED SET THE CONTROL AT "HI" for approximately 20-30
minutes. Prolonged "HI" setting may result in overcooking or scorching of certain
food.
5. Set the dial to the number required to maintain the temperature desired. Because
the consistency of different food varies, and because liquids and solids absorb heat at
different rates, it is impractical to specify the exact dial setting. Therefore, we have
indicated the setting with a series of numbers. A little experience will give you the
proper setting for various foods you are serving.
6. The soup cookers are equipped with a warning light to prevent overheating or
scorching of certain soups. When the light is on, all electric current to the heating elements will be off. Turn the heat setting down to a lower setting and wait 5-10 minutes
for the light to go out. It would also be advisable to check the water level in the water
bowl.
7. Turn the control to the "OFF" position when the unit is not in use.
CAUTION
DO NOT OVER-HEAT THE UNIT.
CLEANING INSTRUCTIONS
Change water in water bowl daily and remove any food collection that may have
entered the water bath. Clean soup bowl, cover and the kettle at a sink with soap
and water.
The exterior surfaces of the warmer can be kept clean and attractive by wiping or
washing regularly with a soft cloth and mild soap and water. Any discoloration on
the bowls and cover can be removed with a non-abrasive cleaner. Do not use an
abrasive cleaner as the attractive coatings will be affected adversely.
MAINTENANCE AND REPAIRS
Contact the factory, a service representative or a local service company for service or
required maintenance.
2
2M-Y5707: Star Soup Kettle, 7C-B & 11C-B
MODELS 7C & 11C COOKERS
MODELS 7H & 11H HOLDERS
120V & 240V
120V & 240V
B
3/17/92
B.N.
REDRAWN TO CAD
MATERIAL
DR. CK. DATE
MODEL NO.
TITLE
PART NO.
LIMITS UNLESS OTHERWISE NOTED
FRACTIONS 1/64 DECIMALS .005
CHANGES LTR DATE CHANGE DR
L1
L2
H2
H1
H1
H2
L2
L1
INFINITE CONTROL
1000 W ELEMENT
NORMALLY CLOSED
NORMALLY OPEN
COMMON
THERMOSTAT
H
H
H
H
71115
BLACK
GREEN
WHITE
PILOT LIGHT
7C/H,11C/H SK1240
WIRING DIAGRAM
3/17/92
B.N.
WHITE
GREEN
BLACK
H
H
H
H
300 W ELEMENT
INFINITE CONTROL
2M-Y5707: Star Soup Kettle, 7C-B & 11C-B
3
240V EUROPE
MODELS 7C & 11C COOKERS
MATERIAL
DR. CK. DATE
FINISH MODEL NO.
TITLE
PART NO.
STAR MFG. INTERNATIONAL, INC.
9325 OLIVE BOULEVARD ST. LOUIS, MO 63132
LIMITS UNLESS OTHERWISE NOTED
FRACTIONS 1/64 DECIMALS .005
CHANGES LTR DATE CHANGE DR
L1
L2
H2
H1
INFINITE CONTROL
~
1000 W ELEMENT
NORMALLY CLOSED
NORMALLY OPEN
COMMON
~
THERMOSTAT
H
H
H
H
71115
BROWN
GREEN
BLUE
PILOT LIGHT
~ ~ 7C/11C-E SK1241
WIRING DIAGRAM
3/18/92 B.N.
2M-Y5707: Star Soup Kettle, 7C-B & 11C-B
4

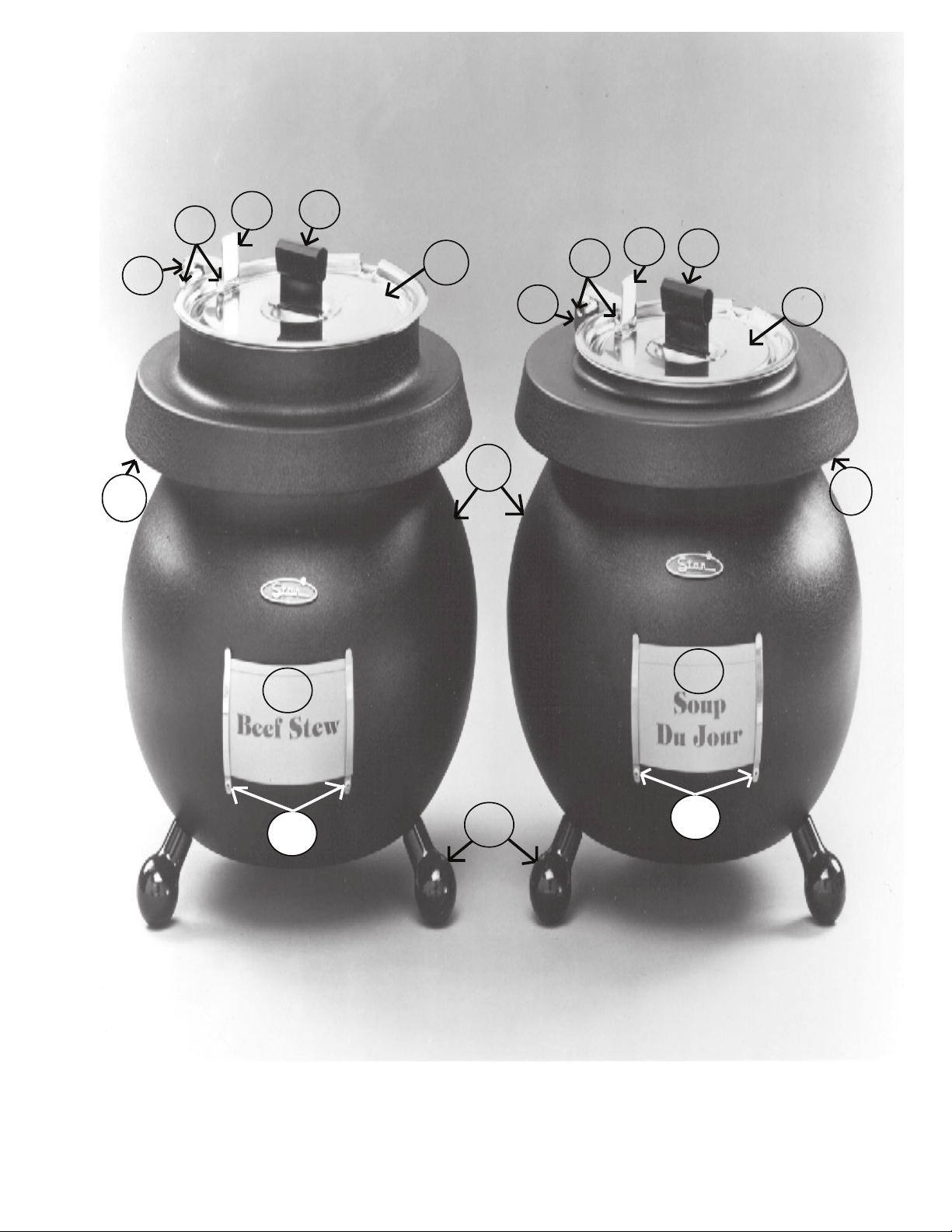

1
2
3
4
5
6
6
7
8
9
7
9
8
10
11
11
12
12
2M-Y5707: Star Soup Kettle, 7C-B & 11C-B
5
13
14
15
16
17
6
2M-Y5707: Star Soup Kettle, 7C-B & 11C-B
PARTS LIST January 30, 2014
Model: 7C-B, 11C-B Soup Kettle
Key No Part No Qty Description Application
1 2D-Y5670 1 SOUP KETTLE COOKER - BLACK
2 2D-Y5660 1 TRANSFER COLLAR RING - BLACK (does not include gasket) 7C-B
3 2D-Y5664 1 TRANSFER COLLAR RING - BLACK (does not include gasket) 11C-B
4 O2-71109 1 COVER ASSEMBLY (does not include hinge parts) 7C-B
5 O2-71110 1 COVER ASSEMBLY (does not include hinge parts) 11C-B
NI 2I-Y5712 1 GASKET RING
6 2R-Y5701 1 INSULATING HANDLE
7 O2-Y5703 1 HINGE LEAF
8 O2-Y5704 1 HINGE RING BRACKET
9 2B-Y5792 2 PIN - HINGE
10 2A-Y5684 2 FOOT - BLACK
11 O2-Y6209 2 SIGN CLIP
12 2M-Y5686 1 SOUP SIGN PACKET (21 SIGNS)
NI 2D-Y5696 1 POT - 7 QT BAIN MARINE 7C-B
NI 2D-Y5698 1 POT - 11QT BAIN MARINE 11C-B
13 2D-Y9029 1 LINER - WATER
NI 2N-Y5677 1 ELEMENT - 1000W 120V
NI 2N-Y5679 1 ELEMENT - 1000W 240V
NI O2-Y5680 1 BAND - ELEMENT
14 2R-9193 1 BUTTON INDICATOR
NI 2J-6402 1 INFINITE CONTROL 120V
NI 2J-6403 1 INFINITE CONTROL 240V
15 2R-Y5682 1 KNOB CONTROL
16 2M-Y5695 1 LABEL - “CHECK HEAT/WATER”
2M-Y5707: Star Soup Kettle, 7C-B & 11C-B
17
NI 2T-Y5708 1 THERMOSTAT - HI-LIMIT
NI O2-Y5709 1 BRACKET - THERMOSTAT
NI Z1-S7523 1 CORD SET ASSEMBLY 120V
NI A1-S7554 1 CORD SET ASSEMBLY 240V
NI 2K-Y2967 1 BUSHING, POWER CORD
NI O2-Y5689 1 BOTTOM
O2-71107
Q2-71108 240V
1 PILOT LIGHT
120V
7
