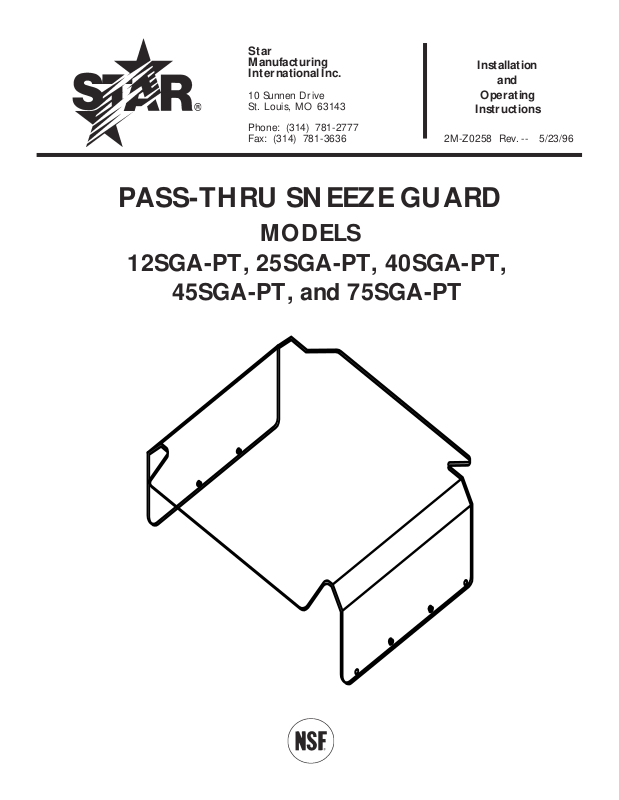

Star Manufacturing 25SGA-PT, 40SGA-PT, 45SGA-PT, 75SGA-PT Operation Manual

Star
Manufacturing
Int ernational Inc.

10 Sunnen Drive
St. Louis, MO 63143

Phone: [phone]
Fax: [phone]

2M-Z0258 Rev. -- 5/23/96

Inst allation

Operating

Inst ructions

PASS-THRU SN EEZE GUARD

MODELS

12SGA-PT, 25SGA-PT, 40SGA-PT,

45SGA-PT, and 75SGA-PT

and

1

SAFETY SYMBOL

Using any part other than genuine Star factory supplied parts relieves the
manufacturer of all liability.

Star reserves the right to change specifi cations and product design without
notice. Such revisions do not entitle the buyer to corresponding changes,
improvements, additions or replacements for previously purchased
equipment.

Due to periodic changes in designs, methods, procedures, policies and
regulations, the specifi cations contained in this sheet are subject to change
without notice. While Star Manufacturing exercises good faith efforts to provide
information that is accurate, we are not responsible for errors or omissions
in information provided or conclusions reached as a result of using the
specifi cations. By using the information provided, the user assumes all risks in
connection with such use.

These symbols are intended to alert the user to the presence of
important operating and maintenance instructions in the manual
accompanying the appliance.

RETAIN THIS MANUAL FOR FUTURE REFERENCE

NOTICE

MAINTENANCE AND REPAIRS

Contact your local authorized service agent for service or required maintenance. Please record the model
number, serial number, voltage and purchase date in the area below and have it ready when you call to

ensure a faster service.

Model No.

Serial No.

Voltage

Purchase Date

Authorized Service Agent

Reference the listing provided with the unit

or

for an updated listing go to:

Website: www.star-mfg.com
E-mail [email protected]
Telephone: [phone] Local [phone]

The Star Service Help Desk

Business 8:00 am to 4:30 p.m. Central Standard Time
Hours:

Telephone: [phone] Local [phone]

Fax: [phone] Local [phone]

E-mail [email protected]

[email protected]
[email protected]

Website: www.star-mfg.com

Mailing Address: Star Manufacturing International Inc.

10 Sunnen Drive
St. Louis, MO 63143
U.S.A

2

CAUTION

This equipment is designed and sold for commercial
use only by personnel trained and experienced in its
operation and is not sold for consumer use in and
around the home nor for use directly by the general
public in food service locations. For equipment to be
used by the general public, please contact the factory.

GEN ERAL OPERATING PROCEDURES

The pass-thru sneeze guard is used to prot ect the
perishable foods from for eign airborne contaminates.
The pass-thru sneeze guard is designed to attach to
the side panels on the hot dog roller grill with (4)
thumb screw s (2 per side). This design feature allows
the sneeze guar d to be easily removable without the
use of any tools.

IN STALLATION

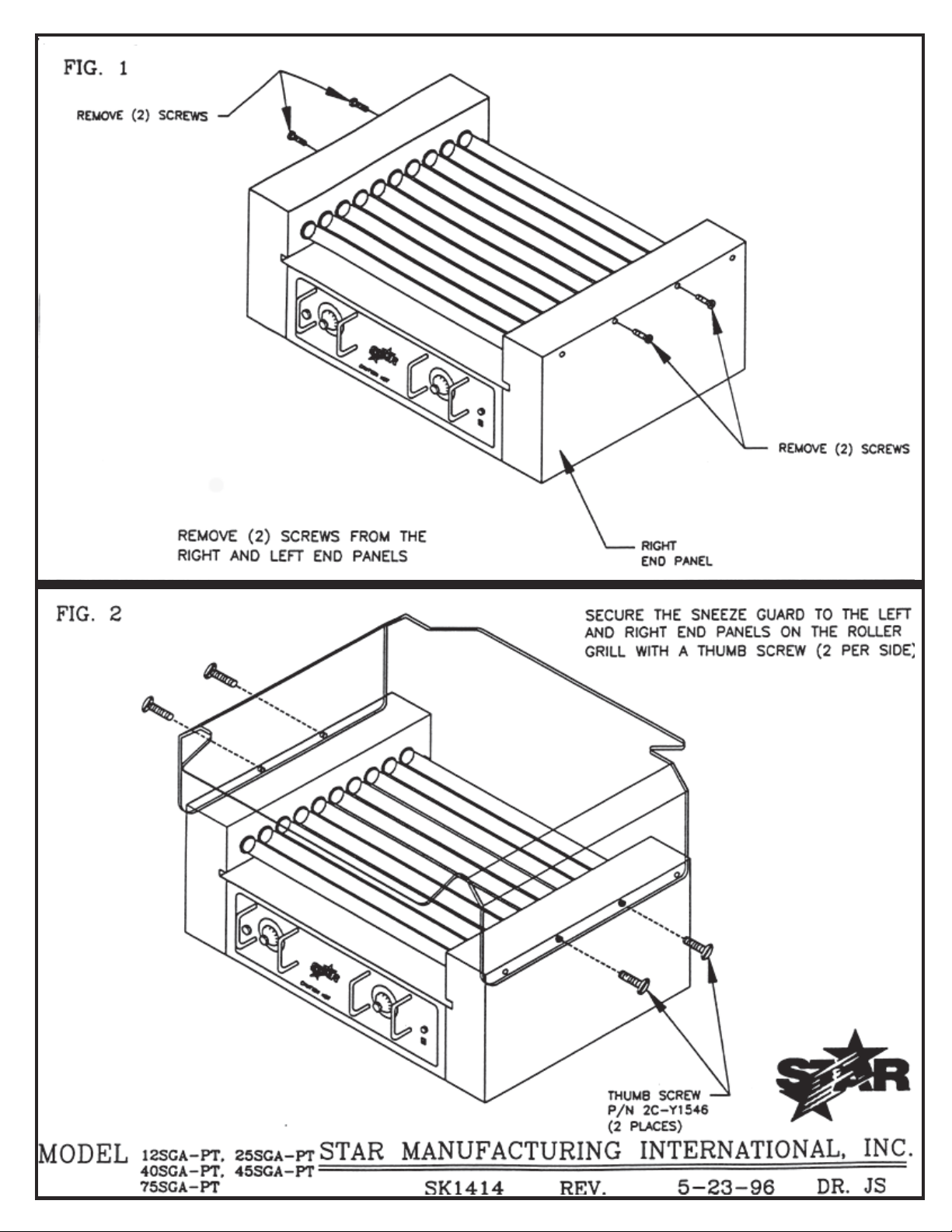

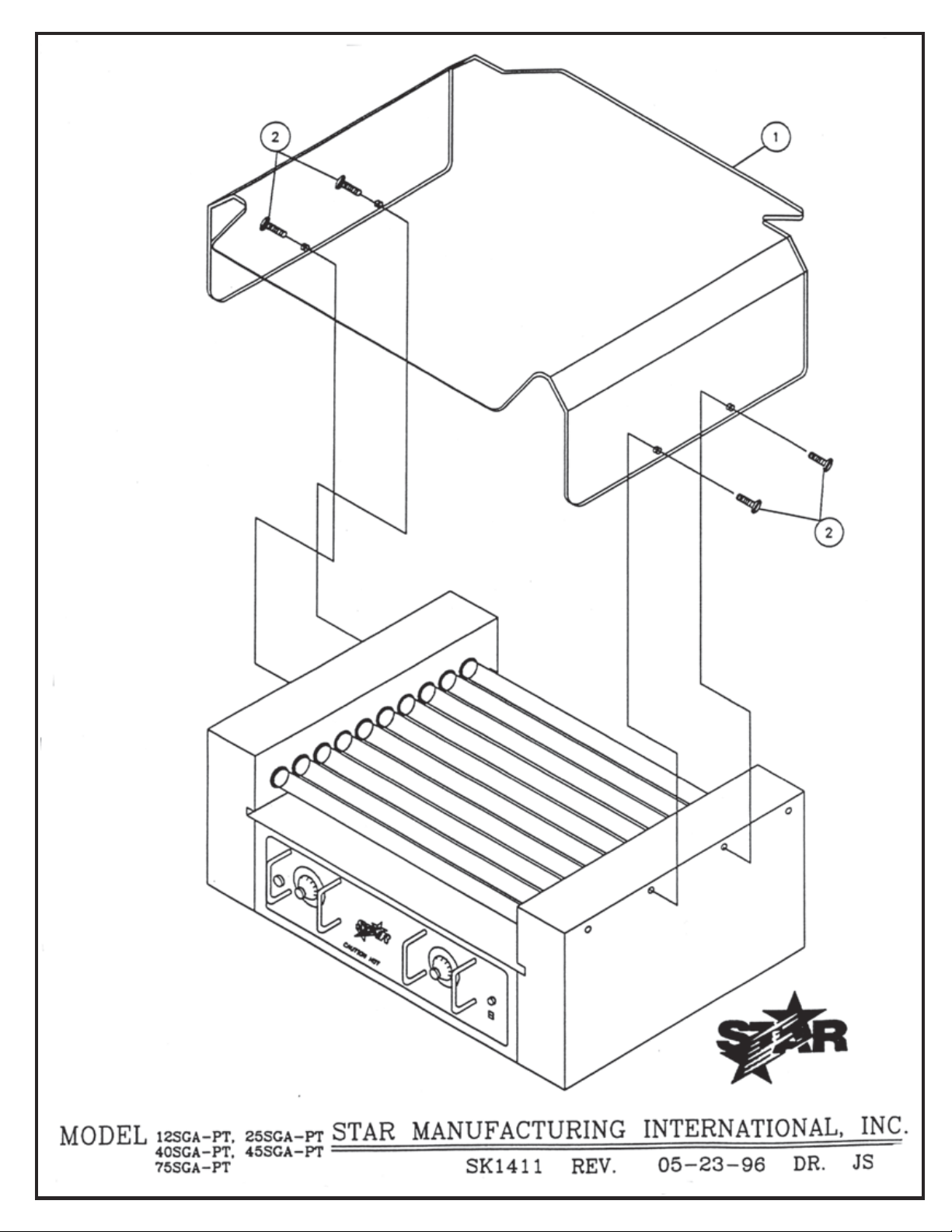

1. Remove (2) sheet machine screws from the right
end panel on the hot dog roller grill. (See Figure
1 on drawing SK1414.) Repeat prior inst ructions
for the left end panel. (See Figure 1 on draw ing
SK1414.)

2. Place sneeze guard on roller grill as shown in
Figure 2 on drawing SK1414. Secure the sneeze
guar d to the right end panel on t he roller grill using
(2) t humb screws P/N 2C-Y1546. (See Figure 2 on
drawing SK1414.) Repeat prior instructions for
left end panel. (See Figure 2 on draw ing SK1414.)

CLEANIN G

Tur n the roller grill off and allow t he sneeze guard t o
cool before attempting to remove it from t he roller
gr ill. After r emoval, w ash t he sneeze guard w it h a mild
soap or detergent and warm w ater using a clean
sponge or a soft cloth. Rinse w ell w it h clean water.
Dry thoroughly with a chamois or a moist cellulose
sponge to prevent water spots. D o not scrub or use
brushes because it can cause scrat ches and minor
abrasions. Do not use abr asive or highly alkaline
cleaners. Never scrape the sneeze guard w ith
squeegees, razor blades, or other sharp instruments.
Some compatible cleaners for the sneeze guard are:
Joy, Palmolive liquid, Top Job, and Windex with
Amm onia D . Adher ence to r egular and pr oper cleaning
pr ocedures is recomm ended to preserve appearance.

CAUTION

DO N O T U SE SHARP OBJECTS ON TH E
SN EEZ E GU ARD SU RFACE; SCRATCH ES W ILL
VOID THE WARRAN TY. N EVER USE STEEL
WOOL OR ABRASIVE CLEAN ERS ON THE
SNEEZE GUARD AS TH IS WILL DAM AGE TH E
FIN ISH.

MAIN TENAN CE AN D REPAIRS

Contact the fact ory, a service representat ive or a local
service company for ser vice or required maintenance.

RETAIN THIS MAN UAL FOR FUTURE REFERENCE.
PART N O . 2M-Z0258 Rev. -- 5/23/96

3
