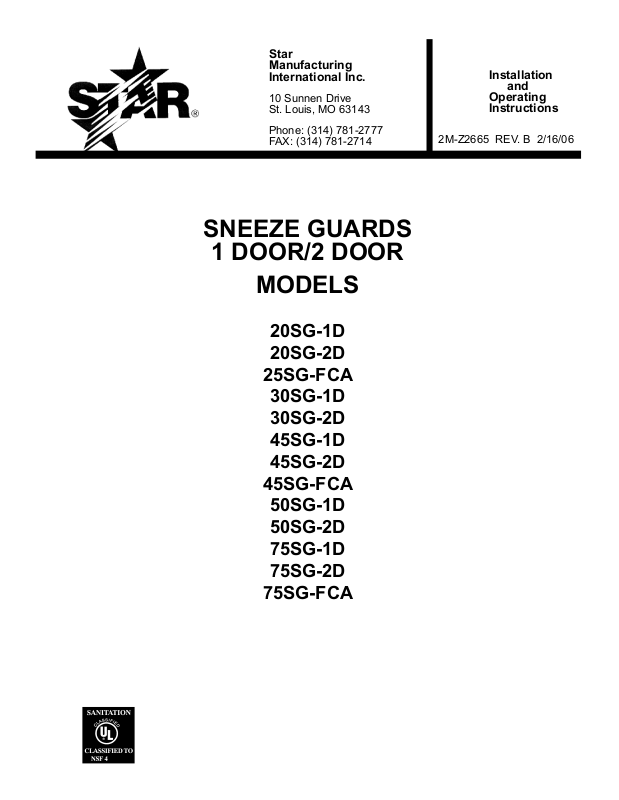

Page 1
Star
Manufacturing
International Inc.
10 Sunnen Drive
St. Louis, MO 63143
Installation
and
Operating
Instructions
Phone: (314) 781-2777
FAX: (314) 781-2714
SNEEZE GUARDS
1 DOOR/2 DOOR
MODELS
20SG-1D
20SG-2D
25SG-FCA
30SG-1D
30SG-2D
2M-Z2665 REV. B 2/16/06
45SG-1D
45SG-2D
45SG-FCA
50SG-1D
50SG-2D
75SG-1D
75SG-2D
75SG-FCA
Page 2
Visit our Website at: www.star-mfg.com Email: [email protected]
This unit has been tested for proper operation before leaving our plant to insure delivery of your unit in perfect condition. However, there are instances in
which the unit may be damaged in transit. In the event you discover any type of damage to your product upon receipt, you must immediately contact the
transportation company who delivered the item to you and initiate your claim with same. If this procedure is not followed, it may affect the warranty status of
the unit.
All workmanship and material in Star products have a one (1) year limited warranty on parts & labor in the United States and Canada. Such warranty is limited
to the original purchaser only and shall be effective from the date the equipment is placed in service. Star's obligation under this warranty is limited to the repair
of defects without charge, by the factory authorized service agency or one of its sub-agencies. Models that are considered portable (see below) should be taken
to the closest Star service agency, transportation prepaid.
THOROUGHLY INSPECT YOUR UNIT ON ARRIVAL
LIMITED EQUIPMENT WARRANTY
> Star will not assume any responsibility for loss of revenue.
> On all shipments outside the United States and Canada, see International Warranty.
* The warranty period for the JetStar six (6) ounce & Super JetStar eight (8) ounce series popcorn machines is two (2) years.
* The warranty period for the Chrome-Max Griddles is ¿ ve (5) years on the griddle surface. See detailed warranty provided with unit.
* The warranty period for TeÀ on/Dura-Tec coatings is one year under normal use and reasonable care. This warranty does not apply if damage occurs to
TeÀ on/Dura-Tec coatings from improper cleaning, maintenance, use of metallic utensils, or abrasive cleaners, abrasive pads, product identi¿ ers and
point-of-sale attachments, or any other non-food object tha comes in continuous contact with the roller coating. This warranty does not apply to the
“non-stick” properties of such materials.
> This warranty does not apply to "Special Products" but to regular catalog items only. Star's warranty on "Special Products" is six (6) months on parts
and ninety (90) days on labor.
> This warranty does not apply to any item that is disassembled or tampered with for any purpose other than repair by a Star Authorized Service Center or
the Service Center's sub-agency.
> This warranty does not apply if damage occurs from improper installation, misuse, wrong voltage, wrong gas or operated contrary to the Installation and
Operating instructions.
> This warranty is not valid on Conveyor Ovens unless a "start-up/check-out" has been performed by a Factory Authorized Technician.
Parts that are sold to repair out of warranty equipment are warranted for ninety (90) days. The part only is warranted. Labor to replace the part is chargeable to
the customer.
1. Travel time and mileage rendered beyond the 50 mile radius limit
2. Mileage and travel time on portable equipment (see below)
3. Labor to replace such items that can be replaced easily during a daily cleaning
routine, ie; removable kettles on fryers, knobs, grease drawers on griddles, etc.
4. Installation of equipment
5. Damages due to improper installation
6. Damages from abuse or misuse
7. Operated contrary to the Operating and Installation Instructions
8. Cleaning of equipment
9. Seasoning of griddle plates
Star will not honor service bills that include travel time and mileage charges for servicing any products considered "Portable" including items listed below.
These products should be taken to the Service Agency for repair:
* The Model 510FD Fryer.
* The Model 526TOA Toaster Oven.
* The Model J4R, 4 oz. Popcorn Machine.
* The Model 518CMA & 526CMA Cheese Melter.
* The Model 12MC & 15MC & 18MCP Hot Food Merchandisers.
* The Model 12NCPW & 15NCPW Nacho Chip/Popcorn Warmer.
* All Hot Dog Equipment except Roller Grills & Drawer Bun Warmers.
* All Nacho Cheese Warmers except Model 11WLA Series Nacho Cheese Warmer.
* All Condiment Dispensers except the Model HPD & SPD Series Dispenser.
* All Specialty Food Warmers except Model 130R, 11RW Series, and 11WSA Series.
* All QCS/RCS Series Toasters except Model QCS3 & RCS3 Series.
SERVICES NOT COVERED BY WARRANTY
PARTS WARRANTY
10. Voltage conversions
11. Gas conversions
12. Pilot light adjustment
13. Miscellaneous adjustments
14. Thermostat calibration and by-pass adjustment
15. Resetting of circuit breakers or safety controls or reset buttons
16. Replacement of bulbs
17. Replacement of fuses
18. Repair of damage created during transit, delivery, &
installation OR created by acts of God
PORTABLE EQUIPMENT
ALL:
* Pop-Up Toasters
* Butter Dispensers
* Pretzel Merchandisers
(Model 16PD-A Only)
* Pastry Display Cabinets
* Nacho Chip Merchandisers
* Accessories of any kind
* Sneeze Guards
* Pizza Ovens
(Model PO12 Only)
* Heat Lamps
* Pumps-Manual
The foregoing warranty is in lieu of any and all other warranties expressed or implied and constitutes the entire warranty.
FOR ASSISTANCE
Should you need any assistance regarding the Operation or Maintenance of any Star equipment; write, phone, fax or email our Service Department.
In all correspondence mention the Model number and the Serial number of your unit, and the voltage or type of gas you are using.
Part# 2M-4497-2 12/06 RMS
Page 3

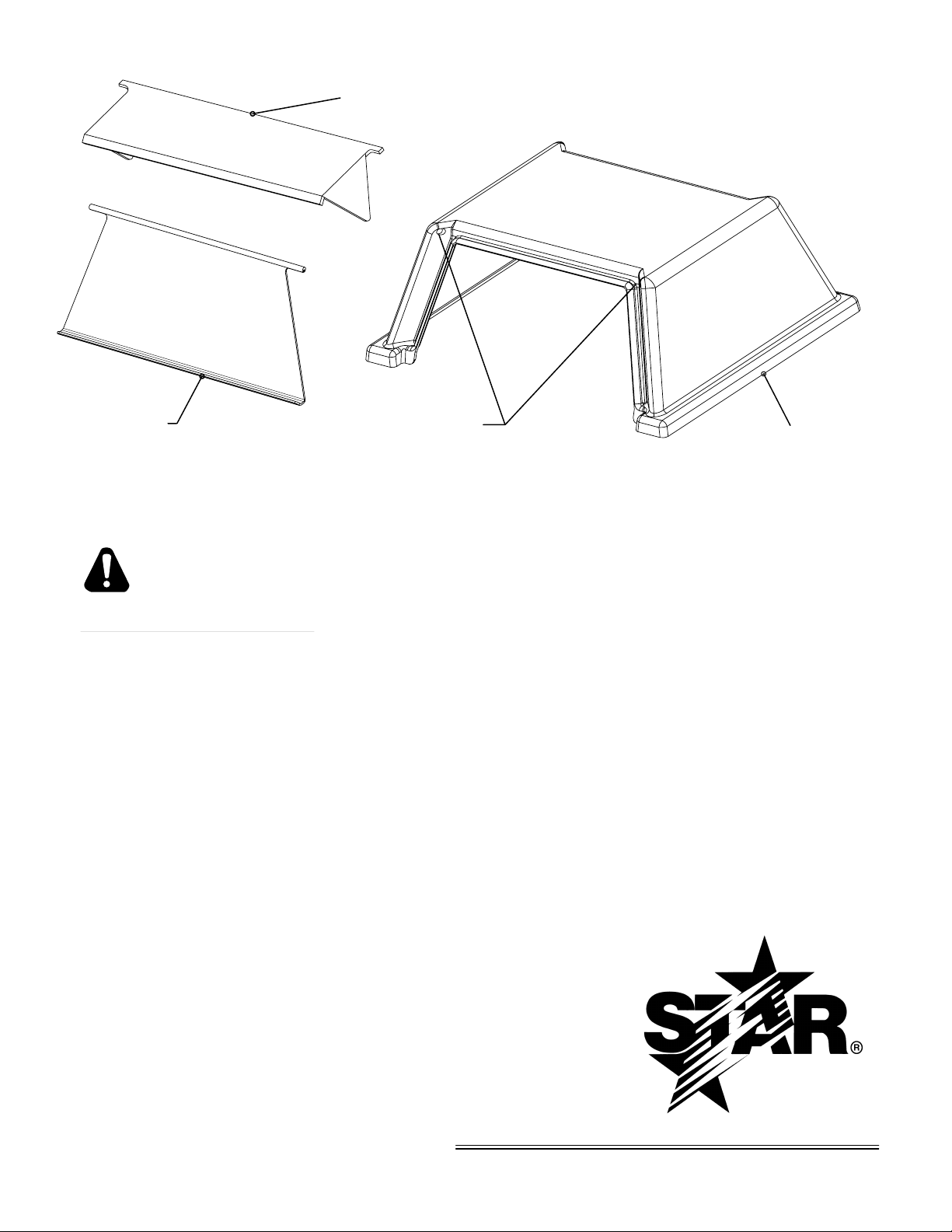

SHIELD
DOOR
Before installing sneeze guard on unit, remove all protective plastic wrap and discard.
MOUNTING HOLES
SNEEZE GUARD
Installing Doors or Shields
Insert one tab of the door or shield into the sneeze guard hole. Flex
the door or shield and insert the other tab into the other hole.
WARNING: Since the sneeze guard becomes hot during operation, let it cool completely
before removing doors or shields
CLEANING SNEEZE GUARDS
Wash the sneeze guards with a mild soap or detergent and lukewarm water, using a clean
sponge or a soft cloth. Rinse well with clean water.
Dry thoroughly with a moist sponge to prevent water spots.
DO NOT use harsh chemicals on any surface
DO NOT scrub or use brushes on the sneeze guards
DO NOT use abrasive cleaners on the sneeze guards
DO NOT scrape the sneeze guards with squeegees or sharp instruments
DO NOT clean sneeze guards at elevated temperatures
MODELS:
20, 30, 45, 45A, 50, 75, 75A SNEEZE GUARDS
STAR MANUFACTURING INTERNATIONAL, INC.
2M-Z2665 2-16-06Rev. B
Page 4
PARTS LIST February 16, 2006, Rev B
See Kit Part Number
Kit Part Number
20SG-1D 2L-Z2339 1 SNEEZE GUARD
2Q-Z2341 1 DOOR
20SG-2D 2L-Z2340 1 SNEEZE GUARD
2Q-Z2341 2 DOOR
25SG-FCA 2L-Z3165 1 SNEEZE GUARD
2Q-Z3170 2 DOOR 25SG-FCA
30SG-1D 2L-Z2344 1 SNEEZE GUARD
2Q-Z2346 1 DOOR
30SG-2D 2L-Z2345 1 SNEEZE GUARD
2Q-Z2346 2 DOOR
MODELS
Part Number
Quantity
Description
45SG-1D 2L-Z2349 1 SNEEZE GUARD
2Q-Z2346 1 DOOR
45SG-2D 2L-Z2350 1 SNEEZE GUARD
2Q-Z2346 2 DOOR
45SG-FCA 2L-Z3166 1 SNEEZE GUARD 45 RETRO
2Q-Z3171 2 DOOR 45/75 FCA
50SG-1D 2L-Z2352 1 SNEEZE GUARD
2Q-Z2354 1 DOOR
50SG-2D 2L-Z2353 1 SNEEZE GUARD
2Q-Z2354 2 DOOR
75SG-1D 2L-Z2357 1 SNEEZE GUARD
2Q-Z2354 1 DOOR
75SG-2D 2L-Z2358 1 SNEEZE GUARD
2Q-Z2354 2 DOOR
75SG-FCA 2L-Z3167 1 SNEEZE GUARD 75 RETRO
2Q-Z3171 2 DOOR 45/75 FCA
IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE 1
INCLUDE MODEL AND SERIAL NUMBER OF 1
Some items are included for illustrative purposes only and in certain instances may not be available.
Star Manufacturing International, Inc.
