Star 14SCBBC Parts List
1
3
2
42
43
5
6
7
8
4
9
10
11
12
19
38
41
31
39
37
40
36
34
35
30
29
32
33
28
27
26
25
44
45
46
15
14
1313
16
24
23
22
21
13
20
14
17
18
15
16
19

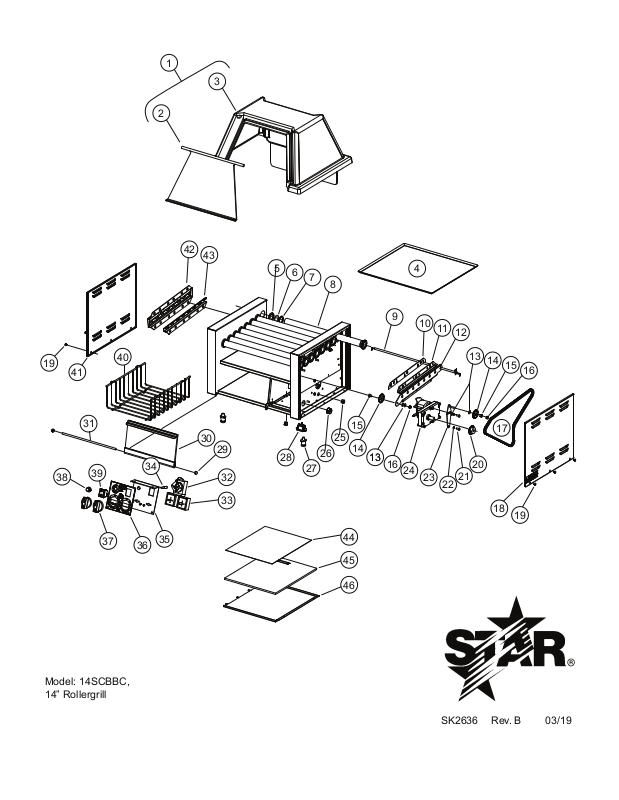

Model: 14SCBBC,
14” Rollergrill
SK2636 Rev. B 03/19
Parts List
Model: 14SC Style Roller Grill
Fig No Part Number Description QTY Application
8A-14SG-1D SNEEZE GUARD, 14C
1
1
8A-14SGCF-1D SNEEZE GUARD, 14CF 14SCBBCF-230V
2 A8-Z16651 DOOR, SNEEZE GUARD OPTIONAL
3 A8-Z16650 SNEEZE GUARD BODY OPTIONAL
4 A5-Z16618 DRIP TRAY 14C 1
5 2P-Z2174 TUBE GUIDE 16
6 2I-Z2175 O-RING SEAL 16
7 2I-Z9865 O-RING SILICONE TUBE SEAL 16
8 A5-RG1406 ROLLER ASSY PT88 15” 8
9 2N-Z16630 ELEMENT 86W@230V, 16” 8
10 A5-Z16620 BACK-CHAIN RETAINER 14C 1
11 A5-Z16621 ANGLE-CHAIN RETAINER 14C 1
12 A5-Z16619 CHAIN GUIDE - 14C 1
13 2C-1810 WASHER 3/16 BURR STL NP
14 2P-Z8392 IDLER SPROCKET ASSEMBLY 2
15 2A-Z8017 BUSHING IDLER 2
16 2C-Z0498 NUT 10-24 NYLK HEX STL ZP 2
17 2P-Z16644 ROLLER CHAIN,#25X138TEETH 1
18 A5-Z16645 SIDE PANEL 14 W-SN PLATE 1
19 2C-7139 SCREW #8X1/4 B THP STL NP 8
20 2P-Z11853 MOTOR SPROCKET 1
21 2C-20109-30 SCRW MS SS 10-32 X .75 PH 4
22 2C-200121 WASHER #10 SPLIT SS 4
23 A5-RG1402 CHAIN TENSIONER ASSY 1
2U-Z11854 MOTOR GEAR, 120V
24
A5-Z14583 MOTOR GEAR, 240V 14SCBBC-230V, 14SCBBCF-230
25 2K-Z2895 BUSHING HEYCO OCB-500
26 2K-8043 BUSHING HEYCO SB-875-10 1
27 2R-Z5846 FOOT-ROLLER GRILLS 4
2E-Y9227 INLET IEC320 10 AMP
28
2K-Y3240 BUSHING HEYCO SR 17-2 14SC-120V
29 2C-08-07-0040 NUT 1/4-20 ACHD STL NP 2
A5-RG1404 GLASS DOOR 14CBBC ASSY 1 14SCBBC
30
A5-Z17134 DOOR - BD, RG14 14SCBBC-120V
2I-Z16921
31
32 2T-Y9113 THERMOSTAT 1 14SCBBC
2J-Z14323 INFINITE CONTROL-120V
33
2J-Z14324 INFINITE CONTROL-240V 230V
34 2A-Z13034 EXTENSION, SHAFT 1 14SCBBC
A5-RG1411 CONTROL PANEL 14CBB ASSY
35
A5-Z17337 CONTROL PANEL 14SC 14SC
2M-Z16633 OVERLAY-CNTRL PNL 14SCBBC
36
2M-Z17338 OVERLAY-CONTROL PNL 14SC 14SC-120V
37 2R-Z1854 KNOB-CONTROL 2
38 2R-Z13032 KNOB 1
2E-Z1858 SWITCH -LIGHTED
39
2E-Z3156 SWITCH DPST 20A ROCKER 14SCBBC
40 2B-Z16649 BASKET, 9X4X11 1 14SCBBC
41 A5-Z16646 SIDE PANEL 14 1
HINGE PIN, .250OD X 10.6” 1 14SCBBC
OPTIONAL
4
1
2 14SC-120V
3 14SCBBC
1
2
1
1
1
14SCBBC-230V, 14SC-120V, 14SCBBC-120V
14SC-120V, 14SCBBC-120V
14SCBBC
120V
14SCBBC
14SCBBC
14SC-120V
10/2018
