Page 1
LIGHTED
WARMERS
MODEL
3 1/2 QUART
7 QUART
11 QUART
Installation and
Operation
Instructions
2M-Y5817 Rev. H 10/9/05
7WS
11WLA
1
Page 2
2
These symbols are intended to alert the user to the presence of
important operating and maintenance instructions in the manual
accompanying the appliance.
RETAIN THIS MANUAL FOR FUTURE REFERENCE
NOTICE
Using any part other than genuine Star factory supplied parts relieves the
manufacturer of all liability.
Star reserves the right to change specications and product design without
notice. Such revisions do not entitle the buyer to corresponding changes,
improvements, additions or replacements for previously purchased
equipment.
Due to periodic changes in designs, methods, procedures, policies and
regulations, the specications contained in this sheet are subject to change
without notice. While Star International Holdings Inc., Company exercises
good faith efforts to provide information that is accurate, we are not
responsible for errors or omissions in information provided or conclusions
reached as a result of using the specications. By using the information
provided, the user assumes all risks in connection with such use.
MAINTENANCE AND REPAIRS
Contact your local authorized service agent for service or required maintenance.
Please record the model number, serial number, voltage and purchase date in the area below and have it ready when
you call to ensure a faster service.
SAFETY SYMBOL
Model No.
Serial No.
Voltage
Purchase Date
Business
8:00 am to 4:30 p.m. Central Standard Time
Hours:
Telephone: (800) 264-7827 Local (314) 781-2777
Fax: (800) 396-2677 Local (314) 781-2714
E-mail [email protected]
Website: www.star-mfg.com
Service Help Desk
Authorized Service Agent Listing
Reference the listing provided with the unit
or
for an updated listing go to:
Mailing Address: Star International Holdings Inc., Company
10 Sunnen Drive
St. Louis, MO 63143
U.S.A
2
Page 3
PRODUCT IDENTIFICATION
Star Mfg. International Warmers, Models:
3BW, 7W, 11W
SPECIFICATIONS:
MODEL 3BW 120V
Capacity: 3-1/2 quarts
Electrical: 120V; 60 cycle; single phase; 350wt; 2.9a.
Dimensions: 11-1/2" D x 12-1/2" H
Net Weight: 11 lbs.
MODEL 3BW-P 120V WITH PUMP
Capacity: 3-1/2 quarts
Electrical: 120V; 60 cycle; single phase; 350; 2.9a
Dimensions: 11-1/2" D x 12-1/2" H
Net Weight: 13 lbs.
MODEL 3BW 240V
Capacity: 3-1/2 quarts
Electrical: 240V; 60 cycle; single phase; 350wt; 1.5a.
Dimensions: 11-1/2" D x 12-1/2" H
Net Weight: 11 lbs.
MODEL 3BW-P 240V WITH PUMP
Capacity: 3-1/2 quarts
Electrical: 240V; 60 cycle; single phase; 350; 1.5a
Dimensions: 11-1/2" D x 12-1/2" H
Net Weight: 13 lbs.
MODEL 7WS 120V STAINLESS STEEL
Capacity: 7 quarts
Electrical: 120V; 60 cycle; single phase; 450 wt; 3.75a.
Dimensions: 11" D x 12-1/2" W x 11-1/2" H
Net Weight: 12 lbs.
MODEL 7WL 120V - LIGHTED
Capacity: 7 quarts
Electrical: 120V; 60 cycle; single phase; 500wt; 4.2a.
Dimensions: 11" D x 12-1/2" W x 11-1/2" H
Net Weight: 13 lbs.
MODEL 7WS 240V STAINLESS STEEL
Capacity: 7 quarts
Electrical: 240V; 60 cycle; single phase; 450 wt; 1.88a.
Dimensions: 11" D x 12-1/2" W x 11-1/2" H
Net Weight: 12 lbs.
MODEL 7WL 240V - LIGHTED
Capacity: 7 quarts
Electrical: 240V; 60 cycle; single phase; 500wt; 2.1a.
Dimensions: 11" D x 12-1/2" W x 11-1/2" H
Net Weight: 12 lbs
MODEL 11WS 120V - STAINLESS STEEL
Capacity: 11 quarts
Electrical: 120V; 60 cycle; single phase; 1500wt; 12.5a.
Dimensions: 14-3/8" D x 14-1/2" W x 11-1/2" H
Net Weight: 17 lbs.
3
Page 4
MODEL 11WS-P 120V - STAINLESS STEEL WITH PUMP
Capacity: 11 quarts
Electrical: 120V; 60 cycle; single phase; 1500wt; 12.5a.
Dimensions: 14-3/8" D x 14-1/2" W x 18-3/4" H
Net Weight: 22 lbs.
MODEL 11WS-HS 120V - STAINLESS STEEL WITH PUMP AND HEATED SPOUT
Capacity: 11 quarts
Electrical: 120V; 60 cycle; single phase; 1525wt; 12.7a.
Dimensions: 14-3/8" D x 14-1/2" W x 18-3/4" H
Net Weight: 23 lbs.
MODEL 11WS 240V - STAINLESS STEEL
Capacity: 11 quarts
Electrical: 240V; 60 cycle; single phase; 1500wt; 6.25a.
Dimensions: 14-3/8" D x 14-1/2" W x 11-1/2" H
Net Weight: 17 lbs.
MODEL 11WS-P 240V - STAINLESS STEEL WITH PUMP
Capacity: 11 quarts
Electrical: 240V; 60 cycle; single phase; 1500wt; 6.25a.
Dimensions: 14-3/8" D x 14-1/2" W x 18-3/4" H
Net Weight: 22 lbs.
MODEL 11WSA 120V - STAINLESS STEEL
Capacity: 11 quarts
Electrical: 120V; 60 cycle; single phase; 1600wt; 13.3a.
Dimensions: 15-1/8" D x 13-1/4" W x 11-1/2" H
Net Weight: 17 lbs.
MODEL 11WSA-P 120V - STAINLESS STEEL WITH PUMP
Capacity: 11 quarts
Electrical: 120V; 60 cycle; single phase; 1600wt; 13.3a.
Dimensions: 15-1/8" D x 13-1/4" W x 18-3/4" H
Net Weight: 22 lbs.
MODEL 11WSA-HS 120V - STAINLESS STEEL WITH PUMP AND HEATED SPOUT
Capacity: 11 quarts
Electrical: 120V; 60 cycle; single phase; 1625wt; 13.5a.
Dimensions: 15-1/8" D x 13-1/4" W x 18-3/4" H
Net Weight: 23 lbs.
MODEL 11WLA 240V - LIGHTED WARMER
Capacity: 11 quarts
Electrical: 240V; 60 cycle; single phase; 1630wt; 6.79a.
Dimensions: 15-1/8" D x 13-1/4" W x 11-1/2" H
Net Weight: 17 lbs.
MODEL 11WLA-P 240V - LIGHTED WARMER WITH PUMP
Capacity: 11 quarts
Electrical: 240V; 60 cycle; single phase; 1630wt; 6.79a.
Dimensions: 15-1/8" D x 13-1/4" W x 18-3/4" H
Net Weight: 22 lbs.
MODEL 11WLA-HS 240V - LIGHTED WARMER WITH PUMP AND HEATED SPOUT
Capacity: 11 quarts
Electrical: 240V; 60 cycle; single phase; 1645wt; 6.85a.
Dimensions: 15-1/8" D x 13-1/4" W x 18-3/4" H
Net Weight: 23 lbs.
4
Page 5
THE UNITS ON THIS PAGE ARE NOT LISTED WITH NSF, CSA, UL.
MODEL 11WSA 240V - STAINLESS STEEL
Capacity: 11 quarts
Electrical: 240V; 60 cycle; single phase; 1600wt; 6.66a.
Dimensions: 15-1/8" D x 13-1/4" W x 18-3/4" H
Net Weight: 23 lbs.
MODEL 11WSA-P 240V - STAINLESS STEEL WITH PUMP AND HEATED SPOUT
Capacity: 11 quarts
Electrical: 240V; 60 cycle; single phase; 1600wt; 6.66a.
Dimensions: 15-1/8" D x 13-1/4" W x 18-3/4" H
Net Weight: 23 lbs.
\MODEL 11WSA-HS 240V - STAINLESS STEEL WITH PUMP AND HEATED SPOUT
Capacity: 11 quarts
Electrical: 240V; 60 cycle; single phase; 1615wt; 6.73a.
Dimensions: 15-1/8" D x 13-1/4" W x 18-3/4" H
Net Weight: 23 lbs.
5
Page 6
THE UNITS ON THIS PAGE ARE LISTED WITH C/UL.
MODEL 11WLA 120V C/UL - LIGHTED WARMER
Capacity: 11 quarts
Electrical: 120V; 60 cycle; single phase; 1630wt; 13.58a.
Dimensions: 15-1/8" D x 13-1/4" W x 11-1/2" H
Net Weight: 17 lbs.
MODEL 11WLA-P 120V C/UL - LIGHTED WARMER WITH PUMP
Capacity: 11 quarts
Electrical: 120V; 60 cycle; single phase; 1630wt; 13.58a.
Dimensions: 15-1/8" D x 13-1/4" W x 18-3/4" H
Net Weight: 22 lbs.
MODEL 11WLA-HS 120V C/UL- LIGHTED WARMER WITH PUMP AND HEATED SPOUT
Capacity: 11 quarts
Electrical: 120V; 60 cycle; single phase; 1655wt; 13.79a.
Dimensions: 15-1/8" D x 13-1/4" W x 18-3/4" H
Net Weight: 23 lbs.+
MODEL 11WSA 120V C/UL - STAINLESS STEEL
Capacity: 11 quarts
Electrical: 120V; 60 cycle; single phase; 1600wt; 13.3a.
Dimensions: 15-1/8" D x 13-1/4" W x 18-3/4" H
Net Weight: 23 lbs.
MODEL 11WSA-P 120V C/UL - STAINLESS STEEL WITH PUMP AND HEATED SPOUT
Capacity: 11 quarts
Electrical: 120V; 60 cycle; single phase; 1600wt; 13.3a.
Dimensions: 15-1/8" D x 13-1/4" W x 18-3/4" H
Net Weight: 23 lbs.
MODEL 11WSA-HS 120V C/UL - STAINLESS STEEL WITH PUMP AND HEATED SPOUT
Capacity: 11 quarts
Electrical: 120V; 60 cycle; single phase; 1625wt; 13.5a.
Dimensions: 15-1/8" D x 13-1/4" W x 18-3/4" H
Net Weight: 23 lbs.
MODEL 11WL 120V - LIGHTED
Capacity: 11 quarts
Electrical: 120V; 60 cycle; single phase; 1530wt; 12.75a.
Dimensions: 14-3/8" D x 14-1/2" W x 11-1/2" H
Net Weight: 17 lbs.
MODEL 11WL-P 120V - LIGHTED WITH PUMP
Capacity: 11 quarts
Electrical: 120V; 60 cycle; single phase; 1530wt; 12.75a.
Dimensions: 14-3/8" D x 14-1/2" W x 18-3/4" H
Net Weight: 22 lbs.
MODEL 11WL-HS 120V - LIGHTED WITH PUMP AND HEATED SPOUT
Capacity: 11 quarts
Electrical: 120V; 60 cycle; single phase; 1555wt; 12.95a.
Dimensions: 14-3/8" D x 14-1/2" W x 18-3/4" H
Net Weight: 23 lbs.
MODEL 11WL 240V - LIGHTED
Capacity: 11 quarts
Electrical: 240V; 60 cycle; single phase; 1530wt; 6.45a.
Dimensions: 14-3/8" D x 14-1/2" W x 11-1/2" H
Net Weight: 17 lbs.
6
Page 7
MODEL 11WL-P 240V - LIGHTED WITH PUMP
Capacity: 11 quarts
Electrical: 240V; 60 cycle; single phase; 1530wt; 6.45a.
Dimensions: 14-3/8" D x 14-1/2" W x 18-3/4" H
Net Weight: 22 lbs.
MODEL 11WLA 120V - LIGHTED
Capacity: 11 quarts
Electrical: 120V; 60 cycle; single phase; 1630wt; 13.58a.
Dimensions: 15-1/8" D x 13-1/4" W x 11-1/2" H
Net Weight: 17 lbs.
MODEL 11WLA-P 120V - LIGHTED WITH PUMP
Capacity: 11 quarts
Electrical: 120V; 60 cycle; single phase; 1630wt; 13.58a.
Dimensions: 15-1/8" D x 13-1/4" W x 18-3/4" H
Net Weight: 22 lbs.
MODEL 11WLA-HS 120V - LIGHTED WITH PUMP AND HEATED SPOUT
Capacity: 11 quarts
Electrical: 120V; 60 cycle; single phase; 1655wt; 13.79a.
Dimensions: 15-1/8" D x 13-1/4" W x 18-3/4" H
Net Weight: 23 lbs.
FOOD WARMERS WITH HEATED SPOUTS ARE ACCEPTABLE FOR POTENTIALLY
HAZARDOUS FOODS.
* N - Nacho Sign, F - Fudge Sign, CD - Chili Dog Sign, BQ - BBQ Sign, C - Chili Sign, S - Soup Sign
FOOD WARMERS WITHOUT HEATED SPOUTS ARE NOT ACCEPTABLE FOR
POTENTIALLY HAZARDOUS FOODS.
NOTES:
Bowl 3QT, SSB - OPTIONAL FOR 3BW'S, SSB-7OPTIONAL FOR 7W'S AND SSB-11 OPTIONAL
FOR 11W'S
7
Page 8
CAUTION
This equipment is designed and sold for commercial use only by personnel trained and experienced
in its operation and is not sold for consumer use in and around the home nor for use directly by the
general public in food service locations.
GENERAL INSTALLATION INSTRUCTIONS
These food warmers are equipped for the voltage and wattage indicated on the nameplate mounted
to the bottom panel and are designed for use on alternating current (AC) only.
WARNING
DO NOT CONNECT TO DIRECT CURRENT (DC).
GENERAL OPERATING INSTRUCTIONS
3BW MODELS
These warmers are designed to use stainless steel serving bowls purchased as an option.
Follow these simple steps for setting up the warmer:
1. Place bowl lifter spring in black water bowl.
2. Fill the warmer bowl with one and a third quarts of hot water.
3. Turn warmer on.
4. On pump models with a heated spouts, pre-heat fudge or cheese before inserting pump. Pump
will not function if fudge or cheese is too thick.
5. Place bowl with food product into the water bowl. If using No. 10 tin, open tin and pour contents
into stainless steel bowl. Bowl lifter spring should be centered under container.
6. Place lock ring over container, or pump into
fudge or cheese, press down turning right or left until top locks into unit. Be sure bowl
lifter spring is placed inside water bowl before inserting container.
7. Because the consistency of different foods varies, and because liquids and solids
absorb heat at different rates, it is impractical to specify an exact dial setting.
However, the letter "V" is in the center of the serving range. At this point the temperature is
approximately 145o F, the proper holding temperature for fudge. When the dial is set at the
letter "N" the temperature is approximately 170o F, a good holding temperature for cheese
sauce. After pre-heating, set the thermostat to the desired temperature.
8. Turn the control knob to the extreme left position "OFF" when not in use.
9. Do not keep unit on high heat for more than 45 minutes, as the food product may
become overheated.
CAUTION
DO NOT TOUCH THE HEATED SPOUT WITHOUT HEAT INSULATING MITTENS
OR OTHER MEANS OF BURN PREVENTION.
DO NOT OPERATE UNIT WITHOUT WATER. CHECK WATER LEVEL
FREQUENTLY.
8
Page 9
PUMP INSTALLATION
Follow these simple instructions to install the pump into the heated spout casting.
1. Remove pump from warmer.
2. Swing retainer fastened to the pump heater casting down.
3. Press down on pump plate and turn pump counterclockwise until notches line up with bumps on
black bowl.
4. Lift pump from bowl.
5. Open tin and remove paper label.
6. Place bowl lifter spring in black water bowl with one quart of hot water.
7. Turn on warmer switch "on".
8. Pre-Heat cheese before inserting pump. Pump will not function if cheese is too thick.
9. Be sure bowl lifter spring is placed inside water bowl before inserting container.
0. Place tin or bowl into unit. Bowl lifter spring should be centered under container.
1
11. Place pump in tin or bowl and line up notches in pump plate with bumps on black bowl.
12. Press down on pump plate until notches are below bumps on black bowl. Turn pump clockwise
until pump spout engages groove in spout casting.
13
. Swing lever up to prevent pump spout from disengaging.
GENERAL OPERATING INSTRUCTIONS
7W MODELS
These warmers are designed to use stainless steel serving bowls purchased as an option.
Follow these simple steps for setting up the warmer:
1. Fill the warmer bowl with one and a third quarts of hot water.
2. Turn warmer switch "ON".
3. Place bowl with food product into the water bowl. If using No. 10 tin, open tin and pour contents
into stainless steel bowl.
4. Turn the control knob to "Serving Temperature" position. Because the consistency of different
foods varies, and because liquids and solids absorb heat at different rates, it is impractical to
specify an exact dial setting. However, the letter "V" is in the center of the serving range. At
this point the temperature is approximately 145oF, the proper holding temperature for fudge.
When the dial is set at the letter "N" the temperature is approximately 170o F, a good holding
temperature for cheese sauce. After preheating, set the thermostat to the desired temperature.
5. Turn the control knob to the extreme left position "OFF" when not in use. Turn warmer switch
"OFF" to turn power off to unit.
6. Do not keep unit on high heat for more than 45 minutes, as the food product may become
overheated.
9
Page 10
GENERAL OPERATING INSTRUCTIONS
11W MODELS
These warmers are designed to use stainless steel serving bowls purchased as an option.
Follow these simple steps for setting up the warmer:
1. Before using warmer clean the water food bowl and any accessories furnished with warmer.
2. Fill the warmer bowl with 24 to 36 ounces of water. Add water as required to maintain water
level.
3
. Place precooked food into a standard 11quart inset and insert into water bowl.
4. Turn warmer on. The temperature control on these warmers is a combination ON/OFF switch
and thermostatic heat control. The OFF position will turn off the electric current to the heating
element.
5. If preheating is desired set the control to the "HI" position for approximately 10
minutes. Prolonged "HI" setting may result in overcooking or scorching of certain foods.
6. On pump models with a heated spout, pre-heat fudge or cheese before inserting pump. Pump
will not function if fudge or cheese is too thick.
7. Set the dial setting to the number required to maintain the desired temperature.
8. Because the consistency of different foods varies, and because liquids and solids absorb heat
at different rates, it is impractical to specify an exact dial setting. However, at the point between
gures "3" and "4" the temperature is approximately 145
fudge. When the dial is set at the gure "5" the temperature is approximately 170
holding temperature for cheese sauce. After pre-heating, set the thermostat to the desired
temperature.
9. Turn the control knob to the "OFF" position when the unit is not in use.
10. Do not keep unit on high heat for more than 45 minutes, as the food product may become
overheated.
o
F, the proper holding temperature for
o
F, a good
CAUTION
DO NOT OPERATE THE UNIT ON HIGH HEAT FOR MORE THAN 45 MINUTES.
FOODS MAY BECOME OVERHEATED.
DO NOT TOUCH THE HEATED SPOUT WITHOUT HEAT INSULATING MITTENS
OR OTHER MEANS OF BURN PREVENTION.
DO NOT OPERATE UNIT WITHOUT WATER. CHECK WATER LEVEL
FREQUENTLY.
PUMP SPOUT HEATER
The pump spout heater casting keeps cheese left in the pump spout at or above 140o
F when warmer is allowed to heat for 40 minutes prior to vending through pump. This
prevents dispensing cold, dried cheese.
HELPFUL HINTS FOR BETTER SERVICE
The food product you serve in this warmer, as packed by the manufacturer, represents
a high standard of quality and this quality should be protected by following the
recommendations of the packer in serving of the product.
10
Page 11
CLEANING INSTRUCTIONS
IMPORTANT
Stainless steel may corrode if not cleaned properly.
Clean and dry the heated bowl inside the warmer every night. Use a soft cloth and mild soap to
keep exterior surfaces bright and shining. To keep the inside surface of the bowl clean, use
S.O.S. or Brillo pads as often as necessary. Do not use detergents, strong abrasives or metal
scouring pads on exterior surface of warmer.
CAUTION
DO NOT IMMERSE IN WATER AT ANY TIME.

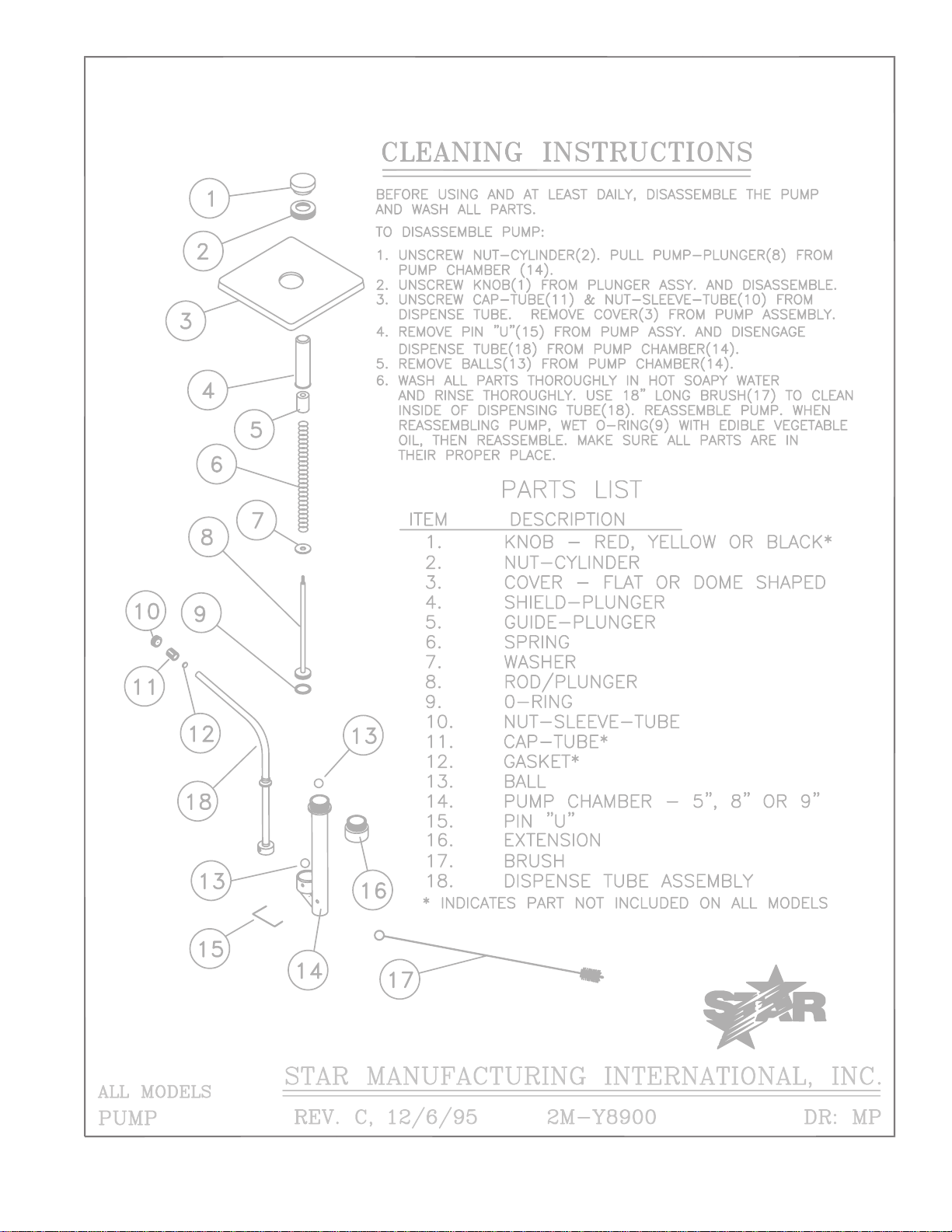

PUMP CLEANING
Before using and at least daily, disassemble the pump and wash all parts.
To disassemble pump:
1. Unscrew nut-cylinder. Pull pump-plunger from pump chamber.
2. Unscrew knob from plunger assembly and disassemble.
3. Unscrew cap-tube and nut-sleeve-tube from dispense tube. Remove cover from pump
assembly.
4. Remove pin "U" from pump assembly and disengage dispense tube from pump chamber.
5. Remove balls from pump chamber.
6. Wash all parts thoroughly in hot soapy water and rinse thoroughly. Use 18" long brush to clean
inside of dispensing tube. Reassemble pump. When reassembling pump, wet o-ring with
edible vegetable oil, then reassemble. Make sure all parts are in their proper place.
SANITIZING PUMP ASSEMBLIES
It is recommended that the pump assembly be sanitizied after routine disassembly and
cleaning. Prepare a 200 ppm quaternary solution (similar to Pro-Quat 103). Immerse all
pump parts in this solution for at least 60 seconds, remove and let air dry. Reassemble the
pump.
PRIMING PUMP
Three (3) strokes of the pump plunger are necessary to initially prime and vend thick food
products.
CAUTION
FAILURE TO DO THIS CAN CAUSE A BROKEN "O" RING TO BE PUMPED OUT
WITH THE FOOD BEING VENDED.
SIGN REPLACEMENT 7WL AND 11WL MODELS
1. Unplug cord from the receptacle.
2. Remove two screws in the sign retainer fastened to the bottom.
3. Pull forward on the bottom edge of the plastic panel and remove it.
4. Replace the sign.
5. Place the front plastic panel back into its original position.
LIGHT BULB REPLACEMENT 7WL & 11WL MODELS
1. Unplug cord from the receptacle.
2. Remove both front panels as stated above.
3. Replace bulbs with a 15 watt appliance type,medium base for 120V or a 10 watt medium base
for 240V.
MAINTENANCE AND REPAIRS
Contact the factory, a service representative or a local service company for service or
required maintenance.
11
Page 12
2M-4497-2 12/06
The foregoing warranty is in lieu of any and all other warranties expressed or implied and constitutes the entire warranty.
FOR ASSISTANCE
Should you need any assistance regarding the Operation or Maintenance of any Star equipment; write, phone, fax or email our Service Department.
In all correspondence mention the Model number and the Serial number of your unit, and the voltage or type of gas you are using.
ALL:
* Pop-Up Toasters
* Butter Dispensers
* Pretzel Merchandisers
(Model 16PD-A Only)
* Pastry Display Cabinets
* Nacho Chip Merchandisers
* Accessories of any kind
* Sneeze Guards
* Pizza Ovens
(Model PO12 Only)
* Heat Lamps
* Pumps-Manual
Visit our Website at: www.star-mfg.com Email: [email protected]
THOROUGHLY INSPECT YOUR UNIT ON ARRIVAL
This unit has been tested for proper operation before leaving our plant to insure delivery of your unit in perfect condition. However, there are instances in
which the unit may be damaged in transit. In the event you discover any type of damage to your product upon receipt, you must immediately contact the
transportation company who delivered the item to you and initiate your claim with same. If this procedure is not followed, it may affect the warranty status of
the unit.
LIMITED EQUIPMENT WARRANTY
All workmanship and material in Star products have a one (1) year limited warranty on parts & labor in the United States and Canada. Such warranty is limited
to the original purchaser only and shall be effective from the date the equipment is placed in service. Star's obligation under this warranty is limited to the repair
of defects without charge, by the factory authorized service agency or one of its sub-agencies. Models that are considered portable (see below) should be taken
to the closest Star service agency, transportation prepaid.
> Star will not assume any responsibility for loss of revenue.
> On all shipments outside the United States and Canada, see International Warranty.
* The warranty period for the JetStar six (6) ounce & Super JetStar eight (8) ounce series popcorn machines is two (2) years.
* The warranty period for the Chrome-Max Griddles is ve (5) years on the griddle surface. See detailed warranty provided with unit.
* The warranty period for Teon/Dura-Tec coatings is one year under normal use and reasonable care. This warranty does not apply if damage occurs to
Teon/Dura-Tec coatings from improper cleaning, maintenance, use of metallic utensils, or abrasive cleaners, abrasive pads, product identiers and
point-of-sale attachments, or any other non-food object tha comes in continuous contact with the roller coating. This warranty does not apply to the
“non-stick” properties of such materials.
> This warranty does not apply to "Special Products" but to regular catalog items only. Star's warranty on "Special Products" is six (6) months on parts
and ninety (90) days on labor.
> This warranty does not apply to any item that is disassembled or tampered with for any purpose other than repair by a Star Authorized Service Center or
the Service Center's sub-agency.
> This warranty does not apply if damage occurs from improper installation, misuse, wrong voltage, wrong gas or operated contrary to the Installation and
Operating instructions.
> This warranty is not valid on Conveyor Ovens unless a "start-up/check-out" has been performed by a Factory Authorized Technician.
PARTS WARRANTY
Parts that are sold to repair out of warranty equipment are warranted for ninety (90) days. The part only is warranted. Labor to replace the part is chargeable to
the customer.
SERVICES NOT COVERED BY WARRANTY
PORTABLE EQUIPMENT
Star will not honor service bills that include travel time and mileage charges for servicing any products considered "Portable" including items listed below.
These products should be taken to the Service Agency for repair:
1. Travel time and mileage rendered beyond the 50 mile radius limit
2. Mileage and travel time on portable equipment (see below)
3. Labor to replace such items that can be replaced easily during a daily cleaning
routine, ie; removable kettles on fryers, knobs, grease drawers on griddles, etc.
4. Installation of equipment
5. Damages due to improper installation
6. Damages from abuse or misuse
7. Operated contrary to the Operating and Installation Instructions
8. Cleaning of equipment
9. Seasoning of griddle plates
10. Voltage conversions
11. Gas conversions
12. Pilot light adjustment
13. Miscellaneous adjustments
14. Thermostat calibration and by-pass adjustment
15. Resetting of circuit breakers or safety controls or reset buttons
16. Replacement of bulbs
17. Replacement of fuses
18. Repair of damage created during transit, delivery, &
installation OR created by acts of God
* The Model 510FD Fryer.
* The Model 526TOA Toaster Oven.
* The Model J4R, 4 oz. Popcorn Machine.
* The Model 518CMA & 526CMA Cheese Melter.
* The Model 12MC & 15MC & 18MCP Hot Food Merchandisers.
* The Model 12NCPW & 15NCPW Nacho Chip/Popcorn Warmer.
* All Hot Dog Equipment except Roller Grills & Drawer Bun Warmers.
* All Nacho Cheese Warmers except Model 11WLA Series Nacho Cheese Warmer.
* All Condiment Dispensers except the Model HPD & SPD Series Dispenser.
* All Specialty Food Warmers except Model 130R, 11RW Series, and 11WSA Series.
* All QCS/RCS Series Toasters except Model QCS3 & RCS3 Series.
12
Page 13

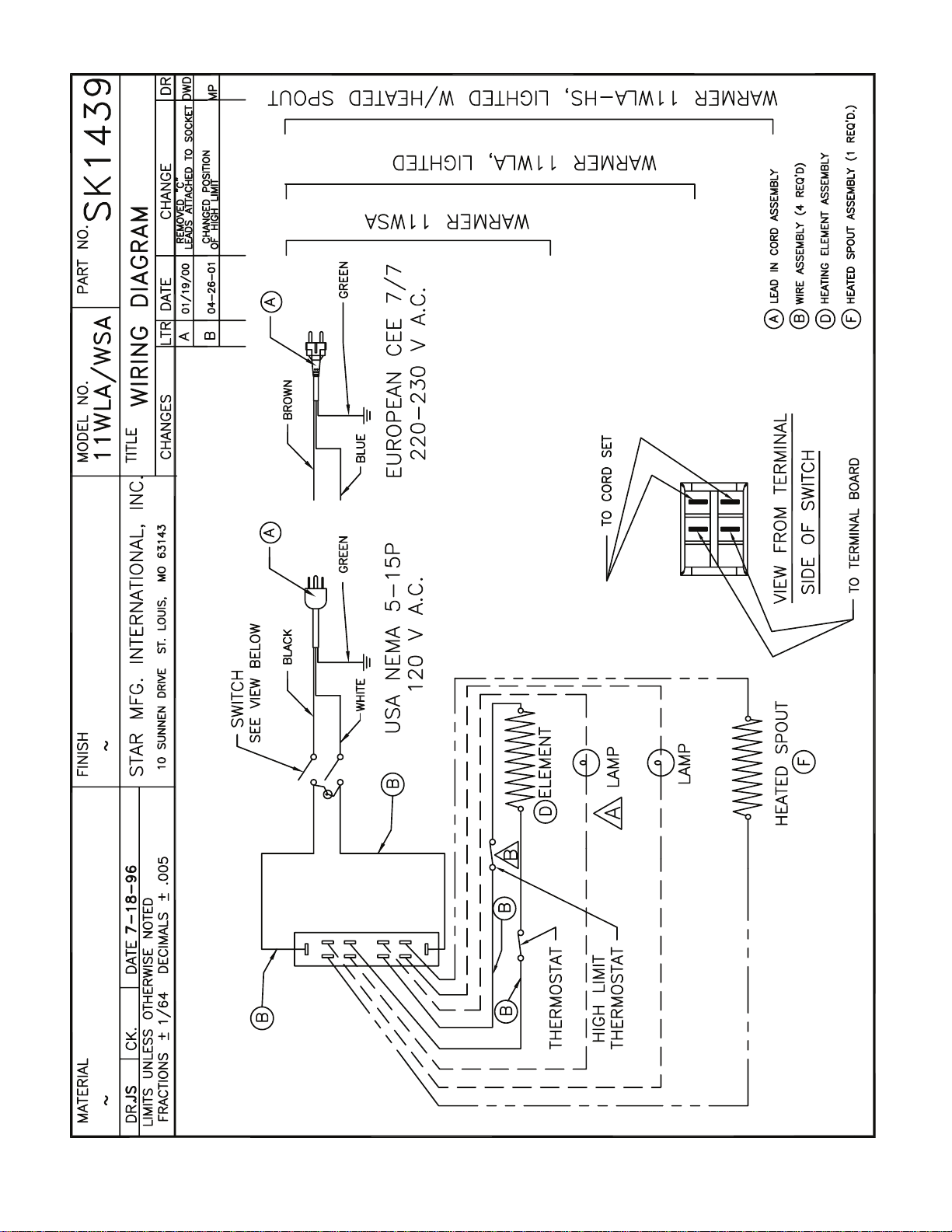

131415
Page 14
Page 15

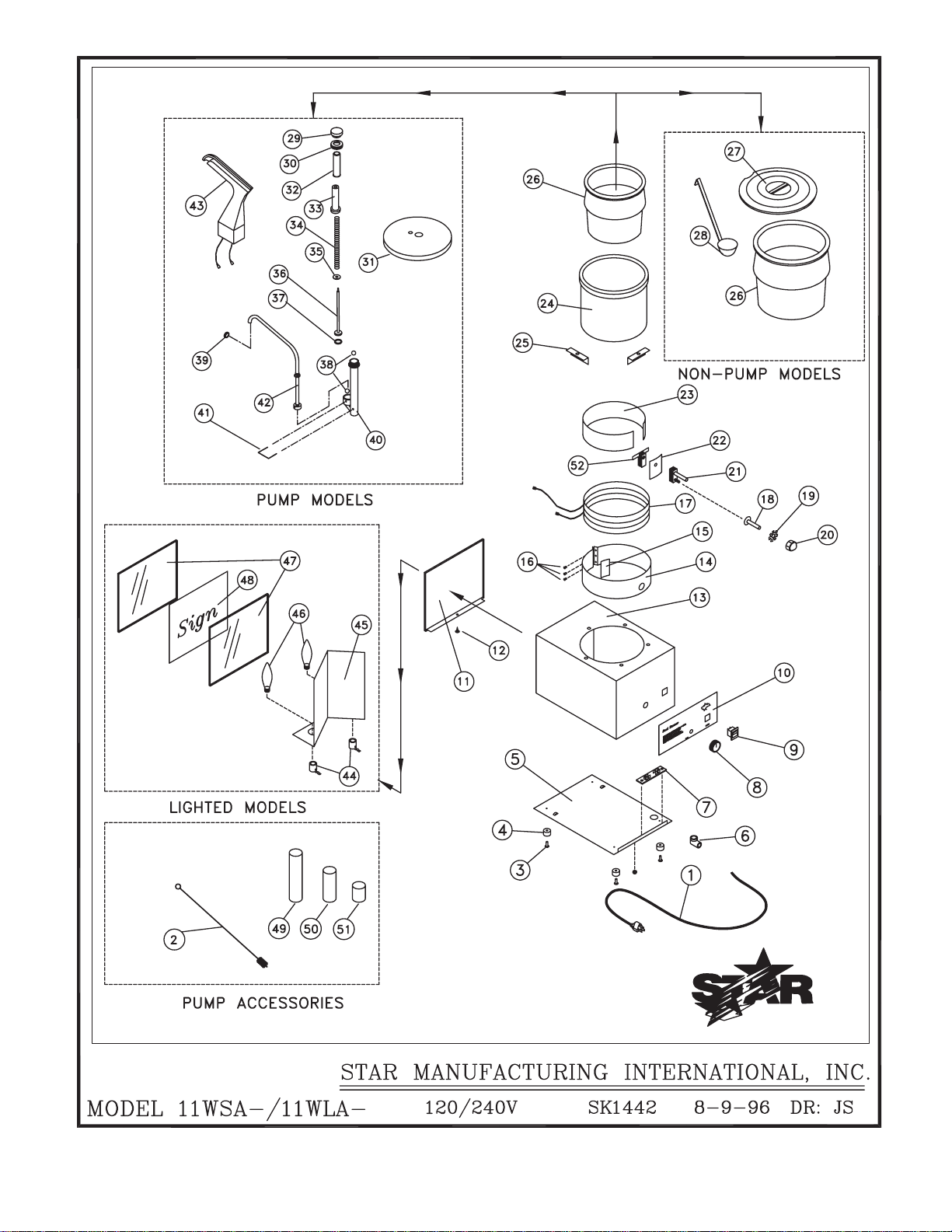

PARTS LIST October 9 2005, Rev. H
4R
Key
Number
1 N1-119030 1 CORD ASSY. 120V
N1-119034 1 CORD ASSY. 240V
2 2P-Y6211 1 BRUSH
3 2C-Y5059 4 POP RIVET
4 2I-Z0057 4 FOOT
5 N1-Z0697 1 BOTTOM
6 2K-Y2968 1 BUSHING STRAIN RELEIF
7 2E-Y8233 1 TERMIINAL BOARD
8 2R-Y8261 1 KNOB-THERMOSTAT
9 2E-Y8785 1 SWITCH
10 2M-Z0691 1 REAR PANEL (SIGN)
11 N1-Z0696 1 FRONT PANEL S.S.
12 2C-Y1486 1 SCREW #6 x 1/4
13 N1-119040 1 BODY ASSY. (HEATED SPOUT)
13 N1-119039 1 BODY ASSY. (WARMER)
14 O1-Y9787 1 BAND-ELEMENT
15 N2-Y8310 1 PLATE
16 2C-H5569 3 POP RIVET 1/8 x .6
17 2N-Z0205 1 ELEMENT 120V
2N-Z0665 1 ELEMENT 240V
18 2C-1496 2 SCREW 8-32 x 3/4 STL. PH
19 2C-H8670 1 WASHER-LOCK #8
20 2C-2556 3 NUT #8-32
21 2T-Z0245 1 THERMOSTAT
22 N1-Z0700 1 BRACKET
23 O1-Y9786 1 BAND-HEATER
24 N1-119038 1 HEAT-WELL
25 N1-Y3654 5 ANGLE-STIFFENER
26 2D-Y3464 1 STAINLESS INSET (OPTIONAL)
27 2L-Y6596 1 COVER
28 2L-Z0577 1 LADLE 1 OZ.
2L-Z0579 1 LADLE 4 OZ.
29 2R-Y9854 1 KNOB-BLK.
30 2A-Y9637 1 NUT
31 N2-Y9848 1 PLATE-PLASTIC PUMP
32 2V-Y7661 1 PLUNGER-SHIELD
33 2A-Z0718 1 GUIDE
34 2P-Z0830 1 SPRING
35 N2-Y4146 1 WASHER
36 2I-Y9636 1 ROD/PLUNGER
37 2I-Y4143 1 O-RING
38 2P-Y6196 2 BALL-VALVE
39 2A-Y7657 1 NUT
40 2I-Z0730 1 PUMP CHAMBER
41 N2-Y9685 1 PIN-”U”
42 N2-62006 1 DISPENSE TUBE ASSEMBLY STANDARD
Part
Number
MODEL
Number
Per
Unit
W, 7RW, 11RW, 4RW-P, 11RW-P Round Warmers
Description and Model Designation
1
IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE
INCLUDE MODEL AND SERIAL NUMBER OF
Some items are included for illustrative purposes only and in certain instances may not be available.
2
Star Manufacturing International, Inc.
Page 16
PARTS LIST October 9 2005,, Rev. H
4R
Key
Number
43 N1-119041 1 SPOUT ASSY. 120V
N1-119044 1 SPOUT ASSY. 240V
44 N1-119045 2 LAMP SOCKET 120V/240V
45 N1-119029 1 LAMP SHIELD 120V/240V
46 2S-1279 2 LAMP 15W 120V
46 2S-Y8321 2 LAMP 15W 220V
47 2Q-Z0729 2 LEXAN PANEL
48 2M-Z0904 1 SIGN “HOT NACHOS”
2M-Y5802 1 SIGN “BBQ”
2M-Y5804 1 SIGN “CHILI”
2M-Y5806 1 SIGN “CHILI DOG”
2M-Y3332 1 SIGN “SOUP”
49 N2-Y8763 1 TUBE SPACER 1/4 OZ.
50 N2-Y6123 1 TUBE SPACER 1/2 OZ.
51 N2-Y8764 1 TUBE SPACER 3/4 OZ.
52 2T-Z0622 1 THERMOSTAT (HIGH LIMIT)
Number
Part
MODEL
Number
Per
Unit
W, 7RW, 11RW, 4RW-P, 11RW-P Round Warmers
Description and Model Designation
2
IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE
2
INCLUDE MODEL AND SERIAL NUMBER OF
Some items are included for illustrative purposes only and in certain instances may not be available.
16
Star Manufacturing International, Inc.
Page 17
171819
Page 18
Page 19
Page 20
STAR INTERNATIONAL HOLDINGS INC. COMPANY
Star - Holman - Lang - Wells - Bloomeld - Toastmaster
10 Sunnen Drive, St. Louis, MO 63143 U.S.A.
(314) 781-2777
www.star-mfg.com
20
Loading...
