Star 116CL Parts List

PARTS LIST 8/18/2015

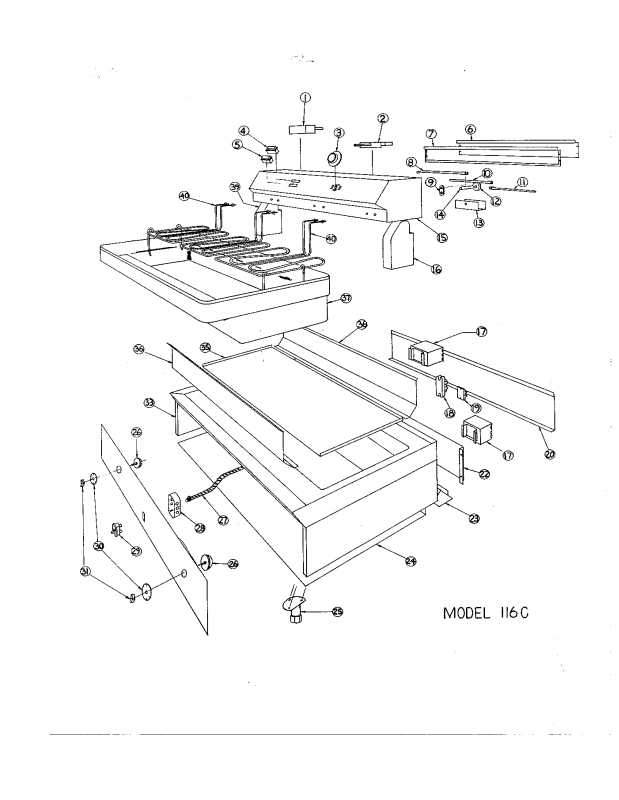

Model: 116C, 116CL 30LB DESIGNER SERIES ELECTRIC FRYER

Key No Part No Qty Description Application

1 2T-Y1668 1 SAFETY THERMOSTAT

2 2T-Z7208 1 THERMOSTAT

3 2R-9790 1 THERMOSTAT KNOB

4 E1-116313 1 SIGNAL LIGHT-HEATING AMBER

5 E1-116314 1 SIGNAL LIGHT-POWER WHITE

6 E1-116323 1 ELEMENT HOUSING COVER

7 2I-9918 1 GASKET

8 E1-7434 1 RELEASE LOCKING MECHANISM

9 E1-116015 1 CRANK ASSEMBLY

14 E1-116015 1 CRANK ASSEMBLY

10 E1-7431 2 ROD-LOCKING

11 E1-7431 2 ROD-LOCKING

12 E1-116016 1 ECCENTRIC ASSEMBLY

E1-116311

15

16 E1-7310 1 SUPPORT LEFT

17 2E-Y6240 2 CONTACTOR 208/240V

18 2E-Y2849 1 TERMINAL BLOCK, POWER

19 2E-Y1654 1 TERMINAL BLOCK, FIRE

20 E1-Y1684 1 COVER - BACK

25

26 2P-7413 2 TIMER - BELL

29

30 2R-7412 2 DIAL - BELL TIMER

31 2R-4717 2 KNOB - BELL TIMER

33 J1-6305 2 SIDE PANEL

37 E1-116318 1 KETTLE ASSEMBLY

39 E1-7311 1 SUPPORT RIGHT

40

NI

E1-116332 ELEMENT HOUSING ASSY COMPLETE 240V

E1-11303 1 ELEMENT HOUSING

Z1-115006, NLA 4 FOOT ASSEMBLY, (LESS FOOT)

2A-9347 4 FOOT EXTENSION

2C-9348 4 STUD

2C-7612 4 FOOT

2E-8343

2E-Y6144 ON/OFF SWITCH, ROCKER (#1169787 & UP)

2N-Y5554

2N-Y5555 208V

E1-116320 1 ELEMENT HANDLE ASSY

E1-Y1641 1 ELEMENT CLAMP - UPPER

2I-5659 2 GROMMET - CAPILLARY

E1-7363 5 CLAMP - CAPILLARY BULB

2P-Y3406 4 SPACER - CAPILLARY BULB

E1-116318 1 TOP ASSEMBLY 116C

E1-116154 1 TOP ASSEMBLY 116CL

E1-115754 2 FUSE HOLDER ASSY 208/240V

2E-Y3242 2 FUSE 208/240V

2B-Y8847 1 BASKET-LEFT (8” WIDE) 116C

2B-Y8846 1 BASKET-RIGHT (8” WIDE) 116C

2B-116111 1 BASKET - LEFT (8” WIDE) 116CL

2B-116112 1 BASKET - RIGHT (8” WIDE) 116CL

ELEMENT HOUSING ASSY COMPLETE 208V

1

ON/OFF SWITCH, TOGGLE (#1169486 & BELOW)

1

3 ELEMENT

240V
