RD12
HYDRAULIC
RAIL DRILL
Safety, OperatiOn and Maintenance
USer ManUaL
© 2010 Stanley Black & Decker, Inc.
New Britain, CT 06053
U.S.A.
32515 8/2013 Ver. 7
DECLARATION OF CONFORMITY
DECLARATION OF CONFORMITY
ÜBEREINSTIMMUNGS-ERKLARUNG
DECLARATION DE CONFORMITE CEE
DECLARACION DE CONFORMIDAD
DICHIARAZIONE DI CONFORMITA
Hydraulic Tools
______________________________________________________________________
I, the undersigned:
Ich, der Unterzeichnende:
Je soussigné:
El abajo firmante:
lo sottoscritto:
Weisbeck, Andy
Surname and First names/Familiennnam e und Vornamen/Nom et prénom/Nombre y apellido/Cognome e nome
hereby declare that the equipment specified hereunder:
bestätige hiermit, daß erklaren Produkt genannten Werk oder Gerät:
déclare que l’équipement visé ci-dessous:
Por la presente declaro que el equipo se especifica a continuación:
Dichiaro che le apparecchiature specificate di seguito:
1. Category:
Rail Drill, Hydraulic
Kategorie:
Catégorie:
Categoria:
Categoria:
2. Make/Marke/Marque/Marca/Marca
Stanley
3. Type/Typ/Type/Tipo/Tipo:
RD12101, RD12100
4. Serial number of equipment:
Seriennummer des Geräts:
Numéro de série de l’équipement:
Numero de serie del equipo:
Matricola dell´attrezzatura:
All
Has been manufactured in conformity with
Wurde hergestellt in Übereinstimmung mit
Est fabriqué conformément
Ha sido fabricado de acuerdo con
E’ stata costruita in conformitá con
Directive/Standards
Richtlinie/Standards
Directives/Normes
Directriz/Los Normas
Direttiva/Norme
No.
Nr
Numéro
No
n.
Approved body
Prüfung durch
Organisme agréé
Aprobado
Collaudato
EN ISO
EN
Machinery Directive
3744:2009
792-3:1994
2006/42/EC:2006
Self
Self
Self
5. Special Provisions: None
Spezielle Bestimmungen:
Dispositions particulières:
Provisiones especiales:
Disposizioni speciali:
6. Representative in the Union: Patrick Vervier, Stanley Dubuis 17-19, rue Jules Berthonneau-BP 3406 41034 Blois Cedex, France.
Vertreter in der Union/Représentant dans l’union/Representante en la Union/Rappresentante presso l’Unione
Done at/Ort/Fait à/Dado en/Fatto a Stanley Hydraulic Tools, Milwaukie, Oregon USA
Date/Datum/le/Fecha/Data 1-4-11
Signature/Unterschrift/Signature/Firma/Firma
Position/Position/Fonction/Cargo/Posizione Engineering Manager
1/4/2011
2 ► RD12 User Manual
TABLE OF CONTENTS
WARNING
IMPORTANT
DECLARATION OF CONFORMITY .......................................................................................................................... 2
SAFETY SYMBOLS ..................................................................................................................................................4
SAFETY PRECAUTIONS .......................................................................................................................................... 5
TOOL STICKERS & TAGS ........................................................................................................................................6
HOSE TYPES ............................................................................................................................................................ 7
HOSE RECOMMENDATIONS ..................................................................................................................................8

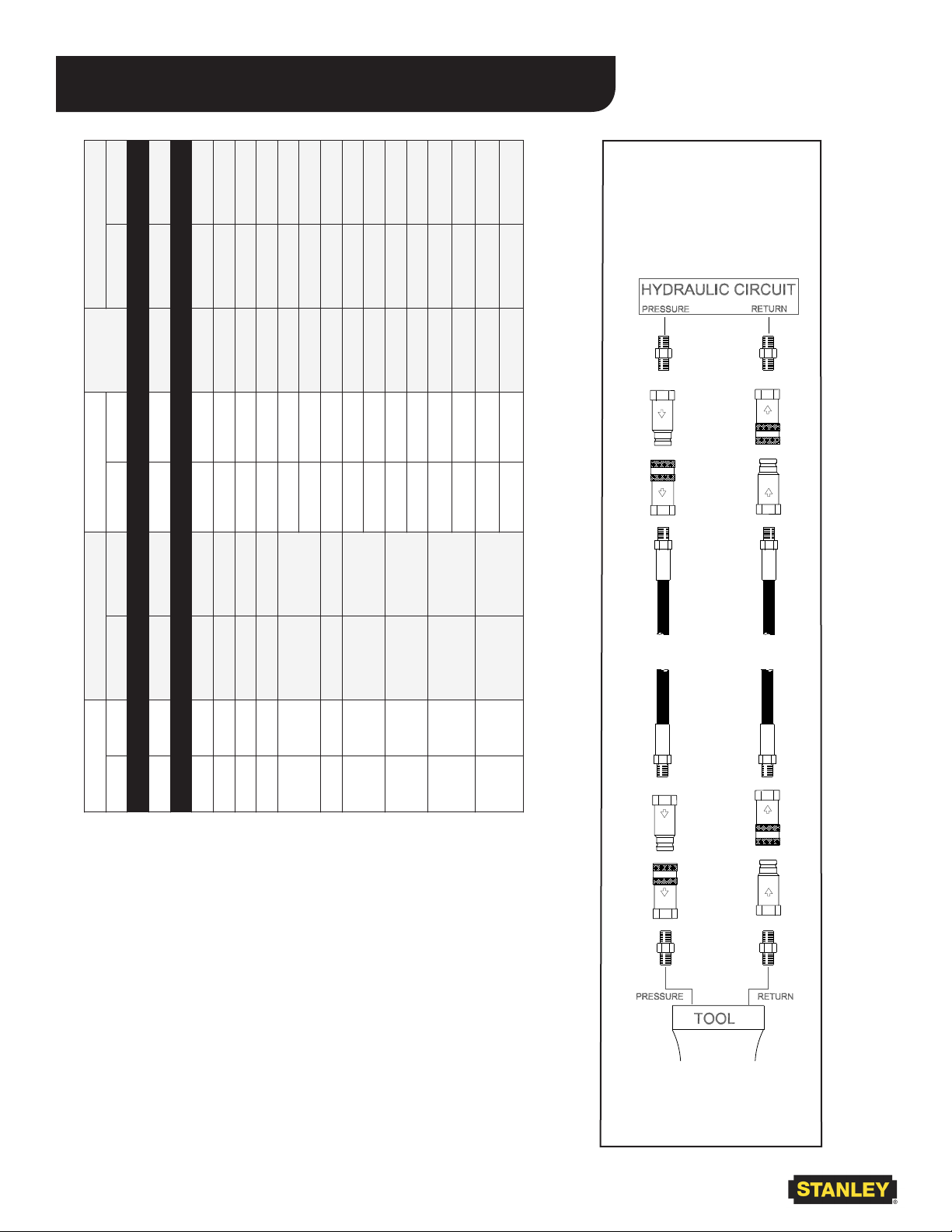

FIGURE 1. TYPICAL HOSE CONNECTIONS .......................................................................................................8
HTMA REQUIREMENTS ...........................................................................................................................................9
OPERATION ............................................................................................................................................................10
FIGURE 2. RETRACT THE DRILL BIT ................................................................................................................ 11
TEMPLATES & HOLE GUIDES ..............................................................................................................................12
TOOL PROTECTION & CARE ................................................................................................................................13
TROUBLESHOOTING ............................................................................................................................................14
SPECIFICATIONS ................................................................................................................................................... 15
ACCESSORIES.......................................................................................................................................................15

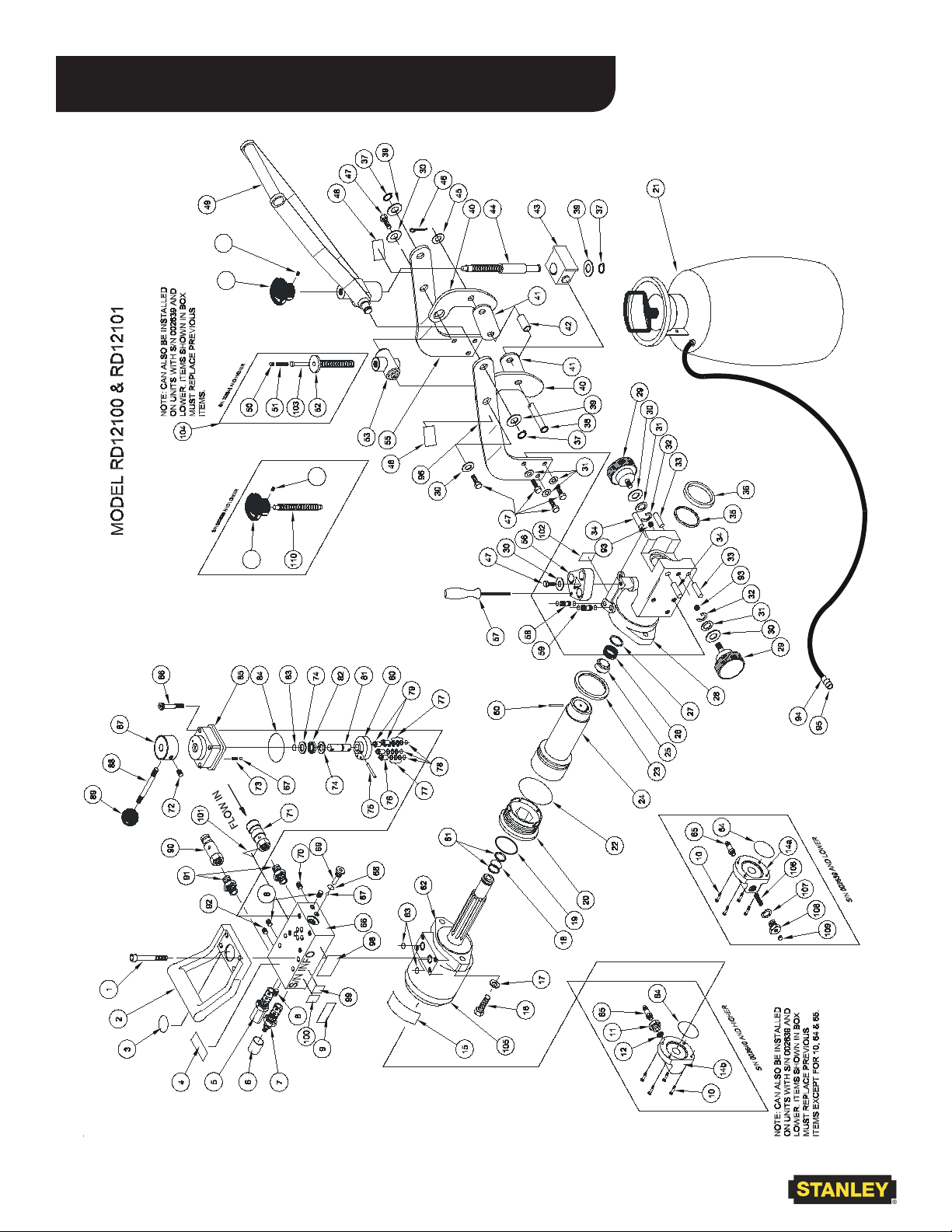

RD12 PARTS ILLUSTRATION ................................................................................................................................16
RD12 PARTS LIST ..................................................................................................................................................17
To ll out a Product Warranty Recording form, and for information on your warranty,
visit Stanleyhydraulic.com and select the Warranty tab.
(NOTE: The warranty recording form must be submitted to validate the warranty).
SERVICING THE STANLEY HYDRAULIC RAIL DRILL. This manual contains safety, operation, and routine main-
tenance instructions. Stanley Hydraulic Tools recommends that servicing of hydraulic tools, other than routine main-
tenance, must be performed by an authorized and certied dealer. Please read the following warning.
SERIOUS INJURY OR DEATH COULD RESULT FROM THE IMPROPER REPAIR OR
SERVICE OF THIS TOOL.
REPAIRS AND / OR SERVICE TO THIS TOOL MUST ONLY BE DONE BY AN
AUTHORIZED AND CERTIFIED DEALER.
For the nearest authorized and certied dealer, call Stanley Hydraulic Tools at the number listed on the back of this
manual and ask for a Customer Service Representative.
RD12 User Manual ◄ 3
SAFETY SYMBOLS
DANGER
WARNING
CAUTION
CAUTION
NOTICE
IMPORTANT
Safety symbols and signal words, as shown below, are used to emphasize all operator, maintenance and repair actions which, if not strictly followed, could result in a life-threatening situation, bodily injury or damage to equipment.
This is the safety alert symbol. It is used to alert you to potential personal injury
hazards. Obey all safety messages that follow this symbol to avoid possible
injury or death.
This safety alert and signal word indicate an imminently hazardous situation
which, if not avoided, will result in death or serious injury.
This safety alert and signal word indicate a potentially hazardous situation
which, if not avoided, could result in death or serious injury.
This safety alert and signal word indicate a potentially hazardous situation
which, if not avoided, could result in death or serious injury.
This signal word indicates a potentially hazardous situation which, if not avoided, may result in property damage.
This signal word indicates a situation which, if not avoided, will result in damage
to the equipment.
This signal word indicates a situation which, if not avoided, may result in damage to the equipment.
Always observe safety symbols. They are included for your safety and for the protection of the tool.
LOCAL SAFETY REGULATIONS
Enter any local safety regulations here. Keep these instructions in an area accessible to the operator and maintenance personnel.
4 ► RD12 User Manual
SAFETY PRECAUTIONS
Tool operators and maintenance personnel must always
comply with the safety precautions given in this manual
and on the stickers and tags attached to the tool and
hose.
These safety precautions are given for your safety. Review them carefully before operating the tool and before
performing general maintenance or repairs.
Supervising personnel should develop additional precautions relating to the specific work area and local
safety regulations. If so, place the added precautions in
the space provided in this manual.
The model RD12 Hydraulic Rail Drill will provide safe
and dependable service if operated in accordance with
the instructions given in this manual. Read and understand this manual and any stickers and tags attached
to the pressure washer and hose before operation. Failure to do so could result in personal injury or equipment
damage.
• The operator must start in a work area without by-
standers. Flying debris can cause serious injury.
• Do not operate the tool unless thoroughly trained
or under the supervision of an instructor. Establish
a training program for all operators to ensure safe
operation.
• Always wear personal protection equipment (PPE)
such as goggles, safety shoes, head, eye, breathing, and ear protection when operating the tool. Use
gloves and aprons when necessary.
• The operator must be familiar with all prohibited
work areas such as excessive slopes and dangerous terrain conditions.
• Do not inspect, clean or replace the drill bit or any
part(s) if the hydraulic power source is connected.
Do not inspect or clean the tool while the hydraulic
power source is connected. Accidental engagement
of the tool can cause serious injury.
• Always connect hoses to the tool hose couplers be-
fore energizing the hydraulic power source. Be sure
all hose connections are tight and are in good condition.
• Do not operate the tool at oil temperatures above
140 °F/60 °C. Operation at higher temperatures can
cause higher than normal temperatures at the tool
which can result in operator discomfort.
• Never wear loose clothing or unrestrained long hair
that can get entangled in the working parts of the
tool.
• To avoid personal injury or equipment damage, all
tool repair, maintenance and service must only be
performed by authorized and properly trained personnel.
• The hydraulic circuit control valve must be in the
OFF position when coupling or uncoupling the tool.
Wipe all couplers clean before connecting. Failure
to do so may result in damage to the quick couplers
and cause overheating. Use only lint-free cloths.
• Never transport or carry the tool with the unit energized.
• Use proper lifting techniques when handling the
tool. Do not overreach. Maintain proper footing and
balance at all times.
• Keep hands and fingers away from rotating parts.
• Do not operate a damaged, improperly adjusted or
incompletely assembled tool.
• Do not exceed the rated limits of the tool or use the
tool for applications beyond its design capacity.
• Always keep critical tool markings, such as labels
and warning stickers legible.
• Check fasteners tightness often and before each
use daily.
• Never operate the tool if you cannot be sure that
underground utilities are not present. Underground
electrical utilities present an electrocution hazard.
Underground gas utilities present an explosion hazard. Other underground utilities may present other
hazards.
• Always replace parts with replacement parts recommended by Stanley Hydraulic Tools.
• Warning: hydraulic fluid under pressure could cause
skin injection injury. If you are injured by hydraulic
fluid get medical attention immediately.
RD12 User Manual ◄ 5
TOOL STICKERS & TAGS
11207
Circuit Type D
Sticker
28788
Manual
Sticker
25610
Railroad Help Desk Sticker
31096
RD12 Model Sticker
NOTE:
THE INFORMATION LISTED
ON THE STICKERS SHOWN,
MUST BE LEGIBLE AT ALL
TIMES.
REPLACE DECALS IF
THEY BECOME WORN OR
DAMAGED. REPLACEMENTS
ARE AVAILABLE FROM
YOUR LOCAL STANLEY
DISTRIBUTOR.
51296
Sound Power
31096
RD12 Model Sticker
Sticker
WARNING
STAY CLEAR OF ALL MOVING PA RTS
17572
Pinch Point Warning Sticker
1. FAILURE TO USE HYDRAULIC HOSE LABELED AND CER-
TIFIED AS NON-CONDUCTIVE WHEN USING HYDRAULIC
TOOLS ON OR NEAR ELECTRICAL LINES MAY RESULT IN
DEATH OR SERIOUS INJURY.
BEFORE USING HOSE LABELED AND CERTIFIED AS NON-
CONDUCTIVE ON OR NEAR ELECTRIC LINES BE SURE THE
HOSE IS MAINTAINED AS NON-CONDUCTIVE. THE HOSE
SHOULD BE REGULARLY TESTED FOR ELECTRIC CUR-
RENT LEAKAGE IN ACCORDANCE WITH YOUR SAFETY
DEPARTMENT INSTRUCTIONS.
2. A HYDRAULIC LEAK OR BURST MAY CAUSE OIL INJECTION INTO THE BODY OR CAUSE OTHER SEVERE
PERSONAL INJURY.
A. DO NOT EXCEED SPECIFIED FLOW AND PRESSURE
FOR THIS TOOL. EXCESS FLOW OR PRESSURE MAY
CAUSE A LEAK OR BURST.
B. DO NOT EXCEED RATED WORKING PRESSURE OF
HYDRAULIC HOSE USED WITH THIS TOOL. EXCESS
PRESSURE MAY CAUSE A LEAK OR BURST.
C. CHECK TOOL HOSE COUPLERS AND CONNECTORS
DAILY FOR LEAKS. DO NOT FEEL FOR LEAKS WITH
YOUR HANDS. CONTACT WITH A LEAK MAY RESULT
IN SEVERE PERSONAL INJURY.
PINCH POINT
31049
Eye Protection Sticker
31096
RD12 Model Sticker
DANGERDANGER
D. DO NOT LIFT OR CARRY TOOL BY THE HOSES. DO
NOT ABUSE HOSE. DO NOT USE KINKED, TORN OR
DAMAGED HOSE.
3. MAKE SURE HYDRAULIC HOSES ARE PROPERLY CON-
NECTED TO THE TOOL BEFORE PRESSURING SYSTEM.
SYSTEM PRESSURE HOSE MUST ALWAYS BE CONNECTED TO TOOL “IN” PORT. SYSTEM RETURN HOSE
MUST ALWAYS BE CONNECTED TO TOOL “OUT” PORT.
REVERSING CONNECTIONS MAY CAUSE REVERSE
TOOL OPERATION WHICH CAN RESULT IN SEVERE
PERSONAL INJURY.
4. DO NOT CONNECT OPEN-CENTER TOOLS TO CLOSED-
CENTER HYDRAULIC SYSTEMS. THIS MAY RESULT IN
LOSS OF OTHER HYDRAULIC FUNCTIONS POWERED BY
THE SAME SYSTEM AND/OR SEVERE PERSONAL INJURY.
5. BYSTANDERS MAY BE INJURED IN YOUR WORK AREA.
KEEP BYSTANDERS CLEAR OF YOUR WORK AREA.
6. WEAR HEARING, EYE, FOOT, HAND AND HEAD PRO-
TECTION.
7. TO AVOID PERSONAL INJURY OR EQUIPMENT DAMAGE,
ALL TOOL REPAIR MAINTENANCE AND SERVICE MUST
ONLY BE PERFORMED BY AUTHORIZED AND PROPERLY
TRAINED PERSONNEL.
The safety tag (P/N 15875) at right is
attached to the tool when shipped from
the factory. Read and understand the
safety instructions listed on this tag before
removal. We suggest you retain this tag and
attach it to the tool when not in use.
6 ► RD12 User Manual
IMPORTANT
READ OPERATION MANUAL AND
SAFETY INSTRUCTIONS FOR THIS
TOOL BEFORE USING IT.
USE ONLY PARTS AND REPAIR
PROCEDURES APPROVED BY
STANLEY AND DESCRIBED IN THE
OPERATION MANUAL.
TAG TO BE REMOVED ONLY BY
TOOL OPERATOR.
SEE OTHER SIDE
IMPORTANT
READ OPERATION MANUAL AND
SAFETY INSTRUCTIONS FOR THIS
USE ONLY PARTS AND REPAIR
PROCEDURES APPROVED BY
STANLEY AND DESCRIBED IN THE
TAG TO BE REMOVED ONLY BY
SAFETY TAG P/N 15875 (Shown smaller then actual size)
TOOL BEFORE USING IT.
OPERATION MANUAL.
TOOL OPERATOR.
SEE OTHER SIDE
HOSE TYPES
The rated working pressure of the hydraulic hose must be equal to or higher than the relief valve setting on the hydraulic system. There are three types of hydraulic hose that meet this requirement and are authorized for use with
Stanley Hydraulic Tools. They are:
Certied non-conductive — constructed of thermoplastic or synthetic rubber inner tube, synthetic ber braid
reinforcement, and weather resistant thermoplastic or synthetic rubber cover. Hose labeled certied non-
conductive is the only hose authorized for use near electrical conductors.
Wire-braided (conductive) — constructed of synthetic rubber inner tube, single or double wire braid reinforcement, and weather resistant synthetic rubber cover. This hose is conductive and must never be used near
electrical conductors.
Fabric-braided (not certied or labeled non-conductive) — constructed of thermoplastic or synthetic rubber inner tube, synthetic ber braid reinforcement, and weather resistant thermoplastic or synthetic rubber cover. This
hose is not certied non-conductive and must never be used near electrical conductors.
HOSE SAFETY TAGS
To help ensure your safety, the following DANGER tags are attached to all hose purchased from Stanley Hydraulic
Tools. DO NOT REMOVE THESE TAGS.
If the information on a tag is illegible because of wear or damage, replace the tag immediately. A new tag may be
obtained from your Stanley Distributor.
THE TAG SHOWN BELOW IS ATTACHED TO “CERTIFIED NON-CONDUCTIVE” HOSE
DANGER
1. FAILURE TO USE HYDRAULIC HOSE LABELED AND CERTIFIED AS NON-CONDUCTIVE
WHEN USING HYDRAULIC TOOLS ON OR NEAR ELECTRIC LINES MAY RESULT IN
DEATH OR SERIOUS INJURY.
FOR PROPER AND SAFE OPERATION MAKE SURE THAT YOU HAVE BEEN PROPERLY TRAINED IN CORRECT PROCEDURES REQUIRED FOR WORK ON OR AROUND
ELECTRIC LINES.
2. BEFORE USING HYDRAULIC HOSE LABELED AND CERTIFIED AS NON-CONDUCTIVE
ON OR NEAR ELECTRIC LINES. WIPE THE ENTIRE LENGTH OF THE HOSE AND FITTING WITH A CLEAN DRY ABSORBENT CLOTH TO REMOVE DIRT AND MOISTURE AND
TEST HOSE FOR MAXIMUM ALLOWABLE CURRENT LEAKAGE IN ACCORDANCE WITH
SAFETY DEPARTMENT INSTRUCTIONS.
DO NOT REMOVE THIS TAG
SEE OTHER SIDE
SIDE 1
3. DO NOT EXCEED HOSE WORKING PRESSURE OR ABUSE HOSE. IMPROPER USE
OR HANDLING OF HOSE COULD RESULT IN BURST OR OTHER HOSE FAILURE.
KEEP HOSE AS FAR AWAY AS POSSIBLE FROM BODY AND DO NOT PERMIT DIRECT
CONTACT DURING USE. CONTACT AT THE BURST CAN CAUSE BODILY INJECTION
AND SEVERE PERSONAL INJURY.
4. HANDLE AND ROUTE HOSE CAREFULLY TO AVOID KINKING, ABRASION, CUTTING, OR
CONTACT WITH HIGH TEMPERATURE SURFACES. DO NOT USE IF KINKED. DO NOT
USE HOSE TO PULL OR LIFT TOOLS, POWER UNITS, ETC.
5. CHECK ENTIRE HOSE FOR CUTS CRACKS LEAKS ABRASIONS, BULGES, OR DAM-
AGE TO COUPLINGS IF ANY OF THESE CONDITIONS EXIST, REPLACE THE HOSE
IMMEDIATELY. NEVER USE TAPE OR ANY DEVICE TO ATTEMPT TO MEND THE HOSE.
6. AFTER EACH USE STORE IN A CLEAN DRY AREA.
(Shown smaller than actual size)
DANGER
DANGER
SEE OTHER SIDE
SIDE 2
THE TAG SHOWN BELOW IS ATTACHED TO “CONDUCTIVE” HOSE.
DANGER
DANGER
1. DO NOT USE THIS HYDRAULIC HOSE ON OR NEAR ELECTRIC LINES. THIS HOSE IS
NOT LABELED OR CERTIFIED AS NON-CONDUCTIVE. USING THIS HOSE ON OR NEAR
ELECTRICAL LINES MAY RESULT IN DEATH OR SERIOUS INJURY.
2. FOR PROPER AND SAFE OPERATION MAKE SURE THAT YOU HAVE BEEN PROPERLY
TRAINED IN CORRECT PROCEDURES REQUIRED FOR WORK ON OR AROUND ELECTRIC LINES.
3. DO NOT EXCEED HOSE WORKING PRESSURE OR ABUSE HOSE. IMPROPER USE OR
HANDLING OF HOSE COULD RESULT IN BURST OR OTHER HOSE FAILURE. KEEP HOSE
AS FAR AWAY AS POSSIBLE FROM BODY AND DO NOT PERMIT DIRECT CONTACT
DURING USE. CONTACT AT THE BURST CAN CAUSE BODILY INJECTION AND SEVERE
PERSONAL INJURY.
4. HANDLE AND ROUTE HOSE CAREFULLY TO AVOID KINKING, CUTTING, OR CONTACT
WITH HIGH TEMPERATURE SURFACES. DO NOT USE IF KINKED. DO NOT USE HOSE TO
PULL OR LIFT TOOLS, POWER UNITS, ETC.
DO NOT REMOVE THIS TAG
SEE OTHER SIDE
SIDE 1
5. CHECK ENTIRE HOSE FOR CUTS CRACKS LEAKS ABRASIONS, BULGES, OR DAMAGE TO
COUPLINGS IF ANY OF THESE CONDITIONS EXIST, REPLACE THE HOSE IMMEDIATELY.
NEVER USE TAPE OR ANY DEVICE TO ATTEMPT TO MEND THE HOSE.
6. AFTER EACH USE STORE IN A CLEAN DRY AREA.
(Shown smaller than actual size)
DANGER
SEE OTHER SIDE
SIDE 2
DO NOT REMOVE THIS TAG
DO NOT REMOVE THIS TAG
RD12 User Manual ◄ 7
HOSE RECOMMENDATIONS
Min. Working Pressure
USE
(Press/Return)
Certied Non-Conductive Hose - Fiber Braid - for Utility Bucket Trucks
Oil Flow Hose Lengths Inside Diameter
GPM LPM FEET METERS INCH MM PSI BAR
4-9 15-34 up to 10 up to 3 3/8 10 Both 2250 155
Conductive Hose - Wire Braid or Fiber Braid -DO NOT USE NEAR ELECTRICAL CONDUCTORS
4-6 15-23 up to 25 up to 7.5 3/8 10 Both 2500 175
4-6 15-23 26-100 7.5-30 1/2 13 Both 2500 175
5-10.5 19-40 up to 50 up to 15 1/2 13 Both 2500 175
5-10.5 19-40 51-100 15-30 5/8 16 Both 2500 175
5/8 16 Pressure 2500 175
3/4 19 Return 2500 175
5-10.5 19-40 100-300 30-90
10-13 38-49 up to 50 up to 15 5/8 16 Both 2500 175
5/8 16 Pressure 2500 175
3/4 19 Return 2500 175
10-13 38-49 51-100 15-30
3/4 19 Pressure 2500 175
1 25.4 Return 2500 175
10-13 38-49 100-200 30-60
5/8 16 Pressure 2500 175
13-16 49-60 up to 25 up to 8
3/4 19 Return 2500 175
3/4 19 Pressure 2500 175
1 25.4 Return 2500 175
13-16 49-60 26-100 8-30
PRESSURE
<<< FLOW
RETURN
FLOW >>>
Figure 1. Typical Hose Connections
Tool to Hydraulic Circuit Hose
Recommendations
The chart to the right shows recommended
minimum hose diameters for various hose
lengths based on gallons per minute (gpm)/
liters per minute (lpm). These recommenda-
tions are intended to keep return line pressure
(back pressure) to a minimum acceptable lev-
el to ensure maximum tool performance.
8 ► RD12 User Manual
This chart is intended to be used for hydraulic
tool applications only based on Stanley Hy-
draulic Tools tool operating requirements and
should not be used for any other applications.
All hydraulic hose must have at least a rated
minimum working pressure equal to the maxi-
mum hydraulic system relief valve setting.
All hydraulic hose must meet or exceed
specications as set forth by SAE J517.
HTMA / EHTMA REQUIREMENTS
HTMA / EHTMA REQUIREMENTS
HTMA
HYDRAULIC SYSTEM REQUIREMENTS
Flow Range
Nominal Operating Pressure
(at the power supply outlet)
System relief valve setting
(at the power supply outlet)
Maximum back pressure
(at tool end of the return hose)
Measured at a max. uid viscosity of:
(at min. operating temperature)
Temperature: Sufcient heat rejection
capacity to limit max. uid temperature to:
(at max. expected ambient temperature)
Min. cooling capacity at a temperature
difference of between ambient and uid
temps
NOTE:
Do not operate the tool at oil temperatures above 140° F (60° C). Operation at higher temperatures can cause operator
discomfort at the tool.
Filter
Min. full-ow ltration
Sized for ow of at least:
(For cold temp. startup and max.
dirt-holding capacity)
4-6 gpm 7-9 gpm 9-10.5 gpm 11-13 gpm
(15-23 lpm) (26-34 lpm) (34-40 lpm) (42-49 lpm)
1500 psi 1500 psi 1500 psi 1500 psi
(103 bar) (103 bar) (103 bar) (103 bar)
2100-2250 psi 2100-2250 psi 2200-2300 psi 2100-2250 psi
(145-155 bar) (145-155 bar) (152-159 bar) (145-155 bar)
250 psi 250 psi 250 psi 250 psi
(17 bar) (17 bar) (17 bar) (17 bar)
400 ssu* 400 ssu* 400 ssu* 400 ssu*
(82 centistokes) (82 centistokes) (82 centistokes) (82 centistokes)
140° F 140° F 140° F 140° F
(60° C) (60° C) (60° C) (60° C)
3 hp 5 hp 6 hp 7 hp
(2.24 kW) (3.73 kW) (5.22 kW) (4.47 kW)
40° F 40° F 40° F 40° F
(22° C) (22° C) (22° C) (22° C)
25 microns 25 microns 25 microns 25 microns
30 gpm 30 gpm 30 gpm 30 gpm
(114 lpm) (114 lpm) (114 lpm) (114 lpm)
TYPE I TYPE II
TOOL TYPE
TYPE RR
TYPE III
Hydraulic uid Petroleum based
(premium grade, anti-wear, non-conductive)
Viscosity (at min. and max. operating temps)
NOTE:
When choosing hydraulic uid, the expected oil temperature extremes that will be experienced in service determine the
most suitable temperature viscosity characteristics. Hydraulic uids with a viscosity index over 140 will meet the requirements
over a wide range of operating temperatures.
*SSU = Saybolt Seconds Universal
EHTMA
100-400 ssu* 100-400 ssu* 100-400 ssu* 100-400 ssu*
(20-82 centistokes)
CLASSIFICATION
HYDRAULIC SYSTEM
REQUIREMENTS
Flow Range
Nominal Operating Pressure
(at the power supply outlet)
System relief valve setting
(at the power supply outlet)
NOTE: These are general hydraulic system requirements. See tool specication page for tool specic requirements
B
3.5-4.3 gpm 4.7-5.8 gpm 7.1-8.7 gpm 9.5-11.6 gpm 11.8-14.5 gpm
(13.5-16.5 lpm) (18-22 lpm) (27-33 lpm) (36-44 lpm) (45-55 lpm)
1870 psi 1500 psi 1500 psi 1500 psi 1500 psi
(129 bar) (103 bar) (103 bar) (103 bar) (103 bar)
2495 psi 2000 psi 2000 psi 2000 psi 2000 psi
(172 bar) (138 bar) (138 bar) (138 bar) (138 bar)
C
D
RD12 User Manual ◄ 9
OPERATION
PREOPERATION PROCEDURES
PREPARATION FOR INITIAL USE
The tool as shipped has no special unpacking or assembly requirements prior to usage. Inspection to assure the
tool was not damaged in shipping and that it does not
contain packing debris is all that is required. Otherwise,
the tool may be connected to a hydraulic source upon
receipt.
CHECK HYDRAULIC POWER SOURCE
1. Using a calibrated owmeter and pressure gauge,
check that the hydraulic power source develops a
ow of 8–10 gpm/30–38 lpm at 2000 psi/140 bar.
2. Make certain the hydraulic power source is equipped
with a relief valve set to open at 2200–2300 psi/152–
159 bar ma×imum.
3. Make certain that the power source return pressure
does not e×ceed 250 psi/17 bar.
CONNECT HOSES
1. Wipe all hose couplers with a clean lint-free cloth
before making connections.
2. Connect the hoses from the hydraulic power source
to the hose couplers on the tool. It is a good prac-
tice to connect the return hose rst and disconnect
it last to minimize or avoid trapped pressure within
the tool.
3. Observe ow indicators stamped on hose couplers
to be sure that oil will ow in the proper direction.
The female coupler is the inlet coupler.
4. Observe the IN and OUT port lettering on the valve
block assembly to ensure that the hydraulic ow is in
the proper direction. The IN port lettering indicates
the inlet (pressure) side.
NOTE:
The pressure increase in uncoupled hoses left in the
sun may result in making them difcult to connect.
When possible, connect the free ends of operating
hoses together.
USING COOLANT
The RD12 rail drill is equipped with a separate coolant
can assembly that is used to deliver coolant to the drill
bit. Follow the instructions below to use the coolant can
assembly with the rail drill:
1. If operating the rail drill at temperatures above
32 °F/0 °C, ll the coolant can with ordinary tap water.
2. If operating the rail drill at temperatures below
32 °F/0 °C, ll the coolant can with a mi×ture of 50%
ordinary tap water and 50% biodegradable antifreeze.
3. Pressurize the coolant can using the carrying handle/pump.
4. Connect the coolant can assembly to the rail drill using the supplied quick-disconnect coupler.
OPERATING PROCEDURES
1. Observe all safety precautions.
2. Make sure the drill bit you intend to use contains
carbide inserts with good cutting surfaces. If the
surfaces are worn or chipped, unscrew the retaining
screw and rotate the insert to a good cutting surface.
If the inserts do not contain a good cutting surface
on one of the four sides, replace the inserts. Make
sure the bit holder is not damaged.
3. Install the drill bit into the piston machining assembly (24) and then turn it clockwise until it stops.
RAIL TEMPLATES & HOLE GUIDES
NOTE:
The RD12 must be used with rail templates and hole
guides. See the chart at the end of this section for
selections of rail templates and hole guides.
1. Install a hole guide assembly onto the rail and position it where you want to drill.
2. Install templates onto the rail drill with the rail size
facing the rail.
NOTE:
To avoid drill bit damage, make sure the drill bit/piston assembly is fully retracted prior to placing the
RD12 on the rail.
3. Set the rail drill over the hole guide on the rail so that
the templates are nested between the ball and the
base of the rail and the adjustment screw (52) ts in
a slot in the hole guide.
4. Adjust the threaded shaft (44) until there is no movement of the rail drill as it sits on the rail and the hole
guide. Wiggle the RD12 to remove all looseness.
Then lift the handle (49) up and turn the threaded
shaft (44) clockwise appro×imately 1/2 turn. Push
the handle (49) down hard to rmly clamp the RD12
to the rail.
10 ► RD12 User Manual
OPERATION
TO BEGIN DRILLING
NOTE:
Do not operate the drill in the fully advanced position for more than 5-10 seconds at one time.
1. Engage the control valve on the hydraulic power
source to the ON position.
2. To begin drilling, move the control lever on the rail
drill toward the “drill bit” symbol. The drill bit will turn
and advance simultaneously. Make sure water is
spraying from the bit.
TO STOP DRILLING
Move the control lever to the “0” mark to stop the rail
drill.
TO RETRACT THE DRILL BIT
Move the control lever to the “retract” symbol to retract
the drill bit.
STORAGE
• Clean the tool thoroughly.
• Remove the drill bit.
• Advance the piston .250 in./6 mm.
• Drain water from the tool.
• Retract the piston
• Store in a dry area.
COLD WEATHER OPERATION
Preheat the hydraulic uid at low engine speed. When
using the normally recommended uids, uid tempera-
ture should be at or above 50 °F/10 °C before use.
Use a biodegradeable antifreeze solution such as windshield antifreeze in the spray can.
Drain water from the drill when nished using.
Retract Symbol
Figure 2. Retract the Drill Bit
REMOVING THE DRILL BIT
1. Uncouple the water hose from the rail drill.
2. Move the hydraulic circuit control valve to the OFF
position and disconnect from the power supply.
3. From the bit end, turn the bit counter clockwise and
pull it out.
RD12 User Manual ◄ 11
TEMPLATES & HOLE GUIDES
RD12 DRILL TEMPLATE SETS:
RAIL SIZE
60 ASCE (6040)# ^(34525) USA
65 ASCE (6540)# ^(35975) USA
68GN (52636) 38644 [2 1/8 × 4 1/2 × 7] USA
70 ASCE # ^(49246) USA
72 CHI & NW (7250) ^(35876) USA
75 ASCE (7540) ^34262 22631 [2 11/16 × 5 1/2 × 5 1/2] USA
75 GRT. NO.-1893 ^(35701) USA
75 U PAC C.R.S.# ^(36001) USA
77 1/2 GRT. NO. # ^33720 ^(35876) 38644 [2 1/8 × 4 1/2 × 7] USA
80 ASCE (8040) # ^(35626)/^38660 USA
80 GRT. NOR.# ^33720 ^(35876) 38644 [2 1/8 × 4 1/2 × 7] USA
85 ASCE STD (8504 /8540) ^(34915) [2 7/16 × 7 × 6] & ^(35358) [2 7/16 × 6× 6] USA
85 CAN. PAC. (8524)# ^(35628 HD) USA
85 CP HEAD FREE (37337) ^(37337 HD) USA
85 GRT. NOR.# ^33720 ^(35876) [2 7/16 × 5] USA
85PS ^37139 USA
85 SOO LINE (8520) ^(35630 HD) USA
90 ARA-B (9030) 2 11/32 ELEVATION ^34263 USA
90 ASCE (9040) ^(36046) USA
90 C&NW (9035) ^(35715) USA
90 GN ^33720 35358 (2 7/16 × 6 ) USA
90 RA (ARA-A)(9020) 90 SF 31978 / (31984)/35105 (65948 HD) 22631 [2 11/16 × 5 1/2 × 5 1/2] ^34680 [2-
100 ARA-A (10020) ^34159 / ^35438/^38660 ^34526 [ 3 × 6 ] USA
100 ARA-B (10030) / 100-8 ^(34916) USA
100 RA HEAD FREE ^(37367) USA
100 RE STD (10025) 2 45/64 ELEVATION ^34263 (65959 HD) 36037 [2 1/2 × 6 × 6 ] USA
100 RE HEAD FREE (37341) ^(37341 HD) USA
100 CN&W (10035) ^(34982) 39229 [2-31/32 × 6] USA
100 GRT. NO. ^(35633) 38645 [2 7/16 × 7] USA
100PS ^37139 USA
100 ASCE (10040) ^(65761 HD) USA
105 DUDLEY (10524) ^(34917) USA
105 DUDLEY (OFFSET) ^(58508 OFFSET TEMPLATE) 58468 [2 × 4 3/4 × 4 3/4] USA
110 GRT NO (11036) ^(35973) 38645 [2 7/16 × 7] USA
110 RE GUARD RAIL ^(35151) USA
110 RE (11025) 2 5/8 ELEVATION ^(34597) ^35357 [2 23/32 × 5 1/2] USA
110 RE (11025) 2 53/64 ELEVATION ^(38683) USA
112 RE (11228) 2 7/8” ELEVATION 33721/31979/31980/35105
112TR ^33721 ^33687 [2 1/2 × 6 1/2 × 6 1/2] USA
113 HEAD FREE ^(34598) USA
115 AREA RETARDER 3.484 FI×ED
ELEVATION
115 AREA (11525) 2 7/8” ELEVATION 31979/31980/35105/^35438
DOUBLE SIDED/
(SINGLE SIDED) GUIDE ASSY P/N: ING (MM)/[INCHES] COUNTRY
USA
13/32 × 5 × 5 ]
^33687 [2 1/2 × 6 1/2 × 6 1/2] USA
(31985)(62201 HD)
(34882 FI×ED) (34935 ADJ.) 34912 FI×ED / 34933 ADJ. [3 1/2] USA
22625 [3 1/2 × 6 × 6] USA
(31985)(62201 HD)
12 ► RD12 User Manual
TEMPLATES & HOLE GUIDES
RD12 DRILL TEMPLATE SETS:
RAIL SIZE
115 RE GUARD RAIL 3 1/32” ELEVATION ^(35153) USA
119 AREA (11922) 2 7/8” ELEVATION 31979/31980/35105/ (31985)
122 C.B. & O. ^34159(32279) 22625 [3 1/2 × 6 × 6] USA
127 DUDLEY (12723) ^34264 22625 [3 1/2 × 6 × 6] USA
129 TR ^(35003) USA
130 AREA (13025) ^(36048) USA
130 AREA HEAD FREE (3 1/16
ELEVATION)
130 AREA HEAD FREE (2 15/16
ELEVATION)
130 AREA HEAD FREE (2 3/4 ELEVATION) ^(38643)
130 PS (13031) ^(34918) USA
131 RE (13128) 31980/31981 / (31986)(62203 HD) ^33687 [2 1/2 × 6 1/2 × 6 1/2] USA
131 RE-M ^34264 22625 [3 1/2 × 6 × 6] USA
132 HEAD FREE ^(34599) USA
132 AREA (13225) 31980/31981 / (31986)(62203 HD) 22625 [3 1/2 × 6 × 6] USA
132 RE GUARD RAIL ^(35155) USA
133 AREA (13331) 31979 / 31981 / (31987) 22625 [3 1/2 × 6 × 6] USA
136 AREA (13622) (STD. 3 3/32”
ELEVATION)
136 AREA (3” ELEVATION) (44977) 44975 [2-23/32 × 6 × 7] USA
136 RE GUARD RAIL (3 9/32 ELEVATION) ^(35155) USA
136 RE STOCK RAIL (3 11/32 ELEVATION) (66945 HD) USA
136 LVH (62412) USA
136 LV (13633) (65075) USA
140 AREA (14031) 31978 / (31988) 22625 [3 1/2 × 6 × 6] USA
141 AREA (43674) (65963 HD) 22625 [3 1/2 × 6 × 6] USA
152 PS ^(43576) USA
155 PS ^(43578) USA
41 KG AS1085 ^(35353) 41773 (62 × 127 × 127) AUSTRALIA
47 KG AS1085 ^(35353) 41773 (62 × 127 × 127) AUSTRALIA
50 KG AS1085 ^(35351) 41774 (88 × 130 × 130) AUSTRALIA
53 KG (107#) AS1085 ^(34185) 41774 (88 × 130 × 130) AUSTRALIA
60 KG AS1085.1 ^(34187) 41774 (88 × 130 × 130) AUSTRALIA
TR-32 (SEE 65 ASCE) ^(35975) BRAZIL
TR-37 (SEE 75ASCE) ^34262 22631 [2 11/16 × 5 1/2 × 5 1/2] BRAZIL
TR-45 (SEE 90ARA-A) ^34262 22631 [2 11/16 × 5 1/2 × 5 1/2] BRAZIL
TR-50 (SEE 100RE) BRAZIL
TR-57 (SEE 115AREA) BRAZIL
TR-68 (SEE 136AREA) BRAZIL
50 KG N 31975 (43583) 29963 (77 × 130 ×130) CHINA
60 KG (69512) 69510 (76 × 140 × 140) CHINA
46 KG U 33 31973 29436 (57.5 × 160) FRANCE
50 KG U 50 31974 29434 (60 × 170) FRANCE
LP48 31973 29435 (65 × 120 × 160) FRANCE
DOUBLE SIDED/
(SINGLE SIDED) GUIDE ASSY P/N: ING (MM)/[INCHES] COUNTRY
22625 [3 1/2 × 6 × 6] USA
(62201 HD)
^(41772) USA
^(38579) USA
31980/31981 / (31986)(62203 HD) 22625 [3 1/2 × 6 × 6] USA
RD12 User Manual ◄ 13
TEMPLATES & HOLE GUIDES
RD12 DRILL TEMPLATE SETS:
RAIL SIZE
60 KG UIC 31974 29434 (60 × 170) FRANCE
S49 31976 / (31982) 31772 (46 × 165) GERMANY
S54 31976 / (31982) 31772 (46 × 165) GERMANY
60 KG UIC/UNI 31976 / (31983) 31772 (46 × 165) GERMANY
54 KG UIC ^34261 HOLLAND
NP46 ^34261 HOLLAND
I.R.S. 52KG (66830) 66831 (80 × 166) INDIA
60KG UIC (31983) 66831 (80 × 166) INDIA
36 KG U 33 ITA LY
50 KG UNI ** 31976 / (31982) 30675 (47 × 165) I TALY
60 KG UIC/UNI 31976 / (31983) 30675 (47 × 165) I TALY
60 KG 31975 29963 (77 × 130 × 130) JAPAN
50 KG N 31975 (43583) 29963 (77 × 130 × 130) JAPAN
P50 (66321 HD) 66324 (65 × 150 × 140) RUSSIA
P65 (66323 HD) 66326 (95 × 220) RUSSIA
54KG UIC ^34261 ^32276 (58 × 170) SPAIN
37 KG JIS/JRS ^(43580) 44927 (60.5 × 127) TAIWAN
50 KG N 31975 ^(43583) 29963 (77 × 130 × 130) TAIWAN
60 KG UIC 31976 31772 (46 × 165) TAIWAN
87LB B.H. ^(35251) UK
90LB B.H. ^(35255) ^(35284) (60 × 114) UK
92LB F.B. ^(35257) ^(35283) (54 × 114) UK
BS 95 B.H 31977 UK
95LB F.B. MARK A ^(35249) UK
95LB F.B. MARK B ^(35470) UK
98 UK
109BR UK
BS 113A (54KG UIC) 65MM HOLE
ELEVATION
54KG UIC (BS 113A) 70MM HOLE
ELEVATION
UIC60 INSULATED (71558) 71459 (62 × 170 × 170) UK
CIE 50 ^(39233) 39236 (57 × 120) UK
RILC/RILR *(E32009) EUROPE
RI60/RI60N *(E32010) EUROPE
PH37 *(E32011) EUROPE
DOUBLE SIDED/
(SINGLE SIDED) GUIDE ASSY P/N: ING (MM)/[INCHES] COUNTRY
31977 31779 (60.32 × 127 × 203) UK
34261 38889 (65 × 200) UK
* = NOT RELEASED, TEMPLATE ONLY NOT A SET
^ = AVAILABLE BY SPECIAL ORDER ONLY
# = REQUIRES CHAMFERED CYLINDER CASTING
14 ► RD12 User Manual
TOOL PROTECTION & CARE
NOTICE
In addition to the Safety Precautions found in
this manual, observe the following for equipment
protection and care.
• Make sure all couplers are wiped clean before connection.
• The hydraulic circuit control valve must be in the
OFF position when coupling or uncoupling hydraulic
tools. Failure to do so may result in damage to the
quick couples and cause overheating of the hydraulic system.
• Always store the tool in a clean dry space, safe from
damage or pilferage.
• Make sure the circuit PRESSURE hose (with male
quick disconnect) is connected to the IN port. The
circuit RETURN hose (with female quick disconnect)
is connected to the opposite port. Do not reverse cir-
cuit ow. This can cause damage to internal seals.
• Always replace hoses, couplings and other parts
with replacement parts recommended by Stanley
Hydraulic Tools. Supply hoses must have a minimum working pressure rating of 2500 psi/172 bar.
• Do not e×ceed the rated ow (see Specications) in
this manual for correct ow rate and model number.
Rapid failure of the internal seals may result.
• Always keep critical tool markings, such as warning
stickers and tags legible.
• Tool repair should be performed by e×perienced
personnel only.
• Make certain that the recommended relief valves
are installed in the pressure side of the system.
• Do not use the tool for applications for which it was
not intended.
RD12 User Manual ◄ 15
TROUBLESHOOTING
If symptoms of poor performance develop, the following chart can be used as a guide to correct the problem.
When diagnosing problems with operation of the drill, always check that the hydraulic power source is supplying
the correct hydraulic ow and pressure to the tool as listed in the specications. Use a owmeter known to be accurate. Check the ow with the hydraulic oil temperature at least 80 °F/27 °C.
PROBLEM CAUSE SOLUTION
Drill does not run. Hydraulic power source not
functioning.
Couplers or hoses blocked. Locate and remove restriction.
Hydraulic motor failure. Inspect and repair.
Hydraulic lines not connected. Connect lines.
Drill bit dulls quickly. Incorrect oil ow. Check that 8–10 gpm/30–38 lpm at 2000
Using insufcient amount of
coolant.
Drill moves on rail during drilling
operation.
Drill vibrates during drilling. Inserts dull or damaged. Rotate or replace inserts.
Inserts chipped. Some chipping is normal,
Insert screw difcult to remove. Not assembled with lubricant. Install screw with anti-seize lubricant on the
Not clamped properly. See clamping instructions.
Wrong templates. Use correct templates and verify t to rail.
Template knob(s) not tight Tighten knobs securely.
Template knob(s) loose. Tighten knobs securely.
Not clamped properly. See clamping instructions.
particularly on the inside insert.
Incorrect template. Use correct template and verify t.
Using insufcient amount of
coolant.
Not clamped properly. See clamping instructions.
Template knob(s) loose Tighten knob(s) securely.
Handling damage. Make sure drill bit is retracted when
Check power source for proper ow and
pressure, 8–10 gpm/30–38 lpm, 2000
psi/140 bar.
psi/140 bar is available at the rail drill.
Rotate or replace insert. Increase ow of
coolant. Make sure pressure tank is fully
pumped up. Check for plugged water port
in drill bit. Check for a clogged inlet lter.
Remove pipe plug in end cap and ush
with water. Remove end cap and clean
lter.
Rotate or replace if poor hole nish is
noted.
Rotate or replace insert. Increase ow of
coolant. Make sure pressure tank is fully
pumped up. Check for plugged water port
in drill bit. Check for a clogged inlet lter.
Remove pipe plug in end cap and ush
with water. Remove end cap and clean
lter.
installing the drill on the rail. Avoid insert
contact with hard objects.
threads.
16 ► RD12 User Manual
SPECIFICATIONS
Bit Capacity ...............................................................................................up to 1-9/16 in. diameter/36 mm diameter
Bit Type ................................................................................................................Carbide Inserts (2) on Insert Holder
Pressure ........................................................................................................................................... 2000 psi/140 bar
Flow Range ............................................................................................................................8 - 10 gpm/30 – 38 lpm
Porting ...................................................................................................................................................-8 SAE O-ring
Connect Size and Type .................................................................................................. 3/8 in. Flush Face Couplers
Weight (with couplers) (w/o templates & bit) ........................................................................................ 59 lb/26.75 kg
Length (handle e×tended to ma×imum) ............................................................................................ 33 inches/84 cm
Width ........................................................................................................................................... 8.5 inches/21.6 cm
Height (w/o templates) (ma×imum) ............................................................................................. 21 inches/53.35 cm
EHTMA Category....................................................................................................................“D” (30 lpm @ 138 bar)
Sound Power Level ...................................................................................................................................... 102 dBA
Vibration Level ....................................................................................................................................................... N/A
NOTE: Weights, dimensions, and operating specications listed are subject to change without notice.
Where specications are critical to your application, please consult the factory.
ACCESSORIES
RAIL TEMPLATES & HOLE GUIDES
See “TEMPLATES & HOLE GUIDES” under the “OPERATION” section of this manual.
Ten-Piece Carbide Insert Kit (includes the following) ........................................................................................ 31969
Carbide Insert Package (10 inserts per package)
Flat Head Capscrew (Tor× 5.40 × 1/4)
DRILL BITS
1 in. Drill Bit .......................................................................................................................................................29471
1-1/16 in. Drill Bit ...............................................................................................................................................29470
1-1/8 in. Drill Bit .................................................................................................................................................29469
1-3/16 in. Drill Bit ...............................................................................................................................................29468
1-1/4 in. Drill Bit .................................................................................................................................................29467
1-5/16 in. Drill Bit ...............................................................................................................................................29461
1-3/8 in. Drill Bit .................................................................................................................................................29465
1-7/16 in. Drill Bit ............................................................................................................................................... 32511
1-1/2 in. Drill Bit .................................................................................................................................................32510
1-9/16 in. Drill Bit ...............................................................................................................................................33331
22 mm Drill Bit ...................................................................................................................................................31808
23 mm Drill Bit ...................................................................................................................................................29475
24 mm Drill Bit ...................................................................................................................................................30563
25 mm Drill Bit ...................................................................................................................................................31674
26 mm Drill Bit ...................................................................................................................................................31619
27 mm Drill Bit ...................................................................................................................................................31622
28 mm Drill Bit ...................................................................................................................................................29474
29 mm Drill Bit ...................................................................................................................................................31623
30 mm Drill Bit ...................................................................................................................................................29473
30.5 mm Drill Bit ................................................................................................................................................31693
31 mm Drill Bit ...................................................................................................................................................31675
32 mm Drill Bit ...................................................................................................................................................31624
33 mm Drill Bit ...................................................................................................................................................29472
36 mm Drill Bit ...................................................................................................................................................31647
SERVICE TOOLS
Piston Seal Installation Kit ................................................................................................................................. 31879
Piston Wrench ...................................................................................................................................................28868
RD12 User Manual ◄ 17
RD12 PARTS ILLUSTRATION
112
111
111
112
18 ► RD12 User Manual
RD12 PARTS LIST
PART
ITEM
NO. QTY DESCRIPTION
1 24871 4 CAPSCREW
2 24844 1 CARRY HANDLE
3 31097 1 OPERATION DECAL
4 03787 1 GPM STICKER
5 25773 1 PRESSURE RELIEF VALVE
6 25774 1 TAMPER RESISTANT COVER
7 24868 1 FLOW CONTROL
8 00955 4 1/8" PIPE PLUG
9 31096 1 RD12 MODEL NO. STICKER
10 15909 4 CAPSCREW
11 60787 1 FITTING
12 24441 1 FILTER WASHER
13 — — NO ITEM
14 60785 1 COVER
15 25610 1 RAILROAD HELP DESK STICKER
16 370251 2 CAPSCREW
17 03061 2 LOCK WASHER
18 02003 1 O-RING 2-113 R16 •
19 24878 1 FACE SEAL
20 60782 1 PLUG ASSY
21 24783 1 SPRAY CAN
24774 1 SPRAY CAN ASSY (INCL 21, 94 & 95)
22 04054 1 O-RING 2-233 R17
23 31744 1 PISTON RING (2 PIECE)
24 31286 1 PISTON MACHINING ASSY
25 29303 1 WATER VALVE
26 29302 1 WAVE SPRING
27 29301 1 RETAINING RING
28 60783 1 CYLINDER MACHINING ASSY
29 31828 2 KNOB
30 371067 5 FLAT WASHER
31 01459 12 LOCK WASHER
32 30652 2 RETAINING RING
33 29126 2 DOWEL PIN
34 29125 2 DOWEL PIN
35 07287 1 QUAD RING •
36 24881 1 WIPER SEAL •
37 17904 3 RETAINING RING
38 29197 1 CLEVIS PIN
39 28228 3 WASHER
40 28902 2 PLATE
41 29136 2 LINK
42 31069 1 SPACER
43 29075 1 STOP
44 28955 1 THREADED SHAFT
PART
ITEM
NO. QTY DESCRIPTION
45 20876 2 WASHER
46 01924 1 COTTER PIN
47 06173 9 CAPSCREW
48 17572 2 PINCH POINT WARNING STICKER
49 29072 1 HANDLE WELDMENT
50 38581 1 SETSCREW
51 02916 1 SPRING
52 35724 1 ADJUSTMENT SCREW
53 39449 1 ADJUSTMENT NUT
55 29070 1 CLAMP ARM LH
56 28867 1 GROMMET
57 29123 1 TORX SCREW DRIVER
58 24818 2 OIL TUBE
59 00055 4 O-RING 2-012 R17 •
60 29127 1 DOWEL PIN
61 08928 2 BACK-UP RING 9/16 × 3/32 •
62 29134 1 HYDRAULIC MOTOR
63 19095 2 O-RING 2-114 R17 •
64 00253 1 O-RING 2-038 R16 •
65 22521 1 QUICK DISCONNECT NIPPLE
66 24571 1 VALVE BLOCK
67 20145 2 STEEL BALL
68 01411 1 O-RING 3-906 R17 •
69 24289 1 PLUG
70 04119 1 PIPE PLUG
71 03972 1 FEMALE COUPLER BODY
72 24300 1 SETSCREW
73 24876 1 SPRING
74 20761 2 BEARING RACE
75 07890 1 ROLL PIN
76 34585 1 GROMMET
77 24305 12 SPRING WASHER
78 01362 4 O-RING 2-011 R16 •
79 24231 3 GROMMET
80 24877 1 ROTOR ASSY
81 24233 1 SHAFT
82 20762 1 BEARING
83 17924 1 O-RING 2-012 R24 •
84 02177 1 O-RING 2-137 R17 •
85 24313 1 HOUSING ASSY
86 26297 4 CAPSCREW
87 17527 1 VALVE CAP
88 24291 1 ROD
89 02633 1 KNOB
90 03973 1 MALE COUPLER BODY
RD12 User Manual ◄ 19
RD12 PARTS LIST
PART
ITEM
NO. QTY DESCRIPTION
91 00936 2 ADAPTER
92 12233 1 LEE PLUG (NOT SERVICEABLE)
93 00698 2 HELICOIL
94 22748 1 HOSE CLAMP 9/16
95 24784 1 QUICK DISCONNECT COUPLER
96 29071 1 CLAMP ARM RH
97 — — NO ITEM
98 28322 1 CE STICKER
99 31049 1 EYE PROTECTION STICKER
100 28788 1 MANUAL STICKER
101 11207 1 CIRCUIT D STICKER
102 51296 1 SOUND POWER LEVEL STICKER 102
103 35725 1 PLUNGER
104 35726 1 ADJUSTMENT SCREW ASSY
105 65622 1 NO LONGER AVAILABLE
106 31098 1 SCREEN
107 31099 1 GASKET
108 31100 1 END CAP
109 00961 1 PIPE PLUG
110 28956 1 ADJUSTMENT SCREW
111 24874 1 SETSCREW
112 24873 1 PLASTIC KNOB
DBA
(IF PURCHASED AS AN ASSEMBLY,
THIS CAN BE INSTALLED ON ALL
RAIL DRILLS.)
Seal Kit P/N 32031 (• Denotes part in Seal Kit)
Motor Seal Kit P/N 28658
20 ► RD12 User Manual
Stanley Hydraulic Tools
3810 SE Naef Road
Milwaukie, Oregon 97267-5698 USA
(503) 659-5660 / Fax (503) 652-1780
www.stanleyhydraulic.com
Loading...
