Stanley Black & Decker DS06 User Manual

WARNING
DS06
HYDRAULIC
DIAMOND SAW
Copyright © 2005, The Stanley Works OPS/MAINT USA 34567 8/2005 Ver 3
SAFETY, OPERATION AND MAINTENANCE
SERVICE MANUAL
Stanley Hydraulic Tools
3810 SE Naef Road
503-659-5660
FAX 503-652-1780
www.stanley-hydraulic-tools.com
TABLE OF CONTENTS
CERTIFICATE OF CONFORMITY ............................................................................................................................................................................4
SAFETY SYMBOLS ..................................................................................................................................................................................................5
SAFETY PRECAUTIONS ..........................................................................................................................................................................................6
TOOL STICKERS & TAGS ........................................................................................................................................................................................8
HYDRAULIC HOSE REQUIREMENTS .....................................................................................................................................................................9
HTMA REQUIREMENTS .........................................................................................................................................................................................10
OPERATION ............................................................................................................................................................................................................ 11
PREOPERTION PROCEDURES ............................................................................................................................................................................ 11
CHECK THE POWER SOURCE ............................................................................................................................................................................. 11
CHECK TOOL .......................................................................................................................................................................................................... 11
CONNECT HYDRAULIC HOSES ............................................................................................................................................................................11
CONNECTING TO A WATER SUPPLY ................................................................................................................................................................... 11
CHECK CHAIN AND BAR ADJUSTMENT .............................................................................................................................................................. 11
CHECK CHAIN SEGMENT WEAR .........................................................................................................................................................................12
OPERATING PROCEDURES .................................................................................................................................................................................12
PLAN THE CUT .......................................................................................................................................................................................................12
TYPES OF CUTS ....................................................................................................................................................................................................13
COLD WEATHER OPERATION ..............................................................................................................................................................................13
USING THE WALL WALKER™ ...............................................................................................................................................................................13
MAINTENANCE & ADJUSTMENTS ........................................................................................................................................................................14
GENERAL MAINTENANCE TIPS ............................................................................................................................................................................14
SAW BAR RAIL .......................................................................................................................................................................................................14
ROTATING THE SAW BAR .....................................................................................................................................................................................14
CHAIN TENSION ADJUSTMENT ............................................................................................................................................................................14
SERVICING THE CHAIN .........................................................................................................................................................................................15
MAINTENANCE & ADJUSTMENTS ........................................................................................................................................................................15
MAINTENANCE & ADJUSTMENTS ........................................................................................................................................................................16
REPLACING THE CHAIN BREAKER PUNCH ........................................................................................................................................................16
SPINNING RIVETS .................................................................................................................................................................................................16
NOSE SPROCKET DISASSEMBLY AND ASSEMBLY ...........................................................................................................................................17
MAINTENANCE & ADJUSTMENTS ........................................................................................................................................................................17
TOOL EQUIPMENT & CARE ..................................................................................................................................................................................19
TROUBLESHOOTING .............................................................................................................................................................................................20
SPECIFICATIONS ...................................................................................................................................................................................................22
ACCESSORIES .......................................................................................................................................................................................................22
SERVICE .................................................................................................................................................................................................................23
MOTOR INSPECTION AND CLEANING .................................................................................................................................................................24
BAR & CHAIN AND CHAIN GUARD ASSEMBLY ...................................................................................................................................................26
DS06 PARTS ILLUSTRATION ................................................................................................................................................................................27
DS06 PARTS LIST ..................................................................................................................................................................................................28
DS06 PARTS ILLUSTRATION ................................................................................................................................................................................29
DS06 PARTS LIST ..................................................................................................................................................................................................30
DIAMOND CHAIN APPLICATIONS .........................................................................................................................................................................31
WARRANTY ............................................................................................................................................................................................................32
SERVICING THE STANLEY CONCRETE CHAINSAW: This manual contains safety, operation, and routine maintenance instructions. Servicing of hydraulic tools, other than routine maintenance, must be per­formed by an authorized and certifi ed dealer. Please read the following warning.
WARNING
SERIOUS INJURY OR DEATH COULD RESULT FROM THE IM­PROPER REPAIR OR SERVICE OF THIS TOOL.
REPAIRS AND / OR SERVICE TO THIS TOOL MUST ONLY BE DONE BY AN AUTHORIZED AND CERTIFIED DEALER.
For the nearest authorized and certifi ed dealer, call Stanley Hydraulic Tools at the number listed on the back of this manual and ask for a Customer Service Representative.
3
CERTIFICATE OF CONFORMITY ÜBEREINSTIMMUNGS-ZERTIFIKAT CERTIFICAT DE CONFORMITE CEE CERTIFICADO DE CONFORMIDAD CERTIFICATO DI CONFORMITA
Hydraulic Tools
______________________________________________________________________
I, the undersigned: Ich, der Unterzeichnende: Je soussigné: El abajo firmante: lo sottoscritto:
hereby certify that the construction plant or equipment specified hereunder: bestätige hiermit, daß das im folgenden genannten Werk oder Gerät: certifies par ceci que l’ usine ou l’ équipement de construction indiqué cidessous: por el presente certifico que la fabrica o el equipo especificado a continuacion: certifico che l’impianto o l’attrezzatura sotto specificata:
1. Category: Concrete Cutting Chainsaw Kategorie: Catégorie: Categoria: Categoria:
2. Make/Ausführung/Marque/Marca/Marca
3. Type/Typ/Type/Tipo/Tipo: DS06200001, DS06300001
4. Serial number of equipment: Seriennummer des Geräts: Numéro de série de l’équipement: Numero de serie del equipo: Matricola dell´attrezzatura:
5. Year of manufacture/Baujahr/année de fabrication/Año de fabricacion/Anno di fabbricazione 1998
Has been manufactured in conformity with - EEC Type examination as shown. Wurde hergestellt in Übereinstimmung mit - EEC Typ-Prüfung nach. Est fabriqué conformément - au(x) type(s) examiné(s) comme indiqué dans le tableau ci-après. Ha sido fabricado de acuerdo con - tipo examen EEC como dice. E’ stata costruita in conformitá con - le norme CEE come illustrato.
Schultz, Theodore J.
Surname and First names/Familiennn ame und Vornamen/Nom et prénom/Nombr e y apellido/Cognome e nome
Stanley
All
Examen CEE de type
Directive Richtlinie Directives particulières Directriz Direttiva
Machinery Directive
EN ISO
ISO ISO
6. Special Provisions: None Spezielle Bestimmungen: Dispositions particulières: Provisiones especiales: Disposizioni speciali:
Done at/Ort/Fait à/Dado en/Fatto a Stanley Hydraulic Tools, Milwaukie, Oregon USA
Signature/Unterschrift/Signature/Firma/Firma____________________________________________________________________________
Position/Position/Fonction/Puesto/Posizione Engineering Manager
P/N 62310 rev 03 3/05
No. Nr Numéro No n.
98/37/EC 89/392/CEE 292 8662-1 3744 10726
Date Datum Date Fecha Data
1998
1991 1988 1994 1992
Approved body Prüfung durch Organisme agréé Aprobado Collaudato
Self Self Self Self Self Self
Date/Datum/le/Fecha/Data 3/98
Date of expiry Ablaufdatum Date d´expiration Fecha de caducidad Data di scadenza
NA NA NA NA NA NA
4
SAFETY SYMBOLS
Safety symbols and signal words, as shown below, are used to emphasize all operator, maintenance and repair actions which, if not strictly followed, could result in a life-threatening situation, bodily injury or damage to equip­ment.
This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.
This safety alert and signal word indicate an imminently hazardous situa-
DANGER
WARNING
CAUTION
tion which, if not avoided, will result in death or serious injury.
This safety alert and signal word indicate a potentially hazardous situation which, if not avoided, could result in death or serious injury.
This safety alert and signal word indicate a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
This signal word indicates a potentially hazardous situation which, if not avoided, may result in property damage.
This signal word indicates a situation which, if not avoided, will result in
NOTICE
IMPORTANT
Always observe safety symbols. They are included for your safety and for the protection of the tool.
damage to the equipment.
This signal word indicates a situation which, if not avoided, may result in damage to the equipment.
LOCAL SAFETY REGULATIONS
Enter any local safety regulations here. Keep these instructions in an area accessible to the operator and mainte­nance personnel.
5
SAFETY PRECAUTIONS
Tool operators and maintenance personnel must always comply with the safety precautions given in this manual and on the stickers and tags attached to the tool and hose.
These safety precautions are given for your safety. Review them carefully before operating the tool and before performing general maintenance or repairs.
Supervising personnel should develop additional precautions relating to the specifi c work area and local safety regulations. If so, place the added precautions in the space provided on page 5.
The DS06 Diamond Chain Saw will provide safe and dependable service if operated in accordance with the instructions given in this manual. Read and understand this manual and any stickers and tags attached to the tool and hoses before operation. Failure to do so could result in personal injury or equipment damage.
• Establish a training program for all operators to ensure safe operation.
• The operator must be familiar with all prohibited work areas such as excessive slopes and dangerous terrain condi­tions.
• Do not operate the chain saw unless thoroughly trained or under the supervision of an instructor.
• Always wear safety equipment such as goggles, ear, head protection, leg protection, gloves, snug fi tting clothing and safety shoes at all times when operating the chain saw.
• Do not overreach. Maintain proper footing and balnace at all times.
• Do not inspect or clean the chain saw while the hydraulic power source is connected. Accidental engagement of the chain saw can cause serious injury.
• Always connect hoses to the chain saw hose couplers before engergizing the hydraulic power source. Make sure all hose connections are tight.
• Do not operate the chain saw at fl uid temperatures above 140°F/60°C. Operation at higher temperatures can cause higher than normal temperatures at the chain saw which can result in operator discomfort.
• Do not rely exclusively upon the safety devices built into the chain saw. As a chain saw user, several steps must be taken to keep your cutting jobs free from accident or injury:
1. With a basic understanding of kickbacks, you can reduce or eliminate the element of surprise. Sudden surprise contributes to accidents.
2. Keep a good fi rm grip on the chain saw with both hands, the right hand on the rear handle and the left hand on the front handle when operating the chain saw. Use a fi rm grip with thumbs and fi ngers encircling the chain saw handles. A fi rm grip helps reduce kickbacks and maintains control of the chain saw. Do not let go.
3. Make sure the area in which you are cutting is free of obstructions.
4. Cut at rated operating speeds (gpm).
5. Do not overreach or cut above shoulder height.
6. Only use replacement bars and chains specifi ed by Stanley or the equivalent.
• Make sure the chain guard is in place before operating the chain saw.
6
SAFETY PRECAUTIONS
• Remove or control the water slurry to prevent yourself or others from slipping while cutting.
• Provide adequate ventilation in closed areas when operating a gas or diesel hydraulic power source.
• Always be well rested and mentally alert before operating the chain saw.
• Do not allow bystanders near the chain saw when starting or cutting.
• Do not start cutting until you have a clear work area and secure footing.
• Keep all parts of the body away from the chain saw during operation.
• Carry the chain saw with the tool deenergized and the bar and chain to the rear of your body.
• Do not operate a chain saw that is damaged, improperly adjusted, or not completely and securely assembled. Make sure the chain stops moving when the control trigger is released.
• Keep the handle dry, clean and free of hydraulic fl uid.
• Do not use the chain saw near energized transmission lines.
• Turn off the power source or move the hydraulic control valve to neutral before setting the chain saw down.
• Use a guide bar scabbard when transporting the chain saw.
• Know the location of buried or covered electrical services before starting work.
• To avoid personal injury or equipment damage, all chain saw repair, maintenance and service must only be performed by authorized and properly trained personnel.
• Make sure the chain breaker and rivet spinner are securely mounted on fl at, clean work surfaces. Check the mounting screws/bolts often.
• Check all chain breaker and rivet spinner components regularly for wear and general condition.
7
Failure to use hydraulic hose labeled and certified
as non-conductive when using hydraulic tools on
or near electric lines may result in death or
For proper and safe operation read owners manual
and mwke sure that you have been properly
trained in correct procedures required for work
serious injury.
on or around electric lines.
11206
28409
28323
TOOL STICKERS & TAGS
D
30 LPM @ 138 B AR
Failure to use hydraulic hose labeled and certified
as non-conductive when using hydraulic tools on
or near electric lines may result in death or serious injury.
For proper and safe operation read owners manual
and mwke sure that you have been properly
trained in correct procedures required for work
ELECTROCUTION
on or around electric lines.
HAZARD
33445
EHTMA CATEGORY
11207
Lwa
11212
DANGER
12412
11206 Circuit “C” Decal 11207 Circuit “D” Decal
28323 CE Decal
12412 Warning Decal
11212 Sound Level Decal
33445 Name Tag Decal
28409 Composite Decal
The safety tag (p/n
15875) at right is attached to the tool when shipped from the factory. Read and understand the safety instructions listed on this tag before removal. We suggest you retain this tag and attach it to the tool when not in use.
DANGER
1. FAILURE TO USE HYDRAULIC HOSE LABELED AND CERTIFIED AS NON-CONDUCTIVE WHEN USING HYDRAULIC TOOLS
ON OR NEAR ELECTRICAL LINES MAY RESULT IN DEATH OR SERIOUS INJURY.
BEFORE USING HOSE LABELED AND CERTIFIED AS NON-
CONDUCTIVE ON OR NEAR ELECTRIC LINES BE SURE THE HOSE IS MAINTAINED AS NON-CONDUCTIVE. THE HOSE SHOULD BE REGULARLY TESTED FOR ELECTRIC CURRENT LEAKAGE IN ACCORDANCE WITH YOUR SAFETY DEPART­MENT INSTRUCTIONS.
2. A HYDRAULIC LEAK OR BURST MAY CAUSE OIL INJECTION INTO THE BODY OR CAUSE OTHER SEVERE PERSONAL INJURY.
A DO NOT EXCEED SPECIFIED FLOW AND PRESSURE FOR
THIS TOOL. EXCESS FLOW OR PRESSURE MAY CAUSE A LEAK OR BURST.
B DO NOT EXCEED RATED WORKING PRESSURE OF HY-
DRAU LIC HOSE USED WITH THIS TOOL. EXCESS PRESSURE MAY CAUSE A LEAK OR BURST.
C CHECK TOOL HOSE COUPLERS AND CONNECTORS DAILY
FOR LEAKS. DO NOT FEEL FOR LEAKS WITH YOUR
IMPORTANT
READ OPERATION MANUAL AND
SAFETY INSTRUCTIONS FOR THIS
TOOL BEFORE USING IT.
USE ONLY PARTS AND REPAIR
PROCEDURES APPROVED BY
STANLEY AND DESCRIBED IN THE OPERA-
SAFETY TAG P/N 15875
TION MANUAL.
TAG TO BE REMOVED ONLY BY
TOOL OPERATOR.
SEE OTHER SIDE
(shown smaller then actual size)
8
DANGER
D DO NOT LIFT OR CARRY TOOL BY THE HOSES. DO
NOT ABUSE HOSE. DO NOT USE KINKED, TORN OR DAMAGED HOSE.
3. MAKE SURE HYDRAULIC HOSES ARE PROPERLY CONNECTED TO THE TOOL BEFORE PRESSURING SYSTEM. SYSTEM PRESSURE HOSE MUST ALWAYS BE CONNECTED TO TOOL “IN” PORT. SYSTEM RETURN HOSE MUST ALWAYS BE CONNECTED TO TOOL “OUT” PORT. REVERSING CONNEC­TIONS MAY CAUSE REVERSE TOOL OPERATION WHICH CAN RESULT IN SEVERE PERSONAL INJURY.
4. DO NOT CONNECT OPEN-CENTER TOOLS TO CLOSED-CEN­TER HYDRAULIC SYSTEMS. THIS MAY RESULT IN LOSS OF OTHER HYDRAULIC FUNCTIONS POWERED BY THE SAME SYSTEM AND/OR SEVERE PERSONAL INJURY.
5. BYSTANDERS MAY BE INJURED IN YOUR WORK AREA. KEEP BYSTANDERS CLEAR OF YOUR WORK AREA.
6. WEAR HEARING, EYE, FOOT, HAND AND HEAD PROTEC­TION.
7. TO AVOID PERSONAL INJURY OR EQUIPMENT DAMAGE, ALL TOOL REPAIR MAINTENANCE AND SERVICE MUST ONLY BE PERFORMED BY AUTHORIZED AND PROPERLY TRAINED PERSONNEL.
IMPORTANT
READ OPERATION MANUAL AND
SAFETY INSTRUCTIONS FOR THIS
TOOL BEFORE USING IT.
USE ONLY PARTS AND REPAIR
PROCEDURES APPROVED BY
STANLEY AND DESCRIBED IN THE OPERA-
TION MANUAL.
TAG TO BE REMOVED ONLY BY
TOOL OPERATOR.
SEE OTHER SIDE
HYDRAULIC HOSE REQUIREMENTS
HOSE TYPES
Hydraulic hose types authorized for use with Stanley Hydraulic Tools are as follows:
Certifi ed non-conductive
Wire-braided (conductive)
Fabric-braided (not certifi ed or labeled non-conductive)
Hose listed above is the only hose authorized for use near electrical conductors.
Hoses and listed above are conductive and must never be used near electrical conductors.
HOSE SAFETY TAGS
To help ensure your safety, the following DANGER tags are attached to all hose purchased from Stanley Hydrau­lic Tools. DO NOT REMOVE THESE TAGS.
If the information on a tag is illegible because of wear or damage, replace the tag immediately. A new tag may be obtained from your Stanley Distributor.
THE TAG SHOWN BELOW IS ATTACHED TO “CERTIFIED NON-CONDUCTIVE” HOSE
D A N G E R
1 FAILURE TO USE HYDRAULIC HOSE LABELED AND CERTIFIED AS NON-CONDUCTIVE
WHEN USING HYDRAULIC TOOLS ON OR NEAR ELECTRIC LINES MAYRESULT IN DEATH OR SERIOUS INJURY.
FOR PROPER AND SAFE OPERATION MAKE SURE THAT YOU HAVE BEEN PROPERLY
TRAINED IN CORRECT PROCEDURES REQUIRED FOR WORK ON OR AROUND ELECTRIC LINES.
2. BEFORE USING HYDRAULIC HOSE LABELED AND CERTIFIED AS NON-CONDUCTIVE ON OR NEAR ELECTRIC LINES. WIPE THE ENTIRE LENGTH OF THE HOSE AND FITTING WITH A CLEAN DRY ABSORBENT CLOTH TO REMOVE DIRT AND MOSISTURE AND TEST HOSE FOR MAXIMUM ALLOWABLE CURRENT LEAKAGE IN ACCORDANCE WITH SAFETY DEPARTMENT INSTRUCTIONS.
DO NOT REMOVE THIS TAG
SIDE 1 SIDE 2
3
(shown smaller than actual size)
3. DO NOT EXCEED HOSE WORKING PRESSURE OR ABUSE HOSE. IMPROPER USE OR
HANDLING OF HOSE COULD RESULT IN BURST OR OTHER HOSE FAILURE. KEEP HOSE AS FAR AWAY AS POSSIBLE FROM BODY AND DO NOT PERMIT DIRECT CONTACT DURING USE. CONTACT AT THE BURST CAN CAUSE BODILY INJECTION AND SEVERE PERSONAL INJURY.
4. HANDLE AND ROUTE HOSE CAREFULLY TO AVOID KINKING, ABRASION, CUTTING, OR
CONTACT WITH HIGH TEMPERATURE SURFACES. DO NOT USE IF KINKED. DO NOT USE HOSE TO PULL OR LIFT TOOLS, POWER UNITS, ETC.
5. CHECK ENTIRE HOSE FOR CUTS CRACKS LEAKS ABRASIONS, BULGES, OR DAMAGE TO COUPLINGS IF ANY OF THESE CONDITIONS EXIST, REPLACE THE HOSE IMMEDIATELY. NEVER USE TAPE OR ANY DEVICE TO ATTEMPT TO MEND THE HOSE.
6. AFTER EACH USE STORE IN A CLEAN DRY AREA.
D A N G E R
THE TAG SHOWN BELOW IS ATTACHED TO “CONDUCTIVE” HOSE.
D A N G E R
1 DO NOT USE THIS HYDRAULIC HOSE ON OR NEAR ELECTRIC LINES. THIS HOSE IS
NOT LABELED OR CERTIFIED AS NON-CONDUCTIVE. USING THIS HOSE ON OR NEAR ELECTRICAL LINES MAY RESULT IN DEATH OR SERIOUS INJURY.
2. FOR PROPER AND SAFE OPERATION MAKE SURE THAT YOU HAVE BEEN PROPERLY TRAINED IN CORRECT PROCEDURES REQUIRED FOR WORK ON OR AROUND ELECTRIC LINES.
3. DO NOT EXCEED HOSE WORKING PRESSURE OR ABUSE HOSE. IMPROPER USE OR HANDLING OF HOSE COULD RESULT IN BURST OR OTHER HOSE FAILURE. KEEP HOSE AS FAR AWAY AS POSSIBLE FROM BODY AND DO NOT PERMIT DIRECT CONTACT DURING USE. CONTACT AT THE BURST CAN CAUSE BODILY INJECTION AND SEVERE PERSONAL INJURY.
4. HANDLE AND ROUTE HOSE CAREFULLY TO AVOID KINKING, CUTTING, OR CONTACT WITH HIGH TEMPERATURE SURFACES. DO NOT USE IF KINKED. DO NOT USE HOSE TO PULL OR LIFT TOOLS, POWER UNITS, ETC.
DO NOT REMOVE THIS TAG
SIDE 1 SIDE 2
(shown smaller than actual size)
5. CHECK ENTIRE HOSE FOR CUTS CRACKS LEAKS ABRASIONS, BULGES, OR DAMAGE TO COUPLINGS IF ANY OF THESE CONDITIONS EXIST, REPLACE THE HOSE IMMEDIATELY. NEVER USE TAPE OR ANY DEVICE TO ATTEMPT TO MEND THE HOSE.
6. AFTER EACH USE STORE IN A CLEAN DRY AREA.
D A N G E R
SEE OTHER SIDE
DO NOT REMOVE THIS TAG
DO NOT REMOVE THIS TAG
HOSE PRESSURE RATING
The rated working pressure of the hydraulic hose must be equal to or higher than the relief valve setting on the hydraulic system.
9
HTMA REQUIREMENTS
TOOL CATEGORY
HYDRAULIC SYSTEM REQUIREMENTS TYPE 1 TYPEII TYPEIII TYPE RR
FLOW RATE
TOOL OPERATING PRESSURE (at the power supply outlet)
SYSTEM RELIEF VALVE SETTING (at the power supply outlet)
MAXIMUM BACK PRESSURE (at tool end of the return hose)
Measured at a max. fl uid viscosity of: (at min. operating temperature)
TEMPERATURE Suffi cient heat rejection capacity to limit max. fl uid temperature to: (at max. expected ambient temperature)
Min. cooling capacity at a temperature difference of between ambient and fl uid temps
NOTE:
Do not operate the tool at oil temperatures above 140° F (60° C). Operation at higher temperatures can cause operator discomfort at the tool.
4-6 gpm 7-9 gpm 11-13 gpm 9-10.5 gpm (15-23 lpm) (26-34 lpm) (42-49 lpm) (34-40 lpm) 2000 psi 2000 psi 2000 psi 2000 psi (138 bar) (138 bar) (138 bar) (138 bar)
2100-2250 psi 2100-2250 psi 2100-2250 psi 2200-2300 psi (145-155 bar) (145-155 bar) (145-155 bar) (152-159 bar)
250 psi 250 psi 250 psi 250 psi (17 bar) (17 bar) (17 bar) (17 bar)
400 ssu* 400 ssu* 400 ssu* 400 ssu* (82 centistokes) (82 centistokes) (82 centistokes) (82 centistokes)
140° F 140° F 140° F 140° F (60° C) (60° C) (60° C) (60° C)
3 hp 5 hp 7 hp 6 hp (2.24 kW) (3.73 kW) (4.47 kW) (5.22 kW) 40° F 40° F 40° F 40° F (22° C) (22° C) (22° C) (22° C)
FILTER Min. full-fl ow fi ltration Sized for fl ow of at least: (For cold temp. startup and max. dirt-holding capacity)
HYDRAULIC FLUID Petroleum based (premium grade, anti-wear, non-conductive) VISCOSITY (at min. and max. operating temps)
NOTE: When choosing hydraulic fl uid, the expected oil temperature extremes that will be experienced in service determine the most suitable temperature viscosity characteristics. Hydraulic fl uids with a viscosity index over 140 will meet the require­ments over a wide range of operating temperatures.
*SSU = Saybolt Seconds Universal
25 microns 25 microns 25 microns 25 microns 30 gpm 30 gpm 30 gpm 30 gpm (114 lpm) (114 lpm) (114 lpm) (114 lpm)
100-400 ssu* 100-400 ssu* 100-400 ssu* 100-400 ssu* (20-82 centistokes)
NOTE:
These are general hydraulic system requirements. See tool Specifi cation page for tool specifi c requirements.
10
OPERATION
PREOPERTION PROCEDURES
CHECK THE POWER SOURCE
1. Using a calibrated fl ow meter and pressure gauge, make sure the hydraulic power source develops a fl ow of 7-9 gpm/26-34 lpm for the 8 gpm model and 4-6 gpm/15-23 lpm for the 5 gpm model at 2000 psi/140 bar.
2. Make certain that the power source is equipped with a relief valve set to open at 2100-2250 psi/145-155 bar.
3. Check that the hydraulic circuit matches the tool for open-center (OC) or closed-center (CC) operation. The DS06 is designed for open-center operation only.
CHECK TOOL
1. Make sure all tool accessories are correctly installed. Failure to install tool accessories properly can result in damage to the tool or personal injury.
2. There should be no signs of leaks.
CONNECT HYDRAULIC HOSES
1. Wipe all hose couplers with a clean lint-free cloth before making connections. If necessary, use a light-weight pen­etrating oil in a spray can to clean the hose couplers before each connection.
2. Connect the hoses from the hydraulic power source to the chain saw fi ttings or quick disconnects. It is a good practice to connect return hose fi rst and disconnect them last to minimize or avoid trapped pressure within the chain saw.
3. Observe the arrow on the couplers to ensure that the fl ow is in the proper direction. The female coupler on the chain saw is the inlet (pressure) coupler.
NOTE: If uncoupled hoses are left in the sun, pressure in­crease inside the hoses might make them diffi cult to connect. Whenever possible, connect the free ends of the hoses together.
CONNECTING TO A WATER SUPPLY
3. The tool should be clean, with all fi ttings and fasteners tight.
4. Observe the arrow on the couplers to ensure that the hydraulic oil fl ow is in the proper direction. The female cou­pler is the inlet (pressure) coupler.
5. Check that the trigger operates smoothly and is free to travel between the "ON" and "OFF" positions.
6. Check that the chain is properly installed. The chain is designed to only operate in one direction. Make sure the chain is installed so the bumper guard precedes each dia­mond segment. See fi gure 1.
Segment
CORRECT
INCORRECT
Bumper Guard
1. Using a standard garden hose, connect the DS06 to a city or auxiliary water supply. Make sure the fl ow is at least 4 gpm/15 lpm at 50 psi/3.5 bar.
IMPORTANT
Chain and bar damage will occur if the tool operates without the proper water supply and water pressure.
2. Make sure the water is running before starting the tool.
3. If a water pump is being used, refer to the manufacturers instructions for use of the pump. Make sure the pump pro­duces a minimum watger fl ow of 4 gpm/15 lpm at 50 psi/3.5 bar and the water pressure does not exceed 160 psi/11 bar.
CHECK CHAIN AND BAR ADJUSTMENT
Note: Check the chain tension often during operation, expe­cially during the fi rst 1/2 hour when using a new chain. Adjust the chain accordingly when it becomes loose. Follow the procedures contained in the Mainenance and Adjustements section of this manual.
Figure 1. Chain Direction
1. Make sure the chain does not exceed a clearance of 5/16 in./8 mm from the bar (see fi gure 2). Exceeding the maximum clearance increases the chance of the chain be­ing dislodged from the bar groove.
11
OPERATION
2. Make sure the bar attaching nuts are fully tightened and the chain guard is in place.
Bottom of Bar
Max 5/16”
Figure 2. Maximum Chain Clearance
CHECK CHAIN SEGMENT WEAR
1. Using adjustable calipers, measure several chain seg­ments as illustrated in Figure 3.
Bottom of Bar
Min. 1/16”
Figure 3. Chain Segment Wear
2. If the average measurement is less than 1/16-inch/1.6 mm, then the chain must be replaced. Refer to your Service Manual for chain replacement procedures.
OPERATING PROCEDURES
1. Observe all safety precautions.
2. Make your cuts in the order shown in Figure 4, starting with cut 1 (base horizontal cut) and proceeding with the remaining three cuts.
Figure 4. Planning Cuts
3. Outline the concrete area with a permanent marker for a visual guide.
4. Know what kind of material and how much reinforcing you are going to cut.
NOTICE
The following are general cutting procedures and techniques. Differences in the terrain and the type of material being cut will make this information more or less valid for particular areas. For advice on specifi c cutting problems or techniques, consult your local Stanley Representative. He/she can often provide information that will make your work safter and more productive.
2. Turn on the water supply. Water at the tool will be di­rected to the bar and chain when the trigger on the tool is squeezed “ON”.
3. Operate the tool for two minutes away from the intended cut and then check the chain tension. New chain will nor­mallhy stretch during its fi rst usage. It is very important to keep the chain tension adjusted so that it does not exceed 5/16 in./8 mm clearance from the bottom of the bar. See Check Chain & Bar Adjustment in this manual.
4. If the chain requires adjustment, see Maintenance & Adjustments in this manual.
PLAN THE CUT
1. Plan your cuts to prevent injury to yourself and to keep from pinching the saw bar and chain as a result of falling pieces of concrete, brick, etc.
12
OPERATION
TYPES OF CUTS
The DS06 can be operated using the types of cuts shown in Figure 5. When making cuts:
DOWN CUT
PLUNGE CUT
COLD WEATHER OPERATION
If the saw is to be used during cold weather, preheat the hydraulic fl uid at low power source speed. When using the normally recommended fl uids, fl uid should be at or above 50°F/10°C (400 ssu/82 centistokes) before use.
Damage to the hydraulic system or chain saw can result from use with fl uid that is too viscous or thick.
USING THE WALL WALKER™
The Wall Walker™ lessens operator fatigue and effort dur­ing cutting by automatic insertion of the wedge into the cut, thus allowing the operator to apply leverage to the saw.
1. Position the Wall Walker™ in the "autofeed" position by pinning the lever arm at the lowest hole as shown in the illustration.
Start cutting with the DS06 until the cut is large enough to allow the tip of the wedge to insert into the cut. With the tip of the wedge in the cut, the operator can easily apply lever­age to the saw which will aid the cutting process and lessen operator fatigue and effort.
UP CUT
Figure 5. Types of Cuts (chain guard removed for clarity)
1. Do not use a cutting force in excess of 45 lbs/20 kg. Excessive force causes the chain to slow down or stall and causes premature wear of the saw bar and chain.
2. Always maintain a high chain speed. High chain speeds produce the best results.
3. Always check that plenty of water is being expelled from the bar and chain. When the tool is running, water is directed to the interior of the bar and then out of several holes located along the top and bottom channels on the bar. If these holes become plugged, cutting debris will not be adequately washed away and will result in premature wear of the bar and chain.
3. Avoid aggressive/heavy plunge forces. Aggressive plunge force creates fragmenting of the concrete when the saw bar and chain exits and causes premature bar and chain wear.
After the saw cuts approximately 1 to 2.5 in. / 25 to 65 mm, withdraw the saw only enough to allow the lever arm and wedge to reposition. After repositioning, continue cutting.
2. The Wall Walker™ can be positioned to the "parked" position by pinning the lever arm at the upper most hole. In this position, the Wall Walker™ is used as a bucking cleat.
Wall Walker™ Lever Arm (shown in “autofeed position)
13
Figure 6. Wall Walker™
MAINTENANCE & ADJUSTMENTS
GENERAL MAINTENANCE TIPS
Several simple maintenance tasks which, if performed, can keep a chain saw operating at a high level of effi ciency. Routine maintenance also keeps replacement costs down on the parts of the chain saw, which occasionally wear out.
If any chain saw disassembly is required, refer to the Ser­vice Manual.
SAW BAR RAIL
A quick check can be made to determine if saw bar rail or chain segment wear exists. Figure 7 shows a worn saw bar rail.
CHAIN TENSION ADJUSTMENT
Correct chain tension is very important throughout the life of the chain. Check the chain tension often during use (when the chain saw is stopped and the saw bar and chain have cooled off). The chain should move easily around the saw bar when pulled by hand. To adjust the chain tension:
1. Turn off the water and power supplies.
2. Loosen the two saw bar attachment nuts (Figure 8).
Bar Attachment Nuts (2)
Bar Adjusting Screw
Figure 7. Rail Wear
If the saw bar rails are worn, use a fl at fi le and dress each one until it is fl at and square with the side of the saw bar (Figure 7).
Also make sure the saw bar is perfectly straight. If bows or bends are present in the saw bar, it must be replaced before dressing any rail.
ROTATING THE SAW BAR
Maximum saw bar life can be achieved by occasionally turning the bar over so the top and bottom bar surfaces wear evenly. Refer to the saw bar disassembly procedures in the Service Manual for further details.
Figure 8. Attachment Screw Locations
3. Using the saw bar adjustment screw (Item 68, Parts Il­lustration), tighten the chain until you are still able to rotate it one full revolution by hand (Figure 9).
Figure 9. Pulling the Chain
4. Pull the chain around the saw bar to make sure it proper­ly fi ts the sprocket and saw bar. The chain should be easily pulled.
5. Fully tighten the two saw bar attachment nuts (Figure 8).
Note: Adjust the chain tension each time the drive link tang hangs fully exposed from the groove at the bottom of the saw bar (Figure 10).
14
MAINTENANCE & ADJUSTMENTS
Max 5/16”
Figure 10. Exposed Drive Link Tang
Bottom of Bar
SERVICING THE CHAIN
The following procedures explain how to break a chain us­ing Stanley’s bench mounted chain breaker (part number
20858) to remove a worn or damaged segment.
1. Mount the chain breaker fl ush with the side or front of a fl at, clean work surface (Figure 11).
Figure 13. Inserting the Chain
3. Position the rivet head you want removed directly under the chainbreaker punch and then pull the handle down far enough to remove the rivet (Figure 14). Do not use exces­sive force.
Figure 11. Chain Breaker Mounting
Note: The Stanley chain breaker is only designed to remove rivet heads from the connecting links, not from a chain segment. The rivet heads shown in the shaded areas of Figure 12 are the only ones that can be removed.
Figure 12. Removable Rivet Heads
2. Place the chain (the portion that you want broken) into the slot of the anvil pushing it forward until the bottom con­necting link is fl ush with the far side of the slot (Figure 13).
Figure 14. Removing a Rivet
15
MAINTENANCE & ADJUSTMENTS
REPLACING THE CHAIN BREAKER
PUNCH
If the chain breaker punch (part number 22801) becomes worn or damaged, use the following prcedures for replace­ment.
1. Remove the punch by loosening the set screw (Figure
15).
Figure 17. Rivet Spinner Mounting
2. Lay the chain across the plastic chain supports and then rotate the supports so the rivet head is centered between the take-up handle pocket and the spinner anvil (Figure
18).
Figure 15. Removing the Punch
2. Insert a new punch into the holder and push it up until it is fully seated (Figure 16). Secure the punch to the chain breaker holder by fully tightening the set screw.
Figure 16. Replacing the Punch
SPINNING RIVETS
The following procedures explain how to spin rivets using Stanley’s bench-mounted rivet spinner (part number 20857) to assembly the chain.
Figure 18. Positioning the Chain
3. Turn the take-up handle until the chain is tight against the spinner anvil (Figure 19).
Rivet Spinner Crank
Figure 19. Securing the Chain
Take-up
Handle
1. Mount the rivet spinner fl ush with the side or front of a fl at, clean work surface (Figure 17).
16
MAINTENANCE & ADJUSTMENTS
4. turn the rivet spinner crank a few times to center the rivet hub in the spinner anvil (Figure 20).
Take-up
Rivet Spinner Crank
Figure 20. Centering the Rivet Hub
Handle
Figure 23. Spinner Oiling Chambers
5. Apply a few drops of oil to the rivet hub (Figure 21).
Figure 21. Applying the Oil
6. Turn the spinner crank while slowly running the take-up handle inward (approximately one full revolution) until the rivet head is formed (Figure 22).
Note: The take-up handle provides pressure while the spin­ner anvil forms the rivet head.
NOTE: the rivet spinner is equipped with oiling chambers and should be maintained periodically with a light-weight oil (Figure 23).
NOSE SPROCKET DISASSEMBLY
AND ASSEMBLY
1. Using the bench mounted chain breaker (see acces­sories), line up the 1/4 inch hole in the side of the chain breaker anvil with the chain breaker punch. Punch out the six nose sprocket rivets. See Figure 24.
Figure 22. Forming a Rivet Head
Figure 24. Punching Out Nose Sprocket
Rivets
2. Insert a straight blade screw driver to spread the bar nose rails just enough to remove the old nose sprocket. Use a rag or paper towel to clean the nose sprocket area. See Figure 25.
17
MAINTENANCE & ADJUSTMENTS
Figure 25. Removing Old Nose Sprocket
3. Remove the new nose sprocket package's clips and fold back the top portion of the insertion card being careful not to remove or disturb the components. See Figure 26.
5. Insert 6 nose rivets into the holes and then hold them with your thumb. Remove the screwdriver and slide out the insertion card.
Note: On used bars the nose rails might tend to spread apart. Use a small clamp if necessary to hold the rails together.
6. With the bar and rivets solidly supported on a strong fl at steel surface, carefully peen the rivet heads down with the fl at end of a hammer. Be careful to only hit the rivet head. Do not hit the bar body; this will pinch the nose sprocket. Rivet heads must completely fi ll the countersinks in the bar body and be snug and secure while still allowing the sprocket to freely turn. See Figure 28.
Figure 26. Preparing New Nose Sprocket
4. With a fl at blade screw driver in the bar nose rails, slide the nose sprocket assembly into position aligning the 6 holes in the bar nose with the 6 holes in the nose sprocket assembly without removing the components from the card. See Figure 27.
Figure 27. Installing a New Nose Sprocket
Figure 28. Replacing Rivets
7. Using a fl at fi le, shave the rivet heads to a uniform height that is as close to the bar body as possible. See Figure 29.
Figure 29. Filing Rivets
18
TOOL EQUIPMENT & CARE
NOTICE
In addition to the Safety Precautions in this manual, observe the following for equipment protection and care.
• Make sure all couplers are wiped clean before connection.
• The hydraulic circuit control valve must be in the “OFF” position when coupling or uncoupling hydraulic tools. Failure to do so may result in damage to the quick couplers and cause overheating of the hydraulic system.
• Always store the tool in a clean dry space, safe from damage or pilferage.
• Make sure the circuit PRESSURE hose (with male quick disconnect) is connected to the “IN” port. The circuit RETURN hose (with female quick disconnect) is connected to the opposite port. Do not reverse circuit fl ow. This can cause damage to internal seals.
• Always replace hoses, couplings and other parts with replacement parts recommended by Stanley Hydraulic Tools. Supply hoses must have a minimum working pressure rating of 2500 psi/172 bar.
• Do not exceed the rated fl ow (see Specifi cations) page in this manual for correct fl ow rate and model number. Rapid failure of the internal seals may result.
• Always keep critical tool markings, such as warning stickers and tags legible.
• Tool repair should be performed by experienced personnel only.
• Make certain that the recommended relief valves are installed in the pressure side of the system.
• Do not use the tool for applications for which it was not intended.
19
TROUBLESHOOTING
If symptoms of poor performance develop, the following chart can be used as a guide to correct the problem.
When diagnosing faults in operation of the tool, always check that the hydraulic power source is supplying the
SYMPTOM CAUSE REMEDY
Tool does not run. Hydraulic power source not function-
ing correctly.
Coupler or hoses blocked. Remove obstruction.
Mechanical failure. Have tool serviced by authorized
Tool runs backwards. Pressure and return lines incorrectly
connected.
Diamond saw cuts slow. Insuffi cient fl uid fl ow or too high back
pressure or relief valve set too low.
Back pressure too high. Should not exceed 250 psi/17 bar at
Loss of diamond segment side clear­ance.
Chain segment dulled because of con­tinuous use in hard material or rebar.
Wrong chain for application. Scale down to a lower numbered
Wired edged bar rails. Dress rails square.
Hydraulic fl uid mixed in water supply. Have tool serviced.
Excessive vibration and cuts rough. Segment(s) broken or missing. Repair broken segment or replace
Chain installed backwards. Correct chain direction.
Loose chain tension. Retension the chain.
Excessive feed force. Reduce feed force.
Wil not cut straight. Accumulated saw bar wear and un-
even chain segment profi le wear.
Loss of power. Drive sprocket slipping on Tran-
torque® adapter.
Trigger hard to press. Pressure & return hose reversed. Connect for proper fl ow direction. Mo-
Back-pressure too high. Should not exceed 250 psi/17 bar @
correct hydraulic fl ow and pressure to the tool as listed in the table. Use a fl owmeter known to be accurate. Check the fl ow with the hydraulic oil temperature at least 80°F/27°C.
Check power source for proper fl ow and pressure (7-9 gpm26-34 lpm at 2000 psi/140 bar.
dealer.
Correct hose connections. Motor shaft rotates counterclockwise as viewed from the end of the motor shaft.
Check hydraulic supply. If hydraulic supply is correct, have unit serviced by authorized dealer.
9 gpm/34 lpm measured at the end of the tools operating hoses.
Replace chain.
Redress segmented by cutting in abrasive material (i.e. concrete, build­ing block, etc.). Note: This indicates that the wrong chain is being used.
chain.
chain.
Turn the saw bar over and dress rails square. Replace the saw bar and chain.
Adjust and tighten Trantorque® adapter to 17 ft lb/23 Nm.
tor shaft must rotate clockwise.
9gpm/34 lpm measured at the end of the tool’s operating hoses.
20
TROUBLESHOOTING
SYMPTOM CAUSE REMEDY
Leakage around drive sprocket. Motor shaft seal failure. Have unit serviced.
No water discharge at bar. Blocked port(s) in bar. Turn off hydraulic supply. Remove bar
and chain and clean bar thoroughly. Blow ports with compressed air.
Blocked inlet or outlet. Turn off hydraulic supply. Remove bar
and chain. Make sure water supply is on. Press trigger to see if water exits near bar adjustment nut area (a small port). If no water exits, have unit serviced.
21
SPECIFICATIONS
Cutting Depths ............................................................................................................................................13 inches / 33 cm
Bar Lengths ....................................................................................................................................................13 inch / 33 cm
Chain Type ............................................................................................................ 3/8 inch pitch with 21 diamond segments
Maximum Back Pressure ................................................................................................................................ 250 psi/17 bar
Input Flow Range
5 gpm model ..........................................................................................................................4-6 gpm / 15-23 lpm
8 gpm model ............................................................................................................................7-9 gpm/26-34 lpm
Input Pressure ........................................................................................................................................... 2000 psi / 140 bar
Weight (without bar) ............................................................................................................................................ 14 lbs / 6 kg
Length (without bar) ................................................................................................................................ 14.3 inches / 36 cm
Width ............................................................................................................................................................ 9 inches / 23 cm
Lubrication / Cooling .............................................................................................................. Internal Water Channels in Bar
Porting ............................................................................................................................................................ -8 SAE O-Ring
Connection ...................................................................................................................................EHTMA/HTMA Flush Face
Hose Whips ...................................................................................................................................................................... Yes
Chain Speed
5 gpm model ........................................................................................................................... 4600 fpm/23.4 m/s
8 gpm model ........................................................................................................................... 5000 fpm/25.4 m/s
SOUND POWER AND VIBRATION DECLARATION
Measured A-weighted sound power level, Lwa (ref. 1pW) in decibels 106.2 dBA Uncertainty, Kwa, in decibels 3 dBA
Measured A-weighted sound pressure level, Lpa (ref. 20 µPa) at operator’s position, in decibels 98.2 dBA
Uncertainty, Kpa, in decibels 3 dBA
Values determined according to noise test code given in ISO 15744, using the basic standard ISO3744 NOTE- The sum of a measured noise emision value and its associated uncertainty represents an upper boundry of the range of values which is likely to occur in measurements.
Declared vibration emission value in accordance with EN 12096 Measured vibration emmission value: a 6.0 m/sec² Uncertainty: K 2.0 m/sec² Values determined according to ISO 8662-1, ISO 5349-1,2
ACCESSORIES
Chain Repair Spinner ................................................................................................................................................... 20857
Diamond Chain Repair Breaker ................................................................................................................................... 20858
Diamond Chain Service Kit ...........................................................................................................(sub p/n 20857 or 20858)
Diamond Chain Butterfl y Repair Kit .............................................................................................................................. 20859
Water Pump Kit (115/230 Volt / 60 Hz) ......................................................................................................................... 26020
Water Pump Kit (220/380/440 Volt /50 Hz) ................................................................................................................... 26237
HP1 Power Unit Water Pump Kit .................................................................................................................................. 29361
13 inch Bar, Sprocket Nose .......................................................................................................................................... 35037
Ultra-25, Diamond Chain for 13 inch Bar ..................................................................................................................... 56799
Pinnacle-25, Diamond Chain for 13 inch Bar ............................................................................................................... 56800
Water Pump Attachment for GT18 & HP1, with Couplers ..........................................................................................HWP10
Water Flow Meter, 0-7 gpm .......................................................................................................................................... 60859
22
SERVICE INSTRUCTIONS
PRIOR TO DISASSEMBLY
Clean exterior of the tool.
Obtain a seal kit so that all seals exposed during disas­sembly can be replaced.
ON-OFF VALVE SERVICING
a reduced diameter indicate fl uid contamination. If abnormal wear is present (more than normal polishing), replace both the spool and the handle.
2. Apply grease and install a new o-ring (15) onto the ON/ OFF valve (14).
3. Apply grease and install new o-rings (34 & 35) into the spool bore of the handle.
TRIGGER (28) AND SAFETY CATCH (30) REMOVAL & INSTALLATION
1. Drive the roll pins (20) out of the handle assembly using a 3/16 in./4 mm diameter punch. Press the safety latch and remove the trigger (28).
NOTE: The safety catch can be removed at this time by driving out the 3/16 inch roll pin (21), but this is not neces­sary for servicing the on-off valve.
2. To install the trigger and safety catch reverse the above procedures.
VALVE SPOOL (14) REMOVAL & INSTALLATION
1. Remove the plug button (19) from the top of the handle by prying under the edge and then pulling it from the handle.
2. Drive the roll pins (20) out of the handle assembly using a 3/16 in./4 mm diameter punch. Press the safety latch and remove the trigger (28).
3. Drive the roll pin (20) (holding the valve spool (14) in place) out of the handle using a 3/16 in./4 mm diameter punch.
4. Unscrew the seal cap (44) and remove it, the spring (42), and the steel ball (41).
4. Apply grease and install new o-rings (37 & 39) onto the water valve sleeve (38).
5. If the spring retainers (16) and spring (17) were removed from the ON/OFF valve, reinstall them. Lubricate the ON/ OFF valve with hydraulic fl uid and install it into the valve handle. Secure it in place with the roll pin (20).
6. Install the water valve sleeve into the valve handle.
7. Install the push pin (40), steel ball (41), spring (42), and seal cap (44). Make sure a new o-ring (43) is installed onto the seal cap.
8. Install the safety catch (30) making sure the spring (29) is positioned properly. Make sure the pin (33) is in place. Secure the safety catch with the roll pin (21).
9. Install the trigger (28) and secure with the roll pin (20).
10. Replace the plug button (19) and test the action of the safety catch and trigger.
FLOW CONTROL
Note: Diamond saws with a serial number of 357 and above, no longer require a fl ow control.
The fl ow control (32) is factory preset and is not fi eld ser­viceable. Use the following as guides to check for proper regulated fl ow.
5. Lift out the valve spool assy (14 thru 18).
6. Using a 1/2 in./12.7 mm diameter wood dowel, place the dowel into the valve spool bore from the plug button (19) end of the handle. Push the dowel against the water valve sleeve (38) to push the water sleeve out.
REASSEMBLY
1. Inspect the spool bore of the handle and the outer surfaces of the spool for damage. Some light surface
scratches will be noticeable. Grooves, roughness or
For 5 gpm model: If the regulated fl ow is over 6.6 gpm or under 5.4 gpm at 8 gpm input, the fl ow control valve should be replaced.
For 8 gpm model: If the regulated fl ow is over 10 gpm or under 8 gpm at 12 gpm input, the fl ow control valve should be replaced.
23
SERVICE INSTRUCTIONS
MOTOR SERVICING
1. Remove the 2 nuts (51) and then lift off the chain guard (50).
2. Lift off the bar (61) and chain (73). If it is necessary to take tension off the bar and chain, turn the screw (68) counter clockwise.
For Diamond Saws with Serial Number 357 and above, follow the steps a thru c, then proceed to Step 7.
a. Remove the e-clip (60) and slide off items 48, 49 and 58.
b. Remove the retaining ring (100) and then spacer (47).
c. Remove the retaining ring (98) and then items 93 thru
96.
For Diamond Saws with Serial Number 356 and below, follow the steps below.
3. Slide the sprocket wrench (84) over the sprocket (48). While gripping the sprocket wrench and using an open end wrench, turn the hex head on the Trantorque™ adapter cap (49) counter clockwise until the Trantorque™ adapter can be removed from the motor shaft (53).
4. Remove the spacer (47), support washer (100), and o-ring (97).
11. To remove the bearing from the shaft, press on the out­side end (sprocket end) of the motor shaft while supporting the outer race of the bearing. Discard the old bearing.
12. Remove the retaining ring (91) at the bottom of the bearing bore. Remove the seal backup washer (57). Re­move the quad ring (90) and o-ring (56) using the appropri­ate o-ring service tools. Discard the quad ring and o-ring
13. The bushings (6) can be removed using p/n 11930 col­let from p/n 05064 bearing puller kit.
MOTOR INSPECTION AND
CLEANING
Inspect and clean all parts as follows:
CLEANING
Clean all parts with a degreasing solvent. Blow dry with compressed air and wipe clean. Use only lint-free cloths.
GEAR HOUSING
The chamber bores and bottoms around the shaft bushings should be polished and not rough or grooved. If the bush­ing bores are yellow-bronze, replace them and investigate the cause of wear.
5. Remove the retaining ring (98).
6. Remove the capscrews (1).
7. Using a fl at-blade screwdriver or similar tool, gently pry the gear housing (4) away from the valve handle (22). Lift the gear housing straight up. Do Not tilt the housing or pry on the fl at surface inside of the surrounding groove. For prying, only use the groove provided at the split between the parts to prevent scratches on the inner mating surfaces.
8. Remove the two gears (9 & 13), needle roller (54), and the idler shaft (8).
9. Remove the large face seal o-ring (7) while being care­ful not to damage the o-ring groove or surrounding surface.
10. While protecting the motor surface of the valve handle from damage, tap lightly on the small diameter end (gear side) of the motor shaft to remove it and the seal washer (94), seal ring (96), v-ring seal (95), o-ring (93), and bear­ing (92) from the front of the valve handle. Remove the seal keeper, seal spacer, seal, and o-ring from the motor shaft.
The fl at surfaces around the chamber and bolt holes should be fl at and free of nicks or burrs that could cause misalign­ment or leaks.
BUSHINGS
The inside of the bushings should be gray with some bronze showing through. If signifi cant yellow-bronze shows, replace the bushings. Inspect motor shaft for cor­responding wear and replace as required.
GEARS
The drive and idler gears should have straight tips without nicks, square tooth ends and a smooth even polish on the teeth and end faces. Check for cracks between the drive gear keyway and gear tooth root. Replace the gear if cracks are present.
VALVE HANDLE MOTOR SURFACE
The surface near the gears should show two interconnect­ing polished circles without a step. The bottom of the o-ring
24
SERVICE INSTRUCTIONS
groove should be smooth as should the rest of the fl at surface.
The bore for the shaft seal should be smooth or oil leakage may occur.
GEAR HOUSING
Shake the gear housing and the two seal check balls (not shown) should rattle. If the seal balls do not rattle then they are probably plugged with contaminants and the gear housing will require replacement.
SHAFTS
The shaft diameter at the bearing and seal locations must be smooth. Grooves, roughness or a reduced diameter indicate fl uid contamination or damaged bushings. Grit particles may have been imbedded in the bushings grind­ing into the hardened shaft. If abnormal shaft wear as above occurs (more than normal polishing), replace both the shaft and associated bushings.
Also check the hydraulic system for excess contamination in the fl uid and for fi lter condition. Operating conditions may require changing from a 25-micron fi lter to an over­sized 10-micron fi lter.

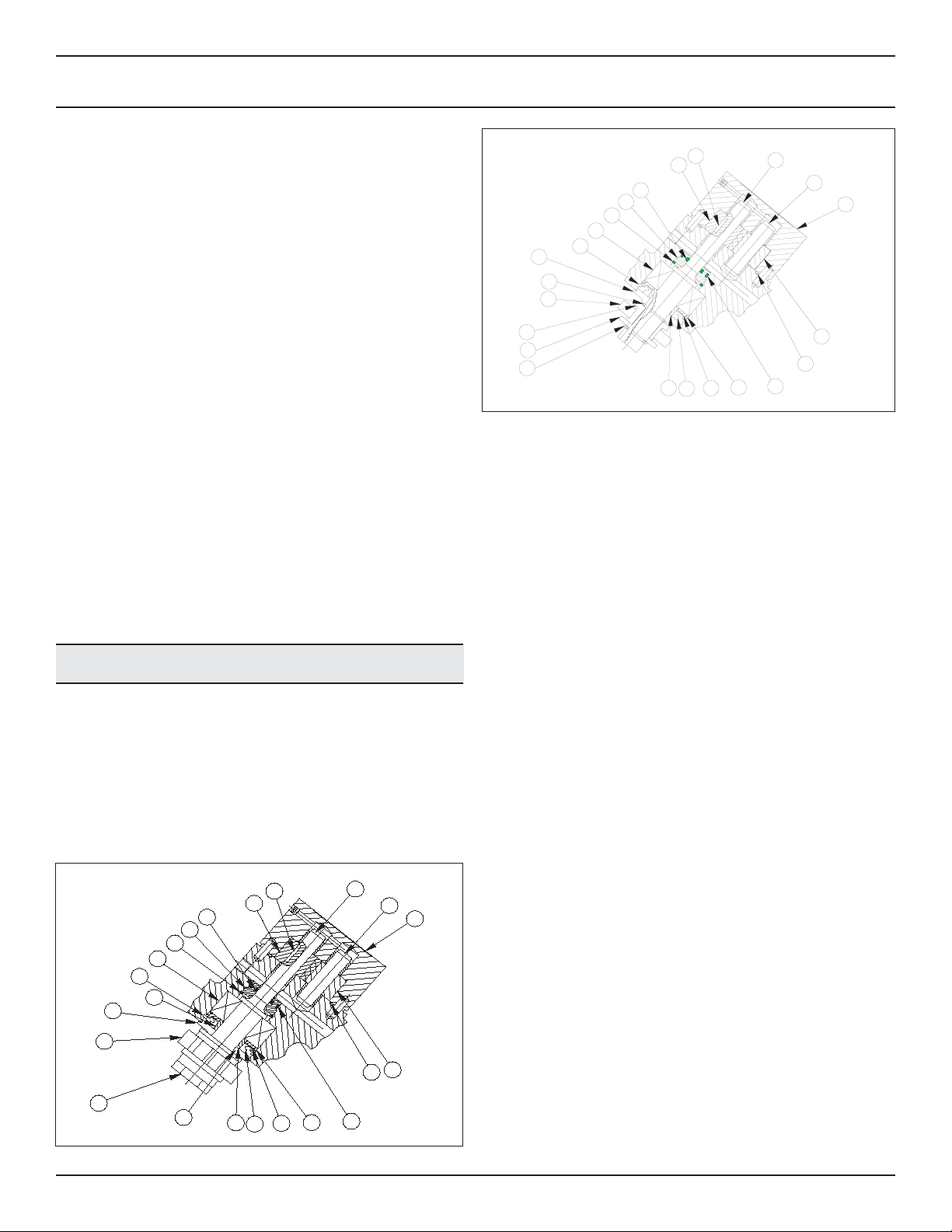

MOTOR REASSEMBLY
Serial Number 357 and Above.
54
13
90
57
91
92
98
47
100
48
58
49
60
96
94
95
53
8
4
9
7
56
93
2. Grease and carefully install a new quad ring (90) into the seal liner (57). Grease and install a new o-ring (56) onto the seal liner. Install the seal liner into the valve handle assy (22). Replace the retaining ring (91).
3. To replace the bearing (92) onto the motor shaft (53), support the bearing inner race and press the motor shaft through the bearing inner race.
4. Place the valve handle assy on a smooth clean arbor press surface (protected from damage) with the large bear­ing bore facing up. Position the valve handle so a clearance hole exists for the insertion of the motor shaft.
Refer to the illustration below for correct placement of parts.
1. If the bushings (6) were removed from the valve handle (22) and the gear housing (4), install new bushings using a p/n 11918 bearing pusher. (NOTE: The bushing split line must face the center of the gear housing).
Serial Number 356 and Below.
54
90
57
91
92
98
96
47
48
49
100
13
97
94
95
53
8
4
9
7
56
93
5. Apply grease to the motor shaft, keyway and bush­ing and then insert the motor shaft through the shaft seal. Using a socket with a diameter equal to the bearing O.D., press the bearing and motor shaft into place. Press only on the outer race.
6. Install the needle roller (54) in the keyway of the motor shaft. Use grease to keep the needle roller in place. Slide the drive gear (13) over the needle roller and shaft. Install the idler shaft (8) and gear (9).
7. Apply grease to the face seal o-ring groove; then install the o-ring (7).
8. Note the screw hole pattern on the rear gear housing and the valve handle. They will only assemble one way. With all parts aligned, carefully slide the gear housing as­sembly over the gears until it contacts the valve handle. Do
not force parts together.
9. Turn the motor shaft manually to check for free rotation. Install the eight capscrews (1) and then recheck rotation.
25
SERVICE INSTRUCTIONS
For Diamond Saws with Serial Number 357 and above follow steps a thru e.
For Diamond Saws with Serial Number 356 and below, follow steps 10 thru 13.
a. Install the o-ring (43). Push in until it contacts the bearing face.
b. Install seal washer (94) and the retainer ring (98).
c. Install v-ring (95) onto seal ring (96) then with both in hand, apply a small amount of 242 Loctite the seal ring (96). Make sure it is applied around the entire bore of the seal ring, then slide both parts onto the motor shaft.
d. Install the seal spacer (47) and then the retainer ring (100).
e. Install items 58, 48, 49 and e-clip (60).
10. Apply grease and install a new v-ring seal (95) into the seal washer (94). Apply grease and install a new o-ring onto the seal keeper. Insert the seal ring (96) into the seal washer and then install the seal spacer and seal keeper onto the motor shaft as an assembly. Press the assembly against the bearing and then install the retaining ring (98).
TM
to the bore of
4. Place the bar (with chain) over the studs making sure the chain is looped around the sprocket and the bar adjust­ment nut is seated in the hole on the bar. While holding the bar and chain in place, turn the adjustment screw (68) clockwise to take the slack out of the chain. Install the chain guard (50) and the 2 nuts (51). Hand tighten the 2 nuts and then back them off 1/4 turn.
5. Adjust the chain tension by turning the adjustment screw (68) in accordance with the instructions contained in the section titled "MAINTENANCE & ADJUSTMENTS".
6. When adjustments are completed, be sure to tighten the nuts (51).
11. Apply grease and install a new o-ring (97) onto the motor shaft. Slide the o-ring against the seal spacer. Install the spacer (47) and support washer (100).
12. Install the sprocket (48) over the Trantorque™ adapter cap (49) and then install this assembly onto the motor shaft. While gripping the sprocket, hand tighten the hex head of the Trantorque™ adapter cap by turning it clockwise.
13. Slide the sprocket wrench (84) over the sprocket (48). While gripping the sprocket wrench and using an open end wrench, tighten the hex head on the Trantorque™ adapter (49) clockwise to 17 lb. ft./23 Nm.
BAR & CHAIN AND CHAIN GUARD ASSEMBLY
1. Back the bar adjustment nut (70) off by turning the ad­justment screw (68) counter clockwise.
2. Install the chain (73) onto the bar (61). Make sure the chain is installed so that the bumper guards precede the segments. See the section titled 'OPERATION".
3. Install the chain guide plate (65) over the stud (66) as shown in the parts illustration.
26
DS06 PARTS ILLUSTRATION
For Serial Numbers 357 and Above.
54
99
27
DS06 PARTS LIST
For Serial Numbers 357 and Above.
Item
Part No. Qty Description
No.
1 00753 8 HSHCS 10-24 UNC x 1-1/4 2 33445 1 Name Tag
112 07
3
112 06
4 07652 1
07834 1
5 00289 2 Dowel Pin 6 04041 4 Bushing 7 00020 1 O-Ring 8 07612 1 Idler Shaft
9 --- - No Item 10 32190 1 Pivot Pin 11 00961 1 Pipe Plug 12 --- - No Item
04106
13
07832 14 32207 1 On/Off Valve 15 07626 1 O-Ring 16 07609 2 Spring Washer 17 34119 1 Spring 18 04512 1 Retaining Ring, 1/2 EX 19 07625 1 Plug Button 20 03009 2 Roll Pin 21 07624 1 Roll Pin, 3/16 x 1 22 33267 1 Valve Handle Assy. (Incl. Items 6, 31, 66) 23 01605 - O-Ring, (Supplied with Item 24) 24 01652 2 Pigtail Hose Assy. 25 24059 1 Male Coupler 26 24058 1 Female Coupler 27 33443 1 Water Hose Assy. 28 58879 1 Trigger 29 07602 1 Spring 30 34105 1 Safety Catch 31 32197 1 Stud (Supplied with Item 22) 32 --- - No Item 33 00072 1 Roll Pin 34 07627 1 O-Ring 35 00074 1 O-Ring 36 33488 1 Self Locking Retaining Ring 37 05632 1 O-Ring 38 58970 1 Water Valve Sleeve 39 01403 1 O-Ring 40 33380 1 Pin 41 36259 1 Steel Ball, 3/8” Dia. 42 32188 1 Spring 43 04052 1 O-Ring 44 32189 1 Seal Cap 45 28323 1 CE Decal 46 --- - No Item 47 38898 1 Seal Spacer 48 09098 1 Sprocket 49 41765 1 Washer 50 32255 1 Chain Guard 51 32203 2 Nut 52 20721 1 Cord Stock, 3/16” Dia. 53 43690 1 Motor Shaft (See Item #60 for Serial No. Break) 54 04044 2 Needle Roller 55 02688 1 HSHCS 5/16 -18 UNC x 3/4
Circuit “D” Decal (8 gpm Model)
1
Circtuit “C” Decal (5 gpm Model) Rear Gear Housing Assy. (Incl. Items 5-6),
8 gpm Model Only Rear Gear Housing Assy. (Incl. Items 5-6),
5 gpm Model Only
Drive Gear, 8 gpm Model Only
2
Drive Gear, 5 gpm Model Only
Item
Part No. Qty Description
No.
56 60804 1 O-Ring 57 19215 1 Seal Back-Up Washer 58 43689 1 Sprocket Adapter 59 58969 1 Wiper Seal
60 41763 1
66299 1
61 --- - Saw Bar (See Accessories) 62 --- - No Item 63 32196 1 Flap Mount 64 33219 1 Spacer 65 32192 1 Chain Guide Plate 66 32245 1 Stud (Supplied with Item 22) 67 58968 2 HSHCS 1/4 -20 UNC x 5/8 68 02687 1 Machine Screw 69 32191 1 Stat-O-Seal 70 32198 1 Bar Adjustment Nut 71 33481 1 Wall Walker Clevis Pin 72 --- - Spring (Incl. with Item 74) 73 --- - Chain (See Accessories) 74 32206 1 Wall Walker 75 02649 1 Handle Bar Retainer 76 33229 1 Handle Weldment 77 33260 1 BHCS 1/4 -20 x .625 Zinc 78 33261 1 Fender Washer 79 33258 1 Hand Guard 80 12412 1 Electrical Warning Decal 81 12175 2 Washer 82 33454 2 HHCS 5/16 -18 x 5/8 Zinc 83 33263 1 Handle Grip 84 --- - No Item 85 17134 1 Nut, 1/4 -20 HHD LT SST 86 31614 1 Spirol Pin 87 30635 1 Spirol Pin, 5/16 x 7/8 88 28409 1 Composite Decal (CE) 89 11212 1 Sound Power Level Decal (CE) 90 00173 1 Quad Ring 91 04856 1 Retaining Ring 92 35965 1 Bearing 93 00621 1 O-Ring 94 38897 1 Seal Washer 95 39070 1 V-Ring 96 38700 1 Seal Ring 97 --- - No Item 98 07324 1 Retaining Ring 99 37793 1 Extension Spring Anchor
100 41764 1 Retaining Ring
03786 1 GPM Decal (8 gpm Models) (Not Shown)
33360 1 SEAL KIT
E-Clip (For DS063000 s/n 434 and below and for DS06200001 s/n 110 and below)
Spiral Retainer Ring (For DS063000 s/n 435 and above and for DS06200001 s/n 111 and above)
28
DS06 PARTS ILLUSTRATION
For Serial Numbers 356 and Below.
29
DS06 PARTS LIST
For Serial Numbers 356 and Below.
Item Qty Part Description
No No.
1 8 00753 HSHCS 10-24UNCx1-1/4
2 1 33445 NAME TAG
3 1 11207 CIRCUIT "D" STICKER (8 gpm model)
1 11206 CIRCUIT "C" STICKER (5 gpm model)
4 1 07652 REAR GEAR HOUSING ASSY (INCLD ITEM 5 &
6), 8 gpm model only
1 07834 REAR GEAR HOUSING ASSY (INCLD ITEM 5 &
6), 5 gpm model only
5 2 00289 DOWEL PIN
6 4 04041 BUSHING
7 1 00020 O-RING 5-329 R17
8 1 07612 IDLER SHAFT
9 1 04105 IDLER GEAR, 8 gpm model only
1 07831 IDLER GEAR, 5 gpm model only
10 1 32190 PIVOT PIN
11 1 22716 ST ELBOW 1/8NPT
12 1 21550 WATER GAUGE
13 1 04106 DRIVE GEAR, 8 gpm model only
1 07832 DRIVE GEAR, 5 gpm model only
14 1 32207 ON/OFF VALVE
15 1 07626 O-RING 2-014 R18
16 2 07609 SPRING WASHER
17 1 34119 SPRING
18 1 04512 RETAINING RING 1/2 EX
19 1 07625 PLUG BUTTON
20 2 03009 ROLL PIN
21 1 07624 ROLL PIN-3/16 X 1
22 1 32201 VALVE HANDLE ASSY (INCLD ITEMS 31 & 66)
23 3 01605 O-RING
24 2 01652 PIGTAIL HOSE ASSEMBLY
25 1 24059 MALE COUPLER
26 1 24058 FEMALE COUPLER
27 1 33443 WATER HOSE ASSY
28 1 34093 TRIGGER
29 1 07602 SPRING
30 1 34105 SAFETY CATCH
31 1 32197 STUD
32 1 33444 FLOW CONTROL VALVE, 8 gpm model only
1 34006 FLOW CONTROL VALVE, 5 gpm model only
33 1 00072 ROLL PIN
34 1 07627 O-RING 2-016 R24
35 1 00074 O-RING 2-021 R16
36 1 33488 SELF LOCKING RETAINING RING
37 1 05632 O-RING 2-005 R16
38 1 33377 WATER VALVE SLEEVE
39 1 01403 O-RING 2-020 R16
40 1 33380 PIN
41 1 36259 STEEL BALL 3/8 DIA.
42 1 32188 SPRING
43 1 04052 O-RING 3-914 R17
44 1 32189 SEAL CAP
45 1 28323 CE STICKER
46 1 06635 RET RING 1 3/8 INT
47 1 38898 SEAL SPACER
48 1 32210 SPROCKET
49 1 39071 TRANTORQUE™ ADAPTOR
50 1 32255 CHAIN GUARD
51 2 32203 NUT
52 1 20721 CORD STOCK 3/16DIA R1
53 1 35897 MOTOR SHAFT
54 1 04044 NEEDLE ROLLER
55 1 02688 HSHCS 5/16-18UNCx3/4
Item Qty Part Description
No No.
56 1 60804 O-RING
57 1 19215 SEAL LINER
58 - ----- NO ITEM
59 - ----- NO ITEM
60 - ----- NO ITEM
61 ----- SAW BAR (SEE ACCESSORIES)
62 - ----- NO ITEM
63 1 32196 FLAP MOUNT
64 1 33219 SPACER
65 1 32192 CHAIN GUIDE PLATE
66 1 32245 STUD
67 2 02446 HSHCS 1/4-20UNCx5/8
68 1 02687 MACHINE SCREW
69 1 32191 STAT-O-SEAL
70 1 32198 BAR ADJUSTMENT NUT
71 1 33481 WALLWALKER CLEVIS PIN
72 SPRING (INCLD WITH ITEM 74)
73 ----- CHAIN (SEE ACCESSORIES)
74 1 32206 WALL WALKER
75 1 02649 HANDLE BAR RETAINER
76 1 33229 HANDLE WELDMENT
77 1 33260 BHCS 1/4-20x.625 ZINC
78 1 33261 FENDER WASHER
79 1 33258 HAND GUARD
80 1 12412 WARNING STICKER-ELECT
81 2 12175 WASHER
82 2 33454 HHCS 5/16-18x5/8 ZINC
83 1 33263 HANDLE GRIP
84 1 33429 SPROCKET WRENCH
85 1 17134 NUT 1/4-20 HHD LT SST
86 1 31614 SPIROL PIN
87 1 30635 SPIROL PIN 5/16 x 7/8
88 1 28409 COMPOSITE STICKER (CE)
89 1 11212 SOUND POWER LEVEL STICKER (CE)
90 1 00173 QUAD RING
91 1 04856 RETAINING RING
92 1 35965 BEARING
93 1 00621 O-RING
94 1 38897 SEAL WASHER
95 1 39070 V-RING
96 1 38700 SEAL RING
97 1 350810 O-RING
98 1 07324 RETAINING RING
99 - ----- NO ITEM
100 1 34118 SUPPORT WASHER
33360 SEAL KIT
Denotes Part in Seal Kit
30
DIAMOND CHAIN APPLICATIONS
Model Bar Length P/N Correct Applications
Pinnacle­Pinnacle-
Ultra­Ultra-
13 inch
13 inch
Very hard aggregate concretes (fl int, chert, granite, etc). Heavy steel reinforcing, 5/8 inch/16 mm diameter and larger. Medium/hard aggre­gate concretes (granite, quartz, river rock, etc). Moderate steel rein­forcing (wire mesh 3/8-1/2 inch/10-12 mm diameter). Soft aggregate concrete, concrete block, masonry, “green” concrete, highly abrasive
Medium/hard aggregate concretes (granite, quartz, river rock, etc). Moderate steel reinforcing (wire mesh 3/8-1/2 inch/10-12 mm di­ameter). Soft aggregate concrete, concrete block, masonry, “green” concrete, highly abrasive conditions.
31
WARRANTY
Stanley Hydraulic Tools (hereinafter called “Stanley”), subject to the exceptions contained below, warrants new hydraulic tools for a period of one year from the date of sale to the fi rst retail purchaser, or for a period of 2 years from the shipping date from Stanley, whichever period expires fi rst, to be free of defects in material and/or workmanship at the time of delivery, and will, at its option, repair or replace any tool or part of a tool, or new part, which is found upon examination by a Stanley authorized service outlet or by Stanley’s factory in Milwaukie, Oregon to be DEFECTIVE IN MATERIAL AND/OR WORKMANSHIP.
EXCEPTIONS FROM WARRANTY
FREIGHT COSTS: Freight costs to return parts to Stanley, if requested by Stanley for the purpose of evaluating a warranty claim for warranty
credit, are covered under this policy if the claimed part or parts are approved for warranty credit. Freight costs for any part or parts which are not approved for warranty credit will be the responsibility of the individual.
SEALS & DIAPHRAGMS: Seals and diaphragms installed in new tools are warranted to be free of defects in material and/or workmanship for a period of 6 months after the date of fi rst usage, or for a period of 2 years from the shipping date from Stanley, whichever period expires fi rst.
CUTTING ACCESSORIES: Cutting accessories such as breaker tool bits are warranted to be free of defects in material and or workmanship at the time of delivery only.
ITEMS PRODUCED BY OTHER MANUFACTURERS: Components which are not manufactured by Stanley and are warranted by their respective manufacturers.
a. Costs incurred to remove a Stanley manufactured component in order to service an item manufactured by other manufacturers.
ALTERATIONS & MODIFICATIONS: Alterations or modifi cations to any tool or part. All obligations under this warranty shall be terminated if the new tool or part is altered or modifi ed in any way.
NORMAL WEAR: any failure or performance defi ciency attributable to normal wear and tear such as tool bushings, retaining pins, wear plates, bumpers, retaining rings and plugs, rubber bushings, recoil springs, etc.
INCIDENTAL/CONSEQUENTIAL DAMAGES: To the fullest extent permitted by applicable law, in no event will STANLEY be liable for any incidental, consequential or special damages and/or expenses.
FREIGHT DAMAGE: Damage caused by improper storage or freight handling.
LOSS TIME: Loss of operating time to the user while the tool(s) is out of service.
IMPROPER OPERATION: Any failure or performance defi ciency attributable to a failure to follow the guidelines and/or procedures as outlined
in the tool’s operation and maintenance manual.
MAINTENANCE: Any failure or performance defi ciency attributable to not maintaining the tool(s) in good operating condition as outlined in the Operation and Maintenance Manual.
HYDRAULIC PRESSURE & FLOW: Any failure or performance defi ciency attributable to excess hydraulic pressure, excess hydraulic back­pressure, or excess hydraulic fl ow.
REPAIRS OR ALTERATIONS: Any failure or performance defi ciency attributable to repairs by anyone which in Stanley’s sole judgement caused or contributed to the failure or defi ciency.
MIS-APPLICATION: Any failure or performance defi ciency attributable to mis-application. “Mis-application” is defi ned as usage of products for which they were not originally intended or usage of products in such a matter which exposes them to abuse or accident, without fi rst obtain­ing the written consent of Stanley.
WARRANTY REGISTRATION: STANLEY ASSUMES NO LIABILITY FOR WARRANTY CLAIMS SUBMITTED FOR WHICH NO TOOL REG­ISTRATION IS ON RECORD. In the event a warranty claim is submitted and no tool registration is on record, no warranty credit will be issued without fi rst receiving documentation which proves the sale of the tool or the tools’ fi rst date of usage. The term “DOCUMENTATION” as used in this paragraph is defi ned as a bill of sale, or letter of intent from the fi rst retail customer. A WARRANTY REGISTRATION FORM THAT IS NOT ALSO ON RECORD WITH STANLEY WILL NOT BE ACCEPTED AS “DOCUMENTATION”.
NO ADDITIONAL WARRANTIES OR REPRESENTATIONS
This limited warranty and the obligation of Stanley thereunder is in lieu of all other warranties, expressed or implied including merchantability or fi tness for a particular purpose except for that provided herein. There is no other warranty. This warranty gives the purchaser specifi c legal rights and other rights may be available which might vary depending upon applicable law.
32
Stanley Hydraulic Tools
3810 SE Naef Road
503-659-5660
FAX 503-652-1780
www.stanley-hydraulic-tools.com
Loading...
