CHAIN SAW
Safety, OperatiOn and Maintenance
USer ManUaL
© 2012 Stanley Black & Decker, Inc.
New Britain, CT 06053
U.S.A.
66864 1/2013 Ver. 7
TABLE OF CONTENTS
WARNING
IMPORTANT
SAFETY SYMBOLS ..................................................................................................................................................4
SAFETY PRECAUTIONS .......................................................................................................................................... 5
ELECTRICAL PRECAUTIONS .................................................................................................................................7
TOOL STICKERS & TAGS ........................................................................................................................................9
HOSE TYPES ..........................................................................................................................................................10
HOSE RECOMMENDATIONS ................................................................................................................................ 11
FIGURE 1. TYPICAL HOSE CONNECTIONS ..................................................................................................... 11
HTMA REQUIREMENTS .........................................................................................................................................12
OPERATION ............................................................................................................................................................13
FIGURE 2. FELLING A TREE ..............................................................................................................................14
FIGURE 3. CROSSCUTTING LOGS WITH PRESSURE ON TOP .....................................................................15
FIGURE 4. CROSSCUTTING LOGS LARGER THAN BAR LENGTH WITH PRESSURE ON TOP ................... 15
FIGURE 5. CROSSCUTTING LOGS/LIMBS WITH PRESSURE ON BOTTOM. ................................................16
FIGURE 6. CROSSCUTTING THICK LOGS WITH PRESSURE ON BOTTOM .................................................16
TOOL PROTECTION & CARE ................................................................................................................................18
TROUBLESHOOTING ............................................................................................................................................19
SPECIFICATIONS ................................................................................................................................................... 20
ACCESSORIES.......................................................................................................................................................20
SERVICE TOOLS ....................................................................................................................................................20
CS05/CS06 PARTS ILLUSTRATION ......................................................................................................................21
CS05/CS06 PARTS LIST ........................................................................................................................................22
To ll out a Product Warranty Recording form, and for information on your warranty,
visit Stanleyhydraulic.com and select the Warranty tab.
(NOTE: The warranty recording form must be submitted to validate the warranty).
SERVICING: This manual contains safety, operation, and routine maintenance instructions. Stanley Hy­draulic Tools recommends that servicing of hydraulic tools, other than routine maintenance, be performed
by an authorized and certied dealer. Please read the following warning.
SERIOUS INJURY OR DEATH COULD RESULT FROM
THE IMPROPER REPAIR OR SERVICE OF THIS TOOL.
REPAIRS AND / OR SERVICE TO THIS TOOL MUST ONLY BE
DONE BY AN AUTHORIZED AND CERTIFIED DEALER.
For the nearest authorized and certied dealer, call Stanley Hydraulic Tools at the number listed on the back of this manual and ask for a Customer Service Representative.
CS05/CS06 User Manual ◄ 3
SAFETY SYMBOLS
DANGER
WARNING
CAUTION
CAUTION
NOTICE
IMPORTANT
Safety symbols and signal words, as shown below, are used to emphasize all operator, maintenance and repair ac­tions which, if not strictly followed, could result in a life-threatening situation, bodily injury or damage to equipment.
This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.
This safety alert and signal word indicate an imminently hazardous situation which, if not avoided, will result in death or serious injury.
This safety alert and signal word indicate a potentially hazardous situation which, if not avoided, could result in death or serious injury.
This safety alert and signal word indicate a potentially hazardous situation which, if not avoided, could result in death or serious injury.
This signal word indicates a potentially hazardous situation which, if not avoid­ed, may result in property damage.
This signal word indicates a situation which, if not avoided, will result in damage to the equipment.
This signal word indicates a situation which, if not avoided, may result in dam­age to the equipment.
Always observe safety symbols. They are included for your safety and for the protection of the tool.
LOCAL SAFETY REGULATIONS
Enter any local safety regulations here. Keep these instructions in an area accessible to the operator and mainte­nance personnel.
4 ► CS05/CS06 User Manual
SAFETY PRECAUTIONS
Tool operators and maintenance personnel must always comply with the safety precautions given in this manual and on the stickers and tags attached to the tool and
hose.
These safety precautions are given for your safety. Re­view them carefully before operating the tool and before performing general maintenance or repairs.
Supervising personnel should develop additional pre­cautions relating to the specic work area and local safety regulations. If so, place the added precautions in the space provided in this manual.
The model CS05/CS06 Hydraulic Chain Saw will provide safe and dependable service if operated in accordance with the instructions given in this manual. Read and un­derstand this manual and any stickers and tags attached to the tool and hose before operation. Failure to do so could result in personal injury or equipment damage.
The operator must start in a work area without by-
standers. Flying debris can cause serious injury.
Do not operate the tool unless thoroughly trained
or under the supervision of an instructor. Establish a training program for all operators to ensure safe operation.
Always wear safety equipment such as goggles, ear
and head protection, and safety shoes at all times when operating the tool. Use gloves and aprons
when necessary.
The operator must be familiar with all prohibited
work areas such as excessive slopes and danger­ous terrain conditions.
Do not inspect, clean or replace any part(s) if the
hydraulic power source is connected. Do not inspect or clean the tool while the hydraulic power source is connected. Accidental engagement of the tool can cause serious injury.
Always connect hoses to the tool hose couplers be-
fore energizing the hydraulic power source. Be sure all hose connections are tight and are in good condi-
tion.
Do not operate the tool at oil temperatures above
140 °F/60 °C. Operation at higher temperatures can cause higher than normal temperatures at the tool which can result in operator discomfort.
Do not operate a damaged, improperly adjusted, or incompletely assembled chain saw. Be sure that the chain stops moving when the control trigger is re­leased.
Never wear loose clothing that can get entangled in the working parts of the tool.
Keep all parts of your body away from the chain saw and maintain proper footing and balance at all times.
Warning: Use of this tool on certain materials during demolition could generate dust potentially contain­ing a variety of hazardous substances such as as­bestos, silica or lead. Inhalation of dust containing these or other hazardous substances could result in serious injury, cancer or death. Protect yourself and those around you. Research and understand the materials you are cutting. Follow correct safety procedures and comply with all applicable national, state or provisional health and safety regulations relating to them, including, if appropriate arranging for the safe disposal of the materials by a qualied person.
Do not rely exclusively upon the safety devices built into the saw. As a chain saw user, several steps must be taken to keep your cutting jobs free from accidents or injury.
With basic understanding of kickback, you can
reduce or eliminate the element of surprise. Sudden surprise contributes to accidents.
To avoid personal injury or equipment damage,
all tool repair, maintenance and service must only be performed by authorized and properly trained personnel.
Keep a good rm grip on the saw with both
hands, the right hand on the rear handle and the left hand on the front handle when operating the saw. Use a rm grip with thumbs and ngers encircling the chain saw handles. A rm grip will help reduce kickback and maintain control of the saw. Do not let go.
Make sure the area in which you are cutting is
free of obstructions. Never allow the nose of the guide bar to contact the log, branch or any ob­struction that can be accidently hit while operat­ing the saw.
Never start the tool while it is lying on the ground.
Cut at rated operating speeds (gpm).
Do not overreach or cut above shoulder height.
Follow the manufacturer’s sharpening and
CS05/CS06 User Manual ◄ 5
SAFETY PRECAUTIONS
maintenance instructions for the saw chain.
Only use replacement bars and chains specied
by Stanley Hydraulic Tools. Chains must meet the requirements of ANSI B175.1 for low kick­back performance.
Always be well rested and mentally alert before op­erating the chain saw.
Do not allow other persons to be near the chain saw when starting or cutting with the chain saw. Keep bystanders and animals out of the work area.
Do not starting cutting until you have a clear work area, secure footing and a planned escape path from a falling tree.
Carry the saw with the unit de-energized and the bar and chain to the rear of your body.
Use extreme caution when cutting small size brush and saplings. Twigs may catch the saw chain and be whipped toward the operator or pull the operator off balance.
When cutting a limb that is under tension, be alert for springback so that you will not be struck when the tension on the limb is released.
Keep the handles dry, clean and free of oil.
Do not operate a chain saw while in a tree unless you have been specially trained to do so.
When using tools near energized transmission lines, be sure to use only hoses labeled and certied non­conductive.
Turn off the power unit or move the hydraulic control valve to neutral before setting the saw down.
Use a guide bar scabbard when transporting the
saw.
Know the location of buried or covered electrical services before starting work.
To avoid personal injury or equipment damage, all tool repair, maintenance and service must only be performed by authorized and properly trained per-
sonnel.
6 ► CS05/CS06 User Manual
ELECTRICAL PRECAUTIONS
The following guidelines must be followed to prevent accidental contact with overhead electrical conductors and/or communication wires and cables. (ref. ANSI Z133.1-2000)
Working in Proximity to Electrical Hazards:
An inspection shall be made by a qualied arborist to determine whether an electrical hazard exists before climbing, or otherwise entering, or performing work in
or on a tree.
Only qualied line-clearance arborists or qualied line­clearance arborist trainees shall be assigned to work where an electrical hazard exists. Qualied line-clear­ance arborist trainees shall be under the direct supervi­sion of qualied line-clearance arborist.
A second qualied line-clearance arborists or line-clear­ance arborist trainees shall be within vision or voice communication during line-clearing operations aloft when line-clearance arborists or line-clearance arborist trainees must approach closer than 10 feet (3.05 me­ters) to any energized electrical conductor in excess of 750 volts (primary conductor) or when:
1. Branches or limbs being removed cannot rst be cut (with a pole pruner/pole saw) to sufciently
clear electrical conductors, so as to avoid con- tact.
2. Roping is required to remove branches or limbs
from such electrical conductors. This does not apply to individuals working on behalf of, or em-
ployed by, electrical system owners/operators engaged in line-clearing operations incidental to their normal occupation.
Qualied line-clearance arborists and line-clearance arborist trainees shall maintain minimum approach distances from energized electrical conductors in ac­cordance with Table 1.
All other arborists shall maintain a minimum ap­proach distance from energized electrical conductors in accordance with Table 2.
Branches hanging on an energized electrical con­ductor shall be removed using non-conductive equip­ment.
Table 1 – Minimum approach distances from energized conductors for qualied line-clearance arborists and qualied line- clearance arborist trainees.
Nominal Voltage
(kV phase-to-phase)
Includes 1910.269
elevation factor,
sea level to 5000 ft
1
ft–in m ft–in m ft–in m
Includes 1910.269
elevation factor,
5001 – 10,000 ft
1
Includes 1910.269 elevation
factor, 10,000 – 14,000 ft
1
0.05 to 1.0 Avoid contact Avoid contact Avoid contact
1.1 to 15.0 2–04 0.71 2–08 0.81 2–10 0.86
15.1 to 36.0 2–09 0.84 3–02 0.97 3–05 1.04
36.1 to 46.0 3–00 0.92 3–05 1.04 3–09 1.14
46.1 to 72.5 3–09 1.14 4–03 1.30 4–07 1.40
72.6 to 121.0 4–06 1.37 5–02 1.58 5–07 1.70
138.0 to 145.0 5–02 1.58 5–11 1.80 6–05 1.96
161.0 to 169.0 6–00 1.83 6–10 2.08 7–05 2.26
230.0 to 242.0 7–11 2.41 9–00 2.75 9–09 2.97
345.0 to 362.0 13–02 4.02 15–00 4.58 16–03 4.96
500.0 to 550.0 19–00 5.80 21–09 6.63 23–06 7.17
765.0 to 800.0 27–04 8.34 31–03 9.53 33–10 10.32
1
Exceeds phase-to-ground; elevation factor per 29 CFR 1910.269.
CS05/CS06 User Manual ◄ 7
ELECTRICAL PRECAUTIONS
Table 2 – Minimum approach distances to energized conductors for persons other than qualied line-clearance arborists and qualied line-clearance ar­borist trainees.
Nominal Voltage
kV phase-to-phase
0.0 to 1.0 10–00 3.05
1.1 to 15.0 10–00 3.05
15.1 to 36.0 10–00 3.05
36.1 to 50.0 10–00 3.05
50.1 to 72.5 10–09 3.28
72.6 to 121.0 12–04 3.76
138.0 to 145.0 13–02 4.00
161.0 to 169.0 14–00 4.24
230.0 to 242.0 16–05 4.97
345.0 to 362.0 20–05 6.17
500.0 to 550.0 26–08 8.05
785.0 to 800.0 35–00 10.55
1
Exceeds phase-to-ground.
The tie-in position should be above the work area and located in such a way that a slip would swing the arborist away from any energized electrical conductors or other identied hazard.
While climbing, the arborist should climb on the side of the tree that is away from energized electrical conduc­tors as required in Tables 1 and 2.
Footwear, including lineman’s overshoes, having electri­cal-resistant soles, shall not be considered as providing any measure of safety from electrical hazards.
Rubber gloves, with or without leather or other protec­tive covering, shall not be considered as providing any measure of safety from electrical hazards.
Ladders, platforms and aerial devices, including insulat­ed aerial devices, shall be subject to minimum approach distances in Table 1 and 2.
Aerial devices and attached equipment (such as chip­pers) contacting energized electrical conductors shall be considered energized. Contact shall be avoided, except where emergency rescue procedures are being carried out. Emergency rescue should be performed in accor­dance with 4.3.
1
Distance
ft-in m
STORM WORK AND EMERGENCY CONDITIONS-LINE CLEARANCE
Line clearance shall not be performed during adverse weather conditions such as thunderstorms, high winds and snow and ice storms.
Qualied line-clearance arborists and qualied line­clearance arborists trainees performing line clearance in the aftermath of a storm or under similar conditions shall be trained in the special hazards associated with this type of work.
Line-clearance operations shall be suspended when storm work or emergency conditions develop involving energized electrical conductors. Electrical system own­ers/operators shall be notied immediately.
8 ► CS05/CS06 User Manual
TOOL STICKERS & TAGS
Stanley Hydraulic Tools
3810 SE Naef Road
Milw aukie, OR 97062
Model
DANGER
Failure to use hydraulic hose labeled and certified
as non-conductive when using hydraulic toolson
or near electric lines mayresultindeathor serious injury.
Forproper and safe operationread ownersmanual
and mwke sure that you have been properly
trained in correct procedures requiredforwork
ELECTROCUTION
on or around electric lines.
HAZARD
12412
Electrical Warning Decal
4-6 GPM / 15-22 LPM
DO NOT EXCEED 2000 PSI / 140 BAR
DO NOT EXCEED SPECIFIED FLOW OR PRESSURE USE CLOSED-CENTER TOOL ON CLOSED-CENTER
SYSTEM. USE OPEN-CENTER TOOL ON OPEN-CENTER
SYSTEM. CORRECTLY CONNECT HOSES TO TOOL “IN”
AND “OUT” PORTS. IMPROPER HANDLING, USE OR OTHER
MAINTENANCE OF TOOL COULD RESULT IN A LEAK, BURST
OR OTHER TOOL FAILURE. CONTACT AT A LEAK OR BURST
CAN CAUSE OIL INJECTION INTO THE BODY. FAILURE TO
OBSERVE THESE PRECAUTIONS CAN RESULT IN SERIOUS
03782
GPM Decal – CS05 Model
03786
GPM Decal – CS06 Model (Not Shown)
PERSONAL INJURY.
28409
Composite Decal (CE Models Only)
13907
Kickback Warning Decal
D
30 LPM @ 138 BAR EHTMA CATEGORY
11207
Circuit Type D Decal (CE Models Only)
Lwa
107
17784
101 Sound Level
Decal
(CE Models Only)
28323 CE Decal
(CE Models Only)
07636
Name Tag
The safety tag (P/N 15875) at right is attached to the tool when shipped from the factory. Read and understand the safety instructions listed on this tag before removal. We suggest you retain this tag and attach it to the tool when not in use.
THIS CHAIN SAW IS EQUIPPED WITH AN AUTOMATIC CHAIN OILER. SEE YOUR PARTS & SERVICE BOOK FOR PROPER ADJUSTING PROCEDURES
04746
Auto Oiler Decal
NOTE
THE INFORMATION LISTED ON THE
STICKERS SHOWN, MUST BE LEGIBLE AT ALL
TIMES.
REPLACE DECALS IF THEY BECOME WORN
OR DAMAGED. REPLACEMENTS ARE
AVAILABLE FROM YOUR LOCAL STANLEY
DISTRIBUTOR.
1. FAILURE TO USE HYDRAULIC HOSE LABELED AND CERTI­FIED AS NON-CONDUCTIVE WHEN USING HYDRAULIC TOOLS ON OR NEAR ELECTRICAL LINES MAY RESULT IN DEATH OR SERIOUS INJURY.
BEFORE USING HOSE LABELED AND CERTIFIED AS NON- CONDUCTIVE ON OR NEAR ELECTRIC LINES BE SURE THE HOSE IS MAINTAINED AS NON-CONDUCTIVE. THE HOSE SHOULD BE REGULARLY TESTED FOR ELECTRIC CURRENT LEAKAGE IN ACCORDANCE WITH YOUR SAFETY DEPART­MENT INSTRUCTIONS.
2. A HYDRAULIC LEAK OR BURST MAY CAUSE OIL INJECTION INTO THE BODY OR CAUSE OTHER SEVERE PERSONAL INJURY.
A. DO NOT EXCEED SPECIFIED FLOW AND PRESSURE
FOR THIS TOOL. EXCESS FLOW OR PRESSURE MAY CAUSE A LEAK OR BURST.
B. DO NOT EXCEED RATED WORKING PRESSURE OF
HYDRAULIC HOSE USED WITH THIS TOOL. EXCESS PRESSURE MAY CAUSE A LEAK OR BURST.
C. CHECK TOOL HOSE COUPLERS AND CONNECTORS
DAILY FOR LEAKS. DO NOT FEEL FOR LEAKS WITH YOUR HANDS. CONTACT WITH A LEAK MAY RESULT IN SEVERE PERSONAL INJURY.
IMPORTANT
READ OPERATION MANUAL AND
SAFETY INSTRUCTIONS FOR THIS
TOOL BEFORE USING IT.
USE ONLY PARTS AND REPAIR
PROCEDURES APPROVED BY
STANLEY AND DESCRIBED IN THE
OPERATION MANUAL.
TAG TO BE REMOVED ONLY BY
TOOL OPERATOR.
SEE OTHER SIDE
D. DO NOT LIFT OR CARRY TOOL BY THE HOSES. DO
NOT ABUSE HOSE. DO NOT USE KINKED, TORN OR DAMAGED HOSE.
3. MAKE SURE HYDRAULIC HOSES ARE PROPERLY CON­NECTED TO THE TOOL BEFORE PRESSURING SYSTEM. SYSTEM PRESSURE HOSE MUST ALWAYS BE CON­NECTED TO TOOL “IN” PORT. SYSTEM RETURN HOSE MUST ALWAYS BE CONNECTED TO TOOL “OUT” PORT. REVERSING CONNECTIONS MAY CAUSE REVERSE TOOL OPERATION WHICH CAN RESULT IN SEVERE PERSONAL INJURY.
4. DO NOT CONNECT OPEN-CENTER TOOLS TO CLOSED­CENTER HYDRAULIC SYSTEMS. THIS MAY RESULT IN LOSS OF OTHER HYDRAULIC FUNCTIONS POWERED BY THE SAME SYSTEM AND/OR SEVERE PERSONAL INJURY.
5. BYSTANDERS MAY BE INJURED IN YOUR WORK AREA. KEEP BYSTANDERS CLEAR OF YOUR WORK AREA.
6. WEAR HEARING, EYE, FOOT, HAND AND HEAD PRO­TECTION.
7. TO AVOID PERSONAL INJURY OR EQUIPMENT DAMAGE, ALL TOOL REPAIR MAINTENANCE AND SERVICE MUST ONLY BE PERFORMED BY AUTHORIZED AND PROPERLY TRAINED PERSONNEL.
IMPORTANT
READ OPERATION MANUAL AND
SAFETY INSTRUCTIONS FOR THIS
USE ONLY PARTS AND REPAIR
PROCEDURES APPROVED BY
STANLEY AND DESCRIBED IN THE
TAG TO BE REMOVED ONLY BY
SAFETY TAG P/N 15875 (Shown smaller then actual size)
DANGERDANGER
TOOL BEFORE USING IT.
OPERATION MANUAL.
TOOL OPERATOR.
SEE OTHER SIDE
CS05/CS06 User Manual ◄ 9
HOSE TYPES
The rated working pressure of the hydraulic hose must be equal to or higher than the relief valve setting on the hy­draulic system. There are three types of hydraulic hose that meet this requirement and are authorized for use with Stanley Hydraulic Tools. They are:
Certied non-conductive — constructed of thermoplastic or synthetic rubber inner tube, synthetic ber braid reinforcement, and weather resistant thermoplastic or synthetic rubber cover. Hose labeled certied non-
conductive is the only hose authorized for use near electrical conductors.
Wire-braided (conductive) — constructed of synthetic rubber inner tube, single or double wire braid reinforce­ment, and weather resistant synthetic rubber cover. This hose is conductive and must never be used near
electrical conductors.
Fabric-braided (not certied or labeled non-conductive) — constructed of thermoplastic or synthetic rubber in­ner tube, synthetic ber braid reinforcement, and weather resistant thermoplastic or synthetic rubber cover. This
hose is not certied non-conductive and must never be used near electrical conductors.
HOSE SAFETY TAGS
To help ensure your safety, the following DANGER tags are attached to all hose purchased from Stanley Hydraulic
Tools. DO NOT REMOVE THESE TAGS.
If the information on a tag is illegible because of wear or damage, replace the tag immediately. A new tag may be obtained from your Stanley Distributor.
THE TAG SHOWN BELOW IS ATTACHED TO “CERTIFIED NON-CONDUCTIVE” HOSE
DANGER
1. FAILURE TO USE HYDRAULIC HOSE LABELED AND CERTIFIED AS NON-CONDUCTIVE WHEN USING HYDRAULIC TOOLS ON OR NEAR ELECTRIC LINES MAY RESULT IN DEATH OR SERIOUS INJURY.
FOR PROPER AND SAFE OPERATION MAKE SURE THAT YOU HAVE BEEN PROP­ERLY TRAINED IN CORRECT PROCEDURES REQUIRED FOR WORK ON OR AROUND ELECTRIC LINES.
2. BEFORE USING HYDRAULIC HOSE LABELED AND CERTIFIED AS NON-CONDUCTIVE ON OR NEAR ELECTRIC LINES. WIPE THE ENTIRE LENGTH OF THE HOSE AND FIT­TING WITH A CLEAN DRY ABSORBENT CLOTH TO REMOVE DIRT AND MOISTURE AND TEST HOSE FOR MAXIMUM ALLOWABLE CURRENT LEAKAGE IN ACCORDANCE WITH SAFETY DEPARTMENT INSTRUCTIONS.
3. DO NOT EXCEED HOSE WORKING PRESSURE OR ABUSE HOSE. IMPROPER USE
DO NOT REMOVE THIS TAG
SEE OTHER SIDE
SIDE 1
OR HANDLING OF HOSE COULD RESULT IN BURST OR OTHER HOSE FAILURE. KEEP HOSE AS FAR AWAY AS POSSIBLE FROM BODY AND DO NOT PERMIT DIRECT CONTACT DURING USE. CONTACT AT THE BURST CAN CAUSE BODILY INJECTION AND SEVERE PERSONAL INJURY.
4. HANDLE AND ROUTE HOSE CAREFULLY TO AVOID KINKING, ABRASION, CUTTING, OR CONTACT WITH HIGH TEMPERATURE SURFACES. DO NOT USE IF KINKED. DO NOT USE HOSE TO PULL OR LIFT TOOLS, POWER UNITS, ETC.
5. CHECK ENTIRE HOSE FOR CUTS CRACKS LEAKS ABRASIONS, BULGES, OR DAM­AGE TO COUPLINGS IF ANY OF THESE CONDITIONS EXIST, REPLACE THE HOSE IMMEDIATELY. NEVER USE TAPE OR ANY DEVICE TO ATTEMPT TO MEND THE HOSE.
6. AFTER EACH USE STORE IN A CLEAN DRY AREA.
(Shown smaller than actual size)
DANGER
DANGER
SEE OTHER SIDE
SIDE 2
THE TAG SHOWN BELOW IS ATTACHED TO “CONDUCTIVE” HOSE.
DANGER
DANGER
1. DO NOT USE THIS HYDRAULIC HOSE ON OR NEAR ELECTRIC LINES. THIS HOSE IS NOT LABELED OR CERTIFIED AS NON-CONDUCTIVE. USING THIS HOSE ON OR NEAR ELECTRICAL LINES MAY RESULT IN DEATH OR SERIOUS INJURY.
2. FOR PROPER AND SAFE OPERATION MAKE SURE THAT YOU HAVE BEEN PROPERLY TRAINED IN CORRECT PROCEDURES REQUIRED FOR WORK ON OR AROUND ELEC­TRIC LINES.
3. DO NOT EXCEED HOSE WORKING PRESSURE OR ABUSE HOSE. IMPROPER USE OR HAN­DLING OF HOSE COULD RESULT IN BURST OR OTHER HOSE FAILURE. KEEP HOSE AS FAR AWAY AS POSSIBLE FROM BODY AND DO NOT PERMIT DIRECT CONTACT DURING USE. CONTACT AT THE BURST CAN CAUSE BODILY INJECTION AND SEVERE PERSONAL INJURY.
4. HANDLE AND ROUTE HOSE CAREFULLY TO AVOID KINKING, CUTTING, OR CONTACT WITH HIGH TEMPERATURE SURFACES. DO NOT USE IF KINKED. DO NOT USE HOSE TO PULL OR LIFT TOOLS, POWER UNITS, ETC.
DO NOT REMOVE THIS TAG
SEE OTHER SIDE
5. CHECK ENTIRE HOSE FOR CUTS CRACKS LEAKS ABRASIONS, BULGES, OR DAMAGE TO COUPLINGS IF ANY OF THESE CONDITIONS EXIST, REPLACE THE HOSE IMMEDIATELY. NEVER USE TAPE OR ANY DEVICE TO ATTEMPT TO MEND THE HOSE.
6. AFTER EACH USE STORE IN A CLEAN DRY AREA.
DANGER
SEE OTHER SIDE
DO NOT REMOVE THIS TAG
DO NOT REMOVE THIS TAG
10 ► CS05/CS06 User Manual
SIDE 1
SIDE 2
(Shown smaller than actual size)
Min. Working Pressure
USE
(Press/Return)
HOSE RECOMMENDATIONS
Certied Non-Conductive Hose - Fiber Braid - for Utility Bucket Trucks
Oil Flow Hose Lengths Inside Diameter
GPM LPM FEET METERS INCH MM PSI BAR
4-9 15-34 up to 10 up to 3 3/8 10 Both 2250 155
Conductive Hose - Wire Braid or Fiber Braid -DO NOT USE NEAR ELECTRICAL CONDUCTORS
4-6 15-23 up to 25 up to 7.5 3/8 10 Both 2500 175
4-6 15-23 26-100 7.5-30 1/2 13 Both 2500 175
5-10.5 19-40 up to 50 up to 15 1/2 13 Both 2500 175
5-10.5 19-40 51-100 15-30 5/8 16 Both 2500 175
5/8 16 Pressure 2500 175
3/4 19 Return 2500 175
5-10.5 19-40 100-300 30-90
10-13 38-49 up to 50 up to 15 5/8 16 Both 2500 175
5/8 16 Pressure 2500 175
3/4 19 Return 2500 175
10-13 38-49 51-100 15-30
3/4 19 Pressure 2500 175
1 25.4 Return 2500 175
10-13 38-49 100-200 30-60
5/8 16 Pressure 2500 175
13-16 49-60 up to 25 up to 8
3/4 19 Return 2500 175
3/4 19 Pressure 2500 175
1 25.4 Return 2500 175
13-16 49-60 26-100 8-30
PRESSURE
<<< FLOW
RETURN
FLOW >>>

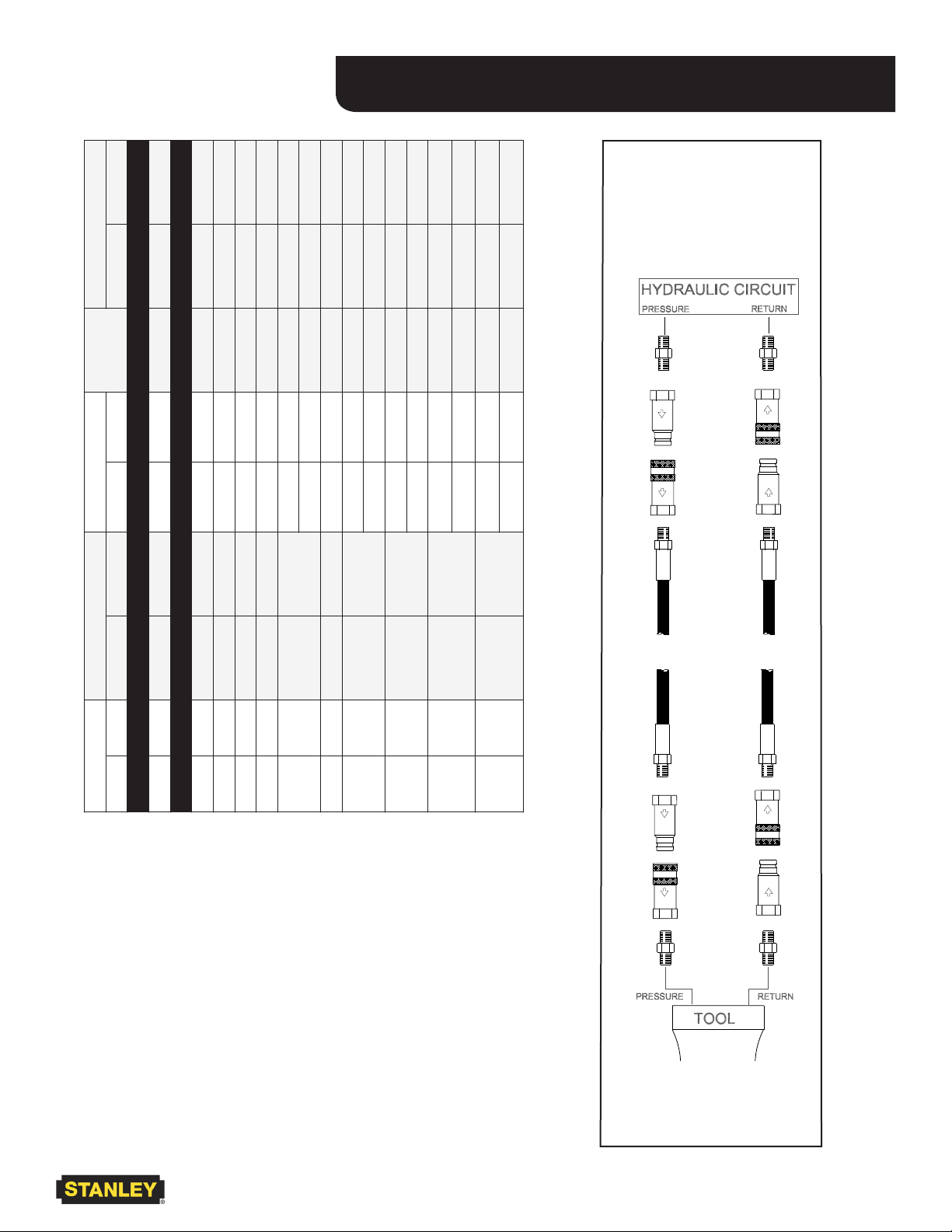

Figure 1. Typical Hose Connections
Tool to Hydraulic Circuit Hose
Recommendations
The chart to the right shows recommended
minimum hose diameters for various hose
lengths based on gallons per minute (gpm)/
liters per minute (lpm). These recommenda-
tions are intended to keep return line pressure
(back pressure) to a minimum acceptable lev-
el to ensure maximum tool performance.
This chart is intended to be used for hydraulic
tool applications only based on Stanley Hy-
draulic Tools tool operating requirements and
should not be used for any other applications.
All hydraulic hose must have at least a rated
minimum working pressure equal to the maxi-
mum hydraulic system relief valve setting.
All hydraulic hose must meet or exceed
specications as set forth by SAE J517.
CS05/CS06 User Manual ◄ 11
HTMA REQUIREMENTS
HTMA / EHTMA REQUIREMENTS
HTMA HYDRAULIC SYSTEM REQUIREMENTS
Flow Range
Nominal Operating Pressure (at the power supply outlet)
System relief valve setting (at the power supply outlet)
Maximum back pressure (at tool end of the return hose)
Measured at a max. uid viscosity of:
(at min. operating temperature)
Temperature: Sufcient heat rejection capacity to limit max. uid temperature to:
(at max. expected ambient temperature)
Min. cooling capacity at a temperature
difference of between ambient and uid
temps NOTE: Do not operate the tool at oil temperatures above 140° F (60° C). Operation at higher temperatures can cause operator discomfort at the tool.
Filter
Min. full-ow ltration Sized for ow of at least:
(For cold temp. startup and max. dirt-holding capacity)
4-6 gpm 7-9 gpm 9-10.5 gpm 11-13 gpm (15-23 lpm) (26-34 lpm) (34-40 lpm) (42-49 lpm) 1500 psi 1500 psi 1500 psi 1500 psi (103 bar) (103 bar) (103 bar) (103 bar)
2100-2250 psi 2100-2250 psi 2200-2300 psi 2100-2250 psi (145-155 bar) (145-155 bar) (152-159 bar) (145-155 bar)
250 psi 250 psi 250 psi 250 psi (17 bar) (17 bar) (17 bar) (17 bar)
400 ssu* 400 ssu* 400 ssu* 400 ssu* (82 centistokes) (82 centistokes) (82 centistokes) (82 centistokes)
140° F 140° F 140° F 140° F (60° C) (60° C) (60° C) (60° C)
3 hp 5 hp 6 hp 7 hp (2.24 kW) (3.73 kW) (5.22 kW) (4.47 kW) 40° F 40° F 40° F 40° F (22° C) (22° C) (22° C) (22° C)
25 microns 25 microns 25 microns 25 microns 30 gpm 30 gpm 30 gpm 30 gpm (114 lpm) (114 lpm) (114 lpm) (114 lpm)
TYPE I TYPE II
TOOL TYPE
TYPE RR
TYPE III
Hydraulic uid Petroleum based
(premium grade, anti-wear, non-conductive) Viscosity (at min. and max. operating temps)
NOTE:
When choosing hydraulic uid, the expected oil temperature extremes that will be experienced in service determine the most suitable temperature viscosity characteristics. Hydraulic uids with a viscosity index over 140 will meet the requirements
over a wide range of operating temperatures.
*SSU = Saybolt Seconds Universal
EHTMA
100-400 ssu* 100-400 ssu* 100-400 ssu* 100-400 ssu* (20-82 centistokes)
CLASSIFICATION HYDRAULIC SYSTEM REQUIREMENTS
Flow Range
Nominal Operating Pressure (at the power supply outlet)
System relief valve setting (at the power supply outlet)
NOTE: These are general hydraulic system requirements. See tool specication page for tool specic requirements
B
3.5-4.3 gpm 4.7-5.8 gpm 7.1-8.7 gpm 9.5-11.6 gpm 11.8-14.5 gpm (13.5-16.5 lpm) (18-22 lpm) (27-33 lpm) (36-44 lpm) (45-55 lpm) 1870 psi 1500 psi 1500 psi 1500 psi 1500 psi (129 bar) (103 bar) (103 bar) (103 bar) (103 bar)
2495 psi 2000 psi 2000 psi 2000 psi 2000 psi (172 bar) (138 bar) (138 bar) (138 bar) (138 bar)
C
D
12 ► CS05/CS06 User Manual
PREOPERATION PROCEDURES
IMPORTANT
CHECK POWER SOURCE
1. Using a calibrated owmeter and pressure gauge, check that the hydraulic power source develops a ow of 4-6 gpm/15-23 lpm at 1500-2000 psi/105­140 bar for the CS05 or a ow of 7-9 gpm/26-34 lpm at 1000-2000 psi/70-140 bar for the CS06.
2. Make certain that the hydraulic power source is equipped with a relief valve set to open at 2100 ­2250 psi/145-155 bar.
CONNECT HOSES
1. Wipe all hose couplers with a clean lint-free cloth before making connections.
2. Connect the hoses from the hydraulic power source to the tool ttings or quick disconnects. It is good practice to connect return hoses rst and discon­nect them last to minimize or avoid trapped pressure
within the tool.
3. Observe the arrow on the couplers to ensure that
the ow is in the proper direction. The female cou­pler on the tool hose is the inlet (pressure) coupler.
4. Move the hydraulic circuit control valve to the “ON” position to operate the tool.
NOTE:
If uncoupled hoses are left in the sun, pressure in-
crease inside the hose may make them difcult to
connect. Whenever possible, connect the free ends of the hoses together.
SYSTEM SELECTION (OC/CC)
Saws congured with the system selector option require setup for the system, closed-center (CC) or open-center (CC), in which it will operate. The selector screw is lo­cated in the bottom end of the valve spool.
1. Determine the system type.
2. For operation in a CC system, turn the selector
screw fully clockwise. When the selector screw bot­toms, CC operation is selected.
3. For operation in an OC system, turn the selector screw counter-clockwise until meeting resistance (from the retaining ring). Turn the selector screw clockwise and then counter-clockwise to be sure that you are sensing resistance of the retaining ring. Do not force the selector screw.
OPERATION
To prevent damage to the retaining ring, do not
attempt to force the selector screw counter-clockwise
beyond the point of initial resistance.
OPERATING PROCEDURES
The following are general wood cut ting procedures and techniques. Dif ferences in the terrain, vegetation, and type of wood will make this infor mation more or less val­id for particu lar areas. For advice on specic woodcut­ting problems or techniques for your area, consult your local Stanley representative or your county agent. They can often provide infor mation that will make your work safer and more productive.
CUTTING TIPS
1. Check the lean of the tree. Tie a weight to a piece of string about 2 feet long. Hang the weight in your line of sight. The string is a good vertical line to help you judge the lean of the tree. The tree should fall the way it is leaning. Trees that are straight (leaning no more than 5 degrees) gener ally can be felled in any direction.
2. Avoid felling across another tree, log, rocks, gully or ridge. Do not fell straight uphill or down hill. Fell the tree diagonally to the hill. Consider the wind direc­tion and velocity. Do not attempt cutting in strong winds.
3. Check the weight distribution. A tree is heavier on the side with the most limbs. It will try to fall on its heavy side. Trim a few limbs to “balance” the tree.
4. Clear the work area. You need a clean area all around the tree for good footing. Get every thing out of the area where the tree will fall. Do not cut trees near structures. Because of the danger of electro­cution, use extreme care when cutting trees near power lines.
5. Before starting the cut, prepare your escape path. Make sure the escape path is clear of brush and branches. The escape path should be at an angle away from the direction of fall.
CS05/CS06 User Manual ◄ 13
OPERATION
6. The saw chain should cut with very little pres sure applied to the handle. If you have to force the saw to cut or if the cut is not straight, cease cutting immedi­ately to prevent further saw chain and bar damage. See the Maintenance and Adjustments section of the Service Manual for chain replacement or adjust­ment procedures.
7. Underwater models require daily preventive mainte­nance. See the Maintenance and Adjust ments sec­tion of the Service Manual for these mainte nance procedures.
FELLING (CUTTING DOWN A TREE) (FIGURE 2)
Observe all safety precautions.
FELLING OR BACK CUT
4. The felling or back cut is made on the side opposite and at least 2 inches above the hori zontal undercut (the felling cut is made higher as the size of the tree increases). Place the saw so the hand guard is close to the tree trunk and the bucking cleat is dug in.
5. Start the cut horizontally. Pivot the bar in until the cut is being made parallel to the notch cut. Cut until the saw is about 1 or 2 inches from the notch. Do not cut through the notch.
NOTE:
The uncut wood between the felling and notch cuts
is called the hinge. The hinge controls the fall of the
tree and should be of uniform thick ness.
6. As the saw nears the back cut, watch the treetop and the cut for signs of movement. Be alert as soon as the tree starts to move, turn off the saw, pull it from the tree and move away quickly on your es­cape route.
7. For trees larger than bar length, make two felling cuts. Cut in as far as the bar will go, move to the other side and start the second cut in the same man­ner as the rst while pivoting the saw to complete the felling cut.
Figure 2. Felling a Tree
NOTCHING OR UNDERCUTTING
1. The notching or undercutting cut is made on the side you want the tree to fall. Place the saw so the hand guard is close to the tree trunk and the bucking cleat is dug in.
2. Start the cut horizontally. Pivot the nose of the bar in last. Cut to about one-quarter of the tree’s diameter.
WARNING
Watch out for falling limbs.
3.
Make a diagonal cut down to meet the hori zontal cut and remove the wood from the notch.
BUCKING
Bucking is the sawing of a log or fallen tree into smaller pieces.
1. Observe all safety precautions.
2. Use both hands. Grip the saw rmly.
3. Stand uphill. A log that is cut loose may role down-
hill.
4. Keep the chain out of the dirt. Dirt will dull the chain.
A dull chain is unsafe.
5. Stand to the left of the saw.
CROSSCUTTING
NOTE:
Before starting to cut through a log try to imagine
what is going to happen. Look out for stresses in the
log and cut through the log in such a manner that
the guide bar will not get pinched.
14 ► CS05/CS06 User Manual
LOGS WITH PRESSURE ON TOP (FIGURE
3)
1. Observe all safety precautions.
2. Begin with an upper cut, down from the top. Do not
cut too deeply. A cut of about 1/3 of the log diameter is enough.
3. Finish with a bottom cut. They should meet.
OPERATION
Figure 3. Crosscutting Logs with Pressure on Top
THICK LOGS LARGER THAN BAR LENGTH WITH PRESSURE ON TOP (FIGURE 4)
1. Observe all safety precautions.
2. Begin by cutting on the opposite side of the log.
3. Pull the saw towards you and cut from the top.
4. Cut from the bottom. Make a boring cut if the log is
close to the ground.
5. Finish with a bottom cut.
Figure 4. Crosscutting Logs Larger than Bar Length
With Pressure on Top
CS05/CS06 User Manual ◄ 15
OPERATION
LOGS/LIMBS WITH PRESSURE ON BOTTOM (FIGURE 5)
1. Observe all safety precautions.
2. Begin with a bottom cut. The depth of the cut should
be about 1/3 of the log diameter.
3. Finish with an upper cut, down from the top. The saw cuts should meet.
Figure 5. Crosscutting Logs/Limbs with
Pressure on Bottom.
THICK LOGS LARGER THAN BAR LENGTH WITH PRESSURE ON THE BOTTOM (FIGURE 6)
1. Observe all safety precautions.
2. Begin by cutting on the opposite side of the log.
3. Pull the saw towards you and cut from the top.
4. Cut from the bottom. Make a boring cut if the log is
close to the ground.
5. Finish with a top cut.
Figure 6. Crosscutting Thick Logs with Pressure on
Bottom
16 ► CS05/CS06 User Manual
PRUNING AND DEBRANCHING
1. Observe all safety precautions.
2. Use both hands. Keep a rm grip.
3. Be alert for kickback. Do not allow the tip of the bar
to touch anything while the chain is in motion.
4. Do not cut overhead. Keep the saw below chest lev­el. The chain is too close to your face in this position.
COLD WEATHER OPERATION
If the saw is to used during cold weather, preheat the hydraulic uid at low engine speed. When using the normally recommended oils, oil should be at or above 50 °F/10 °C (400 ssu/ 82 centistokes) before use.
Damage to the hydraulic system or saw can result from use with uid that is too viscous or thick.
Cutting frozen wood causes the cutters to wear, crack and break at the back rivet hole unless proper precau­tions are taken. To extend chain life when cutting in cold weather:
1. Be sure the oiler is working.
2. Keep the chain tensioned and check often.
3. Keep the cutters properly sharpened. Touch up at
least every hour. Never force a dull chain to cut.
4. Clean out the bar groove and keep the oil hole open. Turn the bar over to equalize wear on the rails.
5. Always install a new sprocket with a new chain.
OPERATION
CS05/CS06 User Manual ◄ 17
TOOL PROTECTION & CARE
NOTICE
In addition to the Safety Precautions found in
this manual, observe the following for equipment
protection and care.
Make sure all couplers are wiped clean before con-
nection.
The hydraulic circuit control valve must be in the “OFF” position when coupling or uncoupling hydrau­lic tools. Failure to do so may result in damage to the quick couplers and cause overheating of the hy­draulic system.
Always store the tool in a clean dry space, safe from damage or pilferage.
Make sure the circuit PRESSURE hose (with male quick disconnect) is connected to the “IN” port. The circuit RETURN hose (with female quick disconnect) is connected to the opposite port. Do not reverse cir­cuit ow. This can cause damage to internal seals.
Always replace hoses, couplings and other parts with replacement parts recommended by Stanley Hydraulic Tools. Supply hoses must have a mini­mum working pressure rating of 2500 psi/172 bar.
Do not exceed the rated ow (see Specications) page in this manual for correct ow rate and model number. Rapid failure of the internal seals may re­sult.
Always keep critical tool markings, such as warning stickers and tags legible.
Tool repair should be performed by experienced personnel only.
Make certain that the recommended relief valves are installed in the pressure side of the system.
Do not use the tool for applications for which it was not intended.
18 ► CS05/CS06 User Manual
TROUBLESHOOTING
If symptoms of poor performance develop, the following chart can be used as a guide to correct the problem. When diagnosing faults in operation of the saw, always make sure the hydraulic power source is supplying the correct hydraulic ow and pressure to the saw as listed in the table. Use a owmeter known to be accurate. Check the ow with the hydraulic uid temperature at least 80 °F/27 °C.
PROBLEM CAUSE REMEDY
Cuts slow. Insufcient uid ow or low relief
valve setting.
Chain dull. Sharpen per instructions or replace.
Backpressure too high. Should not exceed 250 psi/17 bar at
Bar turns color. Insufcient oiler ow. Adjust oiler per Service Manual.
Tool does not run. Power unit not functioning. Check power unit for proper ow
Coupler or hoses blocked. Remove obstruction.
Mechanical failure. Disassemble tool and inspect for
Tool runs backwards. Pressure and return reversed. Connect for proper ow direction.
On/Off trigger is hard to press. Pressure and return reversed. Correct for proper ow direction.
Backpressure too high. Should not exceed 250 psi/17 bar at
Oil leakage around drive sprocket. Motor shaft seal failure. Replace as required. Make sure that
Oil leakage between rear gear hous­ing and valve handle assembly.
Chain continues to move after valve is shut off.
Motor face seal failure. Replace as required.
Chain is too loose. Tighten chain.
Input ow too high. Decrease ow.
Adjust uid ow to proper gpm. For optimum performance adjust relief valve to 2250 psi/155 psi.
8 gpm/30 lpm measured at the end of the tool operating hoses.
and pressure (4 gpm/15 lpm at 1500 psi/104 bar minimum for the CS05 and 7 gpm/26 lpm at 1000 psi/70 bar for the CS06).
damage.
Motor shaft rotates clockwise.
8 gpm/30 lpm measured at the end of the tool operating hoses.
oil present is not the result of excess oiler ow.
CS05/CS06 User Manual ◄ 19
SPECIFICATIONS
Capacity
CS05 ..................................................................................................... 12 and 15 inch/30 and 38 cm Cut Lengths
CS06 ......................................................................................... 12, 15 and 20 inch/30, 38 and 51 cm Cut Lengths
Weight (w/o bar) ...................................................................................................................................6.25 lbs/2.8 kg
Length (w/o bar) ................................................................................................................................14 inches/36 cm
Width ...................................................................................................................................................9 inches/23 cm
Pressure
CS05 .............................................................................................................................1500-2000 psi/105-140 bar
CS06 ................................................................................................................................ 1000-2000 psi/26-34 lpm
Optimum Flow
CS05 .................................................................................................................................................. 5 gpm/19 lpm
CS06 .................................................................................................................................................. 8 gpm/30 lpm
Porting ....................................................................................................................................................8 SAE O-ring
Connect Size and Type .................................................................................................... 3/8 inch NPT Male Adapter
Hose Whips ............................................................................................................................................................ No
Motor ...............................................................................................................................................................Integral
Kickback Reduction Features
....................Low Kickback Saw Chain, Small Radius Saw Bar, Front Hand Guard, Low Inertia Motor/Drive System
Sound Power Level ....................................................................................................................................... 107 dBA
Sound Pressure Level @ 1 meter ................................................................................................................ 93.1 dBA
Vibration Level ..............................................................................................................................................3.1 (m/s2)
ACCESSORIES
Rim Sprocket, .325 P × 7 Tooth .........................................................................................................................07629
12-inch Saw Bar ................................................................................................................................................08347
15-inch Saw Bar ................................................................................................................................................07638
20-inch Saw Bar ................................................................................................................................................07639
Saw Chain for 12-inch Bar.................................................................................................................................08348
Saw Chain for 15-inch Bar.................................................................................................................................07641
Saw Chain for 20-inch Bar.................................................................................................................................07642
File Guide with File ............................................................................................................................................ 12363
Flat File .............................................................................................................................................................. 11294
Scrench ............................................................................................................................................................. 11464
SERVICE TOOLS
O-ring Tool Kit ....................................................................................................................................................04337
Seal Kit ..............................................................................................................................................................07830
20 ► CS05/CS06 User Manual
CS05/CS06 PARTS ILLUSTRATION
CS05/CS06 User Manual ◄ 21
CS05/CS06 PARTS LIST
ITEM
PART
NO.
NO. QTY DESCRIPTION
1 00753
09622
2 07636
08202
3 28323 1 CE DECAL (CE ONLY)
4 07652 1 REAR GEAR HSG ASSY (7–9 GPM)
07834 1 REAR GEAR HSG ASSY (4–6 GPM)
5 00289 2 DOWEL PIN
6 04041 4 BUSHING
7 00020 1 O-RING
8 07612 1 IDLER SHAFT
9 04106
07832
10 NO ITEM
11 00038
00788
12 01362 1 O-RING
13 02921 1 AUTOMATIC OILER
14 17784 1 SOUND POWER LEVEL. DECAL
15 06971
07724
16 07620
07714
17 11354 1 OC/CC DECAL (NOT ILLUSTRATED)
18 07632
07723
19 00144
00230
20 01116 1 BUCKING CLEAT
21 02649 2 HANDLE BAR RETAINER
22 07611 1 HANDLE BAR
23 02634 3 WASHER
24 00429
09277
25 07473 1 HAND GUARD
26 13907 1 WARNING DECAL (KICKBACK)
27 12412 1 WARNING DECAL (ELECTRIC)
28 28409 1 COMPOSITE SAFETY DECAL (CE
29 07628
02446
30 66577 1 CHAIN GUIDE PLATE-INSIDE
31 08347 1 SAW BAR 12 IN.
07638 1 SAW BAR 15 IN.
07639 1 SAW BAR 20 IN.
32 08348 1 SAW CHAIN – 12 IN.
07641 1 SAW CHAIN – 15 IN.
07642 1 SAW CHAIN – 20 IN.
8 CAPSCREW
CAPSCREW U/W MODEL
1 NAME TAG—CS06
NAME TAG—CS05
2 DRIVE GEAR (7–9 GPM)
DRIVE GEAR (4–6 GPM)
1 NUT
NUT U/W MODEL
(CE ONLY)
1 LOCKNUT
LOCKNUT U/W MODEL
1 BAR ADJUSTMENT NUT
BAR ADJUSTMENT NUT U/W MODEL
1 SCREW
SCREW U/W MODEL
1 CAPSCREW
CAPSCREW U/W MODEL
1 NUT
NUT U/W MODEL
ONLY)
3 CAPSCREW
CAPSCREW U/W MODEL
ITEM
PART
NO.
NO. QTY DESCRIPTION
33 66578 1 CHAIN GUIDE PLATE-OUTSIDE
34 07618 1 CHAIN GUARD
35 07631
07722
36 00453
00808
37 07617 1 WASHER
38 07629 1 RIM SPROCKET
39 07616 1 SPROCKET ADAPTER
40 06635 1 RET RING
41 00335
07720
42 04746 1 AUTOMATIC OILER DECAL
43 04539 1 WASHER
44 07623 1 CHAIN CATCHER
45 07630 2 STUD
46 02688
02764
47 04037 1 SHAFT SEAL
48 07615 1 SEAL BACK-UP WASHER
49 04856 1 RETAINING RING
50 04044 2 NEEDLE ROLLER
51 07613
07710
52 16070 1 RETAINING RING
53 10536 1 SELECTOR SCREW
54 00026 1 O-RING
55 07627 1 O-RING
56 00072
00875
57 07603 1 SAFETY CATCH
58 07602
07715
59 34093 1 TRIGGER CASTING
60 03972 1 COUPLER, FEMALE
61 03973 1 COUPLER, MALE
62 28234 2 HOSE
63 01605 2 O-RING
64 07693
07713
65 07624
07718
66 03009
03278
67 11207 1 CIRCUIT TYPE D DECAL (CE ONLY)
68 10535 1 ON/OFF VALVE SPOOL
69 07626 1 O-RING
70 07609 2 SPRING WASHER
2 NUT
NUT U/W MODEL
1 NUT
NUT U/W MODEL
1 BALL BEARING
BALL BEARING U/W MODEL
1 CAPSCREW
CAPSCREW U/W MODEL
1 DRIVE SHAFT
DRIVE SHAFT U/W MODEL
1 ROLL PIN
ROLL PIN U/W MODEL
1 SPRING
SPRING U/W MODEL
1 VALVE HANDLE ASSY
VALVE HANDLE ASSY U/W MODEL
1 ROLL PIN
ROLL PIN U/W MODEL
2 ROLL PIN
ROLL PIN U/W MODEL
22 ► CS05/CS06 User Manual
ITEM
PART
NO.
NO. QTY DESCRIPTION
71 07610 1 SPRING
72 00190 1 ROLL PIN
73 10537 1 KEEPER
74 07625 1 PLUG BUTTON
75 03786 1 GPM STICKER (7–9 GPM)
03782 1 GPM STICKER (4–6 GPM)
76 05144 1 BAR & CHAIN GUARD
77 00767 1 GREASE FITTING U/W MODEL ONLY
00936 2 ADAPTER (NOT SHOWN)
26414 1 LOCK OUT KIT, SHIPPED INSTALLED
03971 1 COUPLER SET
07830 1 SEAL KIT
(NOT SHOWN)
PARTS LIST
CS05/CS06 User Manual ◄ 23
IMPORTANT
Stanley Hydraulic Tools
3810 SE Naef Road
Milwaukie, Oregon 97267-5698 USA
(503) 659-5660 / Fax (503) 652-1780
www.stanleyhydraulic.com
To ll out a Product Warranty Recording form, and for information on your warranty,
visit Stanleyhydraulic.com and select the Warranty tab.
(NOTE: The warranty recording form must be submitted to validate the warranty).
Loading...
