Stanley Black & Decker CD12 user guide

CD12
Hydraulic
USER MANUAL
Safety, Operation and Maintenance
© 2014 Stanley Black & Decker, Inc.
New Britain, CT 06053
U.S.A.
62379 8/2014 Ver. 4
WARNING
TABLE OF CONTENTS
SAFETY SYMBOLS ..................................................................................................................................................4
SAFETY PRECAUTIONS .......................................................................................................................................... 5
TOOL STICKERS & TAGS ........................................................................................................................................6
HOSE TYPES ............................................................................................................................................................ 7
HOSE RECOMMENDATIONS ..................................................................................................................................8
FIGURE 1. TYPICAL HOSE CONNECTIONS .......................................................................................................8
HTMA REQUIREMENTS ...........................................................................................................................................9
OPERATION ............................................................................................................................................................10
ANCHOR STAND TROUBLESHOOTING ...............................................................................................................13
TOOL PROTECTION & CARE ................................................................................................................................14
TROUBLESHOOTING ............................................................................................................................................15
MAINTENANCE ......................................................................................................................................................16
SPECIFICATIONS ................................................................................................................................................... 17
ACCESSORIES.......................................................................................................................................................17
SERVICE PARTS .................................................................................................................................................... 17

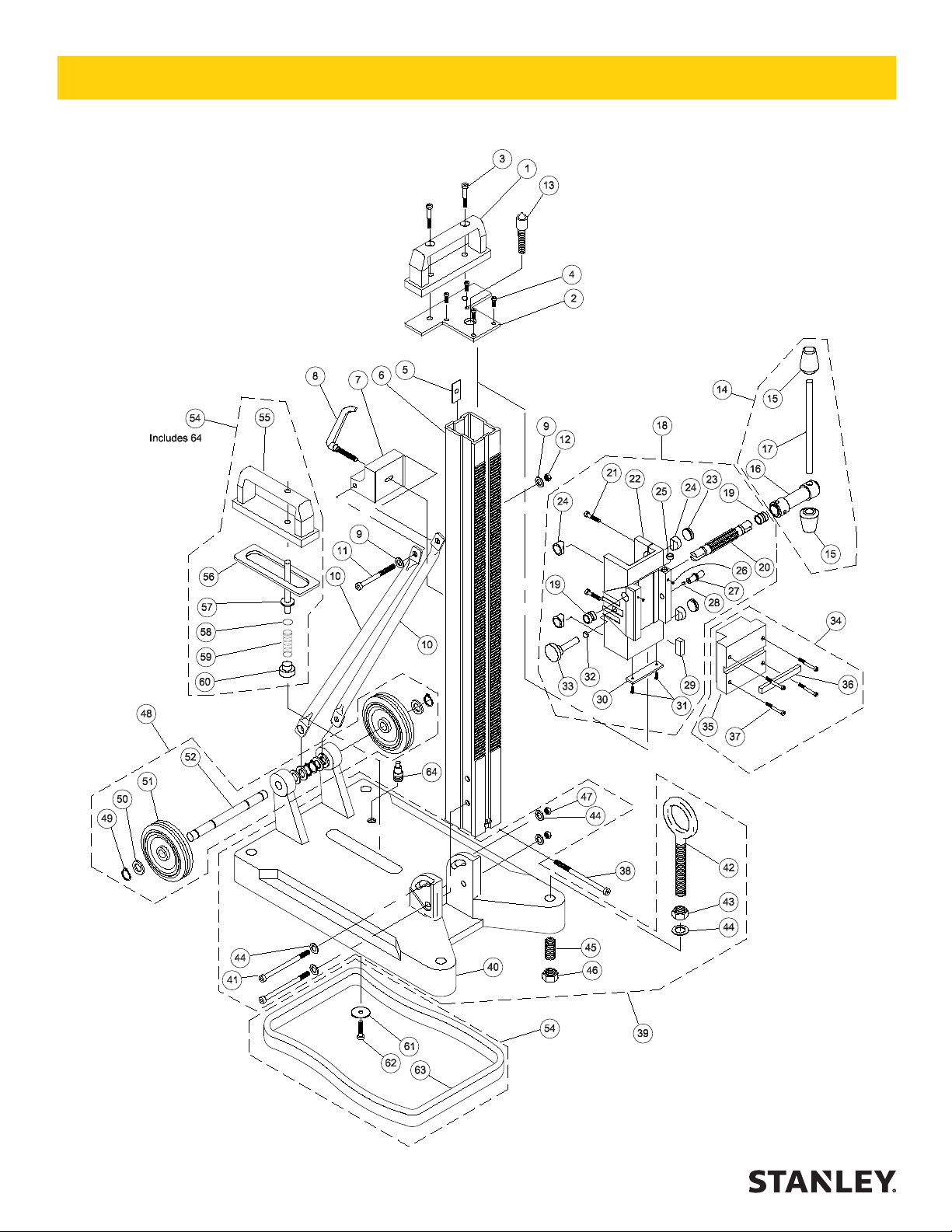

CD12 PARTS ILLUSTRATION ................................................................................................................................18
CD12 PARTS LIST ..................................................................................................................................................19
CD12 ANCHOR STAND ILLUSTRATION ...............................................................................................................20
CD12 ANCHOR STAND PARTS LIST ..................................................................................................................... 21
IMPORTANT
To ll out a Product Warranty Validation form, and for information on your warranty,
visit Stanleyhydraulics.com and select the Company tab, Warranty.
(NOTE: The warranty Validation record must be submitted to validate the warranty).
SERVICING: This manual contains safety, operation, and routine maintenance instructions. Stanley Hydraulic Tools recommends that servicing of hydraulic tools, other than routine maintenance, must be performed by an authorized
and certied dealer. Please read the following warning.
SERIOUS INJURY OR DEATH COULD RESULT FROM THE IMPROPER REPAIR OR
SERVICE OF THIS TOOL.
REPAIRS AND / OR SERVICE TO THIS TOOL MUST ONLY BE DONE BY AN
AUTHORIZED AND CERTIFIED DEALER.
For the nearest authorized and certied dealer, call Stanley Hydraulic Tools at the number listed on the back of this
manual and ask for a Customer Service Representative.
CD12 User Manual ◄ 3
DANGER
WARNING
CAUTION
CAUTION
NOTICE
IMPORTANT
SAFETY SYMBOLS
Safety symbols and signal words, as shown below, are used to emphasize all operator, maintenance and repair ac­tions which, if not strictly followed, could result in a life-threatening situation, bodily injury or damage to equipment.
This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.
This safety alert and signal word indicate an imminently hazardous situation which, if not avoided, will result in death or serious injury.
This safety alert and signal word indicate a potentially hazardous situation which, if not avoided, could result in death or serious injury.
This safety alert and signal word indicate a potentially hazardous situation which, if not avoided, could result in death or serious injury.
This signal word indicates a potentially hazardous situation which, if not avoid­ed, may result in property damage.
This signal word indicates a situation which, if not avoided, will result in damage to the equipment.
This signal word indicates a situation which, if not avoided, may result in dam­age to the equipment.
Always observe safety symbols. They are included for your safety and for the protection of the tool.
LOCAL SAFETY REGULATIONS
Enter any local safety regulations here. Keep these instructions in an area accessible to the operator and mainte­nance personnel.
4 ► CD12 User Manual
SAFETY PRECAUTIONS
Tool operators and maintenance personnel must always comply with the safety precautions given in this manual, and on the stickers and tags attached to or on the tool and hose(s).
These safety precautions are for your safety. Review them carefully before operating the tool or performing any maintenance or repairs.
Supervising personnel may specify additional precau­tions for your work area to comply with company policies and local safety regulations. Enter any added precau­tions in the space provided in this manual.
The CD12 Hydraulic Core Drill will provide safe and dependable service if operated in accordance with the instructions given in this manual. Read and understand this manual and any stickers and tags attached to the tool and hoses before operation. Failure to do so could result in personal injury or equipment damage.
Operator must start in a work area without bystand-
ers. Flying debris can cause serious injury.
The operator must be familiar with all prohibited
work areas such as excessive slopes and danger­ous terrain conditions.
Establish a training program for all operators to en-
sure safe operations.
Do not operate the tool unless thoroughly trained or
under the supervision of an instructor.
Always wear safety equipment such as goggles,
head protection, and safety shoes at all times when operating the tool.
Do not inspect or clean the tool while the hydraulic
power source is connected. Accidental engagement of the tool can cause serious injury.
Do not operate this tool without rst reading the Op-
erating Instructions.
Never operate the tool if you cannot be sure that
underground utilities are not present. Underground electrical utilities present an electrocution hazard.
Underground gas utilities present an explosion haz­ard. Other underground utilities may present other hazards.
Do not wear loose tting clothing when operating the tool. Loose tting clothing can get entangled with the
tool and cause serious injury.
Supply hoses must have a minimum working pres­sure rating of 2500 psi/175 bar.
Be sure all hose connections are tight.
The hydraulic circuit control valve must be in the
OFF position when coupling or uncoupling the tool. Wipe all couplers clean before connecting. Failure to do so may result in damage to the quick couplers and cause overheating. Use only lint-free cloths.
Do not operate the tool at oil temperatures above 140 °F/60 °C. Operation at higher oil temperatures can cause operator discomfort and may cause dam­age to the tool.
Do not operate a damaged, improperly adjusted, or incompletely assembled tool.
To avoid personal injury or equipment damage, all tool repair, maintenance and service must only be performed by authorized and properly trained per­sonnel.
Do not exceed the rated limits of the tool or use the tool for applications beyond its design capacity.
Always keep critical tool markings, such as labels and warning stickers legible.
Always replace parts with replacement parts recom­mended by Stanley Hydraulic Tools.
Check fastener tightness often and before each use daily.
Warning: Use of this tool on certain materials during demolition could generate dust potentially contain­ing a variety of hazardous substances such as as­bestos, silica or lead. Inhalation of dust containing these or other hazardous substances could result
in serious injury, cancer or death. Protect yourself
and those around you. Research and understand the materials you are cutting. Follow correct safety procedures and comply with all applicable national, state or provisional health and safety regulations relating to them, including, if appropriate arranging
for the safe disposal of the materials by a qualied
person.
CD12 User Manual ◄ 5
Model No.
CD12
CAUTION
Stanley Hydraulic Tools 3810 SE Naef Road Milwaukie, OR 97267
TOOL STICKERS & TAGS
D
30 LPM @ 138BAR EHTMA CATEGORY
65139 CD12 Name Tag
28409 Composite Sticker
NOTE:
THE INFORMATION LISTED
ON THE STICKERS SHOWN,
MUST BE LEGIBLE AT ALL
TIMES.
REPLACE DECALS IF
THEY BECOME WORN OR
DAMAGED. REPLACEMENTS
ARE AVAILABLE FROM
YOUR LOCAL STANLEY
DISTRIBUTOR.
11207 Circuit Type D
1. FAILURE TO USE HYDRAULIC HOSE LABELED AND CER­TIFIED AS NON-CONDUCTIVE WHEN USING HYDRAULIC TOOLS ON OR NEAR ELECTRICAL LINES MAY RESULT IN DEATH OR SERIOUS INJURY.
BEFORE USING HOSE LABELED AND CERTIFIED AS NON- CONDUCTIVE ON OR NEAR ELECTRIC LINES BE SURE THE HOSE IS MAINTAINED AS NON-CONDUCTIVE. THE HOSE SHOULD BE REGULARLY TESTED FOR ELECTRIC CUR­RENT LEAKAGE IN ACCORDANCE WITH YOUR SAFETY
DEPARTMENT INSTRUCTIONS.
2. A HYDRAULIC LEAK OR BURST MAY CAUSE OIL INJEC­TION INTO THE BODY OR CAUSE OTHER SEVERE
PERSONAL INJURY.
A. DO NOT EXCEED SPECIFIED FLOW AND PRESSURE
FOR THIS TOOL. EXCESS FLOW OR PRESSURE MAY
CAUSE A LEAK OR BURST.
B. DO NOT EXCEED RATED WORKING PRESSURE OF
HYDRAULIC HOSE USED WITH THIS TOOL. EXCESS
PRESSURE MAY CAUSE A LEAK OR BURST.
C. CHECK TOOL HOSE COUPLERS AND CONNECTORS
DAILY FOR LEAKS. DO NOT FEEL FOR LEAKS WITH YOUR HANDS. CONTACT WITH A LEAK MAY RESULT
IN SEVERE PERSONAL INJURY.
11206 Circuit Type C
DANGERDANGER
D. DO NOT LIFT OR CARRY TOOL BY THE HOSES. DO
NOT ABUSE HOSE. DO NOT USE KINKED, TORN OR DAMAGED HOSE.
3. MAKE SURE HYDRAULIC HOSES ARE PROPERLY CON-
NECTED TO THE TOOL BEFORE PRESSURING SYSTEM. SYSTEM PRESSURE HOSE MUST ALWAYS BE CON­NECTED TO TOOL “IN” PORT. SYSTEM RETURN HOSE MUST ALWAYS BE CONNECTED TO TOOL “OUT” PORT.
REVERSING CONNECTIONS MAY CAUSE REVERSE
TOOL OPERATION WHICH CAN RESULT IN SEVERE PERSONAL INJURY.
4. DO NOT CONNECT OPEN-CENTER TOOLS TO CLOSED- CENTER HYDRAULIC SYSTEMS. THIS MAY RESULT IN
LOSS OF OTHER HYDRAULIC FUNCTIONS POWERED BY THE SAME SYSTEM AND/OR SEVERE PERSONAL INJURY.
5. BYSTANDERS MAY BE INJURED IN YOUR WORK AREA.
KEEP BYSTANDERS CLEAR OF YOUR WORK AREA.
6. WEAR HEARING, EYE, FOOT, HAND AND HEAD PRO- TECTION.
7. TO AVOID PERSONAL INJURY OR EQUIPMENT DAMAGE,
ALL TOOL REPAIR MAINTENANCE AND SERVICE MUST ONLY BE PERFORMED BY AUTHORIZED AND PROPERLY TRAINED PERSONNEL.
The safety tag (P/N 15875) at right is attached to the tool when shipped from the factory. Read and understand the safety instructions listed on this tag before removal. We suggest you retain this tag and attach it to the tool when not in use.
6 ► CD12 User Manual
IMPORTANT
READ OPERATION MANUAL AND
SAFETY INSTRUCTIONS FOR THIS
TOOL BEFORE USING IT.
USE ONLY PARTS AND REPAIR
PROCEDURES APPROVED BY
STANLEY AND DESCRIBED IN THE
OPERATION MANUAL.
TAG TO BE REMOVED ONLY BY
TOOL OPERATOR.
SEE OTHER SIDE
IMPORTANT
READ OPERATION MANUAL AND
SAFETY INSTRUCTIONS FOR THIS
USE ONLY PARTS AND REPAIR
PROCEDURES APPROVED BY
STANLEY AND DESCRIBED IN THE
TAG TO BE REMOVED ONLY BY
SAFETY TAG P/N 15875 (Shown smaller then actual size)
TOOL BEFORE USING IT.
OPERATION MANUAL.
TOOL OPERATOR.
SEE OTHER SIDE
HOSE TYPES
The rated working pressure of the hydraulic hose must be equal to or higher than the relief valve setting on the hy­draulic system. There are three types of hydraulic hose that meet this requirement and are authorized for use with Stanley Hydraulic Tools. They are:
Certied non-conductive — constructed of thermoplastic or synthetic rubber inner tube, synthetic ber braid
reinforcement, and weather resistant thermoplastic or synthetic rubber cover. Hose labeled certied non- conductive is the only hose authorized for use near electrical conductors.
Wire-braided (conductive) — constructed of synthetic rubber inner tube, single or double wire braid reinforce­ment, and weather resistant synthetic rubber cover. This hose is conductive and must never be used near
electrical conductors.
Fabric-braided (not certied or labeled non-conductive) — constructed of thermoplastic or synthetic rubber in­ner tube, synthetic ber braid reinforcement, and weather resistant thermoplastic or synthetic rubber cover. This
hose is not certied non-conductive and must never be used near electrical conductors.
HOSE SAFETY TAGS
To help ensure your safety, the following DANGER tags are attached to all hose purchased from Stanley Hydraulic Tools. DO NOT REMOVE THESE TAGS.
If the information on a tag is illegible because of wear or damage, replace the tag immediately. A new tag may be obtained from your Stanley Distributor.
THE TAG SHOWN BELOW IS ATTACHED TO “CERTIFIED NON-CONDUCTIVE” HOSE
DANGER
1. FAILURE TO USE HYDRAULIC HOSE LABELED AND CERTIFIED AS NON-CONDUCTIVE WHEN USING HYDRAULIC TOOLS ON OR NEAR ELECTRIC LINES MAY RESULT IN DEATH OR SERIOUS INJURY.
FOR PROPER AND SAFE OPERATION MAKE SURE THAT YOU HAVE BEEN PROP­ERLY TRAINED IN CORRECT PROCEDURES REQUIRED FOR WORK ON OR AROUND
ELECTRIC LINES.
2. BEFORE USING HYDRAULIC HOSE LABELED AND CERTIFIED AS NON-CONDUCTIVE ON OR NEAR ELECTRIC LINES. WIPE THE ENTIRE LENGTH OF THE HOSE AND FIT­TING WITH A CLEAN DRY ABSORBENT CLOTH TO REMOVE DIRT AND MOISTURE AND TEST HOSE FOR MAXIMUM ALLOWABLE CURRENT LEAKAGE IN ACCORDANCE WITH
SAFETY DEPARTMENT INSTRUCTIONS.
DO NOT REMOVE THIS TAG
SEE OTHER SIDE
SIDE 1
3. DO NOT EXCEED HOSE WORKING PRESSURE OR ABUSE HOSE. IMPROPER USE OR HANDLING OF HOSE COULD RESULT IN BURST OR OTHER HOSE FAILURE.
KEEP HOSE AS FAR AWAY AS POSSIBLE FROM BODY AND DO NOT PERMIT DIRECT
CONTACT DURING USE. CONTACT AT THE BURST CAN CAUSE BODILY INJECTION
AND SEVERE PERSONAL INJURY.
4. HANDLE AND ROUTE HOSE CAREFULLY TO AVOID KINKING, ABRASION, CUTTING, OR
CONTACT WITH HIGH TEMPERATURE SURFACES. DO NOT USE IF KINKED. DO NOT USE HOSE TO PULL OR LIFT TOOLS, POWER UNITS, ETC.
5. CHECK ENTIRE HOSE FOR CUTS CRACKS LEAKS ABRASIONS, BULGES, OR DAM-
AGE TO COUPLINGS IF ANY OF THESE CONDITIONS EXIST, REPLACE THE HOSE IMMEDIATELY. NEVER USE TAPE OR ANY DEVICE TO ATTEMPT TO MEND THE HOSE.
6. AFTER EACH USE STORE IN A CLEAN DRY AREA.
(Shown smaller than actual size)
DANGER
DANGER
SEE OTHER SIDE
SIDE 2
THE TAG SHOWN BELOW IS ATTACHED TO “CONDUCTIVE” HOSE.
DANGER
DANGER
1. DO NOT USE THIS HYDRAULIC HOSE ON OR NEAR ELECTRIC LINES. THIS HOSE IS NOT LABELED OR CERTIFIED AS NON-CONDUCTIVE. USING THIS HOSE ON OR NEAR ELECTRICAL LINES MAY RESULT IN DEATH OR SERIOUS INJURY.
2. FOR PROPER AND SAFE OPERATION MAKE SURE THAT YOU HAVE BEEN PROPERLY TRAINED IN CORRECT PROCEDURES REQUIRED FOR WORK ON OR AROUND ELEC­TRIC LINES.
3. DO NOT EXCEED HOSE WORKING PRESSURE OR ABUSE HOSE. IMPROPER USE OR
HANDLING OF HOSE COULD RESULT IN BURST OR OTHER HOSE FAILURE. KEEP HOSE AS FAR AWAY AS POSSIBLE FROM BODY AND DO NOT PERMIT DIRECT CONTACT
DURING USE. CONTACT AT THE BURST CAN CAUSE BODILY INJECTION AND SEVERE
PERSONAL INJURY.
4. HANDLE AND ROUTE HOSE CAREFULLY TO AVOID KINKING, CUTTING, OR CONTACT
WITH HIGH TEMPERATURE SURFACES. DO NOT USE IF KINKED. DO NOT USE HOSE TO PULL OR LIFT TOOLS, POWER UNITS, ETC.
DO NOT REMOVE THIS TAG
SEE OTHER SIDE
SIDE 1
5. CHECK ENTIRE HOSE FOR CUTS CRACKS LEAKS ABRASIONS, BULGES, OR DAMAGE TO
COUPLINGS IF ANY OF THESE CONDITIONS EXIST, REPLACE THE HOSE IMMEDIATELY. NEVER USE TAPE OR ANY DEVICE TO ATTEMPT TO MEND THE HOSE.
6. AFTER EACH USE STORE IN A CLEAN DRY AREA.
(Shown smaller than actual size)
DANGER
SEE OTHER SIDE
SIDE 2
DO NOT REMOVE THIS TAG
DO NOT REMOVE THIS TAG
CD12 User Manual ◄ 7
Min. Working Pressure
USE
(Press/Return)
HOSE RECOMMENDATIONS
Certied Non-Conductive Hose - Fiber Braid - for Utility Bucket Trucks
Oil Flow Hose Lengths Inside Diameter
GPM LPM FEET METERS INCH MM PSI BAR
4-9 15-34 up to 10 up to 3 3/8 10 Both 2250 155
Conductive Hose - Wire Braid or Fiber Braid -DO NOT USE NEAR ELECTRICAL CONDUCTORS
4-6 15-23 up to 25 up to 7.5 3/8 10 Both 2500 175
4-6 15-23 26-100 7.5-30 1/2 13 Both 2500 175
5-10.5 19-40 up to 50 up to 15 1/2 13 Both 2500 175
5-10.5 19-40 51-100 15-30 5/8 16 Both 2500 175
5/8 16 Pressure 2500 175
3/4 19 Return 2500 175
5-10.5 19-40 100-300 30-90
10-13 38-49 up to 50 up to 15 5/8 16 Both 2500 175
5/8 16 Pressure 2500 175
3/4 19 Return 2500 175
10-13 38-49 51-100 15-30
3/4 19 Pressure 2500 175
1 25.4 Return 2500 175
10-13 38-49 100-200 30-60
5/8 16 Pressure 2500 175
13-16 49-60 up to 25 up to 8
3/4 19 Return 2500 175
3/4 19 Pressure 2500 175
1 25.4 Return 2500 175
13-16 49-60 26-100 8-30
PRESSURE
<<< FLOW
RETURN
FLOW >>>
Figure 1. Typical Hose Connections
Tool to Hydraulic Circuit Hose
Recommendations
The chart to the right shows recommended
minimum hose diameters for various hose
lengths based on gallons per minute (gpm)/
liters per minute (lpm). These recommenda-
tions are intended to keep return line pressure
(back pressure) to a minimum acceptable lev-
el to ensure maximum tool performance.
8 ► CD12 User Manual
This chart is intended to be used for hydraulic
tool applications only based on Stanley Hy-
draulic Tools tool operating requirements and
should not be used for any other applications.
All hydraulic hose must have at least a rated
minimum working pressure equal to the maxi-
mum hydraulic system relief valve setting.
All hydraulic hose must meet or exceed
specications as set forth by SAE J517.
HTMA / EHTMA REQUIREMENTS
HTMA / EHTMA REQUIREMENTS
HTMA HYDRAULIC SYSTEM REQUIREMENTS
Flow Range
Nominal Operating Pressure (at the power supply outlet)
System relief valve setting (at the power supply outlet)
Maximum back pressure (at tool end of the return hose)
Measured at a max. uid viscosity of:
(at min. operating temperature)
Temperature: Sufcient heat rejection capacity to limit max. uid temperature to:
(at max. expected ambient temperature)
Min. cooling capacity at a temperature
difference of between ambient and uid
temps NOTE: Do not operate the tool at oil temperatures above 140° F (60° C). Operation at higher temperatures can cause operator discomfort at the tool.
Filter
Min. full-ow ltration Sized for ow of at least:
(For cold temp. startup and max. dirt-holding capacity)
4-6 gpm 7-9 gpm 9-10.5 gpm 11-13 gpm (15-23 lpm) (26-34 lpm) (34-40 lpm) (42-49 lpm) 1500 psi 1500 psi 1500 psi 1500 psi (103 bar) (103 bar) (103 bar) (103 bar)
2100-2250 psi 2100-2250 psi 2200-2300 psi 2100-2250 psi (145-155 bar) (145-155 bar) (152-159 bar) (145-155 bar)
250 psi 250 psi 250 psi 250 psi (17 bar) (17 bar) (17 bar) (17 bar)
400 ssu* 400 ssu* 400 ssu* 400 ssu* (82 centistokes) (82 centistokes) (82 centistokes) (82 centistokes)
140° F 140° F 140° F 140° F (60° C) (60° C) (60° C) (60° C)
3 hp 5 hp 6 hp 7 hp (2.24 kW) (3.73 kW) (5.22 kW) (4.47 kW) 40° F 40° F 40° F 40° F (22° C) (22° C) (22° C) (22° C)
25 microns 25 microns 25 microns 25 microns 30 gpm 30 gpm 30 gpm 30 gpm (114 lpm) (114 lpm) (114 lpm) (114 lpm)
TYPE I TYPE II
TOOL TYPE
TYPE RR
TYPE III
Hydraulic uid Petroleum based
(premium grade, anti-wear, non-conductive) Viscosity (at min. and max. operating temps)
NOTE:
When choosing hydraulic uid, the expected oil temperature extremes that will be experienced in service determine the most suitable temperature viscosity characteristics. Hydraulic uids with a viscosity index over 140 will meet the requirements
over a wide range of operating temperatures.
*SSU = Saybolt Seconds Universal
EHTMA
100-400 ssu* 100-400 ssu* 100-400 ssu* 100-400 ssu* (20-82 centistokes)
CLASSIFICATION HYDRAULIC SYSTEM REQUIREMENTS
Flow Range
Nominal Operating Pressure (at the power supply outlet)
System relief valve setting (at the power supply outlet)
NOTE: These are general hydraulic system requirements. See tool specication page for tool specic requirements
B
3.5-4.3 gpm 4.7-5.8 gpm 7.1-8.7 gpm 9.5-11.6 gpm 11.8-14.5 gpm (13.5-16.5 lpm) (18-22 lpm) (27-33 lpm) (36-44 lpm) (45-55 lpm) 1870 psi 1500 psi 1500 psi 1500 psi 1500 psi (129 bar) (103 bar) (103 bar) (103 bar) (103 bar)
2495 psi 2000 psi 2000 psi 2000 psi 2000 psi (172 bar) (138 bar) (138 bar) (138 bar) (138 bar)
C
D
CD12 User Manual ◄ 9
OPERATION
GENERAL OPERATION
The tool comes with a set of accessories which may be customized by each purchaser, so as to facilitate per­formance of all work occurring within the scope of his
specic application. Tools included are for mounting and
dismounting.
Single-head wrench SW 24
Single-head wrench SW 32
Single-head wrench SW 41
Hex wrench SW 5
DRILL BIT INSTALLATION
WARNING
Before you start changing the drill bit, make sure that
the tool is disconnected from the power source in
order to avoid unintentional operation of the tool and
injury.
Use a single-head wrench SW 24 (small drill bit) or SW 41 (large drill bits) and a single-head wrench SW 32 to manually unscrew the drill bit to be removed and to screw on the new one. There is no need to use any ad­ditional tools.
DIMENSION OF THE DRILL BIT
Drill head thread: male 1 – 1/4 in. UNC and female R 1/2 in.
Which drill bit at which speed?
Gear #1 Gear #2 Gear #3
Speed (1/min) 610 1440 2880
Drill bit dia. (mm) 100–162 40–100 20–40
Cutting speed (m/s) 3.2–5.6 3.2–7.2 3.2–6.4
CHECK THE POWER SOURCE
1. Using a calibrated owmeter and pressure gauge, check that the hydraulic power source develops a
ow of 7–9 gpm/26–34 lpm at 950–2000 psi/66–138
bar.
2. Make sure the hydraulic power source is equipped with a relief valve set to open at 2100–2250 psi/145– 155 bar.
3. Check that the hydraulic circuit matches the tool for open-center (OC) operation.
CHECK THE TOOL
1. Make certain all tool accessories are correctly in­stalled. Failure to install tool accessories properly can result in damage to the tool or personal injury.
2. Check the equipment for signs of oil leaks. If leaks are observed, do not use the tool; have the equip­ment serviced before use.
3. Check fasteners for tightness.
4. Check the tool and hydraulic system for proper op­eration and performance.
5. If the equipment does not appear to operate prop­erly, have it serviced before use.
CONNECT HOSES
1. Wipe all hose couplers with a clean lint-free cloth before making connections.
2. Connect the hoses from the hydraulic power source
to the tool ttings or quick disconnects. It is good practice to connect the return hose rst and discon-
nect it last to eliminate or reduce trapped pressure
for easier quick-connect tting attachment.
NOTE:
If uncoupled hoses are left in the sun, pressure in-
crease within the hoses can make them difcult to connect. When ever possible, connect the free ends
of hoses together.
3. Observe the ow indicators stamped on the hose couplers to ensure that the ow is in the proper di-
rection. The female coupler on the drill is the inlet coupler.
4. Cycle the control valve momentarily. If the drill does not operate, the hoses might be reversed. Verify correct connection of the hoses before continuing.
10 ► CD12 User Manual
CAUTION
OPERATION
DRILLING WITH CD12 ANCHOR STAND
The anchor stand may be used with a vacuum pump for a vacuum hold down or with a concrete anchor screw to hold the stand in place while drilling. The standard ar­rangement of the anchor stand is for use with a vacuum pump.
Use of a vacuum to hold the anchor stand on other than horizontal surfaces is not recommended. Loss
of vacuum will allow the stand to slip or fall. The
result may be personal injury or damage to the drill
and stand.
The carriage feed handle may be installed on either end of the pinion gear spindle. Align the cross screw in the handle with the slot in the spindle and push the handle on until the spring detent in the handle snaps into the groove on the spindle.
ATTACHING THE CORE DRILL TO THE ANCHOR STAND
1. Back out the drill mount locking screw that is in the carriage. Slide the dovetail block attached to the core drill into the carriage.
2. Tighten the drill mount locking screw into the dove­tail block. The tip of the locking screw engages a hole in the dovetail block.
USING THE ANCHOR STAND WITH A VACUUM PUMP
1. Connect the vacuum pump to the tting on the base of the anchor stand.
2. Screw the leveling screws up to the underside of the base to allow the base gasket to compress when the vacuum is created.
3. Make sure that the base gasket is in good condition to hold the vacuum.
4. Position the anchor stand so that the drill and bit are aligned where the hole is to be drilled.
5. For a good vacuum seal make sure the surface that the base gasket will contact is free of debris.
6. Turn on the vacuum pump.
7. To reposition the anchor stand as required to accu­rately place the drill bit, press the vacuum release button and move the anchor stand. Release the but­ton to re-establish the vacuum.
8. Turn the leveling screws down to contact the sur­face to be drilled. This will provide a solid, stable footing for the stand.
9. Tighten the jam nuts to lock the leveling screws.
USING THE ANCHOR STAND WITH AN ANCHOR SCREW
1. Remove the vacuum handle and gasket from the base. The screw that holds the vacuum handle in place is located on the underside of the base.
2. Remove the base gasket from the base.
3. Screw the leveling screws up to the underside of the base. Make sure the area where the anchor stand is to be placed is clear of debris.
4. Place the anchor stand to position the drill bit.
5. With a marking pen through the slot in the base, mark on the surface a line along which to place the screw anchor.
6. Put the anchor stand aside. Drill and set the screw anchor. Place the anchor stand over the screw an­chor, put the anchor screw through the slot in the base and tighten just snug. Make sure the drill bit is correctly positioned.
7. Turn the leveling screws down to contact the sur­face to be drilled. Tighten the jam nuts to lock the leveling screws.
8. Tighten the anchor screw to hold the anchor stand in position.
9. The “Bulls Eye” level on the drill carriage is used for indicating level when drilling into a horizontal sur­face. You can use the leveling screws to make slight adjustments to level the anchor stand.
10. There is a hex socket head capscrew through the very bottom of the mast into the base. This capscrew solidly holds the mast square to the base. If you want to drill a hole at an angle to the base, this capscrew must be removed.
11. To adjust the mast to any angle up to 45 degrees, you must loosen the clamping screw located in the slidable handle on the back of the mast. Move the mast to the desired angle and tighten the clamping screw.
CD12 User Manual ◄ 11
NOTICE
CAUTION
CAUTION
OPERATION
Manually screw the corresponding drill bit from
below onto the drill bit adapter. Manual tightening
is sufcient because the drill bit will automatically
tighten further during the drilling operation.
12.
Connect the core drill to a water supply. The maxi­mum allowed water pressure is 60 psi/4 bar.
Monitor the water supply continuously to ensure that
sufcient water is supplied to the cut surface to avoid
unnecessary wear of drilling equipment.
13.
Connect the core drill to a hydraulic power supply.
Note the correct connections for the ow of uid to
the core drill.
DRILLING A HOLE
When drilling into a structure that might contain
electrical wiring, be sure to know the location of the
wiring and avoid drilling into it. The housing can carry
electrical current from live electrical wires into which
the drill is accidentally drilled resulting in injury or
death.
7. Turn off the water
8. Turn off the hydraulic system.
9. Remove the drill bit. It may be necessary to use the wrenches to loosen and remove the drill bit.
10. Loosen and back out the drill mount locking screw. Remove the core drill and dovetail block from the carriage.
11. Release the vacuum or remove the anchor screw to move the drill stand.
ADJUSTING THE GUIDE BUSHINGS
1. Loosen the pinch screws that lock the bushing caps. Tighten or loosen the bushing caps as necessary to remove play between the carriage and the mast.
2. Tighten the pinch screws to lock the bushing caps. To replace the guide bushings:
3. Remove the top carry handle and stop plate.
4. Pull the carriage lock knob to release the carriage.
Pull the carriage up and off the mast.
5. Remove the guide bushings from the carriage.
6. Loosen the pinch screws that lock the bushing caps and back out the bushing caps.
7. Install the new guide bushings.
8. Place the carriage on the mast while making sure the guide bushings align with the grooves in the mast.
9. Slide the carriage onto the mast until the carriage lock knob engages the mast.
10. Tighten the bushing caps to remove all carriage play. Tighten the pinch screws to lock the bushing caps. Replace the stop plate and the top carry handle
1.
Open the water supply valve and adjust the water
ow as required. It may be necessary to adjust the
water as the drill bit advances in the hole.
2. Start the core drill by moving the drill valve lever to ON.
3. While holding the feed handle, pull the carriage lock knob out to release the carriage from the mast.
4. Feed to drill to the work face and begin drilling. Start slowly to allow the drill bit to create a full seat in the hole.
5. When the drilling is nished, return the carriage to the top of the mast to where the carriage lock snaps into the hole in the mast to lock the carriage in place.
6. Turn off the core drill.
12 ► CD12 User Manual
OPERATION
ANCHOR STAND TROUBLESHOOTING
Symptom Cause Solution
The Anchor Stand will not hold a vacuum.
Excessive play between the carriage and mast.
Excessive play between the mast and the base.
Debris under the base gasket is preventing a good seal.
Debris between the base gasket and the base.
The gasket is worn out or damaged. Replace.
The slot gasket will not seal. Inspect. Clean or replace.
The vacuum release button is leaking.
Leveling screw(s) set too far down. Retract the screws to allow the
Vacuum leak in the line between the base and vacuum pump.
Normal wear of the guide bushings. Adjust the guide bushings.
Pivot block capscrews are loose. Tighten the capscrews to just snug
Clean the surface on which the gasket must seal.
Clean the base surface.
Inspect. Clean or replace.
base gasket to seal.
Inspect and seal as required.
to remove play.
COLD WEATHER OPERATION
Before using the tool in cold weather, preheat the hy-
draulic uid with the system set at a low speed. The oil
should be at or above 50 °F (10 °C) with a viscosity of 400 SSU (82 cs) before operating the tool. Damage to
the hydraulic system or drill can result from use with uid
that is too viscous or too thick.
STORAGE
Replace any damaged or missing safety decals, labels, and tags before storing the tool. Otherwise, the tool might be improperly used by someone who is not famil­iar with the safety requirements.
Drain all water from the core drill.
Store the tool in a clean, dry, safe place.
CD12 User Manual ◄ 13
NOTICE
TOOL PROTECTION & CARE
In addition to the Safety Precautions found in
this manual, observe the following for equipment
protection and care.
Make sure all couplers are wiped clean before con­nection.
The hydraulic circuit control valve must be in the OFF position when coupling or uncoupling hydrau­lic tools. Failure to do so may result in damage to the quick couplers and cause overheating of the hy­draulic system.
Always store the tool in a clean dry space, safe from damage or pilferage.
Make sure the circuit PRESSURE hose (with male
quick disconnect) is connected to the IN port. The circuit RETURN hose (with female quick disconnect) is connected to the opposite port. Do not reverse cir-
cuit ow. This can cause damage to internal seals.
Always replace hoses, couplings and other parts
with replacement parts recommended by Stanley Hydraulic Tools. Supply hoses must have a mini­mum working pressure rating of 2500 psi/172 bar.
Do not exceed the rated ow. See Specications in this manual for correct ow rate. Rapid failure of the
internal seals may result.
Always keep critical tool markings, such as warning stickers and tags legible.
Tool repair should be performed by experienced and trained personnel only.
Make certain that the recommended relief valves are installed in the pressure side of the system.
Do not use the tool for applications for which it was not intended.
14 ► CD12 User Manual
TROUBLESHOOTING
When diagnosing faults in operation of the grinder, always check that the hydraulic power source is supplying the
correct hydraulic ow and pressure to the grinder as listed in the table. Use a owmeter known to be accurate. Check the ow with the hydraulic oil temperature at least 80 °F/27 °C.
Problem Cause Solution
Tool will not start Power not being supplied. Make sure the hoses are connected
and the couplers are tight.
Turn the hydraulic system control valve ON.
Defective quick-disconnect. Check each disconnect separately.
Replace as necessary.
Jammed motor. See your authorized dealer for
service.
Low drilling torque. Incorrect hydraulic ow. Check that the hydraulic power source
is producing 7-9 gpm/26-34 lpm at 950-2000 psi/66-138 bar.
Defective quick-disconnect. Check each disconnect separately.
Hydraulic circuit relief set too low. Set relief valve at 2100 psi/145 bar.
Fluid restriction in hose or valve. Excess back-pressure.
Hoses too restrictive. Fluid not warmed up. Preheat system.
Hydraulic uid is too thick. Hoses too long for hose ID. Use
Too low slip clutch torque. Inspect and replace slip clutch
Over-feeding the drill. Do not overload drill to avoid wear of
Tool runs too fast. Incorrect hydraulic ow. Check that hydraulic power source is
Fluid leak between motor and valve housing.
Fluid leaks at control valve. Damaged O-rings. See your authorized dealer for repair.
Motor capscrews loose. Tighten to recommended torque (10
Motor O-rings worn. See your authorized dealer for repair.
Motor cap/main housing damaged. See your authorized dealer for repair.
Wrong hydraulic uid. Circuit to hot. See Operation section for correct uid/
Hydraulic pressure and return hosed reversed.
Locate and remove obstruction.
shorter hose. Use larger ID hose.
washers if necessary. Set torque to 45 ± 1.5 Nm/ 33 ± 1 ft-lb. See your authorized service dealer for repair.
slip clutch.
not producing over 8 gpm/30 lpm at 950-2000 psi/66-138 bar.
Nm = 7.5 ft-lb).
circuit specications.
Correct hose connections.
CD12 User Manual ◄ 15
TROUBLESHOOTING
Problem Cause Solution
Fluid gets too hot. Circuit relief set too low. Adjust relief valve to 2100-2250/145-
155 bar.
Too much uid going through tool. Adjust ow for 6 gpm/23 lpm maximum.
Circuit has contaminants that have caused wear and high heat genera­tion.
Gear shift knob turns hard. Oil leak at motor shaft seal into gear-
box causes high pressure in gear­box.
No gearshift function. Shifter pin worn or broken. See your authorized service dealer for
Water leaking out of shaft. Output shaft seals worn. See your authorized service dealer for
Water pressure too high. Seal dam­aged.
Replace worn pump and valves. Install
a large clean lter and keep the uid
clean.
See your authorized service dealer for repair.
repair.
repair.
Maximum water pressure 60 psi/4 bar. Replace seals.
MAINTENANCE
Good maintenance practice keeps the core drill on the job and increases its service life.
The most important maintenance practice is to keep
the hydraulic uid clean at all times. Contaminated uid
causes rapid wear and/or failure of internal parts.
Follow the recommendations contained in the HYDRAU­LIC SYSTEM REQUIREMENTS section of this manual to ensure peak performance from the tool.
Do not disassemble the tool until you know whether the problem is in the hydraulic power supply, the gearbox module, or the power and control (rear) module. Then only disassemble the tool as necessary to repair as re-
quired. KEEP CONTAMINANTS SUCH AS DIRT AND GRIT AWAY FROM INTERNAL PARTS AT ALL TIMES.
Always determine and correct the cause of the problem prior to reassembly. Further wear and tool failure can result if the original cause is not corrected.
16 ► CD12 User Manual
SPECIFICATIONS
System Type ....................................................................................................................................HTMA Type II OC
Flow Range ................................................................................................................................. 7–9 gpm/26–34 lpm
Optimum Flow ....................................................................................................................................... 8 gpm/30 lpm
Pressure (maximum) ........................................................................................................................ 2000 psi/138 bar
Drill Bit Connection .............................................................................................1-1/4 in. UNC Male/1/2 inch Female
Free Speed .................................................................... 1st Gear 610 rpm, 2nd Gear 1440 rpm, 3rd Gear 2880 rpm
Porting Size ...........................................................................................................................................-8 SAE O-ring
Weight ..................................................................................................................................................18.7 lbs/8.5 kg
Length................................................................................................................................................ 19.3 in./490 mm
ACCESSORIES
Anchor Stand, 12 in. .......................................................................................................................................... 62378
7/8 in. Core Bit with Crown ................................................................................................................................ 41241
1 in. Core Bit with Crown ................................................................................................................................... 41242
1-1/4 in. Core Bit with Crown ............................................................................................................................. 41243
2 in. Core Bit Segmented ..................................................................................................................................41244
3 in. Core Bit Segmented ..................................................................................................................................41245
4 in. Core Bit Segmented ..................................................................................................................................41246
6 in. Core Bit Segmented ..................................................................................................................................41247
Vacuum Pump Accessory ..................................................................................................................................44957
Vacuum Pump Instruction ..................................................................................................................................44958
SERVICE PARTS
Filter Element – Vacuum Pump ......................................................................................................................... 44969
Mufer Element – Vacuum Pump ...................................................................................................................... 44971
Seal Kit – CD10/CD12 ....................................................................................................................................... 45110
CD12 User Manual ◄ 17
CD12 PARTS ILLUSTRATION
18 ► CD12 User Manual
CD12 PARTS LIST
ITEM
65311 MOTOR ASSEMBLY
101 65207 1 MOTOR HOUSING
102 41254 1 OUTPUT SHAFT
103 41255 1 SPUR GEAR
104 41256 1 SHAFT SEALING
105 41257 1 SNAP RING
106 41258 1 THRUST WASHER
107 41259 1 THRUST BEARING
108 41260 1 SHAFT SPACER
109 65208 1 SPOOL DRIVE
110 65209 1 DRIVE
111 41263 3 O-RING
112 41264 1 SPACER PLATE
113 65211 1 GEROLER ASSEMBLY
114 41266 1 SPOOL
115 41267 1 BEARING
116 65212 1 COVER
117 41624 1 BEARING RING
118 41268 1 SNAP RING
119 41269 1 NEEDLE BEARING
120 41270 1 SNAP RING
121 65213 5 HSH CAPSCREW
THREE SPEED GEARBOX
401 41271 1 BEARING HOUSING
402 41272 1 OUTPUT SHAFT
404 41273 1 SPUR GEAR
405 41274 1 NOTCHED WHEEL
406 41275 1 SPUR GEAR
415 41276 1 NEEDLE BEARING
418 41277 1 BALL
419 41278 1 COMPRESSION SPRING
420 41279 1 GROOVED BALL BEARING
421 41280 1 SNAP RING
422 41281 1 WASHER
423 41284 1 SNAP RING
424 41286 2 SNAP RING
425 41287 1 SNAP RING
426 41298 1 FEATHER KEY
427 41348 1 SNAP RING
433 41373 1 SNAP RING
435 41376 2 RADIAL SHAFT SEALING
436 41377 1 RADIAL SHAFT SEALING
403 41380 1 GEAR SHAFT
PART NO. QTY DESCRIPTION
41379 1 COUNTERSHAFT ASSEMBLY
ITEM
407 41381 1 SPUR GEAR
408 41382 1 WASHER
409 41383 4 BELLEVILLE SPRING
410 41384 1 NUT
411 41385 1 COMPRESSION RING
412 41386 1 GROOVED BALL BEARING
413 41387 1 SNAP RING
414 41388 2 SHIM
414 41389 1 SHIM
416 41390 1 DOWEL PIN
428 41391 1 SEAL
429 41392 4 HSH CAPSCREW, M5 X 50
430 52661 2 DOWEL PIN
210 41587 1 CONNECTING PIECE
211 41396 1 GASKET
212 1 ELBOW
213 2 HOSE CONNECTOR
214 2 CLAMP
215 1 HOSE
216 41396 2 GASKET
217 65206 1 STOPCOCK
218 1 CONNECTING PIECE
219 41588 1 WATER-STOP GARDENA 1/2 IN
TOOL DECALS
PART NO. QTY DESCRIPTION
65204 WATER HOSE
65203 1 VALVE ASSY
03971 1 COUPLER SET (NOT SHOWN)
62377 1 DRILL MOTOR & ANCHOR
STAND (NOT SHOWN)
09546 1 PIGTAIL HOSE ASSY 18"
(NOT SHOWN)
11206 1 CIRCUIT TYPE C
11207 1 CIRCUIT TYPE D
28409 1 COMPOSITE
65139 CD12 NAME/GPM
45110 SEAL KIT
CD12 User Manual ◄ 19
CD12 ANCHOR STAND ILLUSTRATION
20 ► CD12 User Manual
CD12 ANCHOR STAND PARTS LIST
PART
ITEM
NO. QTY DESCRIPTION
1 65214 1 HANDLE
2 65215 1 STOP PLATE
3 65216 2 HSH CAPSCREW
4 65217 4 HSFH SCREW
5 65218 1 CLAMP PLATE
6 65219 1 DRILL STAND COLUMN
7 65220 1 CLAMP BLOCK
8 65221 1 CLAMP LEVER
9 65222 2 WASHER
10 65223 2 SUPPORT TUBE
11 65224 1 HSH CAPSCREW
12 65225 1 HEX NUT
13 65226 1 CENTERING SCREW
14 65227 1 HANDLE ASSY
15 SEE ITEM 14
16 SEE ITEM 14
17 SEE ITEM 14
18 65228 1 CARRIAGE ASSY (INCL ITEMS 19–33)
19 65229 2 THREADING BUSHING
20 65230 1 GEARED SPINDLE
21 65231 2 HSH CAPSCREW
22 65232 1 CARRIAGE
23 65233 2 GUIDE ADJUSTING SCREW
24 65234 4 CARRIAGE GUIDE
25 65235 1 BULLSEYE LEVEL
26 65236 2 PIN
27 65237 1 DRILL MOUNT LOCKING SCREW
28 65238 1 NIB
29 65239 1 SQUARE KEY
30 65240 1 STOP PLATE, MOTOR MOUNT
31 65241 2 HSFH SCREW
32 65242 1 CARRIAGE LOCK BUSHING
33 65243 1 CARRIAGE LOCK
34 65244 1 DOVETAIL MOTOR MTG BLOCK ASSY
35 65245 1 DOVETAIL MOTOR MTG BLOCK
36 65246 1 SQUARE KEY, LONG
37 65224 4 HSH CAPSCREW CD12100 ONLY
60950 4 HSH CAPSCREW CD12200 ONLY
38 65247 1 HSH CAPSCREW
39 65248 1 BASE ASSY (INCL ITEMS 40–47)
40 65249 1 BASE
41 65251 2 HSH CAPSCREW
42 65252 2 EYE BOLT
43 65253 2 HEX NUT
(INCL ITEMS 35–37)
PART
ITEM
NO. QTY DESCRIPTION
44 65254 4 WASHER
45 65255 2 SLEEVE
46 65256 2 LEVELING LEG NUT
47 65257 2 HEX NUT
48 65258 1 WHEEL & AXLE ASSY
49 2 SNAP RING
50 2 WASHER
51 2 WHEEL
52 1 AXLE
53 NO ITEM
54 1 VACUUM HANDLE ASSY
55 65259 1 VACUUM HANDLE
56 65260 1 VACUUM HANDLE GASKET
57 65261 1 VACUUM RELEASE BUTTON
58 65262 1 O-RING
59 65263 1 SPRING
60 65264 1 VACUUM VALVE SEAT
61 65265 1 WASHER
62 65266 1 HSH CAPSCREW
63 65267 1 BASE GASKET
64 65268 1 HOSE BARB
(INCL ITEMS 49–52)
(INCL ITEMS 55–64)
CD12 User Manual ◄ 21
Stanley Hydraulic Tools
3810 SE Naef Road
Milwaukie, Oregon 97267-5698 USA
(503) 659-5660 / Fax (503) 652-1780
www.stanleyhydraulics.com
Loading...
