When you call the help-line you will need to have the following information:
Date of Purchase: _______________________
Location of Purchase: _______________________
Serial # -
Snow Blower: _______________________
*Serial number is located on the engine block below the
starter
.
Snow blower and engine life are
extended greatly by performing
frequent lubrications, oil changes
and
regular maintenance. To
protect your investment perform
routine maintenance.
Snow Blower Owner’s Manual
This manual contains important safety instructions for the gasoline engine powered
snow blower models: 30SS, 36SS, 45SS
READ SAFETY WARNINGS AND OPERATING INSTRUCTIONS CAREFULLY.
SAVE THIS MANUAL.
Need Help?
Parts, Service, and Technical Assistance call:
1-800-393-0668
Monday-Friday 8:00AM-5PM EST
DO NOT RETURN THIS SNOW BLOWER TO THE
STORE!
30SS, 36SS, 45SS
This manual contains important safety instructions for Snow Blowers
This owner’s manual is considered a permanent part of the snow blower and should
remain with the snow blower if resold.
Copyright© 2011 by GXi Outdoor Power, LLC. All rights reserved.
No part of this publication can be reproduced or distributed without prior written permission of GXi Outdoor Power, LLC Clayton, NC
27520 USA.
STANLEY Is a registered trademark of The Stanley Works or its affiliates and is used under license by GXi Outdoor Power, LLC, 7868
Highway 70 Business, Clayton, NC 27520
GXi Outdoor Power, LLC reserves the right to discontinue or change specifications or design at any time without notice and without
incurring any obligation whatsoever.
The information and specifications included in this publication were in effect at the time of approval for printing.
READ SAFETY WARNINGS AND OPERATING INSTRUCTIONS CAREFULLY
SAVE THESE INSTRUCTIONS.
Rev: 12/21/2011
2
For more information or where to purchase STANLEY outdoor power equipment, visit
us at: www.GXiOutdoo
rPower.com
STANLEY Product Lines
30SS, 36SS, 45SS
Brush Mower
x 36” Brush Mower.
x 20 hp Kawasaki engine with electric start.
x Dual hydrostatic drive for maneuverability.
x Convertible deck— easily converts to a finish mower.
x Heavy duty 6 gauge welded deck.
x High capacity deck for high speeds through tall grass.
x Dual break-away blades.
x Model #: 36BS
x
Zero-Turn Commercial Mowers
x In three models 48”, 54” and 62”.
x Kawasaki engines.
x Electric Start.
x Roll bar, seat belt, large tires, head lights.
x 7.5 gallon fuel tank.
x Dual hydrostatic drive for maneuverability.
x Heavy duty 7 gauge welded steel deck.
x Model #: 48ZS
x Model #: 54ZS
x Model #: 62ZS
Commercial Walk Behind Mowers
x 36” and 54” deck.
x 20 HP Kawasaki engine with electric start.
x 4.5 gallon fuel tank.
x Dual hydrostatic drive for maneuverability.
x Quick change and floating deck type.
x Ride along sulky available.
x Model #: 36FS
x Model #: 54FS
100” Tow Behind Mower
x 20 hp Kawasaki electric start engine.
x Cuts up to 100 inches.
x 52 in. main deck, two 26 in. wings folds up
x Quick adjust floating deck, no tools required.
x High blade tip speeds for cleaner cut.
x Converts to a 52’’ brush mower.
x Tow behind: ATV, UTV, or lawn tractor.
x Model #: 100TS
Rev: 12/21/2011
3
STANLEY Product Lines
Generator Cord Accessories
This cord reduces harmful voltage drops experienced when using most
120V extension cords
Electric Pressure Washer
x 1450 psi to 1800 psi electric pressure washers
x 20 ft of high pressure hose and 35 ft. cord with GFCI protection
x Sleek and unique, high quality, stainless steel finish
x 13 Amps, 120V
x Auto-stop shut off system prolongs pump life
240V, 10/4, heavy duty extension cords with L14-30 connectors at each end.
reach the desired length.
. Available in 15’ and 25’ lengths and can be combined to
30SS, 36SS, 45SS
www.gxioutdoorpower.com
Rev: 12/21/2011
4
Contents
Safety Information and Warnings ......................................................................... 1
Preparation Safety Precautions ............................................................................ 2
Operation Safety Precautions ................................................................................ 3
Safety Decals ........................................................................................................... 5
Product Specifications ........................................................................................... 6
Control Panel and Snow Blower Components .................................................... 7
Missing Parts Request Form ................................................................................... 8
Assembly Instructions ............................................................................................ 9
Operating Instructions
Starting the Engine ......................................................................................... 14
Operating Instructions .................................................................................... 15
General Maintenance ..................................................................................... 18
Maintenance Schedule .................................................................................. 19
Service Adjustments
Adjusting Augers/Impeller Cable .................................................................. 20
30SS, 36SS, 45SS
Adjust/Check Drive Cable .............................................................................. 20
Adjusting Shift Rods ........................................................................................ 19
Adjust/Replacing Drive and Augers/Impeller Belts ................................... 21
Adjusting Discharge Chute Deflector .......................................................... 22
Changing Friction Wheel ................................................................................ 22
Replacing Headlight Bulb .............................................................................. 22
Storage Instructions .............................................................................................. 23
Troubleshooting ...................................................................................................... 24
Replacement Parts ................................................................................................. 26
Limited Warranty and Service ............................................................................. 29
About the STANLEY Snow Blower Manual
Congratulations on the purchase of your new STANLEY commercial snow blower. We at GXi Outdoor Power are
confident that this snow blower will provide excellent performance, outstanding quality, and great durability when
operated and maintained as directed in this manual.
1. This manual contains assembly, operating, safety, adjustment, maintenance, and troubleshooting instructions.
BEFORE OPERATING YOUR SNOW BLOWER, CAREFULLY READ THIS MANUAL IN ITS ENTIRITY.
2. This owner’s manual is considered a permanent part of the snow blower. It must be available to all operators
and/or person(s) servicing the snow blower. Should the snow blower be resold, this manual must remain with the
snow blower.
3. All information, illustrations, and specifications contained in this manual were in effect at the time of the
publication. GXi Outdoor Power reserves the right to add, delete or modify specifications and/or designs without
notice.
4. If you ever have questions in regards to the operation, maintenance or safety of your snow blower, please
contact GXi Parts & Service, LLC at 1-919-550-3221 ext. 158.
Rev: 12/21/2011
5
Safety Information and Warnings
30SS, 36SS, 45SS
Safety Information
Emission Control System Information
The U.S. and California Clean Air Acts
EPA and California regulations require all
manufacturers to furnish written instructions
describing the operation and maintenance of
emission control systems. The following instructions
and procedures must be followed in order to keep
the emissions from your engine within the emission
standards. Maintenance, replacement, or repair of
the emission control devices and systems may be
performed by any engine repair establishment or
individual, using parts that are ‘‘certified’’ to EPA
standards.
Safety Label Locations
Safety labels are located on your snow blower to
warn you of potential hazards. Read them carefully.
If a label comes off or becomes hard to read,
contact GXi Parts and Service, LLC for a
replacement.
Operator Responsibility
It is the owner’s responsibility that all operators and
mechanics must be trained and read this manual
before operating the snow blower as well as being
physically able individuals. They should be
instructed about safe operating and mechanical
procedures. If they can not read or understand
English, it is the owner’s responsibility to explain all
safety operating instructions. The owner or
operator is responsible for accidents or injuries
occurring to themselves, other people or property.
Potential misfortunate incidents can be prevented
by the owner/user.
Training
1. Read, understand, and follow all instructions on the
machine and manual(s) before attempting to
assemble and operate.
2. Operator must be familiar with all controls, their
operations, and how to stop the engine and
disengage the controls quickly.
3. Never allow children to operate this machine.
4. Never allow adults to operate this machine without
proper instruction.
5. Exercise caution to avoid slipping or falling,
especially when operating the machine in reverse.
6. Keep area of operation clear at all times.
WARNING
WARNING! Do not use your STANLEY snow blower to
carry passengers. Keep bystanders, helpers, pets and
children at a safe distance from the machine while it is in
operation. Inspect the area where the equipment is to be
used and remove all objects such as rocks, toys, and wires
which can be thrown by the machine causing serious
injury or death.
Snow Blower Inspection
For your safety, inspect the snow blower before each
use. Before you begin your inspection, be sure the
following conditions are met: the snow blower should
be on a level surface, with the ignition switch off, the
key removed, and the augers disengaged. Also,
disconnect the spark plug wires from the spark plugs
and ground them against the engine to prevent
inadvertent starting.
Rev: 12/21/2011
WARNING
Wear appropriate clothing including hard hat, safety
glasses and hearing protection. Long hair, loose clothing
or jewelry may get tangled in moving parts.
1
Preparation Safety Precautions
DANGER: GASOLINE IS HIGHLY FLAMMABLE AND
EXPLOSIVE.
ADD FUEL
OUTDOORS ONLY. IF THE FUEL IS SPILLED, DO NOT
START THE ENGINE.
30SS, 36SS, 45SS
Preparation—Safety Precautions
1. Inspect the area where the equipment is to be
used and remove all objects such as rocks,
mats, and wire which can be thrown by the
machine causing serious injury or death.
2. Disengage all clutches and shift to neutral
before starting the engine.
3. Disengage all control levers before starting the
engine.
4. Use extension cords and receptacles as
specified by the manufacturer for all units with
electric drive motors or electric starting
motors.
5. Use a grounded three-wire extension cord
when using the electric start option.
6. People, pets, and most importantly children
must not be near the area being cleared. Do
not operate the snow blower in their presence.
7. Never operate snow blower with damaged
guards, shields or covers.
8. All users of the snow blower must be alert and
pay attention to safety alerts, symbols, and
safety signs.
9. Be sure to inspect snow blower before each
use.
10. Check the controls and shields to make sure
that they are functioning properly before
operating. Do not operate if any are damaged
or missing.
11. Never attempt to make any adjustments to the
snow blower while it is running.
12. Adjust the collector housing height to clear
gravel or crushed rock surfaces.
13. Wear appropriate clothing including hard hat,
safety glasses and hearing protection. Long
hair, loose clothing or jewelry may get tangled
in moving parts.
14. Do not operate without wearing adequate
winter clothing. Wear footwear that will
improve footing on slippery surfaces.
15. Allow snow blower to adjust to outdoor
temperature before starting the engine.
Gasoline and other fuels—Safety Precautions
Use extra care when handling gasoline and other
fuels as they are flammable and vapors can explode.
1. Only use gasoline approved containers for storage
and keep out of reach from children.
2. Do not fill fuel tank completely full. Overfilling may
result in fuel leakage. Leave a reasonable amount
of space for fuel to expand.
3. If fuel is spilled, do not start the engine. Move the
snow blower away from the area, wipe up the spill
thoroughly and wait until fuel vapors have
evaporated before starting engine.
4. Keep the nozzle in contact with the rim on the fuel
tank or container opening at all times, until
refueling is complete. Do not use nozzle lock-open
device.
5. Do not fill gasoline containers or equipment inside a
vehicle or on a truck/trailer bed.
6. Always place gasoline containers on the ground
away from your vehicles prior to filling.
7. Never remove gas cap or add fuel when engine is
running or the engine is hot.
8. Avoid prolonged breathing of gasoline vapors.
9. Never refuel or drain the machine indoors.
10. Keep face away from nozzle and gas tank opening.
11. Keep gas and other fuels away from skin and eyes.
If fuel is spilled on clothing, change clothing
immediately.
12. Never use the mouth to siphon gas.
13. Never refuel the snow blower until all moving
parts on the snow blower have stopped.
14. Never smoke when handling fuels and stay away
from an open flame where fumes can be ignited by
a spark.
15. Gasoline is harmful or fatal if swallowed.
DANGER
running or is hot. Keep open flames, sparks, and heat
away from the fuel and store fuel in containers
specifically designed for that purpose. A
away from the spill and wipe up immediately.
Do not add fuel while the engine is
Manually push the snow blower
Rev: 12/21/2011
2
Operation Safety Precautions
30SS, 36SS, 45SS
Equipment Operation—Safety Precautions
1. Do not operate the engine in a confined space
where dangerous carbon monoxide fumes can
collect. Carbon monoxide is odorless,
tasteless, and can be fatal.
2. Never operate the snow blower without good
visibility or light.
3. Exercise extreme caution when operating on
or crossing gravel drives, walks, or roads. Stay
alert for hidden hazards or traffic.
4. Never operate the snow blower with defective
guards or shields, or without the safety devices
securely mounted in place and functioning
properly.
5. Be aware of discharge and never direct
discharge of material toward people or areas
where property damage can occur. Keep
children and others away.
6. Do not change the governor settings or over
speed the engine.
7. Do not overload the machine capacity by
attempting to clear snow at too fast a rate.
8. Always stop the engine when you leave the
snow blower, even for a moment.
9. To help reduce fire hazard, keep the engine
and the area around the engine free of grass,
leaves or any other type of foreign material.
10. Beware of any sharp edges. For safety always
wear gloves when performing augers/impeller
maintenance activities
11. If lightning is seen or thunder is heard in the
operators vicinity, do not operate machine.
Instead find shelter, as lightning may cause
injury/death.
12. After striking a foreign object, stop the engine,
remove the wire from the spark plug,
thoroughly inspect the snow blower for any
damage, and repair the damage before
restarting and operating the snow blower.
13. If machine starts to vibrate or function
abnormally, stop the engine immediately and
check for cause. Vibration is generally a
warning of trouble.
14. Keep hands and feet away from augers/
impeller . This product is capable of amputating
hands and feet.
15. Be alert and slow down when making turns.
Also look left, right, and behind before changing
directions and reversing to be sure there is a
clear path.
16. Never operate snow blower at high transport
speeds on slippery surfaces.
17. Never operate snow blower under the influence
of alcohol and drugs.
18. Use care when loading or unloading the
machine into a trailer or truck.
19. Use care when approaching blind corners,
shrubs, trees, or other objects that may
obstruct vision.
20. Always disengage power to augers when not in
use or transported.
21. Never listen to music with headphones/
earphones while operating the snow blower.
22. Use extreme caution when operating on slopes.
23. Never touch a hot engine or muffler.
24. Use caution when operating on gravel surfaces.
25. Only use attachments and accessories that are
approved by STANLEY.
26. When starting the engine pull the cord slowly
until some resistance is felt before using full
force.
27. Always have a good grip on the handles and
never run while operating the snow blower.
28. Stop the engine whenever you leave the
operating position, before unclogging the
augers/impeller or discharge chute, and when
making any repairs, adjustments or inspections.
29. When cleaning, repairing or inspecting the
snow blower, stop the engine and make certain
the augers/impeller and all moving parts have
stopped. Disconnect the spark plug wire and
keep the wire away from the plug to prevent
someone from accidentally starting the engine.
Rev: 12/21/2011
3
Before attempting to use your snow blower,
make sure you are familiar with all of the
components and
have read the manual.
DANGER: DDo not bypass, modify, alter or
disconnect the safety system. Make sure
that the safety interlock sys
tem is fully
operational each time before operating the
machine
Before setting up your STANLEY snow
blower, disconnect the spark plug wires from
the spark plugs and
ground them against the
engine to prevent inadvertent starting. This
step should be taken as a precau
tion
whenever you are working on this machine.
Operation Safety Precautions
Clearing A Clogged Chute—Safety Precautions
1. SHUT THE ENGINE OFF!
2. Wait at least 10 seconds to be sure the augers have
stopped rotating.
3. Always use a cleanout tool and never your hands.
4. Ground the spark plug when clearing if hands get
close to the augers/impeller.
30SS, 36SS, 45SS
GASOLINE IS HIGHLY FLAMMABLE AND
EXPLOSIVE. FUEL LEAKS, A LOOSE FUEL TANK,
OR A LOOSE FUEL VALVE CAN LEAD TO
SEVERE INJURY OR DEATH. DO NOT OPERATE
THIS SNOW BLOWER IF ANY COMPONENT OF
THE FUEL SYSTEM IS LOOSE OR LEAKS
GASOLINE!
IMPORTANT! The snow blower belts are adjusted
to ensure the augers/impeller stop turning within
five (5) seconds of releasing the impeller control
lever. If you are making any belt adjustments
whatsoever, for your safety and the safety of others
around you, you must ensure the belts are re-
adjusted to achieve this design specification.
.
Need Help?
Parts, Service
and Technical Assistance call:
Rev: 12/21/2011
1-919-550-3221 ext. 158
Monday-Friday 8AM-5PM EST
customerservice@gxioutdoorpower.com
4
Safety Decals
30SS, 36SS, 45SS
Safety Decal Identification
The labels shown below are located on your snow blower to warn you of potential hazards and provide you with
important safety information. If these decals become difficult to read or are missing from the snow blower, please
contact GXi Parts & Service, LLC at 1-919-550-3221 or www.gxioutdoorpower.com for a replacement.
Rev: 12/21/2011
5
Product Specifications
30SS, 36SS, 45SS
Feature 30SS 36SS
Product Type Snow blower Snow blower
Clearing Path 30” 36”
Engine 302cc, 11HP 420cc, 15 HP
Engine Start 120V Electric Start and recoil 120V Electric Start and Recoil
Speed Control 6 fwd, 2 rev 6 fwd, 2 rev
Deck Type All Steel All Steel
Discharge distance 40’ 40’
Impeller 16” 2 Stage 16” 2 Stage
Auger 16” serrated 16” serrated
Discharge Chute 6” 6”
Fuel/Capacity Unleaded gasoline/1.32 GAL Unleaded gasoline/1.32 GAL
Chute control Crank Crank
Models
Snow blower
420cc, 15 HP
120V Electric Start and Recoil
16” serrated
Unleaded gasoline/1.32 GAL
45SS
45”
6 fwd, 2 rev
All Steel
40’
16” 2 Stage
6”
Crank
Rev: 12/21/2011
* Product Specifications may
change without notice.
6
Control Panel and Snow Blower Components
Throughout this manual, instructions are given on the operation of your STANELY snow blower. We recommend that while going through
this manual, you have your snow blower available for quick and easy access in order to orient yourself with the controls, maintenance and
orientation of different parts. Please read through the manual before operating.
30SS, 36SS, 45SS
Control Panel
Below is a diagram of the control panel. Please take the time to familiarize yourself with the snow blower controls.
Discharge Angle
Transmission Control
Discharge Chute Direction Headlight Switch
Snow Blower Component Identification
(Some components may appear different than shown, depending on the model.)
Control Panel
Headlight
Handle Bar
Friction Wheel
(located under)
Belt Cover
Adjustable
Skid Shoes
Chute deflector cable
Muffler—HOT!
Discharge Deflector
Discharge Chute
Drift Cutters
Augers/Impeller
Primer
Rev: 12/21/2011
Safety Key
Choke
Gear box
Shear Pins
7
Missing Parts Request Form
30SS, 36SS, 45SS
Please indicate the part that you are missing:
Hardware bag
Other
Date of purchase
Model #:
Serial #:
Name
Address
Phone
Email
Comments:
IMPORTANT: Please include your receipt. Without a receipt, your
order will be delayed. You may also email us at:
customerservice@gxioutdoorpower.com
Fax:1-919-550-3277
If emailing, please scan in your proof of purchase.
Rev: 12/21/2011
8

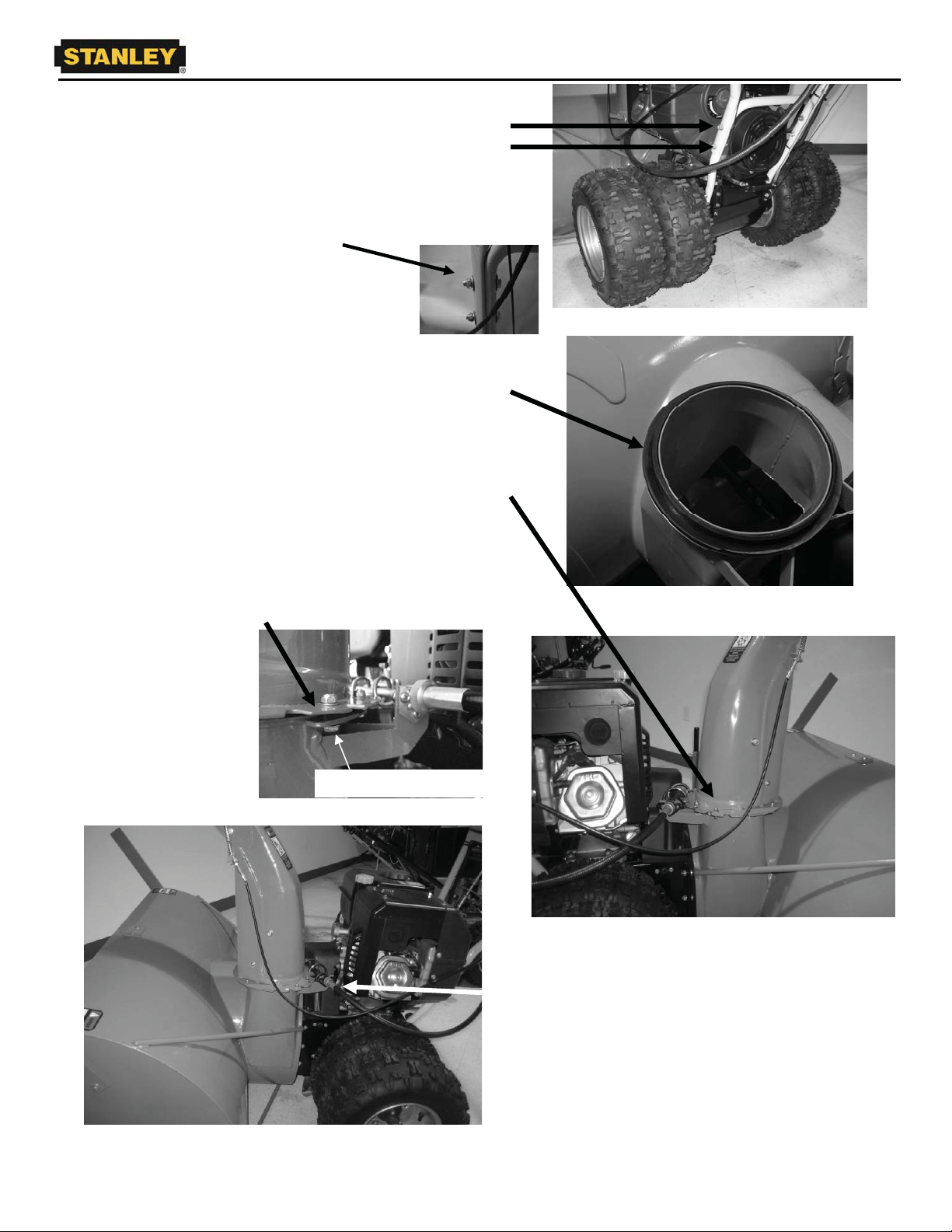

Assembly Instructions
Step 1: Control Panel Handles
1. Align the two holes on each side of the control panel
handles over the lower handle frame.
2. Insert the bolts through the handlebar holes and frame
holes. Secure in place with hardware provided. Insert
bolts from the inside.
Step 2: Directional Discharge Chute
1. Fit round spacer onto impeller housing before installing chute.
Apply light coat of grease onto spacer.
2. Install the bolts for the retainer brackets bottom-up as shown.
Insert the plastic spacer between the two metal parts.
DO NOT OVERTIGHTEN. If the bracket is too tight the chute
will not move properly. Ensure there is enough space
between the impeller housing and the bracket on all sides
so that the chute rotates smoothly.
30SS, 36SS, 45SS
Rev: 12/21/2011
Bolt installed bottom-up
Step 3: Chute Crank
Attach the cable coming from the middle of the
control panel by screwing the cable end onto the
crank section.
Need Help With Assembly?
9
1-919-550-3221 ext. 158
Chute Rotation Cable Connection (continued)
Assembly Instructions
30SS, 36SS, 45SS
Step 3:
1. Locate the connection: The chute rotation cable connection is located
at the base of the discharge chute between the engine and the discharge
2. Slide the threaded end of the connector down the
cable in order to easily see the end of the cable
connection. The center section should be about 3/4”
to 1” beyond the end of the cable.
NOTE: There is nothing wrong if the end of the center section of the cable protrudes more than about
3/4” to 1” beyond the end of the cable.
3. Align the center section with the cable chute rotator. The end
of the center section is square and requires proper alignment in
order to correctly connect to the machine.
4. Press the cable toward the chute rotator. The end of the cable
should touch the end of the chute rotator.
If the surfaces do not contact, continue to apply pressure and
slowly rotate the chute handle on the control panel so the center of
the cable aligns itself on both ends.
5. Slide the threaded end from Step 2 toward the chute rotator,
and thread the end onto the chute rotator.
Rev: 12/21/2011
IMPORTANT: Finger tighten firmly. Inspect before each use to make certain the connection doesn’t loosen during operation of the machine.
Need Help With Assembly?
10
1-919-550-3221 ext. 158
30SS, 36SS, 45SS
Step 4: Chute Direction Control Cable Support
Attach the chute direction control cable hook to
the engine cover as shown.
Step 5: Chute Direction Control Cable Support
Place the chute direction control cable into the
support hook, and secure with the zip-ties provided
in the hardware bag.
Rev: 12/21/2011
11
Need Help With Assembly?
1-919-550-3221 ext. 158
Assembly Instructions
30SS, 36SS, 45SS
Step 6: Drive Control
1. Locate the thin cable on the right side (standing from the operator position) of the snow blower.
2. Attach the cable to the threaded end under the drive control handle. The cable extension may need to be attached
to the bottom of the handle.
3. Screw clockwise to secure. Tighten lock nuts when correct tension is achieved.
4. The drive and impeller cables will be at correct tension when the cables are properly attached to the handles and
the cable has a 1 inch deflection to either side when pushed firmly with a finger as shown.
Correct amount of
deflection shown
Step 7: Augers/Impeller Control
1. Locate the thin cable on the left side of the snow blower.
2. Attach the cable to the threaded end under the impeller control handle.
3. Screw clockwise to secure. Tighten lock nuts when correct tension is achieved.
4. The drive and impeller cables will be at correct tension when the cables are properly attached to the handles and
Rev: 12/21/2011
12
Need Help With Assembly?
1-919-550-3221 ext. 158
DANGER: GASOLINE IS HIGHLY FLAMMABLE AND
EXPLOSIVE.
ADD FUEL
OUTDOORS ONLY. IF THE FUEL IS SPILLED, DO NOT
START THE ENGINE.
Assembly Instructions
Step 8: Drift Cutters (if desired)
1. The drift cutters are attached to the main housing in
the stored position.
2. Remove the two bolts on each drift cutter.
3. Reattach the drift cutters in the operating position.
4. Replace bolts and secure tightly.
Step 9: Skid Shoes
1. Skid shoes are stored in the hardware bag for shipping.
2. Remove from hardware bag, and install skid shoes using the
provided fasteners
3. Insert the fasteners so the flat head of the carriage bolt is on
the outside of the main housing.
CAUTION: Check the skids to ensure that the auger does
not contact the paved or gravel surface. Adjust skids as
necessary to make up for wear on the snow blower.
30SS, 36SS, 45SS
1. Check the tire pressure to ensure the tires are properly
inflated.
2. Move skid shoes up and down to the desired position based
on the surface texture.
x If the surface is rougher adjust the skid shoes lower.
x If the surfaces is smoother adjust the skid shoes higher.
Firmly tighten the nuts that secure both skids to the auger
sides.
Step 10: Headlight
1. Attach the upper set of handlebars with the control panel
mounted.
2. Connect the headlight cable to the plastic connecter that is
coming from the snow blower.
3. Insert headlight by clipping top tabs under the control panel and
squeezing base to snap housing into place.
DANGER
Step 11: Filling Oil and Gasoline
running or is hot. Keep open flames, sparks, and heat
away from the fuel and store fuel in containers
specifically designed for that purpose. A
away from the spill and wipe up immediately.
Do not add fuel while the engine is
Manually push the snow blower
1. Fill the engine with SAE 5W-30 engine oil. Fill the engine
2. Check that the fuel filter is clean and fill the tank with
with 1.2 to 1.5 quarts of oil. Fill up to the full level mark on
the dip stick.
unleaded gasoline.
Rev: 12/21/2011
13
Need Help With Assembly?
1-919-550-3221 ext. 158

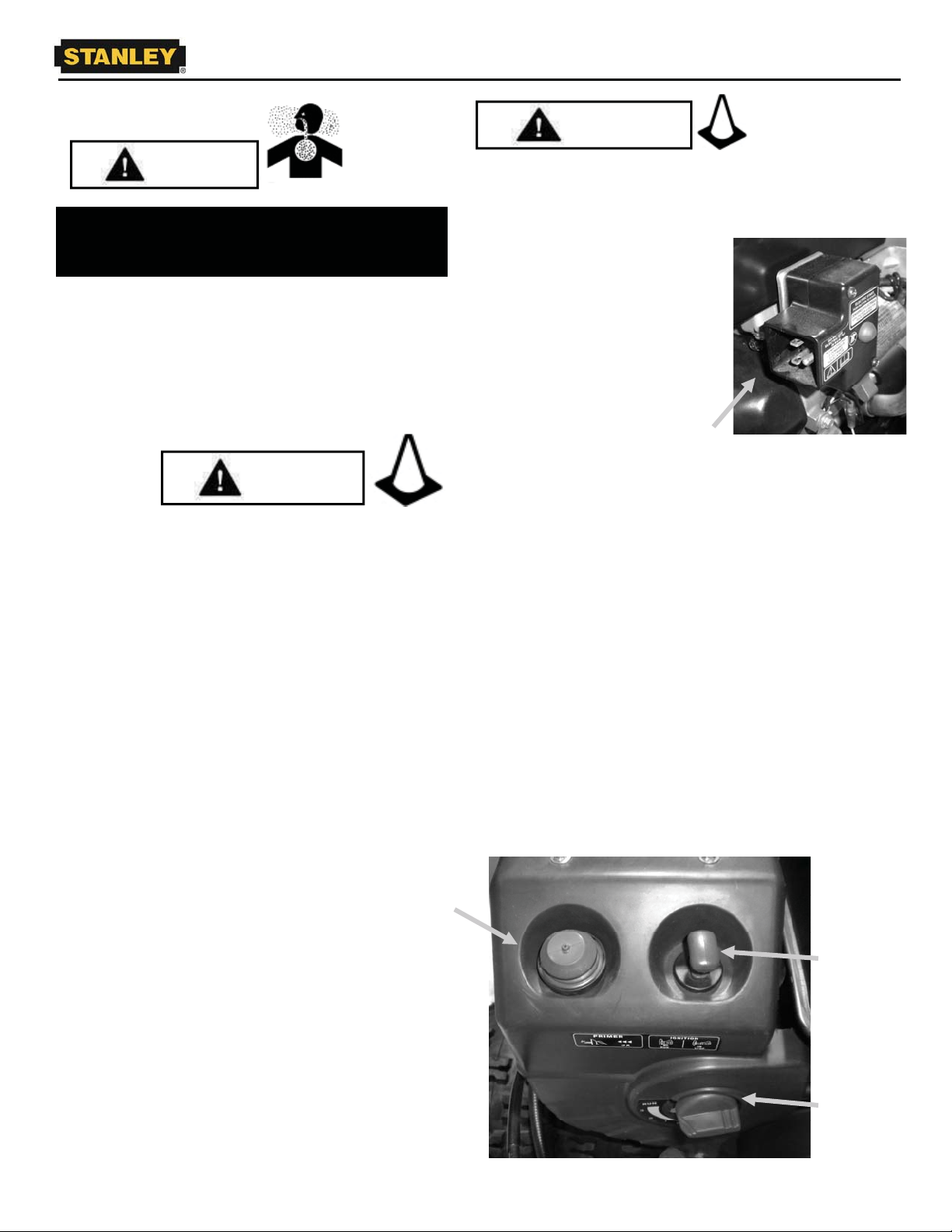

Starting the Engine
DANGER: Exhaust contains poisonous carbon
monoxide, a colorless and odorless gas. Breathing
exhaust
can cause loss of consciousness and may
lead to death. Do not operate the engine in a
confined space
where dangerous carbon monoxide
fumes can collect.
(1.2—1.5 quarts)
WARNING!
30SS, 36SS, 45SS
DANGER
Before attempting to use your snow blower, make sure you
are familiar with all of the components and have read the
manual.
WARNING
Thoroughly inspect the area where you plan to use the
snow blower. Look for items such as stones, sticks ,
wire, and other foreign objects. If struck by the snow
blower, these and other objects may become
projectiles that could lead to serious injury or death.
Clear area of all debris. Keep people and pets at a safe
distance.
Starting the Engine Using the Recoil Start
NOTE: Be sure to add fresh unleaded gasoline
the engine with SAE5-W30 motor oil
before starting your snow blower.
1. Make sure the safety key is fully inserted in order for
the engine to start. Remove the key when the snow
blower is not in use.
2. Firmly push the primer to force the fuel directly into
the engine’s carburetor. Push two to four times
depending on the temperature (choke more in colder
temperatures). Note: Do not press the primer button
more than 7 times. Fuel may leak from the carburetor
with over priming.
3. Make sure the choke is set in the CHOKE position.
4. Pull the recoil to start the engine.
5. After the engine is started, slowly turn the choke up
one level at a time as the engine warms up until it is
at the maximum level or “RUN LEVEL.”
and fill
WARNING
operate on 120 volt AC household current. Use only a
UL-listed, 16 gauge extension cord for outdoor use that is
no longer than 50 feet (15 meters).
To prevent damaging electric
starter wait 1 minute between every
electric start attempt and never use
electric start in the rain.
The electric starter is designed to
Starting the Engine using the
Electric Start
1. Use a safe, non damaged power
cord to plug into the electric start outlet.
2. Make sure the safety key is fully inserted in order for
the engine to start. Remove the key when the snow
blower is not in use.
3. Firmly push the primer to force the fuel directly into
the engine’s carburetor. Push two to four times
depending on the temperature (choke more in colder
temperatures).
4. Make sure the choke is set in the CHOKE position.
5. Press the electric start button.
6. After the engine is started, slowly turn the choke up
one level at a time as the engine warms up until it is
at the maximum level or “RUN LEVEL.”
7. Unplug the extension cord before operating the
snow blower.
Safety Key
Choke
Rev: 12/21/2011
14
Operating Instructions
WARNING!
30SS, 36SS, 45SS
Transmission Control
Your snow blower is equipped with an easily
adjustable transmission control, which can be
adjusted for forward and reverse speed.
There are six forward and two reverse speeds.
To change the speed, pull the handle out to the right
and move the handle to the desired speed.
WARNING
DO NOT shift gears while the
transmission is engaged.
Come to a complete stop and
disengage the transmission
handle before switching
speed or switching from
forward to reverse.
Engage Transmission Drive
To engage the transmission drive squeeze the right lever to
the hand grip.
To disengage, let go of the right lever.
To Stop Engine
To stop the engine, pull the safety key up until the engine
and augers/impeller stops running. For safety, it is
recommended that you remove the key when not using the
snow blower.
WARNING
with defective guards, shields, or without the
safety devices securely in place.
Do not operate the snow blower
Engage Augers/Impeller Control
To engage the augers/impeller drive, squeeze the left
lever to the handgrip.
To disengage release the left lever.
IMPORTANT! The snow blower belts are adjusted to ensure the augers stop turning within five (5) seconds of
releasing the impeller control lever. If you are making any belt adjustments whatsoever, for your safety and the safety
of others around you, you must ensure the belts are re-adjusted to achieve this design specification.
Rev: 12/21/2011
15
Operating Instructions
Never use your hands to clean a clogged
chute or opening.
DANGER! Make certain the engine comes to a complete stop before putting you hands near the augers/
im
peller .
30SS, 36SS, 45SS
Chute Direction Control
To rotate the chute to the right rotate the chute control
clockwise.
To rotate the chute to the left rotate the chute control
counter-clockwise.
Headlights
To turn on the lights, flip the switch up.
To turn off the lights, flip the switch down.
Chute Discharge Angle
There are five different angles the discharge chute can
be arranged to discharge.
To change the discharge angle, pull the handle out to
the left and move to the slot up to discharge snow at a
higher angle and down to discharge snow at a lower
angle.
Clean Out Tool
Release both wheel and
impeller drives. Stop the engine by removing the safety
key. Wait for all moving parts to stop.
Use clean out tool as needed.
DANGER
Rev: 12/21/2011
16
Operating Instructions
Shear-Pins
Auger
Impeller
Discharge Angle Chute Direction
30SS, 36SS, 45SS
Using your STANLEY Snow Blower
The following tips will help ensure proper and long lasting use of your STANLEY snow blower. ALWAYS wear proper
safety equipment when operating the snow-blower, and make sure you dress appropriately for cold weather.
Figure 1
x Before use, always ensure there is nothing lodged in the auger,
or impeller area. Inspect the auger and impeller for damage
from rocks or other debris, and ensure there is no string, twine,
etc stuck on the auger or impeller shafts. Visually inspect for
loose hardware or any control cables that are loose or
disconnected. Ensure the shear-pins are intact before
operation.
x Inspect the area you will be operating the snow blower in.
Avoid areas with rocks, large branches and limbs, or other debris that may damage the snow-blower. Only operate the snow
blower on paved ground.
Figure 2
x To pro-long the life of the friction wheel system, do not par-
tially-engage the drive system, or continually engage and disengage the drive system if the engine begins to slow under
heavy loads. When operating the snow-blower in dense wet
snow, or significant amounts of snow, use a slower speed on
the transmission.
Figure 1
Figure 2
Figure 3
x The STANLEY Snow Blower uses a “live axle” which means the
wheels on either side of the snow blower turn together. When
turning the snow-blower 180
o
dis-engage the drive system.
Shift to Speed 1. Re-engage the drive handle and pull on the
control handle to shift the weight distribution to the outside
tire. This will assist in turning the snow blower, and is especially important for the 45SB which uses double tires on each
side.
Example: If turning left, shift the weight of the snow
blower to the right. If turning right, shift the weight of
Figure 4
x Set the desired discharge direction and angle before engaging
the auger/impeller. Do not adjust the discharge direction or
angle while throwing snow. The extra forces may damage the
cables.
Figure 3
Figure 4
Rev: 12/21/2011
17
General Maintenance
19
CAUTION!
30SS, 36SS, 45SS
The Importance of Maintenance
Regular maintenance is essential to ensure your snow
blower continues to deliver safe and high-quality
performance.
To help you properly care for your snow blower, the
following pages include a recommended maintenance
schedule, routine inspection procedures, and simple
maintenance procedures using basic hand tools.
Maintenance is the responsibility of the owner and
must be performed regularly. More difficult service
tasks or tasks that require special tools are best
handled by a recommended service technician or other
qualified mechanic.
The maintenance schedule described on page 1
applies to snow blower used under normal operating
conditions. If you operate your snow blower under
severe conditions, such as sustained prolonged use or
use it in unusually wet, dusty or rocky conditions,
consult your servicing dealer for recommendations
applicable to your individual needs and use.
Be sure to use genuine STANLEY Snow Blower
replacement parts when servicing your snow blower to
assure the best quality, safety and performance.
Need Help? Parts, Service and Technical Assistance
1-919-550-3221 ext. 158
Check Skid Shoes
Check the skids to ensure that the auger does not
contact the paved or gravel surface.
Adjust skids as necessary to make up for wear on the
snow blower.
Replacement skid shoes are available for purchase
through GXi Parts & Service.
Part# B07111
www.serviceandwarrantyonline.com
Check Oil Level
CHECK ENGINE OIL BEFORE EACH USE. Change oil as
recommended on page 19 and follow proper
procedures to check and change oil.
servicing to your STANLEY Snow Blower , make sure
the snow blower is on a level surface, with the ignition
switch off, the key removed, and the augers
disengaged. Also, disconnect the spark plug wires from
the spark plugs and ground them against the engine to
prevent inadvertent starting.
If you are performing adjustments or maintenance after
operating the snow blower, allow the unit to cool and
always wear protective clothing.
CAUTION
Before making any adjustments and/or
CAUTION
CAUTION: Always wear work gloves when performing
auger maintenance and beware of sharp edges. Be
sure the engine is off, the key removed, and the spark
plug wires are disconnected from the spark plugs to
prevent inadvertent starting.
Shear Bolts
Check shear bolts (as well as other bolts) at frequent
intervals for proper tightness to be sure the equipment
is in safe working condition.
Do NOT use standard bolts to replace shear bolts.
Severe damage or injury could occur.
Shear bolts are available for replacement through GXi
Parts & Service.
Part# B06711
www.serviceandwarrantyonline.com
After Blowing Snow
Allow the machine to run with the impeller engaged for
a few minutes after blowing snow to prevent freeze-up
of the augers/impeller.
Rev: 12/21/2011
18
Maintenance Schedule
30SS, 36SS, 45SS
Time Interval
Break-in
Item Procedure
Belts
Augers/Impeller Inspect
Engine Air Filter Inspect X
Engine Oil
Engine Spark Plug Inspect 20-30 hrs
Fuel Line Check
Inspect Tension
(adjust if needed)
Check X
Change 20-30 hrs
(first 5 hrs)
X X
Every 8 hrs
(daily)
X
Every 40 hrs
(weekly)
Every 100 hrs
(Bi-weekly)
X
Every 200 hrs
(monthly)
Hardware
Snow Blower Main
Frame
Safety Interlock System
Tires Check Air Pressure
Augers/Impeller Brake
Check for proper
tightness
Remove debris from
under belt cover
Check Operations
and Switches
X X X
X
X
X
X X
Cleaning the Snow blower
It is recommended that the STANLEY snow blower be cleaned on a daily basis. Excessive accumulation of dirt,
debris, oil, etc. on the muffler, air filter, snow blower augers/impeller and engine may present a potential safety
hazard.
Rev: 12/21/2011
19
Service Adjustments
30SS, 36SS, 45SS
Adjusting Augers/Impeller Cable
If tension seems to be too loose or too tight, the
augers/impeller, cables needs to be readjusted.
1. Loosen the bolt above where the cable screws in
to the left side of the control panel.
2. Loosening the bolt enables the cable to screw in further, which makes the
augers/impeller handle
tighter.
3. Adjust the bolt and cable
to the necessary
adjustments.
Adjusting Drive Cable
If tension seems to be too loose or too tight, the drive
cables needs to be readjusted.
1. Loosen the bolt above where the cable screws in
to the right side of the control panel.
2. Loosening the bolt enables the cable to screw in
further, which makes the augers/impeller handle
tighter.
3. Adjust the bolt and cable
to the necessary
adjustments.
Adjusting Shift Rod
The shift rod will be at a preset position from the
factory, but after use, or maintenance, the shift rod
may require occasional adjustment.
Signs of adjustment need:
1. The shift handle is moved to the F1 position, and
when the engagement handle is pressed, the unit
does not move.
2. The shift handle is moved to the R1 position, and
when the engagement handle is pressed, the unit
does not move.
If either of the above occur, it may be necessary to
adjust using the following procedure:
1. Set the transmission handle to the space between F1
and R1 as shown on the right.
2. Loosen the 2 nuts on the adjustment turnbuckle.
3. Remove the cover plate from the gearbox housing
(see page 22).
4. Adjust the rod by turning the turnbuckle until the
friction wheel aligns with the center of the circular
disk in front of the rubber friction wheel.
Rev: 12/21/2011
20
Service Adjustments
Check & Replacing the Transmission Drive Belt
If belt needs to be changed or altered for any reason, the
belt is located in the front of the snow blower behind the
discharge chute and in front of the wheels.
1. Remove the cover that is protecting the snow
blower’s belts. Remove the screws and simply lift
up the cover.
2. Remove the black belt and replace with a new belt.
3. Attach the cover and all parts as they were when
taken off.
30SS, 36SS, 45SS
Check & Replacing the Augers/Impeller Belt
There are two located in the front of the snow blower
behind the discharge chute and in front of the wheels.
1. Remove the cover that is protecting the unit’s belts.
Remove the screws and simply lift up the cover.
2. Remove the two belts and replace with new belt or
belts depending on the belt’s condition.
3. Attach the cover and all parts as they were when
taken off.
NOTE: Always change both belts at the same time.
Changing only one belt can lead to performance issues.
Also check for correct belt tension after changing belts.
Readjust if necessary.
Belt Spec: MXV4-370
Part# B08911
IMPORTANT! The snow blower belts are adjusted to
ensure the augers stop turning within 5 seconds of
releasing the augers/impeller control lever. If you are
making any belt adjustments whatsoever, for your safety
and the safety of others around you, you must ensure the
belts are re-adjusted to achieve this design specification.
Rev: 12/21/2011
21
Adjusting Discharge Deflector
Service Adjustments
The discharge chute is preset at the factory, but may
require adjustment over time or during maintenance.
For adjustments, follow the procedure below:
1. Loosen the two nuts at the chute cable mount on the
discharge chute.
2. To make the chute open more, adjust nuts so the
cable end moves closer to the discharge deflector
(upward).
3. To make the chute close more, adjust nuts so the
cable end moves further from the discharge
deflector (downward).
Changing Friction Wheel
If the friction wheel needs to be replaced for any reason:
1. Remove the six bolts to remove the cover
underneath the control panel between the wheels.
2. Remove the bolt and nut in the hexagonal shaft
carrying the friction wheel
3. With the bolt and locking nut removed, the shaft can
be removed with the rubber friction wheel assembly.
4. Replace the friction wheel and reassemble in
reverse order.
5. Resetting the neutral position may be necessary.
Replacement friction wheel rubber is available for
purchase through GXi Parts & Service
Part# B05311
www.serviceandwarrantyonline.com
30SS, 36SS, 45SS
Replacing Headlight Bulb
1. Push the headlight case up from the
bottom
2. Twist the black round wire harness counterclockwise until the bulb is unlocked at the spot.
3. Replace the bulb and lock the headlight back into
place the same way it was taken out.
Replacement bulbs are available for purchase through
GXI Parts & Service.
Part# B03211
Rev: 12/21/2011
, then gently lift the headlight out.
22
Storage Instructions
Short Term Storage
Extended Storage
30SS, 36SS, 45SS
x Let engine cool before storing and do not store
near flame, high heat, and possible ignitions from
sparks.
x Always clean off all flammable material as well as
grime and dirt before storage.
x Wash with mild detergent and water only.
x After washing the machine engage the engine at
high and let the snow blower run for 5 minutes.
x Store snow blower only on the ground.
x Do not drain fuel indoors or near a flame.
x Always park machine on level ground.
x Store the machine in a clean and dry environment.
x Always remove the safety key and ground the
spark plug to the engine.
x Always run the snow blower before storage to
clear up snow to prevent freeze up.
x Check all parts to see if they are in working
condition.
x Change air filter.
x Make sure all fuel is drained before storing.
x To ensure all fuel is drained from the snow blower,
turn the fuel valve off, then run the snow blower
until it runs out of gas before storage.
x Add a fuel stabilizer to fresh fuel on the last
refueling day.
x Check the spark plugs condition and pour two
tablespoons of engine oil in the spark plug holes
and leave the spark plugs off.
x Cover the machine when in storage.
x Everything mentioned in short term
storage should also be applied to extended
storage.
Rev: 12/21/2011
23
Troubleshooting
Problem Possible Causes Solution
30SS, 36SS, 45SS
Engine will not start 1. Key in the OFF position
2. Insufficient fuel in the tank
3. Air bubble in the fuel line
4. Fuel valve in OFF position
5. Choke not ON
6. Choke linkage out of adjustment
7. Loose spark plug wire
8. Fouled spark plug
9. Plugged or dirty air filter
10. Bad gasoline
Fuel is leaking from the
engine.
1. Primer button was pressed too many
times.
2. Fuel hose has become dis-connected
3. Carburetor has contaminants in it
causing the bowl to flood.
Engine will not start with
electric starter
1. Not using proper gauge cord
2. Safety key is loose
1. Turn key to ON position
2. Add gasoline
3. Prime engine or shake bubble out
4. Turn valve ON
5. Turn choke ON
6. Refer to Engine Owner’s Manual
7. Add engine oil
8. Tighten wire or connections
9. Clean or replace the plug
10. Clean or replace the air filter
11. Drain and replace with fresh gasoline
1. Do not press primer more than 3 times. Wipe off
excess fuel and allow to dry COMPLETELY before
attempting to start
2. Re-connect fuel hose and clamp(s)
3. Fuel tank and carburetor needs to be flushed and
carburetor needs cleaning.
1. Use 120V 16 gauge cord in good condition.
2. Verify the safety key is fully inserted.
Engine will not keep
running/quits
1. Water in the fuel
2. Fuel valve is OFF
3. Low engine oil
Augers do not turn 1. Shear pins holding the augers may
have sheared.
Shaft is not turning 1. Shear-Pins holding the augers may
have sheared.
2. Check the gearbox.
Snow blower always pulls
to one side
1. Skid shoes and / or scrapper blade
dragging more on one side than the
other
1. Drain and replace with fresh fuel
2. Turn fuel valve ON
3. Add engine oil
2. If the pins sheared, replace them as needed after
applying lubricant into the shaft. Call GXi Parts &
Service at 1-919-550-3221 or email:
customerservice@gxioutdoorpower.com for parts.
If the pins sheared, replace them as needed after
applying lubricant into the shaft.
Call GXi Parts & Service at 1-919-550-3221or email:
customerservice@gxioutdoorpower.com for parts.
1. Adjust skid shoes and / or scrapper blade so the
scrapper blade drags uniformly on the surface
being blown.
Rev: 12/21/2011
24
Troubleshooting
Problem Possible Causes Solution
30SS, 36SS, 45SS
Snow blower will not
move forward or reverse
Cannot move snow
blower when the engine is
off
1. Transmission cable out of
adjustment (too loose) or
damaged.
1. Transmission handle is pressed
into the engaged position
2. Transmission cable out of
adjustment (too tight)
Engine is overheating 1. Dirt in the fuel line
2. Dirty air filter
3. Low engine oil
4. Fouled spark plug
5. Misuse of the snow blower
1. Readjust transmission cable
If damaged, replace and readjust.
1. Release transmission handle
2. Readjust transmission cable
1. Replace fuel filter and flush tank
2. Clean or replace the air filter
3. Add engine oil
4. Replace spark plug
5. Walk the snow blower slowly
Rev: 12/21/2011
25
Replacement Parts
To order replacement parts, visit our web-site at www.serviceandwarrantyonline.com
Or dial Toll Free 1-800-393-0668 Monday-Friday 8AM-5PM
OEM Replacement Parts
B08911 :
B01110:
B01310:
B06711:
B07101:
B05311:
B02510:
B03211:
B02210
B01010:
B02410:
B00110:
B02010:
B01810:
B02110:
B03511:
B03811:
B03911:
B01910:
B04511:
B05611:
B02811:
B02911:
B00610:
B00810:
B01510:
B03711:
B04911:
B04811:
B01410:
B06811:
B06511:
B01710:
E07610:
B02711:
B04611:
If the part needed is not listed, or you need warranty service, please contact GXi Parts &
Service to
further assist you.
We can be reached toll free at 1-800-393-0668 - Monday-Friday 8AM-5PM EST
30SS, 36SS, 45SS
: Headlight Assembly (Includes Bezel, Reflector Housing, Bulb)
Transmission (Drive) Belt—Toothed Belt
Belt Guard with Hardware
Shear Bolts for Auger/Collector (Set of 2)
Skid Shoes (Set of 2)
12V Halogen Headlight Replacement Bulb (Bulb Only)
Auger/Impeller Activation Handle (Left Handle)
Auger/Impeller V-Belts (Belt Spec: MXV4-370)
Replacement Friction Wheel Rubber
Replacement Friction Wheel Assembly
Drift Cutters (Set of 2) - Black
Snow Cleanout Tool with Bracket and Hardware
Snow Blower Wheel/Tire Assembly with Lynch Pin (One tire/wheel)
Auger/Impeller and Drive Control Cable—One Cable
Discharge Chute Direction Control Cable
Discharge Chute Angle Control Cable
Discharge Chute Direction Control Crank Handle
Discharge Chute Angle Lever/Handle (with rubber grip) - Left Lever
Transmission Speed Shift Lever/Handle (with rubber grip) - Right Lever
Transmission Speed Shift Rod (Connects shift lever to friction wheel linkage)
Outer Friction Wheel Shift Linkage
Complete Friction Wheel Shift Linkage and bracket
Drive Activation Handle (Right Handle)
Discharge Chute Assembly (Black) Includes discharge chute and chute deflector
Discharge Chute Deflector Assembly (Black)
Discharge Chute Bushing with Clamps
Discharge Chute Direction Gear (Spiral Gear) and bracket assembly
Transmission Belt Idle Pulley with Bracket
Auger/Impeller Belt Clutch Pulley with Bracket
Auger/Impeller Gearbox
Auger/Collector Shaft Bearings with Flange
Impeller
Fuel Tank with Lid
420cc Electric Start Snowblower Engine Assembly
Upper Control Panel/Handlebar Frame-(Does not include handles, or wiring—frame only)
Lower Handle Bar Frame—Black
Rev: 12/21/2011
26
Collector Housing Assembly Reference
Parts Diagram
Drawing # Part# Descpription
30SS, 36SS, 45SS
1
2 B00810 Discharge Chute Deflector—Black
3 B01010 Drift Cutters—Black (Set of 2)
4 B01410 Auger/Impeller Gearbox
5 B01510 Discharge Chute Rotation Bushing with Clamps
6 B02410 Snow Cleanout Tool with Bracket and Hardware
7 B03711 Discharge Chute Direction Gear (Spiral Gear) with Bracket
8 B04811 Auger/Impeller Clutch Pulley Assembly & Bracket
9 B05111 Auger/Impeller Pulley (Mounts to Impeller Shaft)
10 B06511 Impeller
11 B06811 Auger Shaft Bearings with Flange
12 B06911 Gearbox Support bar
13 B07011 Skid Shoes—Black (Set of 2)
14 B07211 Scraper Blade Assembly
15 B08211 Impeller shaft Bearing Support with Bracket
B00610 Discharge Chute Assembly—Black
Rev: 12/21/2011
16 B08311 Auger/Collector Assembly
17 B08911 MXV4-370 Aramid Fiber Re-Inforced V-Belts (Set of 2)
27
Drawing # Item # Description Drawing # Part # Description
Chassis Assembly Reference
Parts Diagram
30SS, 36SS, 45SS
5
14 15
11
6
13
5
4
10
12
19
21
3
2
18
17
8
20
22
7
1 B00110 Snow blower Wheel/Tire Assembly 13 B03511 Chute Direction Control Handle
2 B01110 Transmission Belt (toothed belt) 14 B03811 Discharge Chute Angle Lever
3 B01310 Plastic Belt Guard with Hardware 15 B03911 Transmission Speed Shift Lever
4 B01910 Shift Rod (Attaches control lever to linkage) 16 B04411 Control Handle Inter Lock Linkage
5 B02010 Auger/Impeller OR Drive Engagement Cable 17 B04511 Outer Friction Wheel Shift Linkage
6 B02210 Headlight Assembly 18 B04711 Lower Handle Bar Frame
7 B02510 Friction Wheel Assembly with Bearing 19 B04911 Transmission Belt Idle Pulley with Bracket
8 B02610 Friction Wheel Cover Plate with Hardware 20 B05011 Crankshaft Pulley Set
9 B09011 Upper Control Handle/Control Panel Frame 21 B05611 Complete Friction Wheel Shift Linkage Assembly
10 B02811 Left Control Handle 22 B09311 Friction Wheel Aluminum Hub Assembly
11 B02911 Right Control Handle 23 B09411 Snow blower Wheel Lynch Pin
12 B03411 Handle Rubber Grip 24 B09711 Intermediate Axle Shaft (Friction Wheel Shaft)
24
1
23
Rev: 12/21/2011
28
Limited Warranty & Service
Length of Warranty: *(from the date of original retail purchase)
Noncommercial/
Nonrental
Commercial R
ental
Products Covered by this Warranty
What GXi Outdoor Power Will Repair or Replace under Warranty
defective in material or workmanship
To Obtain Warranty Service
Exclusions
Disclaimer of Consequential Damage and Limitation of Implied Warranties
30SS, 36SS, 45SS
Engine Manufacturer’s warranty Manufacturer’s warranty Manufacturer’s warranty
Transmission Manufacturer’s warranty Manufacturer’s warranty Manufacturer’s warranty
Snow blower deck/spindles/wheels/pulleys/
controls
*LENGTH OF WARRANTY: Batteries supplied with applicable products as standard, original equipment are covered by this warranty for a period of
90 days from the date of original retail product purchase. Consumable parts such as oil, spark plugs, shear pins, filters, dirty carburetors, and
augers/impeller are not covered by this warranty.
To Qualify for this Warranty
The product must be purchased in the United States from a dealer authorized by GXi Outdoor Power, LLC to sell those products. This warranty
applies to first retail purchaser/owner during the applicable warranty time period. SAVE YOUR PROOF OF PURCHASE RECEIPT.
GXi will repair or replace, at its option, any part that is proven to be d
warranty time period subject to the exclusions stated herein. This warranty is void if the owner fails to follow the prescribed maintenance and
operating procedures described in this manual. This specifically refers to ensuring routine lubrication and oil changes are made, that fuel stabilizer
is used when the product is stored and that the product is not overloaded.
GXi has the right to recover warranty administration costs from the owner if the root cause of the malfunction is found to be other than defective
material or workmanship. In particular, this warranty does not cover: contaminants in the fuel or oil; damage caused by not following the
prescribed warnings and operating practices; failure to follow proper maintenance and storage procedures; and physical damage due to misuse,
shipping, handling or storage.
Warranty repairs will be made without charge for parts and labor for the first year.
Anything replaced under warranty becomes the property of GXi. Parts replaced under warranty will be considered as part of the original product
and any warranty on those parts will expire coincident with the original product warranty.
You must take the STANLEY product, accessory, replacement part, apparel or the power equipment on which the accessory or replacement part is
installed, and proof of purchase, at your expense, to any STANLEY service location in the United States, who is authorized to service that product,
during the service location’s normal business hours. If you are unable to obtain warranty service, or are dissatisfied with the warranty service you
receive, take the following steps: First, contact the manager of the service center involved; normally this will resolve the problem. However, if you
should require further assistance, write or call the GXi Parts and Service, LLC.
This warranty does not cover: normal wear, contaminants in the fuel or oil; damage as a result of use in an application for which the product was
not designed; damage caused by incorporation or use of unsuitable attachments or parts, unauthorized alteration, or other misuse and neglector;
damage caused by failure to follow the prescribed warnings, operating practices, proper maintenance and storage procedures; parts affected or
damaged by accident and/or collision; damage due to shipping, handling, storage or any causes other than defects in material or workmanship of
the product. The customer is responsible for transporting the snow-blower to and from the service center. Pick Up & Delivery will depend on if the
service center provides this service, and will be made at the owner’s expense.
GXi disclaims any responsibility for loss of time or use of the product, transportation, commercial loss, or any other incidental or consequential
damage. Any implied warranties are limited to the duration of this written limited warranty.
THIS WARRANTY IS VOID IF THE MANUFACTURING DATE AND THE SERIAL NUMBER ON THE EQUIPMENT HAS BEEN REMOVED OR THE
EQUIPMENT HAS BEEN MODIFIED.
12 months 90 days 90 days
under normal use during the applicable
EMISSION CONTROL SYSTEM INFORMATION
The U.S. and California Clean Air Acts
EPA and California regulations require all manufacturers to furnish written instructions describing the operation and maintenance of emission control systems. The following
instructions and procedures must be followed in order to keep the emissions from your engine within the emission standards. Maintenance, replacement, or repair of the
emission control devices and systems may be performed by any engine repair establishment or individual, using parts that are ‘‘certified’’ to EPA standards.
The emission control systems on your engine were designed, built, and certified to conform with EPA regulations. We recommend the use of genuine parts whenever you
have maintenance done. These original-design replacement parts are manufactured to the same standards as the original parts, so you can be confident of their performance.
The use of replacement parts that are not of the original design and quality may impair the effectiveness of your emission control system. A manufacturer of an aftermarket
part assumes the responsibility that the part will not adversely affect emission performance. The manufacturer or re-builder of the part must certify that use of the part will
not result in a failure of the engine to comply with emission regulations. Emission controls are covered by this warranty for all uses for a period of 2 years from original retail
purchase date, this coverage extends to subsequent owners of the product with proof of original purchase. For emissions warranty service call 1-800-393-0668 or e-mail
customerservice@gxioutdoorpower.com .
Rev: 12/21/2011
29
Loading...
