SP Series
4 Row Inline
Potato Planter
Standen Engineering Limited.
Hereward Works,
Station Road, Ely,
Cambridgeshire.
CB7 4BP
England.
IMPORTANT
This operator’s handbook should be regarded as part of the
machine. Suppliers of both new and second-hand machines are
advised to retain documentary evidence that this handbook was
supplied along with the machine.
On installation of the machine (i.e. starting off in the field), the New
Machine Installation Record Card should be completed by the
dealer/distributor and be countersigned by the customer. The
document is proof that the correct procedures have been followed.
The New Machine Installation Record Card should be returned to
Standen Engineering Limited within 7 days of installation. Failure to
do so may invalidate the machine warranty.
On delivery check that the machine is as ordered and has not been damaged in
transit. Please report any shortfall to your Standen dealer.
The contents of this handbook, although correct at the time of publication, may be
subject to alteration by the manufacturers without prior notice.
Standen Engineering Limited operates a policy of continual product development.
Therefore, some illustrations and/or text within this publication may differ from your
machine.
The copyright of this handbook is the property of Standen Engineering Limited,
Hereward Works, Station Road, Ely, Cambridgeshire. CB7 4BP. This handbook is
issued on the condition that it must not be used, copied or exhibited without their
written permission.
CONTENTS
INTRODUCTION
Introduction to the Handbook 1.1
Warranty 1.1
Replacement Parts 1.2
SAFETY PRECAUTIONS
Safety 1.3
INSTALLATION
Overview 1.5
Tractor Suitability 1.5
Attaching the Planter to the Tractor 1.5
OPERATION
Planting 1.7
Land Wheel Adjustment 1.7
Setting the Seed Spacing 1.7
Setting the Planting Depth 1.8
Floating Openers 1.9
Bed Forming Board and Ridger Bodies 1.10
Multi-Adjustable Moulding Board 1.11
Feed of Potatoes to Cups 1.12
Feed Belts 1.12
Cup Belts 1.13
Insert Cups 1.14
Seed Monitors 1.14
Cup Belt Agitators 1.15
Hydraulic Depth Control 1.16
Automatic Depth Control (prior to 2013) 1.17
Depth Control Sensor Adjustment (prior to 2013) 1.18
Hydraulic Space Selector 1.20
Hydraulic System 1.20
Calibrating the Control Box to the Motor Valve 1.21
Calibrating the Control Box Area Recorder 1.22
Hydraulic Space Selector in Operation 1.22
Seed Spacing 1.23
Planting Rate 1.23
Unload/Prime 1.23
Seed Population 1.23
Area Recorder 1.24
Proximity Sensor Adjustment 1.25
Fitting a New Automatic Depth Control Relay 1.25
MAINTENANCE
Lubrication 1.26
Mechanical Drives Maintenance 1.26
Electrical System Maintenance 1.26
Hydraulic System Maintenance 1.26
Daily Maintenance 1.27
Weekly Maintenance 1.28
Annual Maintenance 1.28
Out of Season Storage 1.28
SPECIFICATION
Machine Dimensions 1.30
Machine Weight 1.30
Technical Data 1.30
SEED POPULATION TABLES

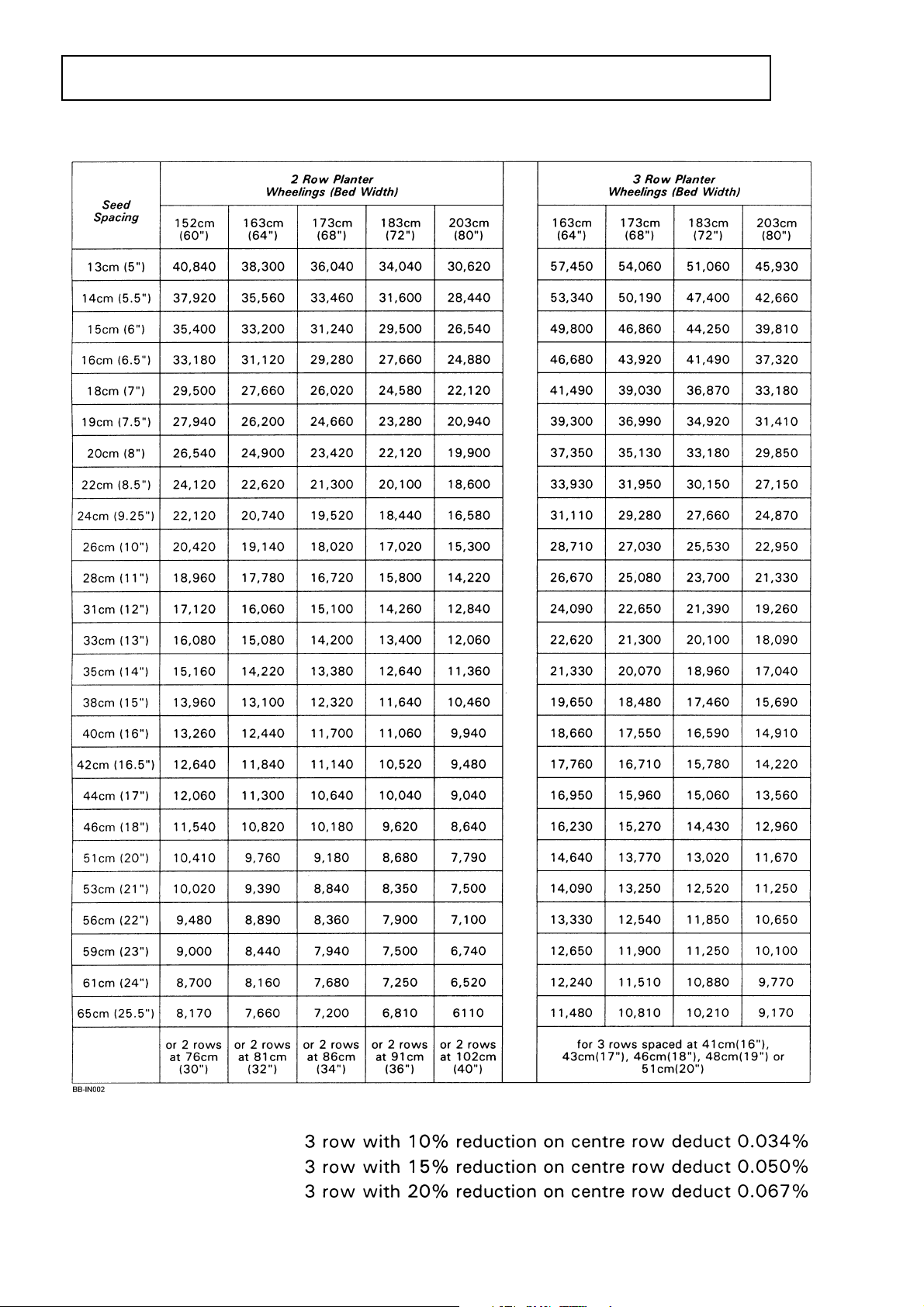

Seed Population per Acre 1.31
APPENDIX
Automatic Depth Control (from 2013) 1.32
Depth Control Sensor Adjustment (from 2013) 1.34
1.1
INTRODUCTION
Introduction to the Handbook
This handbook provides the information for the operation, adjustment and
maintenance of your Standen SP Series Potato Planter. To enable you to achieve
the best results from the machine, the manufacturer recommends that you read the
handbook thoroughly prior to using the machine for the first time.
Record below the details of your machine.
Dealers name...............................................................................…………….
Address......................................................................................................
.................................................................................................................
Telephone number.................................................................................…….
Machine serial number...............................................................................…
Date purchased............................................................................................
Date started work........................................................................................
This symbol indicates important safety messages within this handbook.
When you see this symbol, be alert to the possibility of injury to yourself
or others and/or damage to the machine and carefully read the
message that follows.
Throughout this handbook the terms 'front', 'rear', 'left-hand' (LH) and 'right-hand'
(RH) are derived from the tractor driver’s position facing forward in the normal
direction of travel.
Adjustments to the machine may have to be made singly or in combination according
soil conditions. Always allow the machine to settle to a new setting before making
further adjustments.
Recommended lubrication and maintenance instructions are included in this
handbook and if followed will help to keep the machine in a safe working condition.
Warranty
Should the machine suffer any faults or defects within the warranty period, please
contact your dealer. The warranty shall be effective only if the dealer is informed of
any such defect as soon as practicable upon discovery.
INTRODUCTION
1.2
Unauthorised modifications and the use of spare parts, accessories and ancillary
equipment not supplied and/or not approved by Standen Engineering Limited as the
manufacturer, can have a detrimental effect on the construction of the machine or on
its functions and hence impair the machines operation and safety. The manufacturer
does not accept liability for any issues resulting from this.
Replacement Parts
Recommended replacement parts are designed for your machine and have the full
backing of the warranty. Only when recommended parts are used can responsibility
be considered under the terms of the warranty.
The rear section of this handbook contains lists of spare parts available through your
Standen Agents. Each illustration shows a complete unit or assembly in exploded
form. Standen's policy of continual product development means that components or
even complete assemblies are redesigned from time to time. Where possible the
modifications are shown in the remarks column.
The first printing of each page in the spare parts section is identified as issue 1 at the
foot of the page. When a complete unit or assembly has been redesigned the
appropriate pages are revised and printed as issue 2. The revised pages are filed
behind the existing issue so that a complete modification history is gradually built up.
When using an illustration and parts list it is essential that both are of the same issue.
Always quote the full serial number of your machine when ordering spare
parts.
1.3
SAFETY PRECAUTIONS
Safety
The Standen SP Series Potato Planters have been designed to comply with current
Safety Regulations. However, as with all machinery there will be inherent dangers
whilst operating and carrying out maintenance on the machine. The following list of
precautions should therefore be brought to the attention of all persons operating and
working on the machine. The list is not exhaustive. All machinery is potentially
dangerous and great care must be exercised by the operators at all times. Standen
Engineering Limited will not accept liability for damage or injury caused by their
products except when such liability is specifically imposed by English statute.
The machine must never be operated by untrained personnel or
children.
The tractor must be of a suitable size to lift the implement safely. This
may entail the fitting of front weights to counterbalance the machine
when in the raised position.
Always check that the machine has been correctly mounted to the
tractor before setting off on operations and the stabilizers are correctly
set.
Never set machinery in motion before ensuring that everyone in the
vicinity is aware of your intentions.
Never allow children or animals in the vicinity where machines are
working and never allow anyone to ride on the machine.
Never attempt to fit drive chains or drive belts to the machine while the
drive sprockets or pulleys are in motion.
Normal safe working procedures should be adopted at all times.
Reduce speed when transporting the machine on sloping ground.
Do not work on ground where there is a possibility of overturning or
across steep slopes.
The working area should be kept clear and free of obstructions at all
times. Be alert for hidden obstructions. Should the machine hit an
obstruction, stop and check for damage before proceeding.
Wear substantial or proper safety footwear. Avoid loose clothing near
moving parts. Wear gloves when handling the implement or parts with
sharp edges.
Before carrying out any work on the machine, lower the machine to the
ground, switch off the tractor engine, apply the handbrake, remove the
ignition key. Never work on or pass under the machine when it is raised
on the tractor hydraulic linkage.
SAFETY PRECAUTIONS
1.4
When left free standing i.e. not attached to the tractor, the machine
must be on level ground.
The operator must not leave the tractor seat until the machine has been
lowered to the ground, the tractor engine switched off, the handbrake
applied and the ignition key removed.
Never reverse or turn unless the machine is in the raised position.
All guards, covers, warning transfers and safety devices must be
correctly fitted and operable at all times.
Inspect the machine on a regular basis and replace damaged or worn
parts as necessary.
Inspect the machine for damage after use. Rectify as required.
Never operate the machine in a state of disrepair.
When in transport the moulding board/ridgers should be raised and
secured into the transport position.
Only transport the machine at a speed suitable to the prevailing
conditions. Be aware of the weight and overall length of the machine at
all times.
When in transport keep the hopper empty. Always fill the hopper in the
field. Transporting with a full hopper causes strain on both planter and
tractor and will pack the potatoes in the hopper causing ‘bridging’ when
planting commences.
Always ensure road lights are clean and in good working order.
Always use mechanical or additional help when lifting heavy parts.
Regularly check hydraulic hoses for chafing or damage and replace as
necessary.
Care must be taken when carrying out any work on the hydraulic
system. Even when stopped and disconnected from the tractor, residual
pressure will exist within the hydraulic system. Therefore, before
commencing any work on the hydraulics ensure that the system is free
of residual pressure.
Safety is the responsibility of the persons working with this
machine. Think "safety" at all times. Read and remember the
contents of this handbook.
1.5
INSTALLATION
Overview
Standen SP Series Potato Planters can be built in many forms e.g. 2 row, 3 row, 4
row, manual space selector, hydraulic space selector etc. The machines are
designed to plant potatoes with extreme gentleness and accuracy in either standard
planting or bed work.
Tractor Suitability
The SP Series planter is suitable for tractors of 100 hp minimum.
The tractor must be of a suitable size to lift the implement safely. This
may entail the fitting of front weights to counterbalance the machine
when in the raised position.
Attaching the Planter to the Tractor
The planter is designed to be mounted onto the tractor 3-point linkage. The lower link

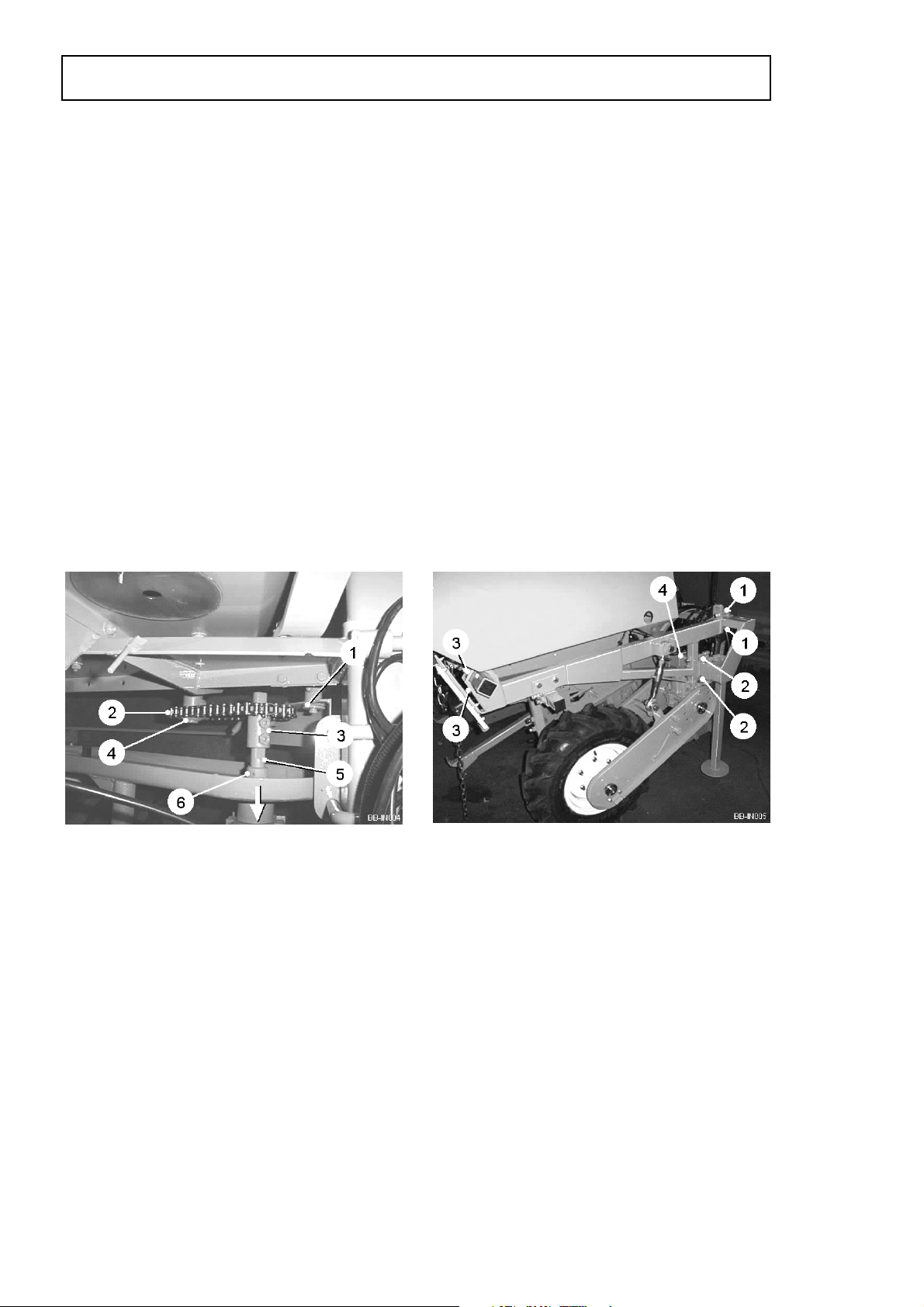

arm brackets (item 1, figure 1) are adjustable to accommodate all tractors. Adjust
both brackets equally ether side of the headstock.
When fitting to the tractor ensure the planter is standing on firm level
ground. The operator should have read and understood the tractor
operators manual prior to attaching the machine and putting into work.
Reverse the tractor up to the planter and engage the tractor lower link arms onto the
planter link arm brackets. The tractor lower link arms and stabilisers must be set to
ensure the planter runs central to the tractor. Fit the top link and adjust to level the
planter. If the planter is fitted with hydraulic depth control, the top link is replaced by a

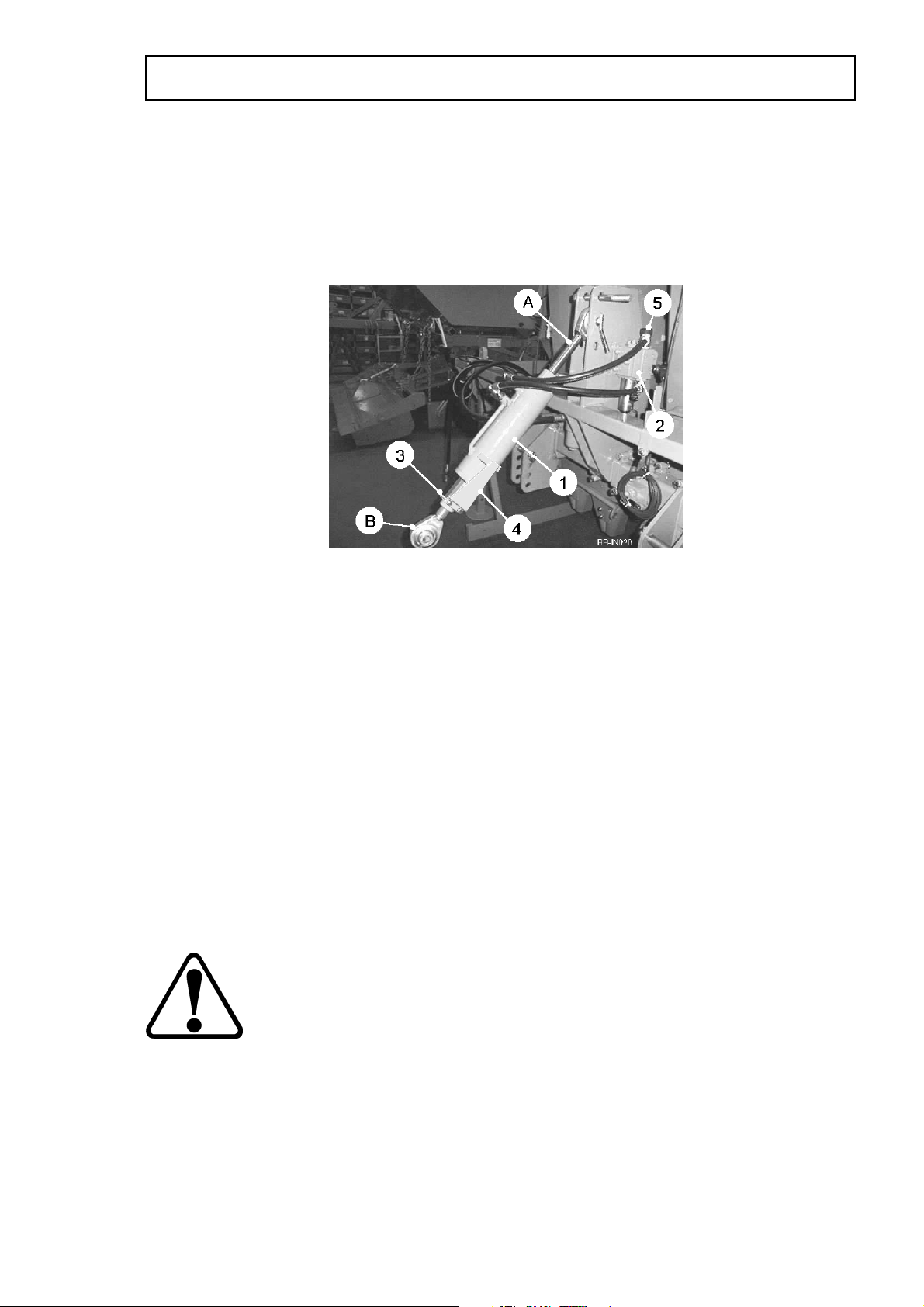

hydraulic ram (see section ‘Hydraulic Depth Control’ for fitting instructions).
Once mounted to the tractor, the hydraulic and electrical control services can be
connected. The hydraulic pressure hose (marked red), should be connected to the
tractor constant supply port. The return hose (marked blue) should be connected to
the tractor return port. The electrical control box should be mounted securely inside
the tractor cab in a position where it is comfortable to operate when seated. Connect
the cable between the planter and control box ensuring it is safely and securely
routed in the tractor cab. The box requires a 12v D.C. supply.
Fig 1
INSTALLATION
1.6
Connect the power lead directly to the tractor battery, blue lead to negative (-)
terminal and brown lead to positive (+) terminal. Finally, connect the planter road
lights plug to the tractor 7-pin socket.

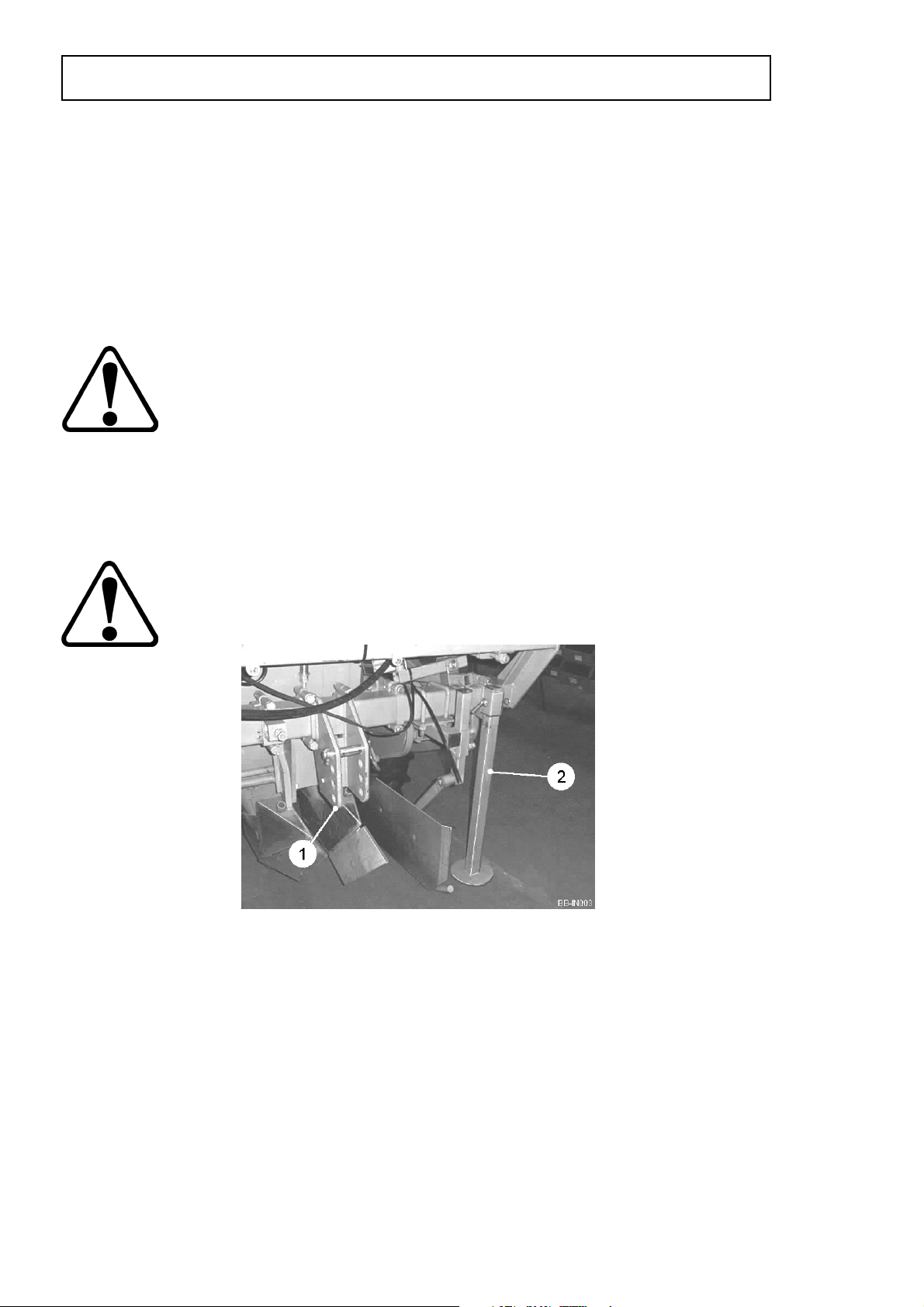

The parking stands (item 2, figure 1) must be raised before
commencing work. When disconnecting the planter from the tractor
always ensure the stands are lowered to support the machine.
1.7
OPERATION
Planting
Careful planting is one of the pre-requisites for a good crop of high quality potatoes.
The potatoes should be planted in straight ridges without gaps and at a correct and
even depth. This is achieved when, at the beginning of planting, the functions of the
planter and the different adjustments are carefully studied.
The seed potatoes used can vary a great deal (i.e. different varieties, shape, size,
number of sprouts, skin quality etc.) and the planter must be adjusted accordingly.
On machines fitted with manual space selector, when ready to plant, first lift the
planter on the tractor three point linkage and turn the right hand land wheel until
every cup on the elevators is filled. This way the machine commences to plant
immediately on starting. Seed population tables are included at the end of this
section of the handbook.
Land Wheel Adjustment
The LH and RH planter land wheels are adjustable for width and should be set to
straddle the rows.
Fig 2
To adjust the land wheels:
Loosen the chain tensioner (item 1, figure 2) and remove the drive chain (item 2,
figure 2) (machines with manual space selector only). Loosen the LH and RH wheel
unit frame securing bolts (item 1, 2 & 3, figure 3) and soil retention panel front
mounting ‘U’ bolts (item 4, figure 3). Slide the wheel units and soil retention panel
mountings to the required setting ensuring they are adjusted equally about the
machine centre-line. When in position, retighten the securing bolts (item 1, 2 & 3,
figure 3) and ‘U’ bolts (item 4, figure 3). Loosen the drive sprocket (item 3, figure 2)
and reposition it to align with the driven sprocket (item 4, figure 2). Ensure the
retaining bolts locate firmly on the drive shaft flat. Finally, refit the drive chain (item 2,
figure 2) and set it to the correct tension by adjusting the chain tensioner (item 1,
figure 2).
Depending on the row width setting and wheel setting, a different drive shaft (item 5,
figure 2) may be required. When built, the planter will have been set-up for the
customers original requirements and therefore supplied with the correct drive shaft.
Fig 3
OPERATION
1.8
Additional drive shafts are available from your Standen dealer (see the spare parts
section of this handbook).
To change the drive shaft:
Loosen the chain tension roller (item 1, figure 2) and remove the drive chain (item 2,
figure 2). Loosen the drive sprocket (item 3, figure 2) and adjacent locking collar
(item 6, figure 2) and withdraw the drive shaft in the direction of the arrow.
Reassemble using the correct length of drive shaft.
Setting the Seed Spacing
The seed spacing is adjusted by changing the ratio of the drive transmission taken
from both land wheels.
To change the seed spacing:

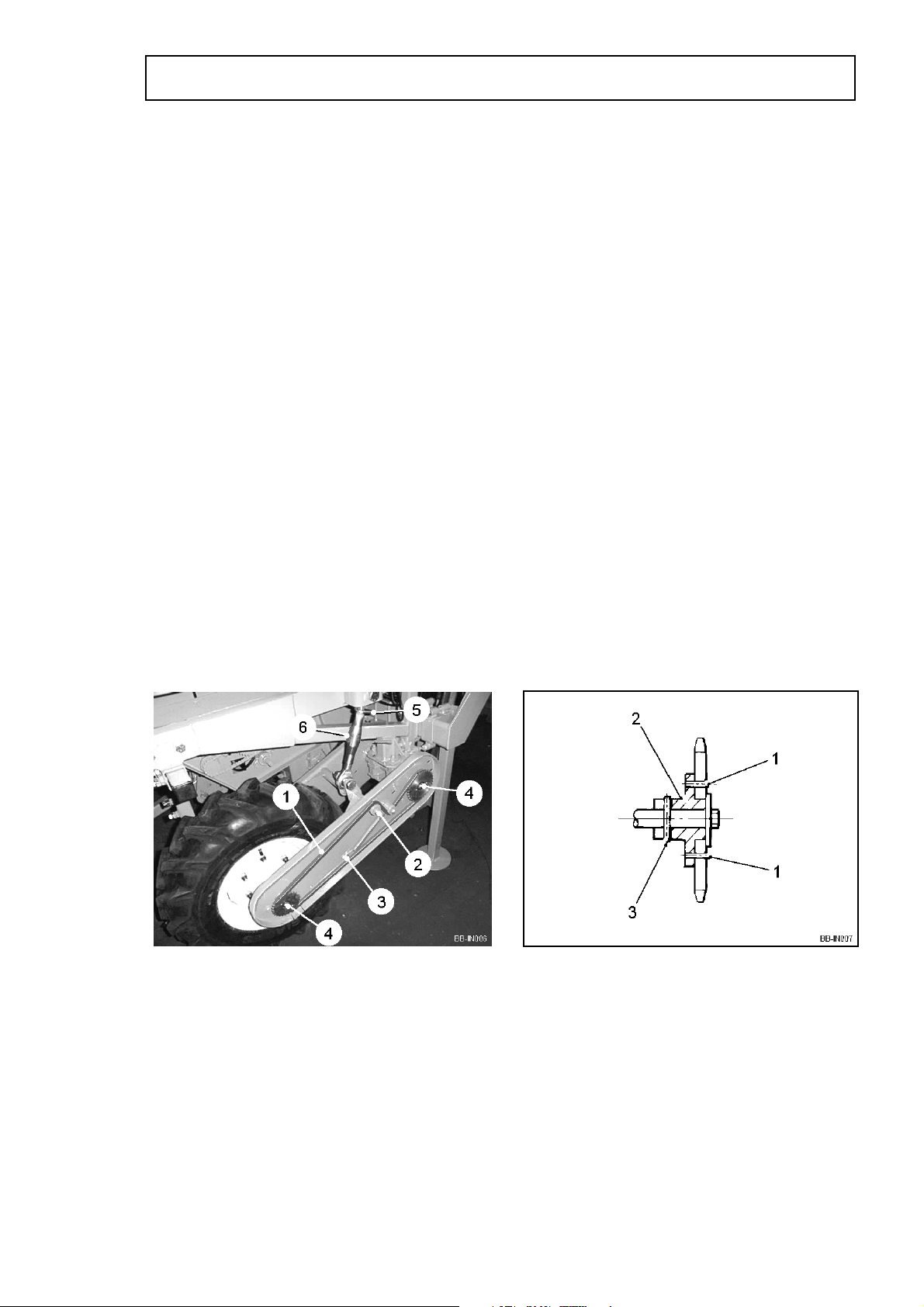

Choose the required seed spacing from the sprocket table decal on the machine and
select the sprockets indicated. Remove the drive chain (item 1, figure 4) by rotating
the tensioner (item 2, figure 4) to increase slack. If this is difficult, release the tension
by loosening the spring anchor (item 3, figure 4). Remove the sprocket retaining bolts
(item 4, figure 4) and slide the sprockets from their shafts. Fit the selected sprockets
ensuring they locate on the driving pins (item 1, figure 5). When fitting the 16 tooth
sprocket, the sprocket boss (item 2, figure 5) is not required. When refitting the
sprocket boss, or fitting the 16 tooth sprocket, ensure the drive shaft pin (item 3,
figure 5) engages in the boss. Replace the sprocket retaining bolts (item 4, figure 4).
Re-fit the drive chain (item 1, figure 4) and adjust the tension by repositioning the
spring anchor (item 3, figure 4).
(machines with manual space selector only)
Setting the Planting Depth
The floating openers are adjustable for depth by raising or lowering the land wheels
relative to the planter body. Raising the wheels will allow the opener to dig deeper
and conversely lowering the wheels will allow the opener to dig shallower. To adjust
the planting depth, loosen the lock plates (item 5, figure 4) and rotate the turnbuckles
(item 6, figure 4) to raise or lower the land wheels relative to the planter body. Ensure
both sides are adjusted equally. Additional adjustment can be achieved by adjusting
the top link between the tractor and the planter although making the openers dig too
deep by this method could result in the soil 'bulldozing' in front of the planter.
Fig 4
Fig 5
1.9
OPERATION
Floating Openers

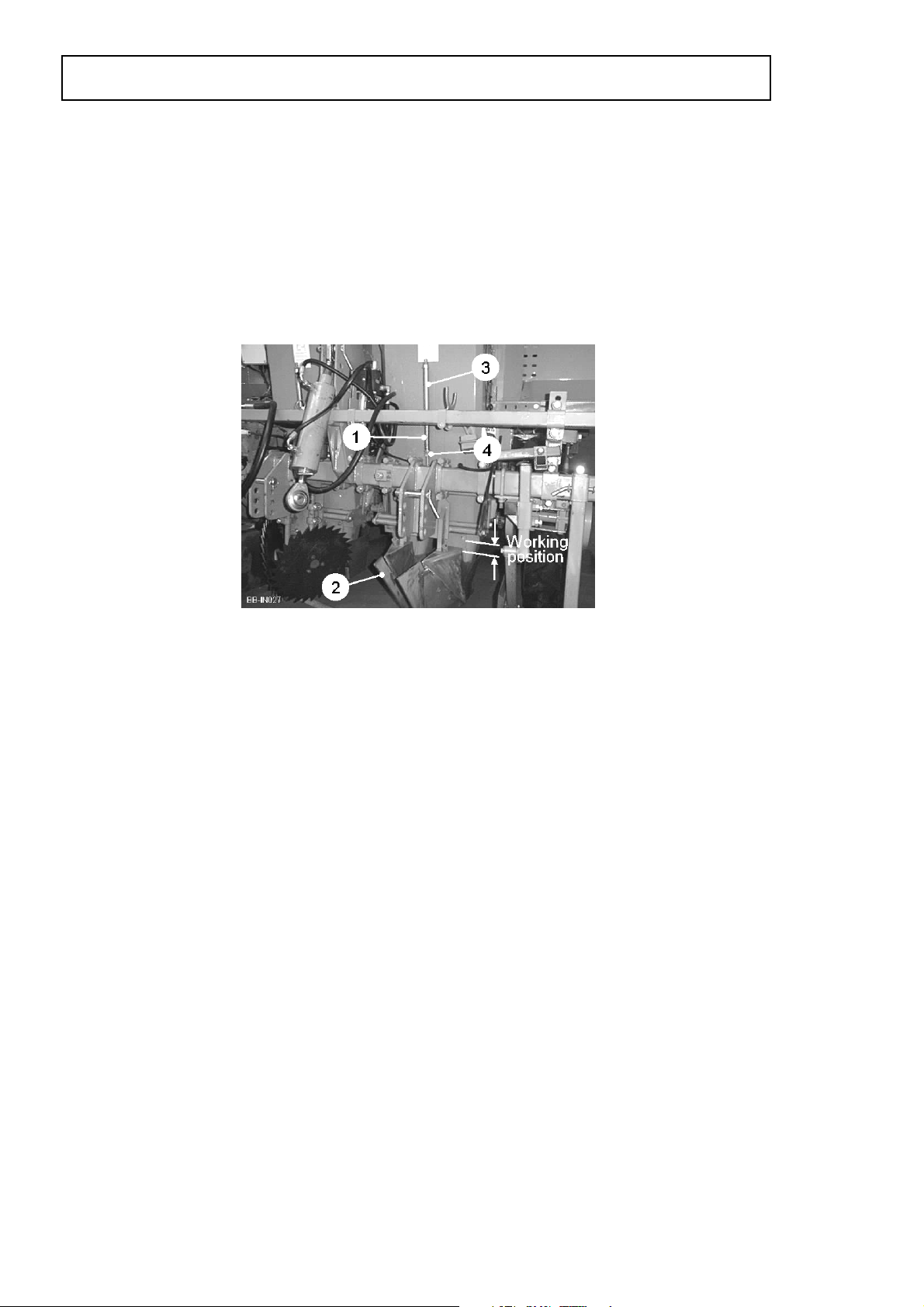

The bottom springs (item 1, figure 6) allow the openers (item 2, figure 6) to ride over
obstructions reducing damage to the planter. The top springs/spacers (item 3, figure
6) carry the weight of the openers and prevent them from 'nose diving' in soft soil.
The bottom springs should be set to allow the ground pressure during work to lift the
opener into the working position as shown (see figure 6). To adjust, reposition the
locknuts (item 4, figure 6). On 2 row machines fitted with an opener depth wheel, the
bottom springs should be released to allow the depth wheel to float freely and the top
springs should be set to allow 25mm (1”) of free downward movement during work.
Fig 6
OPERATION
1.10
Bed Forming Board and Ridger Bodies (optional)

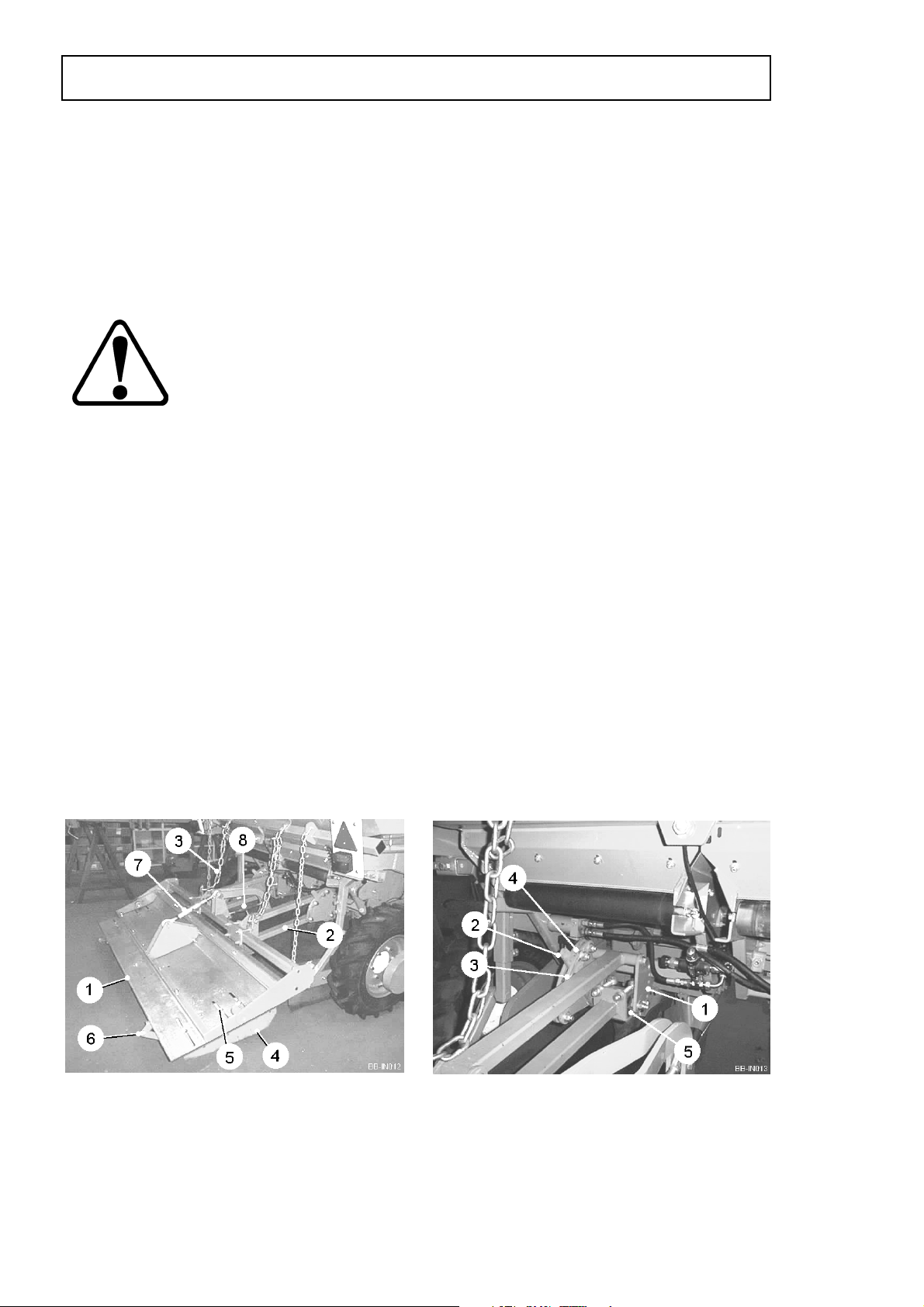

The ridge shape and size is controlled by the height and width of the bed forming
board (item 1, figure 9), the setting of the ridgers (item 1, figure 10), and the spring
pressure exerted on the trailing arms (item 2, figure 9) and tool bar (item 3, figure 9).
The height at which both the board and the ridger bodies operate can be varied by
removing the bolts (item 4, figure 9) and repositioning the trailing arms (item 2, figure
9) to align with a different hole. The arms should run parallel to the ground during
work. The pressure exerted by the torsion springs (item 5, figure 9) is adjusted by
repositioning the adjuster rod locknuts (item 6, figure 9). Shortening the adjuster rods
will increase the spring pressure. Adjust both sides equally.
The chains (item 7, figure 9) should be set to allow the ridgers and bed forming board
some free downward float when raising the planter out of work at the end of each
row, the ridgers can then be drawn forward to cover the remaining uncovered sets in
the row before raising the planter fully and making the headland turn. Adjust the
locknuts/chains accordingly.
To adjust the width of the bed forming board (item 1, figure 9), slide the board
extensions (item 8, figure 9) to the required position. The weight (item 9, figure 9)
flattens the bed. By adding extra weights the bed can be flattened further. The chains
(item 10, figure 9) hold the bed forming board at the required height. The chains are
also used to hold the board in the raised transport position.

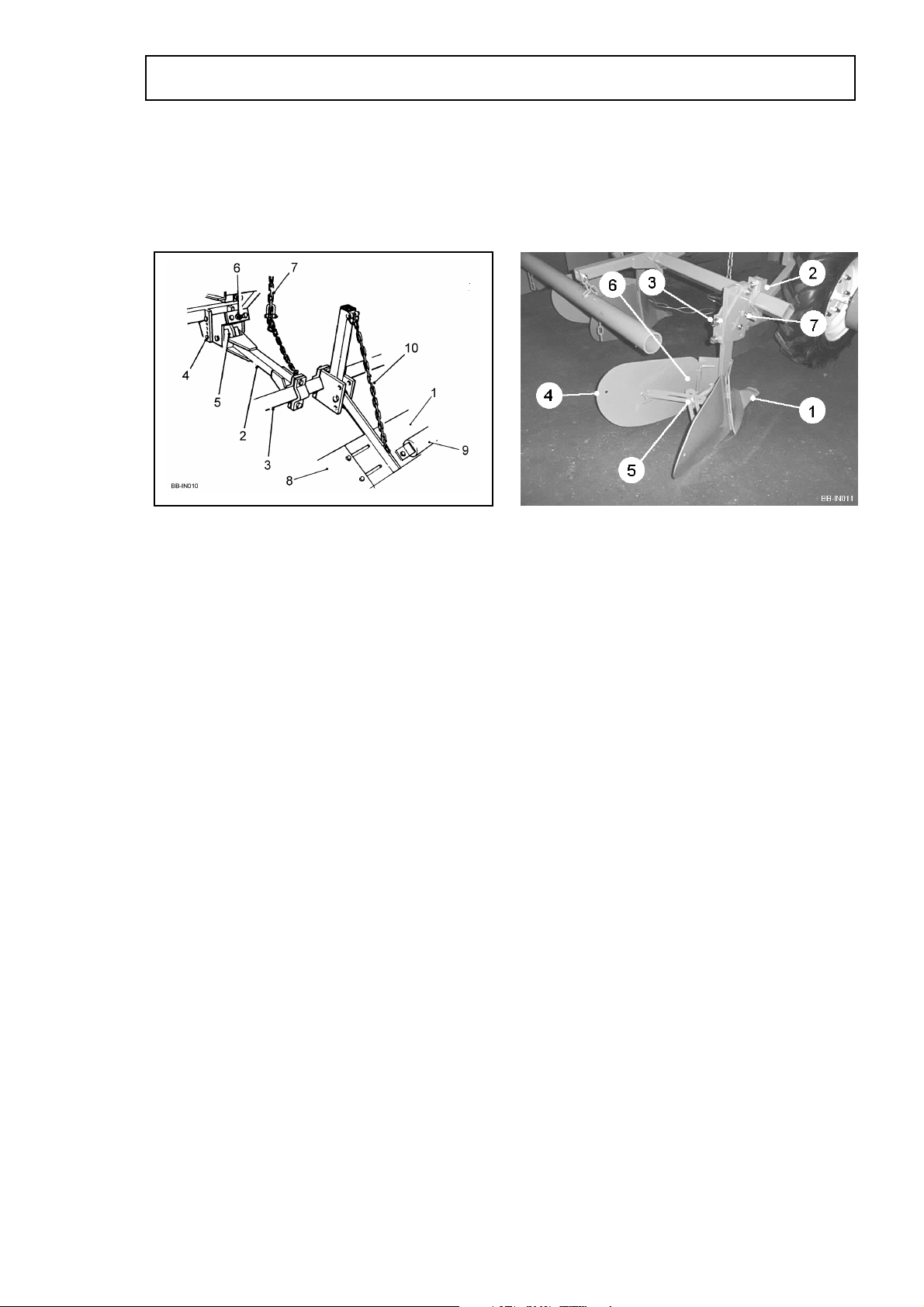

The ridger bodies (item 1, figure 10) create the sides of the bed. The position of the
ridger bodies relative to the board can be adjusted by loosening the retaining bolts
(item 2, figure 10) and sliding the ridger units along the tool bar. The position of the
ridger units is important to ensure a nicely formed bed. Leaving a large gap between
the ridger units and the board will cause a ridge to be formed on top of the bed.
The height of the ridger bodies can be adjusted by loosening the retaining bolts (item
3, figure 10) and then raising or lowering each unit. The angle at which the ridger
bodies operate can be altered in the same way. To adjust, loosen one bolt and then
tighten the other. Which bolt to tighten and which to loosen depends on the required
direction of tilt.
Fig 9 Fig 10
1.11
OPERATION
The wings (item 4, figure 10) can be adjusted by loosening the securing bolt (item 5,
figure 10) and pulling them apart or pushing them together. In addition, the wings on
some ridgers can be raised or lowered by loosening the bolt (item 6, figure 10). The
lower the wing is positioned, the less soil will be lifted.
Each ridger body is protected by a shear bolt (item 7, figure 10). If the ridger hits an
obstruction the bolt will break and allow the ridger body to swing backwards so
avoiding any serious damage to the machine.
If a bolt shears, stop, lift the machine out of work and check for
damage. Reset the ridger and replace the shear bolt. The shear bolts
should be kept tight at all times.
Multi-Adjustable Moulding Board (optional)
The adjustable moulding board (item 1, figure 11) is mounted to the rear of the
planter via parallel linkage arms (item 2, figure 11). During work these arms should
be at approximately 10° from horizontal. This can be achieved by repositioning the
bolts (item 1, figure 12) into a different set of holes. The height and downward
pressure exerted by the moulding board is controlled by the reaction arm (item 2,
figure 12) and upper and lower stops. The lower stop (item 3, figure 12) controls the
height of the board whilst simultaneously reduces the pressure of the board on the
bed. The upper stop (item 4, figure 12) induces a downward pressure on the board
by loading the rubber torsion springs (item 5, figure 12) within the lower arm pivots.
Both stops are adjusted by loosening their retaining bolt and sliding the stop around
the slot to the required position. If when in work no pressure is required on the bed,
the stops can be adjusted to allow the reaction arm (item 2, figure 11) to move
freely. The support chains (item 3, figure 11) should be adjusted to allow the
moulding board to float when in work but prevent it from dropping too low when the
planter is lifted on the tractor linkage.
The position of the wings (item 4, figure 11) is important to ensure a nicely formed
bed. The outer wings are adjustable for both position and angle. The position of the
wing determines the width of the finished bed. To adjust, loosen the mounting bolts
(item 5, figure 11) and slide the outer wing assembly to the required position.
Fig 11
Fig 12
OPERATION
1.12
The angle at which the wings operate will determine the shape of the bed. To adjust,
loosen the retaining bolt (item 6, figure 11) and rotate the wings to the required
position. The top link (item 7, figure 11) sets the moulding board angle. Initially the
angle should be set at approximately 5° from horizontal. Increasing the angle will
allow more soil under the board. The depth at which the centre plough operates is set
using the top link (item 8, figure 11). The deeper the plough is set, the more soil it will
push sideways. Care should be taken however as going too deep may move the
seed in the bed.
Feed of Potatoes to Cups
When planting, check that the flow of potatoes from the hopper to the feeding cups is
satisfactory and that no 'bridging' occurs. The size of gap between the hopper and

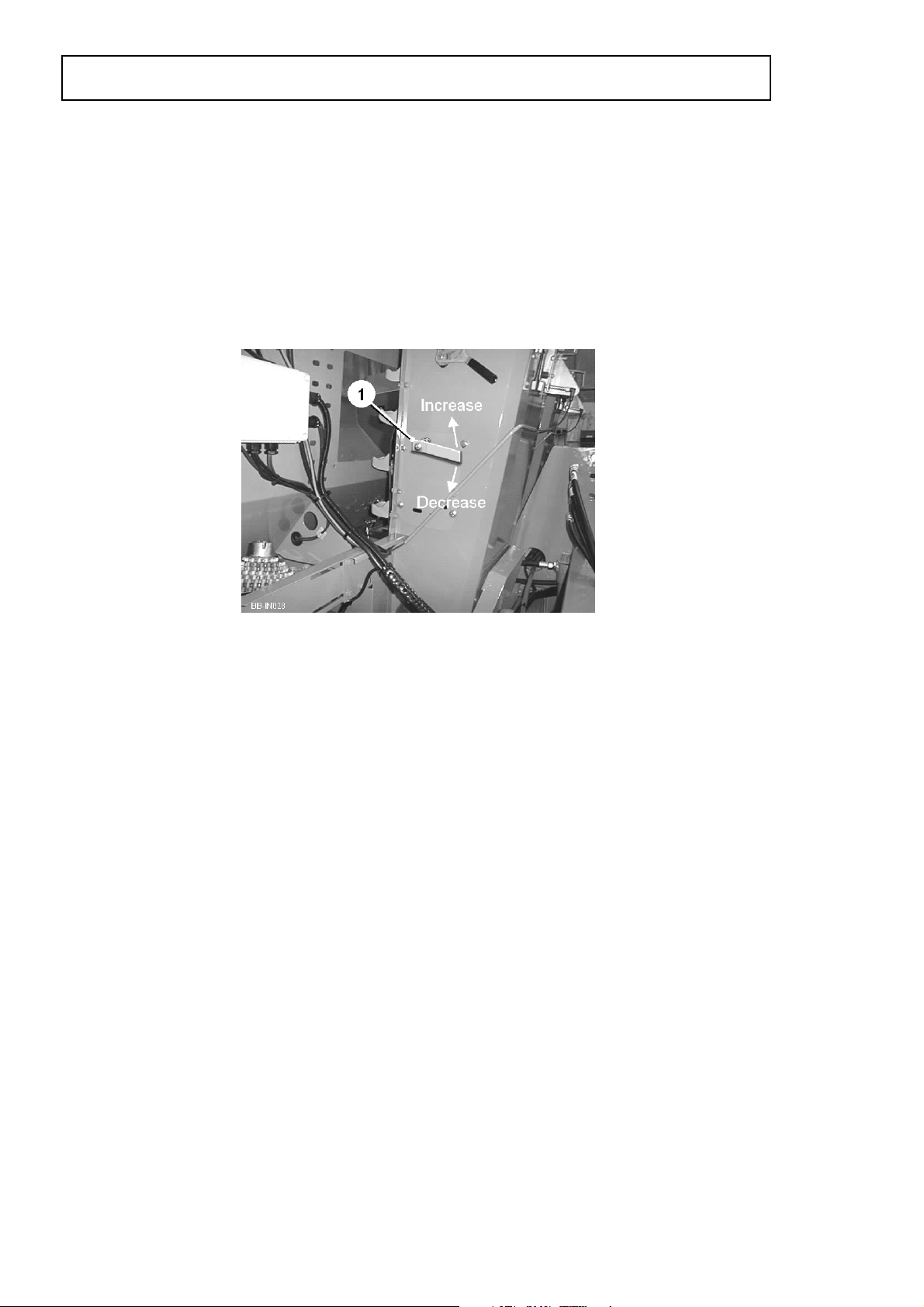

the feed belts (item 1, figure 13) can be altered by adjusting the regulator plates (item
2, figure 13).

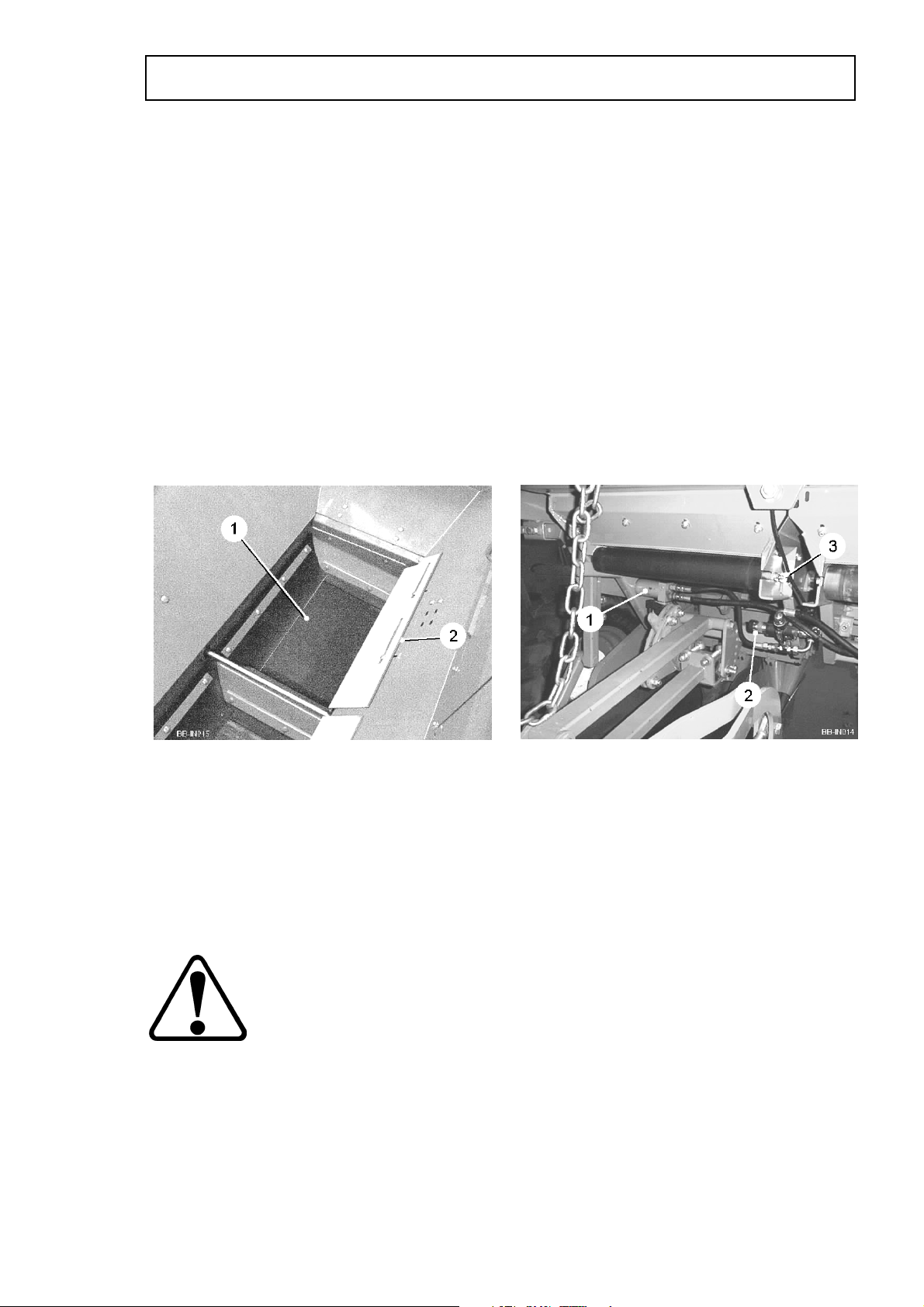

Fig 13
Fig 14
Feed Belts

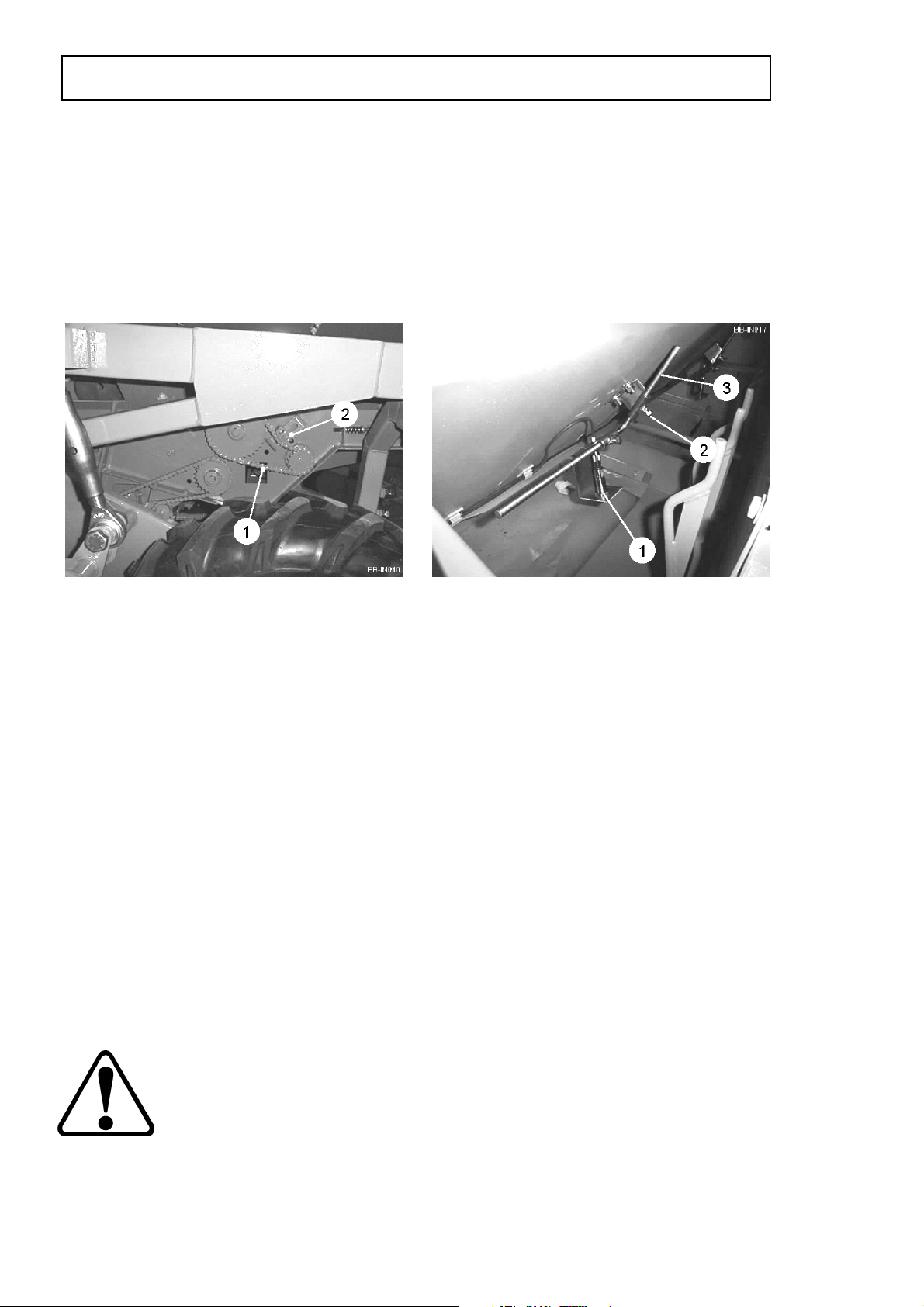

The feed belts (item 1, figure 13) convey the seed potatoes from the hopper to the
feeding pockets. Each feed belt is driven by a hydraulic motor (item 1, figure 14). The
speed of the belts can be varied by turning the flow divider knob (item 2, figure 14).
The higher the number the quicker the belt will run. To create a positive drive, spring
loaded tensioners (item 3, figure 14) maintain constant tension on the belt. To alter
the tension turn the adjuster nuts. Ensure both sides are adjusted evenly.
Do not overtighten the feed belts otherwise premature wear of the
bearings and belts may occur.
The feed belt drive chains (item 1, figure 15) are each fitted with a tensioner (item 2,
figure 15). Adjust the chain tension to be tight enough to give positive drive without
undue stretching. The feed belt motors are actuated by the sensors (item 1, figure
16) situated between the belts and the feeding pockets. When the quantity of
potatoes in one of the feeding pockets is so small that the distance between the
sensor and the potatoes is more than 8cm (or the feeding pocket is empty), the
sensor gives the relay an impulse.
1.13
OPERATION
This impulse closes the circuit causing the relevant motor to engage and drive the
feed belt to transport the potatoes to the feeding pocket. When the quantity of
potatoes in the feeding pocket increases such that the distance between the potatoes
and the sensor is approximately 8cm, the sensor gives the relay a new impulse which
then causes the motor to disengage and so stop the drive to the feed belt. The feed
belt will remain at standstill until the quantity of potatoes in the feeding pocket is
small enough that the process is repeated. This way the potato layer in the feeding
pocket is always kept thin and the feeding cups do not damage the potatoes.
Depending on the size of potatoes being planted, it may be necessary to alter the
height of the sensor (item 1, figure 16) in relation to the feeding pocket. The sensor
should be positioned higher for larger potatoes and lower for smaller potatoes. To
adjust the height of the sensor, loosen the set screw (item 2, figure 16) and slide the
support arm (item 3, figure 16) to the required position and re-tighten.
The sensors are adjusted at the factory for a reaction distance of approximately 8cm.
Minor adjustments to the sensing distance can be made by turning the screw located
on the side of the sensor. The sensing distance is increased by turning the screw
clockwise and decreased by turning it anti-clockwise.
Fig 15
Fig 16
Cup Belts
The cup belts pick up the seed from the feeding pocket and transfer them to the
ground. Rapid locking brackets (item 1, figure 17) fitted to each of the tunnels keep
the cup belts tensioned and also allow rapid maintenance of the cup belts. To
slacken the cup belts, push the handles fully down until hanging loose. Each belt is
tensioned by two spring adjusters (item 2, figure 17) which when tensioned correctly
avoid slipping of the belt around the top and bottom rollers. Always adjust both sides
evenly.
Ensure the cup belts are not over-tightened otherwise premature failure
of the bearings and belts may occur. After adjustment ensure the belts
are running in the centre of the rollers so as to avoid damage to the
edge of the belts.
The centre cup belt drive chain (3 row only) is fitted with a tension roller. The drive
chain should be set to give a positive drive.
OPERATION
1.14
Insert Cups
The shape of the feeding cups is designed to pick up the irregular long shaped seed
in a large grade. For a seed grade with a wide range of sizes and long seed, every
alternate cup should be fitted with a medium insert. For a narrow range seed grade
with more irregular shapes a full set of medium inserts should be fitted. For a small
size seed grade, small inserts should be fitted. To attach the inserts, simply press
them into the hole in the centre of the feeding cups.

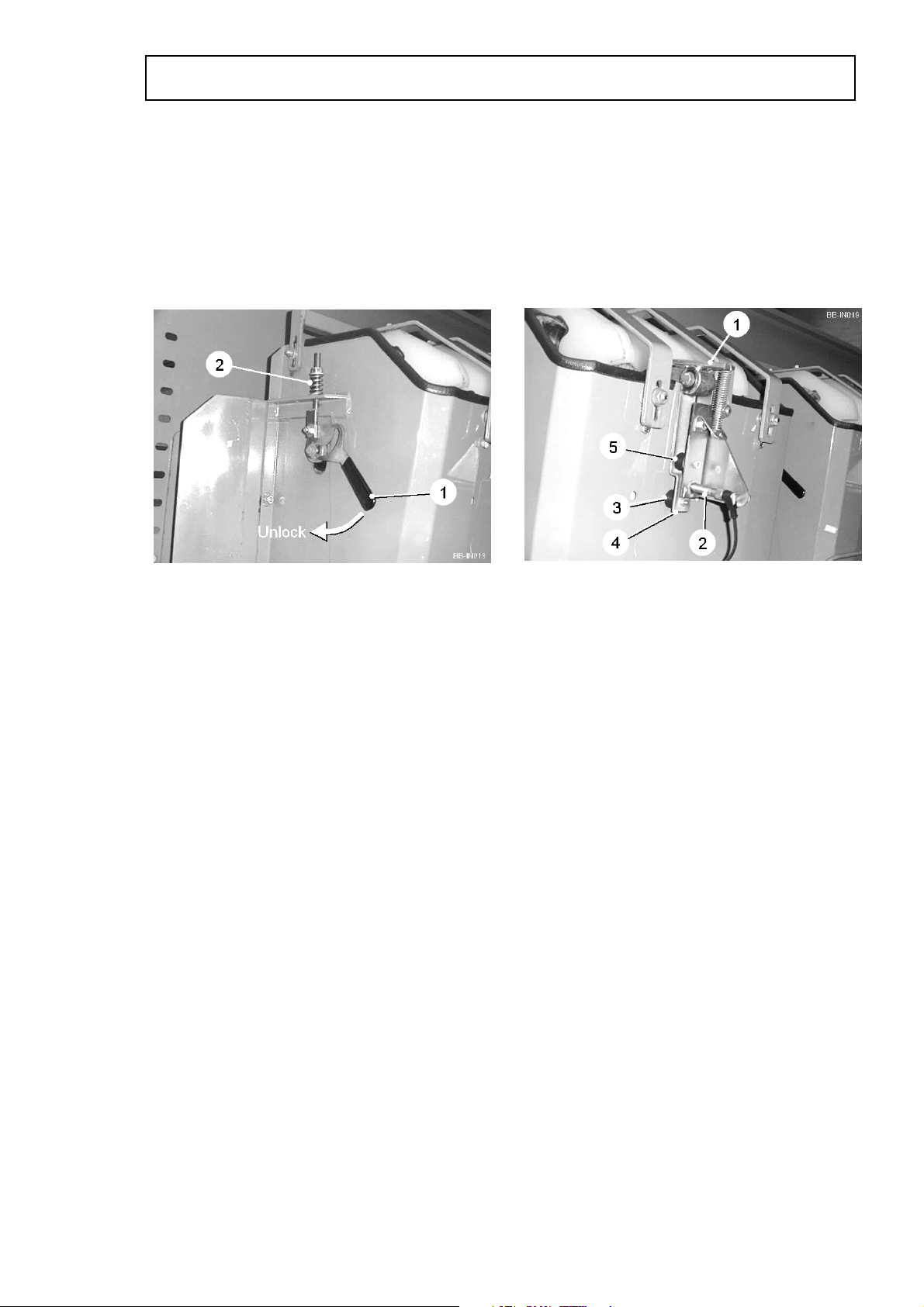

Fig 17
Fig 18
Seed Monitors
The seed monitors fitted to the top of each tunnel are designed to detect the potatoes
as they pass over the top of the cup belts prior to planting. Each time a potato
activates a monitor the proximity sensor sends an impulse which illuminates the
relevant light for that row on the control box. If during work a light remains off for
longer than a predetermined period, an audible warning will sound indicating that
there are no potatoes in the feeding cups in that row possibly suggesting a 'bridge'.
The time delay can be adjusted between 1 and 3 seconds by turning the timer knob
on the control box. The delay is increased by turning the knob clockwise and
decreased by turning it anti-clockwise. If necessary the timer can be reset to operate

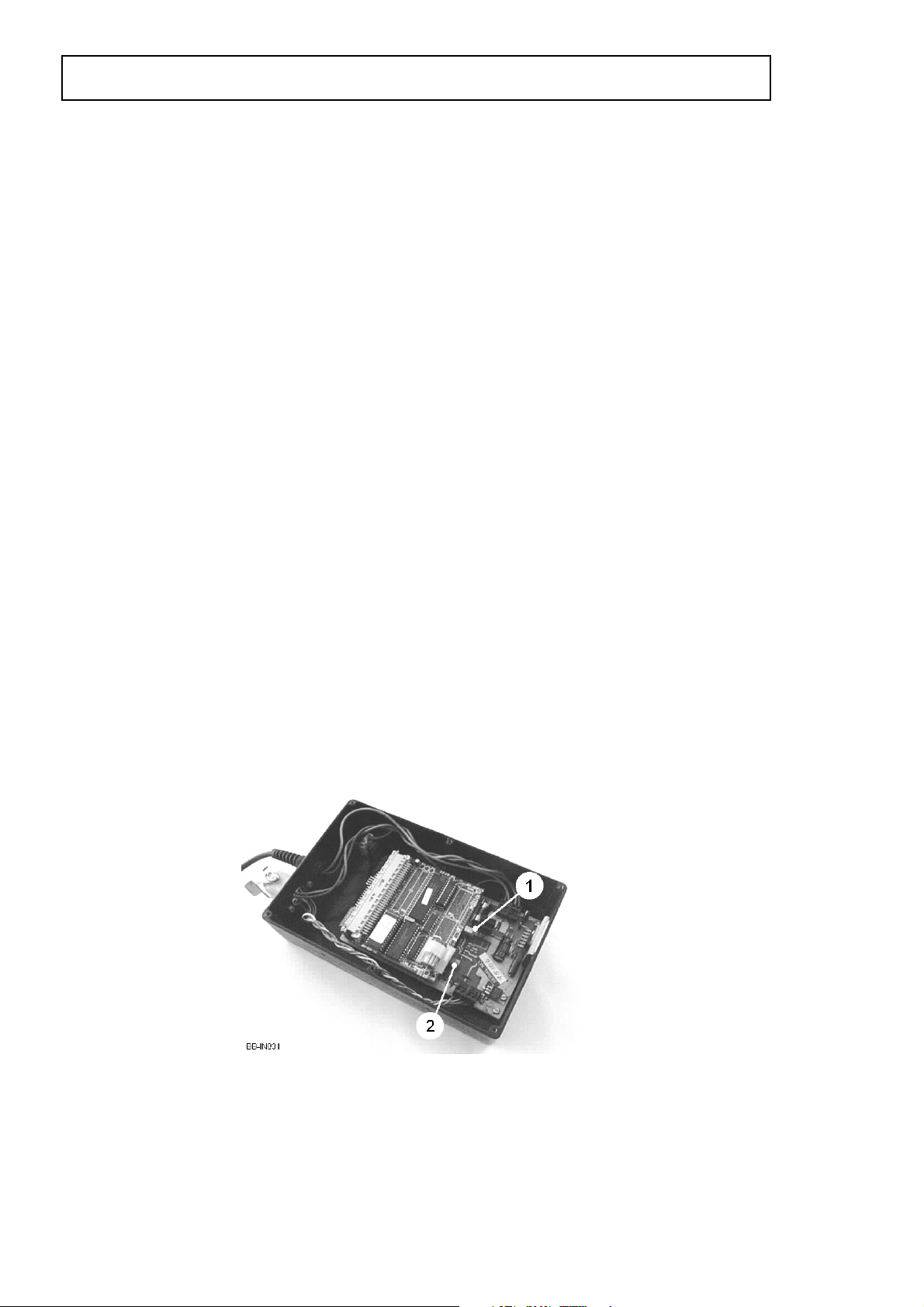

between 1 and 10 seconds by resetting the number 8 dip switch within the control
box.
The seed monitors should be adjusted so that the potatoes in the RH cups of each
cup belt consistently trip the pivot plates (item 1, figure 18) thus activating the
proximity sensors (item 2, figure 18). Initially the bottom stop (item 3, figure 18)
should be adjusted so that a gap of approximately 3mm exists between the pivot
plate (item 1, figure 18) and the inner face of the tunnel. Loosen the proximity sensor
retaining nuts and slowly move the sensor closer to the sensor plate (item 4, figure
18) until it activates. When activated a red light appears on the sensor body. Screw
the sensor out until the sensor deactivates and continue for another half turn then
retighten the retaining nuts. This setting should leave a gap of approximately 1-2mm
between the proximity sensor and the sensor plate. Finally, adjust the top stop (item
5, figure 18) to prevent the sensor plate coming into contact with the proximity
sensor. If everything is adjusted correctly the proximity sensor will be activated and
deactivated with only a slight deflection of the seed pivot plate (item 1, figure 18).
1.15
OPERATION
Cup Belt Agitators
The cup belt agitators control the number of potatoes in a cup. The planter can be
fitted with either manually or electrically adjusted agitators. When planting seed of
good quality and size it is possible to drive faster without compromising planting
accuracy. The agitation in this case can be kept to a minimum. If the seed is uneven
the influence of the agitator can be increased by driving faster. In this case there will
be more movement of the cups and the excess potatoes will drop off. When using
potatoes which tend to fall out of the cups i.e. oversized or oblong etc. the speed
should be slow and agitation set to minimum otherwise gaps may occur.
On manually adjusted agitators, the handles (item 1, figure 19) fitted to the side of
each tunnel are used increase/decrease the amount of agitation. Raising the handle
will increase agitation while lowering it will decrease agitation. The stronger the
agitation the easier the excess potatoes will fall from the cups.
The electrically adjusted agitator is controlled from a tractor mounted control box. A
dial on the control box increases/decreases the speed of the agitator motors situated
within the cup belt tunnels.
Fig 19
OPERATION
1.16
Hydraulic Depth Control
Hydraulic depth control allows the depth at which the openers dig to be adjusted
whilst planting. A depth ram (item 1, figure 20) replaces the top link between the
planter and tractor. The ram is actuated from the tractor via the control valve (item 2,
figure 20). Two control box buttons marked ‘raise’ and ‘lower’ raise/lower the
openers.
The fitting and setting up of the depth ram is vital to ensure the correct operation of
the depth control system. Therefore, the following procedure must be adhered to
before operating the planter.
1. Connect the planter to the tractor 3-point linkage lower link arms and connect
the hydraulics and electrics to the tractor (see section ‘Attaching the Planter to
the Tractor’).
2. With the planter on the ground, adjust both wheel legs until the planter is
slightly nose down (see section ‘Setting the Planting Depth’).
3. Measure the top link hole centres between planter and tractor. When in
position the ram should be slightly down at the tractor end relative to the
ground. Use the additional holes in the planter headstock to achieve this.
4. Set the depth ram to its mid-stroke position.
5. Screw ram end ‘B’ fully home, and then screw it out 25mm.
6. Adjust ram end ‘A’ to achieve the required centres. Ram end ‘A’ may require
cutting. If the centres still cannot be achieved, then ram end ‘B’ will also
require cutting.
Always ensure there is at least 50mm of the thread engaged in the ram.
7. Fit the ram between the tractor and planter with the piston end adjacent to the
tractor.
8. With the depth ram still in its mid-stroke position, loosen the ’U’ clamp (item 3,
figure 20) and move the depth indicator (item 4, figure 20) until the top edge
aligns with the mid position mark on the depth indicator decal.
Fig 20
1.17
OPERATION
The speed at which the ram moves can be adjusted using the valve control knob
(item 5, figure 20). The ram should be set to move slowly and smoothly. The depth
ram should only control planting depth when in work. The wheel legs should be
adjusted if a more permanent depth is required (see section ‘Setting the Planting
Depth’)
Optional Automatic Depth Control (prior to 2013)
Automatic depth control ensures that the desired planting depth is maintained
irrespective of the contours of the bed. Two PIR (passive infra red) sensors (item 1,
figure 21) positioned either centrally in front of the planter, or to the left or right at the
rear of the planter depending on configuration, activate the hydraulic control valve
operating the depth ram (item 1, figure 20). The depth ram then raises/lowers the
planter relative to the wheels thus maintaining planting depth.
The ‘up’ and ‘down’ sensors are preset at the factory to a sensing distance of
approximately 460mm and 490mm respectively, giving a neutral (dead-band) zone of
approximately 30mm (to adjust the sensor settings see section ‘Depth Control
Sensor Adjustment’).
Fig 21
A timer is built into the depth control circuit which is designed to provide a time delay
between activation of the ‘up’ sensor and actuation of the hydraulic control valve. The
time delay can be adjusted between 1 and 5 seconds by turning the relay
potentiometer screw (item 1, figure 22) located under the junction box lid. Time delay
is increased by turning the screw clockwise and decreased by turning it anticlockwise. Normally a 3 second delay smoothes out any surface irregularities
allowing the planter to gradually change height according to changes in bed height.
To set the automatic planting depth:
1. Position the planter over the prepared bed.
2. With the feed belt/auto-depth control box ‘OFF/ON AUTO’ switch in the ‘OFF’
position, set the depth ram to mid-stroke position using the push button
switches marked ‘RAISE/LOWER’.
3. Set the opener planting depth (see section ‘Setting the Planting Depth’).
Fig 22
OPERATION
1.18
4. Fully lower the auto-depth sensor leg (item 2, figure 21) and then gradually
raise it until the point at which both ‘up’ and ‘down’ sensor lights illuminate
(approx 460mm above bed). Ensure the sensors are sensing the height of the
bed and not any other surface in-between.

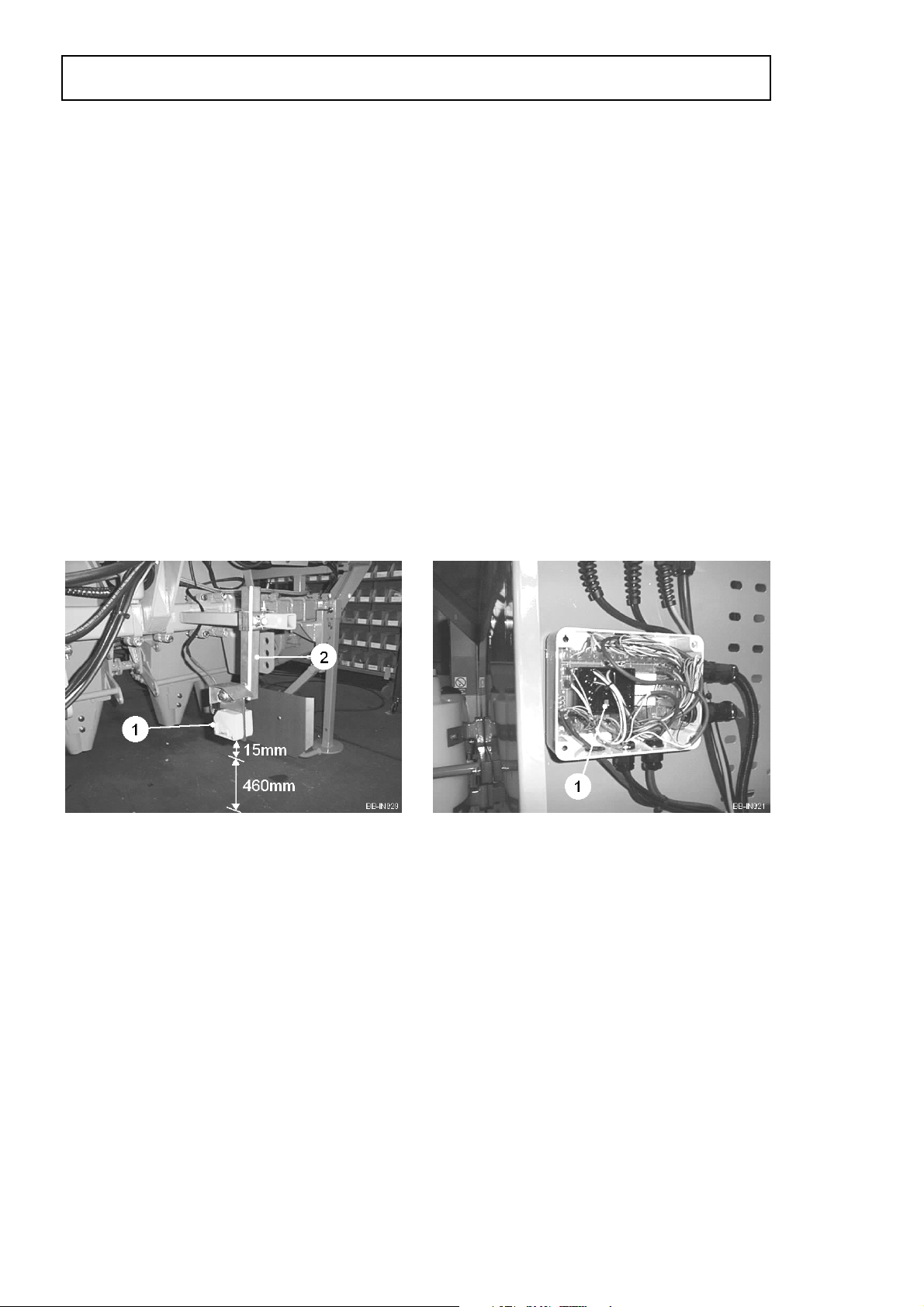

5. Raise the sensor leg a further 15mm to position the sensors in the middle of
the preset neutral (dead-band) zone. When in the neutral zone only the ‘down’
sensor will be illuminated. Raising the leg higher will cause both ‘up’ and
‘down’ sensor lights to switch off.
6. Engage the auto-depth control by setting the control box ‘OFF/ON AUTO’
switch to the ‘ON’ position. If necessary re-adjust the height of the sensor leg
to regain the desired planting depth.
7. Drive forward and check the planting depth. Make further adjustments if
necessary.
If during work adjustments in planting depth need to be made manually, the autodepth control can be over-ridden by pressing the control box buttons marked
‘RAISE/LOWER’.
Depth Control Sensor Adjustment (prior to 2013)
The ‘up’ and ‘down’ PIR sensors are preset at the factory to a sensing distance of
approximately 460mm and 490mm respectively, giving a neutral (dead-band) zone of
30mm. If the sensors need adjustment the following procedure should be followed.
DOWN UP
1
UP

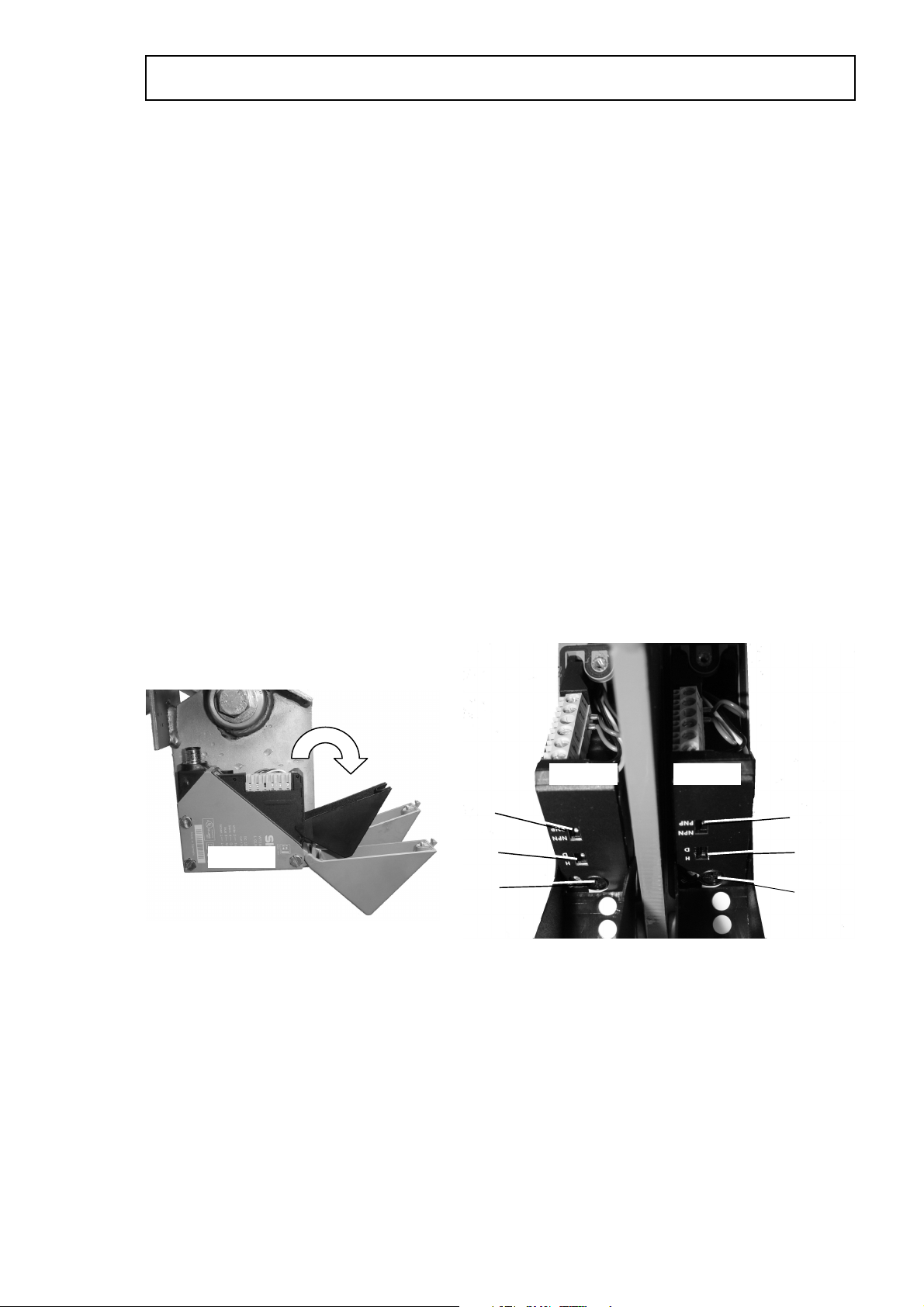

1. Loosen the single screw on top of each sensor and flip open the access
covers (see figure 23).

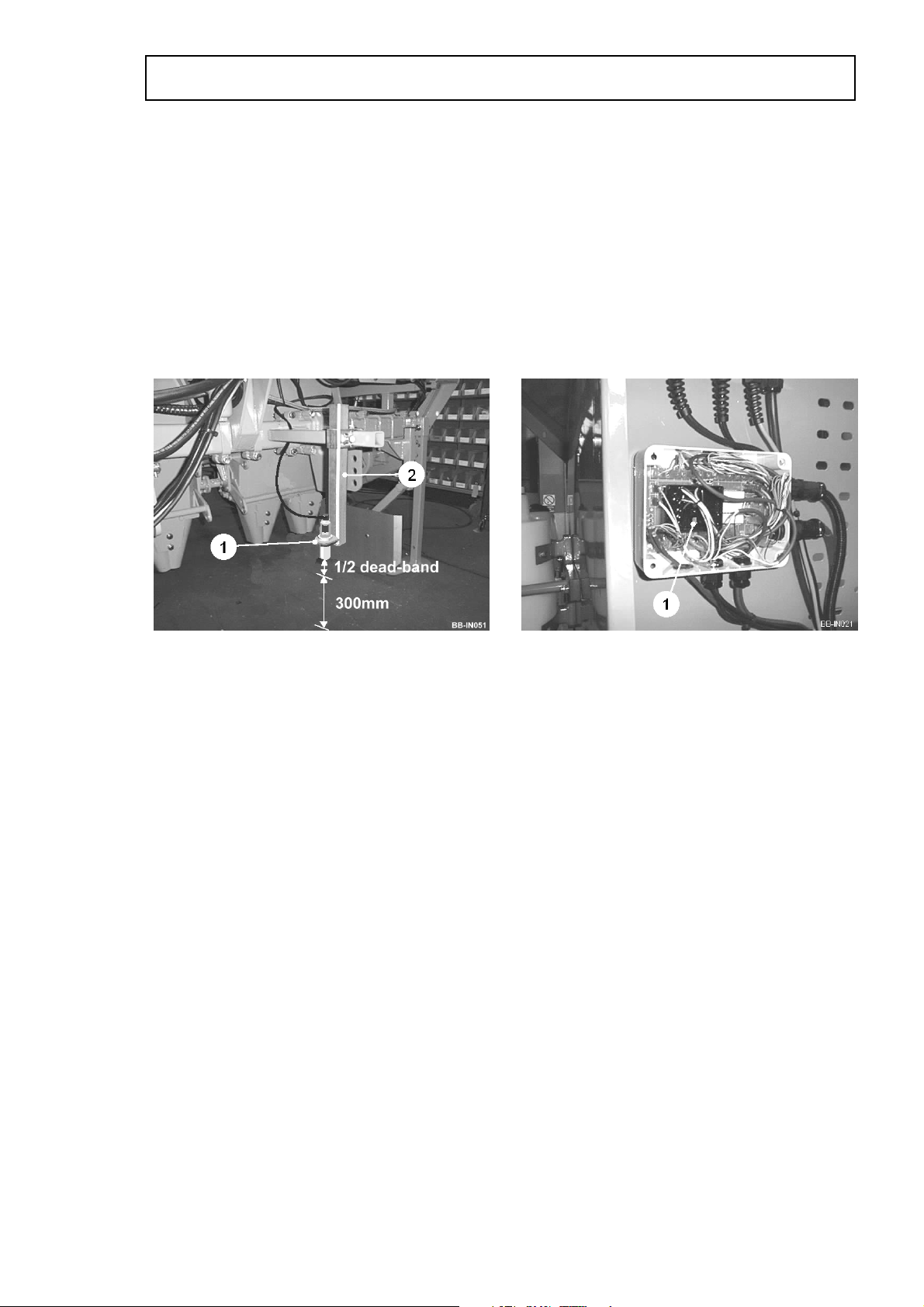

2. The switch (item 1, figure 24) should be set to ‘PNP’ on both sensors.
3. The switch (item 2, figure 24) should be set to ‘D’ for the ‘down’ sensor and ‘H’
for the ‘up’ sensor.
4. Place a non-reflective surface on the ground under the sensors and position
the sensor unit leg (item 2, figure 21) to the required ‘up’ activating distance.
5. Slowly turn the ‘up’ sensor screw (item 3, figure 24) until its indicator light
illuminates.
6. Slowly turn the ‘down’ sensor screw (item 4, figure 24) until its indicator light
also illuminates. With both lights illuminated this becomes the ‘raise’ position.
Fig 23
2
3
1
2
4
Fig 24
1.19
OPERATION
7. Gradually raise the sensor leg until the ‘up’ sensor indicator switches off
leaving the ‘down’ sensor indicator illuminated. This is the neutral (dead-band)
position where no actuation (raise/lower) of the control valve will occur.
8. Continue to raise the sensor leg until both sensor indicators switch off. This
point is the ‘lower’ position.
9. The vertical distance travelled between both sensor indicators being
illuminated and both being switched off is the dead-band. The dead-band zone
should allow approximately 30mm of movement before actuating the control
valve. To adjust the distance turn the down’ sensor screw very slightly
clockwise to increase, or anti-clockwise to decrease the dead-band.
Note: The ‘up’ sensing distance should always be shorter than the ‘down’ sensing
distance for the sensors to operate correctly. The closer the two sensing
distances are, the narrower the dead-band will be.
DOWN
sensor
indicator
ON
ON
OFF
OFF
UP
sensor
indicator
OFF
ON
OFF
ON
Machine
action
Neutral (dead-band). No movement.
Raise.
Lower.
Sensors set incorrectly. Trying to raise and
lower at same time.
OPERATION
1.20
Hydraulic Space Selector
The hydraulic seed space selector (if fitted) comprises of an electro-hydraulic drive
assembly with both oil supply and electrical connection from the tractor. The unit
replaces the chain drive transmission from the RH land wheel to the planter
elements. The seed space setting required is electronically selected on a control box
mounted inside the tractor cab. The unit requires a hydraulic supply from the tractor
of a minimum 13.5 litres/minute (3 gal).

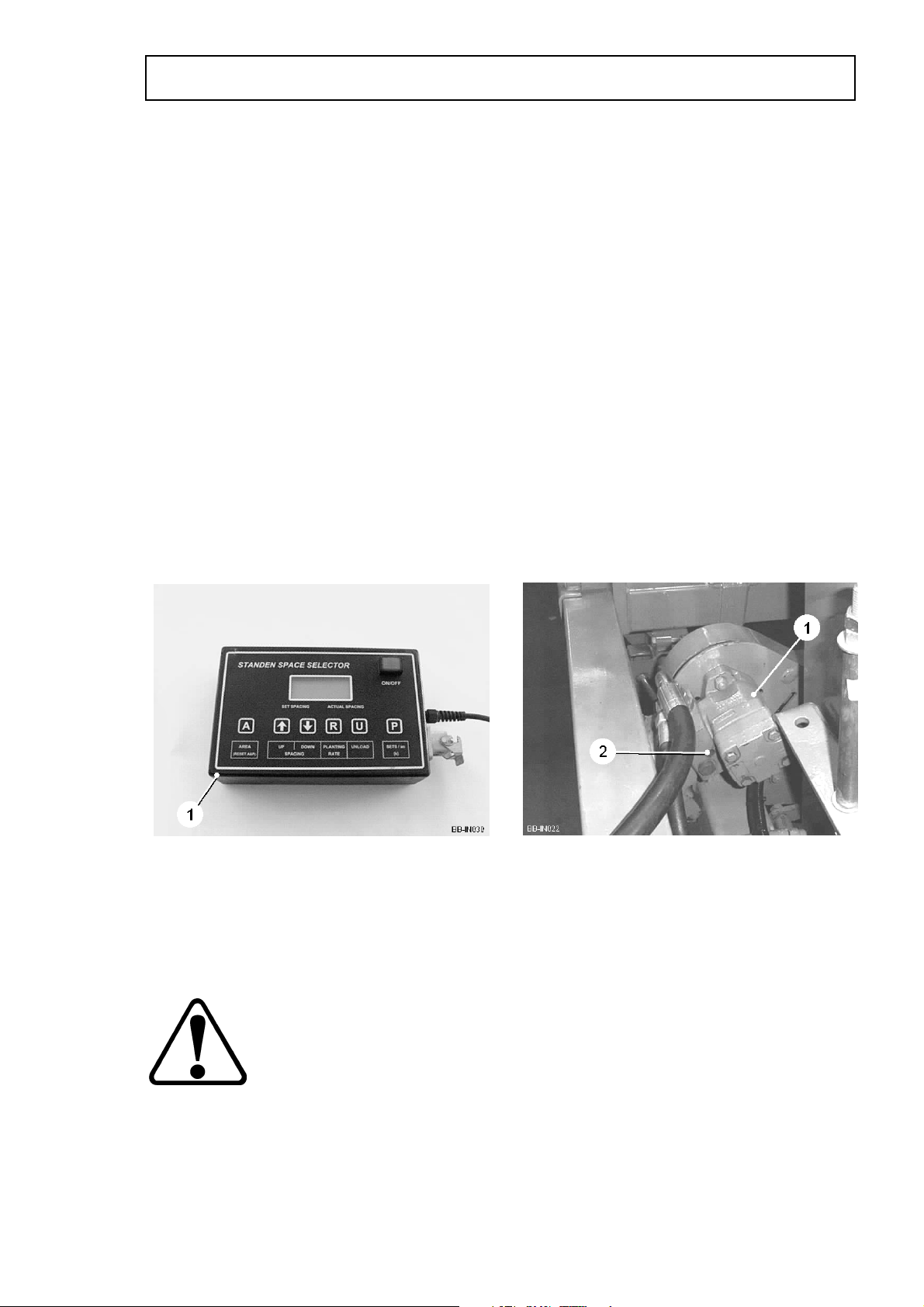

The seed space selector main components consist of a control box (item 1, figure 25)
and a hydraulic motor valve assembly (item 1, figure 26) with electrically controlled
flow regulator to drive the planting elements, a monitor fitted to the output shaft of the
hydraulic motor to provide speed information to the control box and a monitor fitted to
the land wheel axle to provide forward speed information to the control box. The
monitors consists of toothed monitor wheels and proximity sensors which read the
time interval between each tooth.
The control box should be mounted securely inside the tractor cab in a position
adjacent to the planter main control box. Electrical power for the space selector is
provided via the main control box. Connect to the main control box via the plug leads
which are attached to both boxes.
Hydraulic System
The motor valve assembly (item 1, figure 26) has a screw (item 2, figure 26) fitted
into the base plate. When the assembly leaves the factory the screw will be in the
'out' position for use with open centre hydraulic systems.
Fig 25
To ensure accurate results, regular maintenance of the tractor hydraulic
oil filters (as recommended by the tractor manufacturer) is essential.
Contaminated oil will result in excessive wear.
Fig 26
1.21
OPERATION
Calibrating the Control Box to the Motor Valve
Owing to the manufacturing tolerances of the motor valves, it is necessary to
calibrate each control box (item 1, figure 25) to its own motor valve assembly (item 1,
figure 26). Calibration will have been checked at the factory prior to dispatch.
However, it may be necessary to carry out a further check as the tractor used may
have a different hydraulic system and/or output. Always use a tractor, as the unit
requires the normal 12v d.c. electrical supply and an adequate supply of warm oil. To
carry out a check when the hopper is full, simply disconnect the drive chain from the
hydraulic motor valve before calibrating.
To check the ‘constant’ (no oil flow required):
1. With ‘R’ depressed switch on the control box and then release ‘R’. The
constant will appear in the LH display.
2. Press the ‘Up’ or ‘Down’ arrow to increase or decrease the constant to ‘49’ for
machines with 135mm cup belt centres, or ‘44’ for 122mm cup belt centres.
3. Switch off the control box.
To check the motor valve output (oil flow required):
1. With ‘U’ depressed, switch on the control box and then release ‘U’.
2. Remove the back of the control box.
3. Press ‘R’.
4. Press the ‘Down’ arrow. Signal for low end value.
5. Adjust the potentiometer with yellow dot (item 1, figure 27) until the motor just
starts to run. ‘0.00’ to ‘0.04’.
6. Press ‘R’.
7. Press the ‘Up’ arrow. Signal for high end value.
8. Adjust the potentiometer with red dot (item 2, figure 27) until the motor runs at
approximately ‘98’ to ‘100’.
9. Repeat steps 3,4,5,6,7,8 and check.
Fig 27
OPERATION
1.22
Calibrating the Control Box Area Recorder
To ensure accuracy, the area recorder 'count' must be calibrated to suit the particular
field conditions and also preference for information to be displayed in acres or
hectares. The area recorder receives impulses from the wheel monitor which
together with wheeling (bed width) information is processed into acres/hectares
planted.
1. Using the chart, select the relevant ‘measured distance’ from the acres or
hectares column and accurately mark out the distance in the field.
2. With the ‘Up’ arrow depressed, switch on the control box and then release the
‘Up’ arrow. The display shows ‘--:--‘.
3. Press ‘R’. the display resets to ’00:00’.
4. With the hopper half full and the planter lowered onto its wheels, drive the
planter accurately over the measured distance and stop.
5. Make a note of the control box ‘count’.
6. Repeat steps 3,4,5 several times to find the average ‘count’.
7. Switch off the control box.
8. With ‘A’ depressed, switch on the control box and then release ‘A’.
9. Press the ‘Up’ and ‘Down’ arrows until the display reads the average ‘count’.
10. Switch off the control box. The ‘count’ is now programmed into the recorder
memory bank.
Wheelings (Bed Width)
Measured
Distance
0.01
acre
0.01
hectare
152cm
(60”)
26.55m 24.9m 23.43m 22.14m 19.92m
65.62m 61.54m 57.9m 54.7m 49.21m
163cm
(64”)
173cm
(68”)
183cm
(72”)
203cm
(80”)
Hydraulic Space Selector in Operation
At the end of each row, disengage the planter drive using the tractor hydraulic
controls and lift the planter until the wheels are just clear of the ground, draw forward
to cover the remaining uncovered sets in the row and then lift the planter fully before
making the headland turn. On recommencing planting, engage the planter drives
using the tractor hydraulic controls.
The control box must be left switched on at the end of each row and the
drive engaged and disengaged using the tractor hydraulic controls. This
will prevent possible electrical surges but more importantly prevents the
initial high speed surge of the cup belts at the start of planting. The
surge can cause sets to be 'thrown' at the operator and will destroy
spacing for the first few metres of each row.
1.23
OPERATION
Seed Spacing
Press button selection is provided for 40 different seed spacings ranging from 10cm
to 51cm (4" to 20"). The selected spacing is shown by the control box LH digits. To
increase the spacing press the 'Up' arrow. To decrease the spacing press the 'Down'
arrow. Monitoring of the actual spacing and of the forward speed is given by the RH
digits when the planter is in work. The figures '88' will appear when the unit is
switched on and the planter is stationary. The letters 'EE' indicate loss of hydraulic oil
supply.
Planting Rate
By pressing the 'R' button, information is given on the number of sets being planted
per second. The in-built control system allows for a planting rate of up to 7 sets per
row, per second, after which the letters 'HH' will appear in the RH display indicating
too high a forward speed. The figure 'O' appears when the planter is stationary.
Normal operating speeds will give a reading of 3 or 4 in the RH display.
Unload/Prime
The 'U' button, when pressed, starts the hydraulic motor which provides a drive to the
cup belt when the planter is stationary. This function can be used to both prime the
planter before setting into work and unload the hopper after work.
Seed Population
The precise control and constant monitoring of the hydraulic drive by the space
selector makes it possible to predetermine the seed population per acre/hectare at
specific seed spacings. Effectively each cup and therefore each set is counted and
provided the planter has been correctly set-up with full cups, both seed spacing and
population will be accurate.
Set-up procedure:
1. With ‘P’ depressed, switch on the control box. The LH digits display the
wheelings (bed width) i.e. 60”, 64”, 68”, 72” or 80”. With ‘P’ depressed, press
the ‘Up’ arrow to change the display to read the wheelings required.
2. When the wheelings have been set, press the ‘Down’ arrow. The LH digits
now display the number of rows. Either (a) 2 rows, (b) 3 rows, (c) 3 rows less
10% centre row, (d) 3 rows less 15% centre row, (e) 3 rows less 20% centre
row. With ‘P’ depressed, press the ‘Down’ arrow to change the display to read
the number of rows required.
3. Switch off the control box. The calculator is now programmed for both
wheelings and rows.
4. Switch on the control box. Set the required seed spacing by pressing the ‘Up’
or ‘Down’ arrows.
5. Press ‘P’ and hold. The display will now read the plant population. Multiply the
four digit figure by 10 to obtain the sets per acre/hectare.
OPERATION
1.24
Area Recorder
The 'Area' button when pressed, provides a record of the number of acres/hectares
that have been planted. This information is automatically stored by the memory bank
after the wheelings have been programmed (see Seed Population). It can be
accessed at any time by pressing 'A'. Four digits will appear in the display i.e. 15:37
which indicates an area of 15:37 acres/hectares. After a days work the unit can be
reset to zero by pressing and holding down 'A' immediately followed by 'R'.
1.25
OPERATION
Proximity Sensor Adjustment

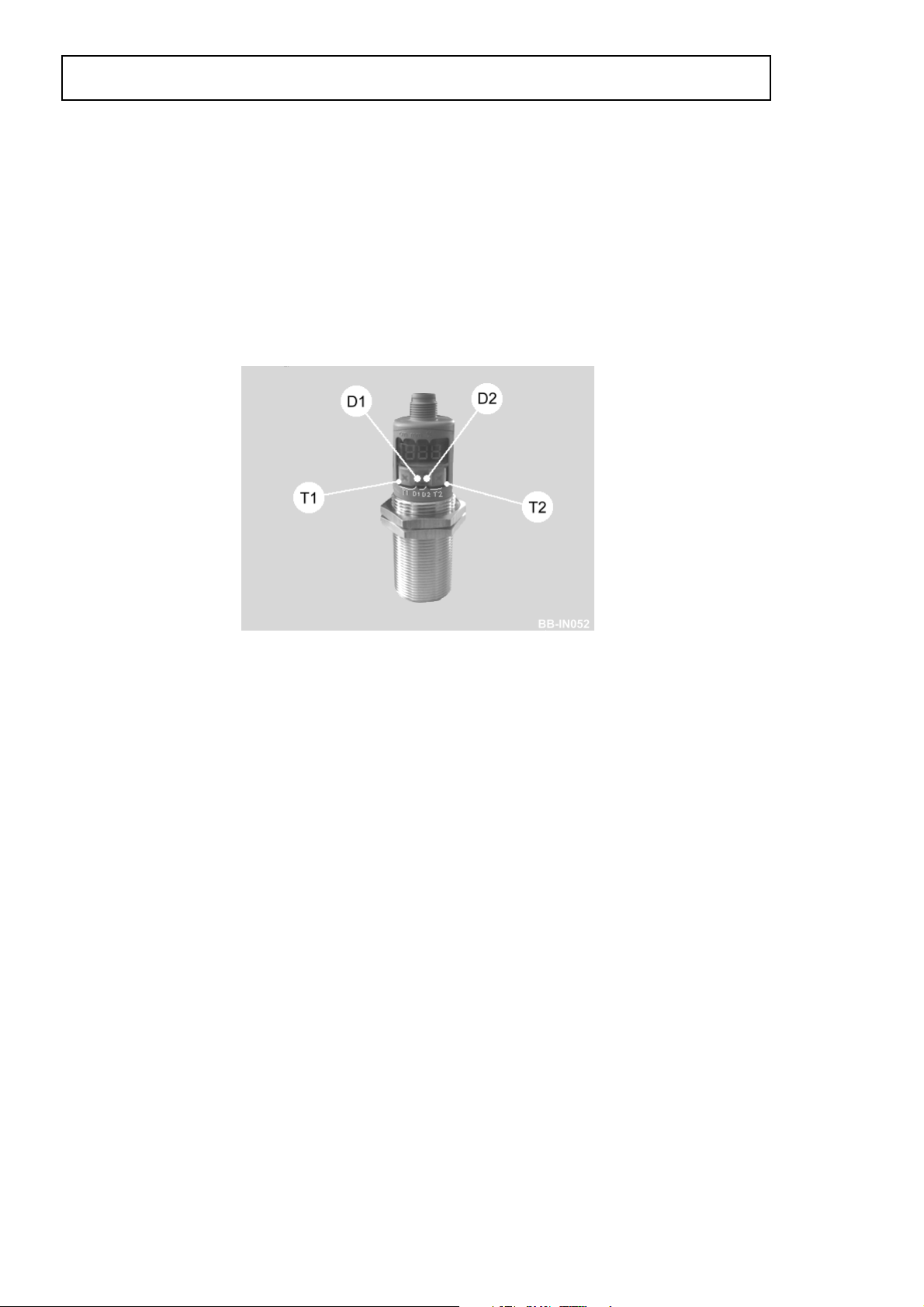

The hydraulic space selector proximity sensors are activated by the teeth of the
monitor wheels passing in front of them. When activated a red light appears on the
sensor body. Should the sensor not activate, the gap between the sensor and the
monitor wheel may need adjustment. A retaining nut holds the proximity sensor in
position. The distance between the sensor and the monitor wheel can be adjusted by
loosening the retaining nut and then moving the sensor closer or further from the
monitor wheel. This setting should be approximately 1mm to 1.5mm. Do not
overtighten. The proximity sensor must be centrally mounted over the monitor wheel.

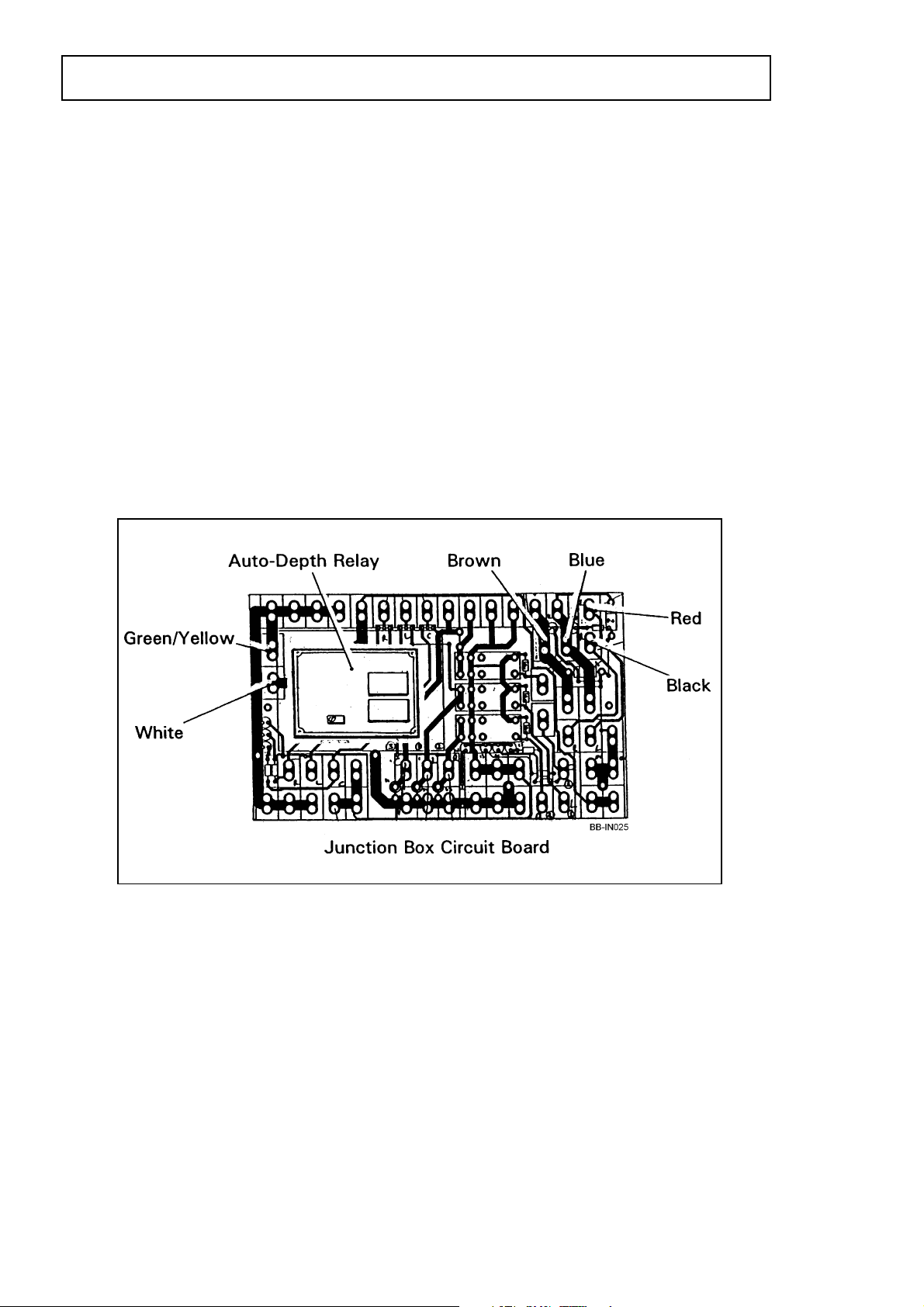

Fitting a New Automatic Depth Control Relay
Disconnect the power supply to the planter and remove the junction box lid. Connect
the six wires (red, black, green/yellow, white, brown, blue) from the auto-depth relay
to the circuit board terminals as shown (see figure 30). Secure the relay to the circuit
board using the double sided adhesive pad supplied.
Fig 30
MAINTENANCE
1.26
Lubrication
Regular lubrication is an integral part of looking after your machine. The schedule of
maintenance outlined below is a guide to when certain actions should be carried out.
If your machine requires a more frequent lubrication schedule because of your
workload, then it is advisable to reduce the time intervals.
Shafts, bearings and pivot points fitted with grease nipples should be greased with
good quality medium grease. Do not allow these points to run dry, as this will
accelerate wear
When greasing bearings some are sealed and pre-lubricated. You should take care
not to over grease this type as the seals may be damaged. If the seals become
damaged it may be possible for dirt to enter the bearing causing accelerated wear.
Use only the BP lubricants recommended by Standen or an exact equivalent
recommended by your lubricant supplier.
Medium grease = BP Energrease L S E P 2
Mechanical Drives Maintenance
All chain drives have adjusters that are visible when the appropriate guard is
removed. Adjust the chains tight enough to give positive drive without undue
stretching. Where plastic chain tension or guide blocks are fitted, these will show
fairly rapid wear initially, but will settle down when the chain rollers rather than the
side plates come into contact with the plastic. A suitable chain lubricant or a smear of
grease should be regularly applied to the chains to prevent wear.
Electrical System Maintenance
The components within the electrical system are designed to be maintenance free. If
it becomes necessary to carry out any repair, only a competent engineer capable of
this type of work should carry out the repair. Periodically ensure that all multi pin
plugs are correctly fitted into their sockets and are not becoming loose.
Hydraulic System Maintenance
The components within the hydraulic circuit are designed, on the whole, to be
maintenance free. If it becomes necessary to carry out any repair, the work should be
carried out by a competent engineer capable of this type of work.
Hydraulic oil under pressure is dangerous. Ensure that any residual
pressure is released safely before working on the system. Do not
release ram hoses without first supporting the part of the machine the
ram controls.
Cleanliness is of paramount importance. Before dismantling any part of the hydraulic
system, ensure the surrounding area is clean. If necessary, power wash the area to
be worked on. Dirt must be prevented from entering the system, so any orifices left
open, such as pipe ends or ports of motors must be blanked off with a suitable plug.
Do not use cloth or rag, as the lint from these can contaminate.
1.27
MAINT
ENANCE
As the tractor supplies the oil for the machine’s hydraulics, ensure that the tractor
hydraulic system is serviced in accordance with the manufacturer's recommendations
to prevent any contamination of the machine’s system. To extend the life of the
hydraulic components it is important to monitor the condition of the hydraulic oil.
Always maintain adequate oil level in the tractor’s reservoir.
The pressure filter (item 1, figure 31) should be replaced after the first 50 hours
running time and then every 500 hours or annually thereafter.
To replace the filter element:
1. Lower the planter to the ground. Switch off the tractor engine, apply the
handbrake and remove the ignition key.
2. Operate the spool valve feeding the planter to release any residual pressure
and then disconnect the feed hose from the tractor.
3. Unscrew the bottom casing using the spanner spigot.
4. Remove the filter element and rinse out the casing. Check the seal and renew
if necessary.
5. Fit the new element and refit the casing ensuring that it is tight.
6. Run the system and check for leaks.

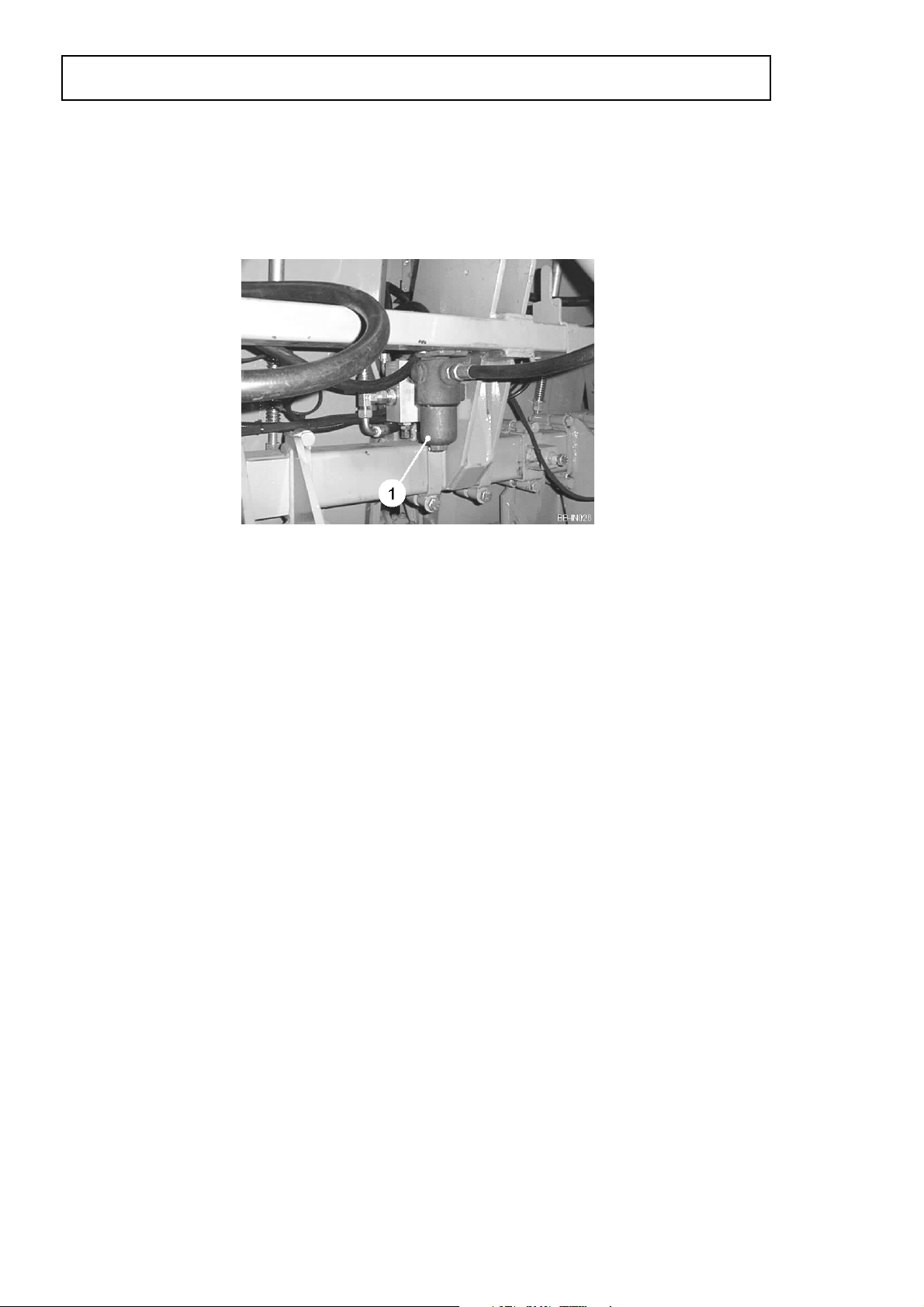

Fig 31
Daily Maintenance
During the working season the following daily maintenance should be carried out.
Check all covers and guards are in position, free from damage. Repair or replace any
found to be defective before operating the machine.
Carry out the following checklist:
1. Check tension of all drive chains, adjust if necessary and lubricate with clean
oil.
2. Check tyre pressures and adjust if necessary.
3. Check wheel nuts for tightness.
MAINTENANCE
1.28
4. Check all hydraulic cylinders, valves and pipe work for signs of leaks or
damage, repair or replace as necessary.
5. Carry out lubrication
Weekly Maintenance
During the working season the following weekly maintenance should be carried out.
1. Carry out all the procedures listed in daily maintenance.
2. Check all shafts, bearings for undue wear and replace as necessary.
3. Check all bearings for lubrication, grease as necessary.
4. Check openers, soil retention panels, ridgers/moulding boards etc. for
excessive wear, replace if necessary.
Annual Maintenance
Prior to the start of the working season the following maintenance should be carried
out.
1. Carry out all the procedures listed in daily and weekly maintenance.
2. Check feed belts and cup belts for any damage or wear and repair or replace
as necessary.
3. Check metalwork for any damage or wear and repair or replace as necessary.
4. Inspect wheel bearings and check for excessive wear, replace as necessary.
Re-pack with fresh grease on re-assembly.
5. Replace the pressure filter element. Use only genuine Standen replacement
parts. THESE ARE NOT WASHABLE ELEMENTS.
Out of Season Storage
The machine can frequently operate in soils which contain chemical fertilisers etc.
When the working season is completed wash and clean the machine thoroughly prior
to carrying out the following checks and operations.
1. Apply oil, grease or an anti rust agent on any exposed bright metal surfaces
which have been polished by the soil flow.
2. Clean all drive chains and lubricate with oil.
3. After carrying out the hydraulic residual pressure dump procedure, any parts of
hydraulic cylinders rods that are still exposed should be greased or oiled to
prevent corrosion.
1.29
MAINTENANCE
4. Ensure that the tyres are inflated to the correct pressure.
5. Ensure that the hydraulic hose quick release couplings and the electrical
connectors on the machine are kept clean and dry.
6. Check the whole machine carefully and note any repairs that may need to be
carried out. It is always better to carry out any repairs well before the
commencement of the following season.
7. Carry out all the lubrication checks outlined in routine maintenance.
8. Ensure the control boxes are kept in a safe, dry place and available for use at
the commencement of work or for any maintenance to be carried out.
6. Ensure that this handbook is kept in a safe place and available for use at the
commencement of work or for any maintenance to be carried out.
SPECIFICATIONS
1.30
Machine Dimensions
Length 2.70 m
Width 3.30 m
Height 2.25 m
Machine Weight
4 Row 1930 kg
Technical Data
Row widths 86 cm (34”) to 91 cm (36”)
Seed spacing 13 cm (5”) to 51 cm (20”)
Tractor power requirement 100 bhp minimum
Minimum oil flow requirement 13.5 ltr/min (3 gal)
Tyre size (standard) 10.0 / 75 – 15.3
Tyre pressure 3.1 Bar (45 psi)
Nut/bolt torque
Description Torque Description Torque
M6 nyloc zinc nut 10 lb/ft M6 bolt/steel nut 7 lb/ft
M8 nyloc zinc nut 23 lb/ft M8 bolt/steel nut 19 lb/ft
M10 nyloc zinc nut 44 lb/ft M10 bolt/steel nut 38 lb/ft
M12 nyloc zinc nut 87 lb/ft M12 bolt/steel nut 70 lb/ft
M16 nyloc zinc nut 208 lb/ft M16 bolt/steel nut 170 lb/ft
M20 nyloc zinc nut 380 lb/ft M20 bolt/steel nut 325 lb/ft
M24 nyloc zinc nut 690 lb/ft
M24 bolt/steel nut 565 lb/ft
1.31
SEED POPULATION TABLES
Seed Population per Acre
APPENDIX
1.32
Optional Automatic Depth Control (from 2013)
Automatic depth control ensures that the desired planting depth is maintained
irrespective of the contours of the bed. The ultrasonic sensor (item 1, figure 32)
activates the hydraulic control valve operating the depth ram (item 1, figure 20). The
depth ram then raises/lowers the planter relative to the wheels thus maintaining
planting depth. The ‘RAISE’ and ‘LOWER’ distances are preset at the factory to
approximately 300mm and 315mm respectively, this gives a neutral (dead-band)
zone of approximately 15mm. The active sensing distance is shown on the sensor
display. To adjust the settings, see ‘Depth Control Sensor Adjustment’.
Fig 32
A timer is built into the circuit which is designed to provide a time delay between
activation of the ‘UP’ sensor and actuation of the hydraulic control valve. The time
delay can be adjusted between 1 and 5 seconds by turning the relay potentiometer
screw (item 1, figure 33) located under the junction box lid. Time delay is increased
by turning the screw clockwise and decreased by turning it anti-clockwise. Normally a
3 second delay smoothes out any surface irregularities allowing the planter to
gradually change height according to changes in bed height.
To set the automatic planting depth:
1. Position the planter over the prepared bed.
2. With the feed belt/auto-depth control box ‘OFF/ON AUTO’ switch in the ‘OFF’
position, set the depth ram to mid-stroke position using the push button
switches marked ‘RAISE/LOWER’.
3. Set the opener planting depth (see section ‘Setting the Planting Depth’).
4. Fully lower the sensor leg (item 2, figure 32) and then gradually raise it until
both LED’s (D1 & D2, fig 34) are illuminated green. This is the neutral (deadband) zone. Raise the leg slightly to position the sensor in the middle of the
neutral zone. Ensure both LED’s are still green and then retighten the leg.
Fig 33
1.33
APPENDIX
5. Engage the auto-depth control by setting the control box ‘OFF/ON AUTO’
switch to the ‘ON’ position. If necessary re-adjust the height of the sensor leg
to regain the desired planting depth.
7. Drive forward and check the planting depth. Make further adjustments if
necessary.
If during work adjustments in planting depth need to be made manually, the autodepth control can be over-ridden by pressing the control box buttons marked
‘RAISE/LOWER’.
Fig 34
APPENDIX
1.34

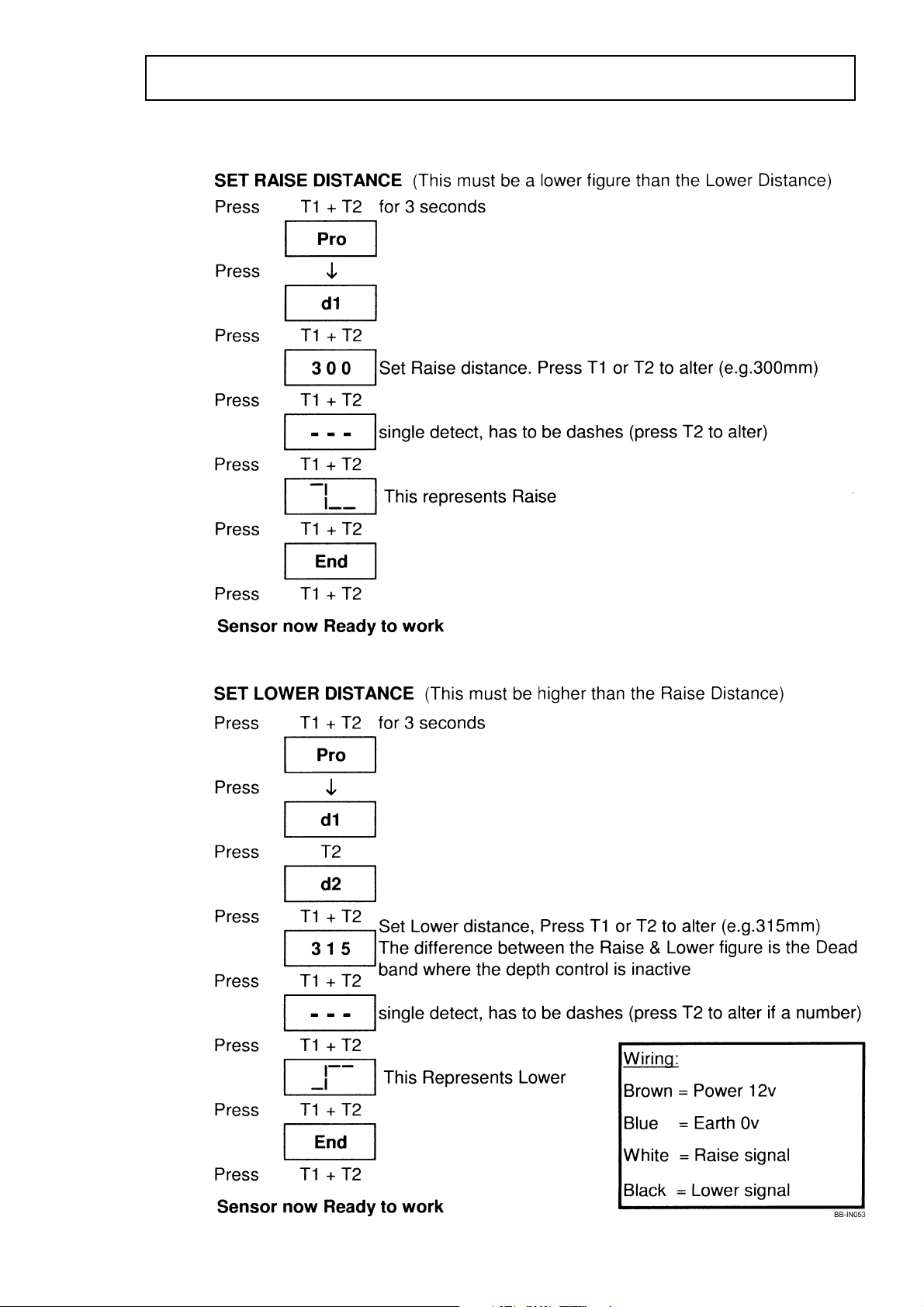

Depth Control Sensor Adjustment (from 2013)
Loading...
