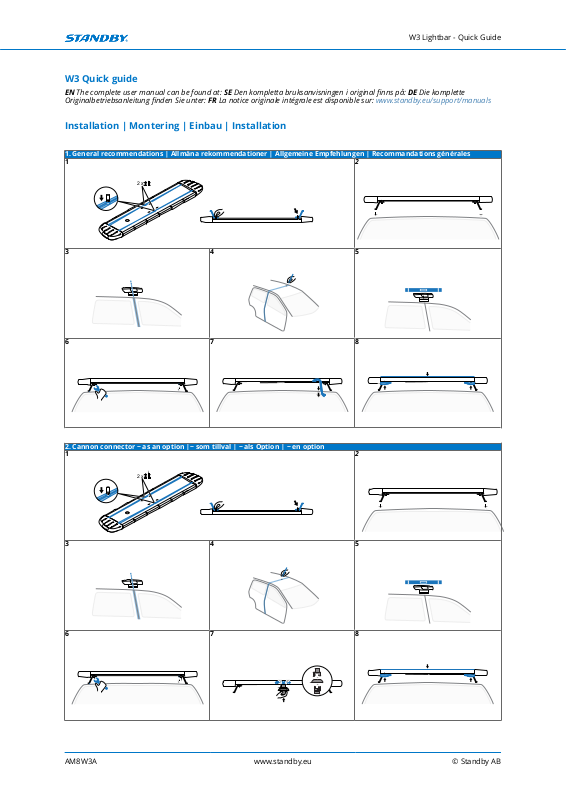

W3 Lightbar - Quick Guide
W3 Quick guide
EN The complete user manual can be found at: SE Den kompletta bruksanvisningen i original nns på: DE Die komplette
Originalbetriebsanleitung nden Sie unter: FR La notice originale intégrale est disponible sur: www.standby.eu/support/manuals
Installation | Montering | Einbau | Installation
1. General recommendations | Allmäna rekommendationer | Allgemeine Empfehlungen | Recommandations générales
1
3 4 5
2
6 7 8
2. Cannon connector − as an option |− som tillval | − als Option | − en option
1
3 4 5
2
6 7 8
AM8W3A www.standby.eu © Standby AB
Connections | Inkoppling | Anschlussbeschreibung | Connexions
Black / Svart / Schwarz / Noir
Red / Röd / Rot / Rouge
+12-24 VDC
+
–
20A
Green / Grön / Grün / Vert
CAN bus
Yellow / Gul / Gelb / Jaune
CAN bus
Safety
WARNING
This product contains high intensity LED devices. To prevent eye damage, DO NOT look into the light
beam at close range.
W3 Lightbar - Quick Guide
WARNING
Hot surfaces. Do not touch the lightbar when the light is on.
Technical data
Lens Polycarbonate
Color, lens Clear
Color, LED Blue, amber, white, red, green, blue/amber, blue/red, blue/white or amber/white
Cable 4.5 m
Voltage 12-24 VDC
Power consumption 15 A with peak at 30 A for less than 50 ms.
Length 590, 930, 1100, 1270, 1440, 1600, 1770 or 1940 mm
Height Corner module: 65 mm
Width 280 mm
Interface CAN bus of a Standby Control System or break out box
Approvals ECE R6, ECE R7, ECE R10, ECE R65, ICAO
Inboard module: 47 mm
