Stamina BODYTRAC GLIDER 1060 Owner's Manual

When calling for parts or

service, please specify

the following number

:

Model#: 35-1060

CAUTION:
Weight on this product should not exceed 250 lbs.

Owner's

Manual

Product May Vary Slightly From Pictured.

STAMINA PRODUCTS

MADE IN CHINA

©

2015 Stamina Products, Inc.

2015, 12

Exercise can present a
health risk. Consult a
physician before beginning
any exercise program with
this equipment. If you feel
faint or dizzy, immediately
discontinue use of this
equipment. Serious bodily
injury can occur if this
equipment is not assembled
and used correctly. Serious
bodily injury can also occur
if all instructions are not
followed. Keep others and
pets away from equipment
when in use. Always make
sure all bolts and nuts are
securely tightened prior to
each use. Follow all safety
instructions in this manual.

!

WARNING

This Product is Distributed Exclusively by

2040 N. Alliance, Springeld, MO 65803

Customer Care

1 [phone]

www.staminaproducts.com

TABLE OF CONTENTS

Safety Instructions ...................................... 2

Before You Begin ........................................ 4

Equipment Warning, Caution & Notice Labels ... 5

Hardware Identication Chart .................... 6

Assembly Instructions ................................ 7

Operational Instructions ........................... 12

Maintenance ............................................... 13

Storage ....................................................... 14

Conditioning Guidelines ........................... 15

Warm-Up and Cool-Down ......................... 16

Warranty ..................................................... 17

Product Parts Drawing .............................. 18

Parts List .................................................... 19

Notes ........................................................... 21

Fax/Mail Ordering Form ............................ 22

SAFETY INSTRUCTIONS

2

1. Save these instructions and ensure that other exercisers read this manual prior to using the

BodyTrac

Glider 1060

for the rst time.

2. Read all warnings and cautions posted on the BodyTrac Glider 1060.

3. The BodyTrac Glider 1060 should only be used after a thorough review of the Owner’s Manual.

Make sure that

it is properly assembled and tightened before use.

4. We recommend that two people be available for assembly of this product.

5. Keep children away from the BodyTrac Glider 1060. Do not allow children to use or play on the BodyTrac
Glider 1060. Keep children and pets away from the BodyTrac Glider 1060 when it is in use.

6. It is recommended that you place this exercise equipment on an equipment mat.

7. Set up and operate the BodyTrac Glider 1060 on a solid level surface. Do not position the BodyTrac Glider
1060 on loose rugs or uneven surfaces.

8. Make sure that adequate space is available for access to and around the BodyTrac Glider 1060.

9. Keep ngers clear of all pinch points when folding and unfolding the BodyTrac Glider 1060.

10. Before using, inspect the BodyTrac Glider 1060 for worn or loose components, and securely tighten or replace
any worn or loose components prior to use.

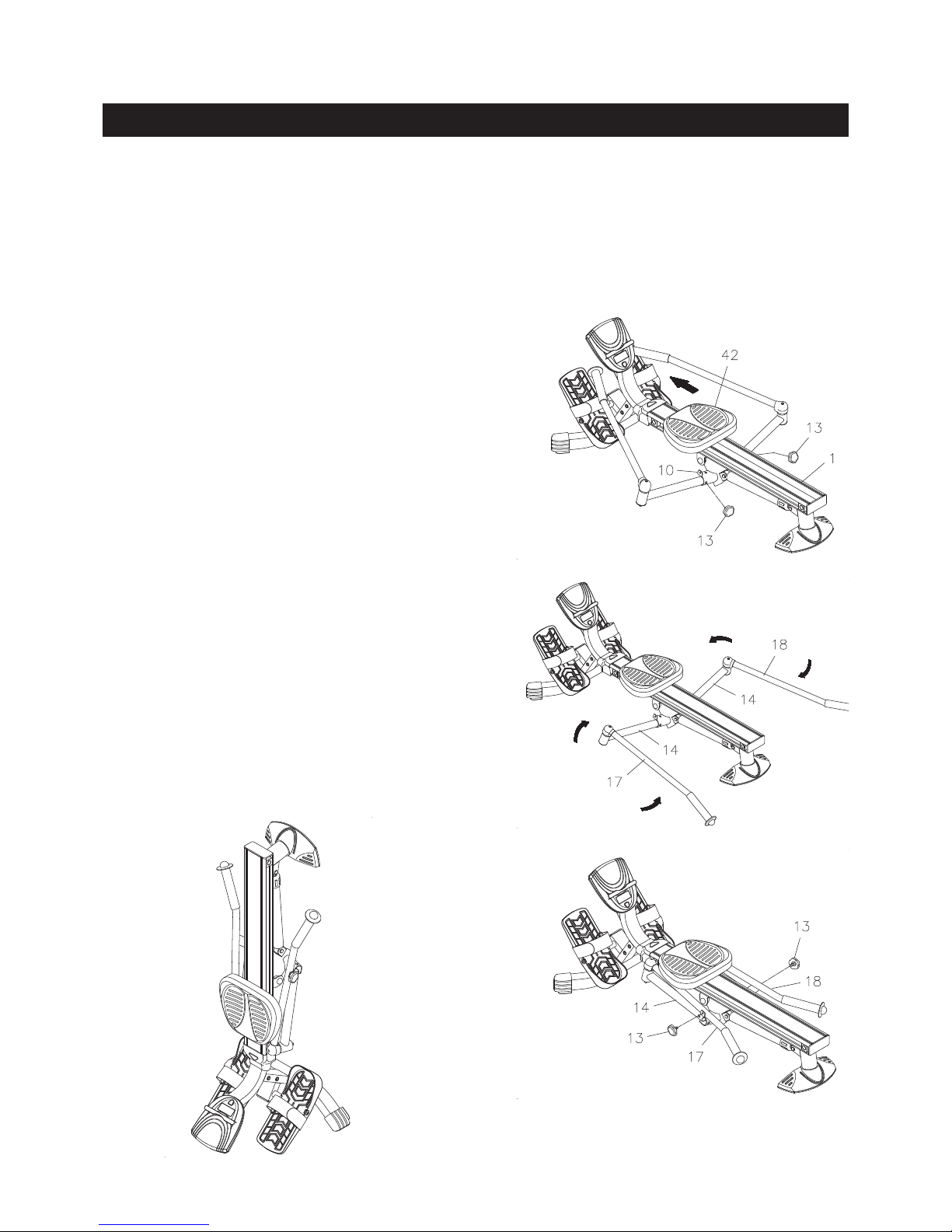

11. Before using, always check the Extension Arms(14) are securely tightened with the Locking Knob(13).

12. Shocks on steppers/rowers get HOT during use. To avoid burns, do not touch the shocks until they have time to
cool.

13. Consult a physician prior to commencing an exercise program and follow his/her recommendations in

developing your tness program. If at any time during exercise you feel faint, dizzy, or experience pain, stop and

consult your physician.

14. Always choose the workout which best ts your physical strength and exibility level. Know your limits and train
within them. Always use common sense when exercising.

15. Do not wear loose or dangling clothing while using the BodyTrac Glider 1060.

16. Never exercise in bare feet or socks; always wear proper footwear such as running, walking, or cross training

shoes that t well, provide foot support, and feature non-skid rubber soles.

17. Be careful to maintain your balance while using, mounting, dismounting, or assembling the BodyTrac Glider
1060, loss of balance may result in a fall and bodily injury.

18. Do not use the seat to move the BodyTrac Glider 1060. The Seat will move and the Seat Carriage may pinch

your hand or ngers.

19. The BodyTrac Glider 1060 should not be used by persons weighing over 250 pounds.

20. The BodyTrac Glider 1060 should be used by only one person at a time.

21. The BodyTrac Glider 1060 is for consumer use only. It is not for use in public or semipublic facilities.

!

WARNING

This product contains a chemical known to the State of California to cause
cancer and birth defects or other reproductive harm.
Consult your physician before starting this or any exercise program. This is
especially important if you are over the age of 35, have never exercised before,
are pregnant, or suffer from any health problem. This product is for home use
only. Do not use in institutional or commercial applications. Failure to follow all
warnings and instructions could result in bodily injury and property damage.
To reduce the risk of serious injury, read the following Safety Instructions
before using the BodyTrac Glider 1060.

!

WARNING

!

CAUTION

Thank you for choosing the BodyTrac Glider

1060. We take great pride in producing this quality

product and hope it will provide many hours of
quality exercise to make you feel better, look
better, and enjoy life to its fullest.

It's a proven fact that a regular exercise program
can improve your physical and mental health.
Too often, our busy lifestyles limit our time and
opportunity to exercise. The BodyTrac Glider
1060 provides a convenient and simple method to
begin your journey of getting your body in shape
and achieving a happier and healthier lifestyle.

Before reading further, please review the
drawing below and familiarize yourself with the
parts that are labeled.

Read this manual carefully before using the

BodyTrac Glider 1060.

BEFORE YOU BEGIN

Although Stamina constructs its products with

the nest materials and uses the highest standards

of manufacturing and quality control, there can
sometimes be missing parts or incorrectly sized
parts. If you have any questions or problems with
the parts included with your BodyTrac Glider
1060, please do not return the product. Contact us
FIRST!

If a part is missing or defective, please go to
staminaproducts.com under the Service section
and order the part needed, or call us toll free at

1-800-375-7520 (in the U.S.). Our Customer Care

Staff is available to assist you from 7:30 A.M. to
5:00 P.M. (Central Time) Monday through Thursday
and 8:00 A.M. to 3:00 P.M. (Central Time) on
Friday.

Be sure to have the name and model number of
the product available when you contact us.

4

THE FOLLOWING TOOLS ARE REQUIRED FOR ASSEMBLY : Allen Wrench (5mm)

Allen Wrench (5mm)

Wrench (13mm)

Center Beam

Extension Arm

Extension Arm

Pivot Connector

Shock

Rear
Support

Stabilizer
Cap

Seat

Left Handlebar

Right Handlebar

Front Cover

Front Support

Meter

Pedal Cap

Front

Stabilizer

Left

Stand Cap

Caution Label

Pedal Strap

This chart is provided to help identify the warning, caution, and notice labels on the BodyTrac Glider

1060. Please take a moment to familiarize yourself with all of the warning, caution, and notice labels.

EQUIPMENT WARNING, CAUTION & NOTICE LABELS

5

CAUTION LABEL(62)C1

Labels are larger than actual size

SHOCK CAUTION(27)C2

61 Lock Washer (M8) 2

Part Number and Description Qty

6

36 Large Washer (M8) 2
59 Washer (M8) 8

51 Bolt, Button Head (M8 x 1.25 x 15mm) 6
53 Bolt, Button Head (M8 x 1.25 x 25mm) 6

49 Screw, Round Head (M5 x 0.8 x 10mm) 2

38 Nylock Nut (M8 x 1.25) 2

length

length

mm.

in.

INCHES

This chart is provided to help identify the fasteners used in the assembly process. Place the washers or

the ends of the bolts or screws on the circles to check for the correct diameter. Use the small scale to

check the length of the bolts and screws.

NOTICE: The length of all bolts and screws, except those with flat

heads, is measured from below the head to the end of the bolt
or screw. Flat head bolts and screws are measured from the
top of the head to the end of the bolt or screw.

After unpacking the unit, open the hardware bag and make sure that you have all the following
fasteners. Some fasteners may be already attached to the parts.

MILLIMETERS

0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150

0 1/2

1 1/2 2 1/2 3 1/2 4 1/2 5 1/2 6

6 8

10 12

3/16"

1/4" 5/16" 3/8" 1/2"

HARDWARE IDENTIFICATION CHART

ASSEMBLY INSTRUCTIONS

7

Key Rib

STEP 1

Lay the Main Frame Assembly on the oor as shown in the illustration. Now refer to inset drawing A. Make

sure the Key Rib in the STABILIZER CAP(5) aligns with the slot in the REAR SUPPORT(4), then press
the STABILIZER CAP(5) onto the REAR SUPPORT(4).

STEP 2

Connect the EXTENSION WIRE(39) to the SENSOR WIRE(40). Then insert the FRONT SUPPORT(26)

into the SLEEVE(25) which in inside of the CENTER BEAM(1) and secure with the SUPPORT PLATE(23),
BUTTON HEAD BOLTS(M8x1.25x25mm)(53), LOCK WASHERS(M8)(61), and WASHERS(M8)(59).

STEP 3

Turn the Main Frame Assembly to the normal upright position. Attach the SEAT STOPPERS(3) to both

sides of the CENTER BEAM(1) with BUTTON HEAD BOLTS(M8x1.25x25mm)(53).

A.

Place all parts from the box in a cleared area and position them on the oor in front of you. Remove

all packing materials from your area and place them back into the box. Do not dispose of the packing
materials until assembly is completed. Read each step carefully before beginning. If you are missing
a part, please go to staminaproducts.com under the Service section and order the part needed,
e-mail us at [e-mail], or call us toll free at 1-800-375-7520 (in the U.S.).
Our Customer Care Staff is available to assist you from 7:30 A.M. to 5:00 P.M. (Central Time) Monday
through Thursday and 8:00 A.M. to 3:00 P.M. (Central Time) on Friday.
