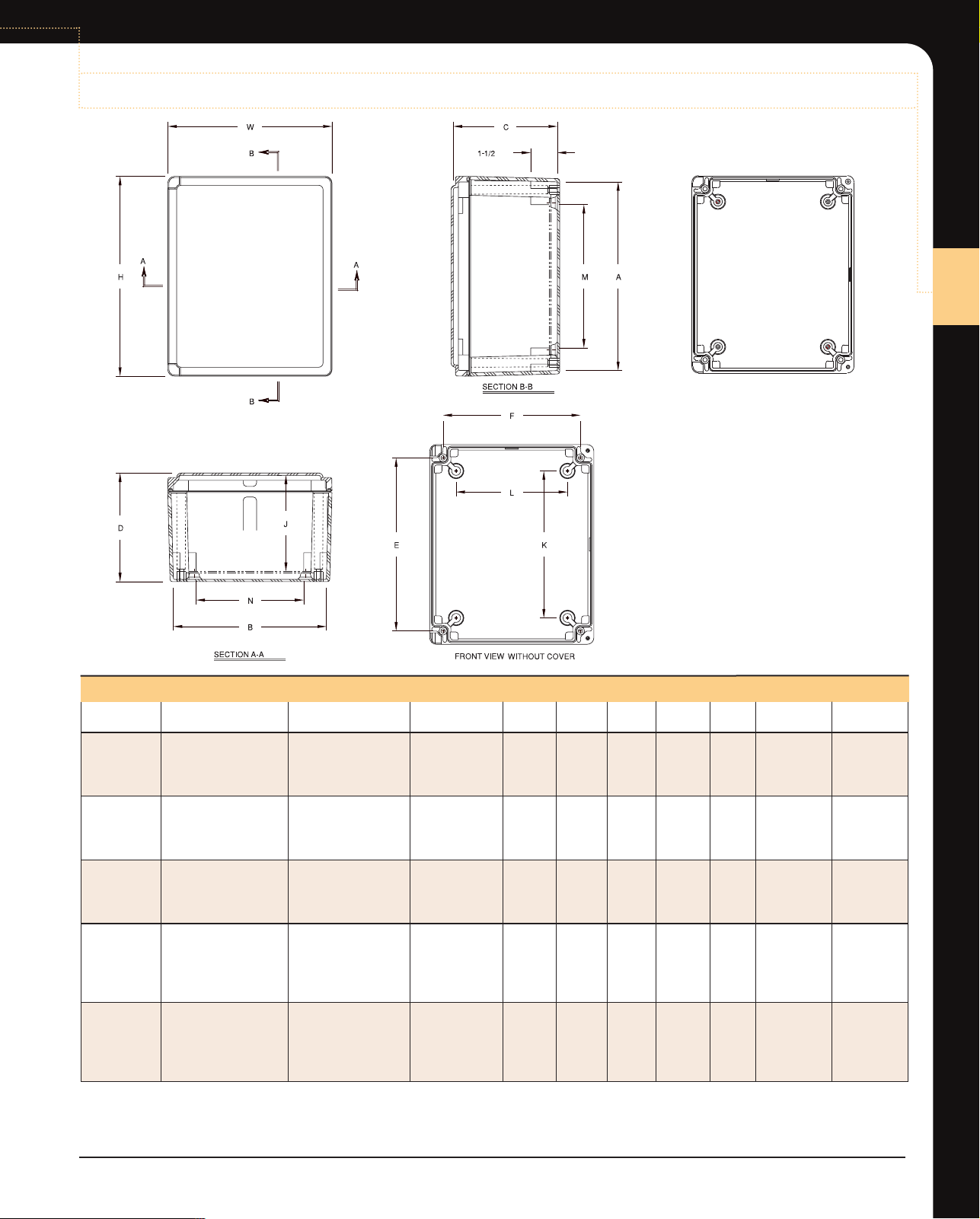

Classic Series Opaque Cover Enclosures

SIZE ID OVERALL INSIDE MOUNTING SHIPPING PANEL

NUMBER H X W X D A X B X C E X F JKLMNWEIGHT NUMBER

CL707W 7.21 x 7.21 x 5.09 6.65 x 6.65 x 4.84 5.71 x 5.71 4.39 4.25 4.25 4.04 4.04 3.5 lbs. BP66*
CL707HW (183 x 183 x 129) (169 x 169 x 123) (145 x 145) (111) (108) (108) (103) (103)
CL707HL
CL707HPL

CL907W 9.21 x 7.21 x 5.09 8.59 x 6.59 x 4.84 7.71 x 5.71 4.39 6.25 4.25 6.04 4.04 4.2 lbs. BP86*
CL907HW (234 x 183 x 129) (218 x 167 x 123) (196 x 145) (111) (159) (108) (154) (103)
CL907HL
CL907HPL

CL1109W 11.21 x 9.21 x 6.09 10.59 x 8.59 x 5.84 9.71 x 7.71 5.39 8.25 6.25 8.04 6.04 5.9 lbs. BP108*
CL1109HW (285 x 234 x 155) (269 x 218 x 148) (247 x 196) (137) (210) (159) (204) (154)
CL1109HL
CL1109HPL

CL1311W 13.21 x 11.21 x 6.59 12.59 x 10.59 x 6.34 11.71 x 9.71 5.89 10.25 8.25 10.04 8.04 7.6 lbs. BP1210*
CL1311HW (336 x 285 x 167) (320 x 269 x 161) (298 x 247) (150) (260) (210) (255) (204)
CL1311HL
CL1311HLL
CL1311HPL

CL1513W 15.21 x 13.21 x 7.09 14.55 x 12.55 x 6.84 13.71 x 11.71 6.39 12.25 10.25 12.04 10.04 11.4 lbs. BP1412*
CL1513HW (386 x 336 x 180) (370 x 319 x 174) (348 x 298) (162) (311) (260) (306) (255)
CL1513HL
CL1513HLL
CL1513HPL

Note: Hinged Short Side available; consult factory for details.
All measures are in inches, items in parentheses are in millimeters.
*Panel ordered separately.
